Total Chaos UCA retrofit with Icon Delta Joint

Discussion in 'Suspension' started by WacoTacoma, Mar 13, 2021.

  1. Mar 13, 2021 at 6:14 PM
    #1
    WacoTacoma

    WacoTacoma [OP] Active Member

    Joined:
    Feb 16, 2017
    Member:
    #210748
    Messages:
    36
    Gender:
    Male
    First Name:
    Hunter
    Colorado Springs, Colorado
    Vehicle:
    Silver 2012 trd sport
    King 2.5 /TC UCA 33" Falken MT 16" SCS Ray 10 DIY Wedge Camper
    After about 30,000 miles I figured it was time to refresh my Total Chaos UCAs with new bushings and uniballs. After shopping around for a few weeks I was shocked at the price for 2 new uniballs (almost $200) for a regular maintence part, that was just gonna wear out in another 2 years.

    So I looked into a different option that seemed like a good idea but I could not find very much information about. I wanted to take a Icon Delta Joint and put it into my Total Chaos UCA.

    For those that dont know what a Delta Joint is its basically a high angle greasable ball joint that claims to have the strength of a uniball. I dont want to get into the details of ball joint vs uniball you can look that up for your self. I just wanted to provide more information about this topic because when I was looking to see if this would even possible i couldn't find anything and I was kinda taking a shot in the dark.

    Here is how it went.

    First I ordered Icons Delta Joint (part 614560 for non-icon uca) from toytec lifts, which was the best price i could find at the time, as well as they were local ~$275

    I also purchase the adaper tube (part 614519) this was required install the new joint as a normal uniball/ball joint press would/might be too short ~$30

    Access to a hydraulic press will make this much easier.

    Pushing out the old uniball is pretty self explanitory, remove the snap ring and press out from top side, after pressing out I cleaned up and applied some anti seize to inside of the UCA. then I used the adapter to press in the new delta joint, reinstall the snap ring and thats it!

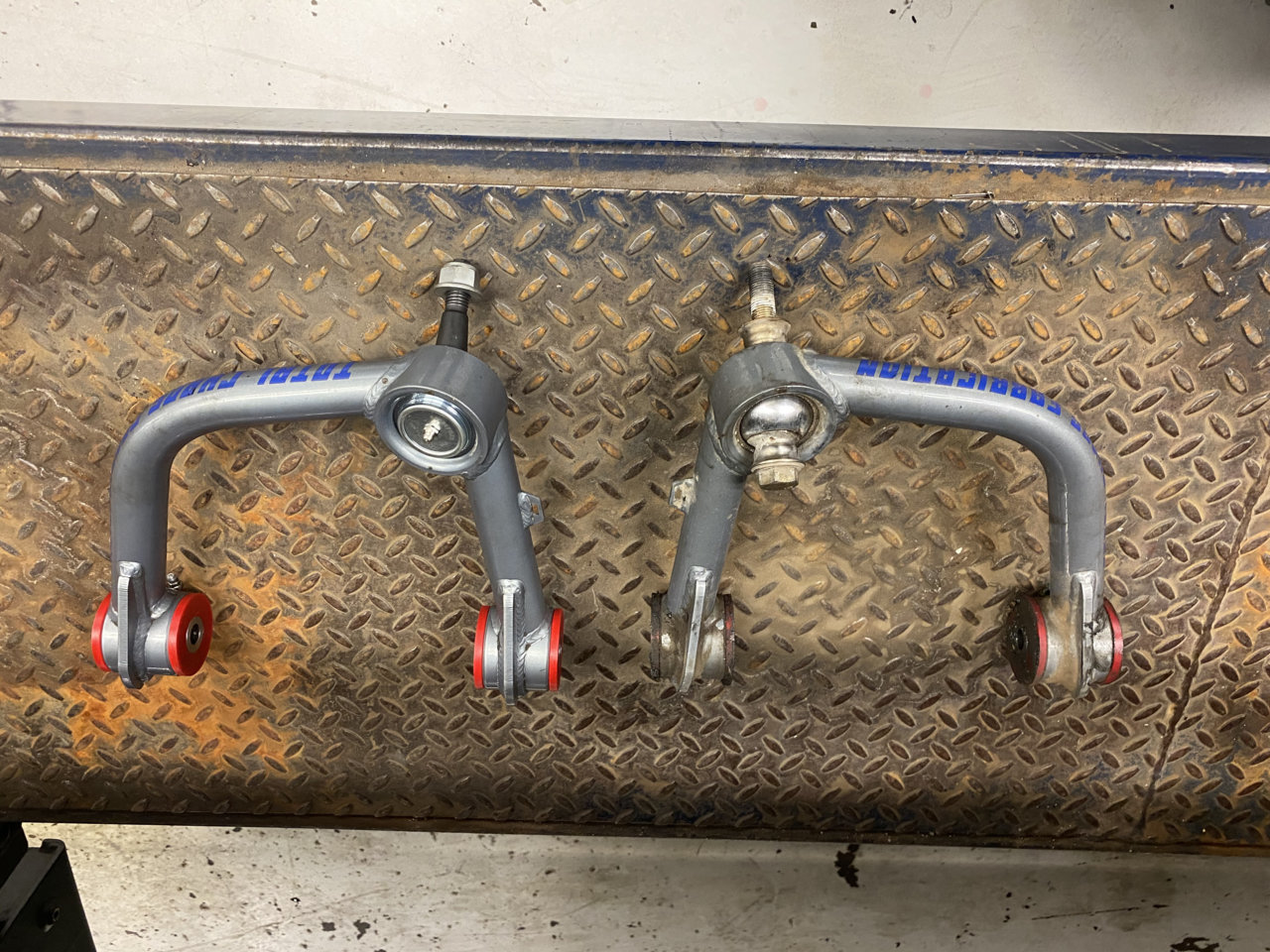

    Here are some of the pictues I took after the install and may answer some fitment questions.

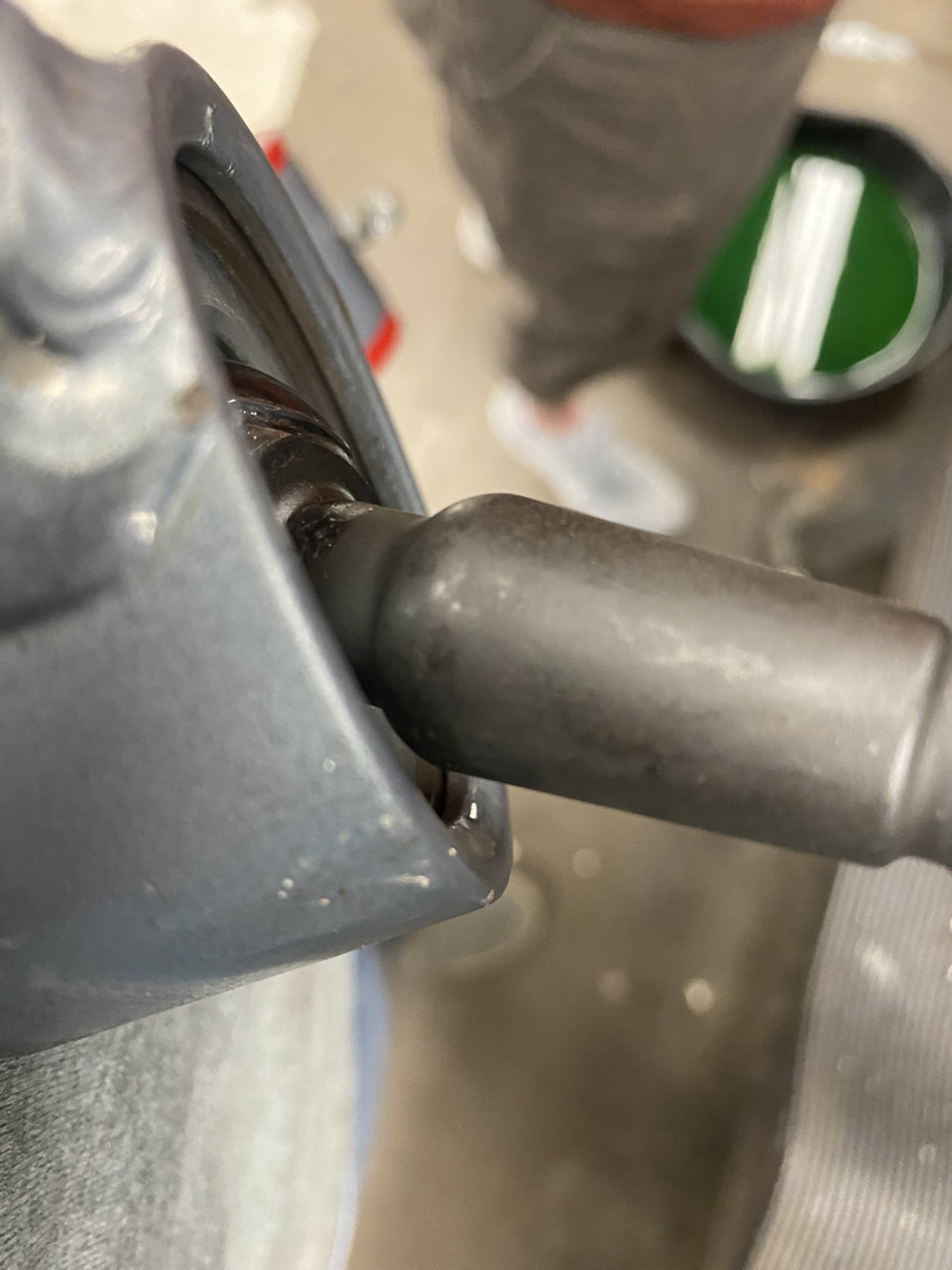

    This is a close up of the joint at full articulation showing that the stem won't contact the arm at full droop

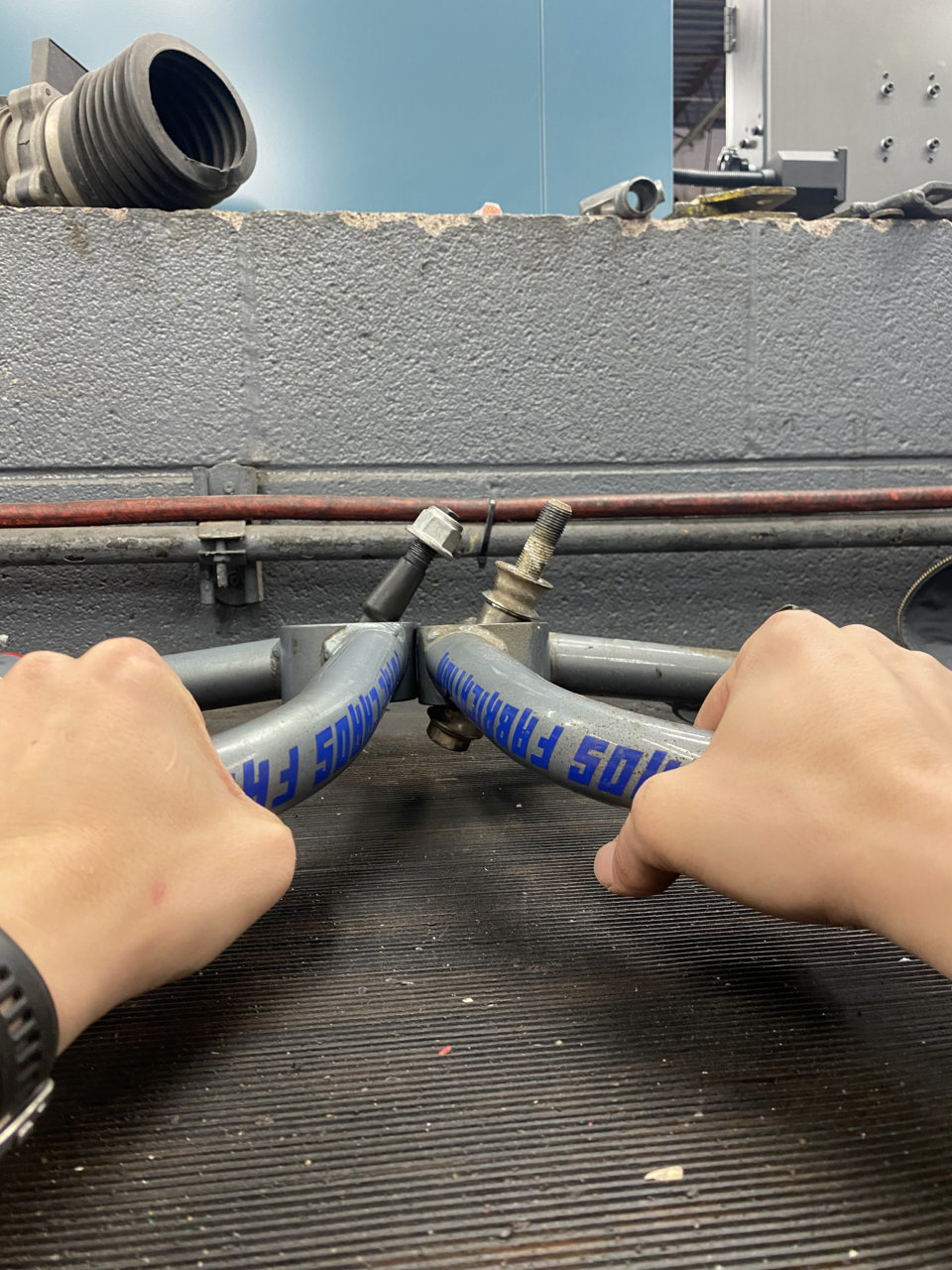

    Here is a side by side comparison of the angle improvement of the new delta joint vs the old uniball, its subtle but it is an improvement

    Before and After
    This was a really straight forward modification that I think will last much longer than the uniball.
