towing lights help

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jmhjr59sc, Oct 26, 2024.

  1. Oct 26, 2024 at 7:40 AM
    #1
    jmhjr59sc

    jmhjr59sc [OP] Member

    Joined:
    Jun 20, 2024
    Member:
    #451808
    Messages:
    6
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2009 Toyota Tocoma regular cab 2.7 I4
    none

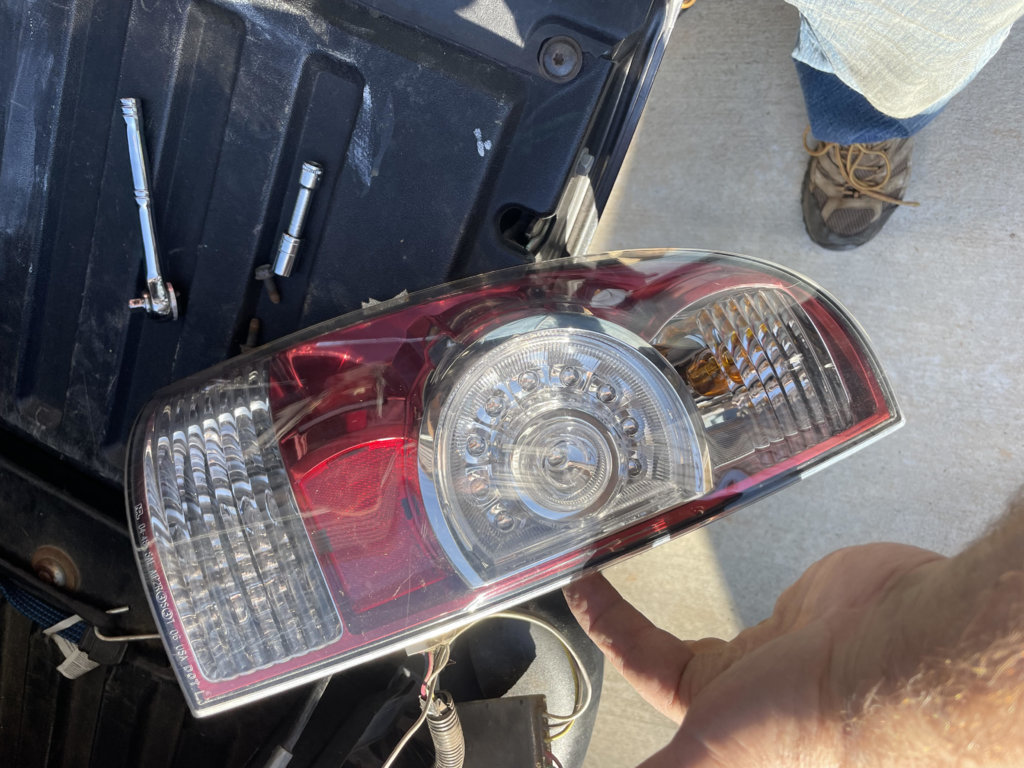

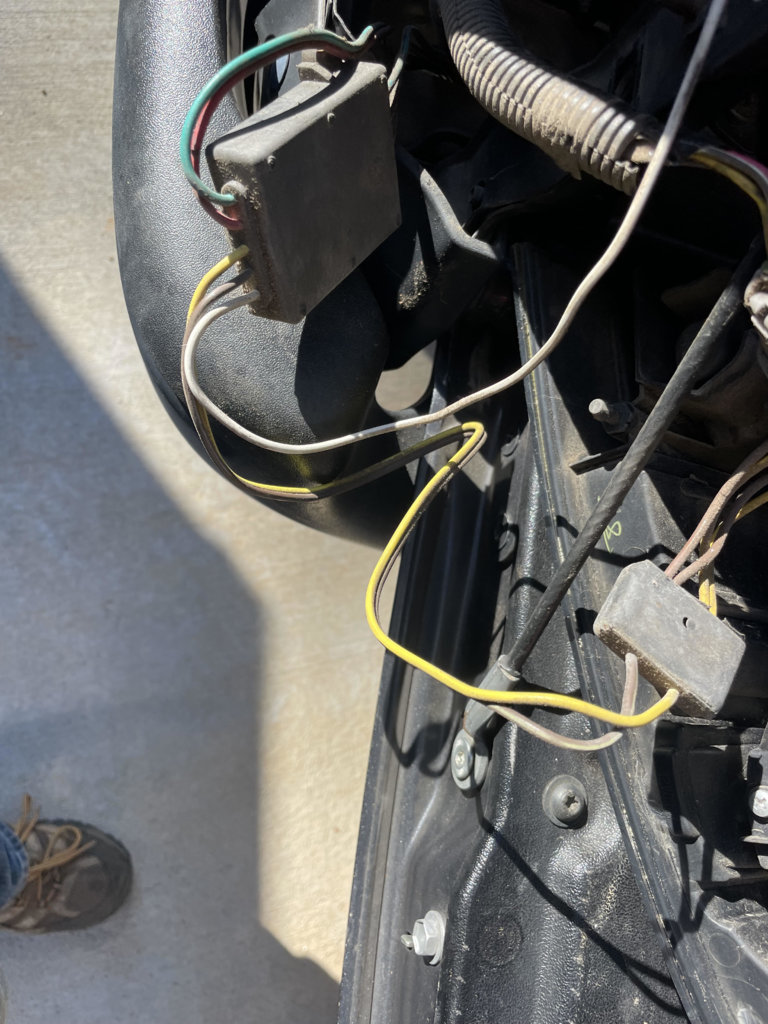

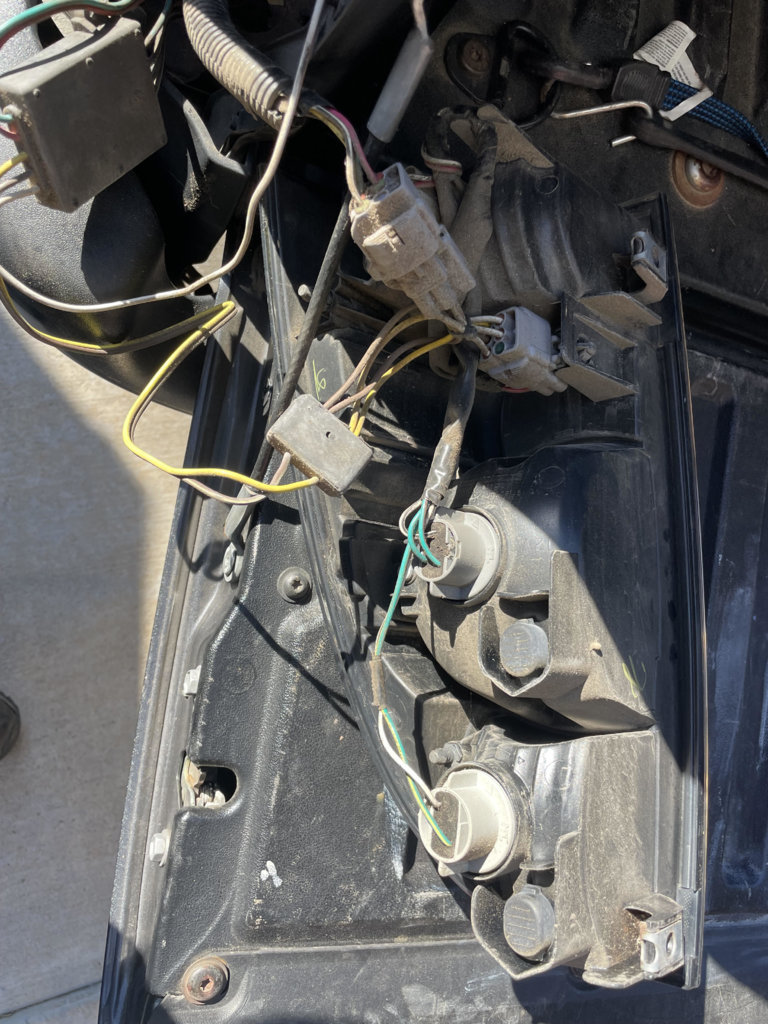

    I was towing my enclosed trailer and the pigtail on my truck got pinched and the wires were exposed. My truck doesn't have tail lights any longer. I checked the fuses and they're all good. I've included 3 pictures of my tail lights and the wiring configuration on them. Can someone help determine what could be the cause of my tail lights not working? Is the taillight LED gone bad?

    Thanks for the help.

    light 1.jpg
    light 2.jpg
    light 3.jpg

  2. Oct 26, 2024 at 7:42 AM
    #2
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,588
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Assuming your TAIL fuse is good?

    Unplug that converter box and plug your lights back in the stock plugs and see what you have, those converter boxes aren't known for being all that reliable.

    SR-71A, Too Stroked and Jimmyh like this.
  3. Oct 26, 2024 at 8:50 AM
    #3
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,030
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    You pinched the trailer wires to the exposed copper it probably shorted and blew the tail fuse.

    SR-71A likes this.
  4. Oct 28, 2024 at 2:04 PM
    #4
    jmhjr59sc

    jmhjr59sc [OP] Member

    Joined:
    Jun 20, 2024
    Member:
    #451808
    Messages:
    6
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2009 Toyota Tocoma regular cab 2.7 I4
    none
    Ok, I have disconnected the towing boxes and plugged in the factory plugs eliminating them and I still have no tail lights. I have directionals, brake lights and backup lights but no tail lights. I have checked the fuses and they appear to be ok. I even checked them with an ohm meter and they test good.

    1. Could it be the LED tail lights went bad on both sides? Please help.

  5. Oct 28, 2024 at 5:04 PM
    #5
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,777
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Do your license plate lights work?

  6. Oct 28, 2024 at 5:26 PM
    #6
    jmhjr59sc

    jmhjr59sc [OP] Member

    Joined:
    Jun 20, 2024
    Member:
    #451808
    Messages:
    6
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2009 Toyota Tocoma regular cab 2.7 I4
    none
    No license plate lights either

  7. Oct 28, 2024 at 7:26 PM
    #7
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,588
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Check if you have power on both sides of the TAIL fuse with the tail lights on.


    Attached Files:

    TnShooter, isdjww and Jimmyh like this.
  8. Oct 30, 2024 at 10:05 AM
    #8
    jmhjr59sc

    jmhjr59sc [OP] Member

    Joined:
    Jun 20, 2024
    Member:
    #451808
    Messages:
    6
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2009 Toyota Tocoma regular cab 2.7 I4
    none
    I only have power on one side of where the 30 amp tow/tail fuse goes and it's 12 amps

  9. Oct 30, 2024 at 10:17 AM
    #9
    jmhjr59sc

    jmhjr59sc [OP] Member

    Joined:
    Jun 20, 2024
    Member:
    #451808
    Messages:
    6
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2009 Toyota Tocoma regular cab 2.7 I4
    none
    No tail lights or license plate lights. Please help!!!! I've checked the 30 amp fuse and it's good I've removed the converter boxes and still no luck. I have directionals, back up lights and brake lights. I've exhausted everything I can think of.

  10. Oct 30, 2024 at 10:25 AM
    #10
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,030
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    You need to check the TAIL Fuse 10 AMP inside the truck behind the change tray on the left side of the steering wheel.

    Pull the change tray out of the dash and you will see the fuse panel in the hole.

    [​IMG]

  11. Oct 30, 2024 at 10:39 AM
    #11
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,744
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Take the 10A TAIL fuse out and check Resistance (ohms) between the two blades of the fuse. You cannot always verify with a visual inspection alone

    [​IMG]

  12. Oct 30, 2024 at 10:57 AM
    #12
    jmhjr59sc

    jmhjr59sc [OP] Member

    Joined:
    Jun 20, 2024
    Member:
    #451808
    Messages:
    6
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2009 Toyota Tocoma regular cab 2.7 I4
    none
    Thanks for the help, I was unaware of the fuse box behind the chain drawer. Yippie!!!!!!!!!!!
