Toyota TRD OEM lift kit

Discussion in '3rd Gen. Tacomas (2016+)' started by SpensirG, Nov 22, 2020.

  1. Nov 17, 2021 at 4:19 AM
    #1981
    ccarlson

    ccarlson AvGeek

    Joined:
    Oct 1, 2014
    Member:
    #139473
    Messages:
    42
    Gender:
    Male
    First Name:
    Chad
    Chicagoland
    Vehicle:
    2021 Tacoma DCSB TRD O/R 6MT
    TRD Lift (prior to delivery)
    I’ve looked at the vehicle, the parts diagrams, and the TRD Lift install instructions. I don’t see shims on the truck, in the diagrams, or mentioned at all in the lift kit instructions. Would you be able to point me to a source for the stock shim information?

  2. Nov 17, 2021 at 5:30 AM
    #1982
    Fast1

    Fast1 Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18875
    Messages:
    678
    Gender:
    Male
    Minneapolis, MN
    Vehicle:
    2021 TRD Off-Road Access Cab
    TRD Off-Road Suspension Lift (Install Instructions)


    Attached Files:

    ccarlson likes this.
  3. Nov 17, 2021 at 5:41 AM
    #1983
    ccarlson

    ccarlson AvGeek

    Joined:
    Oct 1, 2014
    Member:
    #139473
    Messages:
    42
    Gender:
    Male
    First Name:
    Chad
    Chicagoland
    Vehicle:
    2021 Tacoma DCSB TRD O/R 6MT
    TRD Lift (prior to delivery)
    Just to make sure we’re talking about the same things… I see the spacer blocks in the suspension lift instructions (and on the truck), but I don’t see shims anywhere in the instructions, parts diagrams, or on the truck.

  4. Nov 17, 2021 at 6:06 AM
    #1984
    Fast1

    Fast1 Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18875
    Messages:
    678
    Gender:
    Male
    Minneapolis, MN
    Vehicle:
    2021 TRD Off-Road Access Cab

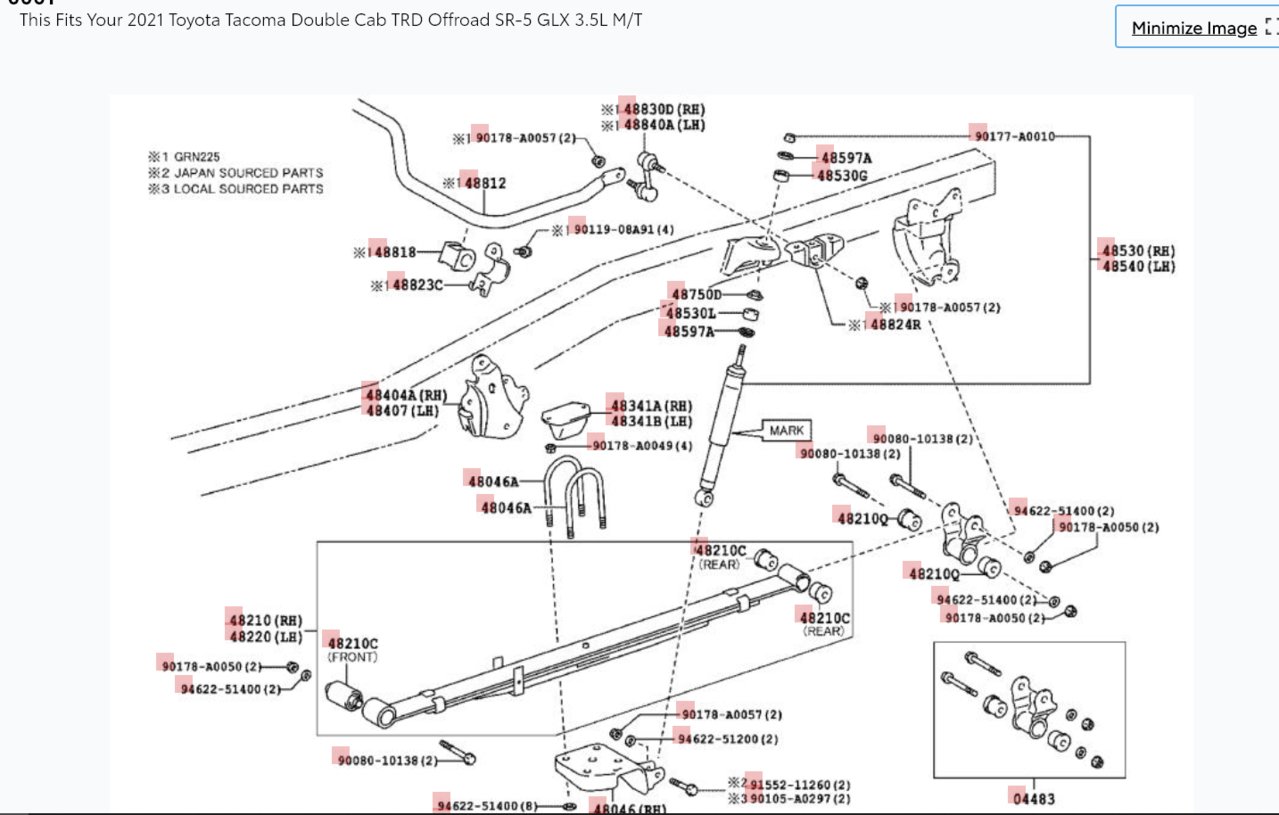

    stock 2021 Tacoma TRD off road manual OEM rear suspension components (shim is not referenced)



    Last edited: Nov 17, 2021
    ccarlson likes this.
  5. Nov 17, 2021 at 9:28 AM
    #1985
    Shades_Of_Red

    Shades_Of_Red Well-Known Member

    Joined:
    May 2, 2009
    Member:
    #16713
    Messages:
    1,683
    Gender:
    Male
    First Name:
    Lou
    Pittsburgh, PA
    Vehicle:
    2019 Tacoma TRD Off Road Premium Cavalry Blue
    A few.
    I can only tell u that I installed a set of 1 inch lift blocks on my 2019 trd offroad
    myself and there are factory shims in there

    Houseofhotrod likes this.
  6. Nov 17, 2021 at 9:48 AM
    #1986
    sfr4dr

    sfr4dr Well-Known Member

    Joined:
    May 28, 2018
    Member:
    #254726
    Messages:
    230
    Gender:
    Male
    Truckee/Tahoe CA
    Vehicle:
    2022 SR 4x4 DCSB
    Is it just the OR trim that comes with shims stock and no other trim levels? My stock height SR does not have them.

    Ccarlson, when you say they won't address vibes in the MT, are you referencing the TSB about the rear leaf springs and steering damper? Also, a lot of people have these vibes with stock height trucks so it's not just a lift thing. Your test notes area great. You noted that you tested it coasting. Did you also test it in neutral both coasting and braking to a stop and what was the result?

    I'm helping a friend sort through this on his truck and his vibrates when coasting to a stop in neutral or in gear which would lead me to believe it's not brake related but what is weird is that braking with just the ebrake makes it worse. Perhaps this doesn't prove that it's a rear brake issue, just that rear-only braking exaggerates it, perhaps by increasing the angle at the pinion since it might rotate down more in this situation and no work is being done by the front brakes.

    We haven't tried any fixes yet but might try the carrier bearing drop since it's cheap and easy to test then return back to stock. We'll also try adding more weight in the bed and verifying the wheel torque. What else is an easy test? Shims aren't bad but a bit of commitment and I seem to recall reading that it's not advised to re-use u-bolts but I can't remember why that was.

  7. Nov 17, 2021 at 9:52 AM
    #1987
    sfr4dr

    sfr4dr Well-Known Member

    Joined:
    May 28, 2018
    Member:
    #254726
    Messages:
    230
    Gender:
    Male
    Truckee/Tahoe CA
    Vehicle:
    2022 SR 4x4 DCSB
  8. Nov 17, 2021 at 9:54 AM
    #1988
    thedismaltrade

    thedismaltrade Active Member

    Joined:
    Jun 26, 2021
    Member:
    #369674
    Messages:
    25
    Gender:
    Male
    Central IL
    Vehicle:
    2021 Tacoma TRD Sport Army Green
    Which Toyota parts online has the best price with shipping?

  9. Nov 18, 2021 at 10:10 AM
    #1989
    Bubba503

    Bubba503 Well-Known Member

    Joined:
    Jun 14, 2018
    Member:
    #256400
    Messages:
    170
    Gender:
    Male
    PNW
    Vehicle:
    2022 Tacoma TRD ORP Lunar Rock
    Just bought a 2022 off-road and am waiting on the lift to arrive at the dealership before install. I’m doing wheels and tires at the same time, and the dealer is insisting on 285/70 or 285/75s fitting without rubbing. Anyone have the same tire size? If so, so you experience any rubbing or anything?

    Houseofhotrod likes this.
  10. Nov 18, 2021 at 10:19 AM
    #1990
    Shades_Of_Red

    Shades_Of_Red Well-Known Member

    Joined:
    May 2, 2009
    Member:
    #16713
    Messages:
    1,683
    Gender:
    Male
    First Name:
    Lou
    Pittsburgh, PA
    Vehicle:
    2019 Tacoma TRD Off Road Premium Cavalry Blue
    A few.
    It will depend on what wheels u install whether it rubs or not

  11. Nov 18, 2021 at 10:23 AM
    #1991
    Bubba503

    Bubba503 Well-Known Member

    Joined:
    Jun 14, 2018
    Member:
    #256400
    Messages:
    170
    Gender:
    Male
    PNW
    Vehicle:
    2022 Tacoma TRD ORP Lunar Rock
    Gonna be those TRD wheels


  12. Nov 18, 2021 at 10:30 AM
    #1992
    Shades_Of_Red

    Shades_Of_Red Well-Known Member

    Joined:
    May 2, 2009
    Member:
    #16713
    Messages:
    1,683
    Gender:
    Male
    First Name:
    Lou
    Pittsburgh, PA
    Vehicle:
    2019 Tacoma TRD Off Road Premium Cavalry Blue
    A few.
    Should be good then.

  13. Nov 18, 2021 at 10:36 AM
    #1993
    Houseofhotrod

    Houseofhotrod Active Member

    Joined:
    Oct 9, 2021
    Member:
    #379238
    Messages:
    35
    Gender:
    Male
    First Name:
    Tim
    Oregon
    Vehicle:
    2021 DCSB TRD OR MT

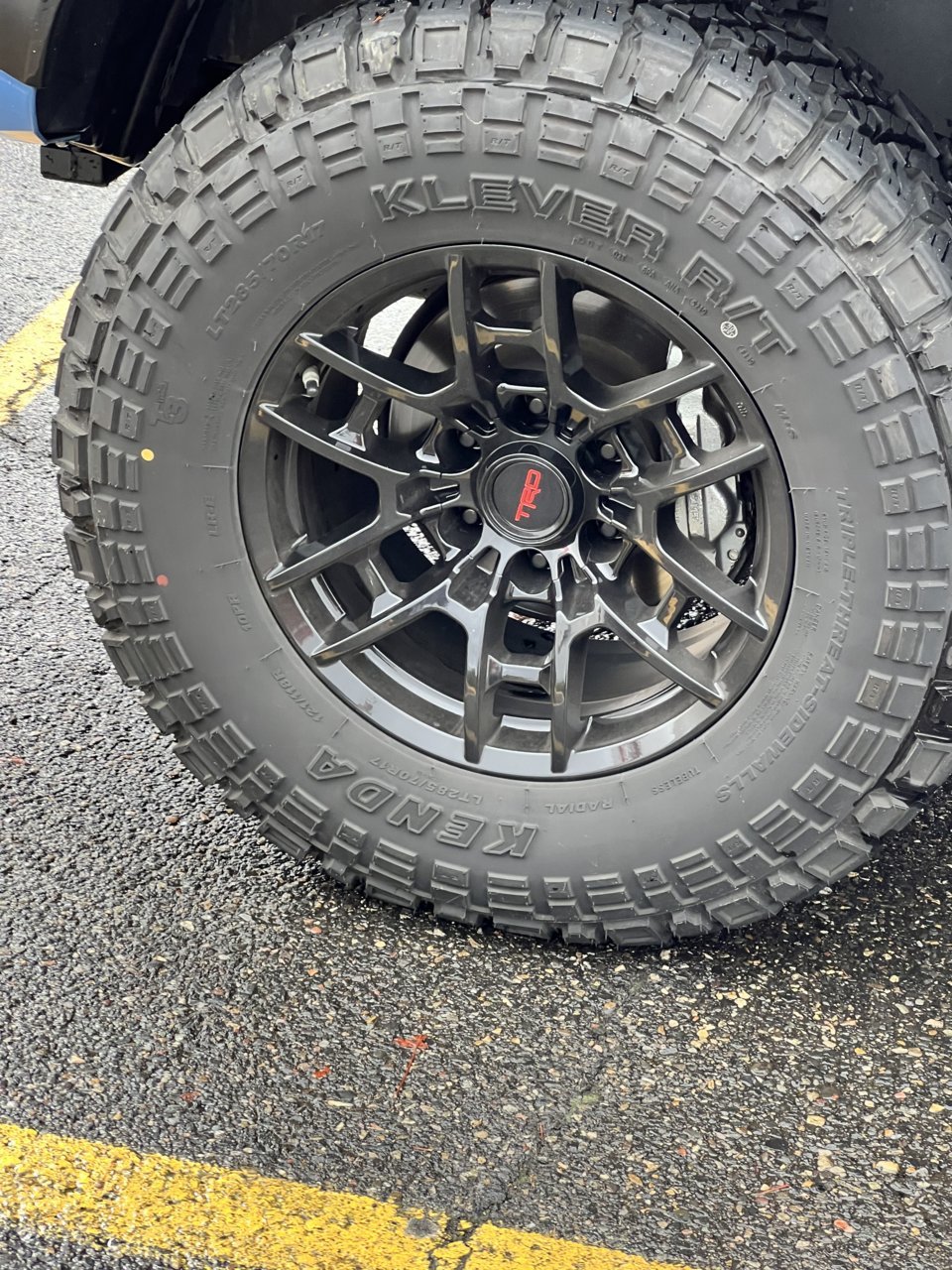

    I just did the same on my 200 mile TRD OR DCSB MT, went 285/70 Wildpeak 17’s on SEMA 17’s yesterday. Took it out last night and experienced no rubbing, up steep driveways and some rough roads, but the dealership service mgr said I’ll get just a bit on full lock back up. So far super happy. The dealership had about a dozen of the kits in stock, service manager, parts manager, and a few of the techs drive Tacomas, some w bigger and more aggressive tires than mine, so at the very least we all speak the same language . I’ll post more if I encounter issues but for now just gonna drive it, it looks, and drives out great!

    RCrumb likes this.
  14. Nov 18, 2021 at 5:45 PM
    #1994
    ccarlson

    ccarlson AvGeek

    Joined:
    Oct 1, 2014
    Member:
    #139473
    Messages:
    42
    Gender:
    Male
    First Name:
    Chad
    Chicagoland
    Vehicle:
    2021 Tacoma DCSB TRD O/R 6MT
    TRD Lift (prior to delivery)
    Yes, that is correct - I was referring to the TSB for the leaf springs and steering dampener. From what I read, the TSB applies only to trucks with automatic transmissions, and I think I also read that it applies only to the 2016 O/R up to a certain VIN. It continues to apply to trucks through 2021 that did not have the O/R package.

    In my "testing" - which is probably giving it more credence than it deserves - both braking modes yielded consistent results. If the e-brake made it worse, I did not notice.

    I tested while coasting in gear 2WD, in gear 4WH, and in neutral. I did not test in 4WL - taking the truck up to 30 in 4WL didn't seem necessary given the other results.

    Braking tests were done to both a full stop and down to about 10 mph depending on where I was in my testing path.

    During the weight tests, I noticed less vibration while coasting than when braking. The vibrations continue down to a stop, but were most notable at about 14 mph.

    When I apply just my e-brake, I seems like I get less front spring compression (nose diving) from forward momentum than I do with full brakes. It seems like that would result in a smaller increase in joint angle than a stop with full brakes, but I am by no means an expert on weight distribution during braking.

    I tried the carrier bearing drop - no dice. The weight test (200 lbs & 350 lbs) definitely gave me the data I needed to proceed with shim testing. If you don't have one, I would suggest getting a decent digital angle cube and using it in a consistent manner (same surface, same location each measurement). My eyeballs are pretty good at estimation, but not when we're talking about 100ths of a degree.

    Edit: I see no reason at all as to why you would be unable to reuse the u-bolts. Just make sure you have a torque wrench and torque the nuts to the proper value.

    I plan to try installing 1-degree shims this weekend to see what that does. I was planning to do that this week, but I have been down with a cold.

    There is another thread here on TW where some folks did a considerable amount of testing and shim work. I found it last night. I opted to post in this thread a few days ago because my issue seemed likely to be directly related to the TRD Lift kit; however, I am uncertain if that is the case any longer.

    https://www.tacomaworld.com/threads/drive-shaft-vibrations-solved-step-by-step.244535

    Good luck; please post your results / progress!

    Last edited: Nov 19, 2021
    sfr4dr and SnuggleTruck like this.
  15. Nov 20, 2021 at 9:21 AM
    #1995
    SnuggleTruck

    SnuggleTruck Well-Known Member

    Joined:
    Jan 31, 2020
    Member:
    #317873
    Messages:
    165
    Gender:
    Male
    First Name:
    Alex
    Fort Myers
    Vehicle:
    2020 DCLB TRD OR
    Truxedo roll up Tonneau cover MESO - led interior light kit, blackout kit and gashole Toyota door sill protectors and bed mat TRD Pro skid plate TRD 2" lift Icon AAL (1.5" lift) ECGS bushing (solved 90% of my vibes) OME carrier bearing drop kit (solved vibes up to 30mph... still have slight vibes from 30-50) Next up!!! SPC UCAs or 2022 TRD Pro UCAs 2022 Tacoma Trail Edition Wheels 285/75/16 BFG KO2s
    Which angle cube are you using? I’m going to follow your process and shim the correct size as well. Thanks!

  16. Nov 20, 2021 at 9:56 AM
    #1996
    ccarlson

    ccarlson AvGeek

    Joined:
    Oct 1, 2014
    Member:
    #139473
    Messages:
    42
    Gender:
    Male
    First Name:
    Chad
    Chicagoland
    Vehicle:
    2021 Tacoma DCSB TRD O/R 6MT
    TRD Lift (prior to delivery)
    I am using one of these:

    AccuRemote Digital Electronic Magnetic Angle Gage Level/Protractor/Bevel Gauge https://www.amazon.com/dp/B006JR8XBG?_encoding=UTF8

    It seems to be well made, accurate, and - most importantly - it gives repeatable results. I used it on some known angles and it was spot-on. For example, my shims are Belltechs at 1, 2, and 3 degrees, and it measures them all perfectly. Resolution is .05. I don’t know where to get one with resolution down to 0.01, but I don’t think that matters.


    I’ve done a great deal of reading on this issue this week, and it seems like it is entirely possible to eliminate vibrations by dialing in the angles.

    Good luck!

    I’ll update here with the results of my shim work.

    SnuggleTruck likes this.
  17. Nov 20, 2021 at 10:20 AM
    #1997
    SnuggleTruck

    SnuggleTruck Well-Known Member

    Joined:
    Jan 31, 2020
    Member:
    #317873
    Messages:
    165
    Gender:
    Male
    First Name:
    Alex
    Fort Myers
    Vehicle:
    2020 DCLB TRD OR
    Truxedo roll up Tonneau cover MESO - led interior light kit, blackout kit and gashole Toyota door sill protectors and bed mat TRD Pro skid plate TRD 2" lift Icon AAL (1.5" lift) ECGS bushing (solved 90% of my vibes) OME carrier bearing drop kit (solved vibes up to 30mph... still have slight vibes from 30-50) Next up!!! SPC UCAs or 2022 TRD Pro UCAs 2022 Tacoma Trail Edition Wheels 285/75/16 BFG KO2s
    perfect. Thanks.

    ccarlson likes this.
  18. Nov 20, 2021 at 8:00 PM
    #1998
    ccarlson

    ccarlson AvGeek

    Joined:
    Oct 1, 2014
    Member:
    #139473
    Messages:
    42
    Gender:
    Male
    First Name:
    Chad
    Chicagoland
    Vehicle:
    2021 Tacoma DCSB TRD O/R 6MT
    TRD Lift (prior to delivery)
    VIBRATIONS SOLVED!

    Recap:

    2021 Tacoma DCSB OR MT w/ TRD Lift kit installed prior to delivery. It may also be worth noting that my truck has an OEM bed mat, OEM bed lighting, and an OEM electric tailgate lock - all things that add a bit of weight aft of the cab.

    From day 1, the truck had significant vibrations from 30 to 10 while decelerating. Maximum vibration was at approximately 14 mph. I took it to Toyota multiple times and was assured there was nothing wrong with the truck because this is how lifted trucks ride.

    The engineer and mechanic in me was extremely displeased by Toyota's response. When there is that much vibration, something is wrong. Period.

    I tried lowering the carrier bearing since that seems to be a common fix for drive line vibes and is extremely easy to do. No luck.

    I decided to put weight in the bed. I tested with 200 and 350 pound test weights. Vibrations were nearly eliminated with the weight, which gave me hope that a pinion angle correction may just do the trick.

    I measured angles using Toyota service literature for similar trucks since I was unable to find the published for trucks like mine. The measurements were as follows:

    Propeller shaft angle (P/A) = 8.15 degrees
    Pinion flange angle (F/A) = 4.35 degrees
    Joint angle (J/A) = 3.80 degrees (calculated as P/A - F/A = J/A)

    Toyota literature indicates J/A ranges of either 1.38 - 3.38 or 1.41 - 3.41 are acceptable for standard (unlifted, non-OR package) trucks, depending upon the type of suspension installed.

    Based on the published J/A numbers, I decided I would try to shim my rear axles, starting with a 1-degree shim since that would (theoretically) lower my J/A to something in one of the published ranges.

    Today, I installed a set of Belltech p/n 4973 1-degree shims on top of the spacer block installed with the TRD Lift. The 1-degree shims are about 1/8" thick where the leaf spring center pin passes through them, and there appears to be plenty of center pin height remaining to seat in the riser block pocket when the shim is in place. This was good because it helped keep the fix simple.

    After shimming, the angle measurements were as follows:

    Propeller shaft angle (P/A) = 8.10 degrees
    Pinion flange angle (F/A) = 4.75 degrees
    Joint angle (J/A) = 3.35 degrees (calculated as P/A - F/A = J/A)

    I took the truck for several test drives reaching speeds up to 85 mph. I felt no vibrations at any speed while accelerating, steadily cruising (25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85), coasting (all the way down from 85), or braking (all the way down from 85).

    The shims resulted in a very slight increase in rear lift (~1/8 inch, I guess?) but did not interfere with operation of the TSS system or have a noticeable impact on headlamp projection.

    I double checked u-bolt torque after the test ride - all good.

    A side observation: Why is it that auto mechanics seem to like to ignore torque specifications?? When I broke the lugs loose from the rear wheels (though I ended up not needing to remove the wheels to install the shims as originally thought), I found them torqued between 98 - 105 ft/lbs. They should be torqued to 83 ft/lbs. When I broke the nuts loose on the u-bolts, 6 of 8 were at 71 - 77 ft/lbs; the remaining two were at ~43 ft/lbs. The u-bolts nuts should be torqued to 52 ft/lbs. I use a calibrated torque wrench, and I would highly recommend anyone who does work on their vehicles do the same. Fasteners have torque specs for a reason.

    I hope the above helps others who end up chasing vibrations while Toyota remains asleep at the wheel.

    =JSG=, Lagger, TwoFourDee and 7 others like this.
  19. Nov 21, 2021 at 2:39 AM
    #1999
    Shades_Of_Red

    Shades_Of_Red Well-Known Member

    Joined:
    May 2, 2009
    Member:
    #16713
    Messages:
    1,683
    Gender:
    Male
    First Name:
    Lou
    Pittsburgh, PA
    Vehicle:
    2019 Tacoma TRD Off Road Premium Cavalry Blue
    A few.
    Did u find factory shims in there also during install? My 2019 had that same shake/vibration at stock height and it still remained after installing 1" lift blocks.

  20. Nov 21, 2021 at 6:18 AM
    #2000
    ccarlson

    ccarlson AvGeek

    Joined:
    Oct 1, 2014
    Member:
    #139473
    Messages:
    42
    Gender:
    Male
    First Name:
    Chad
    Chicagoland
    Vehicle:
    2021 Tacoma DCSB TRD O/R 6MT
    TRD Lift (prior to delivery)
    No, there were no factory shims installed.

    Does it still shake? If yes, have you taken any of the angle measurements?
