Toyotacrawler's M416 Resto!

Discussion in 'Garage / Workshop' started by Toyotacrawler, Jun 22, 2011.

  1. Jun 22, 2011 at 7:00 AM
    #1
    Toyotacrawler

    Toyotacrawler [OP] She's got the jimmy legs

    Joined:
    Aug 19, 2010
    Member:
    #41911
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Mike
    Cusseta/Opelika AL
    Vehicle:
    2010 Tacoma DC TRD Sport
    Blacked out Badges, Rear Leaf TSB(if that counts as a mod), Bed Mat, WeatherTech's, Bilstein 5100 in the front set to 1.75" K&N Drop in
    Found this 1964 M416 trailer that a neighbor was going to turn into a cattle trough and I figured I would save it.
    This will be my first build thread so I'll try to keep you guys up to date on the progress I am making.
    As of today I havent done anything other than inspect the condition of it.
    The tub, fenders and frame are in pretty good condition.
    The only issue I have found with major rust will be the bottom of the tub. It's still pretty solid but will need to be cut out and a new bottom welded in.
    The goal is to completely restore the trailer back to it's original condition.
    And so the journey begins!

    When I got it home.
    [​IMG]

    [​IMG]

    Dated 11/9/64
    [​IMG]

    Right fender is in great shape, no dents or heavy rust at all.
    [​IMG]

    Left fender is also in great shape!
    [​IMG]

    The front of the tub has some Diamond Plate. Not sure when that was added but I don't think it came that way but the fact that it's painted over in camo is confusing. Could be military or civilian....[​IMG]

    Lunette Ring is in great shape!
    [​IMG]

    Somebody at some point cut the wiring harness. I'll have to find a new one.
    [​IMG]

    This weekend I am going to try to disassemble and get some sand blasting done. Mainly on the frame is my goal. I'll worry about the tub, axle, brakes at a later date.
    There are parts I need such as wiring harness, tail lights, and I believe it's missing a brake cylinder. I already have a line on some tail lights from a guy in Barnesville. Hopefully he has all the parts I need. (fingers crossed)
    Anyway thanks for viewing!

  2. Jun 22, 2011 at 7:01 AM
    #2
    FearNothing321

    FearNothing321 Do you know Tyler Durden?

    Joined:
    Jun 24, 2008
    Member:
    #7539
    Messages:
    7,297
    Gender:
    Male
    First Name:
    Tony
    Tampa Fl / Palm City Fl / Tequesta Fl
    Vehicle:
    08 PreRunner SR5 TRD Sport
    Sirius Sat radio, Scanguage II, N-Fab 2" side steps, Corbra 18wx, 4ft Firestik, Maglite mod, Bestop, Nitto Terra Grapplers....so far
  3. Jun 22, 2011 at 8:56 AM
    #3
    Toyotacrawler

    Toyotacrawler [OP] She's got the jimmy legs

    Joined:
    Aug 19, 2010
    Member:
    #41911
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Mike
    Cusseta/Opelika AL
    Vehicle:
    2010 Tacoma DC TRD Sport
    Blacked out Badges, Rear Leaf TSB(if that counts as a mod), Bed Mat, WeatherTech's, Bilstein 5100 in the front set to 1.75" K&N Drop in
    Been searching all morning for a replacement floor with no luck. If anybody knows of a company that makes them please let me know. I might have to try to salvage the one that's on it if I can't find one. I could use a piece of sheet metal but would like to have the floor with ribs as it was from the factory. Thanks!

    *Edit* Found out why I can't find anybody that makes them. Nobody does.

  4. Jun 23, 2011 at 6:26 PM
    #4
    KEG'sTACO

    KEG'sTACO FJ Cruiser

    Joined:
    May 2, 2010
    Member:
    #36405
    Messages:
    1,412
    Gender:
    Male
    First Name:
    Kurt
    Auburn, AL
    Vehicle:
    '08 FJ Cruiser
    Leveled, 33" BFG A/Ts, Demello Offroad front flat-top bumper, Demello Offroad rear 3-piece bumper, 17" Liquid Metal Gatlins, Pioneer audio upgrade, custom mounted 10" subwoofer, offroad interior
    so much for coming to the Central AL Meet!

    :popcorn: can't wait to see some progress.

  5. Jun 24, 2011 at 7:40 AM
    #5
    Toyotacrawler

    Toyotacrawler [OP] She's got the jimmy legs

    Joined:
    Aug 19, 2010
    Member:
    #41911
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Mike
    Cusseta/Opelika AL
    Vehicle:
    2010 Tacoma DC TRD Sport
    Blacked out Badges, Rear Leaf TSB(if that counts as a mod), Bed Mat, WeatherTech's, Bilstein 5100 in the front set to 1.75" K&N Drop in
    Haha yea. I got so many projects going on right now it's ridiculous. Grass needs mowing (woman's gonna take care of that tomorrow), gotta finish fencing in the back yard so the goats can't get out (to do that I gotta finish clearing out brush on the property line to get a fence through), Putting up a privacy fence for my mom at a duplex that she rents out and then trying to start work on the trailer. Heavy load of work this weekend. :)

  6. Jun 27, 2011 at 10:22 AM
    #6
    JasoTaco

    JasoTaco Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30057
    Messages:
    2,013
    Gender:
    Male
    First Name:
    Jason
    Salt Lake City, Utah
    Vehicle:
    09 Tacoma TRD Off Road
    ToyTec Ultimate 3" Lift -TSB Rear springs - TRD Cold Air Intake - TRD Skid Plate - Total Chaos Upper Control Arms - 2 Hella Rallye 4000 lights (130W Bulbs) - Clear Bra - Under Coat - Bed extener - Toyota Bed Mat - Weathertech floor mats - Tailgate hose clamp & washer mod - PIAA Fog Lights - ScanGauge II - Beefed Sliders - Differential Breather Mod - Heated Seats - All-Pro Bumper - Warn M8000 Winch with wireless controls - Boztec Diff Skid - ATO skids
    Can't wait to see how this turns out. Wish I had a m416 trailer.

  7. Jun 27, 2011 at 10:36 AM
    #7
    RoyR

    RoyR Well-Known Member

    Joined:
    May 13, 2011
    Member:
    #56577
    Messages:
    280
    Gender:
    Male
    San Diego, CA
    Billies, TSB
  8. Jun 27, 2011 at 10:59 AM
    #8
    EVILSTI

    EVILSTI Well-Known Member

    Joined:
    Mar 19, 2010
    Member:
    #33539
    Messages:
    702
    Gender:
    Male
    First Name:
    Ray
    Catskill, NY
    Vehicle:
    06 TRD OFF ROAD
    OME Suspension lift kit with: Front OME 90000 shocks, 886 coils, top plate spacers, complete OME Dakar leaf spring packs, Front Diff drop kit, Rear N182 shocks, OME trim spacer, OME carrier bearing drop bushings, American Racing Chambers 16X8, Yokohama Geolandar A/T-S 285/75-16s (Winter tires), BFG MT KM2's 285/75-16, satoshi grille mod, TRD CAI, AP front bumper, AP skid plate, Cobra 75 WX ST CB, 2' Firestik antenna, Pioneer Avic-U310BT, Beefed Sliders, LR UCA's, Tinted Headlights, AP Rear bumper, DTLTH, Smittybilt XRC10 comp winch, Yellow top D35, pAP custom Transmission Skid ;-) , NFab spare tire holder, DT Pipe Bomb,
    So you got it. Looks good. Remember when you are looking for parts search for M100 also and they do make floors. It's just going to cost you. If you want to restore it back with original 24v harness I have the one I took out of mine I might sell. ;)

    Floor and other things here.
    http://www.midwestmilitary.net/trailerparts.html

  9. Jun 27, 2011 at 11:51 AM
    #9
    Toyotacrawler

    Toyotacrawler [OP] She's got the jimmy legs

    Joined:
    Aug 19, 2010
    Member:
    #41911
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Mike
    Cusseta/Opelika AL
    Vehicle:
    2010 Tacoma DC TRD Sport
    Blacked out Badges, Rear Leaf TSB(if that counts as a mod), Bed Mat, WeatherTech's, Bilstein 5100 in the front set to 1.75" K&N Drop in

  10. Jul 14, 2011 at 9:13 PM
    #10
    x2468

    x2468 Well-Known Member

    Joined:
    Jul 19, 2009
    Member:
    #19879
    Messages:
    1,637
    Gender:
    Male
    Tallahassee
    Vehicle:
    '02 TRD 4wd V6 Xcab Sr5
    What do u plan on using it for? Looks cool but super heavy for its size

  11. Jul 15, 2011 at 7:59 AM
    #11
    EVILSTI

    EVILSTI Well-Known Member

    Joined:
    Mar 19, 2010
    Member:
    #33539
    Messages:
    702
    Gender:
    Male
    First Name:
    Ray
    Catskill, NY
    Vehicle:
    06 TRD OFF ROAD
    OME Suspension lift kit with: Front OME 90000 shocks, 886 coils, top plate spacers, complete OME Dakar leaf spring packs, Front Diff drop kit, Rear N182 shocks, OME trim spacer, OME carrier bearing drop bushings, American Racing Chambers 16X8, Yokohama Geolandar A/T-S 285/75-16s (Winter tires), BFG MT KM2's 285/75-16, satoshi grille mod, TRD CAI, AP front bumper, AP skid plate, Cobra 75 WX ST CB, 2' Firestik antenna, Pioneer Avic-U310BT, Beefed Sliders, LR UCA's, Tinted Headlights, AP Rear bumper, DTLTH, Smittybilt XRC10 comp winch, Yellow top D35, pAP custom Transmission Skid ;-) , NFab spare tire holder, DT Pipe Bomb,
    Actually they are under 600lbs. Not bad for such a tank of a trailer. :D

  12. Jul 25, 2011 at 9:01 AM
    #12
    Toyotacrawler

    Toyotacrawler [OP] She's got the jimmy legs

    Joined:
    Aug 19, 2010
    Member:
    #41911
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Mike
    Cusseta/Opelika AL
    Vehicle:
    2010 Tacoma DC TRD Sport
    Blacked out Badges, Rear Leaf TSB(if that counts as a mod), Bed Mat, WeatherTech's, Bilstein 5100 in the front set to 1.75" K&N Drop in
    Not really sure. Right now the plan is to restore it back to it's former glory. When I pulled it home I couldn't even tell it was behind the truck other than the hitch banging around. It's fairly easy to roll around by yourself when your on flat ground.

  13. Jul 25, 2011 at 9:10 AM
    #13
    Toyotacrawler

    Toyotacrawler [OP] She's got the jimmy legs

    Joined:
    Aug 19, 2010
    Member:
    #41911
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Mike
    Cusseta/Opelika AL
    Vehicle:
    2010 Tacoma DC TRD Sport
    Blacked out Badges, Rear Leaf TSB(if that counts as a mod), Bed Mat, WeatherTech's, Bilstein 5100 in the front set to 1.75" K&N Drop in

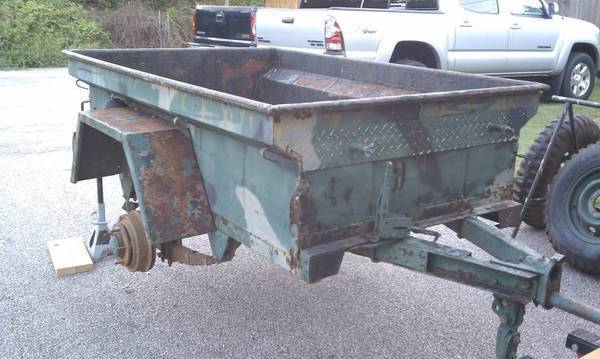

    [​IMG]

    This past weekend I attempted to remove the body from the frame of the trailer but I have hit a snag. I removed all the bolts connecting the tub to the frame (most of the bolts sheared off). Problem is the tub will not release from the frame. I cannot understand why (other than rust maybe :notsure: ) the tub will not come off. I've taken a prybar to the tub with no luck, beat the joints with a rubber mallet and still cannot get the tub off. Until I can get the tub off, the project is at a stand still.

  14. Jul 25, 2011 at 9:46 AM
    #14
    dgr540

    dgr540 I've got the FUNK

    Joined:
    Jul 6, 2009
    Member:
    #19327
    Messages:
    681
    Gender:
    Male
    Friendswood, TX
    Vehicle:
    2013 Wrangler Unlimited
    XDs Trail grappler 35x12.5x18 Winch 8K lbs Front bumper 4in Lift
    i always wanted one of these old military trailers.

  15. Jul 26, 2011 at 11:25 AM
    #15
    Toyotacrawler

    Toyotacrawler [OP] She's got the jimmy legs

    Joined:
    Aug 19, 2010
    Member:
    #41911
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Mike
    Cusseta/Opelika AL
    Vehicle:
    2010 Tacoma DC TRD Sport
    Blacked out Badges, Rear Leaf TSB(if that counts as a mod), Bed Mat, WeatherTech's, Bilstein 5100 in the front set to 1.75" K&N Drop in
    After some beating and banging yesterday I finally got the tub free from the frame.
    My next step will be tearing down the frame, sandblasting it, and getting it ready to be primed.
    Something I thought was cool....I sprayed some pb down the cables for the parking brake and found that it still works like a champ!
    [​IMG]

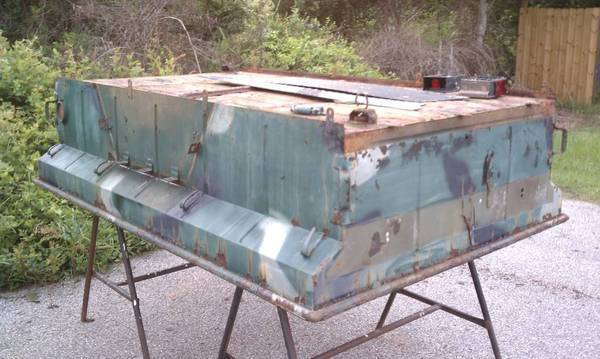

    Here is the tub. I'm going to tackle it last after the frame is completely finished and ready for the tub to be mounted.
