Toytec 1.5 AAL for TSB Install

Discussion in 'Suspension' started by lucky, Jan 15, 2012.

  1. jflan

    jflan Well-Known Member

    Joined:
    Dec 26, 2008
    Member:
    #11901
    Messages:
    1,019
    Vancouver, WA
    Vehicle:
    09 Access 4x4 2.7L manual SR5
    SnugTop SuperSport Sportsman keyless cap Weathertech mats - OEM skidplate - OEM hitch
    I believe that to be correct. The "trim packer" is an OME part designed to nest on the OME spring perch.

    No worries, just use a top plate spacer (1/4") to clean up any Taco lean.
    .

  2. lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    335
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    Installed the correct 1.5 AAL for TSB yesterday. I also had all the front suspension parts on hand, so did it too. You'll notice there is plenty of space between the retainer and AAL. You may also see the marks made on the leaf pack from running the wrong aal for a few days.

    Front - 23.5 dvr and passenger
    Rear - 24.5 dvr and passenger

    No lean, but tank is near empty. I had bought a trim packer before discovering it was for OME shocks only. I am not doing any correction to the front.

    Front is 5100 set at 0 with 885x
    Rear TSB leaf pack, no blocks, long version 5100

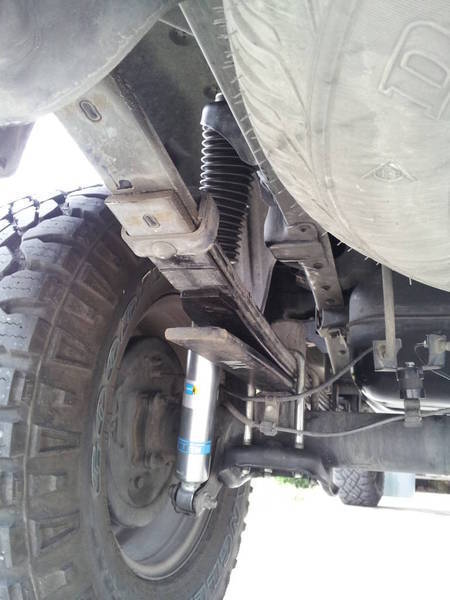

    [​IMG]

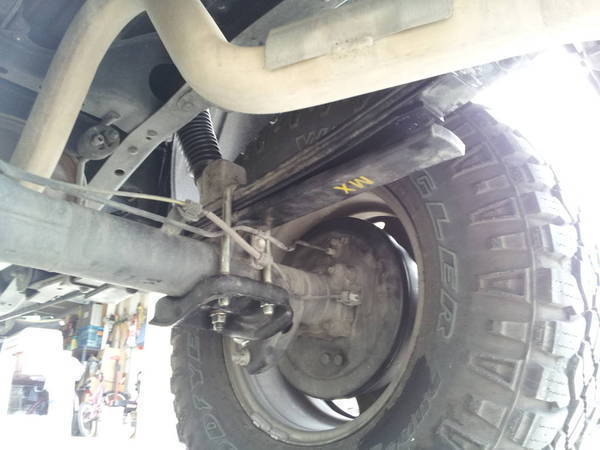

    [​IMG]

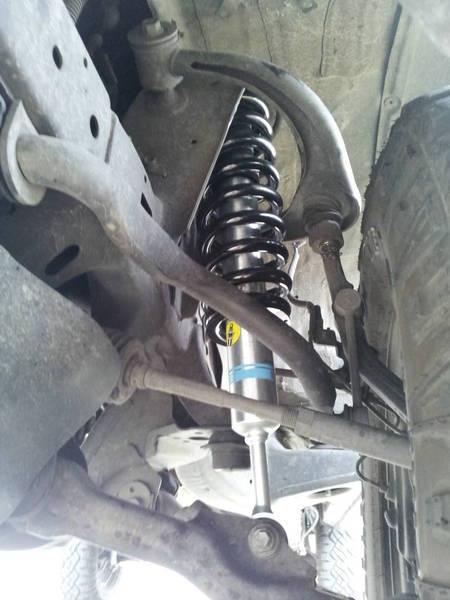

    [​IMG]

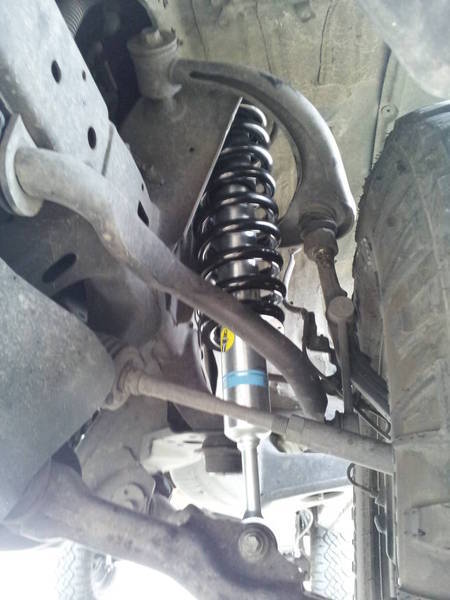

    [​IMG]

  3. JC47

    JC47 Well-Known Member

    Joined:
    Dec 3, 2010
    Member:
    #47078
    Messages:
    191
    Gender:
    Male
    British Columbia
    Vehicle:
    08 TRD Sport DCLB 4X4
    OME 885, 5100's, 1.5 AAL, DC2's, 265/75/16 Duratracs. Leer Cap, Debadged.
    My measurements after lift (and after settling):

    Front: 22-1/4"
    Rear: 23-1/2"

    I guess having a 4x4 and a cap makes a pretty big difference.

  4. knickerbocker

    knickerbocker Well-Known Member

    Joined:
    Feb 22, 2008
    Member:
    #4889
    Messages:
    89
    Gender:
    Male
    middle
    Vehicle:
    '07 Indigo 4.0l 4x4
    the leading minor of order 1 is not positive definite.
    what "database" and where can we access it? i've been searching and reading threads forever looking for a bunch of measurements. i want to make some adjustments to mine but can't find where i wrote my pre-lift measurements anywhere, and i want some reference before i start taking stuff apart.

    Ah. good idea. i cut mine but can't remember if i filed the edges.

    how much did your non-TSB AAL raise your TSB'd rear? I swear mine went up a full 3" but can't find my pre lift measurements. i was hoping it would settle more than it has (after 1000's miles with full load).

  5. JC47

    JC47 Well-Known Member

    Joined:
    Dec 3, 2010
    Member:
    #47078
    Messages:
    191
    Gender:
    Male
    British Columbia
    Vehicle:
    08 TRD Sport DCLB 4X4
    OME 885, 5100's, 1.5 AAL, DC2's, 265/75/16 Duratracs. Leer Cap, Debadged.
    knickerbocker - the rear ended up right at 2" after settling.

  6. knickerbocker

    knickerbocker Well-Known Member

    Joined:
    Feb 22, 2008
    Member:
    #4889
    Messages:
    89
    Gender:
    Male
    middle
    Vehicle:
    '07 Indigo 4.0l 4x4
    the leading minor of order 1 is not positive definite.
    thanks!

    that's crazy. I'm currently at 23" front and 25" rear, also with 4x4 and fiberglass shell. So we both have trimmed non-TSB AAL on TSB spring packs, yet 1.5" difference. I wonder why.

  7. JC47

    JC47 Well-Known Member

    Joined:
    Dec 3, 2010
    Member:
    #47078
    Messages:
    191
    Gender:
    Male
    British Columbia
    Vehicle:
    08 TRD Sport DCLB 4X4
    OME 885, 5100's, 1.5 AAL, DC2's, 265/75/16 Duratracs. Leer Cap, Debadged.
    That is strange, what brand is your aal?

  8. knickerbocker

    knickerbocker Well-Known Member

    Joined:
    Feb 22, 2008
    Member:
    #4889
    Messages:
    89
    Gender:
    Male
    middle
    Vehicle:
    '07 Indigo 4.0l 4x4
    the leading minor of order 1 is not positive definite.
    toytec. it's old, though. maybe 4 or 5 years old. perhaps they've changed something since?

  9. BlackBetty

    BlackBetty Member

    Joined:
    Apr 19, 2014
    Member:
    #127998
    Messages:
    8
    Gender:
    Male
    First Name:
    Dan
    Arizona
    Vehicle:
    2014 Tacoma Double cab 4x4
    2.5 - 3 inch lift bilstein 5100 shocks front and rear. OME 885 coils and 1.5 AAL for rear.
    Lucky. You have the exact deter I think I just ordered. I went to headstrong off road. I ordered bilstein 5100 with the one 885 coils. I also ordered thier 1.5 aal. How do you like it? I have a 2014 double cab 4x4. How difficult was the install? I am doing mine Sunday. I was so excited to see some e who did a similar setup. I am now going to try to read all your stuff. And feed back or advice would be awesome!

  10. Mr Salty

    Mr Salty Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50297
    Messages:
    1,664
    Gender:
    Male
    First Name:
    Hermmy
    So Cal
    Vehicle:
    White SR5 Pre-runner
    All sorts of crap
    This thread is old, so you might not hear back from the OP. Also he stated in his initial post that he installed the AAL with the brake line bracket mod and long version 5100s. Be sure to ignore this, brake line brackets are not needed as an AAL provides no additional drop aside from the increase in the pack thickness from the AAL, which is only about 1/4". Also running longer shocks is also not needed and again this is because the only difference will be that 1/4" as mentioned. Running longer shocks will just cause an issue with up travel due to the longer collapse length of the shocks

    Most folks on here get so confused with the whole shock and rear lift thing. So much bad advice given on here sometimes it just drives me nutty.

    "i have an AAL that gives me 2” of lift so now I need a shock with more travel" ...... WRONG, your pack is not going to droop out more because you added and AAL and your shocks will only need to extend out about 1/4" more because thats the only difference with the addition of the AAL. This stuff is really pretty easy to understand, its just bad advice given by those are clueless complicates things.

  11. lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    335
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    Yes, its an old thread. Regarding the brake line mod, I didnt originally intend to do it. Once I had everything back together, it appeared they had straightened out a bit. A added some spacers for the brake line mount, just to be safe.

    The long version 5100's, I was ready to buy the standard length and was advised by toy-tec to use the longer version if using the AAL on TRD 4-leaf packs.

    This setup ran well, but with 800-900 lbs of gear in the back, I was squatting quite a bit. Never had any hard bottoming, I put taller bump stops on anyway.

    Eventually, I added the Firestone Ride Rite kit and can tune out all the squat when loaded. The brake line mod is really necessary now. When I go from heavy load to empty, the ass end stands way up until I let the air back down to 10 lbs, where I run it unloaded.

    @BlackBetty - its a pretty easy install with a couple heavy clamps to bring the leaves back together. I dont remember how long it took me, but with the right tools, any job is easier.

  12. BlackBetty

    BlackBetty Member

    Joined:
    Apr 19, 2014
    Member:
    #127998
    Messages:
    8
    Gender:
    Male
    First Name:
    Dan
    Arizona
    Vehicle:
    2014 Tacoma Double cab 4x4
    2.5 - 3 inch lift bilstein 5100 shocks front and rear. OME 885 coils and 1.5 AAL for rear.
    @lucky. Yeah I just read everything, I'm so excited. We are lifting the truck Saturday . I will have to bring some clamps and straps to my friends just incase for the rear leafs. My kit I bought didn't mention anything about needing a longer bolt for when I install the add a leaf? Do you think I will. Mine is just a deaver 1.5 aal. If so what size did you use. Great write up. I will try to figure out how to post photos once we are finished. Mine also came pre installed ready to go with a 1/4 inch top plate on top of shock to not have any lean. Thanks for the links. :)

  13. lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    335
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    Mine came with new bolts. They are long so you can easily get the leafs lined back up and tightened down. Once you have it all tightened back down, you cut off the remainder of the bolt in order to re-install the bump stop...

    If you do any pre and post install measurements to share on TW, I was advised by TW members to measure from center of the axle/wheel to fender lip, versus ground to fender lip to take tire size out of the equation.

    Good luck with the install. I think you will be pleased with the outcome.

  14. BlackBetty

    BlackBetty Member

    Joined:
    Apr 19, 2014
    Member:
    #127998
    Messages:
    8
    Gender:
    Male
    First Name:
    Dan
    Arizona
    Vehicle:
    2014 Tacoma Double cab 4x4
    2.5 - 3 inch lift bilstein 5100 shocks front and rear. OME 885 coils and 1.5 AAL for rear.
    My lift is done!! Front center of hub to bottom of fender was 21 inches. Now it's at 24. Thank you for your help!!
    PHP:
    [PHP]
    [/PHP]

  15. BlackBetty

    BlackBetty Member

    Joined:
    Apr 19, 2014
    Member:
    #127998
    Messages:
    8
    Gender:
    Male
    First Name:
    Dan
    Arizona
    Vehicle:
    2014 Tacoma Double cab 4x4
    2.5 - 3 inch lift bilstein 5100 shocks front and rear. OME 885 coils and 1.5 AAL for rear.
    Okay so is there no way to post pictures on here from my I phone? And why can I never find this post when I log in? I have to look in my email for a reply link to this post. I am excited to sho you guys my truck.

  16. lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    335
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    Is this your truck? Looks good! Great job.

    [​IMG]


  17. BlackBetty

    BlackBetty Member

    Joined:
    Apr 19, 2014
    Member:
    #127998
    Messages:
    8
    Gender:
    Male
    First Name:
    Dan
    Arizona
    Vehicle:
    2014 Tacoma Double cab 4x4
    2.5 - 3 inch lift bilstein 5100 shocks front and rear. OME 885 coils and 1.5 AAL for rear.
    That's my truck!!! It's rubbing really bad on my right side. (Passenger side) if I turn my steering wheel and hit a curb like the one getting into my house it rubs. I might have to do some trimming. But I'm not sure where. Any ideas on what to cut? Or ways to fix it? Are you guys having any rubbing issues?

  18. lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    335
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    I run 255/85-16 BFG Mud KM2's. I had to trim some inner fender well plastic. There is an additional mod that can be done to the cab mount to gain some clearance, but I havent needed to do that one yet.
