ToyTec ultimate lift kit installed today

Discussion in 'Suspension' started by uncleART, Jun 2, 2013.

  1. Jun 2, 2013 at 11:32 PM
    #1
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,238
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    DeBadged, Toyota Bedmat, TRD exhaust, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, Bora wheel spacers, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, Goodyear Duratrac 285/70-17, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, Back-Up light mod, ECGS bushing, Redline Hood Struts, Leer 100XR
    I installed my ToyTec ULK, LR UCAs, and Dakars today. I pulled the truck into the driveway at noon (got home @ 5am from my night shift). And it took me about 9 hours to do it, not including a run to the store to pick up a 32mm socket for the new ball joints & a meal break. It was all very easy, just a lot to do.

    For the LR UCAs, I just cut the old bolts and put new ones in ($12 ea). Removing them this way was incredibly easy (cutting wheel), I had each bolt out in about a minute with no effort. I highly recommend this method.

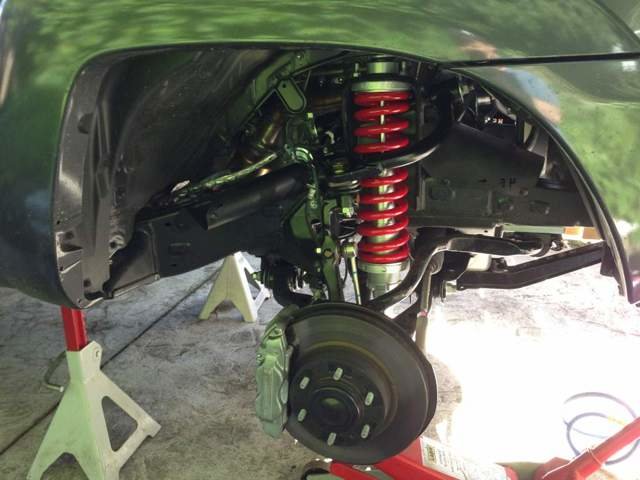

    [​IMG]

    I still need to adjust the bilsteins another inch to get my full 3" of lift. It looks like I got a 2 1/2" lift from the Dakars.

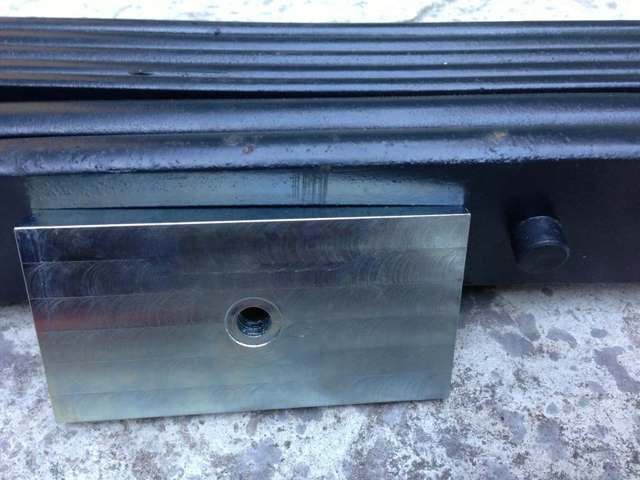

    My kit came with 3* axle shims, but they were wrong. The hole was too small for the center pins & the pins were too short anyway. So I skipped them.

    This just not gonna work! *** EDIT*** What I should have done was clamp and remove the center pin. Then reinstall it through the shim.
    [​IMG]

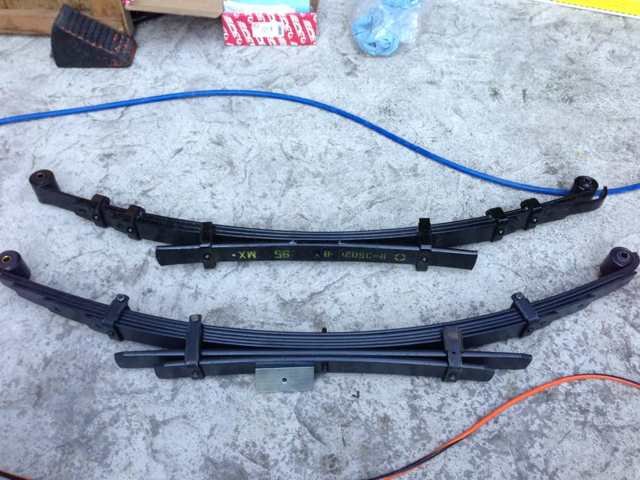

    Dakar next to the stock Sport spring
    [​IMG]

    I took a test drive at various speeds and didn't notice any driveline vibes - I don't think. (I might have a tiny one around 38mph, but I'm not sure - time will tell).

    Last edited: Jun 3, 2013
  2. Jun 3, 2013 at 2:34 PM
    #2
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,238
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    DeBadged, Toyota Bedmat, TRD exhaust, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, Bora wheel spacers, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, Goodyear Duratrac 285/70-17, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, Back-Up light mod, ECGS bushing, Redline Hood Struts, Leer 100XR
  3. Jun 3, 2013 at 2:51 PM
    #3
    thelivestone

    thelivestone Well-Known Member

    Joined:
    Nov 28, 2011
    Member:
    #67807
    Messages:
    314
    Gender:
    Male
    First Name:
    paul
    Dutch Harbor, AK
    Vehicle:
    2012 white trd off road
    10% tint, Bilstein 5100 set at 0 with OME 885x coils and a toytec add a leaf. Pioneer 4500, train horn, toolbox...
    good job on the install. truck looks pretty awesome man. get you some biggger rubber on there and it will be done!

  4. Jun 3, 2013 at 3:45 PM
    #4
    YotaDan

    YotaDan Dan Vendor

    Joined:
    Apr 1, 2009
    Member:
    #15461
    Messages:
    1,837
    Gender:
    Male
    First Name:
    Dan
    Oregon
    Was the threaded part of the center pin too large to fit?

  5. Jun 3, 2013 at 8:01 PM
    #5
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,238
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    DeBadged, Toyota Bedmat, TRD exhaust, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, Bora wheel spacers, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, Goodyear Duratrac 285/70-17, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, Back-Up light mod, ECGS bushing, Redline Hood Struts, Leer 100XR
    No. It would have worked. Fail on my part. I didn't know I needed to clamp the springs and remove the center pin then reinstall through the shim. The problem that I have now is if I decide to put the shim in, the center pin will be too short. I cut off the long threads so my stock bump stop would fit. Haha. So should i need to install, I'll need to buy new pins. Not a big deal - they're only about $7.

  6. Jun 3, 2013 at 8:04 PM
    #6
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,238
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    DeBadged, Toyota Bedmat, TRD exhaust, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, Bora wheel spacers, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, Goodyear Duratrac 285/70-17, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, Back-Up light mod, ECGS bushing, Redline Hood Struts, Leer 100XR
    Thank you.
    I had fun. It was a lot of work. Motorsport Technology is swamped and my Bora wheel spacers are about another week out. Then I can get my 285s!

  7. Jun 3, 2013 at 8:11 PM
    #7
    uncleART

    uncleART [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,238
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    DeBadged, Toyota Bedmat, TRD exhaust, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, Bora wheel spacers, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, Goodyear Duratrac 285/70-17, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, Back-Up light mod, ECGS bushing, Redline Hood Struts, Leer 100XR

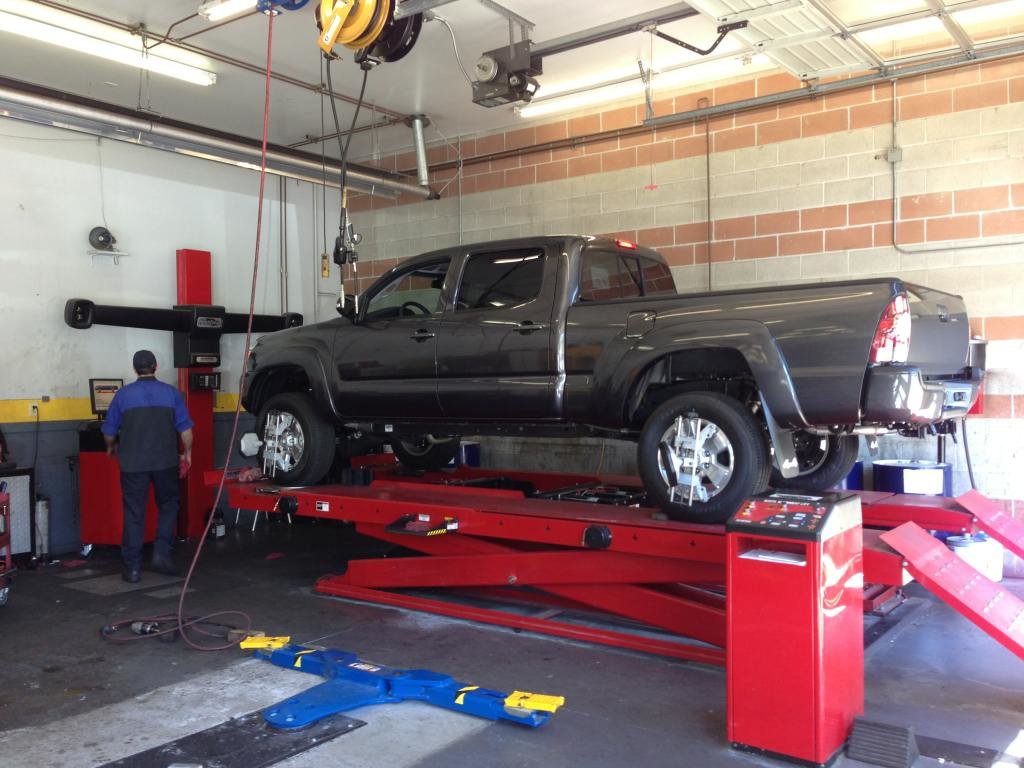

    The alignment went really well. The tech was very accommodating with my info & instructions on the LR UCAs. I set them at -1 and rolled the LCAs forward. I got 2* of caster and 3" of clearance behind the tires.
