Tpp4's No Nonsense Guide to Kicker Key T-Harness (16-19)

Discussion in 'Audio & Video' started by tpp4, Dec 11, 2019.

  1. Apr 9, 2020 at 9:55 AM
    #81
    GunnerV

    GunnerV Member

    Joined:
    Jan 9, 2020
    Member:
    #315590
    Messages:
    12
    Gender:
    Male
    First Name:
    George
    Fort Worth, TX
    Vehicle:
    2016 Access Cab TRD Sport
  2. Apr 9, 2020 at 11:11 PM
    #82
    Coolfinedonewicked

    Coolfinedonewicked Well-Known Member

    Joined:
    May 3, 2018
    Member:
    #252455
    Messages:
    182
    Gender:
    Male
    Kaua’i, Hawai’i
    Vehicle:
    2019 Cement Tacoma TRD OR DCSB
    Been lurking on every thread I can on this, ordered and got the kicker key in. Waiting for metra harnesses and kicker hide away. What do I need to extend this blue wire ? I am a total novice at this, but have pieced together everything I could possible understand from you guys here. If I need speaker wire or something extra, I’d like to try and obtain it when I do install. Thank you and OP for making this happen for a lot of people, including me. I’ve felt pretty accomplished with what I’ve been able to achieve purely based off of these threads.

  3. Apr 10, 2020 at 7:28 AM
    #83
    G8R_Taco

    G8R_Taco x-x-x

    Joined:
    Jun 8, 2019
    Member:
    #295798
    Messages:
    1,472
    Gender:
    Male
    FLA
    Vehicle:
    2019 TRD OR 4x4
    Where do you plan to install the Key? I recommend extending everything to put the key under the passenger seat and the hideaway under the drivers seat. Get some speed wire from Crutchfield. I soldered the RCA jacks for the sub back into the harness before the amp. Like this:


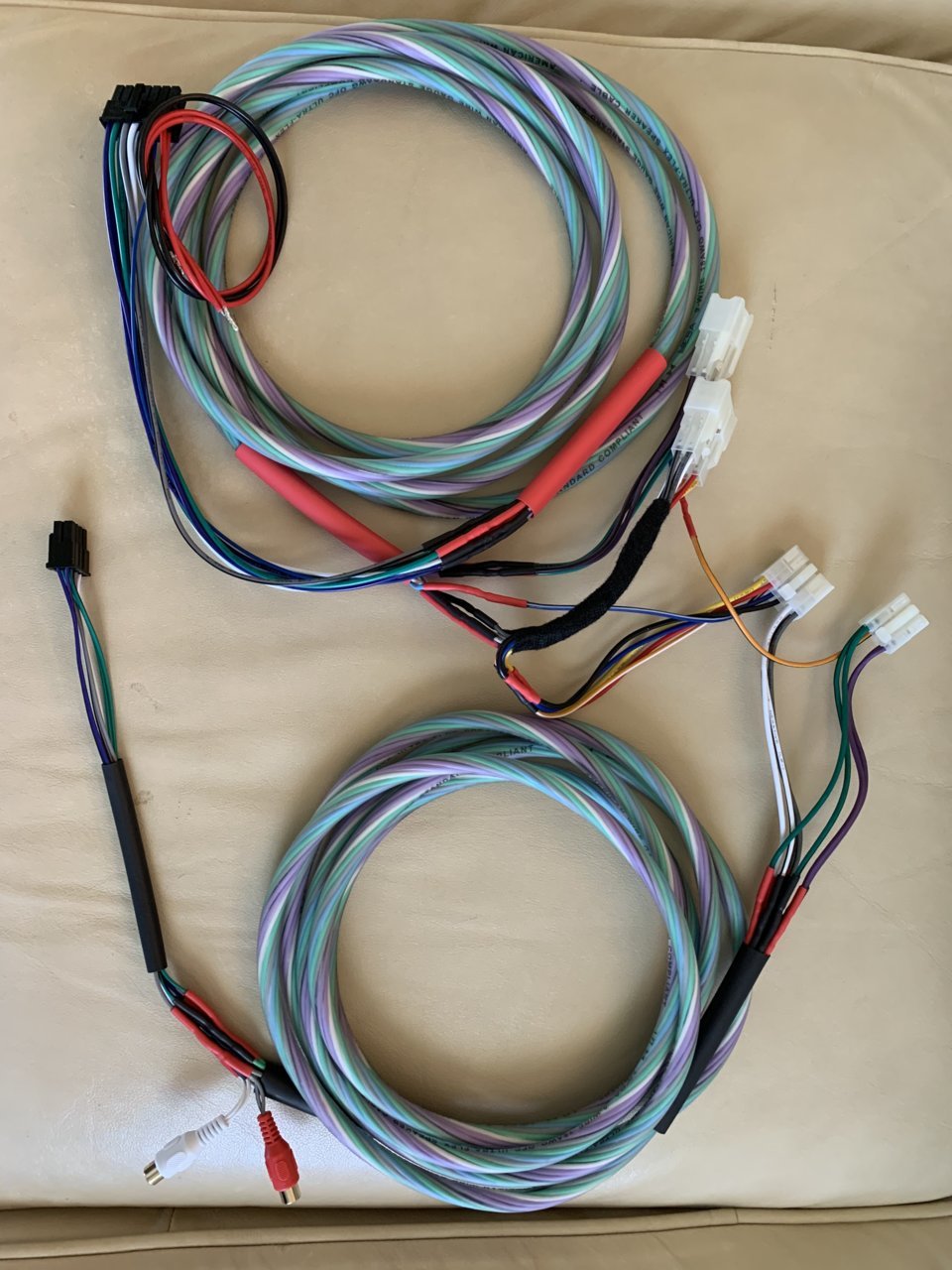

    Last edited: Apr 10, 2020
  4. Apr 10, 2020 at 8:54 AM
    #84
    Coolfinedonewicked

    Coolfinedonewicked Well-Known Member

    Joined:
    May 3, 2018
    Member:
    #252455
    Messages:
    182
    Gender:
    Male
    Kaua’i, Hawai’i
    Vehicle:
    2019 Cement Tacoma TRD OR DCSB
    I thought about this. But for simplicities sake I decided behind the head unit. I also cut the RCA’ jacks last night and dont see myself being able to salvage those at all :( I do see the benefit of being able to fiddle with it outside of the head unit though. Speed wire is also what I need to extend said blue wire? I wish I knew before I received my 6x9’s haha.
    Thanx for the suggestion... Hopefully down the road I dont kick myself too much for not going your route.

    G8R_Taco likes this.
  5. Apr 10, 2020 at 9:03 AM
    #85
    G8R_Taco

    G8R_Taco x-x-x

    Joined:
    Jun 8, 2019
    Member:
    #295798
    Messages:
    1,472
    Gender:
    Male
    FLA
    Vehicle:
    2019 TRD OR 4x4
    Speed wire is a 9-wire bundle to handle 4 speaker connections plus a remote blue wire. If all you need to do is extend that one wire then just get some 18 gauge wire.
    I found myself tweaking the gains and running the calibration more than once to get it just right.

  6. Apr 10, 2020 at 10:58 AM
    #86
    Yann

    Yann Well-Known Member

    Joined:
    Oct 6, 2018
    Member:
    #268498
    Messages:
    790
    Gender:
    Male
    First Name:
    Mick
    South Carolina
    Vehicle:
    98 Base I4 4x2 / 18 SR V6 4x4
    A/C Drain Pro Grille Intermittent Wipers Blacked out Wheels Blacked out Badges Gasshole Nfab Predator Bars Tweeter Upgrade Kicker Upgrade Morimoto Amber LED Fog Lights Meso fuse box Stage 1 taillights
    Hoping some of the experts can chime in on whether my harness is correct:


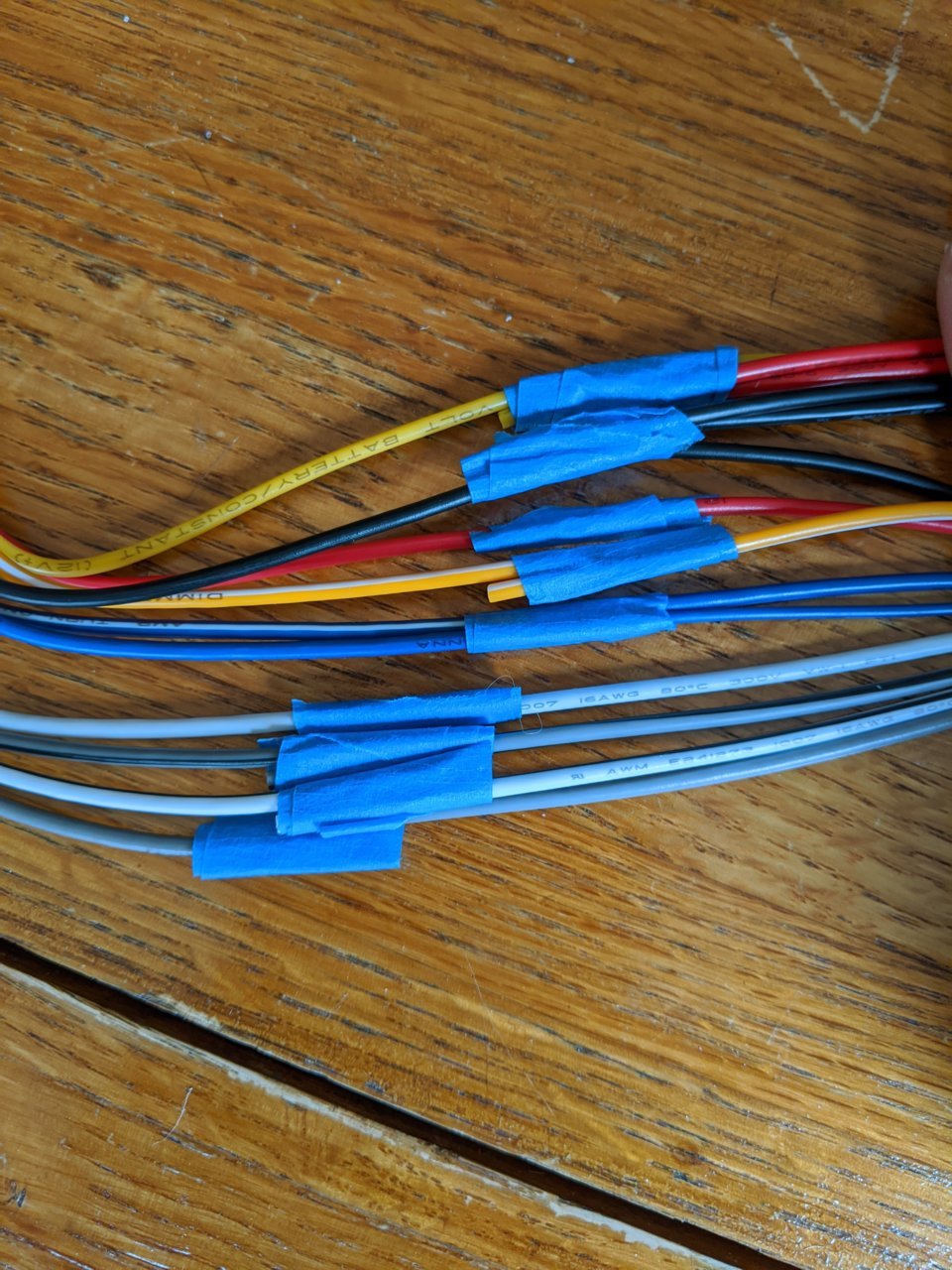

  7. Apr 12, 2020 at 3:35 PM
    #87
    GI_Taco

    GI_Taco Well-Known Member

    Joined:
    Jun 21, 2016
    Member:
    #190168
    Messages:
    493
    Gender:
    Male
    First Name:
    Halann
    Maryland
    Vehicle:
    2019 Quicksand DCSB TRD OR MT
    Ummmm. I’m no expert but I do know for sure that painters tape will be far less than ideal for wire connections.

    Yann and shane100700 like this.
  8. Apr 12, 2020 at 3:37 PM
    #88
    GI_Taco

    GI_Taco Well-Known Member

    Joined:
    Jun 21, 2016
    Member:
    #190168
    Messages:
    493
    Gender:
    Male
    First Name:
    Halann
    Maryland
    Vehicle:
    2019 Quicksand DCSB TRD OR MT
    Sorry if this question has already been asked. Will this T-harness work with the alpine power pack.

  9. Apr 12, 2020 at 5:07 PM
    #89
    JonWB

    JonWB Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260727
    Messages:
    75
    Gender:
    Male
    First Name:
    Jon
    Idaho
    Vehicle:
    2018 TRD OR Access Cab
    Bad for connections, good for mapping out the layout prior to soldering. :thumbsup:

  10. Apr 13, 2020 at 6:34 AM
    #90
    Tmaloy

    Tmaloy Well-Known Member

    Joined:
    Oct 3, 2019
    Member:
    #306953
    Messages:
    315
    Gender:
    Male
    First Name:
    Troy
    Vehicle:
    2019 SR DC LB
    Looking to possibly do the Kicker Key install, does anyone know if this will interfere with the Car Solutions anytime camera kit? I have one installed and I can't recall if it's harness may conflict with the Key harness.

  11. Apr 13, 2020 at 6:43 AM
    #91
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,658
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Nope, you’re good. Totally different connectors luckily

  12. Apr 13, 2020 at 6:51 AM
    #92
    Tmaloy

    Tmaloy Well-Known Member

    Joined:
    Oct 3, 2019
    Member:
    #306953
    Messages:
    315
    Gender:
    Male
    First Name:
    Troy
    Vehicle:
    2019 SR DC LB
    Thanks Destin, I already ordered all the Kicker speakers and tweeters to do the swap out. I like to listen loud so the Key amp keeps tempting me. I'll do the speakers first and go from there. Thanks to the OP, I'm going to make a little soldering stand to hold the harness while I work on it since I have the Metra harnesses.

    On another note, has anyone tried using the bottom head unit mount locations to hold the Key? Kind of like a bracket or plate that it can be mounted on? Maybe I can contribute if I can fabricate something like that.

  13. Apr 13, 2020 at 7:02 AM
    #93
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,658
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    It’s been a bit, but I “think” the Key is too big to mount there. Especially once the wires are plugged in to both sides

    G8R_Taco and Tmaloy like this.
  14. Apr 13, 2020 at 9:31 AM
    #94
    Yann

    Yann Well-Known Member

    Joined:
    Oct 6, 2018
    Member:
    #268498
    Messages:
    790
    Gender:
    Male
    First Name:
    Mick
    South Carolina
    Vehicle:
    98 Base I4 4x2 / 18 SR V6 4x4
    A/C Drain Pro Grille Intermittent Wipers Blacked out Wheels Blacked out Badges Gasshole Nfab Predator Bars Tweeter Upgrade Kicker Upgrade Morimoto Amber LED Fog Lights Meso fuse box Stage 1 taillights
    @destin_meeks how's that harness looking, you were the expert I was referring to lol.

  15. Apr 13, 2020 at 9:57 AM
    #95
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,658
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4

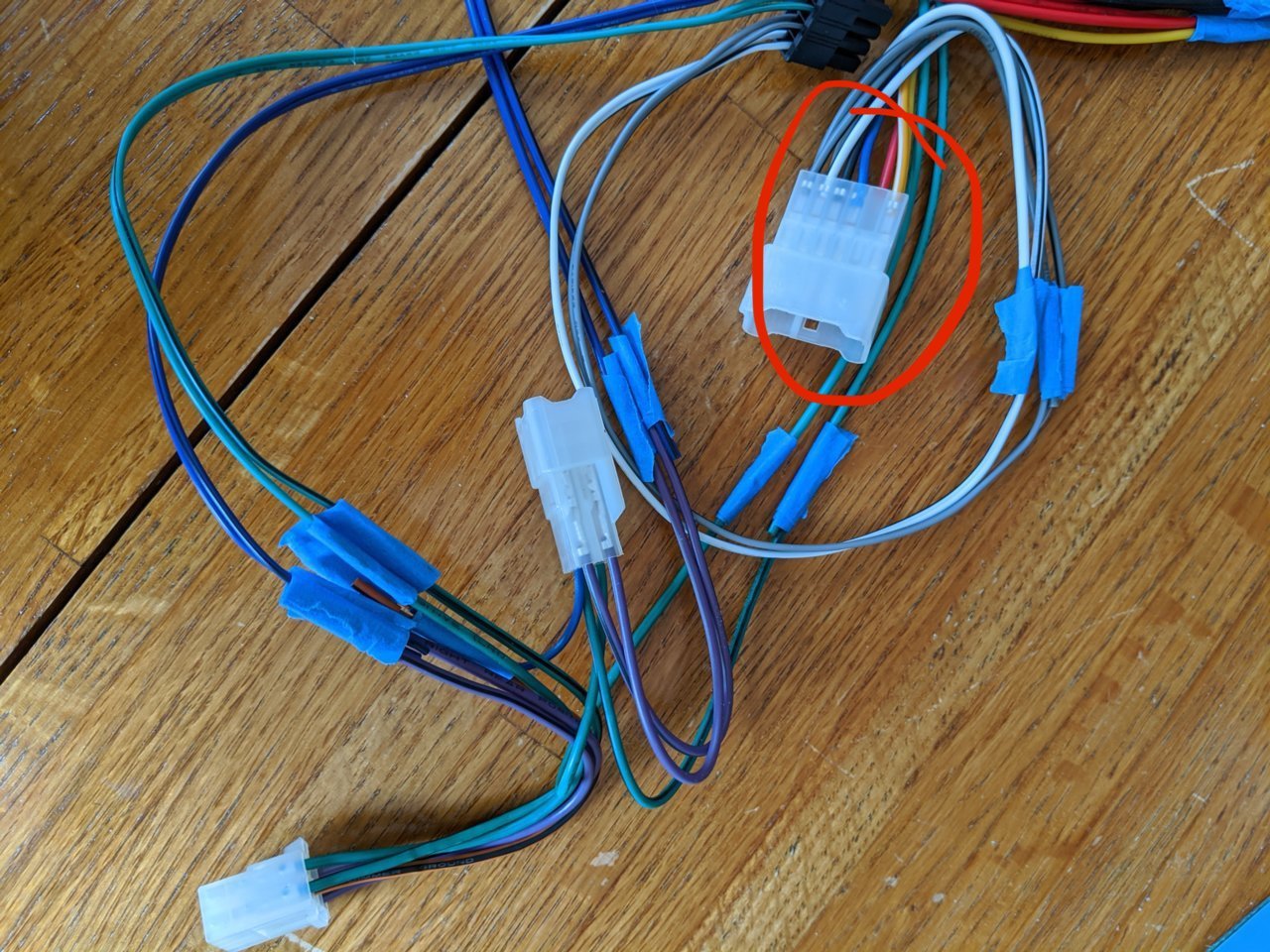

    From a glance, it looks like this circled connector should be the male plug and not the female plug. 2A1F433A-4184-4C3C-BDD0-91804EB81AED.jpg

  16. Apr 13, 2020 at 10:24 AM
    #96
    Yann

    Yann Well-Known Member

    Joined:
    Oct 6, 2018
    Member:
    #268498
    Messages:
    790
    Gender:
    Male
    First Name:
    Mick
    South Carolina
    Vehicle:
    98 Base I4 4x2 / 18 SR V6 4x4
    A/C Drain Pro Grille Intermittent Wipers Blacked out Wheels Blacked out Badges Gasshole Nfab Predator Bars Tweeter Upgrade Kicker Upgrade Morimoto Amber LED Fog Lights Meso fuse box Stage 1 taillights
    Bad start, smh

    shane100700 likes this.
  17. Apr 13, 2020 at 4:26 PM
    #97
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,658
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Just want to make sure the male Metra connectors go to the input side (Small key harness)
    And the female Metra connectors go to the Output side (the larger key harness with power and ground)

    Yann and G8R_Taco like this.
  18. Apr 14, 2020 at 4:02 PM
    #98
    SAtoATX675

    SAtoATX675 Member

    Joined:
    Aug 14, 2018
    Member:
    #262818
    Messages:
    6
    Gender:
    Male
    Vehicle:
    2018 Black Tacoma TRD Sport
    Been following this thread for a bit. Big thanks to the OP for the awesome write up, and all of the others in here offering up their help and advice! Wanted to share that I just ordered the new Kicker Key200.4 amp. Looks to be pretty much identical to the 180, but provides 200 watts of power over the 180 in the previous model. So looking at 50 watt rms per channel versus the previous 45. Really hoping the setup will be identical so I can follow these instructions.

    Yann likes this.
  19. Apr 14, 2020 at 4:58 PM
    #99
    19trdoffroad

    19trdoffroad Well-Known Member

    Joined:
    Dec 13, 2019
    Member:
    #313196
    Messages:
    144
    Gender:
    Male
    First Name:
    Chava
    Wasco, CA
    Vehicle:
    19 TRD OR 4x4 MT
    Are you able to add a sub? And how?

  20. Apr 16, 2020 at 5:42 PM
    #100
    TacoWdrd

    TacoWdrd Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    386
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR

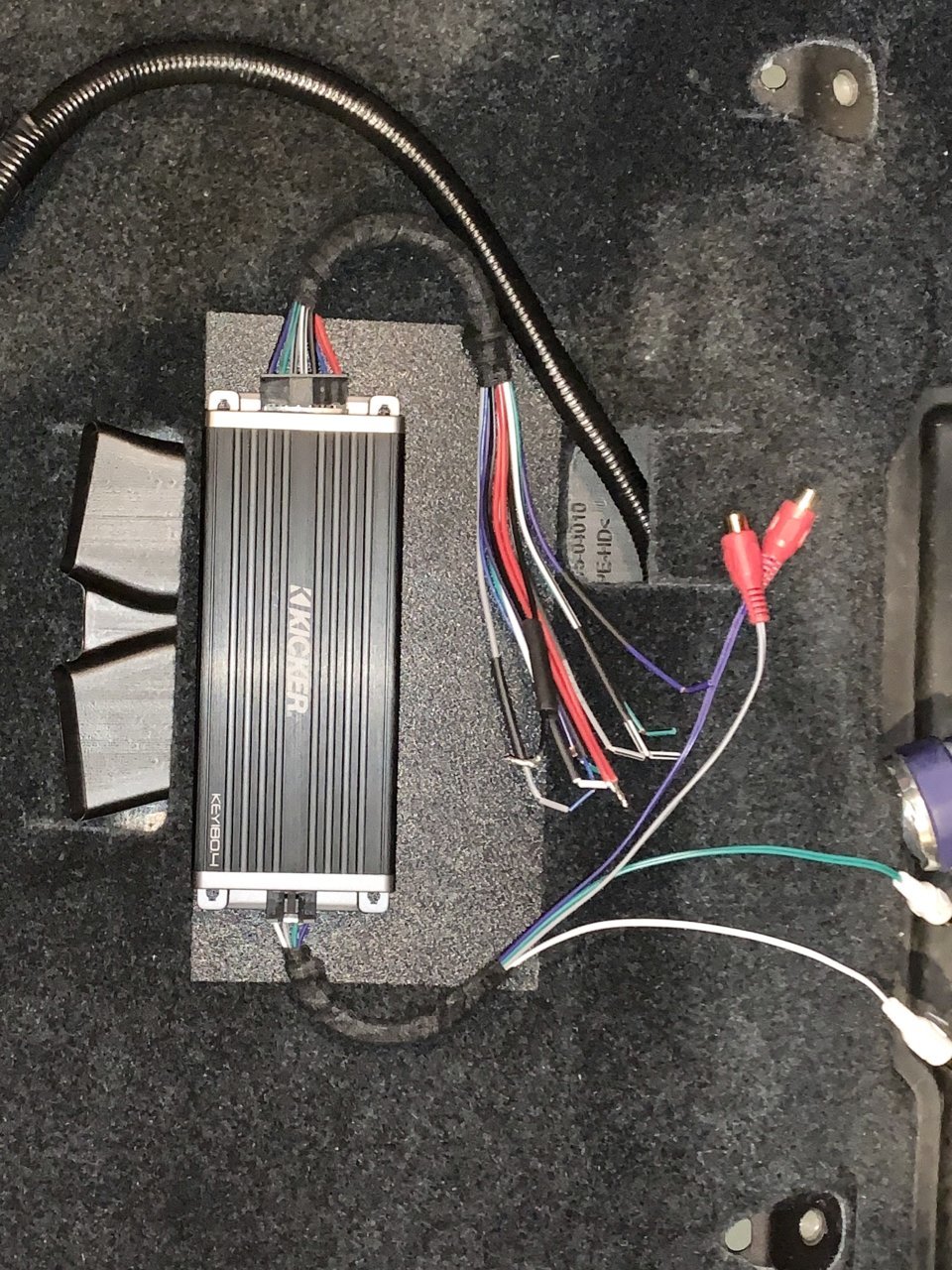

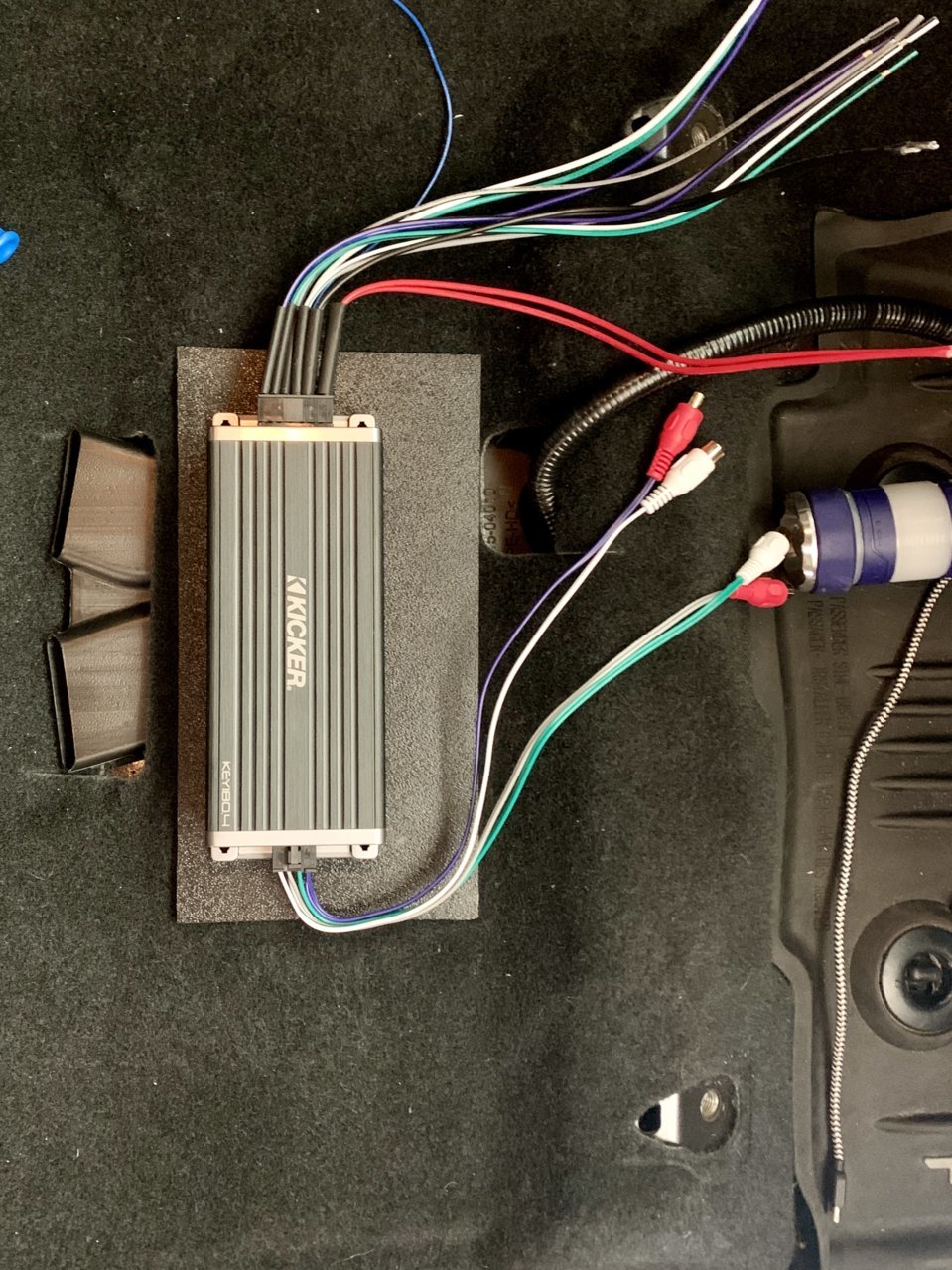

    Another key install.... Speed wire doesn't get here until Saturday :annoyed:but it give me time to plan out the rack and sex up the wires :drool:


    Trance93, DartFrog, G8R_Taco and 3 others like this.
