Tps 4 pin connector conversion to 3 pin Tps and new Throttle body (ADAPTER TPS)

Discussion in '1st Gen. Tacomas (1995-2004)' started by rodstef, Apr 19, 2021.

  1. Apr 19, 2021 at 7:22 PM
    #1
    rodstef

    rodstef [OP] Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198230
    Messages:
    50
    Gender:
    Male
    First Name:
    Rodrigo
    Vehicle:
    Tacoma 1st Gen

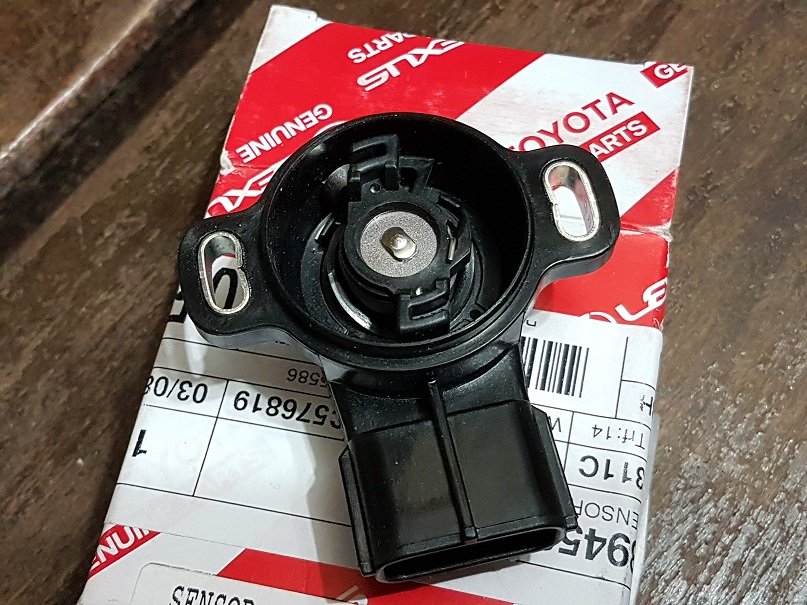

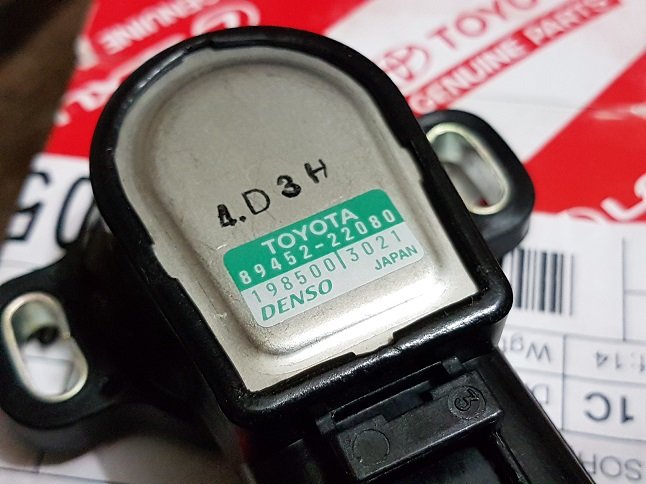

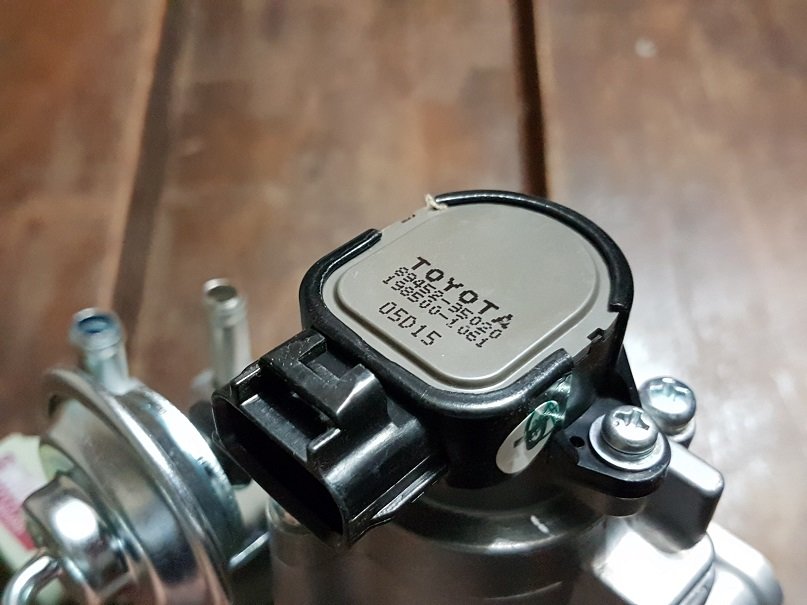

    I have a question, 95-5 3.4 MT reg cab 4 pin connector for the tps (89452-22080) oem and new throttle body with 3 pin connector TPS (89452-35020) some way to convert or adapt that 4 pin connector to 3 pin tps? or some other solution

    Please help, maybe there is a solution and I'm not seeing

    Throttle body for 95-5 is discontinued

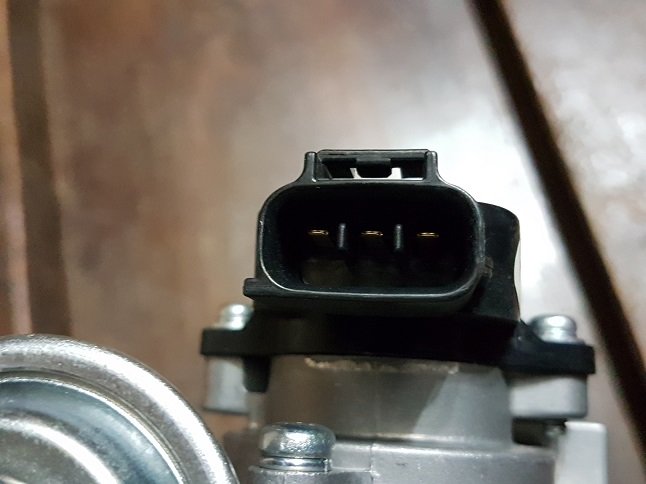

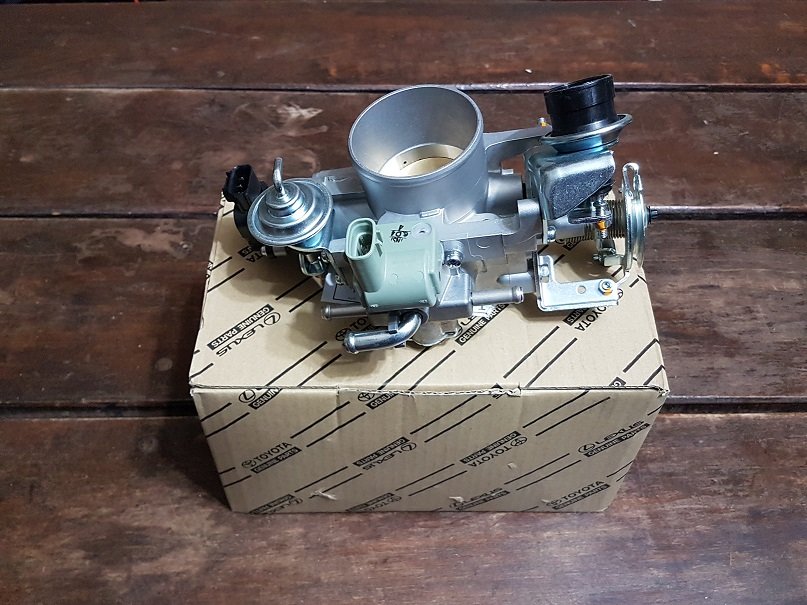

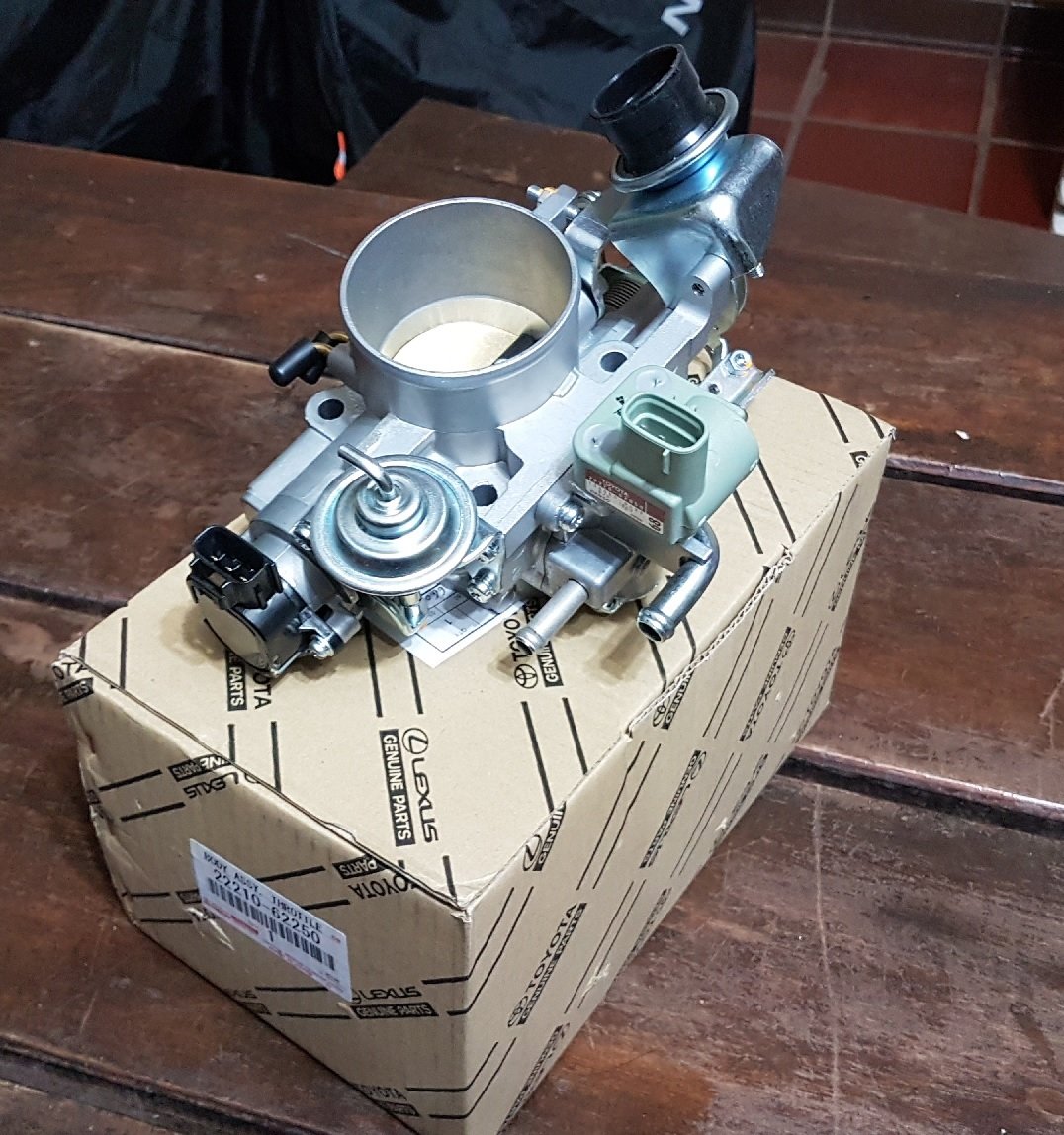

    so the only option was a new throttle body (22210-62250) with tps 3 pin connector













    hoverlover likes this.
  2. Apr 19, 2021 at 10:25 PM
    #2
    DrZ

    DrZ Well-Known Member

    Joined:
    Dec 14, 2014
    Member:
    #144262
    Messages:
    1,459
    Gender:
    Male
    Mesa, AZ
    Vehicle:
    96 2.4L 5-speed
    The 1996 repair manual shows a 4 pin TPS for both the 4-cylinder and 6-cylinder engines.

    What's the part number for the throttle body you need that's discontinued?

    And what year/engine is the throttle body you got for?

  3. Apr 20, 2021 at 2:15 AM
    #3
    BartMaster1234

    BartMaster1234 Well-Known Member

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    45,698
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
  4. Apr 20, 2021 at 11:42 AM
    #4
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    14,277
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    Where does that 4th wire go??

    I wish I had the EWD for the95.5 and the one the new throttle body is for.

    It might be like any swap change the ECM and other sensors to the year of the new throttle body .

    Without being able to see the schematics.

  5. Apr 20, 2021 at 6:06 PM
    #5
    rodstef

    rodstef [OP] Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198230
    Messages:
    50
    Gender:
    Male
    First Name:
    Rodrigo
    Vehicle:
    Tacoma 1st Gen
    @DrZ

    What's the part number for the throttle body you need that's discontinued?
    22210-62190 throttle body 3.4 4x4 MT 1995-5 / 09/1996 4 pin connector


    And what year/engine is the throttle body you got for?
    I buy this new throttle body and new tps 4 pin connector
    22210-62250 throttle body 3.4 4x4 MT 09/1996-08/1999 and is for tps 3 pin connector

  6. Apr 20, 2021 at 6:12 PM
    #6
    rodstef

    rodstef [OP] Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198230
    Messages:
    50
    Gender:
    Male
    First Name:
    Rodrigo
    Vehicle:
    Tacoma 1st Gen
    maybe a single potentiometer and idle switch

  7. Apr 20, 2021 at 6:29 PM
    #7
    rodstef

    rodstef [OP] Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198230
    Messages:
    50
    Gender:
    Male
    First Name:
    Rodrigo
    Vehicle:
    Tacoma 1st Gen
    It's more complicated than i thought, maybe you could help me please, it shows that you understand about throttle body and tps @Jeff Lange


  8. Apr 20, 2021 at 6:37 PM
    #8
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,253
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    Reading that post, it actually looks like I made a mistake in the information I provided.

    I have since updated it to correct the 1995-1996 V6 information.

    I looked briefly before to see if there was a Toyota 4-wire TPS that would be compatible with the newer V6 non-ETCS throttle body, but haven't found one yet.

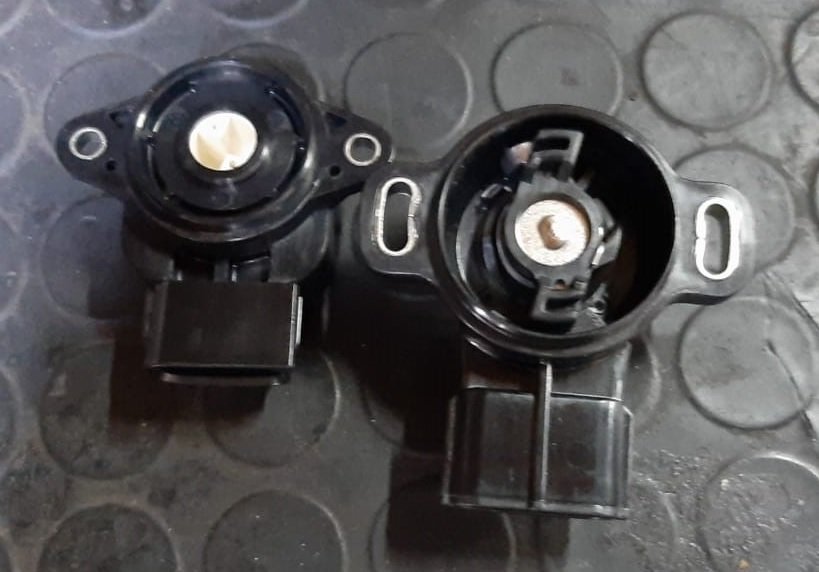

    Question for you though, have you compared the plate under the TPS between the two throttle bodies? It may be possible to swap the plate and then use the original 4-wire TPS on the newer throttle body.

    To the other questions that have been asked, the early 4-wire sensors use a single pot and idle switch. The 3-wire sensors use a single pot and no idle switch, the later 4-wire sensors use two pots and no idle switch.

    Jeff

    mechanicjon likes this.
  9. Apr 20, 2021 at 6:57 PM
    #9
    rodstef

    rodstef [OP] Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198230
    Messages:
    50
    Gender:
    Male
    First Name:
    Rodrigo
    Vehicle:
    Tacoma 1st Gen
    you say to modify the inside of the new throttle body where the tps 3 connectors sit and place the tps with 4 connectors
    did I understand well? that is proven to work? I do not want to break the new throttle
    but if there is no other left I will have to do it

    I had thought of modifying the wire connector with 4 pins tps to convert into 3 pins cable connector but I don't know if it would work

  10. Apr 20, 2021 at 7:14 PM
    #10
    rodstef

    rodstef [OP] Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198230
    Messages:
    50
    Gender:
    Male
    First Name:
    Rodrigo
    Vehicle:
    Tacoma 1st Gen

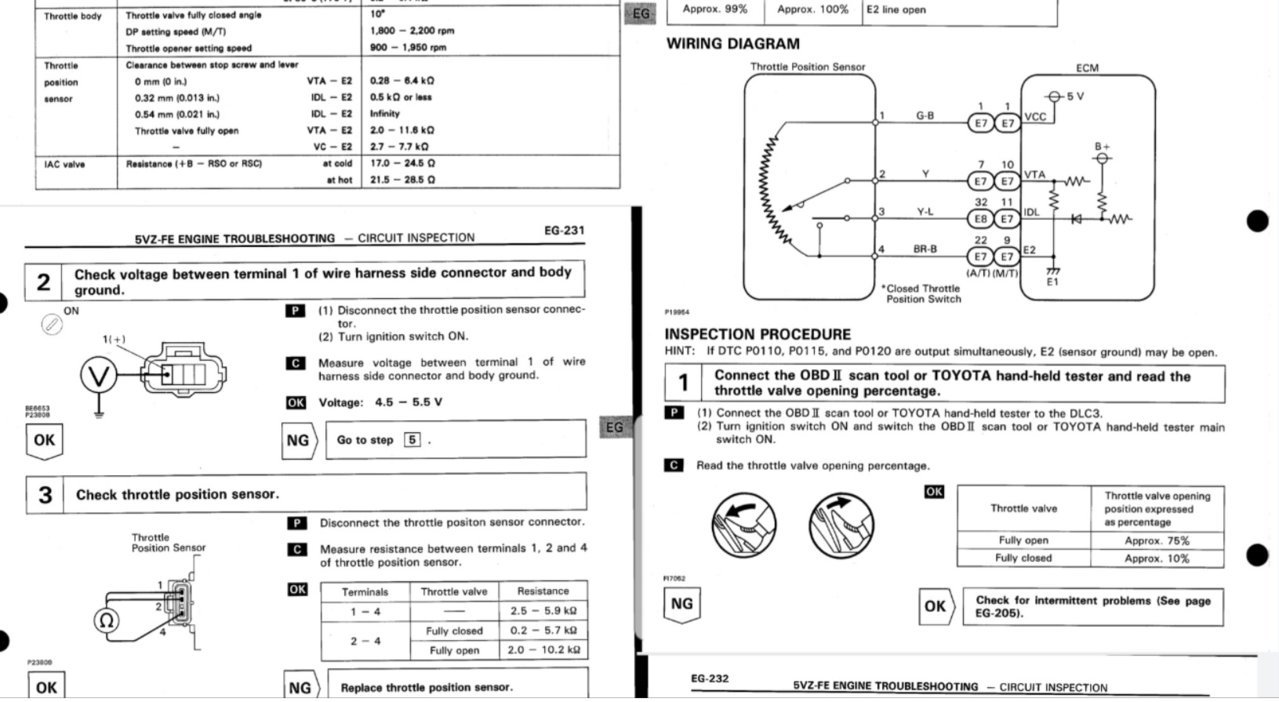

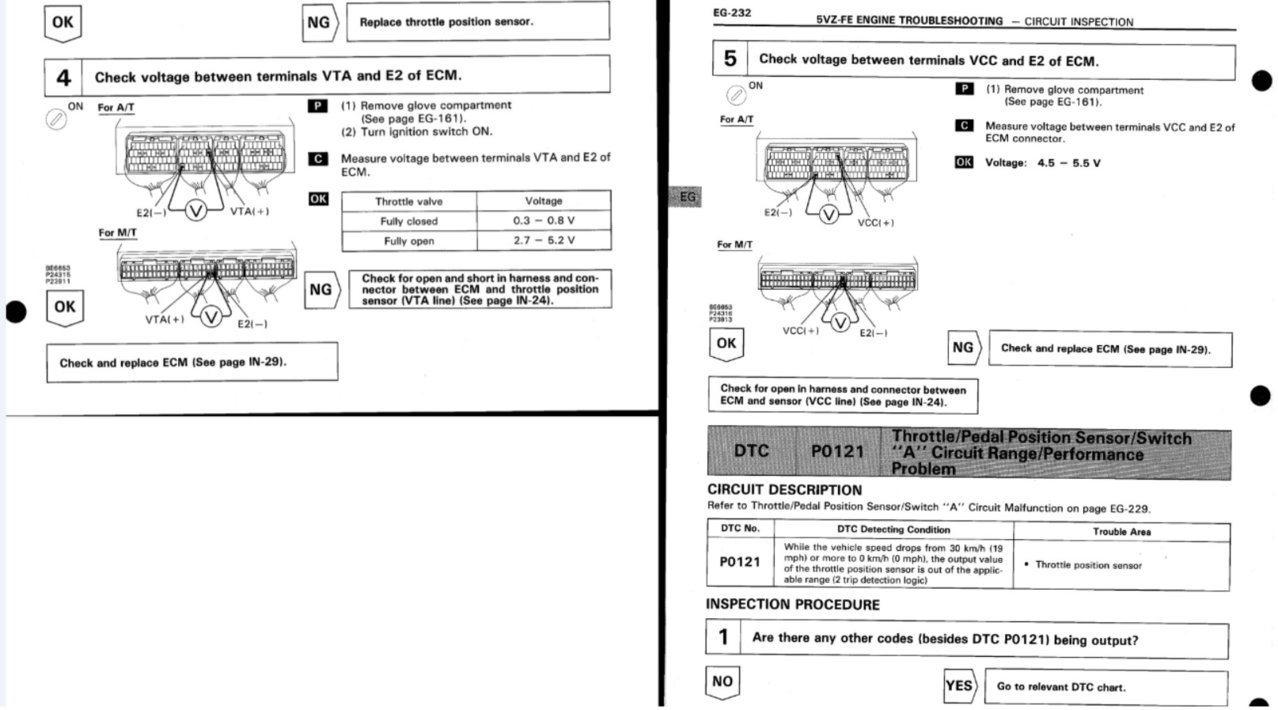

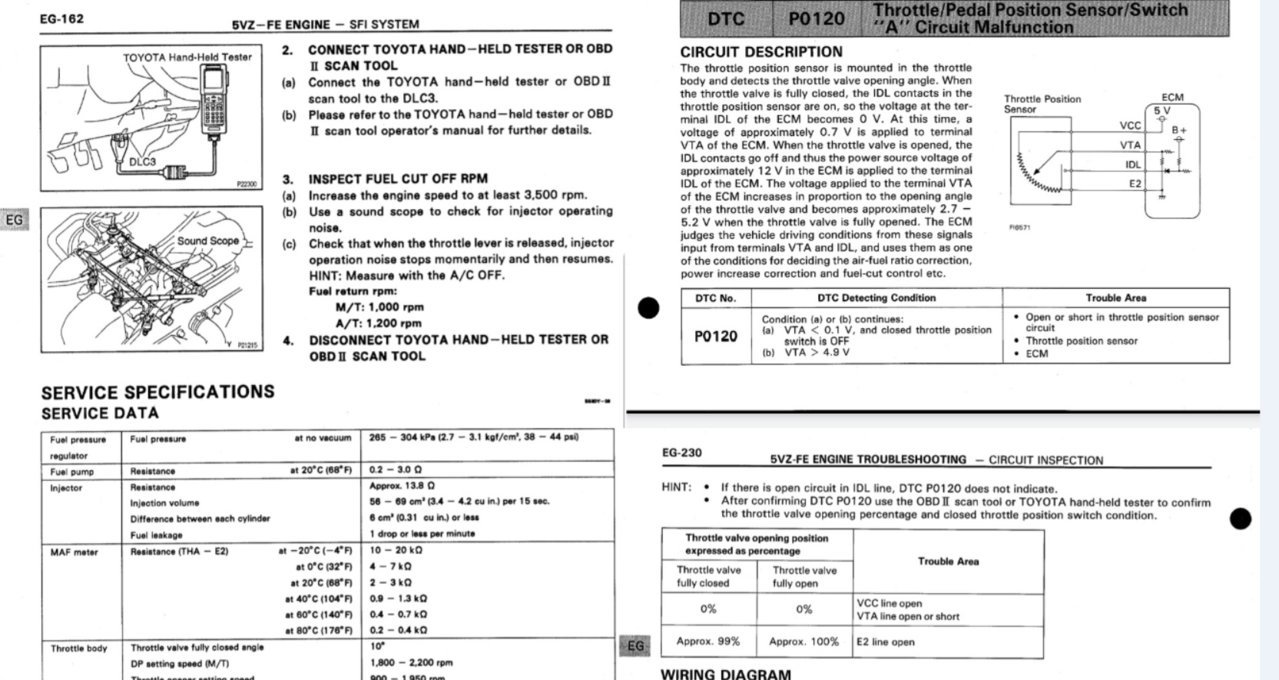

    information that could be useful about the tps with 4 pins connectors










  11. Apr 20, 2021 at 7:43 PM
    #11
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,253
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    Just remove the 2 screws holding the TPS onto the throttle body, and take a look at what's under there. I haven't done it on a 5VZ myself, but I have for other Toyotas.

    That wouldn't work, at least not completely. The ECU is expecting the IDL signal.

    Jeff

  12. Apr 22, 2021 at 11:44 PM
    #12
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,111
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.

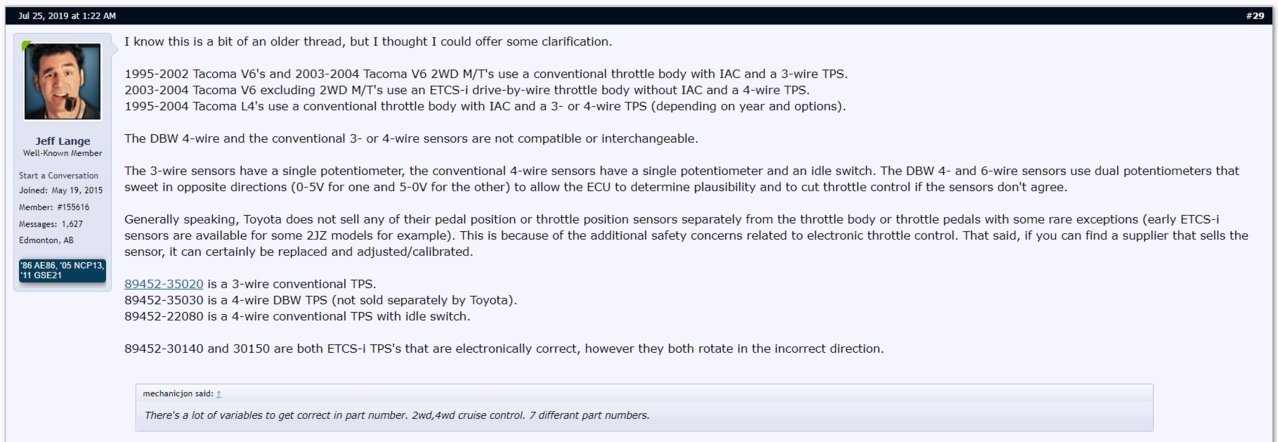

    Here's some info on the 3 wire.


  13. Apr 22, 2021 at 11:59 PM
    #13
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,111
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    The 4 wire has the idle switch in it. Which you will need for your truck. 3 wire won't work in place of it electrically. Only option is to make 4 wire work on throttle body or get a different throttle body.

  14. Apr 23, 2021 at 12:05 AM
    #14
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,111
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    What's wrong with your throttle body?

  15. Apr 24, 2021 at 11:10 AM
    #15
    rodstef

    rodstef [OP] Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198230
    Messages:
    50
    Gender:
    Male
    First Name:
    Rodrigo
    Vehicle:
    Tacoma 1st Gen
    the truck remains accelerated and varies the revolutions intermittently between 1500rpm and 2000rpms

    Last edited: Apr 24, 2021
  16. Apr 24, 2021 at 11:16 AM
    #16
    rodstef

    rodstef [OP] Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198230
    Messages:
    50
    Gender:
    Male
    First Name:
    Rodrigo
    Vehicle:
    Tacoma 1st Gen
    we have advances, I am manufacturing an adapter for the tps 4 pin connector (89452-22080) to swap in the new throttle body (22210-62250)
    hopefully we will have results next week if everything goes well and works

    similar to this


    tps adapteer.jpg

  17. Apr 24, 2021 at 11:40 AM
    #17
    rodstef

    rodstef [OP] Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198230
    Messages:
    50
    Gender:
    Male
    First Name:
    Rodrigo
    Vehicle:
    Tacoma 1st Gen
    that is, you'r right

  18. Apr 24, 2021 at 11:55 AM
    #18
    rodstef

    rodstef [OP] Well-Known Member

    Joined:
    Sep 25, 2016
    Member:
    #198230
    Messages:
    50
    Gender:
    Male
    First Name:
    Rodrigo
    Vehicle:
    Tacoma 1st Gen

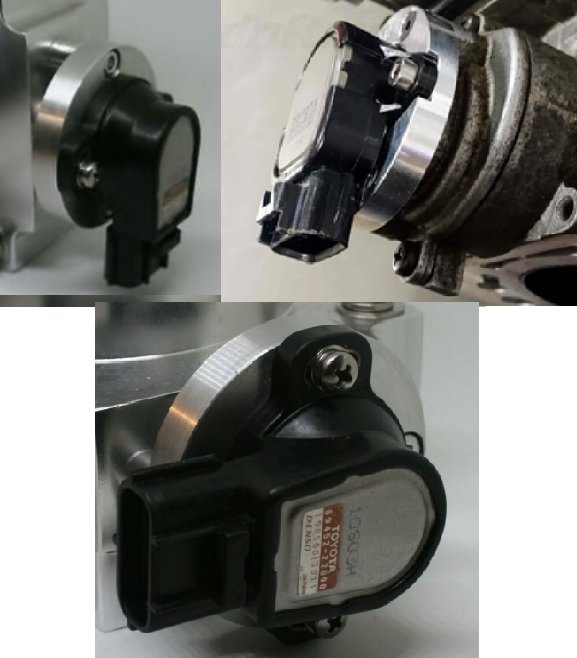

    it would look something like this, I found several adapters all over the world and mostly for the Supra but there are no options for the tacoma body throttle and 5vz motor
    then it's time to invent one :popcorn:



    tps adapteer 2.jpg

    ludaman1983 and mechanicjon like this.
  19. Apr 24, 2021 at 11:12 PM
    #19
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,111
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Throttle shaft worn? Max Bore can rebush it and make it like new. John has had it done to his. @1997tacomav6

    jammer and 1997tacomav6 like this.
  20. Apr 25, 2021 at 7:03 AM
    #20
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TVS1320 Supercharger,Haltech, 780k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    10,327
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 780,001 plus miles, Original Owner
    V6 5sp,RegCab,TVS1320 Supercharger, 56mm pulley, methanol injected Haltech ECU, AC Tvs1320 supercharger,(MUST DO) every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 56mm custom pulley, (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ATM Pathfinders Dynopro ATM ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back dual exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, bucket seats corbeau lg1 Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks, King shocks JBA UCA trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Marlin crawl shift kit. Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Snow Methonal kit stage 2 Custom 3 core aluminum radiator Linex bed liner Haltech stand alone ECU, Intake supercharger gauge. Stainless steel brake lines, Custom leather wrapped steering wheel, Haltech stand-alone ECU,

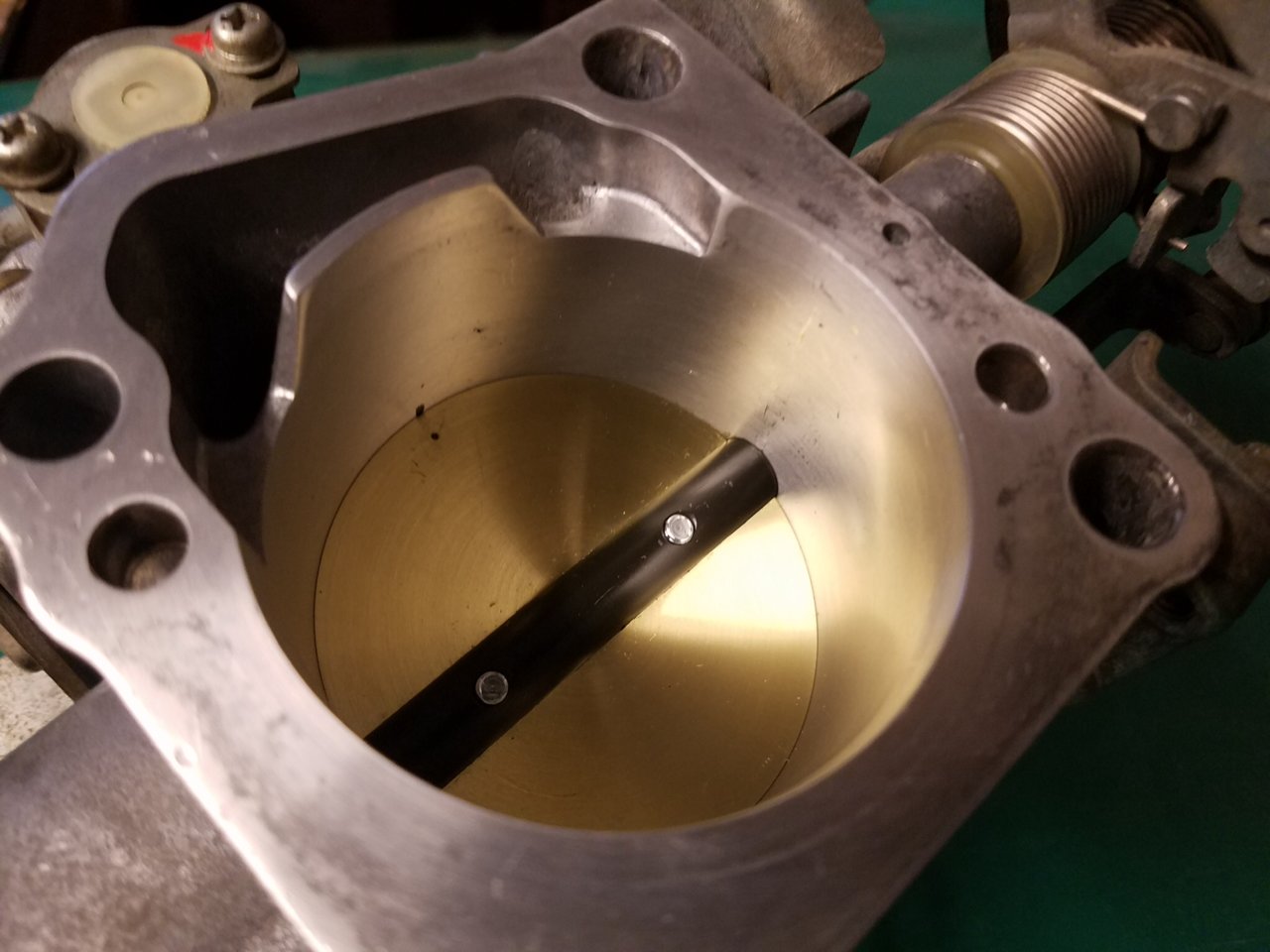

    Just look down the throttle body and see if there’s any air gap in between the walls and the butterfly.
    It should be tight,
    The walls should be perfectly smooth where the butterfly meets the wall.

    If there’s any gap or grove on the wall where the butterfly meets the wall, air will slip by and your rpms will be higher.
    Max bore for 125.00 is the best deal and is put in an ultrasound cleaning machine too.
    He will bore out the inside to make the walls perfectly round, new butterfly etc.
