Trail Toys NSA Switch Panel

Discussion in 'Trail Toys' started by SMKYTXN, Mar 18, 2015.

  1. Apr 27, 2017 at 9:34 PM
    #181
    MTSN

    MTSN Well-Known Member

    Joined:
    Nov 19, 2012
    Member:
    #91473
    Messages:
    117
    Gender:
    Male
    Denver
    Vehicle:
    17 Tacoma TRD Off Road

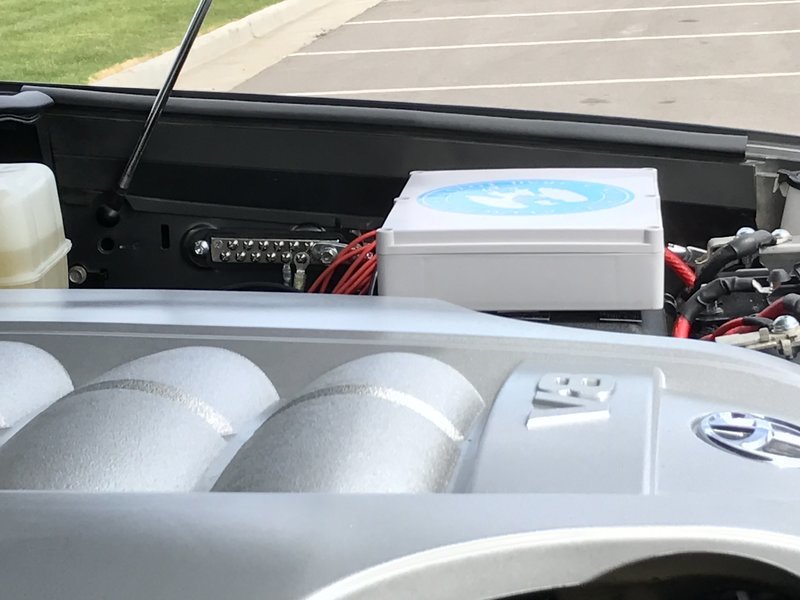

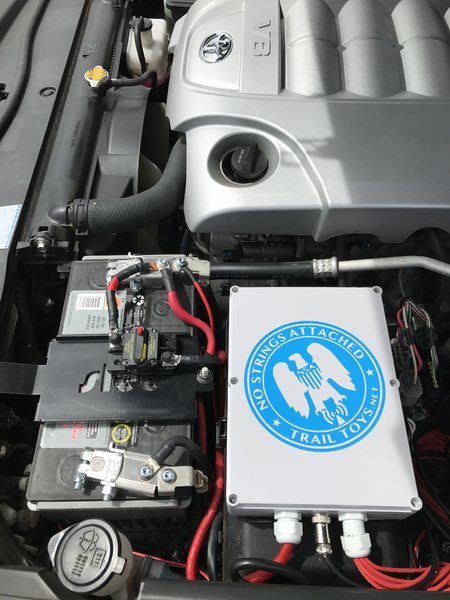

    I forgot to post up when I installed this. So far so good!


  2. May 22, 2017 at 10:01 AM
    #182
    HerT4R

    HerT4R Nomadic

    Joined:
    Oct 19, 2015
    Member:
    #167127
    Messages:
    836
    Gender:
    Female
    First Name:
    Her
    Bless the rains
    Vehicle:
    2 legs or 2 wheels
    '10 4RUNNER TE (SOLD)

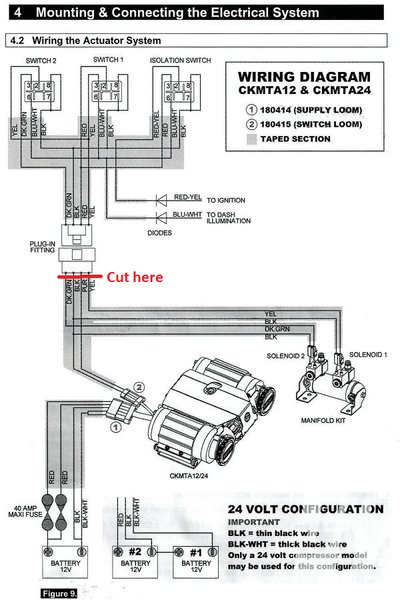

    recently finished up my ARB dual compressor installation and was ready to wire it up to my NSA box. For anyone wondering how to do this, it is easy.

    Step 1:
    Cut off the supply loom spade connectors (or end connector if you've pressed the spades into the end connector). I cut it about 1" from the end connector just in case I want to ever reattach the supply loom to the switch loom.

    Step 2*:
    *If you do not have a need for the front or rear air locker wires (yellow & dk green, per schematic) then tape the yellow and dk green wires to the harness and out of your way and move on to step 3, this is what the figure shows since I do not have front or rear ARB air lockers at this time.
    *If you do have a need for the front or rear air locker wires to control your totally badass ARB air lockers then attach the yellow and dk green wires to separate output wires on the NSA trail toys box to control each locker individually. I recommend making the compressor #1 and then these #2 and #3 like @SMKYTXN did, but its your box do with it what you want but you need the compressor on BEFORE you go clicking your air lockers on and this method of wiring removes the idiot-proof switch loom....... don't say you weren't warned.

    Step 3:
    Attach the purple wire to an NSA trail toys box output wire (I picked #1, since it was my first accessory hooked to the box and it seemed important enough to be #1). And then attach the black wire to an appropriate ground.

    Step 4:
    press your selected output button on the remote, VOILA! air on demand!!!
    (if this didnt work verify your box is set up correctly and that the function that you picked is a "toggle" and not a momentary).


    knottyrope and SMKYTXN[OP] like this.
  3. Jun 2, 2017 at 7:37 PM
    #183
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    I appreciate the update bud! :thumbsup:

    Blackout14 likes this.
  4. Jun 2, 2017 at 7:48 PM
    #184
    Silverspool

    Silverspool Come at me Bro!

    Joined:
    Jul 6, 2016
    Member:
    #191387
    Messages:
    8,198
    Gender:
    Male
    First Name:
    Frank
    DFW
    Vehicle:
    18T4RORP 16MX5Turbskie 17GT350
    Anyone seen my wallet?
    Dang i need one of these. Lights on lights on lights for days

    SMKYTXN[OP] likes this.
  5. Jun 2, 2017 at 7:54 PM
    #185
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    I need to build a 4 relay version.

  6. Jun 2, 2017 at 7:54 PM
    #186
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    I'm restocking at the moment. Give me another week and I'll be ready for your order. :D

  7. Jun 5, 2017 at 8:46 AM
    #187
    HerT4R

    HerT4R Nomadic

    Joined:
    Oct 19, 2015
    Member:
    #167127
    Messages:
    836
    Gender:
    Female
    First Name:
    Her
    Bless the rains
    Vehicle:
    2 legs or 2 wheels
    '10 4RUNNER TE (SOLD)
    someone has one for sale on the fj cruiser parts exchange on fb. pm me if you need the deets. its a great deal, looks brand new, with the indicator light panel.

    Silverspool[QUOTED] likes this.
  8. Sep 4, 2017 at 4:17 PM
    #188
    PinnaclePete

    PinnaclePete I am what I am

    Joined:
    Jun 2, 2014
    Member:
    #131126
    Messages:
    4,176
    Gender:
    Male
    First Name:
    Pete
    Central AR
    Vehicle:
    '14 Sport DCLB Pyrite, 2015 DCSB Barcelona Limited
    SwitchPros 9100, Flip Pac, Stealth 6 Bronze, Toyo 255/80/17, MTO Tailgate Skin, RCI read diff plate, StopTech slotted disc and pads, OME 885 w/ NitroChargers, OME HD LeafPacks, SOS Rear bumper with swingout, BAMF Bolt-on Sliders, Rear diff breather, OEM roof racks, ECG perforated grill, BAMF behind grill light bar bracket with PIAA 510 4" yellow spots, US OffRoad bumper, Engo 9k winch, WeatherTech window vents and floor mats, Wet Okle seat covers, RedLine hood struts, Anti Dark hood lights, Baja amber light pods, Lamin-X amber flood covers, amber FlyEyes, Jumpers amber LEDs, Salix glovebox and center console organizer, MagLite mounted, shop made bed mount tool boxes, LogRite bed mount bottle opener
    Control Issue....Frustrating

    Have had the NSA on my truck for 2 years, worked great. Haven't really used it all summer due to longer days, so I was checking things out this weekend and came up with an issue, the controller isn't staying "engaged". Bullet points below to explain....

    - Controller didn't work so I checked the box interior, clean and dry, no visible issues, changed battery in controller.
    - Went to re-program controller, interior panel light would not come on when pressing button.
    - Dis-connected power, checked the bottom of board all looks good.
    - Re-connected power, pushed button, light came on, re-programmed controller, lights worked as before, cool.
    - Started truck, everything still works fine, re-installed cover, everything still works fine, cool.
    - Moved truck to other side of driveway, checked lights, everything still works, cool. Engine off, drink beer, cool.
    - Check it 30 minutes later and Fuq, not cool, no lights.
    - Re-peat process from line 3 and same results. Works and then not works, not cool. Frustrated.
    - Did this 3 times, same results - works great, then it doesn't.
    - No other electronic changes in truck. Controller has always been kept next to my garage door opener in right cubby.
    - Closed garage door to check alignment, lights on-off no issues. Control system just seems to peter-out after awhile.
    - The panel has always been hooked direct to battery without issue, but I now notice the Blue Sea Circuit Breaker below and in others posts.

    IS it the controller, IS it the mother board switch, IS it the lack of breaker, IS it me................Help, input is appreciated.
