Trailer Backup Camera Switching?

Discussion in 'Towing' started by Brisby, Mar 11, 2019.

  1. Mar 11, 2019 at 9:34 PM
    #1
    Brisby

    Brisby [OP] New Member

    Joined:
    Mar 11, 2019
    Member:
    #286286
    Messages:
    4
    I just bought my first Tacoma: a 2015 4.0 v6 4x4 that I'll to use to tow my R-Pod around. I intend to install a reverse camera on the camper. Is there a way to easily switch between the Taco's reverse camera and the camper's? Better yet, is there a way for it to recognize when the camper's hooked up and switch automatically? I'd really like to use the camper's camera in conjunction with the console display and not have to use a separate display for it. Would I need to replace the head unit or does the stock unit come with two camera inputs, or is there another way around it? Am I in over my head? Should I have all this done professionally? Thanks for any help yall can offer!

  2. Mar 11, 2019 at 9:43 PM
    #2
    tcjacado

    tcjacado Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195947
    Messages:
    41,605
  3. Mar 11, 2019 at 9:47 PM
    #3
    Brisby

    Brisby [OP] New Member

    Joined:
    Mar 11, 2019
    Member:
    #286286
    Messages:
    4
    Ok, great! I'd actually seen this before but I hadn't thought about using it for this purpose. Would I just install the front camera on the R-Pod's rear instead?

    tcjacado likes this.
  4. Mar 11, 2019 at 9:50 PM
    #4
    tcjacado

    tcjacado Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195947
    Messages:
    41,605
    I think so... it's going to be the same as wiring on a front camera, but not locating the camera in the front of the truck, but on the rear of the trailer and add the anytime mod with the switch

  5. Mar 11, 2019 at 9:54 PM
    #5
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    6,792
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Need a 5-pin relay on the camera feed so the signal can toggle between normal input(pin 87) and trailer input(87a). A switch to toggle might be better to allow you to see the trailer hook up under way. To auto switch you would need an extra connection to bring the trailer power back to the relay. It would then auto toggle as soon as power was on and in reverse. The places to interrupt the signal without cutting wires are at the tail gait cam, at the plug on the frame below the rr lights, and at the head unit.

  6. Mar 12, 2019 at 4:27 AM
    #6
    airsavage

    airsavage Well-Known Member

    Joined:
    Mar 19, 2017
    Member:
    #213699
    Messages:
    1,589
    Gender:
    Male
    First Name:
    Butch
    Vehicle:
    2020 Tundra Sport 4x4 MGM, 2000 Prerunner
    Welcome aboard:hattip:

  7. Mar 12, 2019 at 7:01 AM
    #7
    Sparky.

    Sparky. Bought, built, totaled

    Joined:
    Nov 30, 2018
    Member:
    #274316
    Messages:
    971
    Gender:
    Male
    First Name:
    Dawson
    Enumclaw Washington
    Vehicle:
    ‘14 AC 6MT -R.I.P, ‘08 cummins
  8. Apr 19, 2019 at 11:29 PM
    #8
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

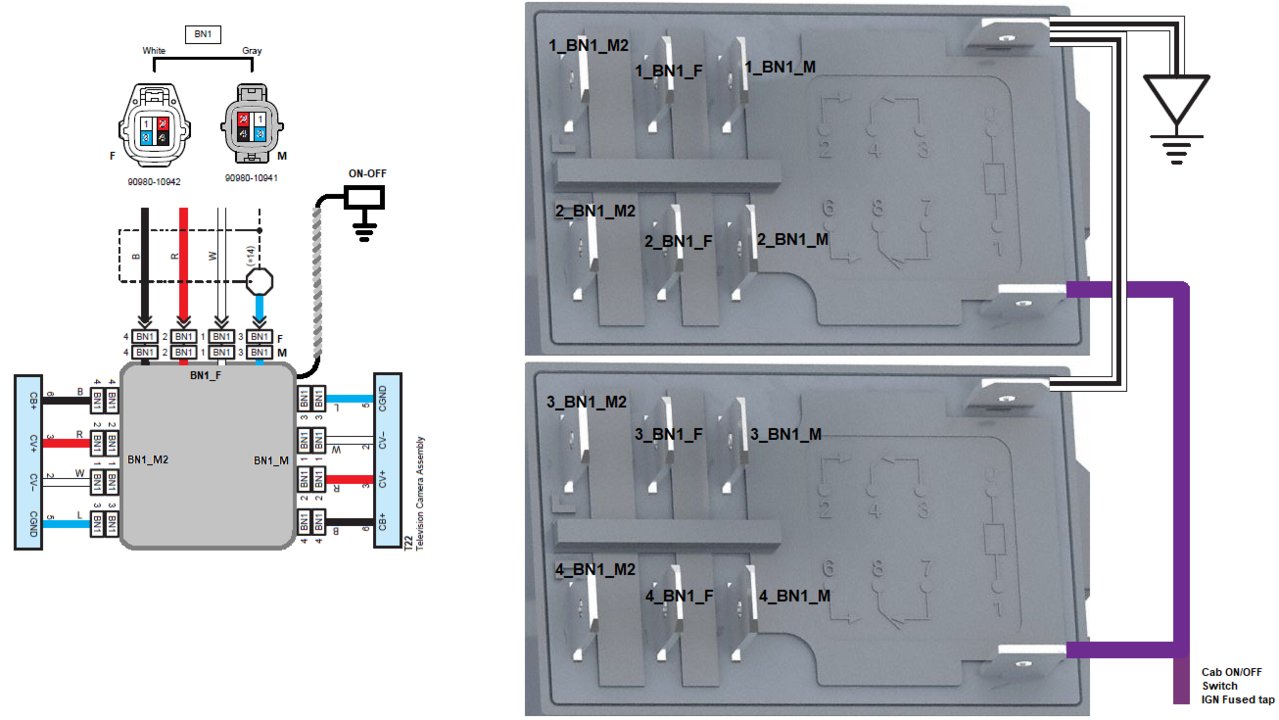

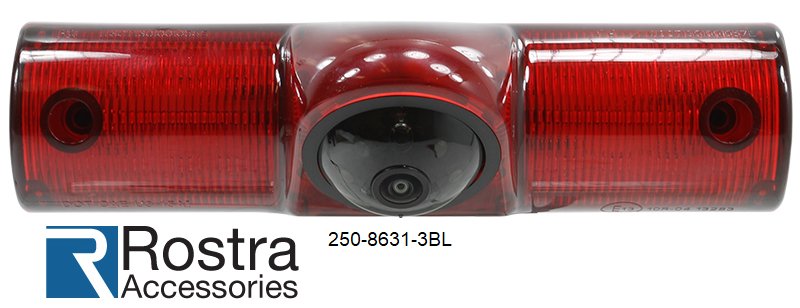

    Something like this:


  9. Apr 21, 2019 at 6:55 PM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

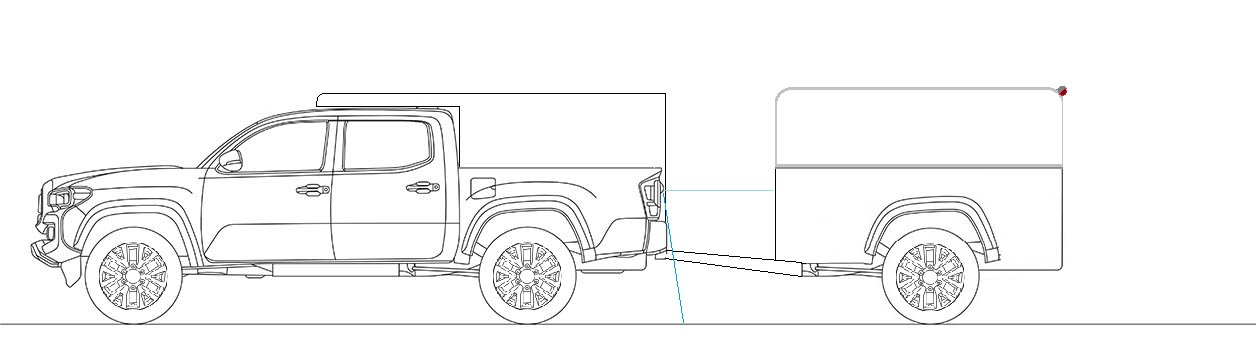

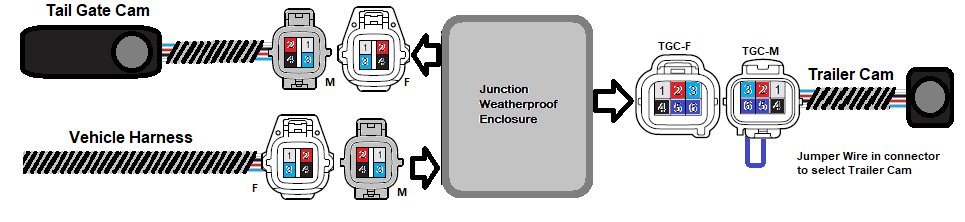

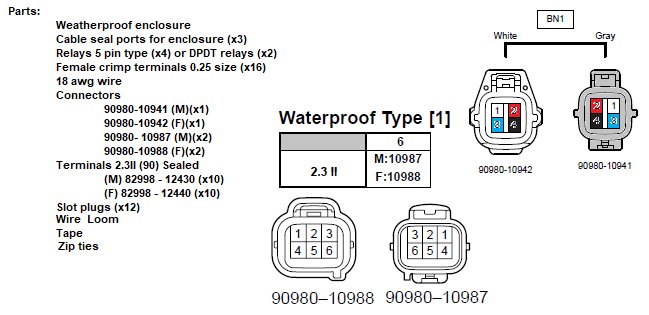

    Manual connection to the added trailer camera setup, like so:


    Upon connection of trailer cam system switches to trailer view, removal of harness returns to TailGate cam. If you decide to leave trailer cam and be able to select between cams then no jumper in trailer cam connector, but you'll need to run a wire into cab for a switch do to selection of tailgate cam or trailer cam.

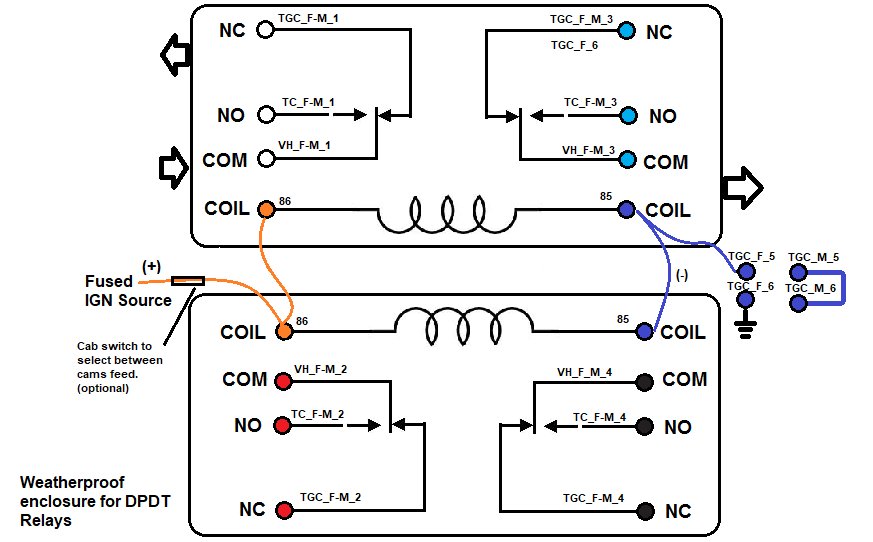

    2 DPDT relays or 4 (5 pin) Relays.

    Circuit:

    Last edited: Apr 21, 2019
  10. Apr 21, 2019 at 8:47 PM
    #10
    oly51

    oly51 Well-Known Member

    Joined:
    Dec 3, 2013
    Member:
    #117807
    Messages:
    358
    Gender:
    Male
    First Name:
    Gary
    S.E. MA
    Vehicle:
    2017 Tacoma, TRD Sport, MGM

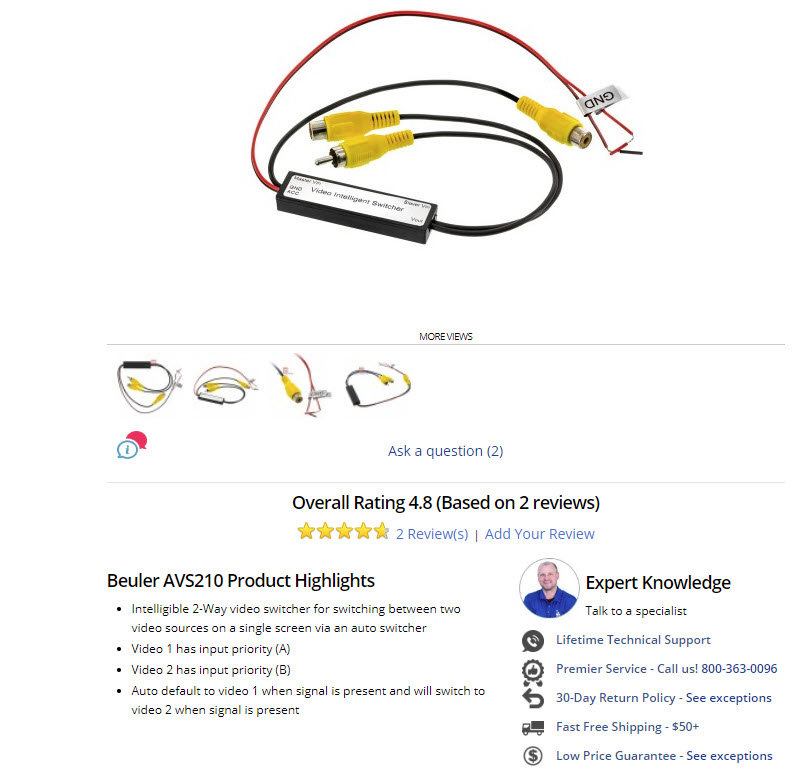

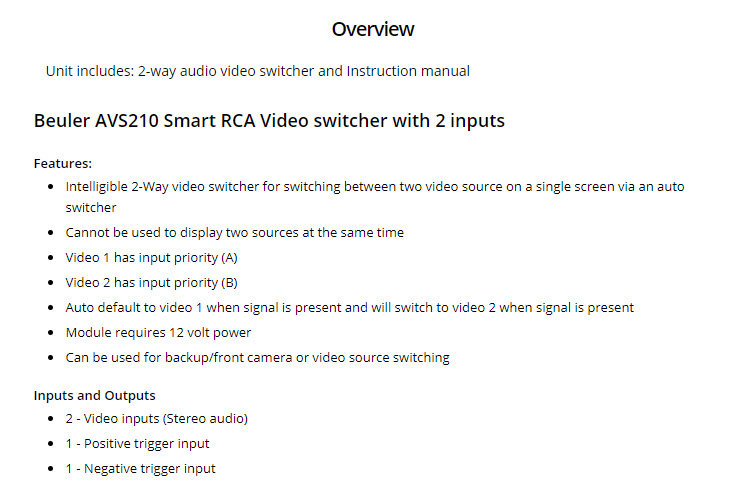

    What about using one of these?

  11. Apr 21, 2019 at 8:57 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Looks easy but you'd have to make a RCA connector to the tailgate cam connector...


    Last edited: Apr 21, 2019
  12. Apr 21, 2019 at 11:11 PM
    #12
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

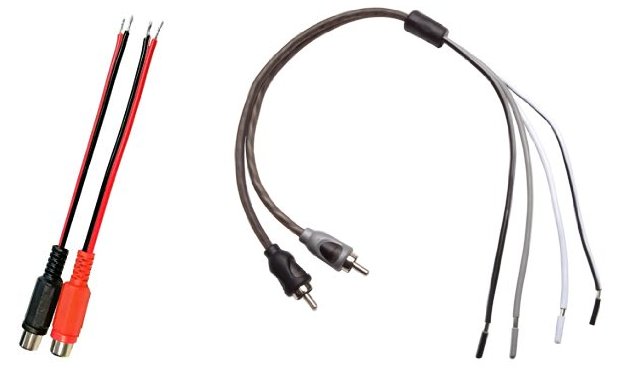

    These with crimped 2.3II terminals to go into the cam connector

  13. Apr 22, 2019 at 7:43 AM
    #13
    oly51

    oly51 Well-Known Member

    Joined:
    Dec 3, 2013
    Member:
    #117807
    Messages:
    358
    Gender:
    Male
    First Name:
    Gary
    S.E. MA
    Vehicle:
    2017 Tacoma, TRD Sport, MGM
    @caribe makaira
    Wouldn't that Bueler unit eliminate the need for relays and auto switch the display to the trailer camera (Video 2) when it is connected and go back to tailgate camera (Video 1) when the trailer is disconnected? Also, couldn't the RCA connectors be removed and the ends connected to factory harness connector pigtails inside a waterproof box?

  14. Apr 22, 2019 at 9:40 AM
    #14
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

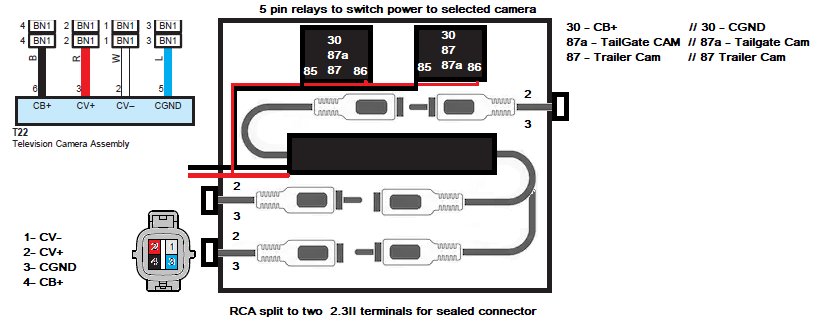

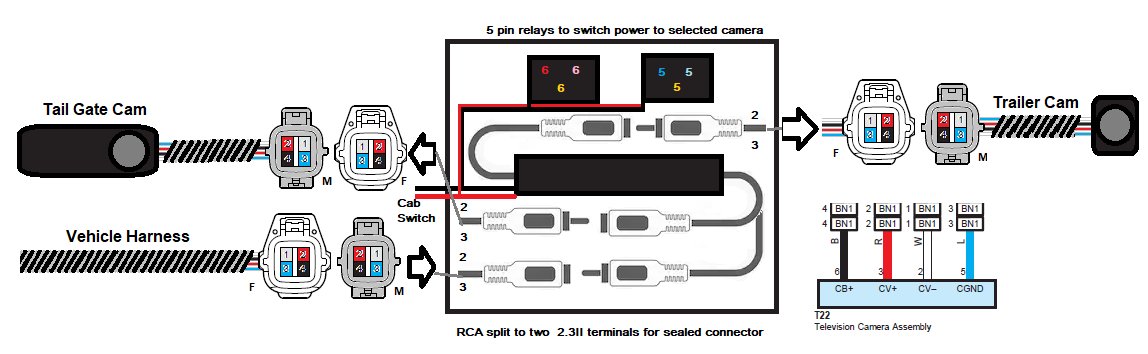

    The relays are for the camera power...video would be handled by the gizmo. You need to switch power source in order for the cameras to function. the gizmo switch video source. Also, the idea is not to cut the OEM camera wires n plugs...

    oly51[QUOTED] likes this.
  15. Apr 30, 2019 at 12:31 PM
    #15
    oly51

    oly51 Well-Known Member

    Joined:
    Dec 3, 2013
    Member:
    #117807
    Messages:
    358
    Gender:
    Male
    First Name:
    Gary
    S.E. MA
    Vehicle:
    2017 Tacoma, TRD Sport, MGM
    I ended up getting this system Here. Commercial grade by Audiovox.
    Also picked up two pigtail connectors for the OEM connections. I have the anytime camera mod so I can view what's behind the trailer on the head unit.

    trailer cam 2.jpg

    This site contains affiliate links for which the site may be compensated.
    #15
  16. Apr 30, 2019 at 11:56 PM
    #16
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Show it installed...:rolleyes::bikewheelie2:

    TSki likes this.
  17. Oct 18, 2019 at 9:11 PM
    #17
    mcol

    mcol Member

    Joined:
    Oct 18, 2019
    Member:
    #308371
    Messages:
    7
    Gender:
    Male
    I have all the proper cords and this relay. I can’t seem to align the wiring correctly to get it to work.

    ELECTRONICS-SALON Two DPDT Signal Relay Module Board, DC12V Version, for PIC Arduino 8051 AVR. https://www.amazon.com/dp/B00SKGF4NY/ref=cm_sw_r_cp_api_i_sYOQDb3F7SKHF



  18. Oct 18, 2019 at 9:47 PM
    #18
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  19. Oct 18, 2019 at 9:51 PM
    #19
    mcol

    mcol Member

    Joined:
    Oct 18, 2019
    Member:
    #308371
    Messages:
    7
    Gender:
    Male
    The one I have says it can handle 12V.

    thank you for this. I will try tomorrow and report back. If I get this to work I will do a write up of the parts I sourced and used, and how I hooked it up in more detail for those to follow.

  20. Oct 18, 2019 at 9:52 PM
    #20
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,324
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    amps...not volts...
