Trailer brake controller wiring question

Discussion in 'Towing' started by emmett, Aug 25, 2020.

Post Reply

Aug 25, 2020 at 6:52 AM

#1

#1
emmett [OP] Well-Known Member

Joined:

Jan 21, 2018

Member:

#241916

Messages:

770

Gender:

Male

First Name:

Emmett

Vehicle:

06 Red TRD offroad 6spd

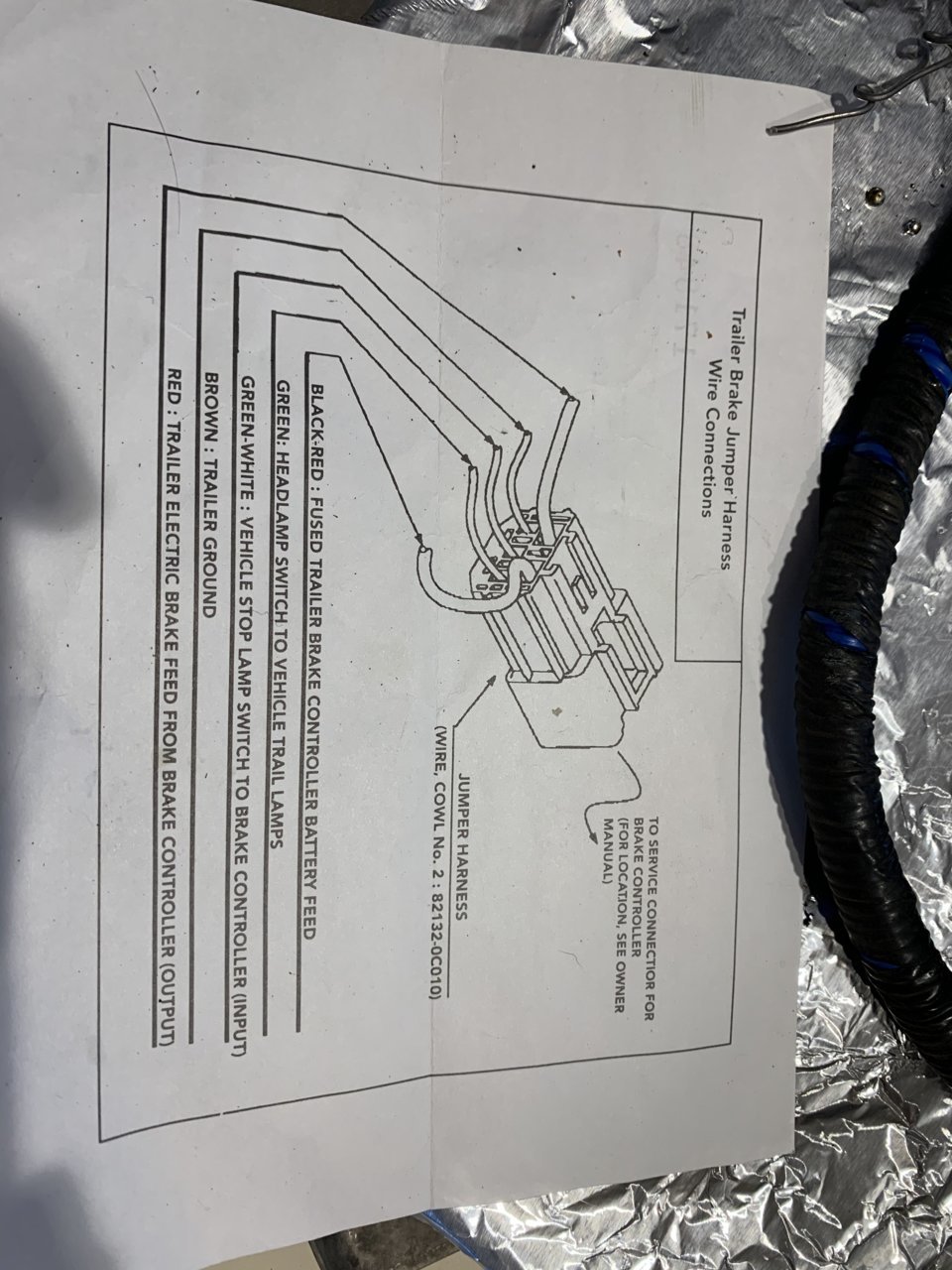

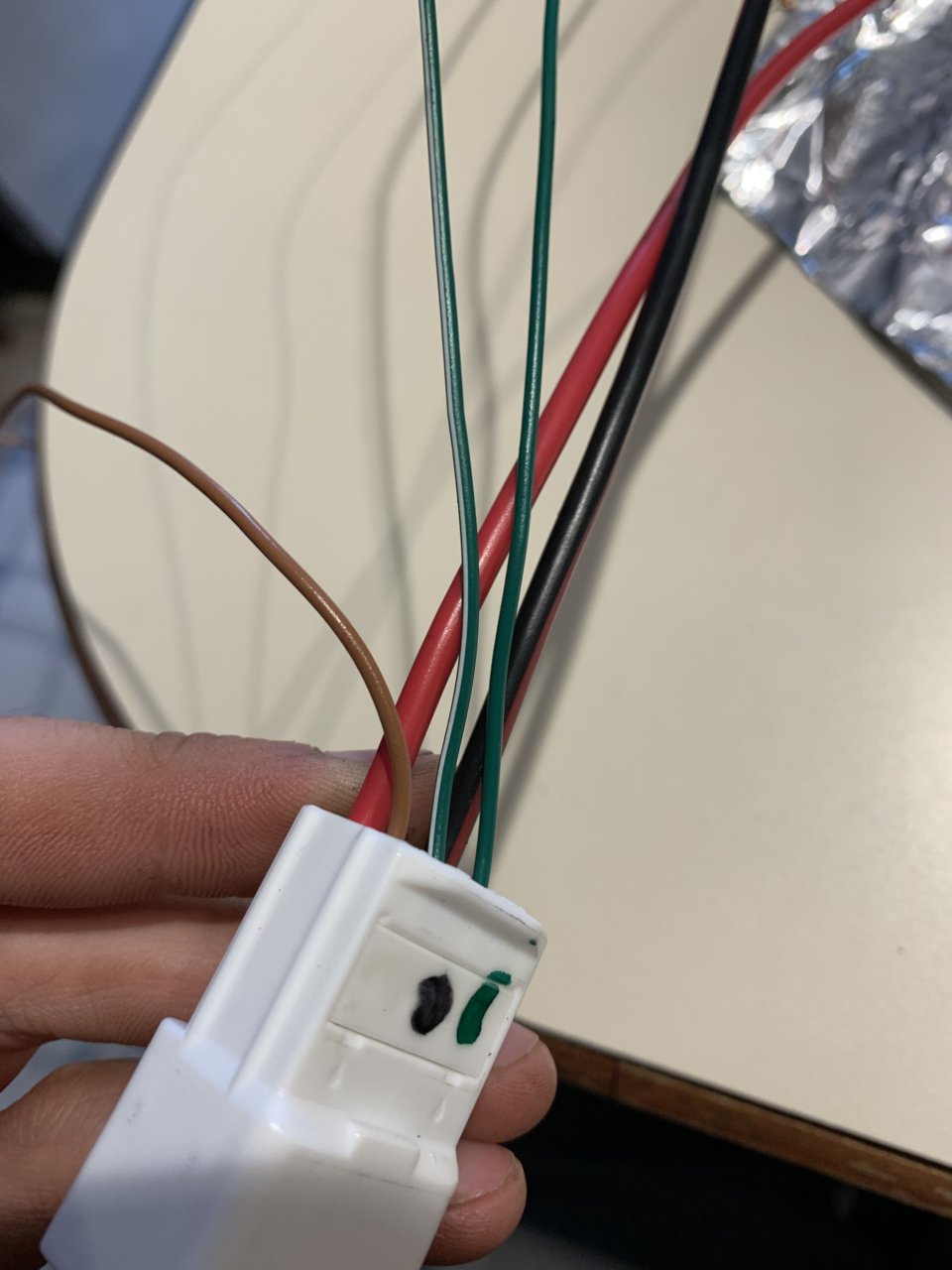

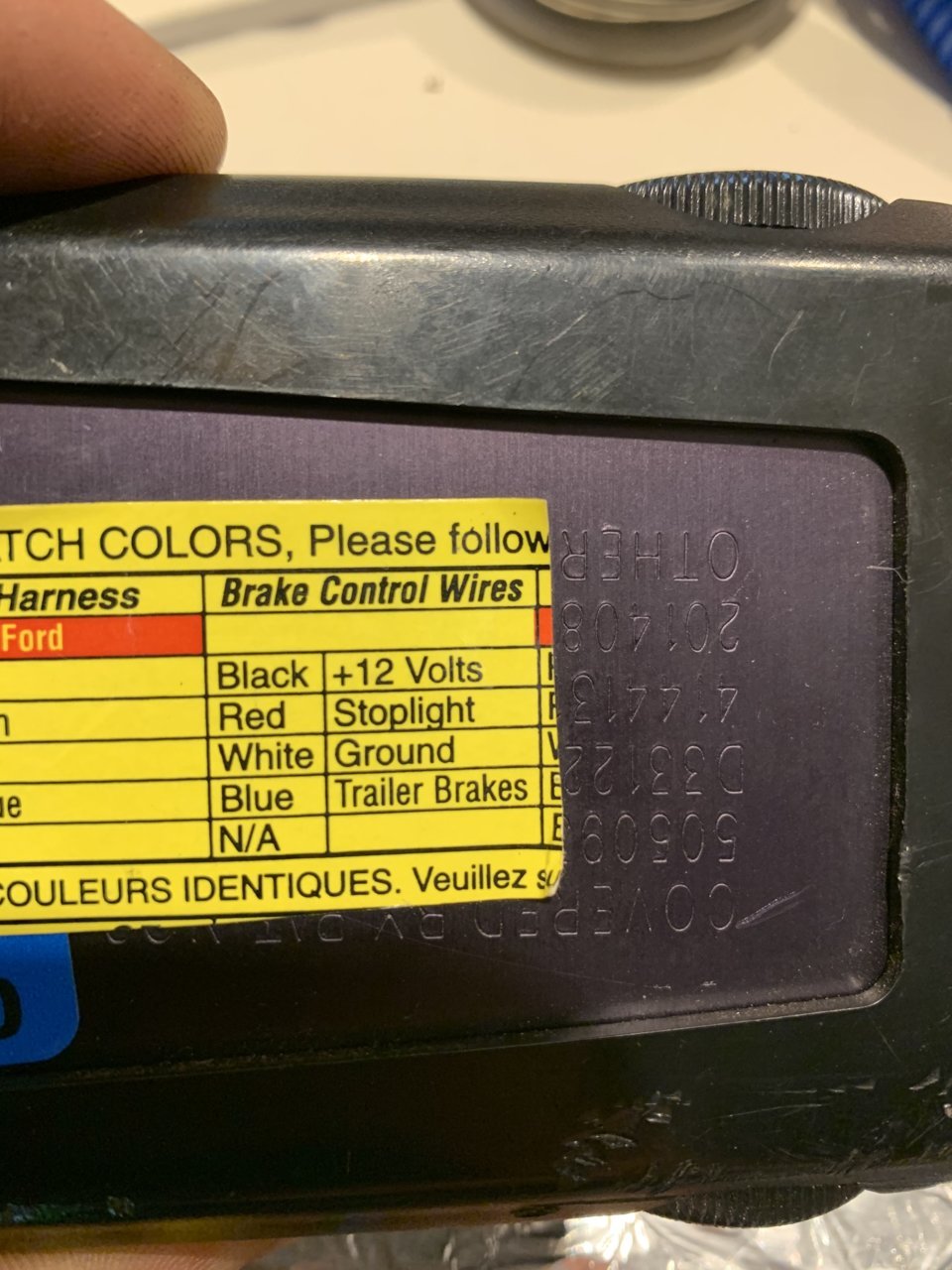

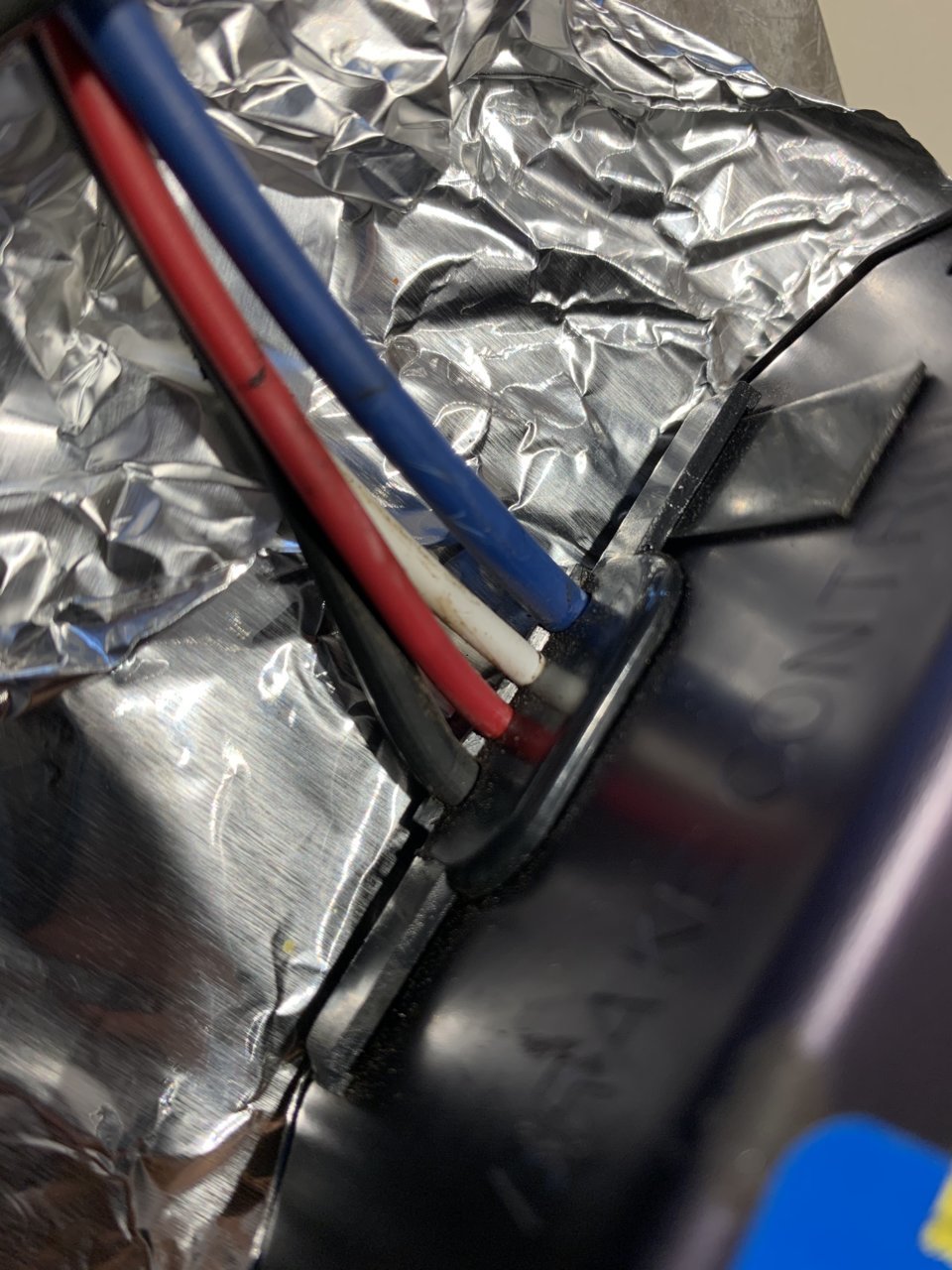

I took a tekonsha voyager out of my brothers van, and am trying to hook it up to the factory pigtail/harness on my 2006 taco with the tow package. Theres 4 wires coming out of the tekonsha, and 5 wires on the harness. heres some pics of them and the wiring explanation. A little confused on which ones to connect, and which one will not be connected. Any help is appreciated! trying to tow the trailer this afternoon.

emmett, Aug 25, 2020

#1

Aug 27, 2020 at 10:24 AM

#2

#2
Lgeekdws Well-Known Member

Joined:

Nov 13, 2019

Member:

#310590

Messages:

112

Gender:

Male

Vehicle:

2015 Magnetic Grey V6 4x4 SR5

looks to me like the green wire to the running lights is not used in your application. YMMV, Maybe a support call to Tekonsha is in order?

Lgeekdws, Aug 27, 2020

#2

zaitsev77 likes this.

Aug 27, 2020 at 11:50 AM

#3

#3
zaitsev77 Member

Joined:

Apr 10, 2016

Member:

#183934

Messages:

24

Gender:

Male

First Name:

Frack

Ohio

Vehicle:

2006 PreRunner

Lgeekdws said: ↑

looks to me like the green wire to the running lights is not used in your application. YMMV, Maybe a support call to Tekonsha is in order?
Click to expand...

Exactly. Not all brake controllers have a wire for the lights, and that's fine.

CONTROLLER <---> HARNESS
Black <---> Black/Red
Red <---> Green/White
White <---> Brown
Blue <---> Red

zaitsev77, Aug 27, 2020

#3

Sep 1, 2020 at 5:07 PM

#4

#4
emmett [OP] Well-Known Member

Joined:

Jan 21, 2018

Member:

#241916

Messages:

770

Gender:

Male

First Name:

Emmett

Vehicle:

06 Red TRD offroad 6spd

thx guys i ended up figuring it out and towed a full trailer home. Worked great!

emmett, Sep 1, 2020

#4

zaitsev77 likes this.
