Trailer Leaf Spring Questions

Discussion in 'Garage / Workshop' started by steve o 77, Jul 14, 2010.

  1. Jul 14, 2010 at 10:51 PM
    #1
    steve o 77

    steve o 77 [OP] braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,901
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    So I've been building a trailer for our jet skis for the past few weeks and I have a few questions on the suspension since I used the old leafs off my truck.

    First of all, the springs ended up being way too soft for the weight so I got some helper springs from autozone to see if they would do anything. Just putting one on each side did almost nothing so I doubled them up and put them above the overload leaf. The springs are nice and stiff now but do you guys see any problems with this in the long run?

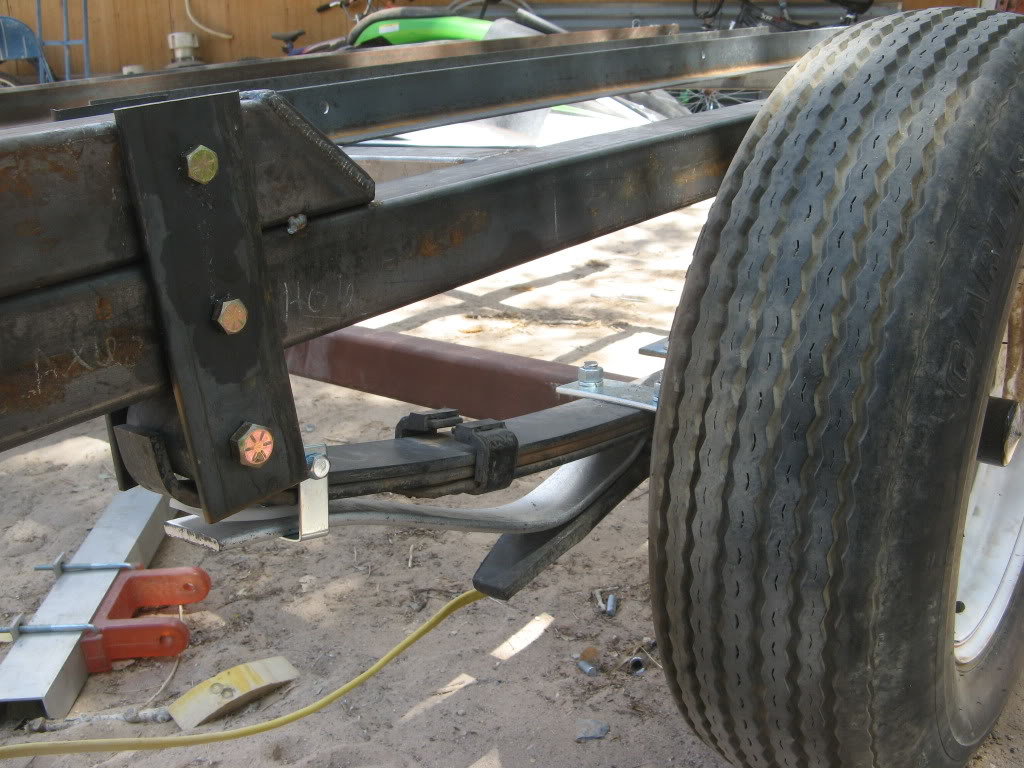

    Here's some pics of the setup. There are 2 of these helpers per spring.

    [​IMG]

    [​IMG]

    Also you can see the custom shackles in the first pic. I just have the top bolt going through the 1/8" steel tube with no sleeving. Do you guys think I should get some round tubing and sleeve that hole so it doesn't get elongated from the bolt pivoting on it?

    Thanks, I've been learning a lot on this project lol.

  2. Jul 14, 2010 at 10:58 PM
    #2
    cntstan

    cntstan Well-Known Member

    Joined:
    Nov 24, 2008
    Member:
    #10998
    Messages:
    602
    Gender:
    Male
    First Name:
    Chuck
    Wisconsin now, North Carolina will always be HOME
    Vehicle:
    08 DC SR5 4X4 ; 94 Ford Bronco
    3" Toytec coilovers, rear AAL,satoshi'd grill,ARE topper,TRD exhaust, All Pro winch bumper, Warn winch, All Pro skid, Pro comp 7089's, Supersprings, Wet Okole seat covers
    I would sleeve that hole. I know it's a pain but it will help you not to worry when you're towing that trailer down the highway. Also, how are your rear shackle angles when the trailer is under load? Do you still have room for them to move as the leaf springs settle and stretch out?

  3. Jul 14, 2010 at 11:05 PM
    #3
    steve o 77

    steve o 77 [OP] braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,901
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    They (the ends of the leaf springs) get about 1/4" from hitting the frame when bottomed out so they're good. When I had the running boards for the skis mocked up and the skis on the trailer, I could bottom them out pretty easily with my hands. Now I can't even get them close with the helpers.

    And yeah, I was thinking the same thing about sleeving. It will be a pain but oh well, I want it to be safe.

  4. Jul 15, 2010 at 8:58 AM
    #4
    steve o 77

    steve o 77 [OP] braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,901
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    bump for more opinions.

  5. Jul 15, 2010 at 9:04 AM
    #5
    mjp2

    mjp2 Living vicariously though myself Staff Member

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    17,282
    Gender:
    Male
    First Name:
    Milton Juevos Portimous II
    NJ
    Vehicle:
    '06 TRD Access Cab, v6, 6-speed
    Scaffolding and a painted grill
    Cool project! Definitely sleeve those holes.

    Have you considered running wet bolts to keep everything lubricated? Having zerks to grease the pivot points could be handy for something that gets dunked in the water whenever it's used.

    http://www.etrailer.com/p-126B2.html

    That front hanger looks like a solid design as long as the square tubes are more than tack welded to each other. I'm assuming what's in the picture is not the only spot it's welded, and that the finished product will have some nice beads run to keep everything in place. :)

  6. Jul 15, 2010 at 9:07 AM
    #6
    Beefed Taco

    Beefed Taco Taco Vending Machine Vendor

    Joined:
    Dec 18, 2008
    Member:
    #11706
    Messages:
    1,309
    Gender:
    Male
    First Name:
    Brian
    My Metal Shop
    Vehicle:
    99 Taco
    streetacos.com parts!
    I'd say you're good to go. I don't think shackles move too much when compressing either. You could try removing the helper leafs you bought and turning the overloads upside down and maybe trimming them down on the ends a bit, but if this is working to your liking may as well leave it. The sleeves for the the top of the shackles are probably a good idea since over time the holes probably will elongate since the contact area isn't much and it is mild steel. Sleeving that would be easy with 1/2" i.d. DOM..

    Captured 2004-1-15 00019.jpg
    Captured 2004-1-15 00023.jpg

  7. Jul 15, 2010 at 9:10 AM
    #7
    steve o 77

    steve o 77 [OP] braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,901
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    Thanks for the info. I will definitely look into those bolts. Also the tubes are welded pretty good right now but Im probably going to hit them a little more. I just don't want to warp the steel by welding too much on one side of it. Also the only reason the front hangers are bolted on is so the axle can be moved easily if needed. Right now with the skis on, there is about 50 lbs of tounge weight. Once I get a toolbox and fuel tanks on the front that will go up a bit.

  8. Jul 15, 2010 at 9:12 AM
    #8
    steve o 77

    steve o 77 [OP] braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,901
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    Beefed Taco">
    Cool, thanks. I think I'll leave the helper spring the way they are. I just wasn't sure if they were going to cause damage being setup like that.

  9. Jul 23, 2010 at 9:54 AM
    #9
    steve o 77

    steve o 77 [OP] braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,901
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    Okay well I did end up sleeving those holes and it came out great. We took it out this weekend to the lake (300 mile round trip) and it did pretty good. Only problem was one of the autozone helpers is bent now and the drivers side is sagging a bit. Im going to need to rethink the suspension. It does ride like a cloud though lol.

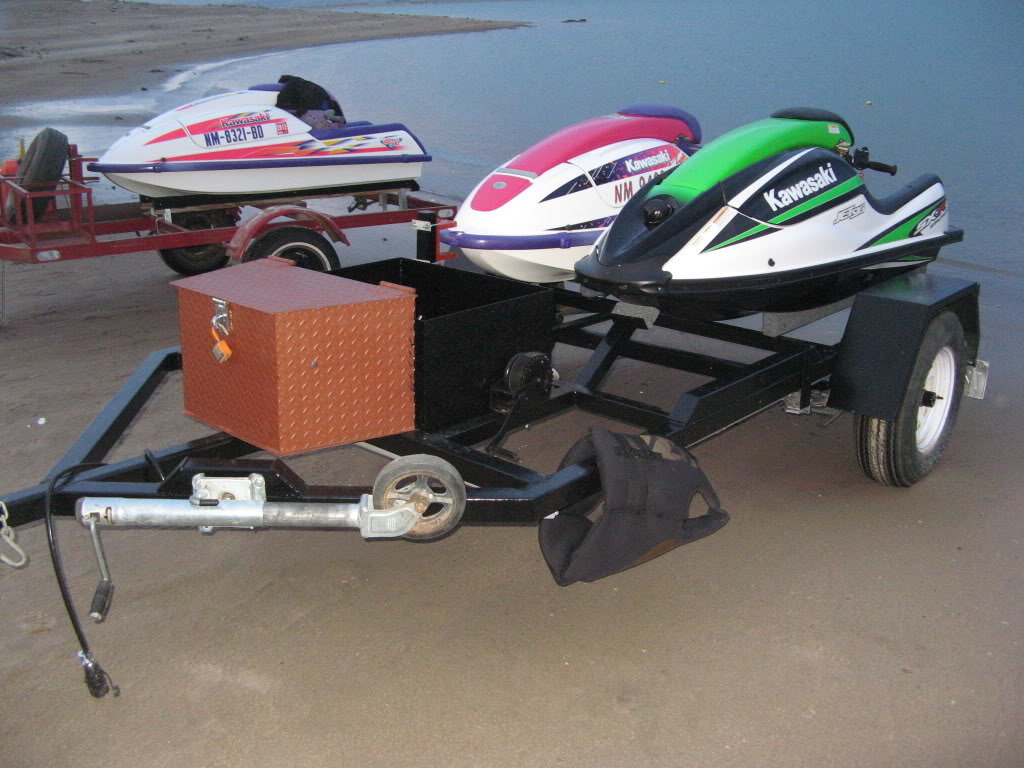

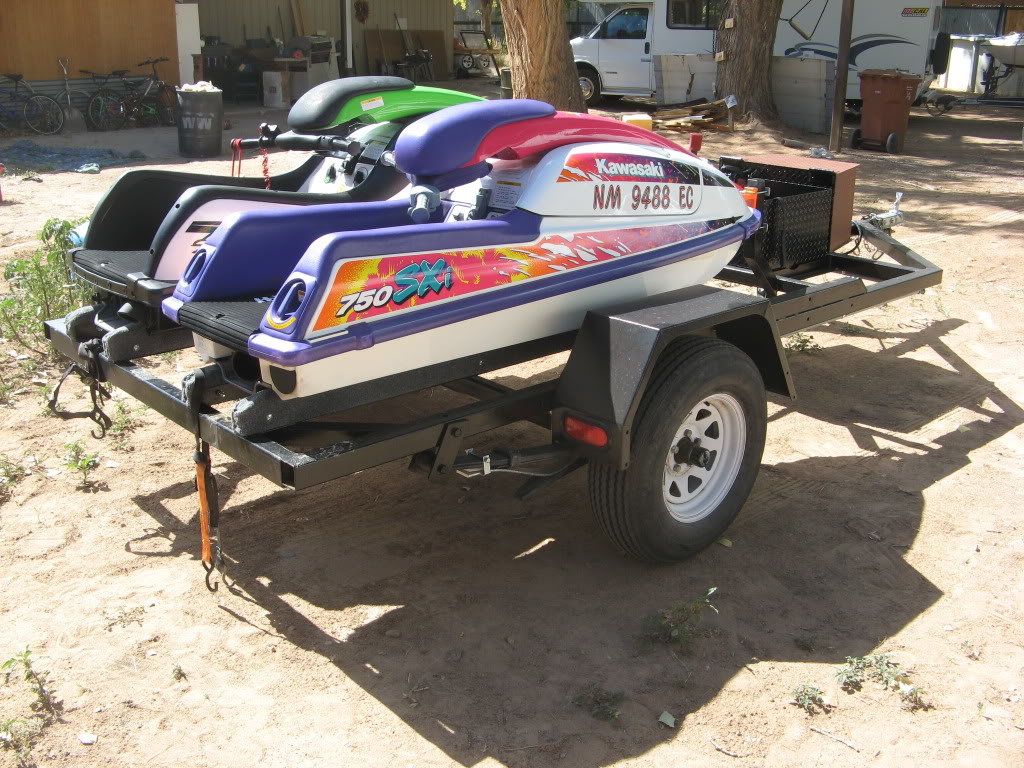

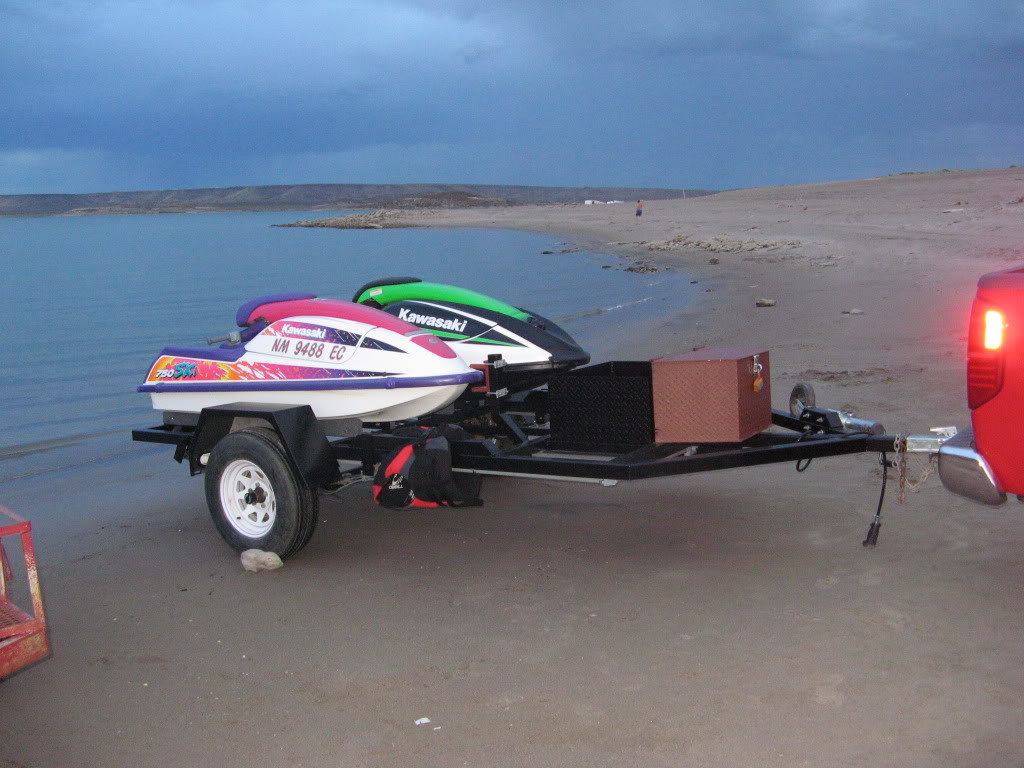

    I still need to finish painting the front box, just didn't have time.

    [​IMG]

    [​IMG]

    [​IMG]

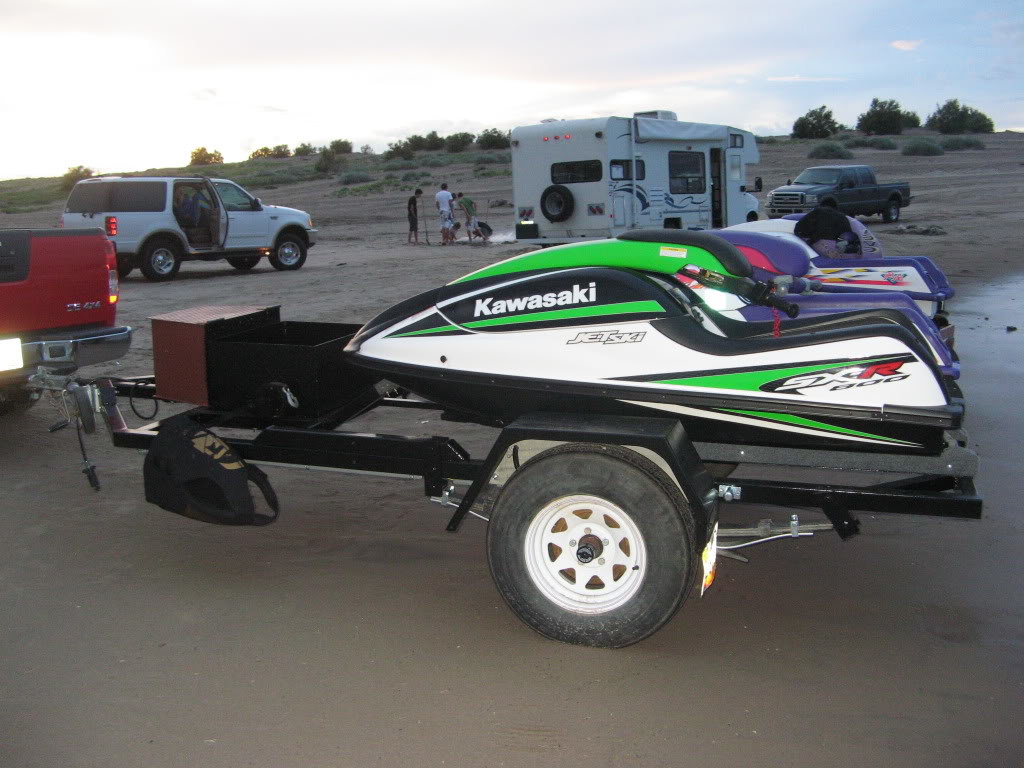

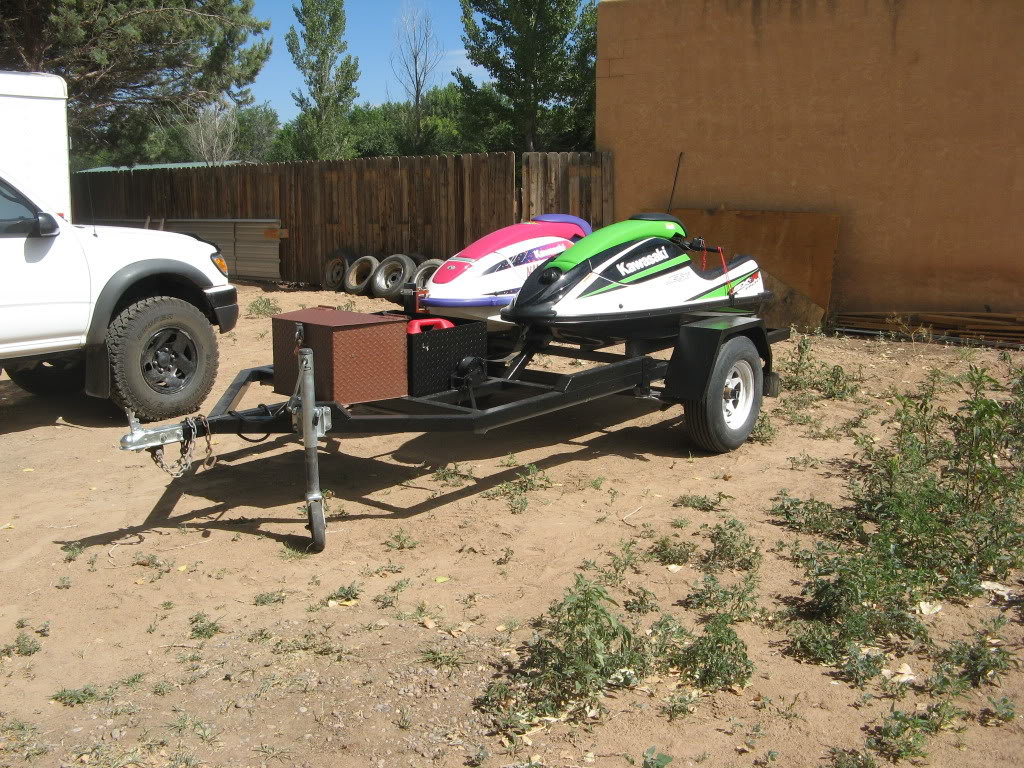

    back home, you can see how much that side is sagging.
    [​IMG]

    [​IMG]
