Trailer Plug Relocation

Discussion in 'Towing' started by B_brand, Dec 28, 2011.

  1. Dec 28, 2011 at 3:43 PM
    #1
    B_brand

    B_brand [OP] Well-Known Member

    Joined:
    Mar 8, 2010
    Member:
    #32828
    Messages:
    122
    Gender:
    Male
    First Name:
    Brandon
    Oklahoma
    Vehicle:
    Super White 2010 4x4 SR5
    WeatherTech Floor Liners, ARE Camper Shell TRD OR Alloys, Wet Okole Seat Covers, Suspension TSB, Ultragauge, Bilstein 5100s front and rear, Toytec coils
    I broke off my factory trailer light plug and had to buy a new one. The dealership said that they would have to order the whole wiring harness and it would be over $200. So I told them I would fix it myself. I searched on here and found several write-ups on how to fix and relocate the plug. I ended up locating the new plug in the bumper next to the license tag. I have included a few pictures to help anyone else out.

    The functions for the wires in the factory harness are:
    White - Ground
    Red - Left Turn (will also come on with brakes)
    Brown - Right Turn (will also come on with brakes)
    Black - 12v (this is the constant hot wire it will only be on when the ignition is on)
    Blue - Electric Brake
    Yellow - Reverse Lights
    Green - Tail Lights


    maxpower29 and jstanley like this.
  2. Dec 28, 2011 at 3:54 PM
    #2
    OffroadToy

    OffroadToy The dog did it...I swear!

    Joined:
    Sep 12, 2009
    Member:
    #22680
    Messages:
    5,049
    Gender:
    Male
    High Desert
    Vehicle:
    07 TRD OFFROAD 4x4 VSC/TRAC/DAC/HAC
    snugtop supersport canopy, black westin bullbar/tube steps, piaa offroad lights, weathertech floor mats, oem bed mat, trd seat covers, avs inchannel vent visors, 2" suspension lift, front diff drop, rear differential breather extension, oil filter drain hose, a/c drain hose extention & reroute, front window tint, cat theft protection plate, tailgate clamp mod, xpel headlight/foglight protecters, oem block heater, bfg 265/75R/16 a/t k/o's, cabin air rodent protection screen, rcbs illuminated 4X4 switch mod
    Thanks for the write-up...great idea!! Is that the oem plug or aftermarket, and how did you get the hole through the bumper?

  3. Dec 28, 2011 at 3:55 PM
    #3
    JasoTaco

    JasoTaco Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30057
    Messages:
    2,008
    Gender:
    Male
    First Name:
    Jason
    Salt Lake City, Utah
    Vehicle:
    09 Tacoma TRD Off Road
    ToyTec Ultimate 3" Lift -TSB Rear springs - TRD Cold Air Intake - TRD Skid Plate - Total Chaos Upper Control Arms - 2 Hella Rallye 4000 lights (130W Bulbs) - Clear Bra - Under Coat - Bed extener - Toyota Bed Mat - Weathertech floor mats - Tailgate hose clamp & washer mod - PIAA Fog Lights - ScanGauge II - Beefed Sliders - Differential Breather Mod - Heated Seats - All-Pro Bumper - Warn M8000 Winch with wireless controls - Boztec Diff Skid - ATO skids
    Nice work! Rep for you. :thumbsup:

  4. Dec 28, 2011 at 3:56 PM
    #4
    B_brand

    B_brand [OP] Well-Known Member

    Joined:
    Mar 8, 2010
    Member:
    #32828
    Messages:
    122
    Gender:
    Male
    First Name:
    Brandon
    Oklahoma
    Vehicle:
    Super White 2010 4x4 SR5
    WeatherTech Floor Liners, ARE Camper Shell TRD OR Alloys, Wet Okole Seat Covers, Suspension TSB, Ultragauge, Bilstein 5100s front and rear, Toytec coils
    Sorry, I forgot those details. I had to buy an aftermarket plug at OReillys since my old one was broken. I used a 1/8" drill bit to mark the center of the hole, then used a 2" hole saw with a 1/4" arbor bit in it.

  5. Jan 5, 2012 at 5:16 AM
    #5
    YotaComa22

    YotaComa22 Well-Known Member

    Joined:
    Oct 8, 2010
    Member:
    #44370
    Messages:
    65
    Gender:
    Male
    First Name:
    Ben
    Auburn, PA
    Vehicle:
    2011 TRD Sport
    good thinking on that one.....nice relocation....I like it....

  6. Sep 17, 2014 at 11:06 AM
    #6
    aww1970

    aww1970 Well-Known Member

    Joined:
    Sep 3, 2008
    Member:
    #8979
    Messages:
    197
    Gender:
    Male
    Vehicle:
    2009 Tacoma TRD Long Box
    Thanks for posting the colors of the factory harness, it saved me some headaches.

  7. Sep 17, 2014 at 11:24 AM
    #7
    reellittlephish

    reellittlephish Well-Known Member

    Joined:
    Jul 28, 2014
    Member:
    #134918
    Messages:
    87
    Gender:
    Male
    First Name:
    Tom
    Las Vegas, NV
    Vehicle:
    2007 Toyota Tacoma
    none yet
    Nice job. I used an E-Trailer custom 5 pin harness to outfit my 2007 Tacoma Access Cab. Cost $63.55. Took about 3 hours to install and I was extra careful. Never had popped the rear lenses off this truck.

  8. May 15, 2015 at 5:38 PM
    #8
    tyndall5818

    tyndall5818 Well-Known Member

    Joined:
    Apr 29, 2011
    Member:
    #55773
    Messages:
    103
    Gender:
    Male
    First Name:
    Mark
    Wheeling near Joshua Tree, Ca
    Vehicle:
    07 Tacoma TRD Sport 4x4 Doube Cab
    Check out my build thread.

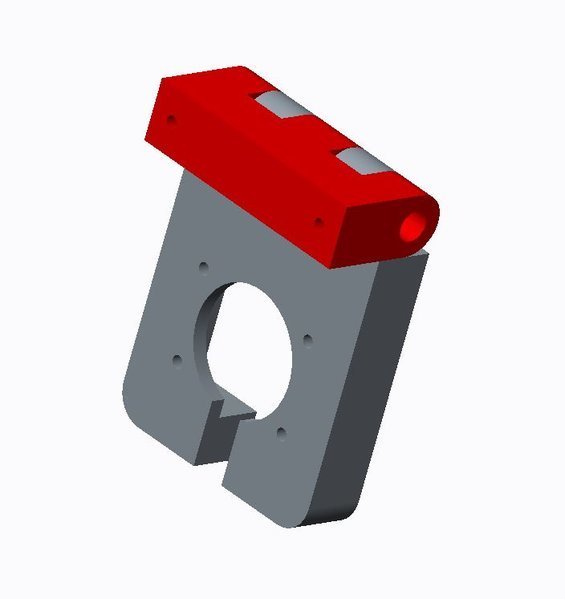

    @adamv22 going to mount my new one like this! Not spending $50 on a relocation bracket!

  9. Jun 25, 2015 at 10:58 PM
    #9
    OCD

    OCD Well-Known Member

    Joined:
    Jun 12, 2015
    Member:
    #157273
    Messages:
    111
    Gender:
    Male
    Texas
    Vehicle:
    '15 4WD TRD DCLB SSM

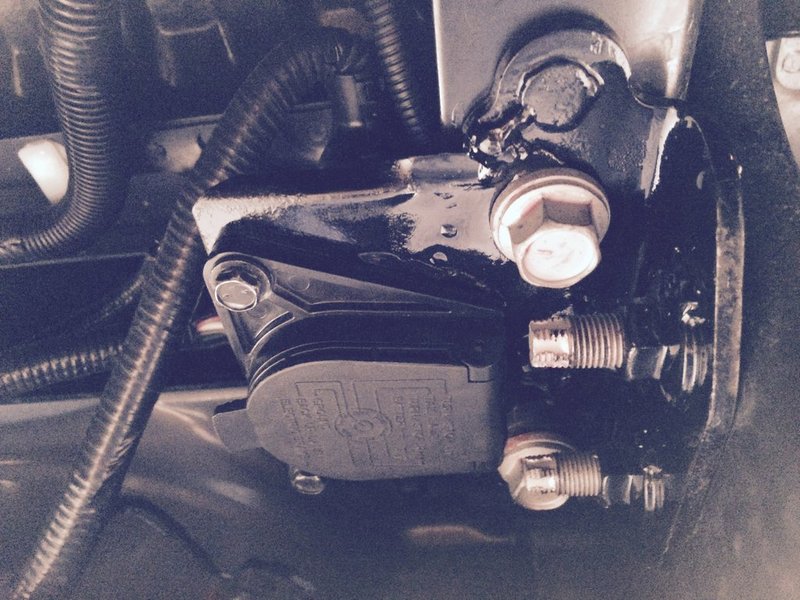

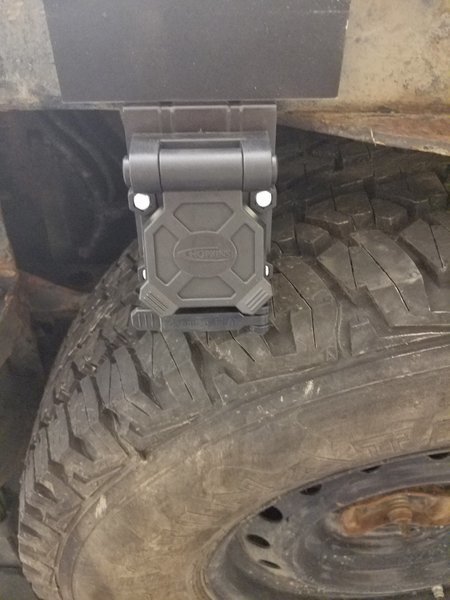

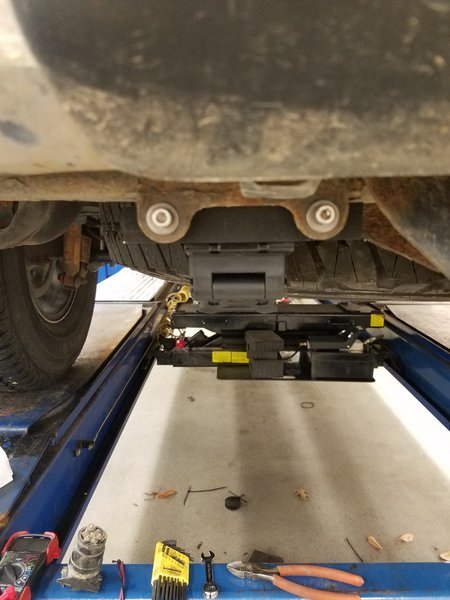

    I didn't want to drill a hole in my bumper for cosmetic reasons, although relocation of the trailer plug between the license plate light and license plate seems like the the most utilitarian choice. I didn't want to use an existing license plate light hole, and lose one of the lights, because I've read online that regardless of the quality of illumination remaining with one light, elimination of one is illegal. Although that doesn't sound reasonable to me, I just didn't want the potential hassle with cops. My decision was to relocate the plug behind the bumper, in a spot where it's completely hidden from view, but accessible when I need to use it. The photos here show what I did.


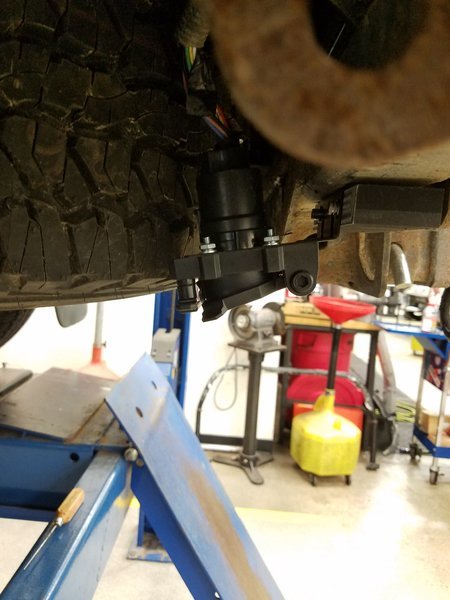

    I removed the plug and plug bracket from the OEM mount on the tow bar. I removed the 90 degree bracket from the bottom of the frame where the driver's side rear bumper support bolts to the frame. I flattened out the folded edges on the plug bracket so the plug bracket would sit flat on the 90 degree bracket, then welded the two together (if you can call the shitty result "welding" - I'm obviously a dauber, but it's super strong). I reamed the lapping holes on the welded together pieces so the 17mm bolts would pass through both when the fabricated assembly was bolted back to the frame/bumper support. I etch primed the assembly, painted it black, and bolted it back where the 90 had been removed from. I reinstalled the plug on the relocated plug bracket. The OEM wiring harness has enough slack to reach the new position, the plug is well away from the largest diameter spare that could be carried beneath the bed, and the hinged cap opens completely without interference from the 17mm bolts behind it. Also the male connector on the trailer cable will be above the bottom of the spare, so nothing hangs low to catch on rocks, brush, ruts.

    I'll probably make up about an 18" long pigtail with a female connecter on one end, and a male connecter on the other, to use if I rent or borrow a trailer with a lead too short to reach the relocated plug. Any trailer I eventually own, I'll make the lights/brake cable long enough to reach the relocated plug without the pigtail. When I'm not towing (which will be 99.9% of the time), I'll stow the pigtail under the backseat of my dbl cab, and the relocated plug will be well protected in it's new position.

    I was kind of thinking what's left of the original mount (1st photo) would make a handy spot for an auxiliary LED backup light, but decided against that since I'd be hanging the light in the same potential trouble spot the trailer plug was in. I'd end up breaking or ripping the light off in that position. I'll probably cut off what's left of the original mount as close to the tow bar as possible to visually clean up that area. Anyone have a suggestion for some other protected, tucked in spot for a small, but bright LED backup light(s)?

    Last edited: Jun 26, 2015
  10. Jun 27, 2015 at 10:26 AM
    #10
    Jefes Taco

    Jefes Taco Well-Known Member

    Joined:
    Mar 28, 2014
    Member:
    #126413
    Messages:
    1,687
    Gender:
    Male
    Denver, CO
    Vehicle:
    14' DCLB TRD Sport supercharged
    I needed to get mine out of the way quickly and I planned on going back and doing it "right". But, I just removed mine and then zip tied it to one of the wiring harness' pictured in your pic. I don't think I'm gonna change anything. It works great and only cost me a zip tie. :D
