Trailer wiring

Discussion in 'Towing' started by 05RedTaco, Feb 26, 2012.

  1. Feb 26, 2012 at 9:02 AM
    #1
    05RedTaco

    05RedTaco [OP] Nom Nom Nom

    Joined:
    Sep 20, 2010
    Member:
    #43521
    Messages:
    1,658
    Gender:
    Male
    First Name:
    Tony
    Phoenix
    Vehicle:
    2005 Tacoma 4.0L Acces Cab PreRunner
    Shortened antenna, ebay Intake, JBA long tube headers, 2nd set of cats cut out and straight piped, 14" Magnaflow muffler dumped before axle, relocated rear diff breather, Avid off road front bumper. Bilstein 5100's front and rear, OME 885x coils, Light Racing UCA's, 2" Toytec AAL, Hella 700ff lights, Falken Rocky Mountain AT/S 265/75/16 Load E 10ply, Blu Logic handsfree
    I bought a used trailer and the wiring harness is all fucked up... It has 4 pin harness.

    I figured the 4 pin plug on my truck has;

    - ground
    - tail lights
    - right turn signal
    - left turn signal

    The ground is connected to a bolt in a trailer so I have 3 wires left on the plug. Trailer has 4 wires. 2 wires go to each tail light. I tried connecting 2 wires to tail light wire coming out of the plug, then one wire from each tail light goes to turn signal wire. Issue is its still doesnt work properly... ugh! Doing all this with trailer connected to the hitch on my truck...

    Any help is appreciated, diagrams would be badass...

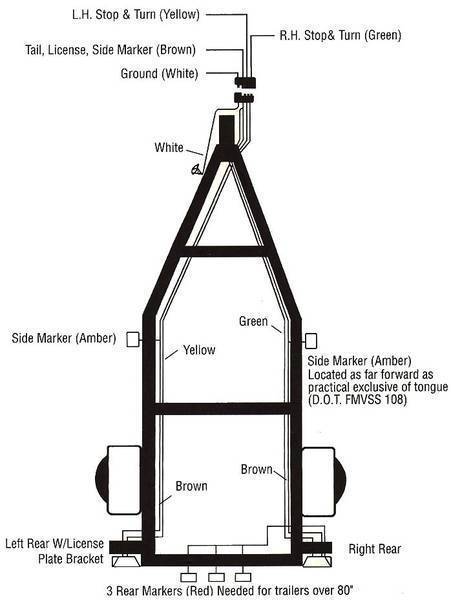

  2. Feb 26, 2012 at 9:37 AM
    #2
    TerryS

    TerryS Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42275
    Messages:
    250
    Gender:
    Male
    First Name:
    Terry
    Cape Cod, Mass.
    Vehicle:
    '10 SR5 AC 4x4
    WeatherTech floor liners and wind deflectors; shorty antenna; OEM tow hitch & wiring; bed mat; accessory meter console w/temp & compass; 4WD switch lighting mod; Viper 5301 Remote Start; TRD front tow hook and aluminum skid plate; color matched door handles & grille; FJ fog light switch with on/off indicator light; fog light anytime mod; N-Fab steps; Extang tonneau; Blu-Logic bluetooth, and; TRD OR alloy wheels.
  3. Feb 26, 2012 at 10:35 AM
    #3
    05RedTaco

    05RedTaco [OP] Nom Nom Nom

    Joined:
    Sep 20, 2010
    Member:
    #43521
    Messages:
    1,658
    Gender:
    Male
    First Name:
    Tony
    Phoenix
    Vehicle:
    2005 Tacoma 4.0L Acces Cab PreRunner
    Shortened antenna, ebay Intake, JBA long tube headers, 2nd set of cats cut out and straight piped, 14" Magnaflow muffler dumped before axle, relocated rear diff breather, Avid off road front bumper. Bilstein 5100's front and rear, OME 885x coils, Light Racing UCA's, 2" Toytec AAL, Hella 700ff lights, Falken Rocky Mountain AT/S 265/75/16 Load E 10ply, Blu Logic handsfree
    Thank you! +1 rep :)
