Trailhunter Axle Dump Pipe Part #

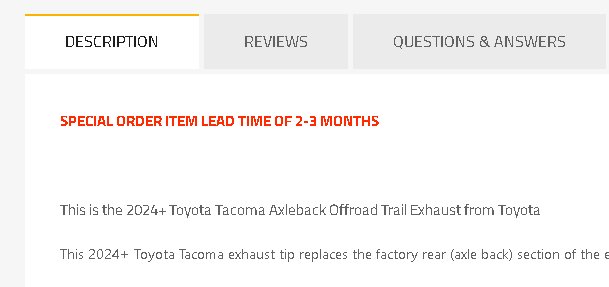

so what on the lead times....



Am I crazy? If they just made a basic one similar to OEM materials and charged like $100 they would make way more money than a titanium one by selling a fuck ton of them. Right?



Not crazzzy! Toyota makes one just not available at the moment. Nytop is on crack at that pricing..



Found it! The part number is PT226-35241-AA. Currently on backorder.



AAAArrrrrrrgh! Still no pic with the measuring tape!

I am really curious what the pipe and flange measurements are on this.



Tried to order one at the dealer. They said not available yet, and probably a regional thing as far as availability.

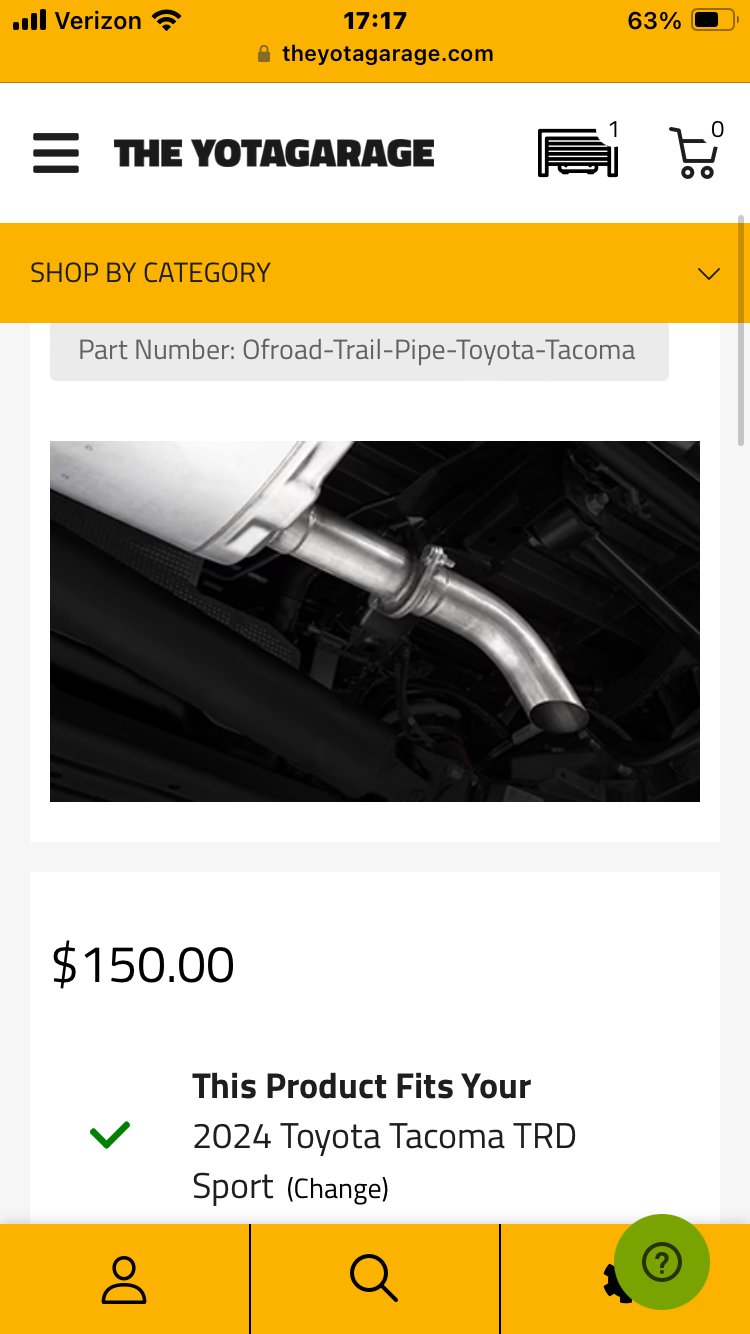

Looks like the part is really popular. Doubled in price from yotagarage.



I was going to order one but they charge like $35 for shipping. Now I'm definitely not buying that haha



It was a $75 part at most dealerships too via the Toyota parts ordering. Now they're up to the $130-150 range.



17430-YY090 is what's listed in the EPC for the Trailhunter, these -YY part numbers aren't typically orderable from what I've seen, but are typically the "engineering" part numbers for parts that are in an accessory kit. In this case, PT226-35241-AA. 17430-YY090 may never actually be an orderable part number, but I've seen it happen sometimes.

Jeff



>> PT226-35241-AA. 17430-YY090 may never actually be an orderable...

Yeah, my dealer says both numbers have an indefinite "Stop Sale" and they have no alternative part number posted.



Am I correct that this is the part that prevents you from scorching your 33" full-size spare? Or does it have some purpose?

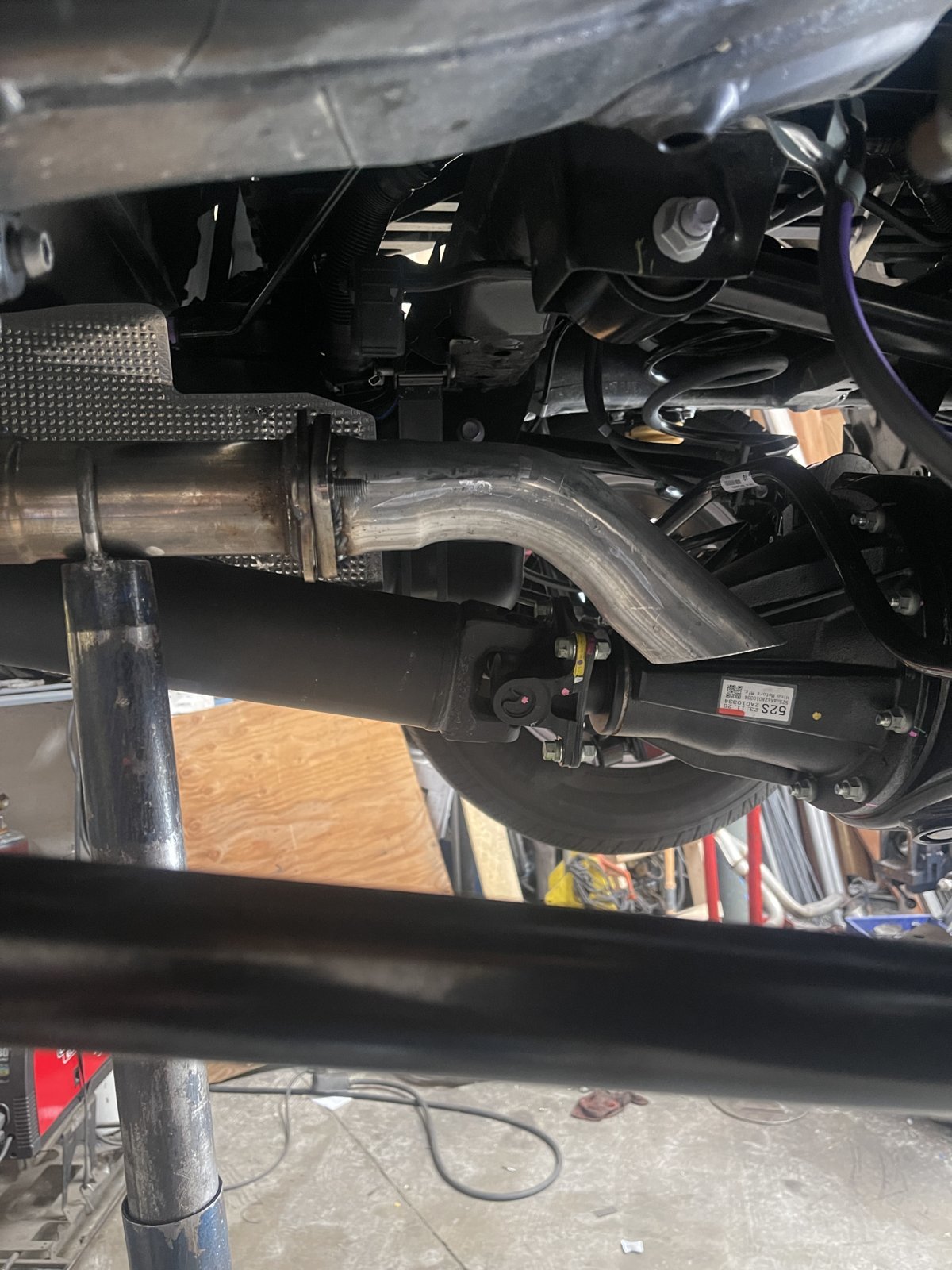

I have one on my truck. I really don't know what the point is. It does save 10 pounds. But anyone worried about 10 pounds on a Tacoma is fighting the wrong battle.

I guess in theory it keeps your tailpipe from getting crushed.

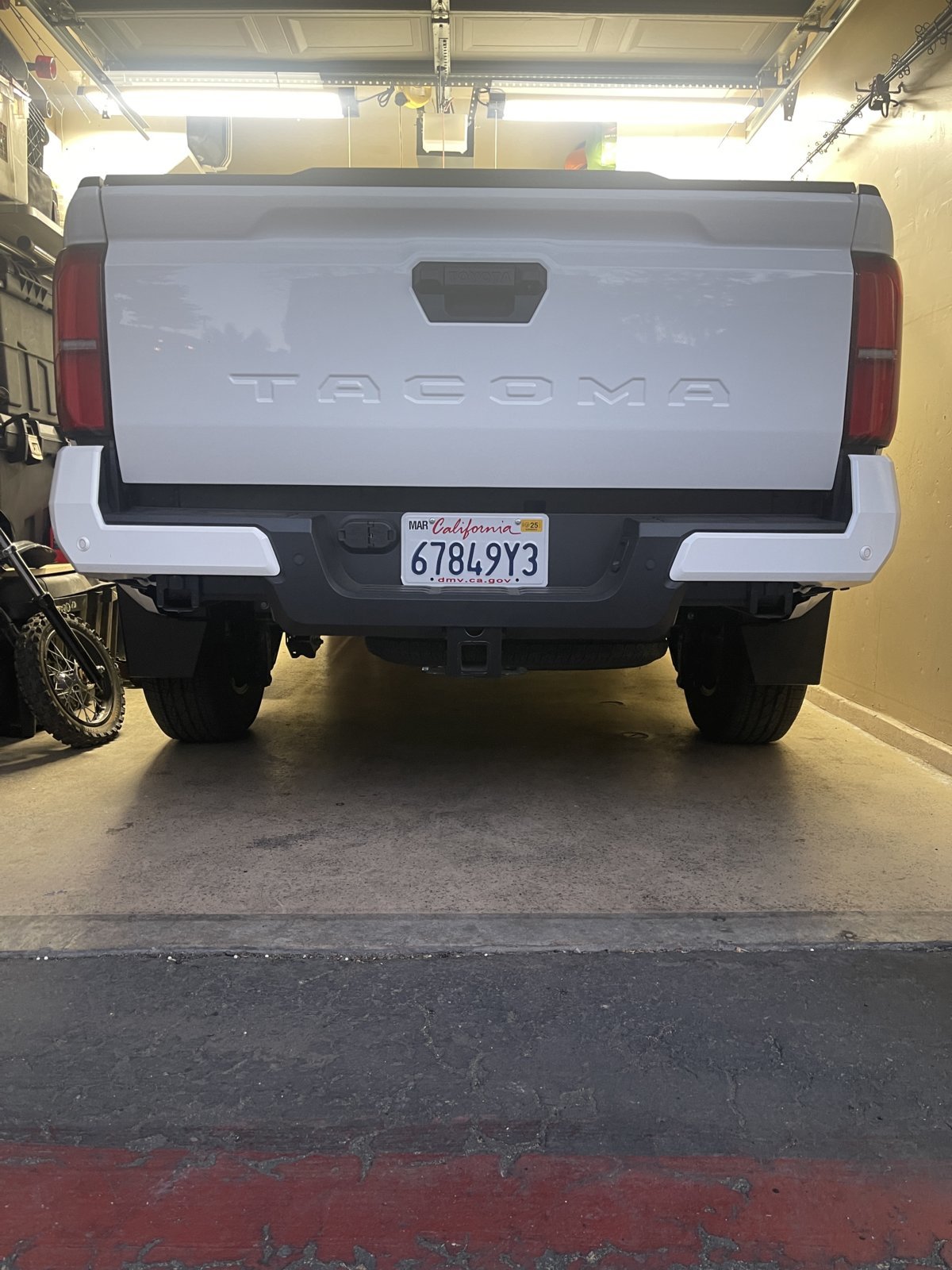

It also looks a ton better than the unsightly OEM tailpipe...even non-car people look at it and say, "WTH is that?" lol



Where did you get it from?



It was a PIO. Which is a misnomer since it's not optional. It's more like a "whatever we feel like."



Ok, I really tried here. I'm in a dirty ass garage, one handed, trying to snap pics.

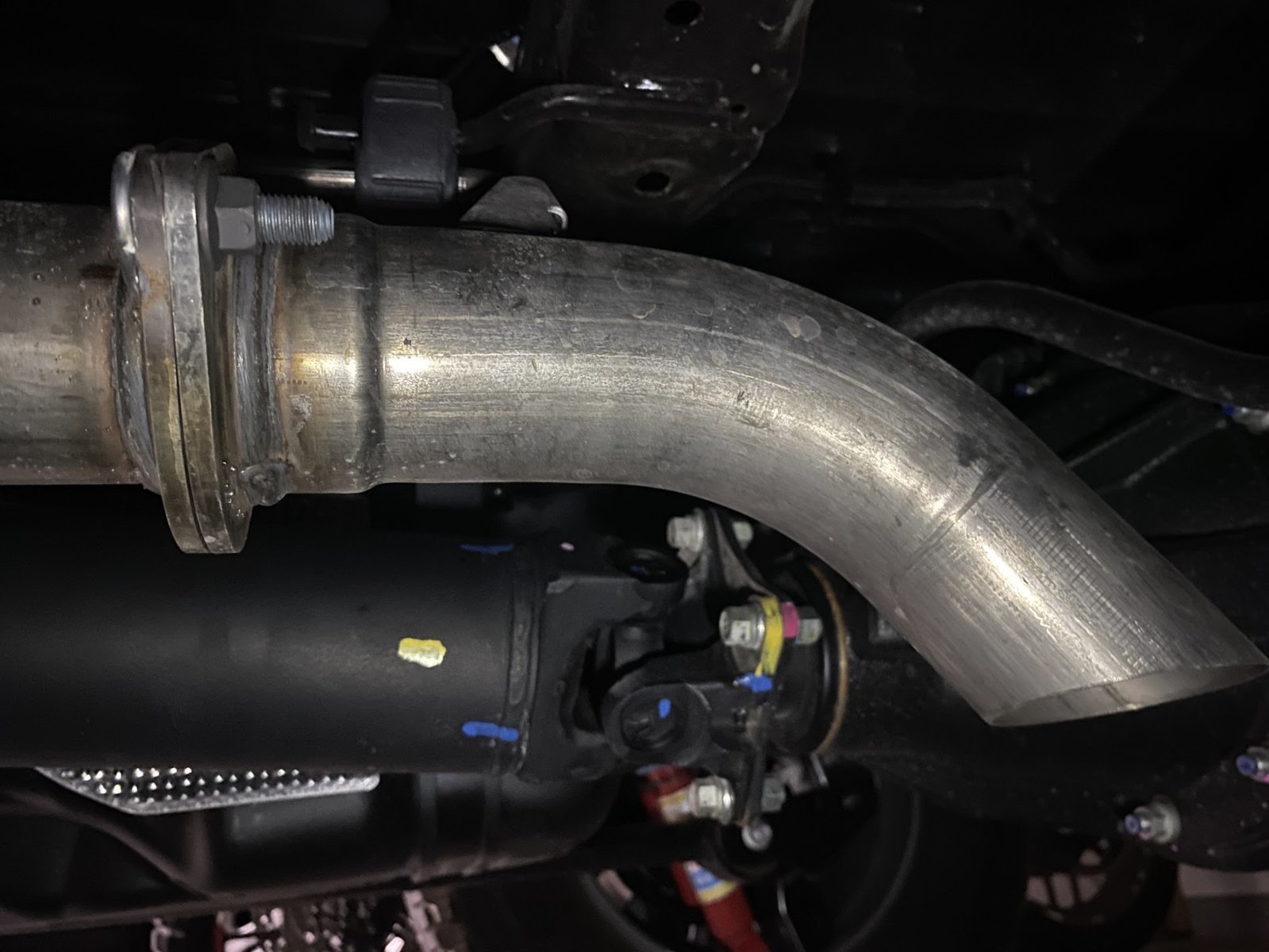

From the side this is what it looks like.

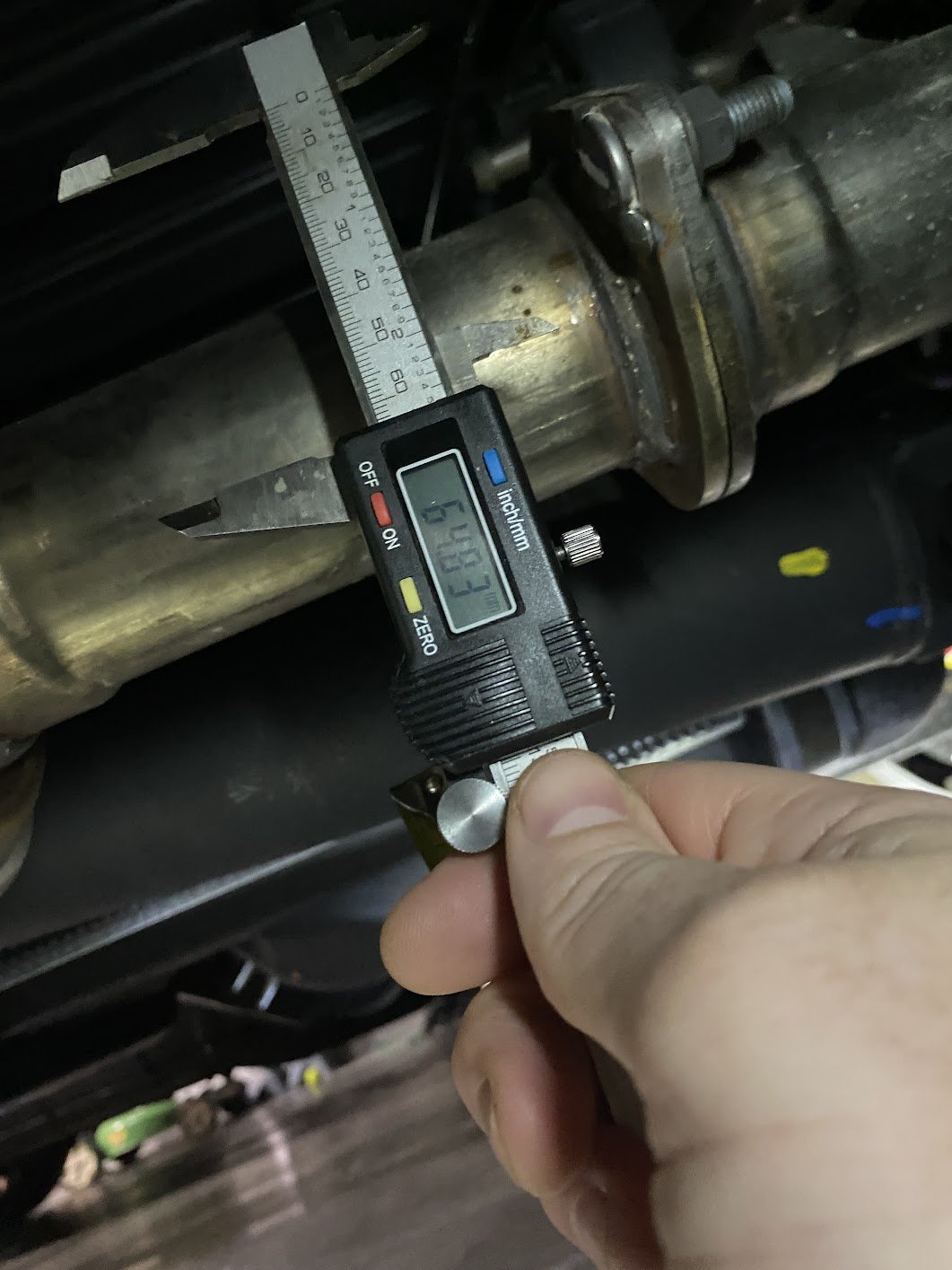

Pic showing the OD of the pipe before the flange. All measurements in millimeters.


Measurements of the coupling OD as it meets the flange.


Pic showing appx center on center of the studs for the flange

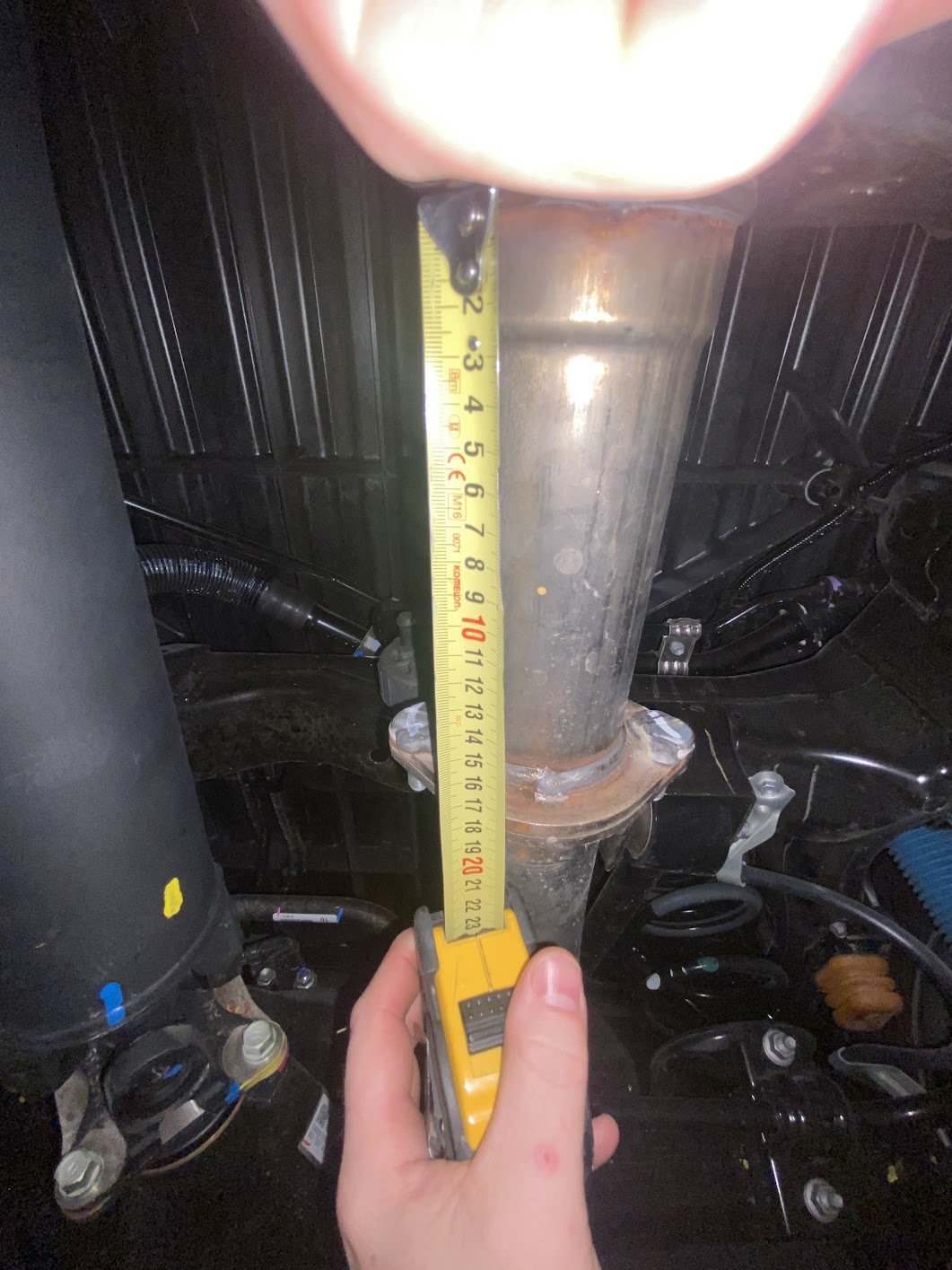

Best effort showing overall length in millimeters of the pipe including thickness of the flange (appx 1cm). So subtract 1cm from this length in centimeters for a rough approximation of overall length. I would say this tape is at 29cm to the exhaust outlet.

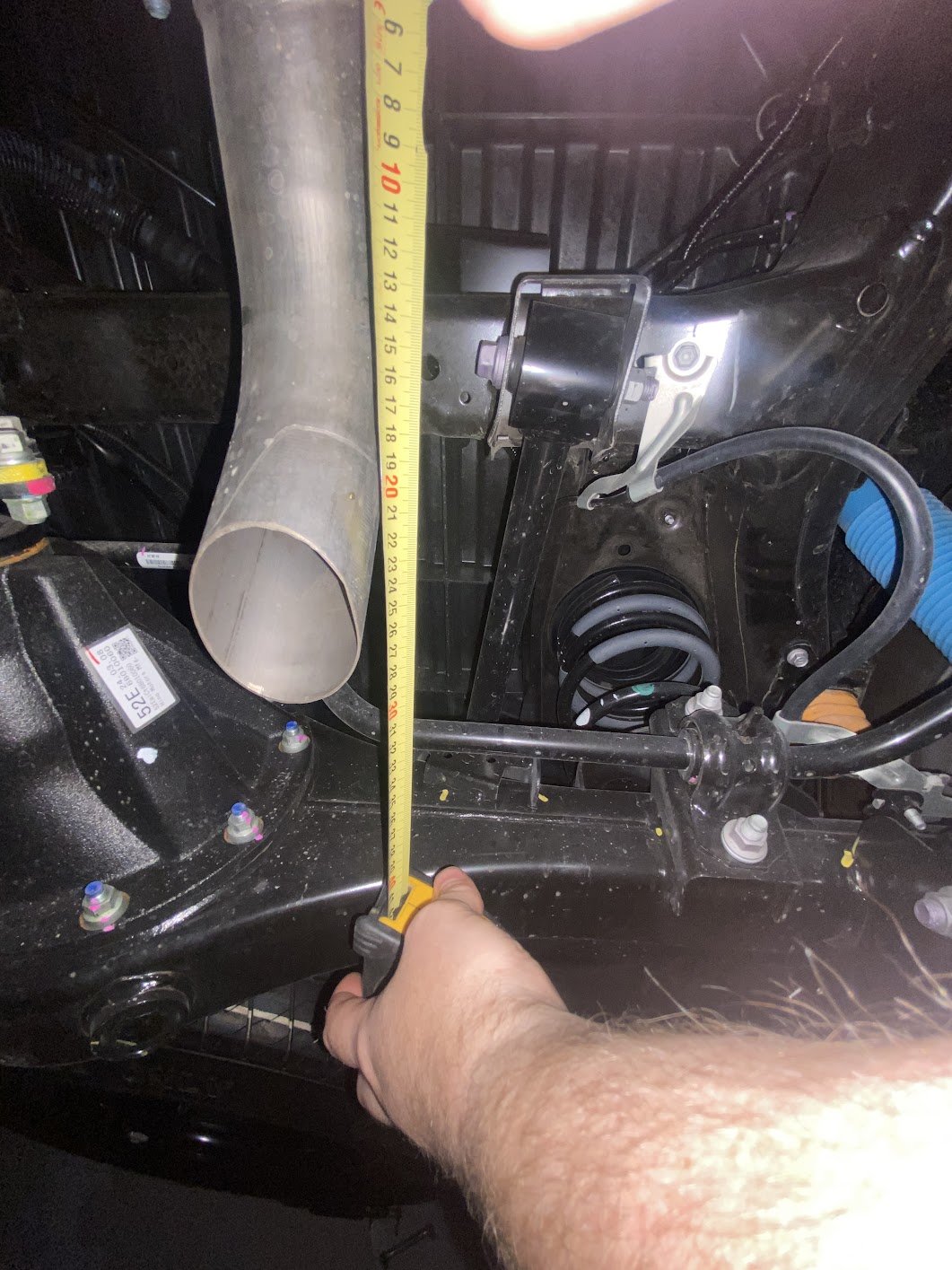

Trying to illustrate where it sits relative to rear diff. The output terminates roughly at the same level as the drive shaft joint where it bolts to the rear diff.
