Transmission temp gauge install question....

Discussion in '2nd Gen. Tacomas (2005-2015)' started by soilsample, Apr 23, 2010.

  1. Apr 23, 2010 at 10:24 AM
    #1
    soilsample

    soilsample [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26958
    Messages:
    143
    Gender:
    Male
    First Name:
    Donald
    Southwest Louisiana
    Vehicle:
    '09 4x4 Double Cab
    Hi everyone, I'm about to install 2 gauges in a pillar mount in my '09 Tacoma. I have a couple of questions first.

    I'm also adding in my transmission cooler at the same time.......

    I'm assuming that the appropriate place to splice into the transmission line for my temperature sensor would be on the line as it ENTERS (hottest spot) into the lower portion of the radiator. Is this correct?

    Can you guys tell me which line is coming to the radiator, and which line is the return?

    One more question..
    I'm also installing a Volt gauge in the pod..... Can anybody tell me the appropriate place to tap into my truck's electrical system to get a reading from the output of the alternator?

    Ok Today I got the pod all mounted, but did not yet connect any wires......
    I also got the cooler mounted but didn't run any hoses.....

    [​IMG]

    [​IMG]

    Thanks
    Donald

    DistortedAxis and TRUCKSnGUNS like this.
  2. Apr 23, 2010 at 10:42 AM
    #2
    Anathollo

    Anathollo www.saveadane.org

    Joined:
    Feb 25, 2009
    Member:
    #14071
    Messages:
    1,295
    Gender:
    Male
    Houston
    Vehicle:
    07 Tacoma TRD Sport
    Icon coilovers, Rear Fox Resi-shocks, 285/70/17 Toyo A/T's, Touchscreen JVC Headunit, Custom Rhino-lined sub box, Rocksford Fosgate components and Dual Rockford Fosgate 10" shallow subs, Pioneer and Rocksford Fosgate amps, 1250 watts total, Autometer Volt and Trans gauges with Lotek A-pillar, K&N Drop-in filter, WO Seat covers, Tint, NST WP pulley, Hi-lift jack, Diff breather mod, horn relocation mod, extra "D" rings, de-pinstriped, carrier bearing drop, Rear backup 886 bulbs, Camburg UCA's, AMW Catch can, BHLM, OME Dakars with AAL, Procomp 7089's, Front single hoop Demello bumper, Superwinch Tiger Shark 9500, Amsteel 3/8th synthetic line
    Ok, so when your looking at your truck from the front bumper, the line on the right is the line where the fluid goes in, and on the left the is the return. This is the where you will install your tanny temp sensor.

    and for the volt meter just plug it into anywhere on your truck electrical system and it'll give you an accurate voltage reading.
    PM me if you have any more questions...

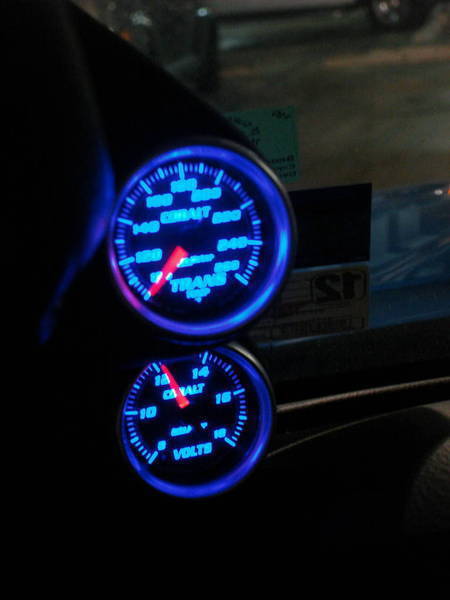

    I'm running that same setup...
    [​IMG]

  3. Apr 23, 2010 at 10:47 AM
    #3
    Plannerman99

    Plannerman99 Well-Known Member

    Joined:
    Oct 20, 2009
    Member:
    #24642
    Messages:
    673
    Gender:
    Male
    First Name:
    Matt
    So Cal
    Vehicle:
    '10 SSM 4x4 DC
    Custom bed mat, Demello Offroad Sliders, So Cal pin striping
    Oooh, very nice. Did you buy a kit? I've wondered about doing something similar, but wondered how to nicely integrate it into the pillar.

  4. Apr 23, 2010 at 10:49 AM
    #4
    Anathollo

    Anathollo www.saveadane.org

    Joined:
    Feb 25, 2009
    Member:
    #14071
    Messages:
    1,295
    Gender:
    Male
    Houston
    Vehicle:
    07 Tacoma TRD Sport
    Icon coilovers, Rear Fox Resi-shocks, 285/70/17 Toyo A/T's, Touchscreen JVC Headunit, Custom Rhino-lined sub box, Rocksford Fosgate components and Dual Rockford Fosgate 10" shallow subs, Pioneer and Rocksford Fosgate amps, 1250 watts total, Autometer Volt and Trans gauges with Lotek A-pillar, K&N Drop-in filter, WO Seat covers, Tint, NST WP pulley, Hi-lift jack, Diff breather mod, horn relocation mod, extra "D" rings, de-pinstriped, carrier bearing drop, Rear backup 886 bulbs, Camburg UCA's, AMW Catch can, BHLM, OME Dakars with AAL, Procomp 7089's, Front single hoop Demello bumper, Superwinch Tiger Shark 9500, Amsteel 3/8th synthetic line
    I got the gauges from Jegs, they werent the cheapest but god their shipping is FAST! and they have awesome customer service!

    And I got the pillar from Lotek

    I love this pillar bc it sticks out rather than being recessed into the A-pillar. Makes it easier to read it.

    And rep to Silverback07 because he showed me how to install the transmission gauge.

  5. Apr 23, 2010 at 10:50 AM
    #5
    MY50cal

    MY50cal I think I'm getting the Fear.

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    2,841
    Gender:
    Male
    First Name:
    Mojo
    Parkesburg, PA
    Vehicle:
    05 SWB TRD 4x4
    Yes.
  6. Apr 23, 2010 at 3:25 PM
    #6
    soilsample

    soilsample [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26958
    Messages:
    143
    Gender:
    Male
    First Name:
    Donald
    Southwest Louisiana
    Vehicle:
    '09 4x4 Double Cab
    Added pictures to the first post!

  7. Apr 23, 2010 at 4:42 PM
    #7
    c0astie31

    c0astie31 TACO SUPREME

    Joined:
    Oct 15, 2009
    Member:
    #24349
    Messages:
    347
    Gender:
    Male
    First Name:
    Dennis
    Long Island ny
    Vehicle:
    2011 4Runner Trail Edition
    A LOT
    top line into the radiator i placed my sensor, then it goes to the trans cooler then out to the trans itself.

  8. Apr 23, 2010 at 4:44 PM
    #8
    Anathollo

    Anathollo www.saveadane.org

    Joined:
    Feb 25, 2009
    Member:
    #14071
    Messages:
    1,295
    Gender:
    Male
    Houston
    Vehicle:
    07 Tacoma TRD Sport
    Icon coilovers, Rear Fox Resi-shocks, 285/70/17 Toyo A/T's, Touchscreen JVC Headunit, Custom Rhino-lined sub box, Rocksford Fosgate components and Dual Rockford Fosgate 10" shallow subs, Pioneer and Rocksford Fosgate amps, 1250 watts total, Autometer Volt and Trans gauges with Lotek A-pillar, K&N Drop-in filter, WO Seat covers, Tint, NST WP pulley, Hi-lift jack, Diff breather mod, horn relocation mod, extra "D" rings, de-pinstriped, carrier bearing drop, Rear backup 886 bulbs, Camburg UCA's, AMW Catch can, BHLM, OME Dakars with AAL, Procomp 7089's, Front single hoop Demello bumper, Superwinch Tiger Shark 9500, Amsteel 3/8th synthetic line
    Nice! With the tranny cooler on, you should only see your tranny temp go to 180 degrees on a very hot day. The highest I've gotten mine to is 200 degrees and I was towing A LOT of weight, so it was understandable...

  9. Apr 23, 2010 at 5:20 PM
    #9
    c0astie31

    c0astie31 TACO SUPREME

    Joined:
    Oct 15, 2009
    Member:
    #24349
    Messages:
    347
    Gender:
    Male
    First Name:
    Dennis
    Long Island ny
    Vehicle:
    2011 4Runner Trail Edition
    A LOT
    i have seen mine up to 150 but just regular driving, mine is around 120

  10. Apr 25, 2010 at 8:09 PM
    #10
    2.7taco

    2.7taco Well-Known Member

    Joined:
    Dec 9, 2009
    Member:
    #27316
    Messages:
    522
    Gender:
    Male
    Texas
    Vehicle:
    2005 Tan Tacoma Base 5 LUG: Beaten , abused and still running strong.
    Fat Bobs 2.75 lift and level with short AAL, 16x8 Level 8 Guardian Wheels, 245/75R16 Toyo Open Country ATII, custom trans shift kit(home made), Trans temp. and Vac gauge, URD fuel pump upgrade(going back to stock soon).
    Where are you reading your temps. from?

  11. May 7, 2010 at 11:26 AM
    #11
    tonto340

    tonto340 Well-Known Member

    Joined:
    Mar 28, 2009
    Member:
    #15246
    Messages:
    138
    Gender:
    Male
    Gambrills, MD
    What is the inside diameter of the rubber transmission line?

  12. May 7, 2010 at 11:39 AM
    #12
    soilsample

    soilsample [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26958
    Messages:
    143
    Gender:
    Male
    First Name:
    Donald
    Southwest Louisiana
    Vehicle:
    '09 4x4 Double Cab
    I used 3/8" hose barb fittings without any problems.

  13. May 7, 2010 at 1:51 PM
    #13
    Lunercrab

    Lunercrab AKA "06tacosport"

    Joined:
    Feb 10, 2008
    Member:
    #4680
    Messages:
    605
    Gender:
    Female
    First Name:
    Beth
    Lehigh Valley area, PA
    Vehicle:
    2010 timberland mica dcab sport
    Is the tranny guage hard to install? I do alot of towing so I'd like to maybe do a setup like this in the future. I have the factory tranny cooler already on my 2010 but I'd still like a way to keep an eye on the temps.

  14. May 7, 2010 at 2:07 PM
    #14
    TexasIslandBoy

    TexasIslandBoy THE RED DRAGON!!

    Joined:
    Jun 10, 2009
    Member:
    #18262
    Messages:
    3,282
    Gender:
    Male
    First Name:
    Andrew
    South Texas. SPI
    Vehicle:
    07' trd offroad 4X4 (For Sale)
    pro comp 6inch lift 35'' tires moto 950's radfo coilovers magnaflow exhaust 5/16" front skidplate usa spec ipod interface tree pin strip mod dry drop in filter full size BFG KM2 spare
    dam man i need to take a look at that soon

  15. Dec 4, 2011 at 9:49 AM
    #15
    vbibi

    vbibi Well-Known Member

    Joined:
    Jul 23, 2009
    Member:
    #20060
    Messages:
    515
    Gender:
    Male
    san fransisco bay area
    Vehicle:
    2009 4door long bed
    Pardon me, but, if you gonna see the gage to 250 degrees then what?
    You will add a extra fan, increase or add a extra cooler? Stop and let everything cool down?

  16. Dec 4, 2011 at 10:16 AM
    #16
    2.7taco

    2.7taco Well-Known Member

    Joined:
    Dec 9, 2009
    Member:
    #27316
    Messages:
    522
    Gender:
    Male
    Texas
    Vehicle:
    2005 Tan Tacoma Base 5 LUG: Beaten , abused and still running strong.
    Fat Bobs 2.75 lift and level with short AAL, 16x8 Level 8 Guardian Wheels, 245/75R16 Toyo Open Country ATII, custom trans shift kit(home made), Trans temp. and Vac gauge, URD fuel pump upgrade(going back to stock soon).
    Only the torque converter produces heat so placing your temp probe after the cooler is useless unless you are seeing input temp and temp after cooler. If your doing that then look for a 20* drop in temp from the converter back to the trans. If your checking temp after then add approximately 20-28* to your reading to be accurate. My readings during high load and summer heat get about 205-215* too hot for proper lubrication. At 225-230 is the smoke point of type T-4. I've tested it. Not good for a A340 trans. I will be adding a small air to air cooler after the ATF leaves the radiator. I'm shooting for 140-160* return temp.
    If you see temps higher than 215* and your wired in good then you may want to start having a look at your fluid level if its in the hot zone and not over filled then you may want to check out the temp from converter to the temp back to the trans. If you do not see 20* or greater temp drop then that is a red flag. If you do see the 20* or greater temp drop but your temp out of the converter exceeds 220* then you need to find out what is causing your converter to excessively slip or not enter lock-up and cause high temps.
    If your fluid temp does not change much after the cooler and is still very high (beyond 215*) then you need to slow down the speed of the oil exiting the trans before it enters the cooler. If you have a 4cyl then add a small cooler after your ATF lines exit the radiator.

    Ok I think I have done enough rambling.

  17. Dec 17, 2011 at 2:10 PM
    #17
    IndianTaco

    IndianTaco Well-Known Member

    Joined:
    Aug 1, 2010
    Member:
    #41057
    Messages:
    1,110
    Gender:
    Male
    what threads are on the (T) fitting?

  18. Aug 28, 2012 at 6:55 AM
    #18
    TonkaToyTaco

    TonkaToyTaco Hope you can run faster than 965 FPS

    Joined:
    Feb 2, 2011
    Member:
    #50428
    Messages:
    1,455
    Gender:
    Male
    First Name:
    Louie
    Street, MD
    Vehicle:
    11 Tacoma TRD DCLB 4X4
    Bilstein 5100 all around with front set at .85 w/Eibach coil and 1/2 spacer, Rear 2" Deaver AAL, SCS Steath 6 matte black rims wrapped in 265/70/17 Duratracs, Blacked out emblems, Debaged tailgate, Tinted windows (5% in rear, 20% up front and 50% on windsheild), HID 35W 6000K headlights and 35W 4300K fog lights, Smoked Tail lights and 3rd brake light, T-Rex 2 eyelids colormatched, Foglight anytime MOD, All LED interior and exterior ligths, Volant CAI With forced Ram, JET throttle body spacer, Doug Thorley LT Headers, Aero Turbine SS Muffler, Aero Turbine SS 4inch tip dumped after axel, URD MAF Calibrator, LED bed lights, 4X4 light mod, Satoshi Grill with matching scoop and lower Valance, Hella 700FF HID 55W 6000K behind Satoshi, Diff breather mod, Sea Blu secondary fuse box with 100A breaker, Omega Train Horns with dual Air Compressors and 5 Gal tank, Ultraguage, Andre Devil Horns
  19. Aug 29, 2012 at 10:31 AM
    #19
    Gincoma

    Gincoma Special Edition Member

    Joined:
    Nov 14, 2010
    Member:
    #46179
    Messages:
    2,123
    Gender:
    Male
    Salt Lake City UT
    Vehicle:
    RIPieces 2005 Tacoma, adios 2011 :'(
    Factory Monster Truck Package with reverse gear.
    I thought if anyone is reading the thread I have the same pillar for the gauges for sale if anyone is interested. :D

  20. Aug 29, 2012 at 2:41 PM
    #20
    Dragons Taco

    Dragons Taco Well-Known Member

    Joined:
    Jan 19, 2012
    Member:
    #70993
    Messages:
    1,828
    Gender:
    Male
    First Name:
    Derek
    Cary/Raleigh NC
    Vehicle:
    06 Black TRD-S 4WD 4D 6SPD and MINE!
    Can ya spell Tonneau
    Those Pillar mounts are boss.. just added it to my favs under

    "Parts I didn't know about but now can't live with out" folder.
