Transporting a Bike 5.5 bed

Discussion in 'Off-Topic Discussion' started by TACOMA TRD, Feb 22, 2012.

  1. Feb 22, 2012 at 11:01 PM
    #1
    TACOMA TRD

    TACOMA TRD [OP] Well-Known Member

    Joined:
    Apr 9, 2010
    Member:
    #34897
    Messages:
    2,209
    Gender:
    Male
    First Name:
    Tom
    PA
    Vehicle:
    2011 MGM SPORT DC 4x4
    Alpine HU, Apline 6.5 3 way Speakers, Access Cover.
    Im possibly buying a bike this weekend. Its a 2004 DRZ 650. Will this bike fit in my bed with the tailgate down? It will be about a 60mile trip back home. I do have some extra D rings in my truck, they are mounted through the bed with metal plating behind them, but not to the frame.

    Also, will the weight approx 350lbs resting on tailgate bend it? Should I put a peice of plywood over the gate?

    I measured with gate down i have 78 inches. The bike is around 90 inches but I really only need the rear tire on gate.

    Bike Specs

    Overall Length:2255mm (88.8 in.), low seat setting 2235mm (88.0 in.)Overall Width:865mm (34.1 in.)Overall Height:1195mm (47.0 in.), low seat setting 1155mm (45.5 in.)Seat Height:885mm (34.8 in.), low seat setting 845mm (33.0 in.)Ground Clearance:265mm (10.4 in.), low seat setting 225mm (8.9 in.)Wheelbase:1490mm (58.7 in.), low seat setting 1475mm (58.1 in.)Dry Weight:147kg (324 lbs.)

  2. Feb 23, 2012 at 12:26 AM
    #2
    TACOMA TRD

    TACOMA TRD [OP] Well-Known Member

    Joined:
    Apr 9, 2010
    Member:
    #34897
    Messages:
    2,209
    Gender:
    Male
    First Name:
    Tom
    PA
    Vehicle:
    2011 MGM SPORT DC 4x4
    Alpine HU, Apline 6.5 3 way Speakers, Access Cover.
  3. Feb 23, 2012 at 5:09 AM
    #3
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,808
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    I wouldn't worry about it :D
    [​IMG]

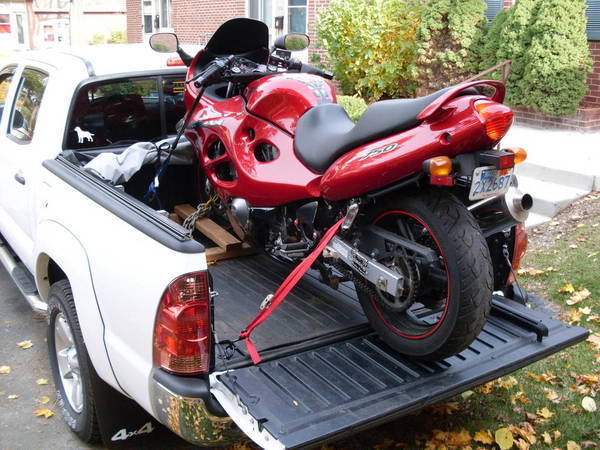

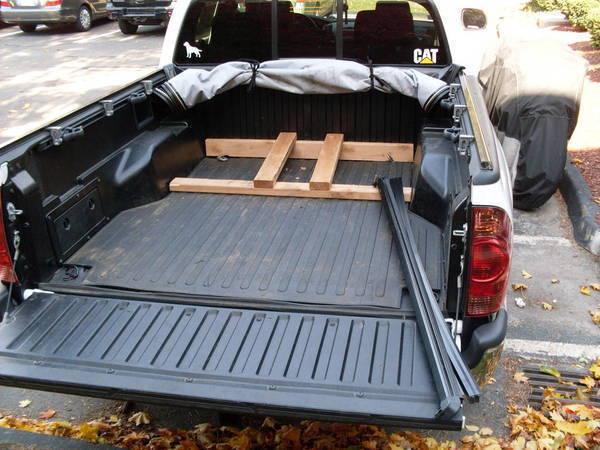

    The bike in that pic weighs about 450ish dry and is probably longer than your DRZ. No issues with the tailgate. Just be careful with the front tire turning, I made a 2x4 frame to keep the front tire straight.
    [​IMG]

  4. Feb 23, 2012 at 5:48 AM
    #4
    TACOMA TRD

    TACOMA TRD [OP] Well-Known Member

    Joined:
    Apr 9, 2010
    Member:
    #34897
    Messages:
    2,209
    Gender:
    Male
    First Name:
    Tom
    PA
    Vehicle:
    2011 MGM SPORT DC 4x4
    Alpine HU, Apline 6.5 3 way Speakers, Access Cover.
    Thats a good Idea....Actually if transporting a lot I should build one similar for rear tire too where it elevates the bike and distributes weight even across the gate.

    PS did you use you factory cleats?

  5. Feb 23, 2012 at 5:55 AM
    #5
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,808
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    I wouldn't worry about the rear. That dirt bike doesn't weigh that much so there really won't be much weight on the tailgate. I'd only be worried if it was a heavier cruiser. I've had no issues transporting the Katana. The back stays put with tie downs, the only reason I build that chock for the front is because the front end turned on me because the bed flexes so much. After I built the chock, 0 issues.
    I don't trust the tie down cleats with the weight of a motorcycle. I added extra d-rings in the front by drilling out the outter 2 water drain holes and using a plate washer underneath the bed. If you have already added d-rings using the frame bolts, you're good to go. Here's a couple better shots of the tie down.
    [​IMG]
    [​IMG]
    BTW, all the pics were taken from this thread, might help you with loading/unloading:
    http://www.tacomaworld.com/forum/motorcycles/120955-loading-motorcycle-dcsb-pics.html

  6. Feb 23, 2012 at 1:46 PM
    #6
    positraction127

    positraction127 Member

    Joined:
    May 10, 2011
    Member:
    #56391
    Messages:
    24
    Gender:
    Male
    MN
    Vehicle:
    2011 TRD Sport DCLB 4X4
  7. Feb 23, 2012 at 11:53 PM
    #7
    DATZ WEAKSAUCE

    DATZ WEAKSAUCE Well-Known Member

    Joined:
    Jul 29, 2011
    Member:
    #60786
    Messages:
    183
    Gender:
    Male
    Nor cal
    Vehicle:
    2011 MGM TRD SPORT

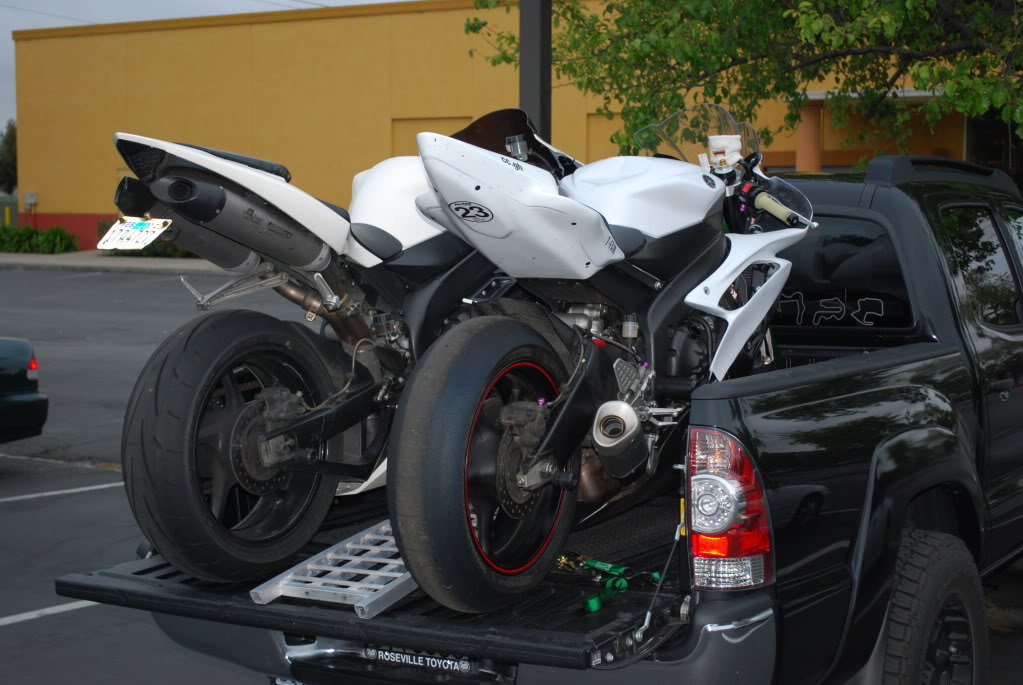

    heres black cx with 2 bikes in his short bed

    [​IMG]
