TRD 5Lug?

Discussion in '5 Lug' started by Beeman1, Dec 23, 2020.

  1. Dec 23, 2020 at 5:40 AM
    #1
    Beeman1

    Beeman1 [OP] Beeman1

    Joined:
    Dec 7, 2020
    Member:
    #348970
    Messages:
    22
    Gender:
    Male
    Colorado
    Vehicle:
    02 SR5
    Many Lexus interior parts, LED dash lights, a flatbed Is coming soon.

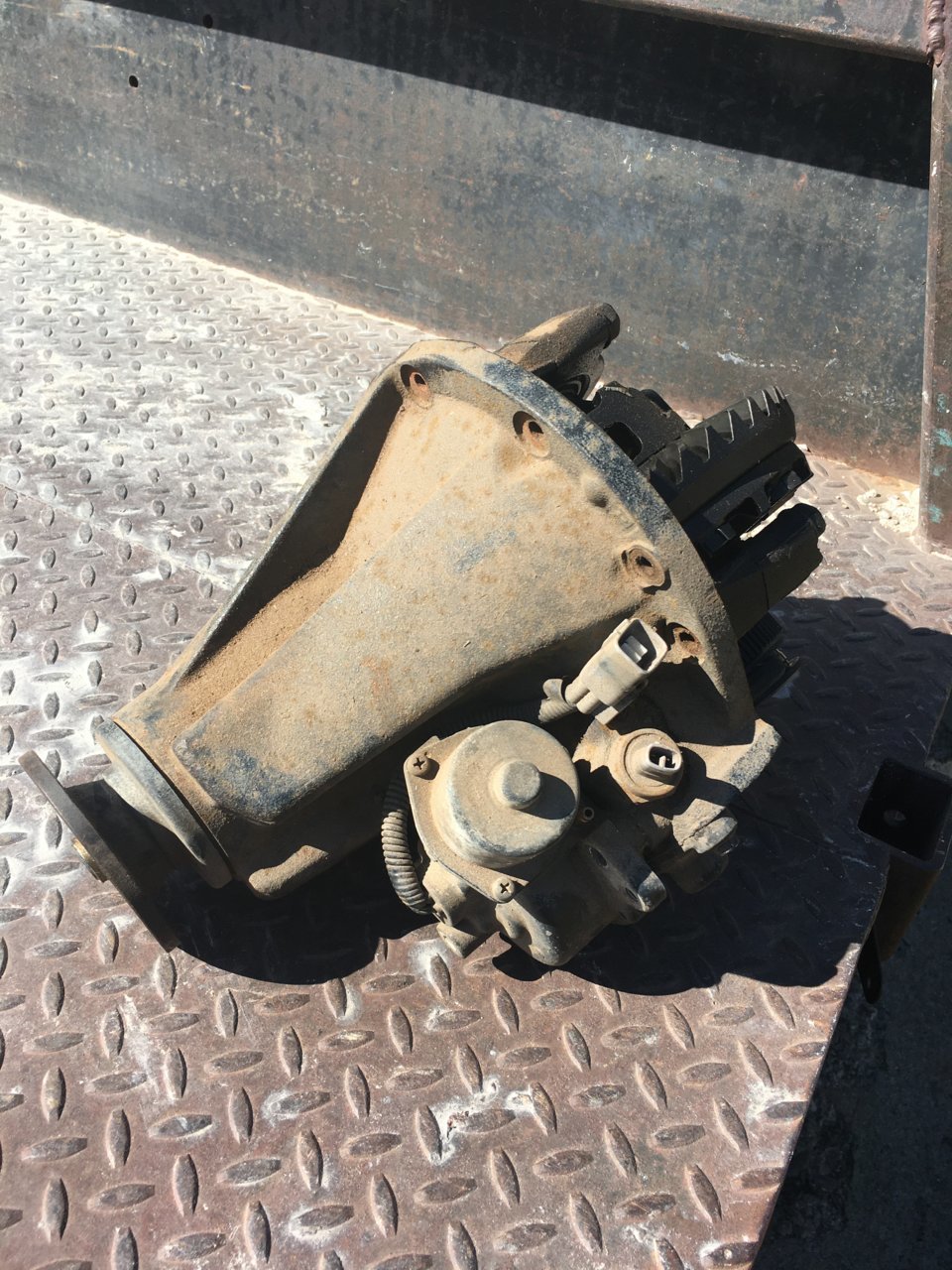

    I picked up a TRD diff with 4.10s out of an FJ. I know I will have to change out the entire axle. My question is do the axles out of the 1st gen 5lugs have the same spline count as the TRD diff? I am assuming yes as long at its an 8” 5lug rear axle. I am aware of the housing mods and stud differences for the TRD locker as well.


  2. Dec 23, 2020 at 5:50 AM
    #2
    5 Lug Fury

    5 Lug Fury Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    3,019
    Gender:
    Male
    First Name:
    Kenny
    Knoxville, TN
    Vehicle:
    V8 5 lug
    Got a lot of stuff lol
    I'm not a first gen but have a 2nd gen 6 lug elocker. I had to use the 6 lug axle and shafts because the 5 lug one was too short. The splines were the same but the amount of engagement was not. Now I have rear 6 lug rims and front 5 lug rims lol. I did also need a driveshaft spacer to have proper transmission engagement.

    Also fuck adapters

    Beeman1[OP] and Yapretzel like this.
  3. Jan 1, 2021 at 10:27 PM
    #3
    Tacoma Nick

    Tacoma Nick Active Member

    Joined:
    Mar 9, 2019
    Member:
    #285946
    Messages:
    43
    Gender:
    Male
    First Name:
    Nick
    Michigan
    Vehicle:
    2008 Indigo Ink Pearl Regular Cab 2TR auto 2WD
    All new under the floor, factory frame swap. Bucket seat swap. Bilstein 4600 shocks and X Runner rear swaybar. 4:10 DIfferential. 225/60/17 on Sienna 5 spoke alloy wheels. After market black headlights. OE replica fog lights. OE Intermittent wipers plug and play. Leather steering wheel (OE eBay) that came with a cruise stalk, I bought the $38 OE wire to plug into the clock spring, plug and play.
    Single/Access cab 4wd and PreRunners, when they have the 2TR 4cl and 5 speed all have 4:10 gearing, though no locker. Most all TRD Sport have an LSD though with 3.72 gearing, so pick your poison.
    I swapped in the pig (as shown in your picture) from a single cab 4X4 2TR 5 speed, into my single cab 2WD 2TR 4cl automatic. Much easier. Plug and play, everything fits, just a swap of assembly line options.
    I have to sets of wheels/tires (Summer/Winter) that are 1-3 inches taller than stock so the change is not that much though it is spunkier overall.

  4. Jan 2, 2021 at 2:10 PM
    #4
    Beeman1

    Beeman1 [OP] Beeman1

    Joined:
    Dec 7, 2020
    Member:
    #348970
    Messages:
    22
    Gender:
    Male
    Colorado
    Vehicle:
    02 SR5
    Many Lexus interior parts, LED dash lights, a flatbed Is coming soon.
    I am asking for the 5lug axles. I have not torn into mine yet but believe the 5 lug 8” axles are only a 27 spline shaft. I know they work on the 30 spline shafts.

  5. Jan 2, 2021 at 9:48 PM
    #5
    Tacoma Nick

    Tacoma Nick Active Member

    Joined:
    Mar 9, 2019
    Member:
    #285946
    Messages:
    43
    Gender:
    Male
    First Name:
    Nick
    Michigan
    Vehicle:
    2008 Indigo Ink Pearl Regular Cab 2TR auto 2WD
    All new under the floor, factory frame swap. Bucket seat swap. Bilstein 4600 shocks and X Runner rear swaybar. 4:10 DIfferential. 225/60/17 on Sienna 5 spoke alloy wheels. After market black headlights. OE replica fog lights. OE Intermittent wipers plug and play. Leather steering wheel (OE eBay) that came with a cruise stalk, I bought the $38 OE wire to plug into the clock spring, plug and play.
    I guess I meant for the gearing, not the locker. Easier to deal with a diff that just bolts right in.

    Beeman1[OP] likes this.
  6. Jan 2, 2021 at 9:51 PM
    #6
    Beeman1

    Beeman1 [OP] Beeman1

    Joined:
    Dec 7, 2020
    Member:
    #348970
    Messages:
    22
    Gender:
    Male
    Colorado
    Vehicle:
    02 SR5
    Many Lexus interior parts, LED dash lights, a flatbed Is coming soon.
    No doubt on that my friend! But that is what separates the men from the boys. ;)
