TRD beadlock wheels are still in production, new part number

Agree 100%



100% agree.



They wear fast and rough, must be rotated on schedule or they’ll get out of round, and are mud tire loud.



But they are comparatively light



So I have a question. When I enter my truck info (2023 DC 5 ft bed TRD OR stock suspension) on Elmhurst & BAM, both say these wheels won't fit. I've seen several trucks here that run them. Do I ignore & order anyway? BAM said if I order anyway, no warranty/returns. Will be running a 265/75/16



They fit, several 3rd gens running these wheels. Make sure you double check part numbers in the first post of this thread. You'll need the lug nuts listed on page 1 as well...

PTR56-35220-F3 for grey
PTR56-35220-F2 for black
PTR56-35220-F5 for bronze

PT280-35220-G0 for Center Caps

The part number for the complete set of needed (lugs,locks, spline drive, and key) is PTR27-35100
For the locks and key only it is PTR27-34061
For a set of 6 lugs and spline drive it is PTR27-34060



Fit with no rubbing?
Thanks.



yep



But doesn’t mean you don’t need a lift.



Thanks for your quick response. Reading through 500+ posts was not something I wanted to do.



Want & need are 2 different things. LOL I'm 72 & disabled & have enough trouble getting into stock height. Then add going from a 70 to 75 tire.



That’s why you need sliders too.



Got them Predator steps for sliding on About the most useless dealer bolt on there is.

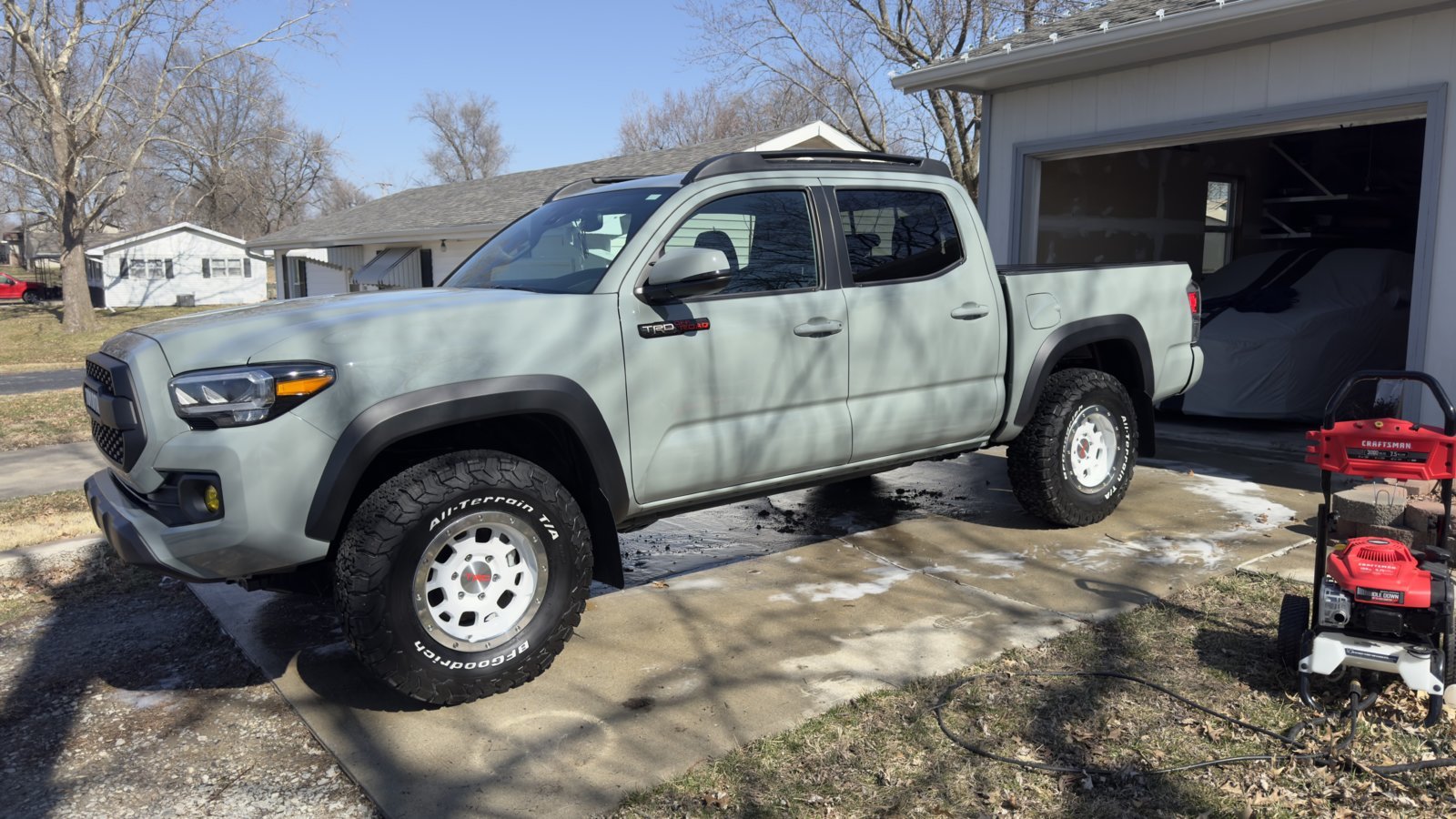

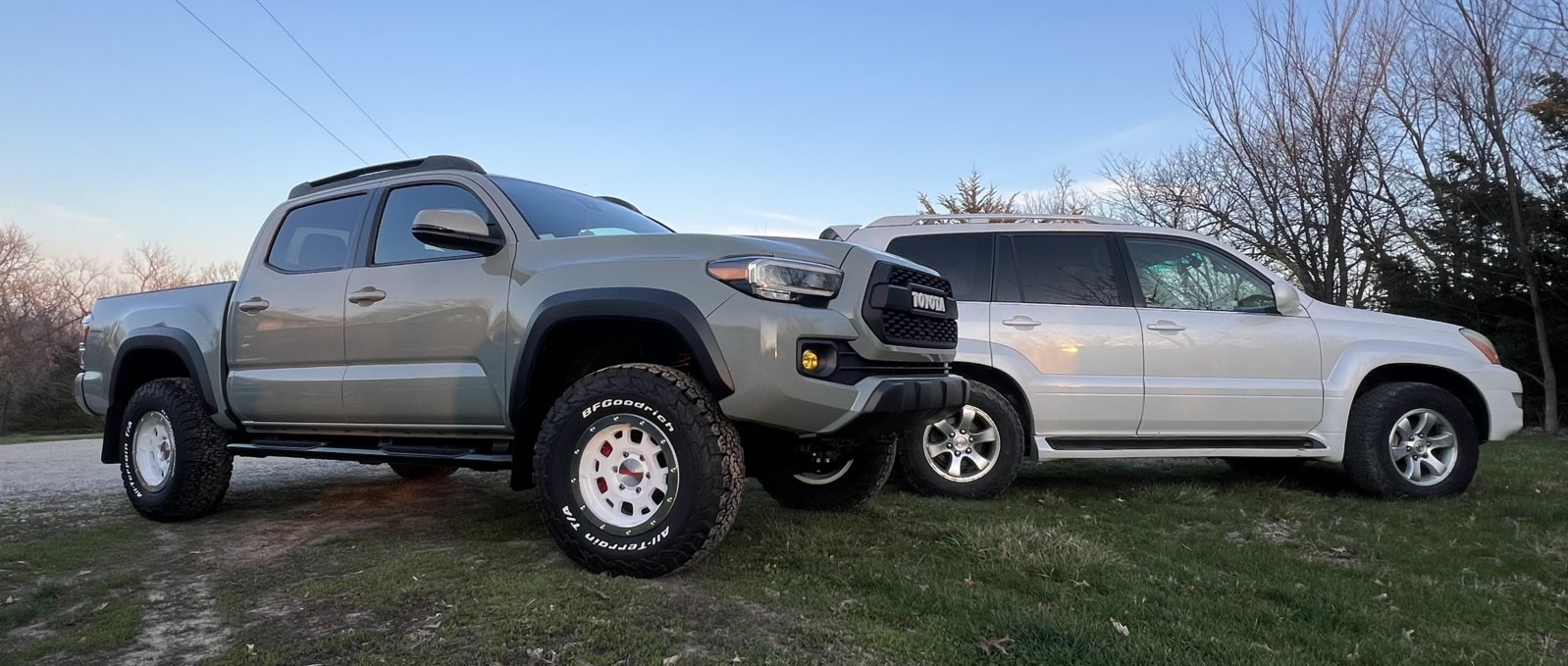

I bought from BAM, they were the cheapest w/ shipping, quick delivery. The 265/75-16 did touch my flap mid flaps in reverse. Here is a picture on the 2023 Off Road before I added the FOX Off a PRO. I will say the wheels didn’t come with center caps as advertised! I ordered them and decals separately from FNwheel.Com



Good info on the mudflaps. I do have the Toyota OEM flaps on my truck & have heard they may/may not need trimming- depending how aggressive the AT tire is.



That is interesting, did you have any wheel spacers?



No spacers, the wheel is 10mm and the tires are one inch larger with 265/75-16. I’ve since installed the Fox off a 23 Pro. and gained a couple more inches.



Right, you are the first person I see on this forum that have rubbing with this size tire and wheel combo, that is interesting to note since I plan on going the exact same combo.

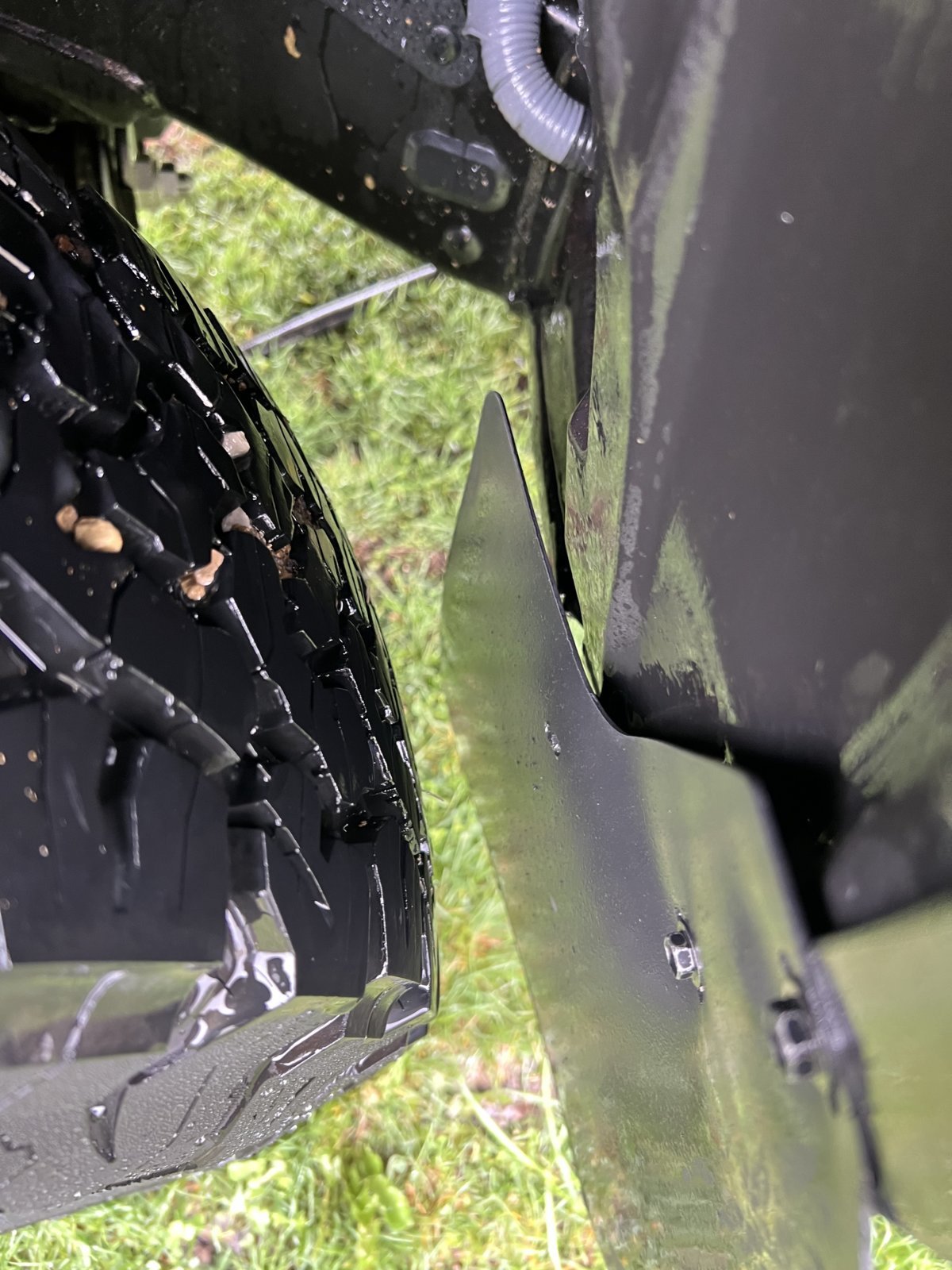

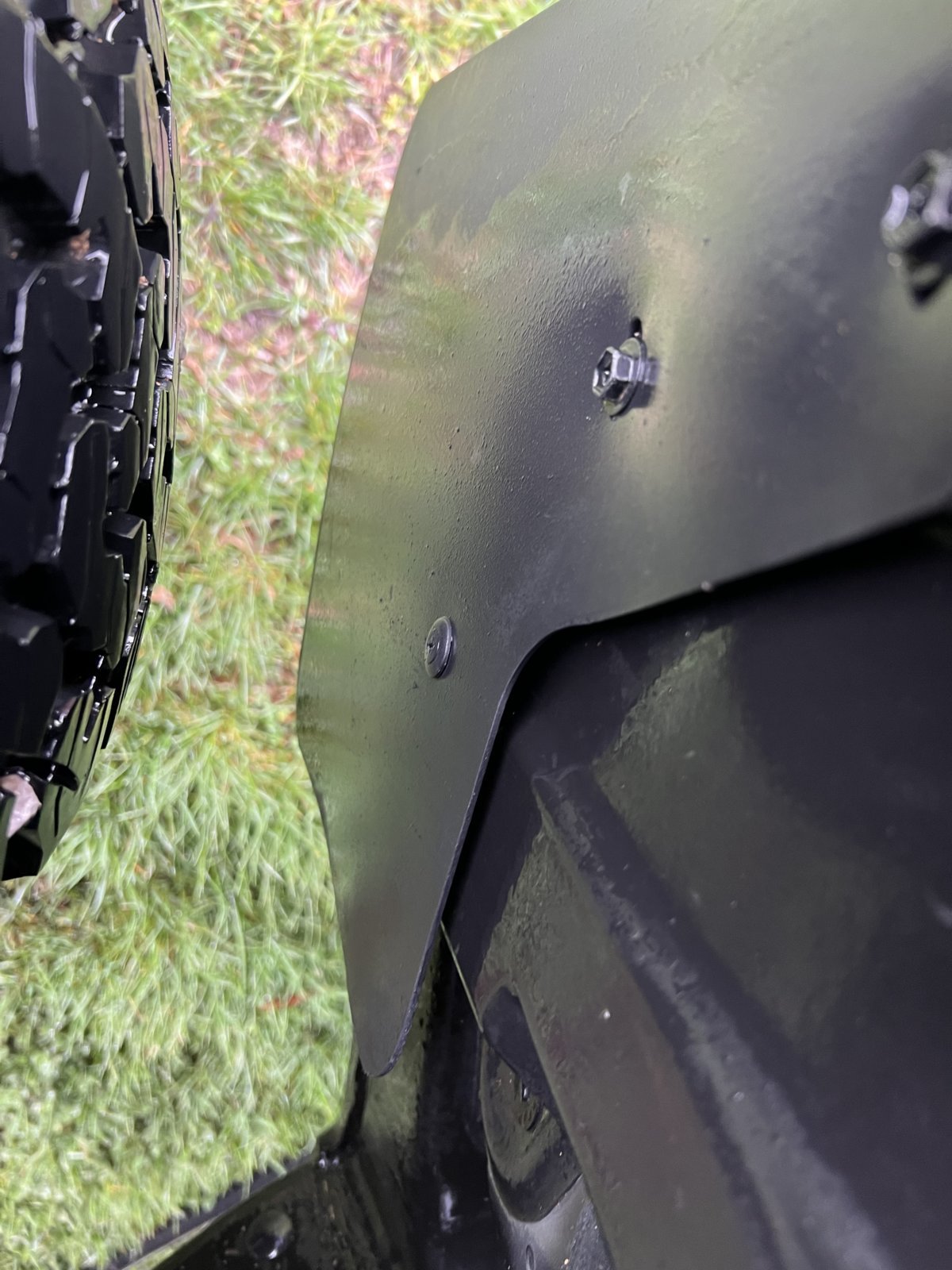

It wasn’t bad, probably my generic flaps? I should have taken a picture. My flaps are plastic and I drilled the holes myself. I just noticed the plastic plug came out of the dr side and it’s sorta wavy. That could have been most of it!



Got my shipping notification from Elmhurst today for my center caps.
