TRD Skid Plate on 5 Lug?

Discussion in '5 Lug' started by FlightMedic178, Jun 22, 2014.

  1. Jun 22, 2014 at 12:29 PM
    #1
    FlightMedic178

    FlightMedic178 [OP] Active Member

    Joined:
    Dec 2, 2013
    Member:
    #117789
    Messages:
    32
    Gender:
    Male
    First Name:
    Nate
    Phoenix
    Vehicle:
    2011 Double Cab 2.7l 5lug
    Bone stock
    Does anyone know if the holes line up for the (2nd gen) TRD skid plate on the (2nd gen) 5 lug under side?
    Thanks!

  2. Jun 22, 2014 at 6:56 PM
    #2
    afd23a

    afd23a Well-Known Member

    Joined:
    Sep 26, 2008
    Member:
    #9483
    Messages:
    1,802
    Gender:
    Male
    The Dynamo of Dixie
    Vehicle:
    05 Access Cab 5 Lugger
    Factory Fog Lights, Removed Secondary Air Filter, Metra Ipod Adapter, Int Wiper Stalk, Wet Okole's, URD Short Shifter, Scanguage II w/Blendmount, Fat Bob's 2.75" spacer lift, ARE topper, SP Performance Pads & Slotted Rotors, 4.10 gears
    From what I've read they do not.

  3. Jun 24, 2014 at 6:22 PM
    #3
    Half Caf

    Half Caf Well-Known Member

    Joined:
    Feb 5, 2014
    Member:
    #122337
    Messages:
    83
    Gender:
    Male
    Philadelphia, PA
    Vehicle:
    2009: 5 Lugs, 5 speeds
    x2 for them not being a bolt on. Somewhere on here was a guy who got one and drilled out new holes to some success. Couldn't tell you who though...

  4. Jul 15, 2014 at 5:22 PM
    #4
    iflyboeing

    iflyboeing Member

    Joined:
    Feb 28, 2014
    Member:
    #124230
    Messages:
    9
    Gender:
    Male
    Vehicle:
    2014 Access Cab SR-5
    I wanted one too. Primarily to protect lower engine bay from road spray and debris. Carefully evaluated both TRD and standard plate found on all 6 lug models, and determined that they would not fit. I finally elected to fabricate my own. Since I don't own a metal break I decided to use 1/4" polyethylene (think cutting board material). This is easily obtained from any plastics supply house on line.

    There are two breaks(bends) required. One of the great things about PE is that it's thermoformable. I used a heat gun along the line of the break and then bent it as needed. You gotta get it really hot.

    I then attached it using existing holes in the frame rails beneath the front part of the engine bay. Used all stainless 1/4" hardware with fender washers and nylock nuts.


    Last edited: Jul 15, 2014
  5. Jul 15, 2014 at 5:25 PM
    #5
    iflyboeing

    iflyboeing Member

    Joined:
    Feb 28, 2014
    Member:
    #124230
    Messages:
    9
    Gender:
    Male
    Vehicle:
    2014 Access Cab SR-5
    Another pic


  6. Jul 30, 2014 at 3:43 PM
    #6
    endlesstacoma

    endlesstacoma Member

    Joined:
    Sep 18, 2012
    Member:
    #87211
    Messages:
    14
    Gender:
    Male
    First Name:
    Yia
    Fort Mill, sc
    Vehicle:
    dog loves trucks

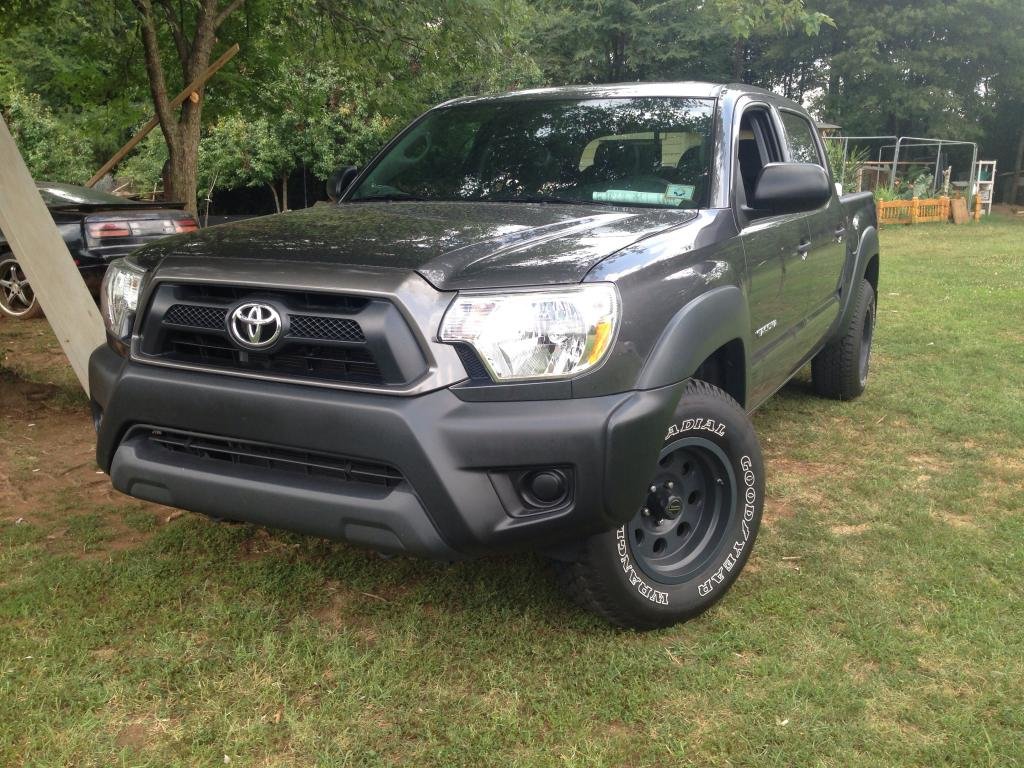

    Got a guy that own a machine shop thinking about making me one but I can't seem to find the design specs can any one or I'm I gonna have to wing it????


    [​IMG]

  7. Jul 31, 2014 at 9:57 AM
    #7
    iflyboeing

    iflyboeing Member

    Joined:
    Feb 28, 2014
    Member:
    #124230
    Messages:
    9
    Gender:
    Male
    Vehicle:
    2014 Access Cab SR-5
    There are no published specs for this. I used a mechanical protractor to measure the angles. There are two angle "breaks". They're the same (I believe 17 degrees), but you'll need to measure it to make sure. Then I measured ,the distance from the back of the frame rail I was attaching to, to the first "break". The I measured the distance to the second break. Then there are just a couple inches forward of the front break. Width is designers preference. Just ensure that it doesn't interfere with steering. If your guy uses steel or Aluminum, I would either powder-coat (steel) or anodize (Aluminum). Keep us posted.

  8. Aug 3, 2014 at 10:52 PM
    #8
    rademan11

    rademan11 Well-Known Member

    Joined:
    Mar 4, 2014
    Member:
    #124617
    Messages:
    209
    Gender:
    Male
    DFW TEXAS
    Vehicle:
    4X4 trd off road
    Ranch Topper, Bull Bar.....Yes, I know everyone thinks they are crap, I like the look

    Slick idea, very creative!

  9. Oct 5, 2014 at 2:19 AM
    #9
    808tacomas

    808tacomas Well-Known Member

    Joined:
    Aug 21, 2011
    Member:
    #62088
    Messages:
    109
    Gender:
    Male
    First Name:
    kingrob
    oahu
    Vehicle:
    2011 toyota tacoma 4door 4 cyl.
    working on it..need some advice
    Nice truck. What's your mods??
