trick hidden LED bed light

Discussion in 'Lighting' started by zach nunes, Apr 10, 2013.

  1. Apr 10, 2013 at 10:33 PM
    #1
    zach nunes

    zach nunes [OP] it looks stock, but with a little zest

    Joined:
    Dec 5, 2009
    Member:
    #27071
    Messages:
    84
    Gender:
    Male
    First Name:
    zach
    chico/carmel
    Vehicle:
    09 4x4 SR5
    a little zest here and there
    I had some time on my hands and wanted to make a light for my bed, but I wanted to keep the clean look I have going so I mounted it inside the cab.


    [​IMG]

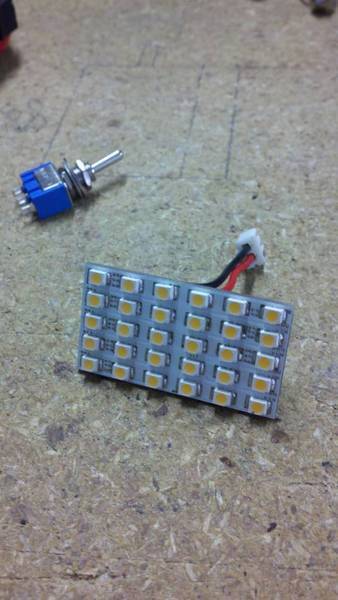

    Started with a cluster led for the dome lite. It didn't match the map lights
    so it was laying around waiting.

    [​IMG]

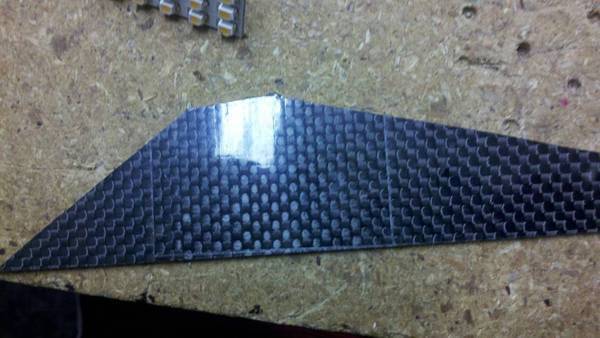

    Used some CF scraps.

    [​IMG]

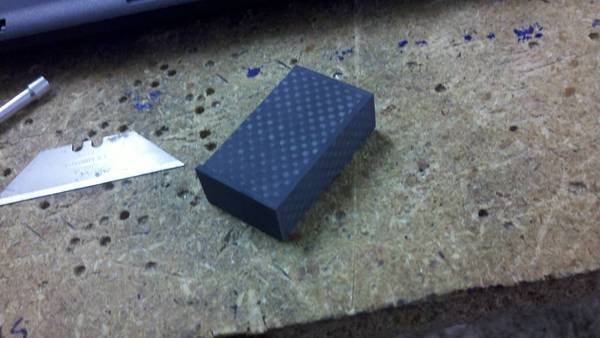

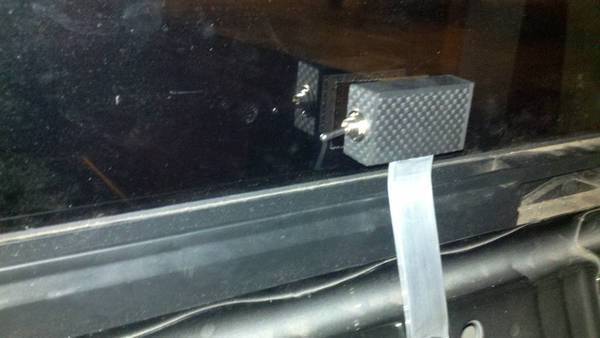

    Finished box

    [​IMG]
    [​IMG]

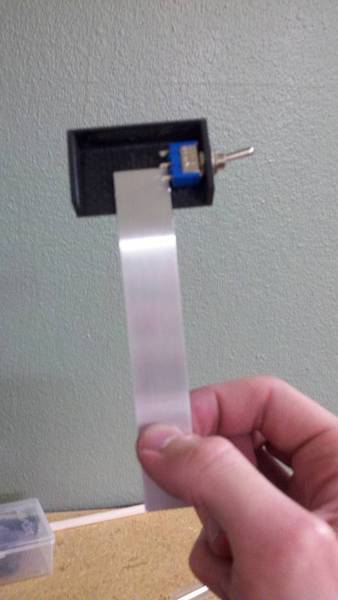

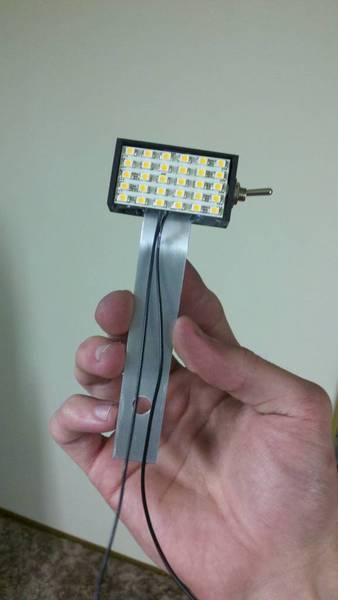

    All made

    [​IMG]
    [​IMG]

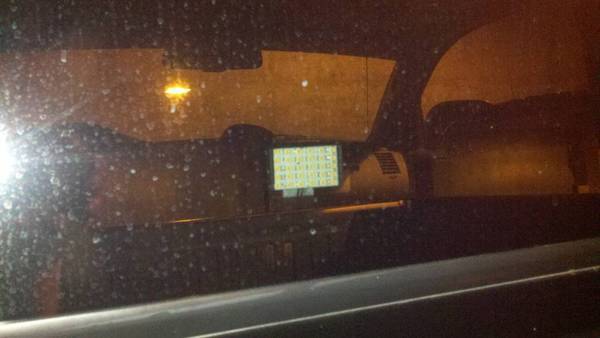

    I cut out some of the tint so it can do its job better. Pretty bright considering its size. lights up most of the bed. happy with results. :D

  2. Apr 10, 2013 at 10:42 PM
    #2
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Pics of bed lit up? Pretty cool idea. Never thought of that.

  3. Apr 10, 2013 at 10:45 PM
    #3
    choppersx

    choppersx ZoMbiE aLeRt

    Joined:
    Jun 21, 2012
    Member:
    #81056
    Messages:
    12,994
    Gender:
    Male
    First Name:
    Frank
    SoCal
    Vehicle:
    1968 Ford Mustang
    Lifted Bilstein shocks 5100's Front set 1.75, Rear set 1.5 ICON 3 Leaf Progressive add on / Lights-Retrofit with Halos & interior Dome / Tinted windows/AFE PRo Dry Air Filter / Go Rhino Bars / Flowmaster Exhaust 50 series
    what happen to light on pic?

  4. Apr 10, 2013 at 10:48 PM
    #4
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,831
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    Interesting :popcorn:

  5. Apr 10, 2013 at 10:48 PM
    #5
    adio

    adio Do. Or do not. There is no try. -Master Yoda

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    1,885
    Gender:
    Male
    EWA BEACH, HI
    Vehicle:
    2015 INFERNO TRD PRO
    Bought, not built:-P
    sub'd. hmm would it be possible to just install it up on the head liner, and tuck that bracket up there for a cleaner/OEM-ish look?? and angle the LED cluster so it points down at the bed.

    Last edited: Apr 10, 2013
  6. Apr 10, 2013 at 10:54 PM
    #6
    jesus

    jesus Well-Known Member

    Joined:
    Oct 31, 2009
    Member:
    #25236
    Messages:
    943
    Gender:
    Male
    First Name:
    jesus
    bakersfield
    Vehicle:
    02
    K&N ram intake & doug exs.
    do ya have any pics showing it lighting up the bed????

  7. Apr 10, 2013 at 10:56 PM
    #7
    zach nunes

    zach nunes [OP] it looks stock, but with a little zest

    Joined:
    Dec 5, 2009
    Member:
    #27071
    Messages:
    84
    Gender:
    Male
    First Name:
    zach
    chico/carmel
    Vehicle:
    09 4x4 SR5
    a little zest here and there

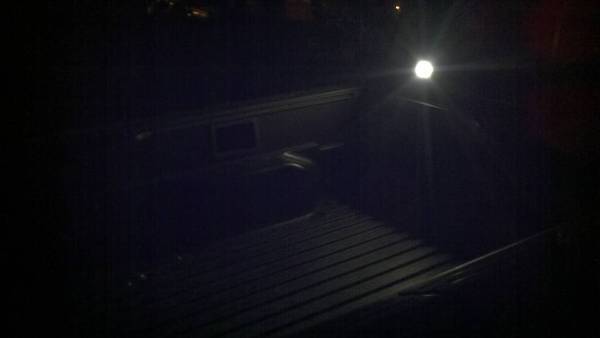

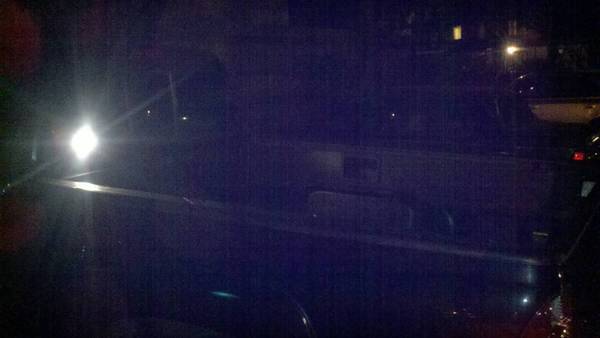

    [​IMG]
    [​IMG]
    just pounded these out

  8. Apr 10, 2013 at 10:58 PM
    #8
    zach nunes

    zach nunes [OP] it looks stock, but with a little zest

    Joined:
    Dec 5, 2009
    Member:
    #27071
    Messages:
    84
    Gender:
    Male
    First Name:
    zach
    chico/carmel
    Vehicle:
    09 4x4 SR5
    a little zest here and there
    Was looking into that but theres no real sturdy point and I was to afraid to pull my head liner down a little.

  9. Apr 10, 2013 at 11:12 PM
    #9
    adio

    adio Do. Or do not. There is no try. -Master Yoda

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    1,885
    Gender:
    Male
    EWA BEACH, HI
    Vehicle:
    2015 INFERNO TRD PRO
    Bought, not built:-P
    still pretty cool idea though. now another choice of bed light mod. I was thinking of doing the LED strip like everyone else, but this seems a lot more simple. you should do a write up man.

  10. Apr 10, 2013 at 11:27 PM
    #10
    jesus

    jesus Well-Known Member

    Joined:
    Oct 31, 2009
    Member:
    #25236
    Messages:
    943
    Gender:
    Male
    First Name:
    jesus
    bakersfield
    Vehicle:
    02
    K&N ram intake & doug exs.
    nice job..
