TRS D2S alignment

Discussion in 'Lighting' started by WYOTAC, Dec 7, 2012.

  1. Dec 7, 2012 at 4:09 PM
    #1
    WYOTAC

    WYOTAC [OP] Well-Known Member

    Joined:
    Dec 26, 2009
    Member:
    #28176
    Messages:
    205
    Gender:
    Male
    First Name:
    Joel
    Montana
    Vehicle:
    06 AC SR5 TRD OffRoad Desert Sand
    Billstein 5100's, OME 884, AAL, Black Badging, TRD exhaust, Window Tint, ARE shell, color matched Satoshi grille, Hella 500's behind grill, horn relocation, Front Skid Plate, shovel mount in bed, illuminated 4X4 switch, bed lights in side pockets, Avid Offroad rock sliders, BHLM, yellow sleeved fogs, Custom snowboard rack crossbars, toolbox mount with jerry can and bike mounts, plastidip rear bumper, in-dash navi/touch screen, TOYOTA tailgate vinyl, Mini D2S Retrofit.

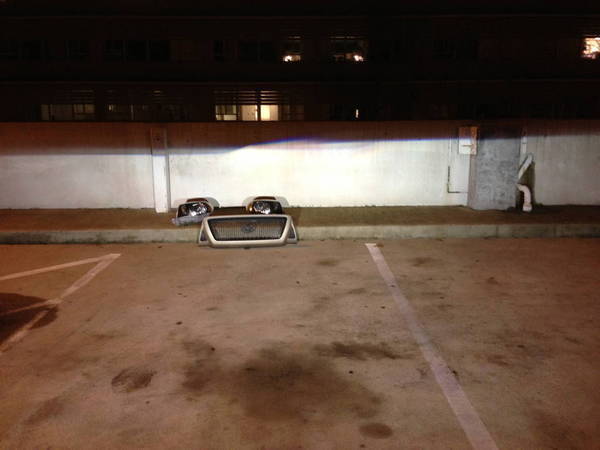

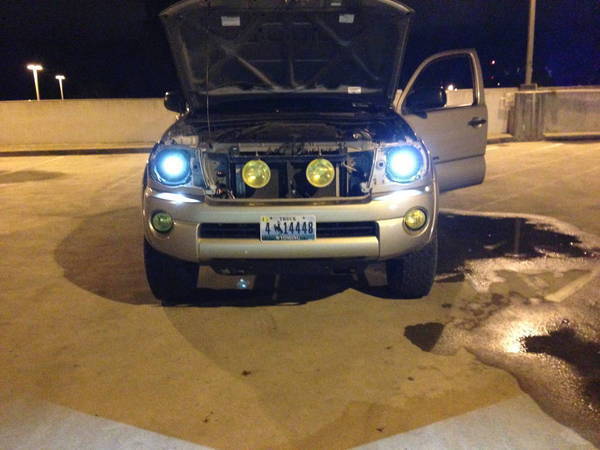

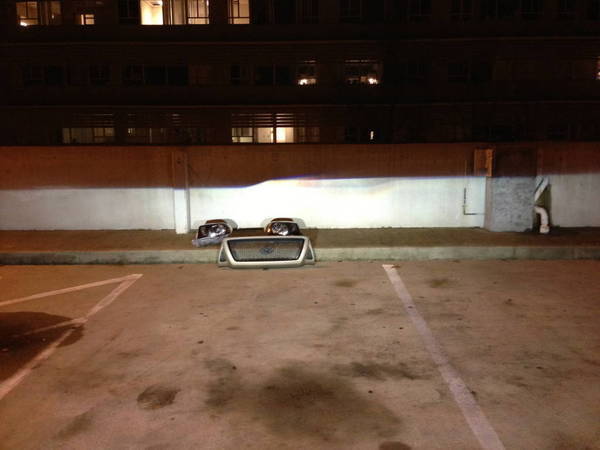

    Is there anything wrong with the current state of this alignment? Don't believe the driver's side will go any further without sanding down the H4 alignment washer. Can't figure out what the flare of light is from above the left step-up either. I really want to seal these things up and put them to use!

    [​IMG]

    [​IMG]

    [​IMG]

  2. Dec 7, 2012 at 4:41 PM
    #2
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,802
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Mine are the same way (H1s), gotta shave the alignment ring.

  3. Dec 7, 2012 at 4:59 PM
    #3
    WYOTAC

    WYOTAC [OP] Well-Known Member

    Joined:
    Dec 26, 2009
    Member:
    #28176
    Messages:
    205
    Gender:
    Male
    First Name:
    Joel
    Montana
    Vehicle:
    06 AC SR5 TRD OffRoad Desert Sand
    Billstein 5100's, OME 884, AAL, Black Badging, TRD exhaust, Window Tint, ARE shell, color matched Satoshi grille, Hella 500's behind grill, horn relocation, Front Skid Plate, shovel mount in bed, illuminated 4X4 switch, bed lights in side pockets, Avid Offroad rock sliders, BHLM, yellow sleeved fogs, Custom snowboard rack crossbars, toolbox mount with jerry can and bike mounts, plastidip rear bumper, in-dash navi/touch screen, TOYOTA tailgate vinyl, Mini D2S Retrofit.
    What about a washer under the tab closest to the fender? just the smallest amount of upward pressure on that seemed to have evened it up with the other side.

  4. Dec 7, 2012 at 5:15 PM
    #4
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,802
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Check out HID Planet. People do a lot of work modifying shrouds to make the cutoff dead even. There is a lot of guess and check work with these to make them perfect. People put spacers on the shrouds, mess with the shape of them, space the lens away from the bulb, etc. HID planet has a great deal of information and you could probably find tips on how to modify the projectors to get the results you want.

    EDIT: NVM, I thought you were talking about a washer on the projector back. Be careful spacing the headlight housing, the hood slams down on it so if it's too high, it'll make contact when you shut the hood.

  5. Dec 7, 2012 at 7:06 PM
    #5
    WYOTAC

    WYOTAC [OP] Well-Known Member

    Joined:
    Dec 26, 2009
    Member:
    #28176
    Messages:
    205
    Gender:
    Male
    First Name:
    Joel
    Montana
    Vehicle:
    06 AC SR5 TRD OffRoad Desert Sand
    Billstein 5100's, OME 884, AAL, Black Badging, TRD exhaust, Window Tint, ARE shell, color matched Satoshi grille, Hella 500's behind grill, horn relocation, Front Skid Plate, shovel mount in bed, illuminated 4X4 switch, bed lights in side pockets, Avid Offroad rock sliders, BHLM, yellow sleeved fogs, Custom snowboard rack crossbars, toolbox mount with jerry can and bike mounts, plastidip rear bumper, in-dash navi/touch screen, TOYOTA tailgate vinyl, Mini D2S Retrofit.
    yeah... I've been looking through HID planet seeing all the perfect alignments. I just don't have the optimum setting to be doing all the trial and error stuff. Thanks for the input!
