truck bed misaligned

Discussion in 'Technical Chat' started by 907taco, Jan 16, 2012.

  1. Jan 16, 2012 at 10:35 AM
    #1
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,

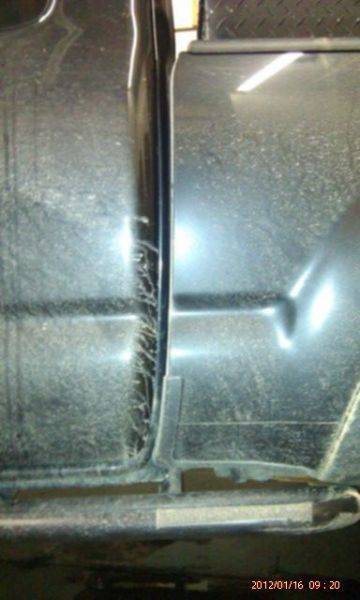

    not sure how this happend, but i noticed my bed is misaligned on the drivers side. here is a shot of drivers side, bottom of gap is misaligned

    [​IMG]



    passenger side


    [​IMG]



    i have not jumped my truck in anyway since i have had it. i have flexed the shit out of this truck but would've never thought it would misalign or make the bed whacked! :confused:

    does anyone have any idea's how to fix this. i am sure the dealer will deny any warranty due to lift/tires etc.... i am at 46,000 plus miles.

  2. Jan 16, 2012 at 10:39 AM
    #2
    GP3

    GP3 Well-Known Member

    Joined:
    Apr 11, 2011
    Member:
    #54719
    Messages:
    1,104
    Gender:
    Male
    California
    Vehicle:
    4X4 TRD Off Road
    Front: stock suspension, 12" wide fiberglass fenders Rear: stock suspension, 10" wide fiberglass fenders
    I don't mean to cause alarm, but this looks a lot like the issue that group of Raptors had. Hopefully it's not.

    What rear springs are you running?

  3. Jan 16, 2012 at 10:41 AM
    #3
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,

    yea but i don't jump my truck. i am running dakar leaf pack

  4. Jan 16, 2012 at 10:43 AM
    #4
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    i have pulled a few vehicles out of the ditch, a couple of pulls/yanks but never anything that jarred or could cause this (i think) i have looked underneath, checked bed bolts, (tight) no visible damage from underneath etc....

  5. Jan 16, 2012 at 10:45 AM
    #5
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,968
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    Just loosen the bed mounts and re align it. the yanking and flexing probably moved something.

  6. Jan 16, 2012 at 10:48 AM
    #6
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    thanks, that is what i was wanting to hear, I mean there is no body damage at all, hell my sliders have not made contact with the earth (yet) when i get a chance this week i will give that a shot.

  7. Jan 16, 2012 at 10:49 AM
    #7
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,121
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Bingo! Trucks flex in the middle, which is why the bed isnt connected to the cab. Over time, or use, the bad can need adjustment. Its no biggie.

  8. Jan 16, 2012 at 10:54 AM
    #8
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,

    right on! thats what i was hoping for. :D

  9. Jan 16, 2012 at 1:11 PM
    #9
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    7,087
    Gender:
    Male
    First Name:
    Ryan
    Lives: Fountain, Colorado/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    that and alot of these trucks come with the bed not perfectly aligned on the frame

  10. Jul 25, 2012 at 10:29 PM
    #10
    TacomaBuzz

    TacomaBuzz Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,159
    Gender:
    Male
    First Name:
    Matt
    CT
    Vehicle:
    2014 RegCab 4x4 TX Special Edition
    Sirius, Bugflector,back-rack, stepsides.
    I had to revive this thread, just noticed this morning, on the passenger side, I can't even fit my pinky finger between the bed and the cab. On the drivers side, I can fit my whole thumb between the bed and cab. Dropping it off at the dealership tomorrow, still under warranty!

    westpacifictaco likes this.
  11. Jul 25, 2012 at 10:32 PM
    #11
    xgalvanxgx

    xgalvanxgx seymour butts

    Joined:
    Dec 30, 2011
    Member:
    #69682
    Messages:
    991
    Gender:
    Male
    First Name:
    Gerardo
    OC (Lake Forest) California
    Vehicle:
    TRD Off-Road BlackSandPearl 07 PreRunner
    DTF Race Kit with 2.5 x 10 Kings, DMZ SUA rear with 16" triple bypass Kings, King bumpstops front and rear, 17" KMC beadlocks and 35's, front and rear DTF bumpers, front Fiberwerx glass and Mcneil trophy bedsides, K&N 77 Series Intake, Magnaflow, USA SPEC iPod Adapter, Rockford Fosgate 10" sub with custom box and amp. Andres' devil horn emblem, 50" D4 curved LED bar, HID converted hella 4000s.
    i have this problem too! my tire "sticks out" on the passenger side and Toyota told me its the bed that isnt centered. they told me theyd charge me $320 to fix it. they tryin to rip me off?

  12. Jul 25, 2012 at 10:35 PM
    #12
    TacomaBuzz

    TacomaBuzz Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,159
    Gender:
    Male
    First Name:
    Matt
    CT
    Vehicle:
    2014 RegCab 4x4 TX Special Edition
    Sirius, Bugflector,back-rack, stepsides.
    Sounds like it man, if my truck wasn't under warranty, I'd just loosen the bolts and align it myself. Don't waste your money at the dealership!

  13. Jul 25, 2012 at 10:43 PM
    #13
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,571
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Just get a 285 for the driver's side and a 265 for the passenger side

    Easy

    Razgriz likes this.
  14. Jul 25, 2012 at 10:45 PM
    #14
    xgalvanxgx

    xgalvanxgx seymour butts

    Joined:
    Dec 30, 2011
    Member:
    #69682
    Messages:
    991
    Gender:
    Male
    First Name:
    Gerardo
    OC (Lake Forest) California
    Vehicle:
    TRD Off-Road BlackSandPearl 07 PreRunner
    DTF Race Kit with 2.5 x 10 Kings, DMZ SUA rear with 16" triple bypass Kings, King bumpstops front and rear, 17" KMC beadlocks and 35's, front and rear DTF bumpers, front Fiberwerx glass and Mcneil trophy bedsides, K&N 77 Series Intake, Magnaflow, USA SPEC iPod Adapter, Rockford Fosgate 10" sub with custom box and amp. Andres' devil horn emblem, 50" D4 curved LED bar, HID converted hella 4000s.
    genius! :bowdown: or three wheel spacers!

  15. Jul 26, 2012 at 6:15 PM
    #15
    TacomaBuzz

    TacomaBuzz Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,159
    Gender:
    Male
    First Name:
    Matt
    CT
    Vehicle:
    2014 RegCab 4x4 TX Special Edition
    Sirius, Bugflector,back-rack, stepsides.
    Update; got my truck back from the dealership today. They loosened the bolts and re-aligned it back into factory specs. Hopefully it stays put now, time will tell.

  16. Feb 6, 2016 at 11:58 PM
    #16
    westpacifictaco

    westpacifictaco Well-Known Member

    Joined:
    Aug 19, 2014
    Member:
    #136491
    Messages:
    128
    Gender:
    Male
    First Name:
    Nick
    Guam
    Vehicle:
    2014 Regular Cab 4x4 (Black)
    Same problem im having right now!

  17. Feb 8, 2016 at 9:40 AM
    #17
    tgear.shead

    tgear.shead Well-Known Member

    Joined:
    Aug 20, 2015
    Member:
    #162276
    Messages:
    1,240
    Gender:
    Male
    There are two kinds of misalignment that are known to happen;

    1) side-to-side misalignment: This is benign, and can be fixed by loosening the bed bolts and pushing it around.
    2) top-to-bottom misalignment (i.e., the front edge of the box is not parallel to the cab): This kind of misalignment indicates a possibly rear-end collision against the trailer hitch. What happens is the collision forces the hitch forward *and down*, causing the rear-most segment of the frame to buckle slightly, which pulls the rear of the bed down. Because its a composite bed, it is able to conform to the new frame shape without twisting the bed sides. It *looks* like the truck is bent upward in the middle, but it is actually bent at the rear. The good news is that the damage is restricted to the rear-most segment, even behind the rear spring mount.

    Biscuits likes this.
