Trying to figure out Grille Lights wiring for DRL

Discussion in '3rd Gen. Tacomas (2016-2023)' started by hcenteno21, Jan 22, 2020.

Page 1 of 5
  1. Jan 22, 2020 at 10:10 AM
    #1
    hcenteno21

    #1
    hcenteno21 [OP] Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254943
    Messages:
    180
    Gender:
    Male
    First Name:
    Tito
    El Paso, TX
    Vehicle:
    2020 AG Tacoma TRD Pro Supercharged

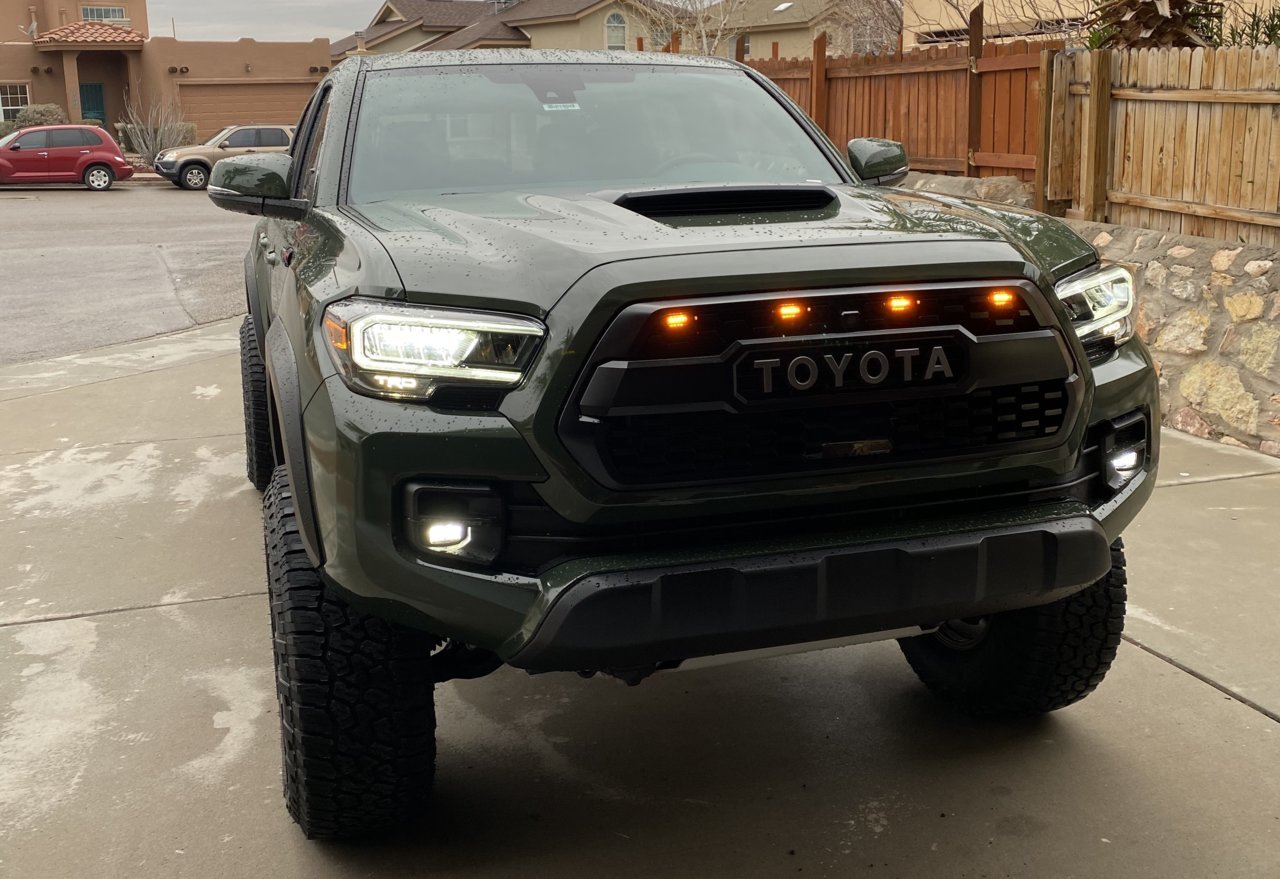

    As the title says I just installed some grille lights on my 2020 and ideally I wanted them to come on with DRLs and headlights. After reading every post I could find here I have not found a solution. I see people have said tap to pink, or green, or both or add a fuse to headlamp etc.

    I have tried tapping to pink - It turns on with parking lights and headlights
    Add a fuse to HL low - it only turns on with headlights
    Tap to green and pink DRLs turn on parking lights
    Add a fuse to DRL - grille lights stay on all the time

    I do not want my lights on with ignition, I want them on with DRL and headlights, in case I want to turn all my lights off I still have that option.

    It seems like my only option right now is to maybe run a switch and turn em on as I please.

    I was wondering if someone knew of a way to have them turn on in auto with DRLs and headlights! Thanks! :frusty:


    hcenteno21, Jan 22, 2020
    #1
    MY1STGENTACO likes this.
  2. Jan 22, 2020 at 10:55 AM
    #2
    caribe makaira

    #2
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Last edited: Jan 22, 2020
    caribe makaira, Jan 22, 2020
    #2
    Tullie D and Skydvrr like this.
  3. Jan 22, 2020 at 11:27 AM
    #3
    hcenteno21

    #3
    hcenteno21 [OP] Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254943
    Messages:
    180
    Gender:
    Male
    First Name:
    Tito
    El Paso, TX
    Vehicle:
    2020 AG Tacoma TRD Pro Supercharged
    hcenteno21, Jan 22, 2020
    #3
  4. Jan 22, 2020 at 11:38 AM
    #4
    caribe makaira

    #4
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

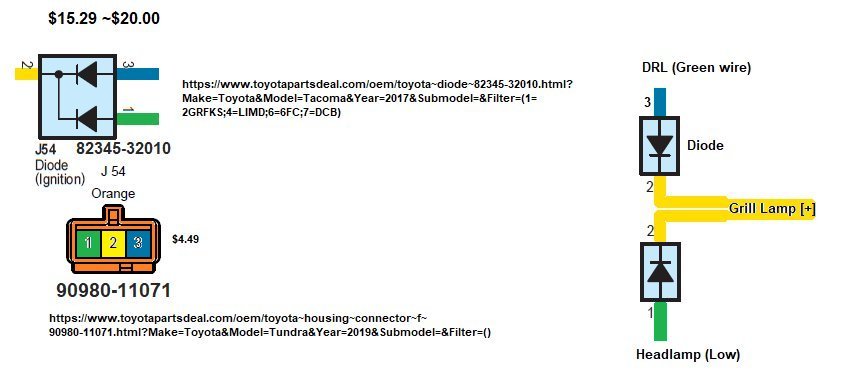

    Fused power from tapped DRL (Green wire on harness to headlamps) goes into pin 1 of the orange connector.
    Fused power from Low Beam (Blue wire on harness to headlamps) goes to into pin 3
    Pin 2 goes to Grill Lamp (+)
    The 3 slot connector is not weather-resistant, so it need to be inside the fuse box or covered with silicone tape.

    caribe makaira, Jan 22, 2020
    #4
    Skydvrr likes this.
  5. Jan 22, 2020 at 11:40 AM
    #5
    caribe makaira

    #5
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    The Black should be Blue...

    caribe makaira, Jan 22, 2020
    #5
  6. Jan 22, 2020 at 11:46 AM
    #6
    hcenteno21

    #6
    hcenteno21 [OP] Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254943
    Messages:
    180
    Gender:
    Male
    First Name:
    Tito
    El Paso, TX
    Vehicle:
    2020 AG Tacoma TRD Pro Supercharged

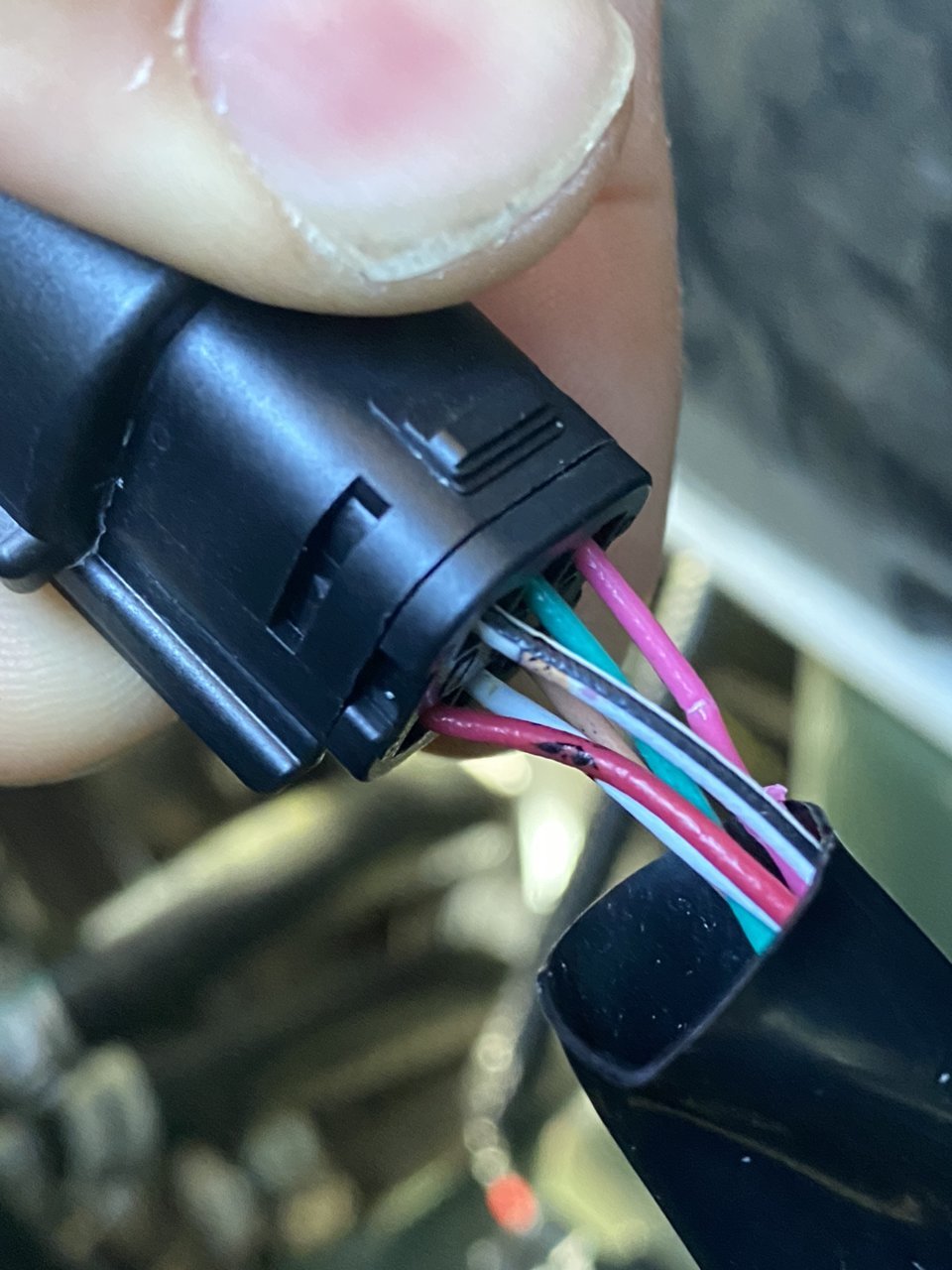

    This is my head lamp connector.. Is this what we are talking about?
    I have

    Green
    Pink
    Red
    White w black stripe
    solid white


    hcenteno21, Jan 22, 2020
    #6
  7. Jan 22, 2020 at 11:54 AM
    #7
    caribe makaira

    #7
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

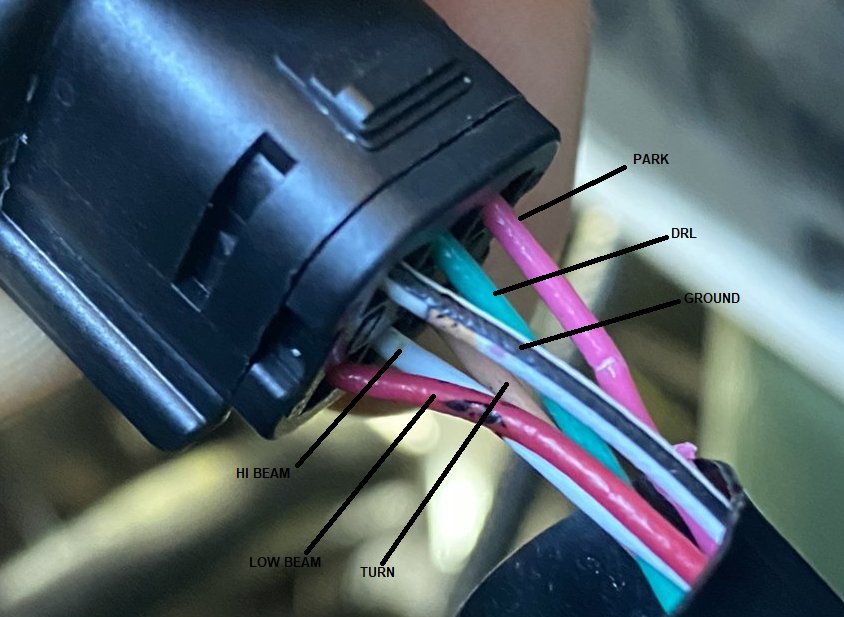

    caribe makaira, Jan 22, 2020
    #7
    DSRamsey13 and hcenteno21[OP] like this.
  8. Jan 22, 2020 at 11:57 AM
    #8
    caribe makaira

    #8
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

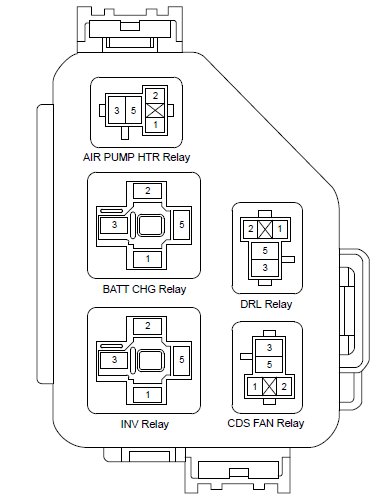

    So you don't cut into the harness, use an add-a-fuse on the low beam fuse. For the DRL tap, you could open the small fuse box next to the Main Engine fuse box and insert a wire underneath and next to the DRL relay pin 5.
    The box comes off pulling up, it has 3 parts, top cover, relay tray and bottom cover.

    caribe makaira, Jan 22, 2020
    #8
  9. Jan 22, 2020 at 12:14 PM
    #9
    hcenteno21

    #9
    hcenteno21 [OP] Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254943
    Messages:
    180
    Gender:
    Male
    First Name:
    Tito
    El Paso, TX
    Vehicle:
    2020 AG Tacoma TRD Pro Supercharged
    Going to try this now, thanks!

    hcenteno21, Jan 22, 2020
    #9
  10. Jan 22, 2020 at 12:34 PM
    #10
    hcenteno21

    #10
    hcenteno21 [OP] Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254943
    Messages:
    180
    Gender:
    Male
    First Name:
    Tito
    El Paso, TX
    Vehicle:
    2020 AG Tacoma TRD Pro Supercharged
    Ok so what happens when I do

    Add a fuse to low beam
    Wire tap to DRL pin 5 is

    When DRLs are on headlights are also on. Like it's bridging it together. As soon as I remove wire from relay head lights come off, but so do grille lights.

    hcenteno21, Jan 22, 2020
    #10
  11. Jan 22, 2020 at 2:37 PM
    #11
    caribe makaira

    #11
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Where is the diode...?


    Last edited: Jan 22, 2020
    caribe makaira, Jan 22, 2020
    #11
  12. Jan 22, 2020 at 2:51 PM
    #12
    hcenteno21

    #12
    hcenteno21 [OP] Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254943
    Messages:
    180
    Gender:
    Male
    First Name:
    Tito
    El Paso, TX
    Vehicle:
    2020 AG Tacoma TRD Pro Supercharged
    lol I am sorry I don't understand.. Do I add a diode? And if so which kind? Thanks a ton for your time!

    hcenteno21, Jan 22, 2020
    #12
  13. Jan 22, 2020 at 2:56 PM
    #13
    caribe makaira

    #13
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Post #2 has the info on the parts

    caribe makaira, Jan 22, 2020
    #13
  14. Jan 22, 2020 at 3:07 PM
    #14
    hcenteno21

    #14
    hcenteno21 [OP] Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254943
    Messages:
    180
    Gender:
    Male
    First Name:
    Tito
    El Paso, TX
    Vehicle:
    2020 AG Tacoma TRD Pro Supercharged
    I do appreciate it, it's just a bit hard to understand I am still confused

    I get now I need a diode so do I just buy 82345-32010 diode and use that to wire it? Do I need two of those?

    What would the orange connector 90980-11070 be ?

    I will be more than happy to send you something for all your help :spending:

    hcenteno21, Jan 22, 2020
    #14
  15. Jan 22, 2020 at 3:15 PM
    #15
    caribe makaira

    #15
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

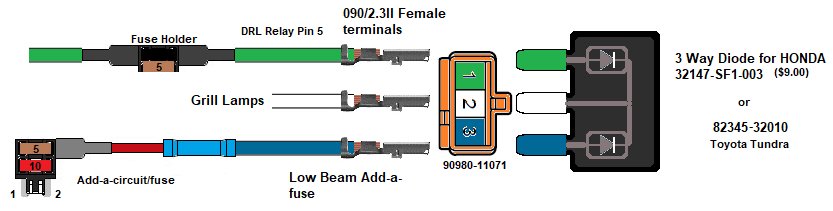

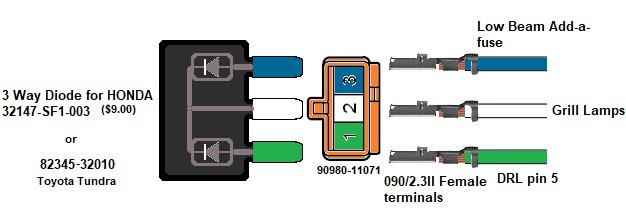

    Diode goes into orange connector. The diode is a dual kind. You'll need some terminals that go inside the connector to mate the dual diode.


    caribe makaira, Jan 22, 2020
    #15
    hcenteno21[OP] likes this.
  16. Jan 22, 2020 at 3:21 PM
    #16
    caribe makaira

    #16
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    What fuse do your Grill lights use?

    caribe makaira, Jan 22, 2020
    #16
  17. Jan 22, 2020 at 3:23 PM
    #17
    hcenteno21

    #17
    hcenteno21 [OP] Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254943
    Messages:
    180
    Gender:
    Male
    First Name:
    Tito
    El Paso, TX
    Vehicle:
    2020 AG Tacoma TRD Pro Supercharged
    These grille lights did not come with fuse, I am using an add a fuse with 2 10a to the headlamp fuse

    hcenteno21, Jan 22, 2020
    #17
  18. Jan 22, 2020 at 3:27 PM
    #18
    caribe makaira

    #18
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Lower the top fuse to 5A...and add a fuse holder (5A) to the DRL tap...

    Last edited: Jan 22, 2020
    caribe makaira, Jan 22, 2020
    #18
    hcenteno21[QUOTED][OP] likes this.
  19. Jan 22, 2020 at 3:27 PM
    #19
    PhenixFord

    #19
    PhenixFord Well-Known Member

    Joined:
    Aug 1, 2019
    Member:
    #300917
    Messages:
    1,215
    Gender:
    Male
    First Name:
    Randy
    Arkansas
    Vehicle:
    2019 MGM SR5 4WD DCSB

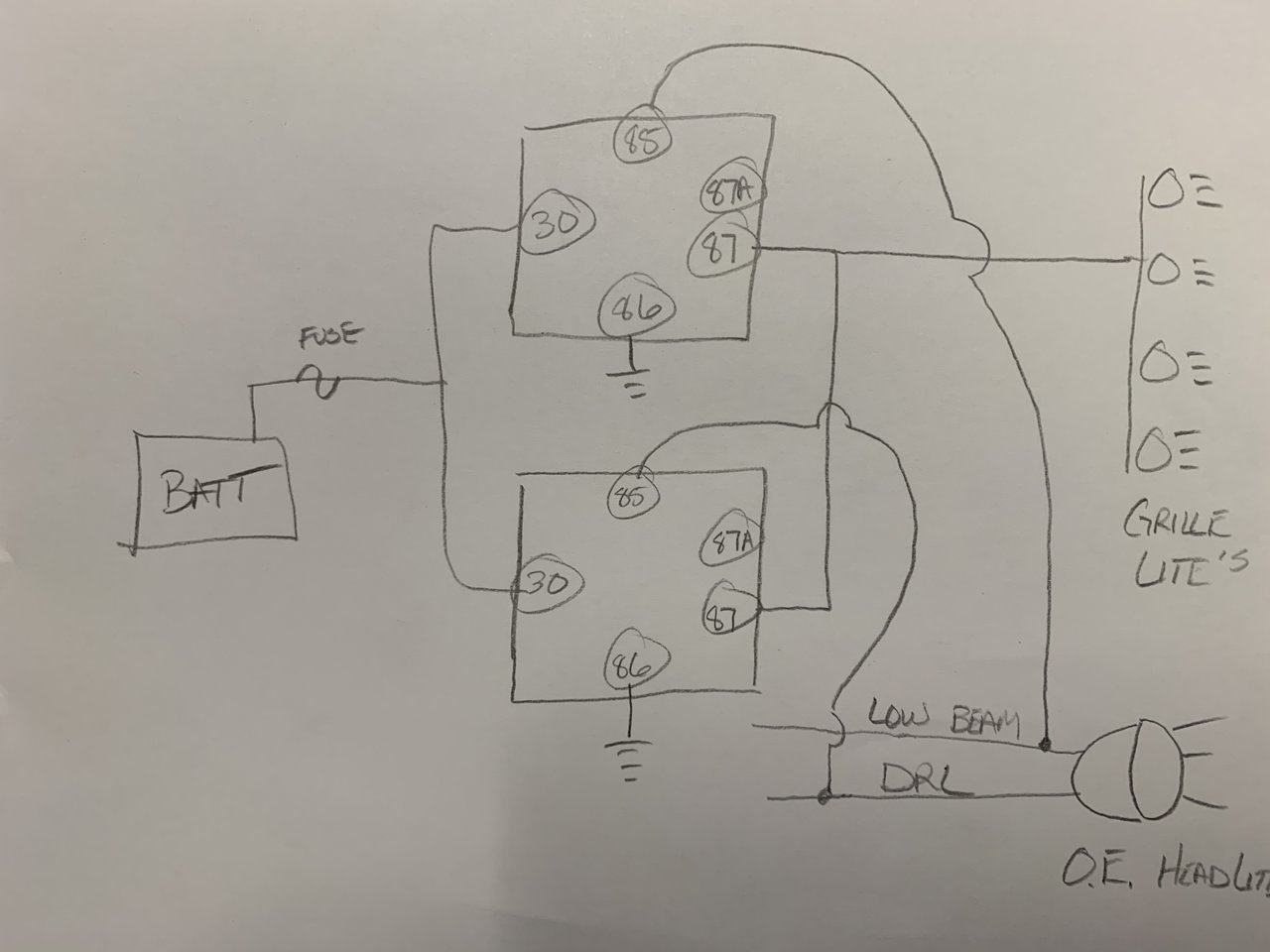

    For your consideration, an alternate method.


    PhenixFord, Jan 22, 2020
    #19
    hcenteno21[OP] likes this.
  20. Jan 22, 2020 at 3:33 PM
    #20
    hcenteno21

    #20
    hcenteno21 [OP] Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254943
    Messages:
    180
    Gender:
    Male
    First Name:
    Tito
    El Paso, TX
    Vehicle:
    2020 AG Tacoma TRD Pro Supercharged
    lol im overwhelmed! I am going to try top method just bc I kinda wrapped my head around it

    hcenteno21, Jan 22, 2020
    #20
    PhenixFord[QUOTED] likes this.
