TSB updated?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by galpd320, Aug 21, 2009.

  1. Aug 21, 2009 at 6:09 AM
    #1
    galpd320

    galpd320 [OP] Well-Known Member

    Joined:
    Jun 9, 2009
    Member:
    #18213
    Messages:
    66
    Gender:
    Male
    Spring, TX
    Vehicle:
    '08 TRD Sport 4X4
    Hey guys/gals,

    I just had my '08 in the dealer yesterday for the rear leaf TSB. When I dropped it off, they seemed familiar with the TSB and even warned me that the ride would be much more "bumpy" after the new springs were put in. When I picked up the truck and drove it home (I couldn't inspect at the dealer as it was pouring down rain) I noticed the ride wasn't that bumpy. I mean, it was bumpy before and it still is. It is a 4X4 after all. When I got home and took a little peek underneath, there were still 3 springs! They were brand new, as well as the mounting hardware, but still just 3 springs. Any ideas? Have they updated the TSB? Maybe these are just 3 stiffer springs?

    -Mike

  2. Aug 21, 2009 at 6:11 AM
    #2
    hendooman

    hendooman The Stroker Ace

    Joined:
    Mar 6, 2009
    Member:
    #14421
    Messages:
    3,040
    Gender:
    Male
    First Name:
    Jeff
    KC
    Vehicle:
    2015 TRD PRO 4Runner
    Did you notice if they put the TRD Shocks on? Seems to me they forgot to do the springs. Check the part number on the spings and report back. They should be the 4 leaf pack.

  3. Aug 21, 2009 at 6:14 AM
    #3
    galpd320

    galpd320 [OP] Well-Known Member

    Joined:
    Jun 9, 2009
    Member:
    #18213
    Messages:
    66
    Gender:
    Male
    Spring, TX
    Vehicle:
    '08 TRD Sport 4X4
    I have a TRD, so I suppose they didn't put new shocks on. The spring pack is brand new. It was sparkling clean and had a label on it. I will check the part number when I get a chance.

  4. Aug 21, 2009 at 6:16 AM
    #4
    hendooman

    hendooman The Stroker Ace

    Joined:
    Mar 6, 2009
    Member:
    #14421
    Messages:
    3,040
    Gender:
    Male
    First Name:
    Jeff
    KC
    Vehicle:
    2015 TRD PRO 4Runner
    Someone else might chime in but the TRD Sport gets TRD Off Road shocks in the TSB. I have the TRD Off Road, so my shocks stayed the same, just got the new leaf pack.

  5. Aug 21, 2009 at 6:19 AM
    #5
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,641
    Gender:
    Male
    First Name:
    Rotorhead
    DC or New Jersey - Depends on the day....
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    IIRC-The shocks in both the sport and O/R are the same...The coil springs are different.

    OP- I would assume they tried to pull a fast one or don't really know what the TSB is about. Check the part numbers and then go back and demand the proper service.

    I got a brand new set of 3 leaf packs in my 08 the first time I asked for the TSB springs...but before I ever left the lot I pulled the TSB out and checked/showed my service writer what needed to be done....and they did it.

  6. Aug 21, 2009 at 6:20 AM
    #6
    bb609

    bb609 O.F.

    Joined:
    Jun 16, 2009
    Member:
    #18509
    Messages:
    796
    Gender:
    Male
    NH
    Vehicle:
    '09 TRD Sport Access Cab
    Bilstein 5100 CO's @ 1.75" - Icon UCA's - TSB Rear w/Bilstein 5100's - Air Lift System - Flowmaster 50 Duals(RIP...back to stock for now) - Avid Offroad Arctic Bar - Avid Offroad Nerf Bars - Leer 550 Bedcover - AVS Hood Protector(RIP) - Ventshades - Yota Bed Mat - Sheepskins!!! - Weathertechs
    Nope. The Sport already has TRD shocks and gets only rear springs. Someone else posted recently that they only got new bump stops.

    OP - What do your bump stops look like?

  7. Aug 21, 2009 at 6:22 AM
    #7
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,641
    Gender:
    Male
    First Name:
    Rotorhead
    DC or New Jersey - Depends on the day....
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    Ohhh...I forgot about that bump stops thing...There was talk of a new TSB fix for the harsh ride thing....

  8. Aug 21, 2009 at 6:22 AM
    #8
    hendooman

    hendooman The Stroker Ace

    Joined:
    Mar 6, 2009
    Member:
    #14421
    Messages:
    3,040
    Gender:
    Male
    First Name:
    Jeff
    KC
    Vehicle:
    2015 TRD PRO 4Runner

    Good call thanks, I knew someone would chime in

  9. Aug 21, 2009 at 6:26 AM
    #9
    hendooman

    hendooman The Stroker Ace

    Joined:
    Mar 6, 2009
    Member:
    #14421
    Messages:
    3,040
    Gender:
    Male
    First Name:
    Jeff
    KC
    Vehicle:
    2015 TRD PRO 4Runner
  10. Aug 21, 2009 at 6:52 AM
    #10
    galpd320

    galpd320 [OP] Well-Known Member

    Joined:
    Jun 9, 2009
    Member:
    #18213
    Messages:
    66
    Gender:
    Male
    Spring, TX
    Vehicle:
    '08 TRD Sport 4X4
    Well, I need to look at the bump stops. Didn't notice them being new when I first looked, but I will look again when I get a chance. But I am certain, the springs and u-bolts are spankin' new. Just 3 of them though, and the short one appears inverted. Can't recall if it was like this before.

  11. Aug 21, 2009 at 7:16 AM
    #11
    galpd320

    galpd320 [OP] Well-Known Member

    Joined:
    Jun 9, 2009
    Member:
    #18213
    Messages:
    66
    Gender:
    Male
    Spring, TX
    Vehicle:
    '08 TRD Sport 4X4
    Ok here's my new part numbers installed when I supposedly got the TSB done. Straight from the service order:

    1 48210-04550 SPRING ASSY, RR RH
    1 48220-04190 SPRING ASSY, RR LH
    4 90117-A005 BOLT, U
    1 90080-17223 NUT, FLANGE
    5315 TSB# 0305-08 3.1 WPT LABOR- OP CODE SU7003 COMBO C D E F-
    REPLACED REAR LEAF SPRINGS AND ADJUSTED ALIGNMENT- T1/34 T2/14- JC

    No notes on new bump stops. What gives?

  12. Aug 21, 2009 at 7:17 AM
    #12
    bb609

    bb609 O.F.

    Joined:
    Jun 16, 2009
    Member:
    #18509
    Messages:
    796
    Gender:
    Male
    NH
    Vehicle:
    '09 TRD Sport Access Cab
    Bilstein 5100 CO's @ 1.75" - Icon UCA's - TSB Rear w/Bilstein 5100's - Air Lift System - Flowmaster 50 Duals(RIP...back to stock for now) - Avid Offroad Arctic Bar - Avid Offroad Nerf Bars - Leer 550 Bedcover - AVS Hood Protector(RIP) - Ventshades - Yota Bed Mat - Sheepskins!!! - Weathertechs
    Read about a similar result just the other day. The OP was going back to ask about 4 leafs but hasn't updated yet. ???

  13. Aug 21, 2009 at 7:26 AM
    #13
    bb609

    bb609 O.F.

    Joined:
    Jun 16, 2009
    Member:
    #18509
    Messages:
    796
    Gender:
    Male
    NH
    Vehicle:
    '09 TRD Sport Access Cab
    Bilstein 5100 CO's @ 1.75" - Icon UCA's - TSB Rear w/Bilstein 5100's - Air Lift System - Flowmaster 50 Duals(RIP...back to stock for now) - Avid Offroad Arctic Bar - Avid Offroad Nerf Bars - Leer 550 Bedcover - AVS Hood Protector(RIP) - Ventshades - Yota Bed Mat - Sheepskins!!! - Weathertechs
    Weird. You got a new set of crappy springs and an alignment that you didn't need...and they still reference the 2008 TSB. :confused:

  14. Aug 21, 2009 at 7:28 AM
    #14
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,641
    Gender:
    Male
    First Name:
    Rotorhead
    DC or New Jersey - Depends on the day....
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    Yup-The dealer either didn't know what the TSB REALLY was or they tried to throw something they had in the back room on there and hope he didn't notice. Same thing my dealer did- they didn't know what the TSB really was...so they thought a new regular spring pack would do the trick.

  15. Aug 21, 2009 at 7:32 AM
    #15
    bb609

    bb609 O.F.

    Joined:
    Jun 16, 2009
    Member:
    #18509
    Messages:
    796
    Gender:
    Male
    NH
    Vehicle:
    '09 TRD Sport Access Cab
    Bilstein 5100 CO's @ 1.75" - Icon UCA's - TSB Rear w/Bilstein 5100's - Air Lift System - Flowmaster 50 Duals(RIP...back to stock for now) - Avid Offroad Arctic Bar - Avid Offroad Nerf Bars - Leer 550 Bedcover - AVS Hood Protector(RIP) - Ventshades - Yota Bed Mat - Sheepskins!!! - Weathertechs
    Did you post about this a few days ago?

  16. Aug 21, 2009 at 7:39 AM
    #16
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,641
    Gender:
    Male
    First Name:
    Rotorhead
    DC or New Jersey - Depends on the day....
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    Nope...I got mine done like 8 or 9 months ago...I posted earlier in this thread about it tho...

  17. Aug 21, 2009 at 7:40 AM
    #17
    galpd320

    galpd320 [OP] Well-Known Member

    Joined:
    Jun 9, 2009
    Member:
    #18213
    Messages:
    66
    Gender:
    Male
    Spring, TX
    Vehicle:
    '08 TRD Sport 4X4
    I'm betting on the former. I have printed the TSB and will be bringing it back to my service advisor this afternoon. Thanks all for the help and links.

    -Mike

  18. Aug 21, 2009 at 7:54 AM
    #18
    geolink

    geolink Well-Known Member

    Joined:
    May 1, 2009
    Member:
    #16653
    Messages:
    276
    Gender:
    Male
    SILVER STATE
    Vehicle:
    09 DCLB MagGray TRD SPORT
    Weathertech mats and hood protector, RuffTuff seat covers, padded console, Redline Hood Struts, Snugtop canopy w/Thule Rack, TSB rear springs plus AAL, 5100's all around OME 885 front coils, LR UCA, Avid Step Bars, LT265/70R17 BFG AT on stock Sport Rims
    I confirm hendooman.

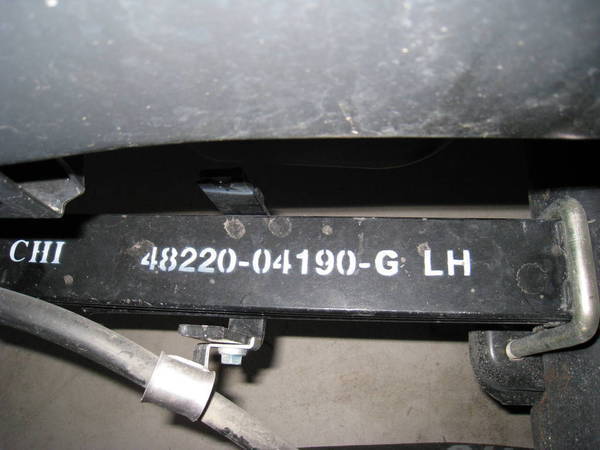

    The original 3 spring pack left side:
    [​IMG]


    The original 3 spring pack right side:
    [​IMG]

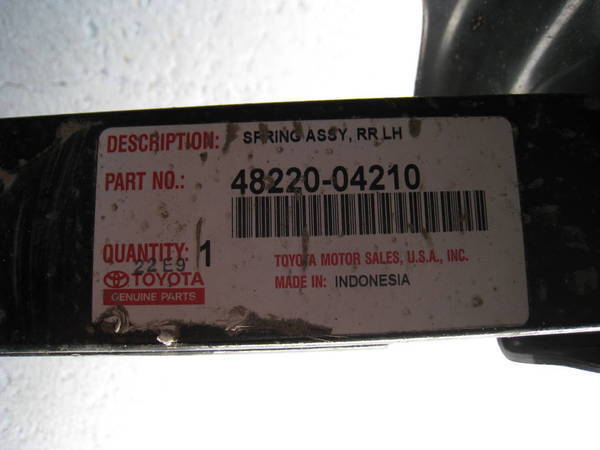

    The TSB 4 spring replacement pack left side:
    [​IMG]

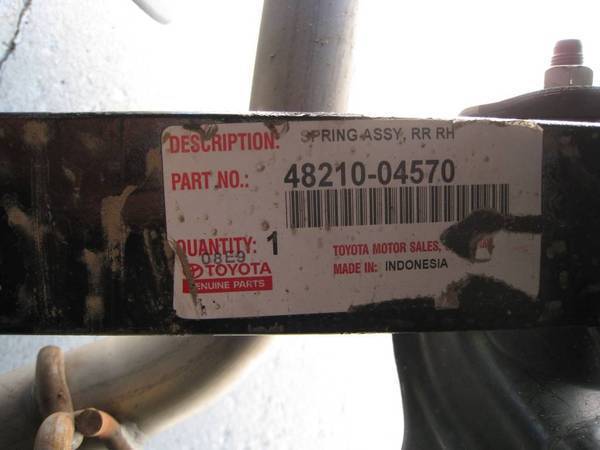

    The TSB 4 spring replacement pack right side:
    [​IMG]

    I have the TRD so dealer just did the springs and alignment.

  19. Aug 21, 2009 at 7:59 AM
    #19
    galpd320

    galpd320 [OP] Well-Known Member

    Joined:
    Jun 9, 2009
    Member:
    #18213
    Messages:
    66
    Gender:
    Male
    Spring, TX
    Vehicle:
    '08 TRD Sport 4X4
    What I want to know is...

    How did my dealer get the part number for the new U-bolt and install it on the old leaf pack. Does it even fit right?

  20. Aug 21, 2009 at 9:30 PM
    #20
    hendooman

    hendooman The Stroker Ace

    Joined:
    Mar 6, 2009
    Member:
    #14421
    Messages:
    3,040
    Gender:
    Male
    First Name:
    Jeff
    KC
    Vehicle:
    2015 TRD PRO 4Runner
    good to see you got the right springs...
