    Quick Links: Control Arm Bushings and Front Axle Boots WTS: ARB Air Compressor, Interior parts, OEM Floor Mats, etc WTB: 01-04 4 Cyl OEM Exhaust Mini Header / Manifold Factory Lower Ball joints Tundra TRD Coils on 5100 Struts & Rear 5100 shocks ☯NEW STOCK! 12/5/17☯ [TOO MUCH STUFF PART-OUT] Trim, Body Parts, Electrical, Drivetrain, and MORE!

Turn Signal \ Marker light and Theater \ Courtesy Mud lights Controller

Discussion in '1st Gen Tacoma Parts Marketplace (1995-2004)' started by mechanicjon, May 4, 2017.

Page 2 of 3
  1. Jun 30, 2017 at 9:30 AM
    #21
    mechanicjon

    #21
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    I could set it up for you. you'd just have hook to the correct wires.

    mechanicjon, Jun 30, 2017
    #21
  2. Jun 30, 2017 at 9:32 AM
    #22
    mechanicjon

    #22
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Putting the LED's in the mirror is a little tuff. It could also be hooked to lights under the edge of the body that would light up the ground.

    mechanicjon, Jun 30, 2017
    #22
  3. Jun 30, 2017 at 9:37 AM
    #23
    BoilerUp

    #23
    BoilerUp Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214863
    Messages:
    53
    Gender:
    Male
    Vehicle:
    2004 V6 Double Cab TRD PreRunner
    I like that idea, better light output on the ground. Would this work with any LED light I can buy on Amazon? Where exactly does the controller go on the truck? Sorry for the noob questions, just don't have any experience in this kind of stuff but have been looking into possible options for a "welcome" light like you see on BMW's and so forth.

    BoilerUp, Jun 30, 2017
    #23
    mechanicjon[OP] likes this.
  4. Jun 30, 2017 at 9:41 AM
    #24
    mechanicjon

    #24
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    I mounted mine to a piece of metal and double sided tape to a bolt hole under dash. You can use any LED light with it. As long as its 12v. Or has resistors to protect it if its only a 3v LED.

    mechanicjon, Jun 30, 2017
    #24
  5. Jun 30, 2017 at 9:44 AM
    #25
    mechanicjon

    #25
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.

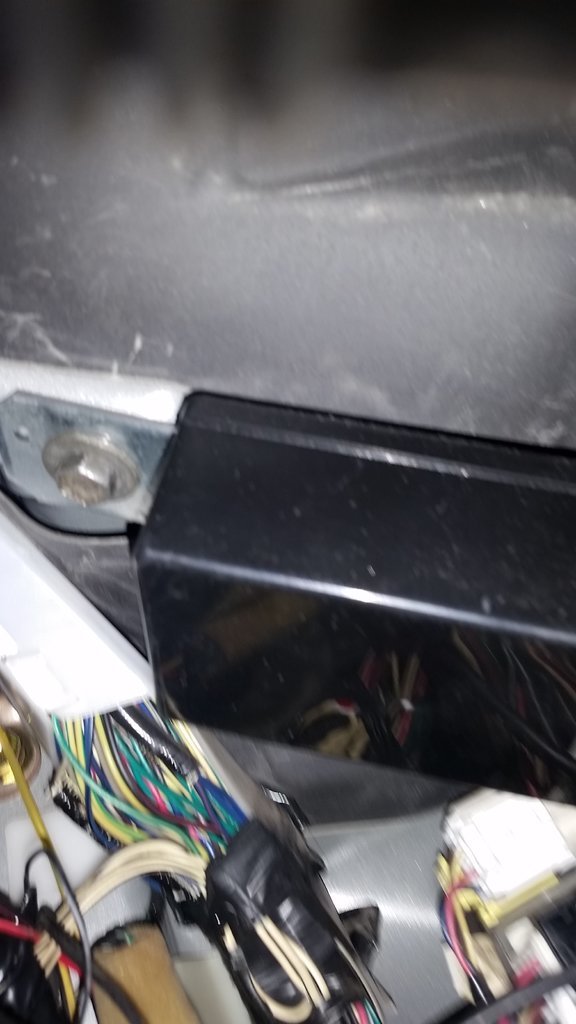

    Mounted


    mechanicjon, Jun 30, 2017
    #25
  6. Jun 30, 2017 at 9:48 AM
    #26
    mechanicjon

    #26
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.

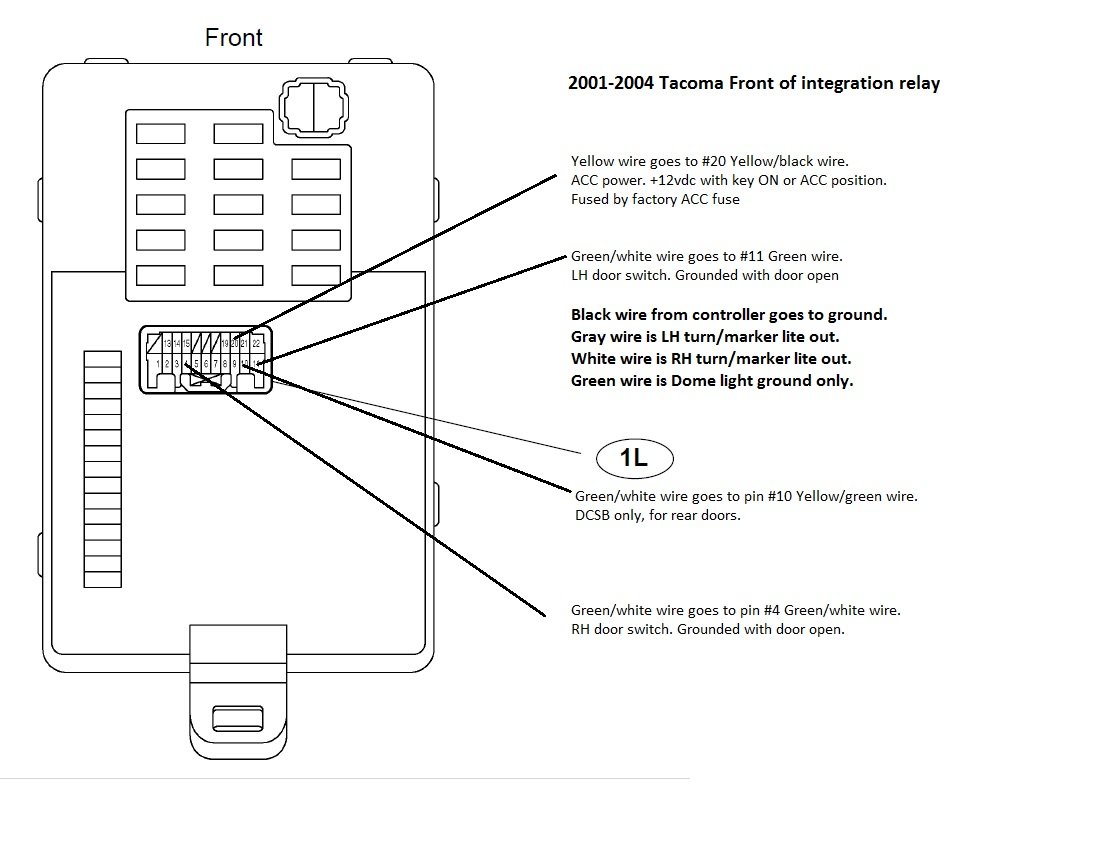

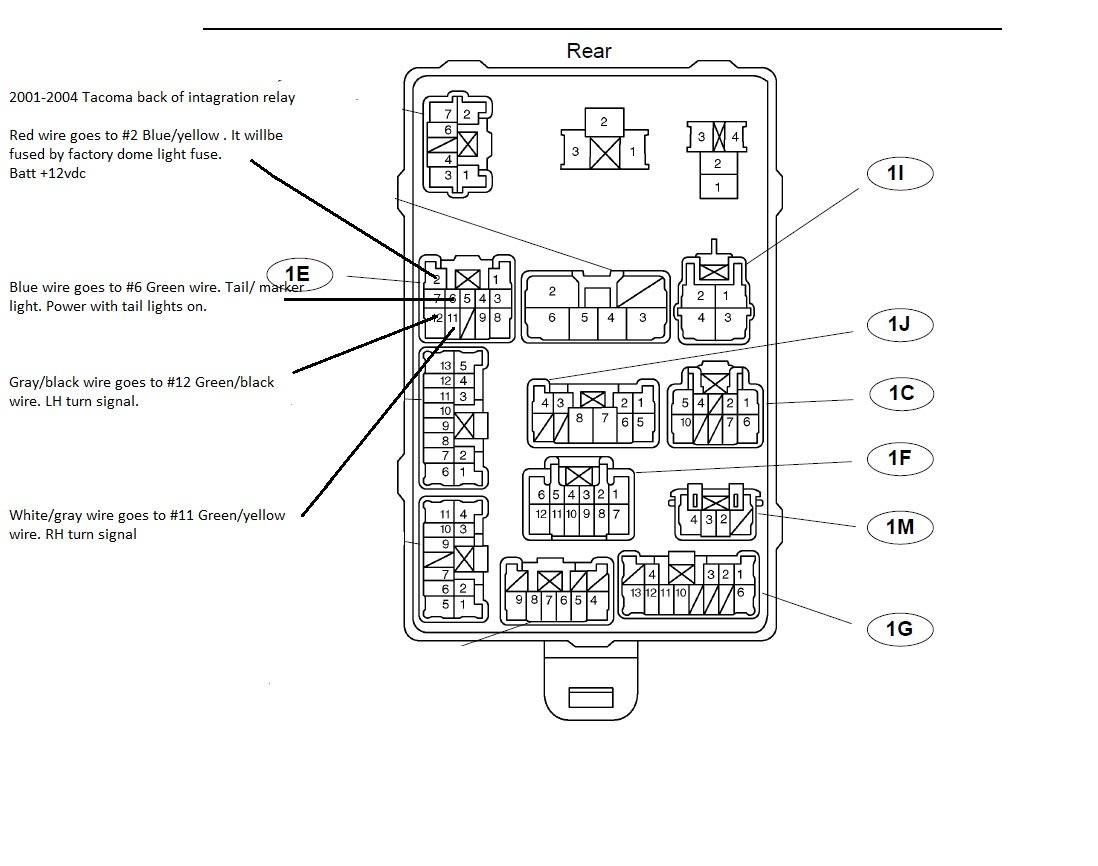

    back of intagration relay.jpg front of integration relay.jpg
    I have detailed instructions of what wires to tie into.

    mechanicjon, Jun 30, 2017
    #26
  7. Jun 30, 2017 at 9:49 AM
    #27
    mechanicjon

    #27
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    There isn't as many wires with just the dome light controller. That above is for both features

    mechanicjon, Jun 30, 2017
    #27
  8. Aug 24, 2017 at 11:51 AM
    #28
    otis24

    #28
    otis24 Hard Shell Taco

    Joined:
    Dec 3, 2012
    Member:
    #92402
    Messages:
    6,482
    Gender:
    Male
    First Name:
    Mark
    California
    Vehicle:
    OtisBound Outdoors Bodonkadonk
    OtisBound Bodonkadonk
    Nice!
    You could use this for all kinds of things.

    I'm getting hard side cases for my motorcycle at some point. I've been wondering how to hook up turn signals to the backs of the side cases for more visability. Now I have the answer.

    Once I get the side cases I'll get these from you.

    otis24, Aug 24, 2017
    #28
    mechanicjon[OP] likes this.
  9. Oct 10, 2017 at 1:59 PM
    #29
    mechanicjon

    #29
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    bump

    mechanicjon, Oct 10, 2017
    #29
    GQ7227 likes this.
  10. Nov 18, 2017 at 7:30 AM
    #30
    mechanicjon

    #30
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Bump

    mechanicjon, Nov 18, 2017
    #30
    GQ7227 likes this.
  11. Dec 9, 2017 at 10:12 AM
    #31
    mechanicjon

    #31
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    bump

    mechanicjon, Dec 9, 2017
    #31
    GQ7227 and lucky13don like this.
  12. Jul 21, 2018 at 6:14 AM
    #32
    mechanicjon

    #32
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    bump

    mechanicjon, Jul 21, 2018
    #32
    GQ7227 likes this.
  13. Jul 23, 2019 at 8:53 AM
    #33
    mechanicjon

    #33
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Bump

    mechanicjon, Jul 23, 2019
    #33
    GQ7227 likes this.
  14. May 3, 2020 at 9:59 PM
    #34
    Empty_Lord

    #34
    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,297
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    hmm.. so you say you can get the theater lights to work off the keyless beeper eh? i kinda want this fancy thingamagig for the tundra.... oh ideas, ideas..

    Empty_Lord, May 3, 2020
    #34
    mechanicjon[OP] likes this.
  15. May 3, 2020 at 10:02 PM
    #35
    mechanicjon

    #35
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Yep when the lights flash for the keyless entry it energizes the lights. They stay on for the amount of time you set them for. Then fade to off.

    mechanicjon, May 3, 2020
    #35
  16. May 3, 2020 at 10:02 PM
    #36
    mechanicjon

    #36
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    The fade speed is setable also.

    mechanicjon, May 3, 2020
    #36
  17. May 3, 2020 at 10:03 PM
    #37
    Empty_Lord

    #37
    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,297
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    you may be getting a DM from me in the coming weeks once i get the interior back together. I've got a smart tap turn signal relay in the truck.. but i doubt that'd cause issues (it has entry lights. but its all turn signal)

    just looking for theater lights. the mirror turns are not a big deal to me.

    Empty_Lord, May 3, 2020
    #37
  18. May 3, 2020 at 10:05 PM
    #38
    mechanicjon

    #38
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Takes me about 2 weeks to build one. I have the board, case and main connectors. But need to order a few components from mouser electronics.

    mechanicjon, May 3, 2020
    #38
    Empty_Lord likes this.
  19. May 3, 2020 at 10:06 PM
    #39
    Empty_Lord

    #39
    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,297
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    awesome. i'll get ahold of ya. so for just the puddle light what would i be taping into? the beeper only?

    Empty_Lord, May 3, 2020
    #39
  20. May 3, 2020 at 10:10 PM
    #40
    mechanicjon

    #40
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,149
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Power, ground, dome and a marker light to pickup the flash when you use keyless remote.

    mechanicjon, May 3, 2020
    #40
