Ugly Gold 4 door Hoor SAS-LS

Discussion in '1st Gen. Builds (1995-2004)' started by Yota X, Jan 31, 2022.

  1. Jan 31, 2022 at 5:13 PM
    #1
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree
    2002 Pre-Runner W/lift kit, mud tires and a winch.

    Toyota Dual Case assembly- Page 1
    Toyota 2wd to 4wd tranny conversion- Page 3
    Gm 14 bolt prep and regear- Page 2/7
    Gm 14 bolt case shave- Page 6
    3.4 engine pull- Page 8
    Front Frame chop and notch- Page 9
    Ford SD housing prep- Page 11,19
    Engine bay paint- Page 12
    Tundra oil pan setup on 3.4- Page 14
    3.4 Solid motor mounts then scrapped motor - Page 16
    LS motor/solid mounts in- Page 17
    SD steering arms V1- Page 19
    Methods arrive- Page 20
    Toyota steering gear frame mount- Page 21


    Last edited: Dec 30, 2022
  2. Jan 31, 2022 at 5:16 PM
    #2
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree

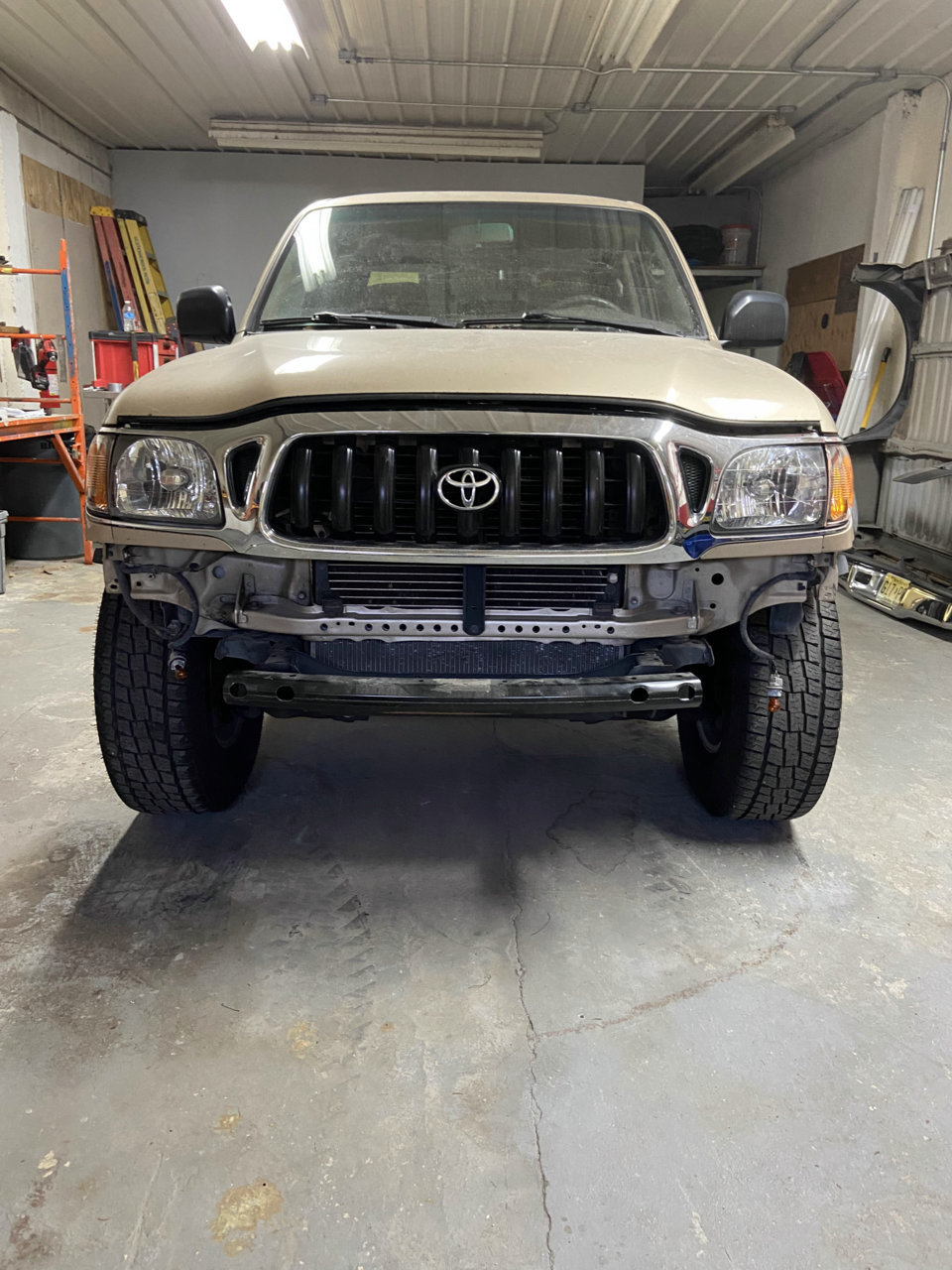

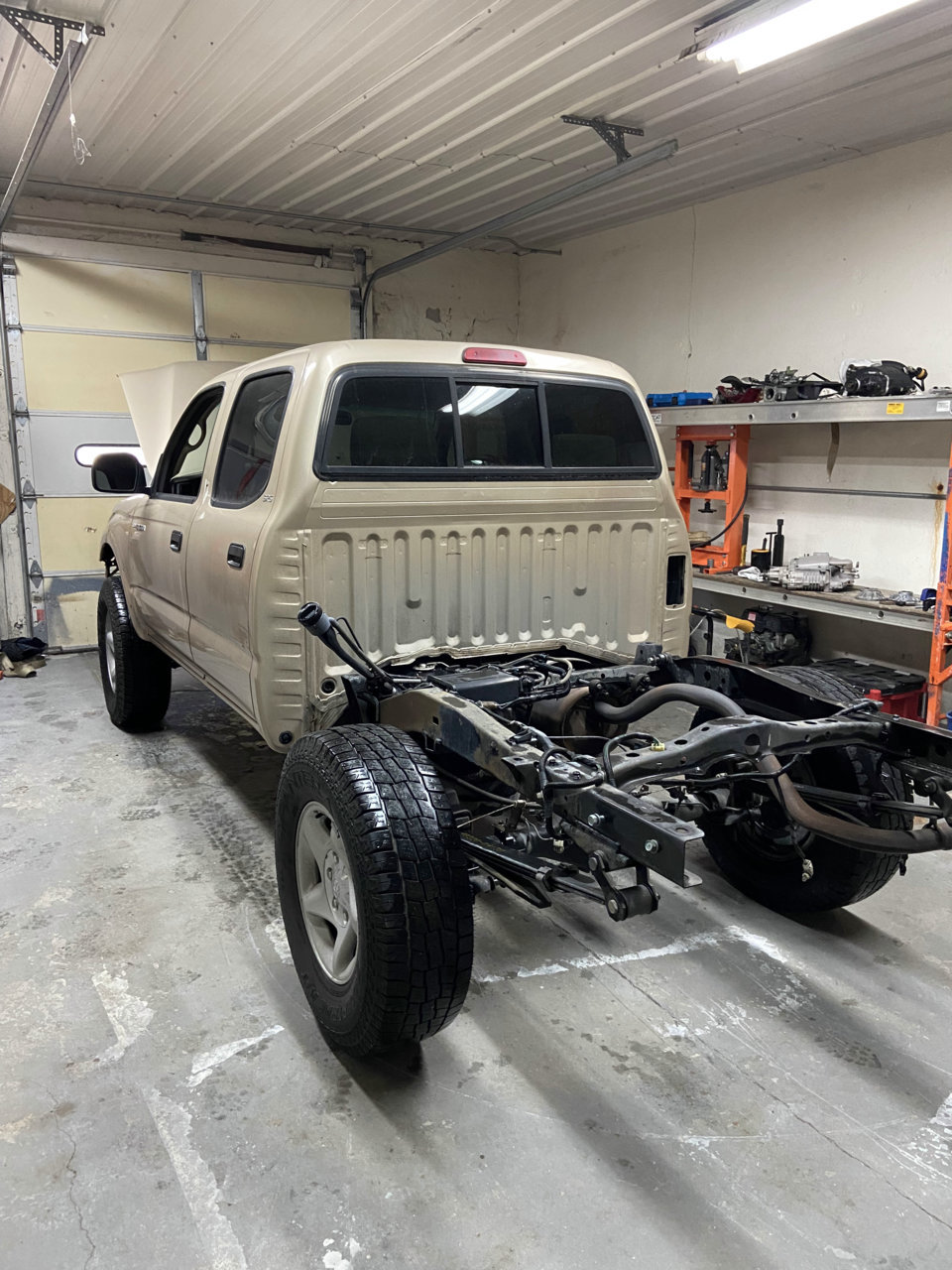

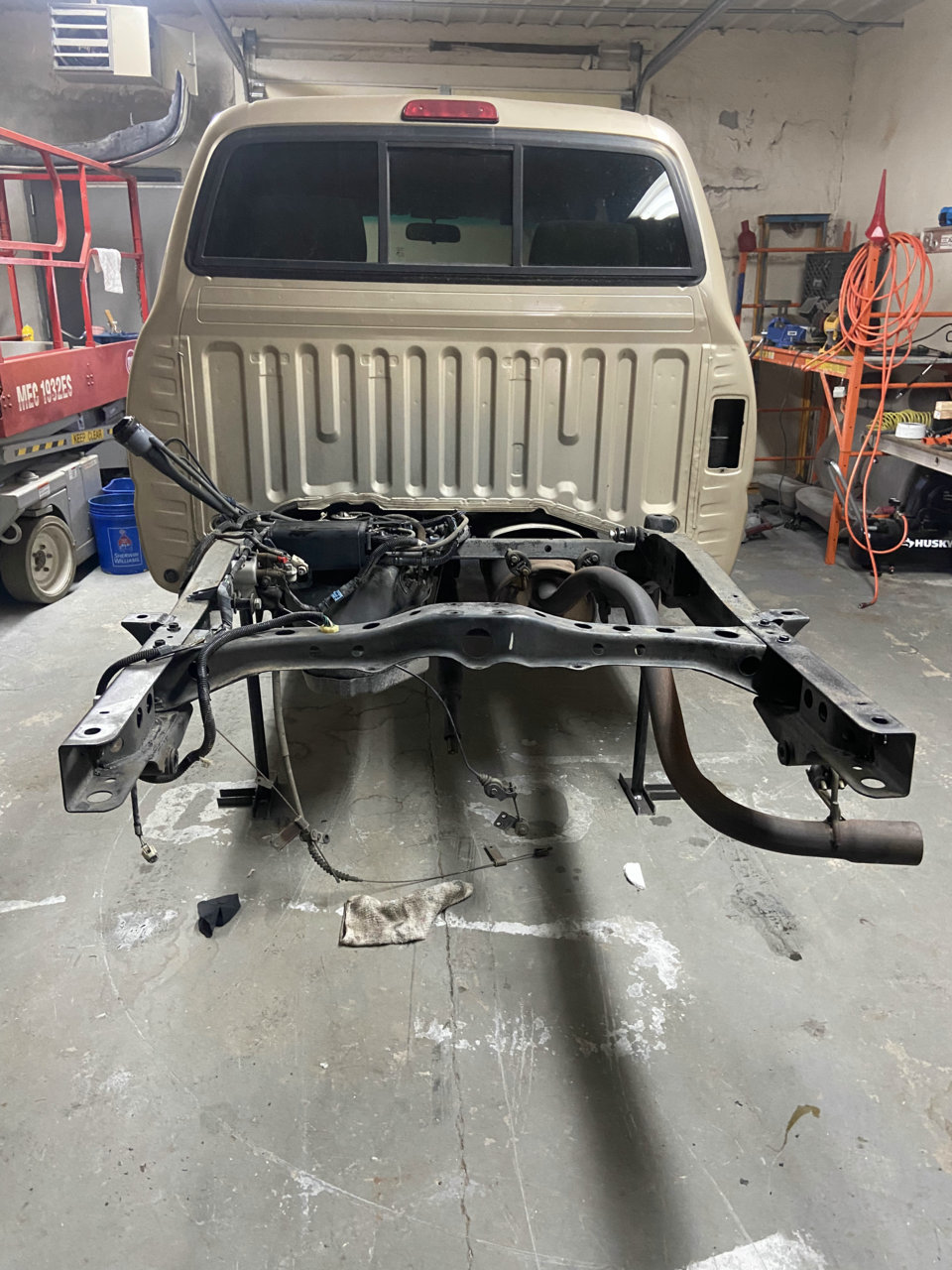

    I chose to start on the rear because my 4wu kit is not ready but mainly to get in the groove.

    UPDATE - JUMPED SHIP ON A KIT. SOLO MODE ON THIS ONE.

    IMG_2955.HEIC.jpg IMG_2969 2.HEIC.jpg IMG_2972.HEIC.jpg IMG_2974 2.HEIC.jpg

    Last edited: Jun 24, 2022
  3. Jan 31, 2022 at 5:17 PM
    #3
    Steves104x4

    Steves104x4 Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35468
    Messages:
    16,087
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2010 RC 2.7 4x4
    BUCKLE UP! It makes it harder for Aliens to pull you out of your Truck.
    Nice!

    Yota X[OP] likes this.
  4. Jan 31, 2022 at 5:22 PM
    #4
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree

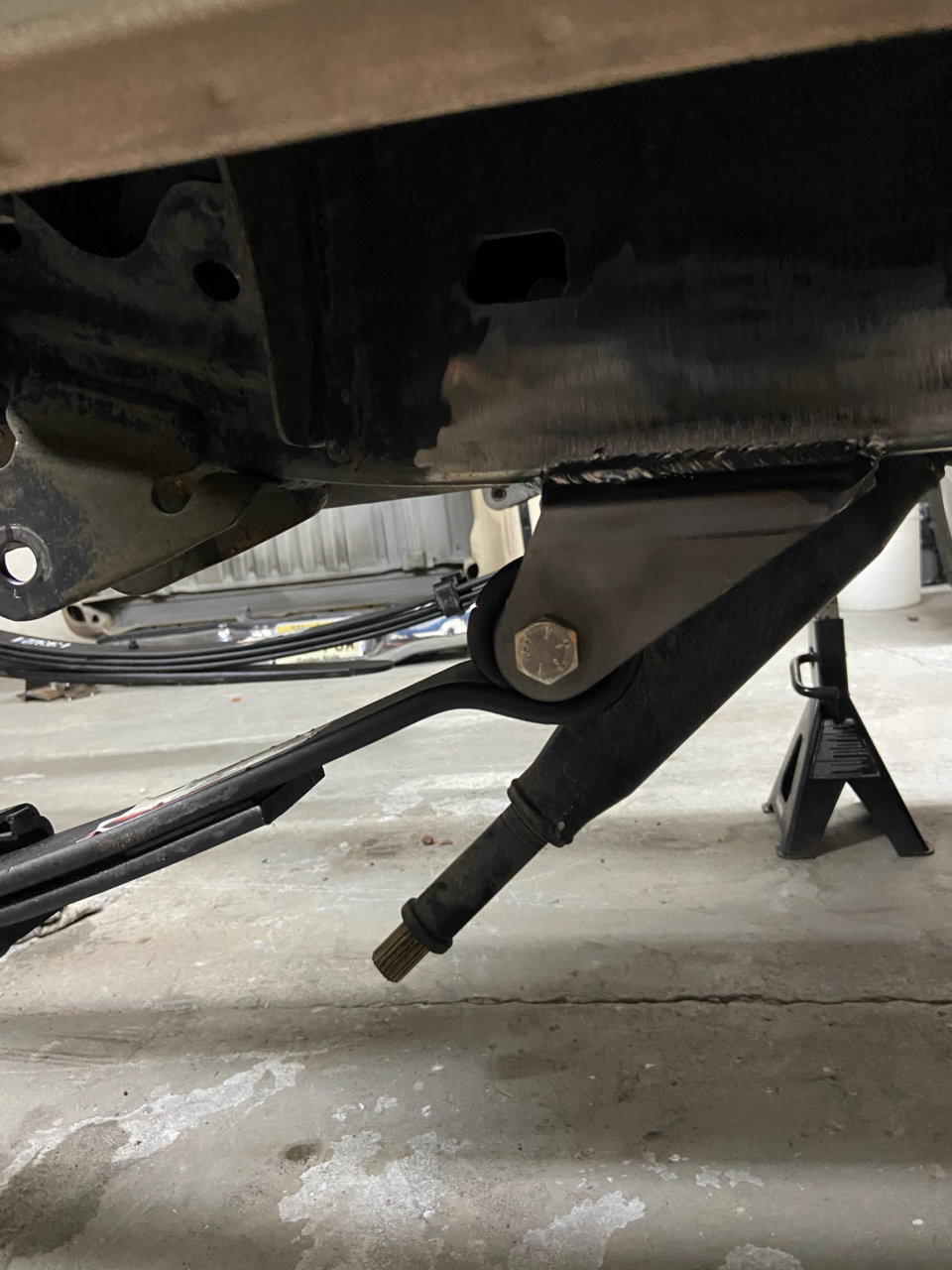

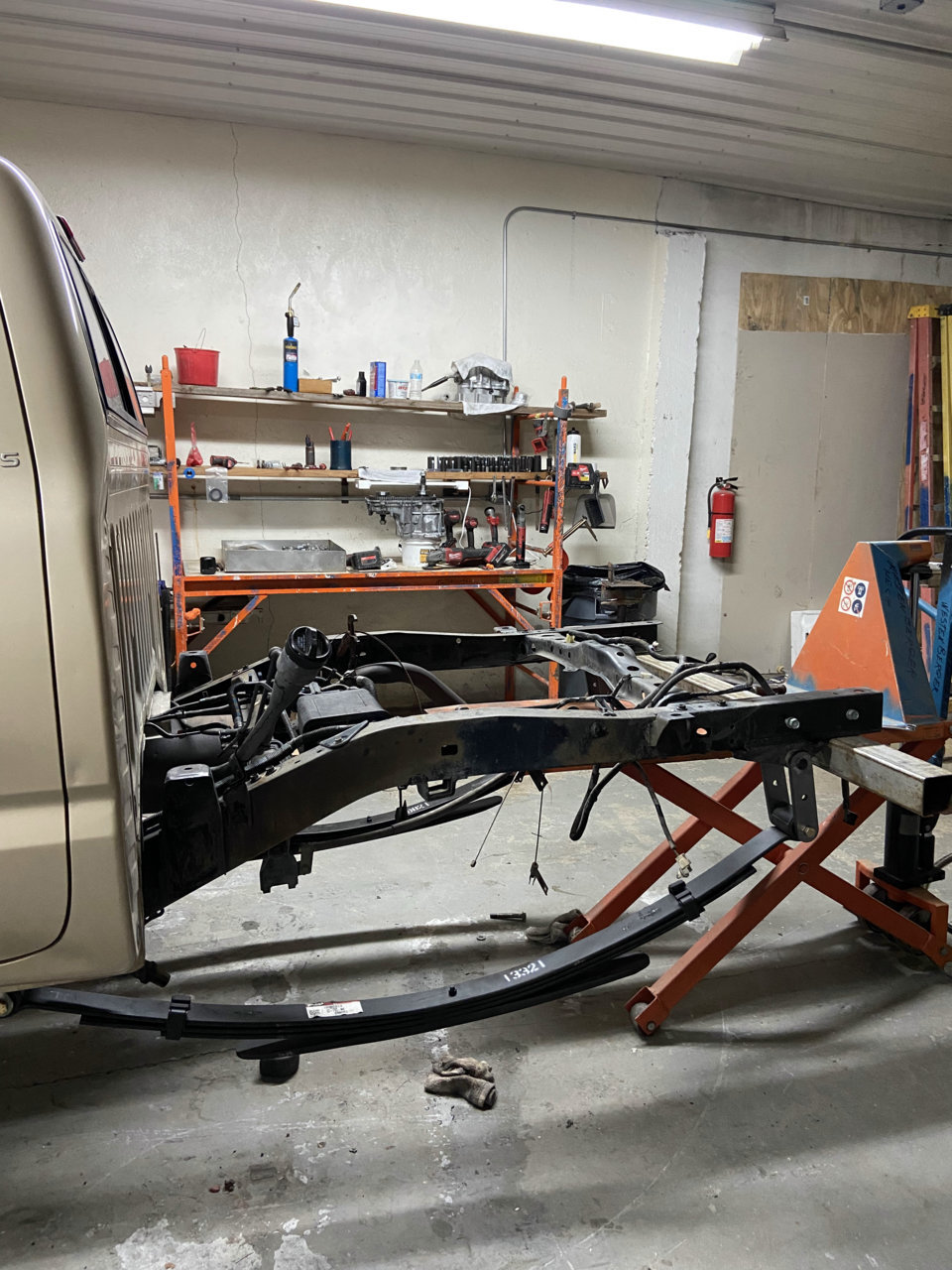

    Rear suspension-
    -89-98 chevy 2500 leaf springs 3/1 pack. These springs have a 9/16 eye on both sides. The 99and up have a 9/16 and a 7/8 eye so you have to used guides. The barnes kit has these but its more stuff that can break and squeak so I went with simplicity and the 3/1 seems right for the weight of the bed. - $375 new from local spring co.

    -I used the factory rear mount so i didn't have to grind it off. The offset shackles are for that purpose. If you cut it off and use the new mount you don't need offsets.

    -ruff stuff 5/8 offset 6" shackles (shackle in pic are not offset. Learned that after) Need a drill press to drill all shackle holes bigger. $12.95 x 4 + $52

    -barnes 4wd chevy 63 kit plus 2 anti wrap spring perches, 2 bent axle shock brackets. Didnt need the shackles so piece by piece may be cheaper. $296 shipped

    - front mount moved 7.5" from original but with 40" tires I would do 6.5-7" if I was to do it over.

    UPDATE- geez, looking back those welds are horrible even by my shitty standards. Those will be grinded and re welded.




    Last edited: Jun 20, 2022
    SwampYota, Gunshot-6A, SR-71A and 2 others like this.
  5. Jan 31, 2022 at 5:24 PM
    #5
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree
    Trail gear dual case adaptor (get a marlin mc09 if you can find one) TG is suspect. $823 shipped from poly performance. Get the transmission coupler from marlin. TG coupler is supposed to be shit. Not gonna use it to find out.

    Last edited: Feb 3, 2022
  6. Jan 31, 2022 at 5:32 PM
    #6
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree
    -1 x Competition Total Spline Input Gear - $239.00
    SKU: MCTC-321C
    -1 x Gear Drive Counter Shaft Bearing - $29.52
    SKU: MCBE-133
    -1 x Gear Drive Input Bearing - $25.52
    SKU: MCBE-132
    -1 x Input Pocket Bearing - $15.00
    SKU: MCBE-2321
    -1 x HD Transfer Case Rear Output Seal - $9.99
    SKU: MCSE-423EC

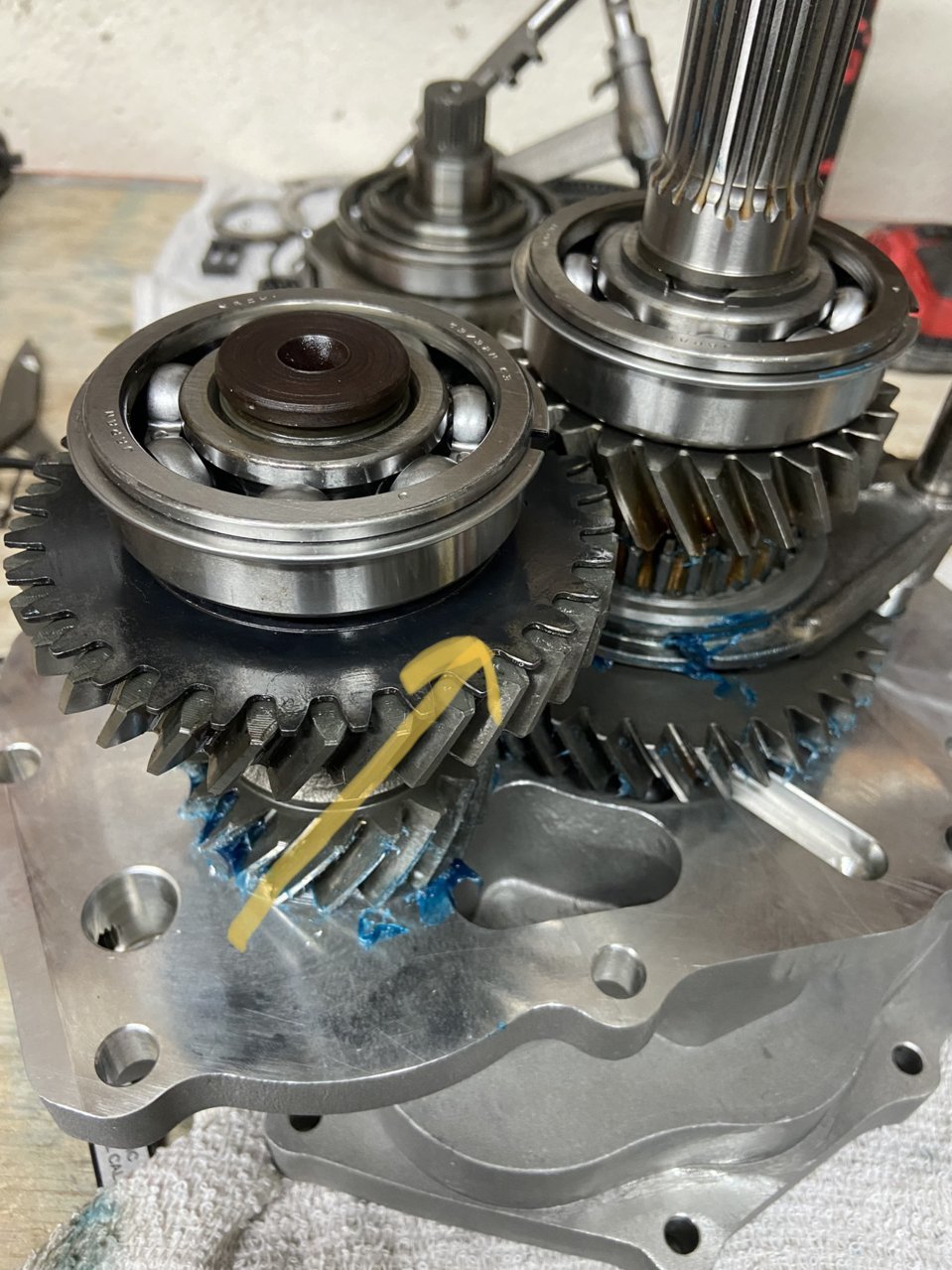

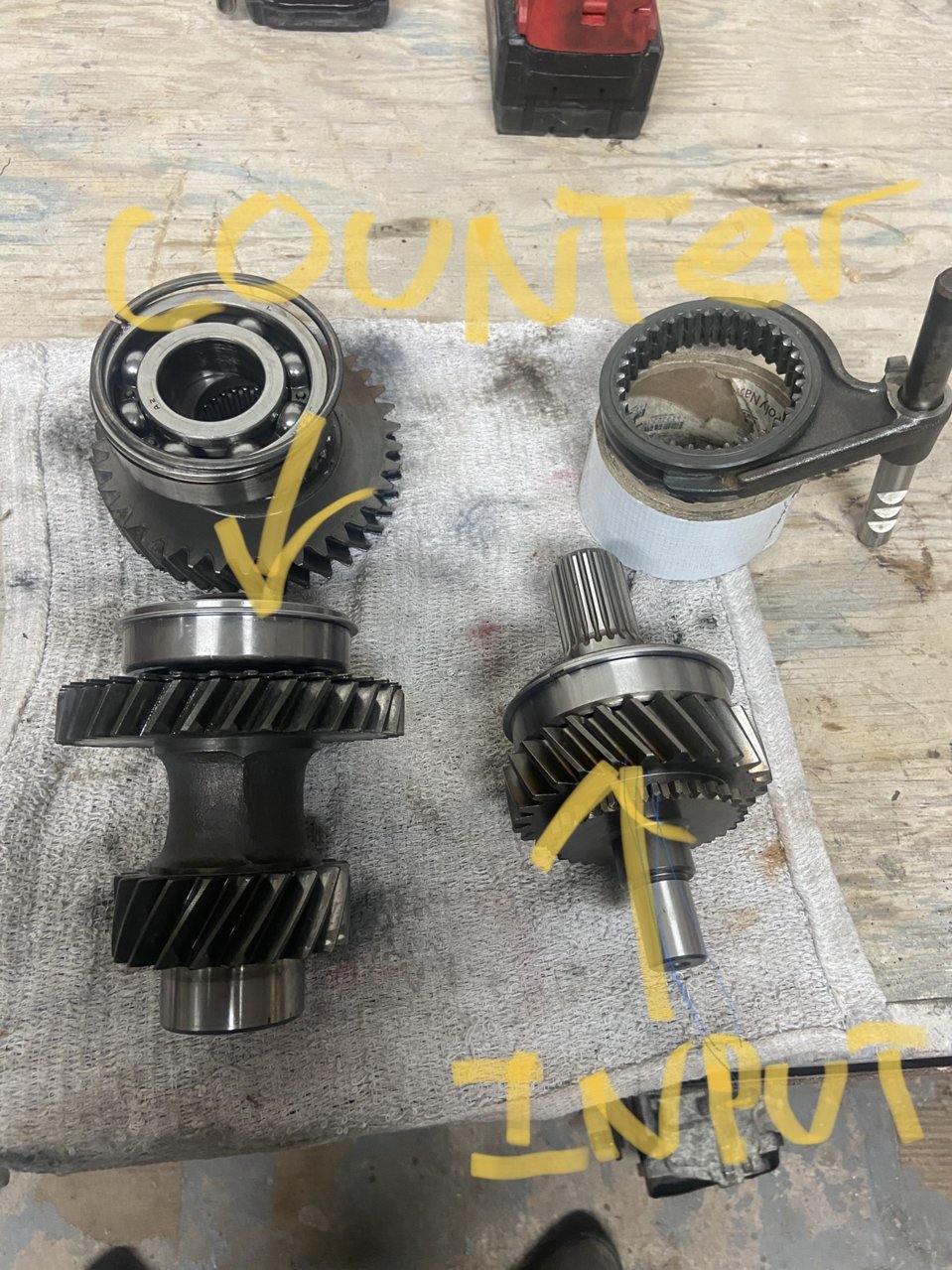

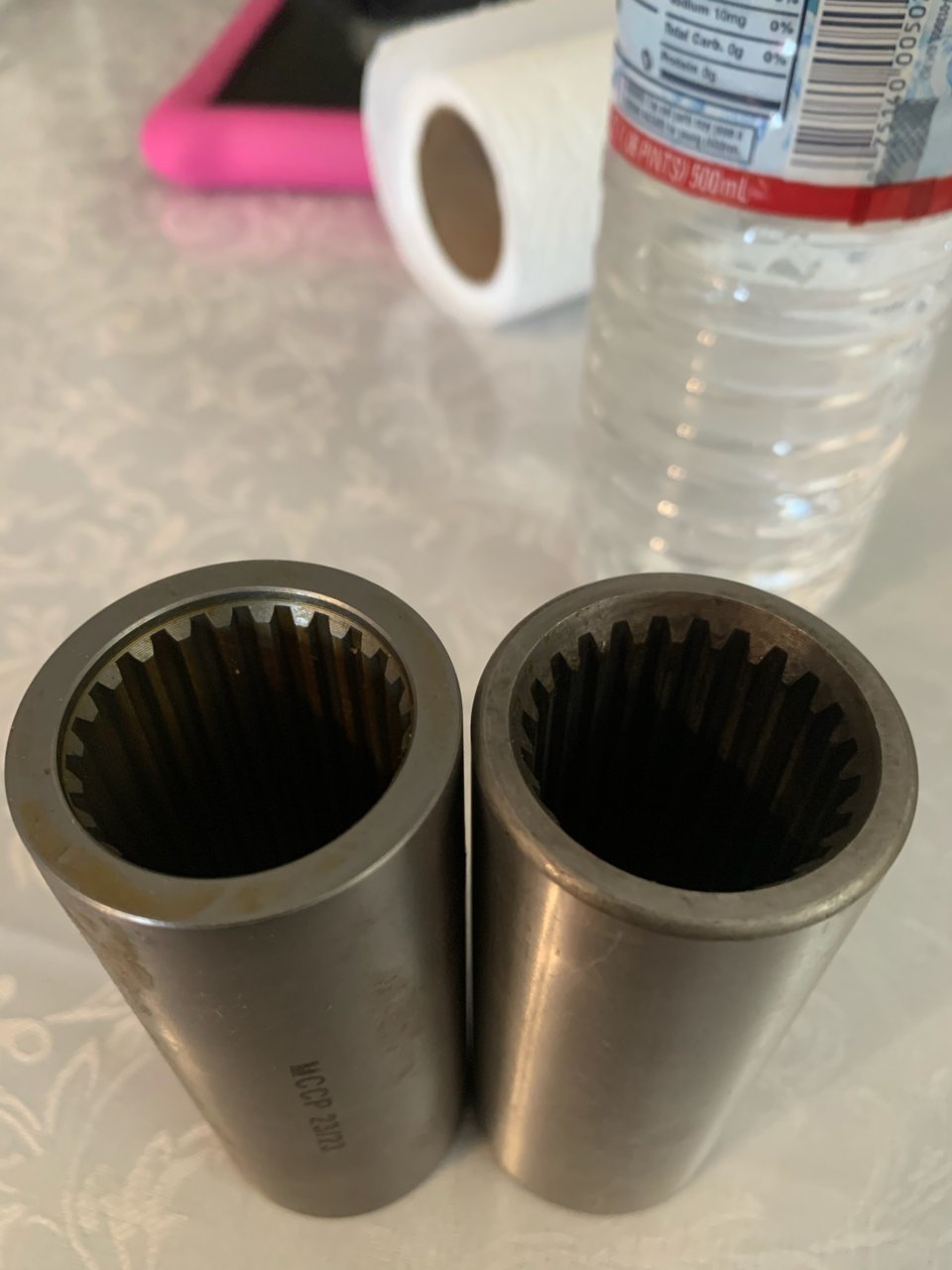

    -When you press the new bearings that you should buy from marlin also (input shaft and counter shaft bearings) DO NOT press this gear thing back (yellow arrow second pic) on like factory. You don't need.
    IMG_2932.jpg IMG_2982 2.jpg

    Last edited: Mar 30, 2022
  7. Jan 31, 2022 at 5:41 PM
    #7
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree

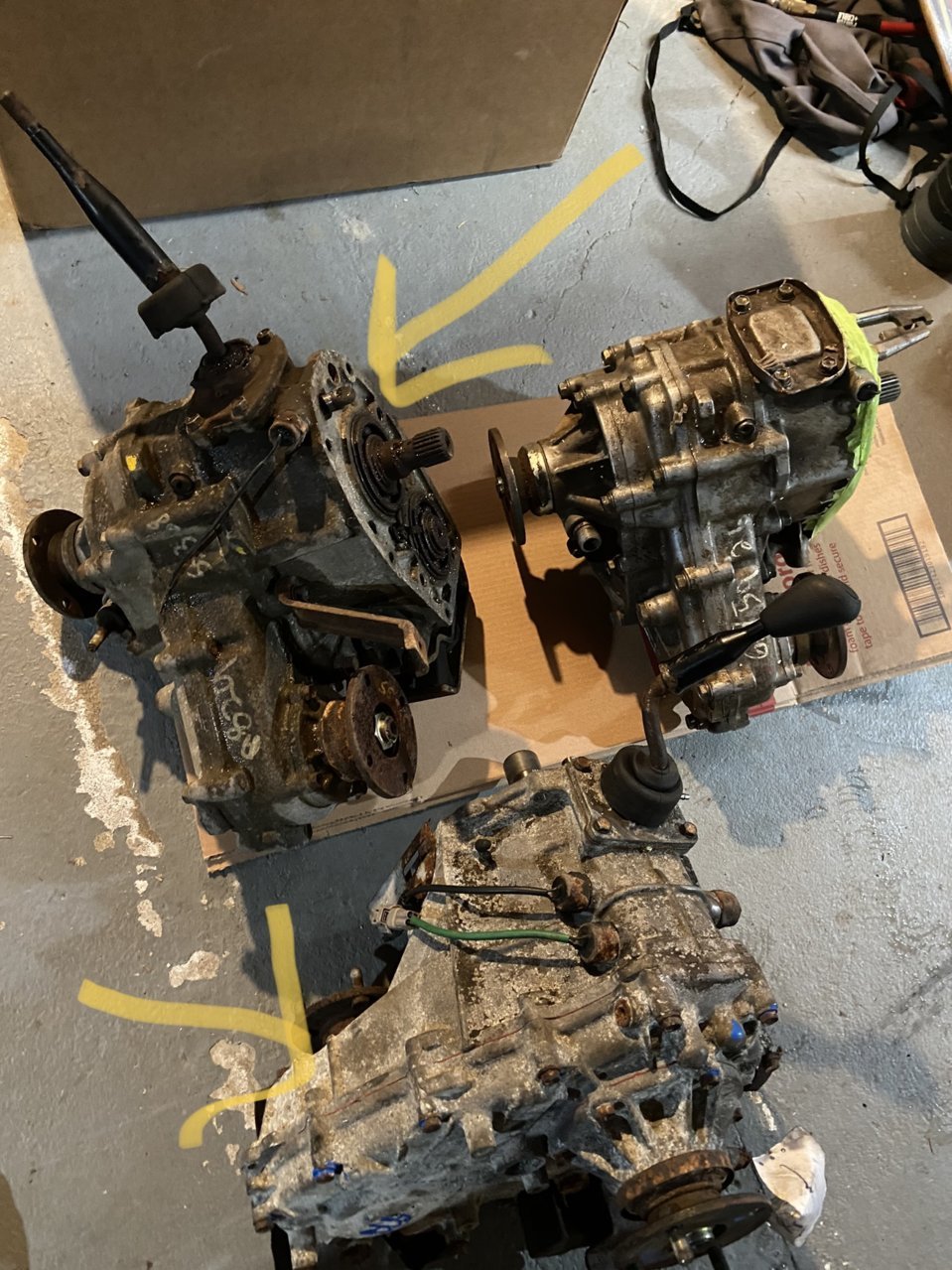

    Pics of the t cases.

    -Top is the top shift (you want topshift t case for the new case) see marlin t case bible to know difference.
    -bottom is the one that your 96-04 tacoma comes with. (j shift is the case without ADD or an actuator) good for sas. Half of tacomas and 4runners came with these. $200
    -The pic with no arrow is the forward shift case. You don't want this. more money, more work. IMG_2830.jpg

    Last edited: Feb 3, 2022
  8. Jan 31, 2022 at 5:41 PM
    #8
    Matic

    Matic The "OFG" Baby!!!

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    26,679
    Gender:
    Male
    First Name:
    Tricky Dick
    Easley, SC
    Vehicle:
    1 owner 2002 TRD, SR5, DC, 2.7. Full OME suspension, STT pro's.
    OME 881 coils with OME nitrochargers shocks up front. TC UCA's OME Dakars with extra leaf in the rear. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate. 2019 Jeep JLUR.
    Dang gif doesn't work. Anyway.... Nice!!

    Yota X[OP] likes this.
  9. Jan 31, 2022 at 5:52 PM
    #9
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree

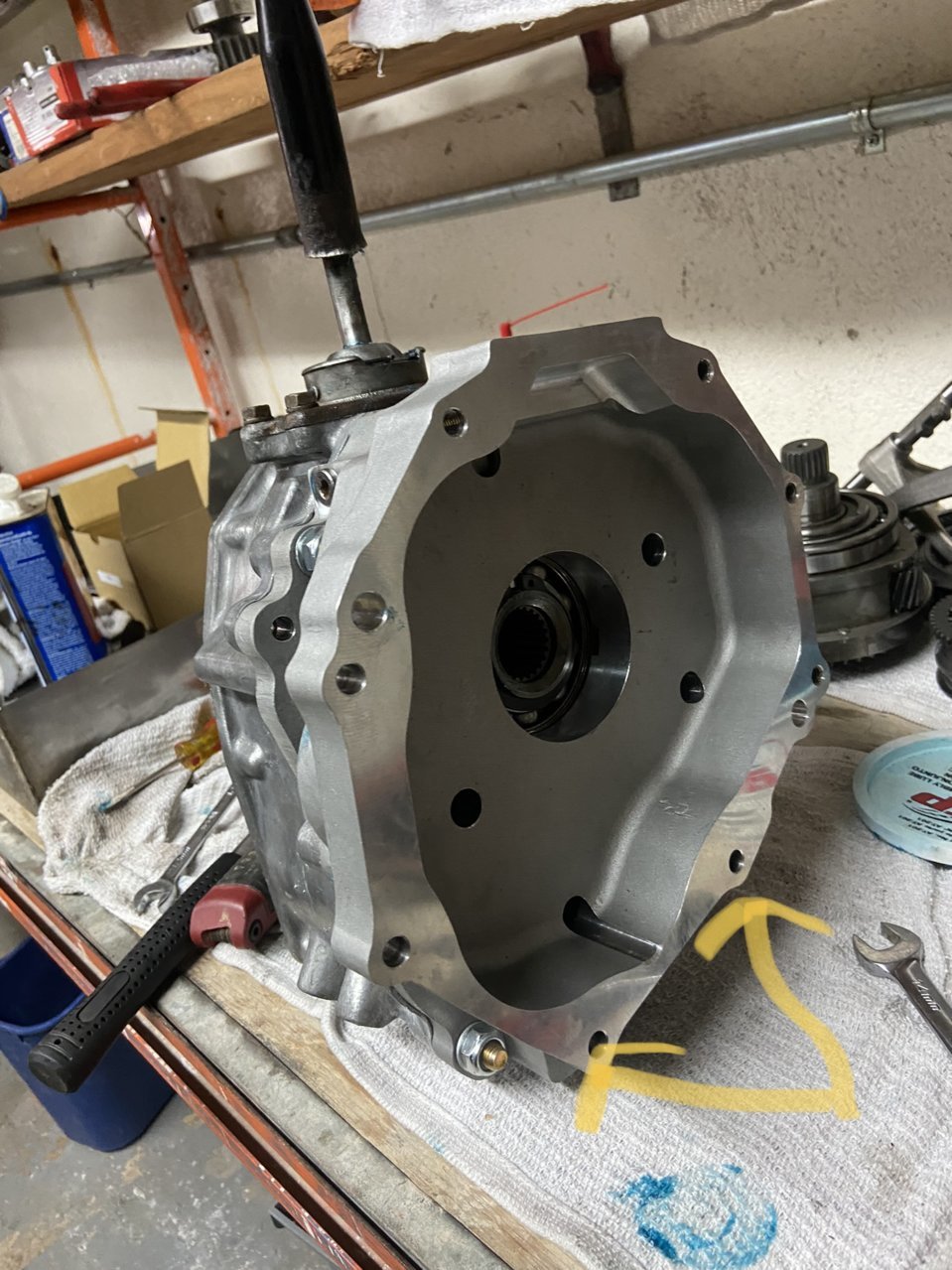

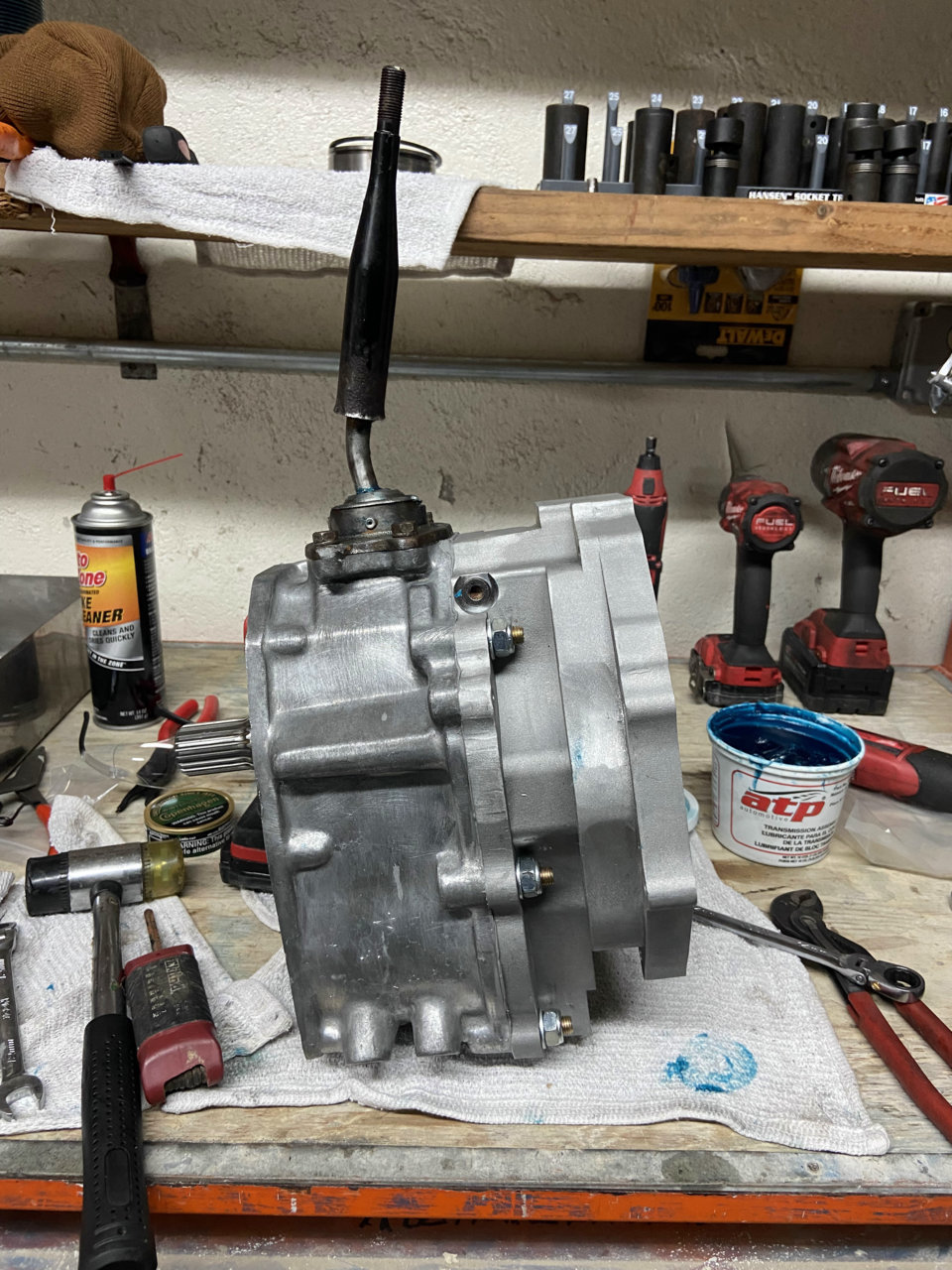

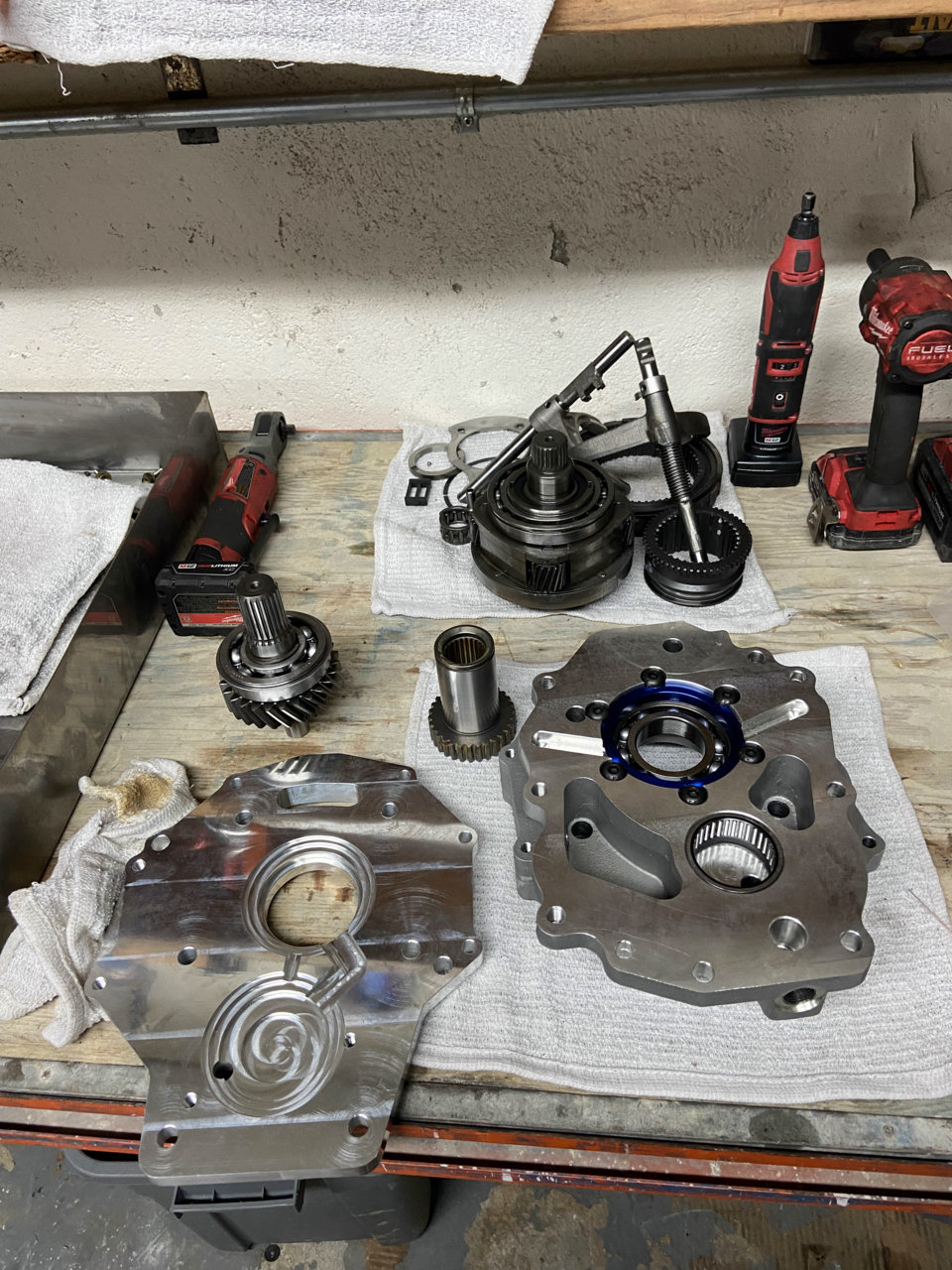

    This is the new reduction/crawl box put together. Follow directions with dual adaptor kit and you will get this.

    -if you buy a trail gear kit do this
    - dont use 8mm dowels, just the bolts to join the adaptor and the 88-95 case.
    - grind down some of the shift rod from the hi low rod (i think) you will know when you put the transmission adaptor on the crawl box. It literally hits when you shift. Grind that one down till it doesnt hit anymore.
    -Drill out the holes where the new provided black studs go into the rear (t case that came with your truck) housing. I mean drill out the holes in the brand new trail gear case with a 3/8" bit if the case does not fit without binding. If it fits without binding you are lucky and dont drill. (bottom pic. The holes the studs go through)
    -dry fit all the cases before siliconing.
    -use trail gear gaskets at your own risk.
    -marlin will not apply to any of this. Their product prob works without any bullshit but idk for sure.

    IMG_2990 2.HEIC.jpg IMG_2991.jpg

  10. Jan 31, 2022 at 6:01 PM
    #10
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree

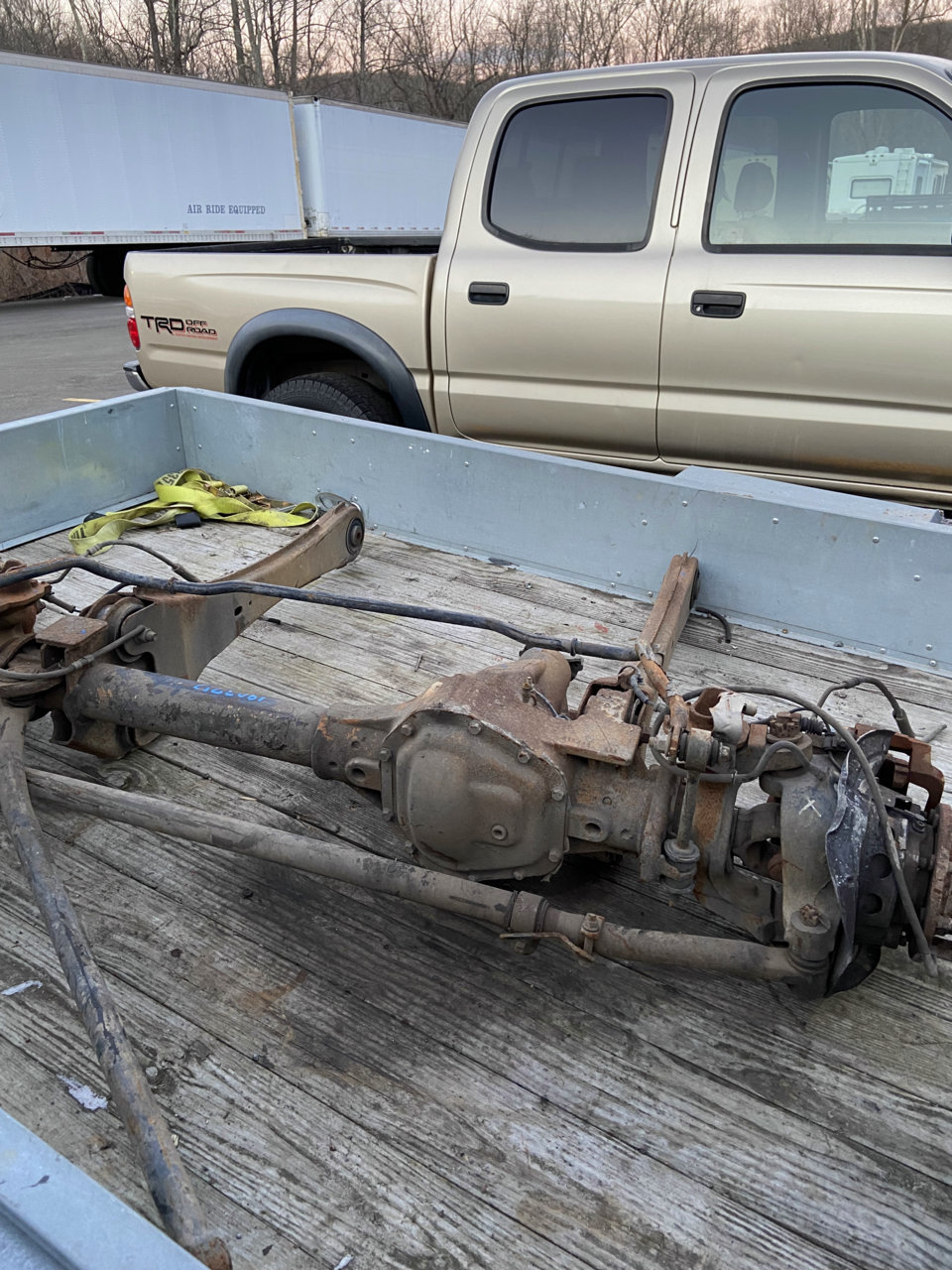

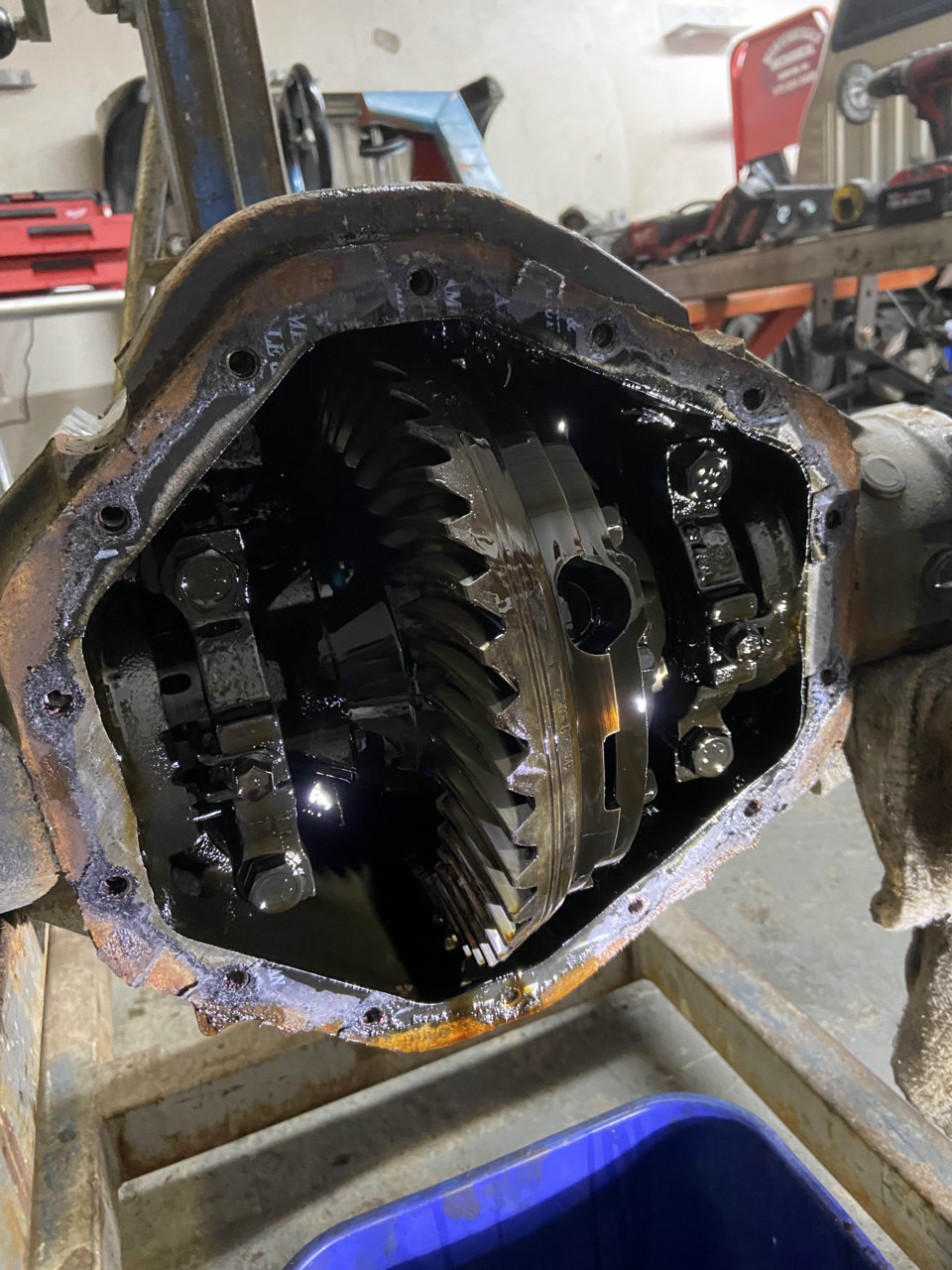

    Axles I chose

    -front is a 2005 to 2009 ford f250 super duty - $400 junk yard
    -rear is a 2002 gm 14 bolt off a chevy silverado. 99 and up i think is a ribbed housing and most have disc breaks. I wanted that. $600 junk yard (make sure to get an open diff with no posi!!!!)

    -I only have the gears for the 14 bolt but below is the gears i chose. 5.39's. Yukon Gear & Axle (YG GM14T-538T) High Performance Ring & Pinion Gear Set for GM 14-Bolt Truck 10.5 Differential

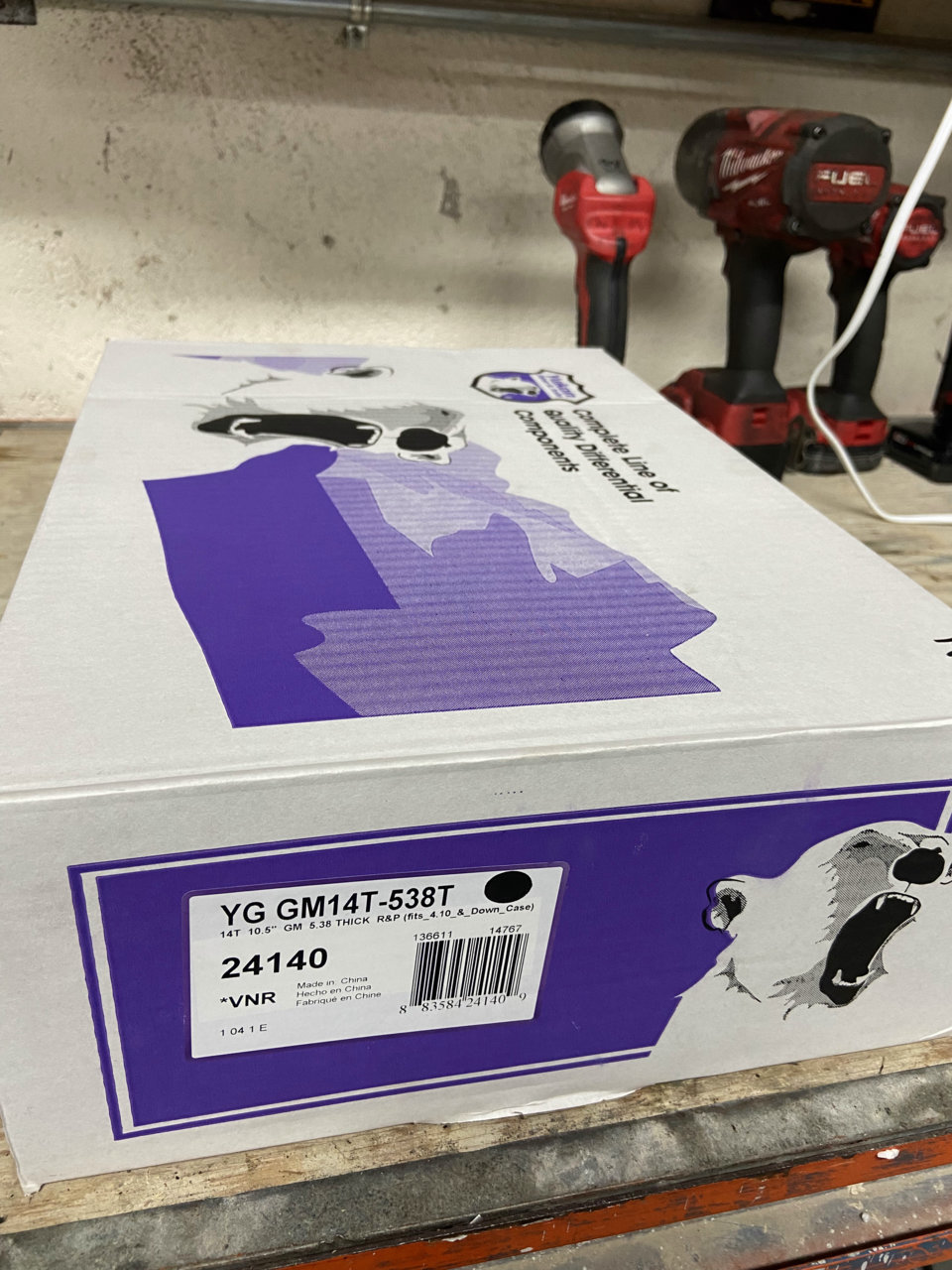

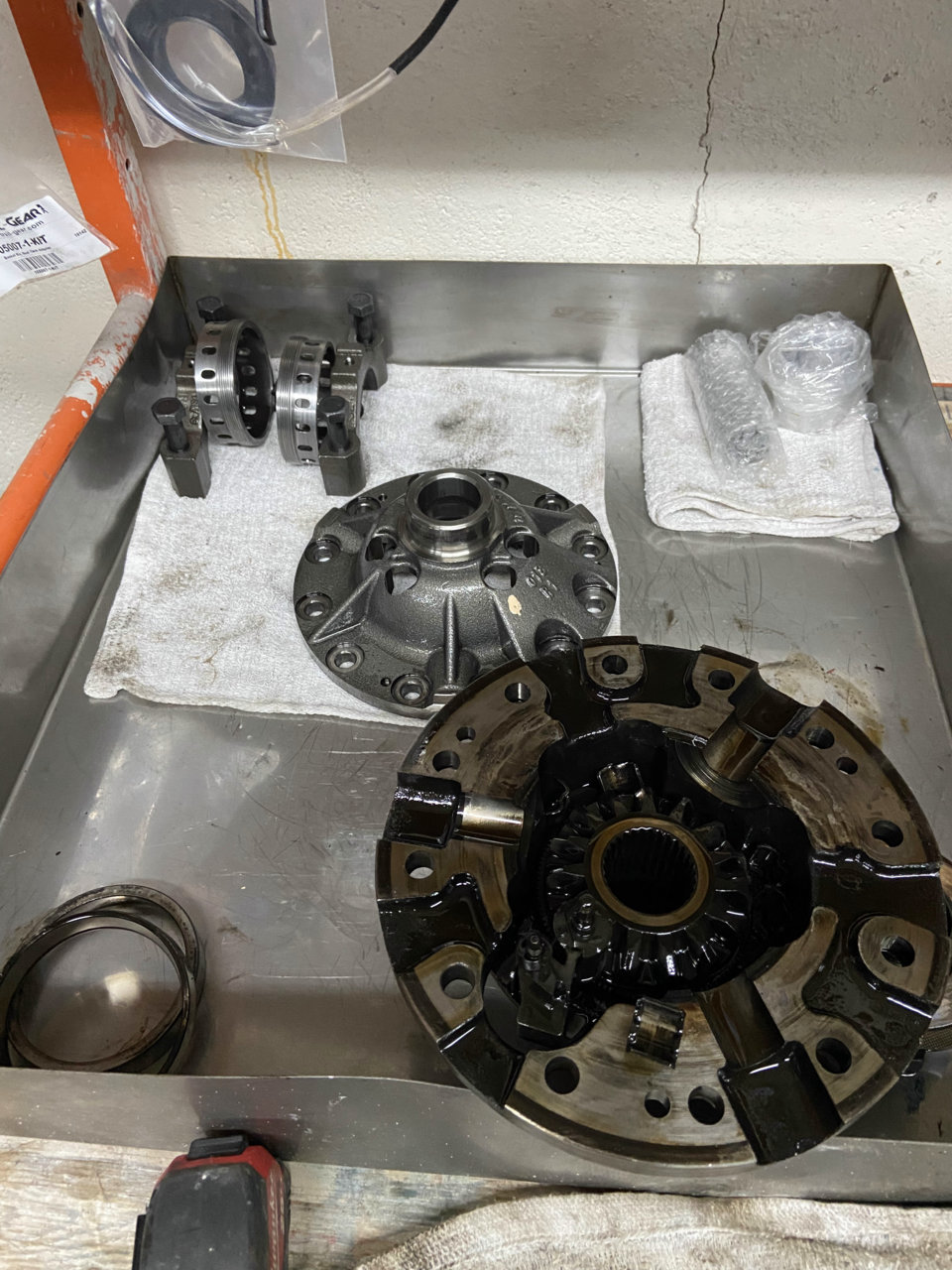

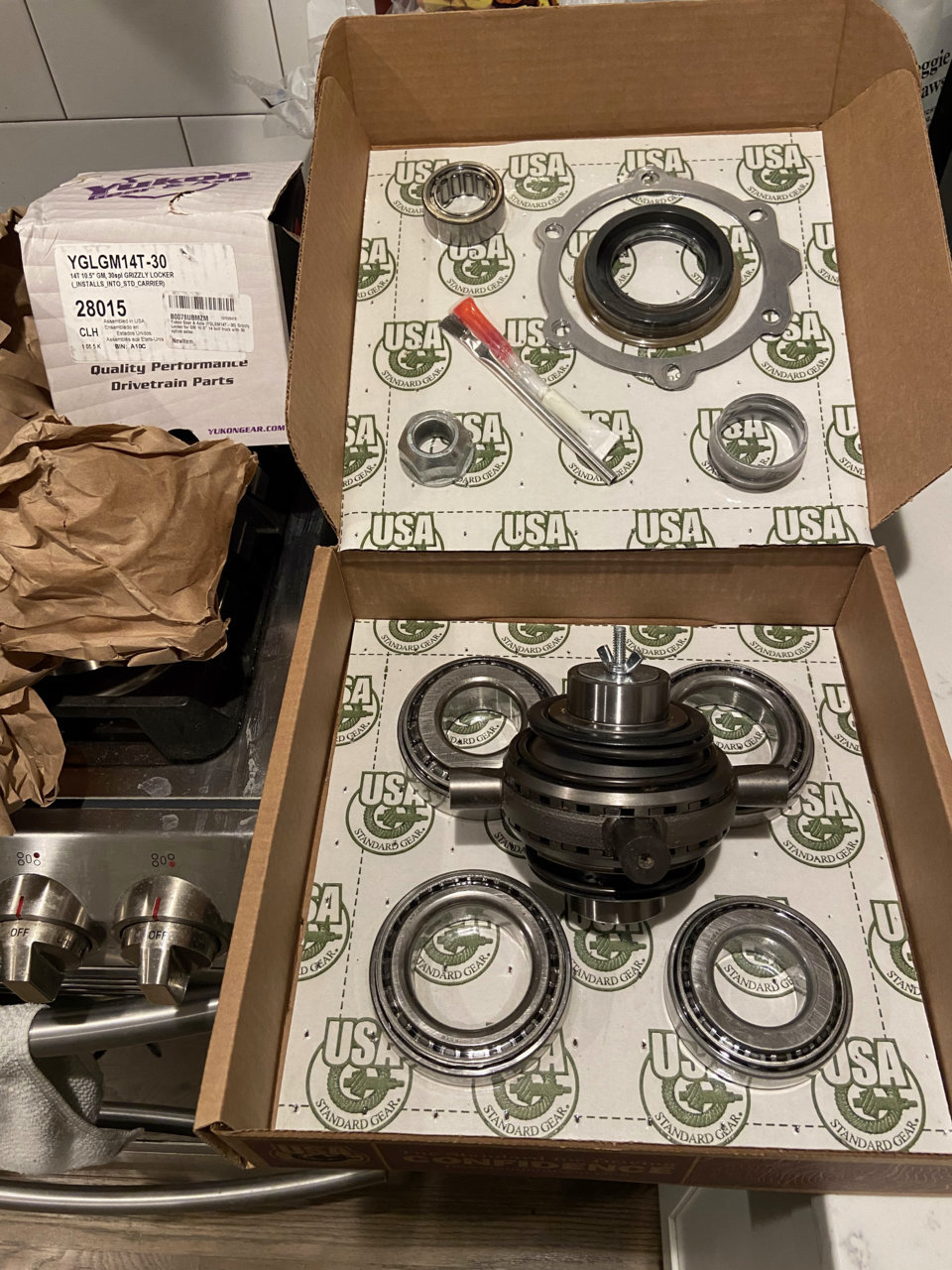

    - I chose a standard bearing rebuild kit cause i got it on Amazon for cheap and yukon uses the same bearings.USA Standard Gear (ZK GM14T-C) Master Overhaul Kit for GM 14-Bolt Truck 10.5 Differential, Silver
    -I chose a yukon grizzly rear locker from amazon as well. You just need 98 and up for all the parts above. Yukon Gear & Axle (YGLGM14T-30) Grizzly Locker for GM 10.5" 14 bolt truck with 30 spline axles
    -The only thing that is important is your carrier. If your axle is a 4.10 down to 3.43 or whatever the lowest is you have a low carrier. If your axle came with 4.56 to 5.13 or whatever the highest is you need a high carrier kit but most are 3.73 or 4.10.

    IMG_2996.HEIC.jpg IMG_2948.HEIC.jpg IMG_3075.HEIC.jpg IMG_3076.HEIC.jpg

    Last edited: Feb 9, 2022
  11. Jan 31, 2022 at 6:05 PM
    #11
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree

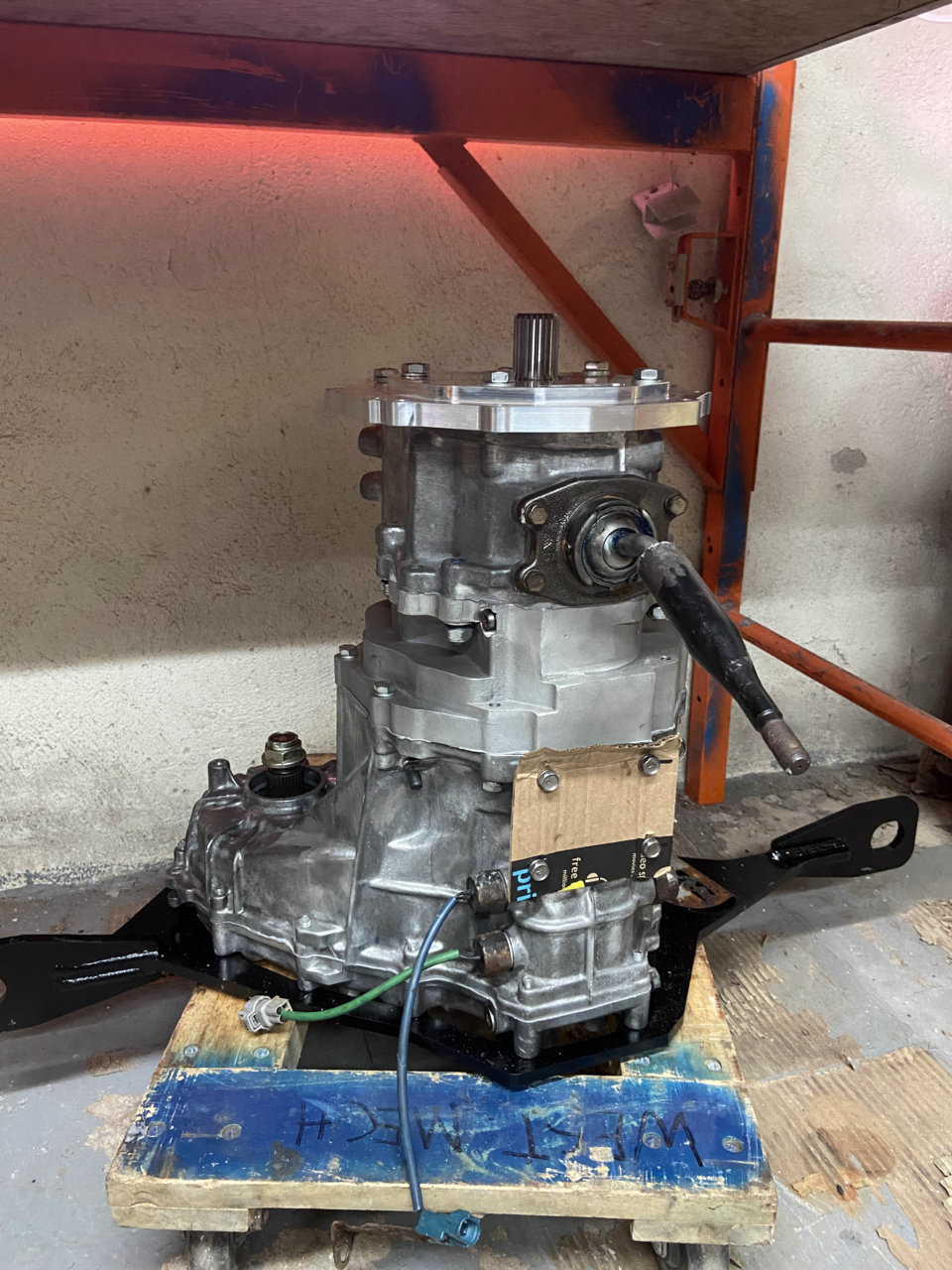

    T case joined to crawl box

    Twin shifters - https://frontrangeoffroadfab.com/twin-stick/

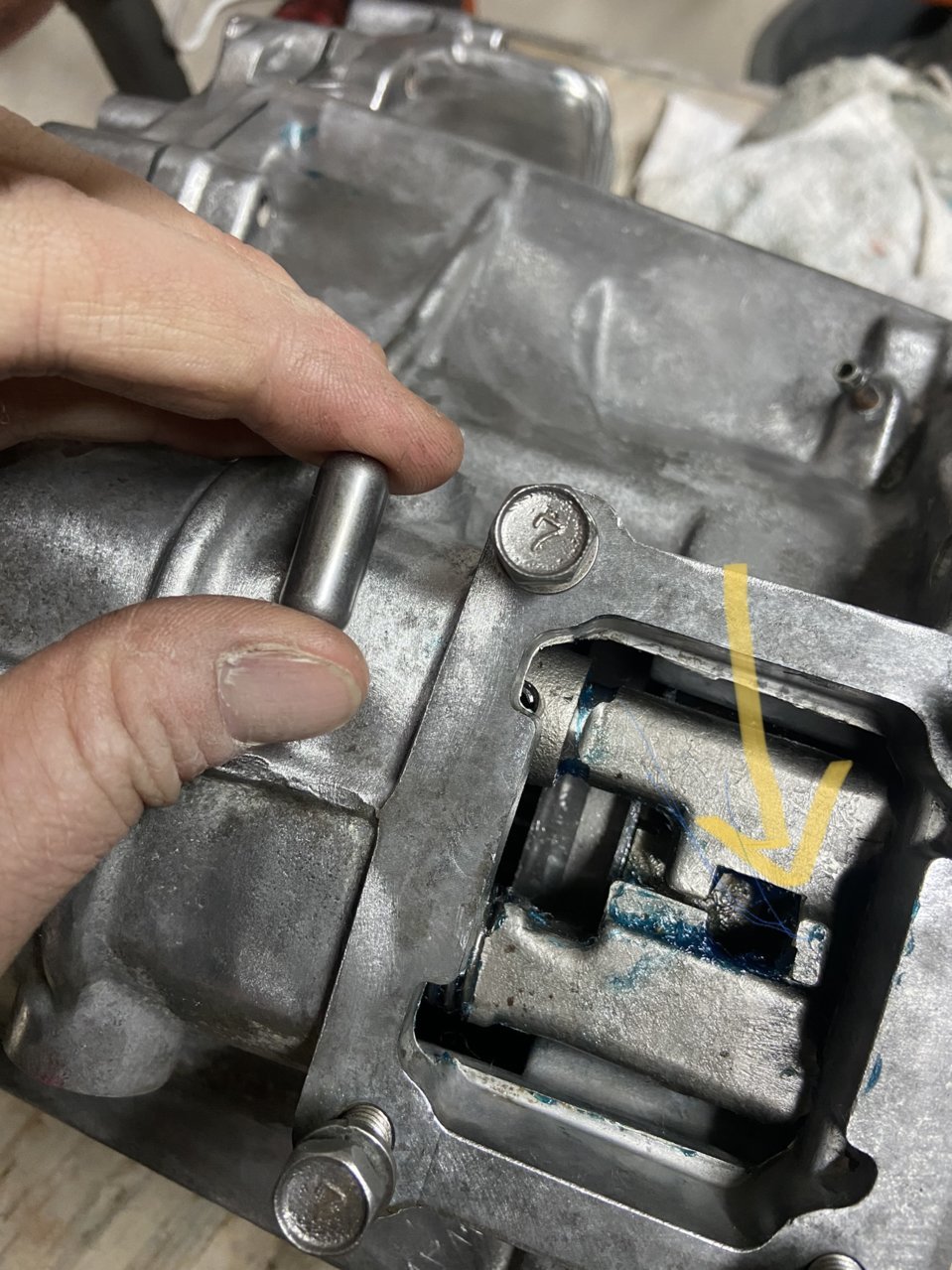

    -you have to cut shift fork to clear trim stick arm. (Pic soon) (See page 5)
    -you have to take that tic tac out. It is between the shift forks where the allen keys with springs and balls ride on the shift rods.
    IMG_3074.HEIC.jpg IMG_3023.jpg

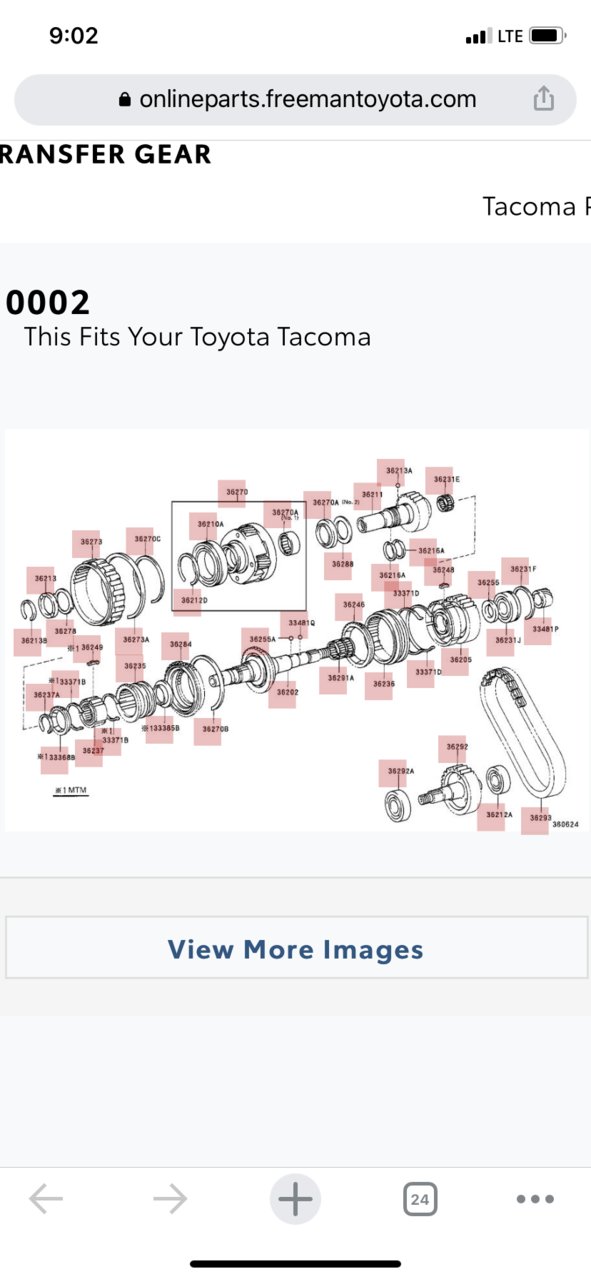

    J-case diagram

    Last edited: Feb 15, 2022
    3pooches, SwampYota, T.Barn and 2 others like this.
  12. Jan 31, 2022 at 6:16 PM
    #12
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree

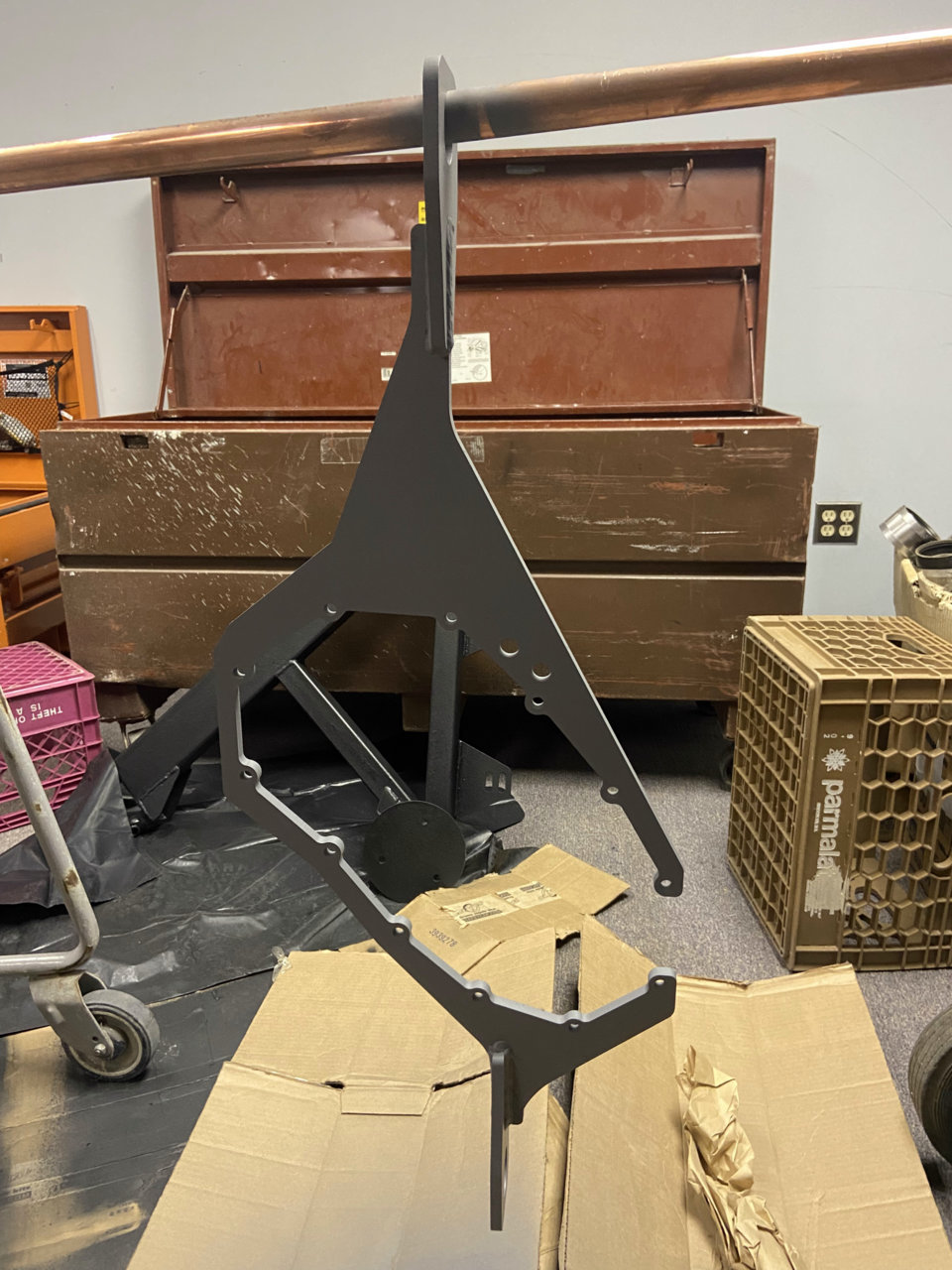

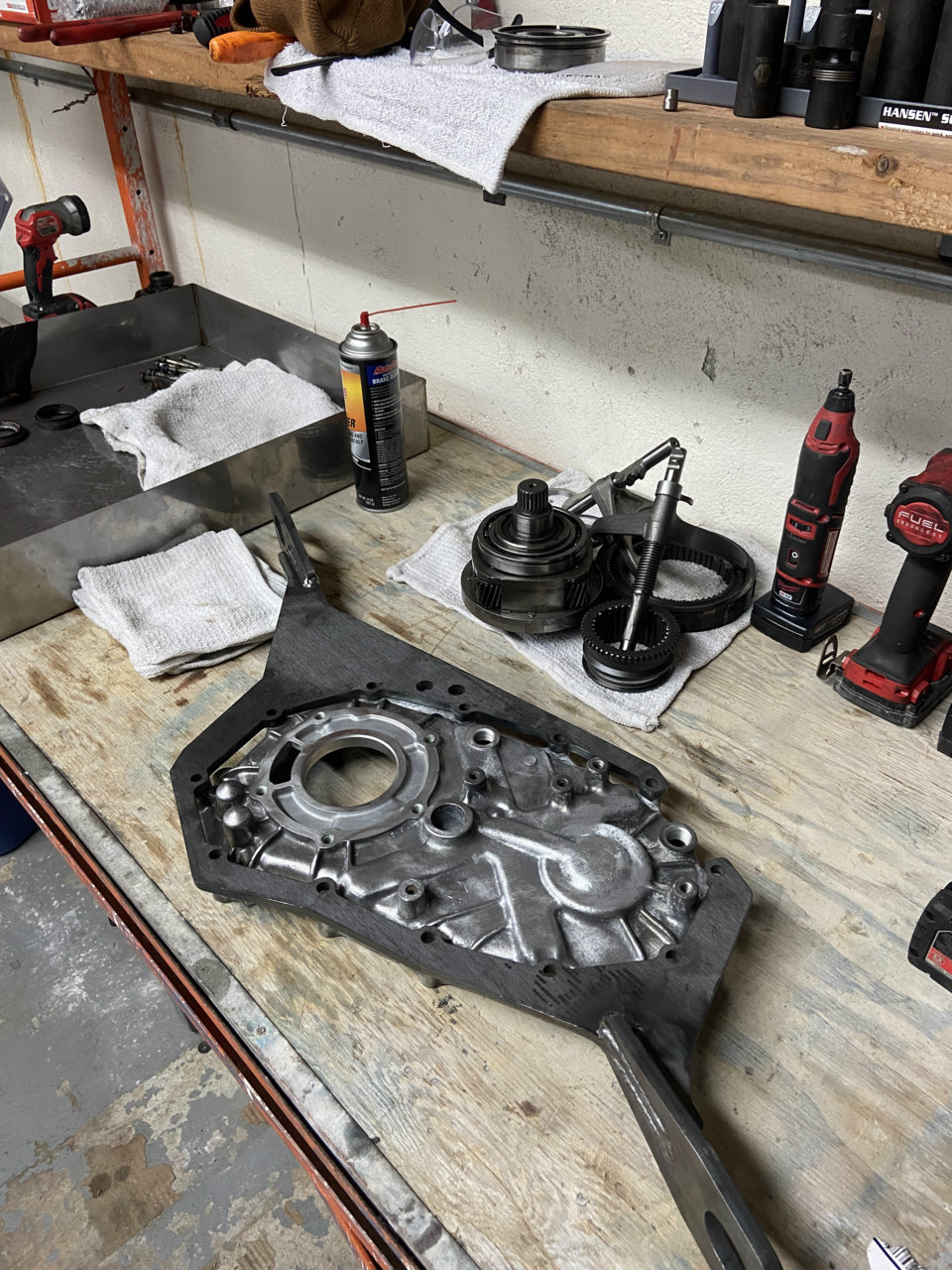

    Crossmember

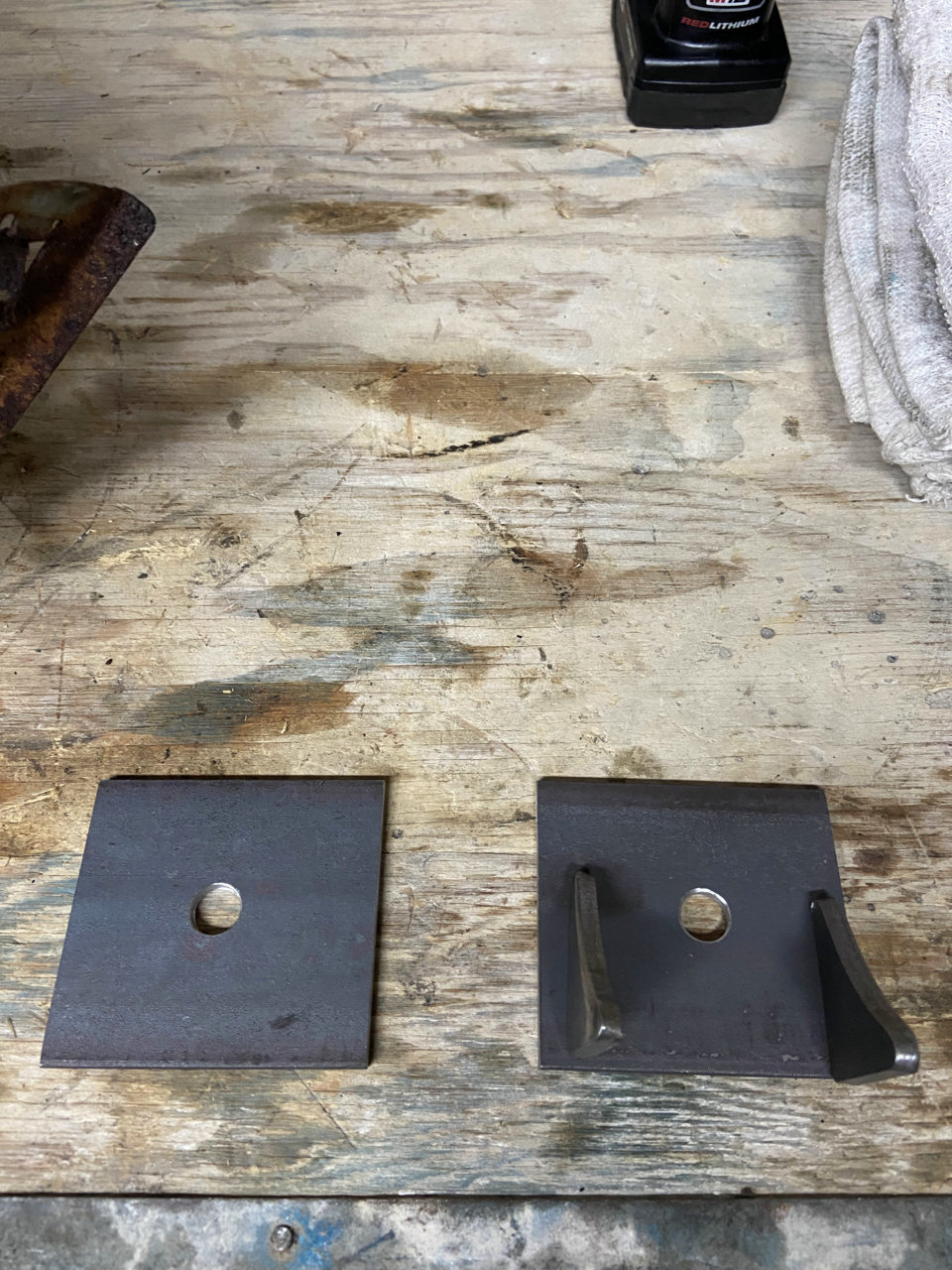

    I went with a front range off road dual case crossmember. $265- https://frontrangeoffroadfab.com/tacoma-and-4runner-t-case-crossmember/

    -if you get this dont bother welding the mounts they give you because they prob wont work or only 1 will work. Get the case in there and jack it up and figure it out then. The ones I got are not big enough to span the width of the frame.

    IMG_3024.HEIC.jpg IMG_2993.HEIC.jpg IMG_3041.HEIC.jpg

    Last edited: Feb 3, 2022
  13. Feb 1, 2022 at 8:26 PM
    #13
    02hilux

    02hilux Paved roads not required

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    5,085
    Planet: EARTH
    At least you're running mc 4.7... better choice over the tg. Make sure to run mc female coupler

    Yota X[QUOTED][OP] likes this.
  14. Feb 2, 2022 at 3:32 AM
    #14
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree
    I can’t buy one! Marlin doesn’t sell individual. If I call will they sell me one?

  15. Feb 2, 2022 at 5:55 AM
    #15
    02hilux

    02hilux Paved roads not required

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    5,085
    Planet: EARTH
    Yes, they sell that piece individually. Its not listed on their site but you can buy it over the phone. Left is MC vs TG right. The splines are cut better, cleaner, and have a tight fit vs TG. Less deflection. If you're running mc 4.7, I would run mc coupler and not the tg.


  16. Feb 2, 2022 at 9:56 AM
    #16
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree
    Yeah, I have heard a lot of bad things about the tg coupler. I’ll give Marlin a call.

  17. Feb 2, 2022 at 3:42 PM
    #17
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree

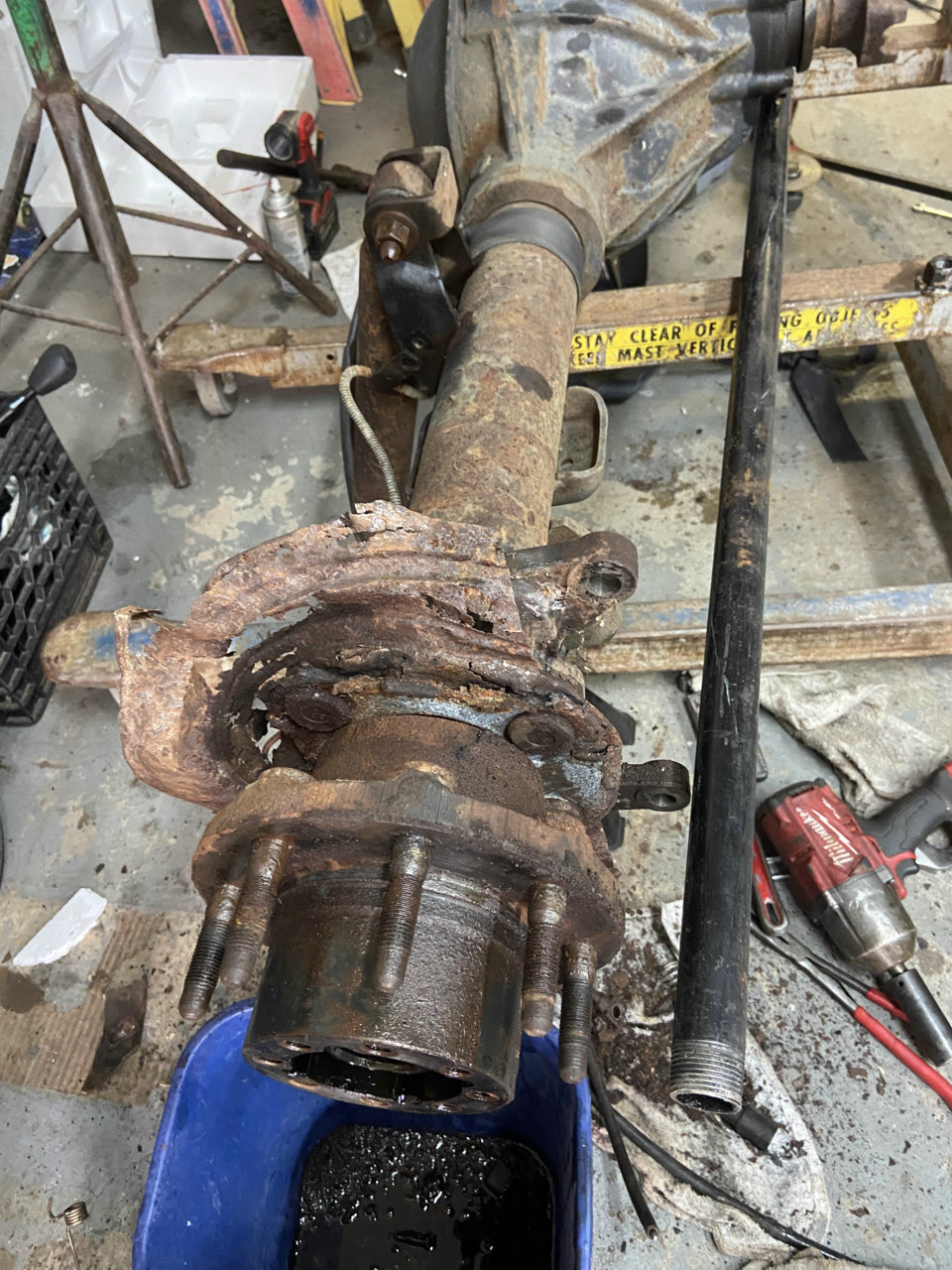

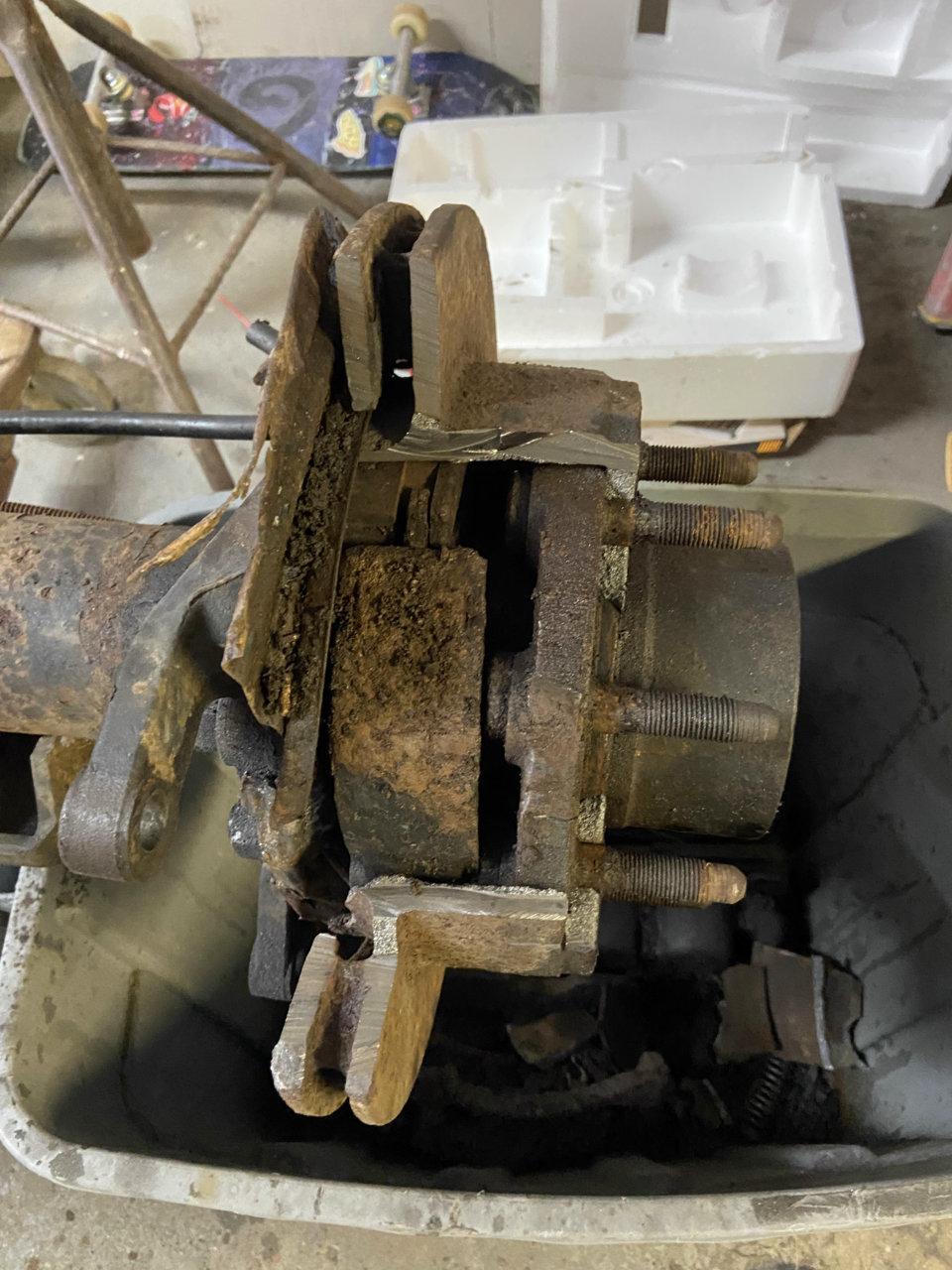

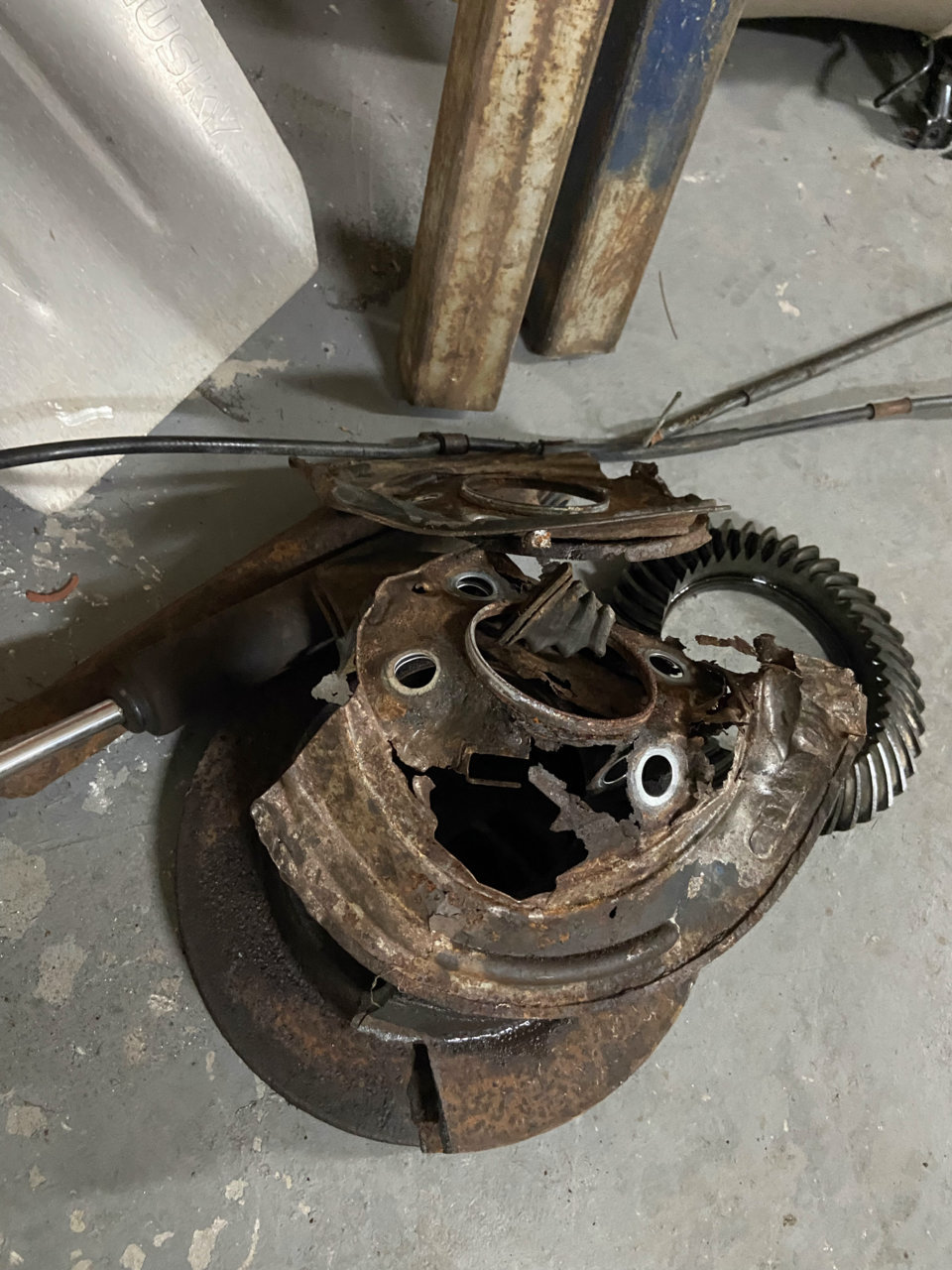

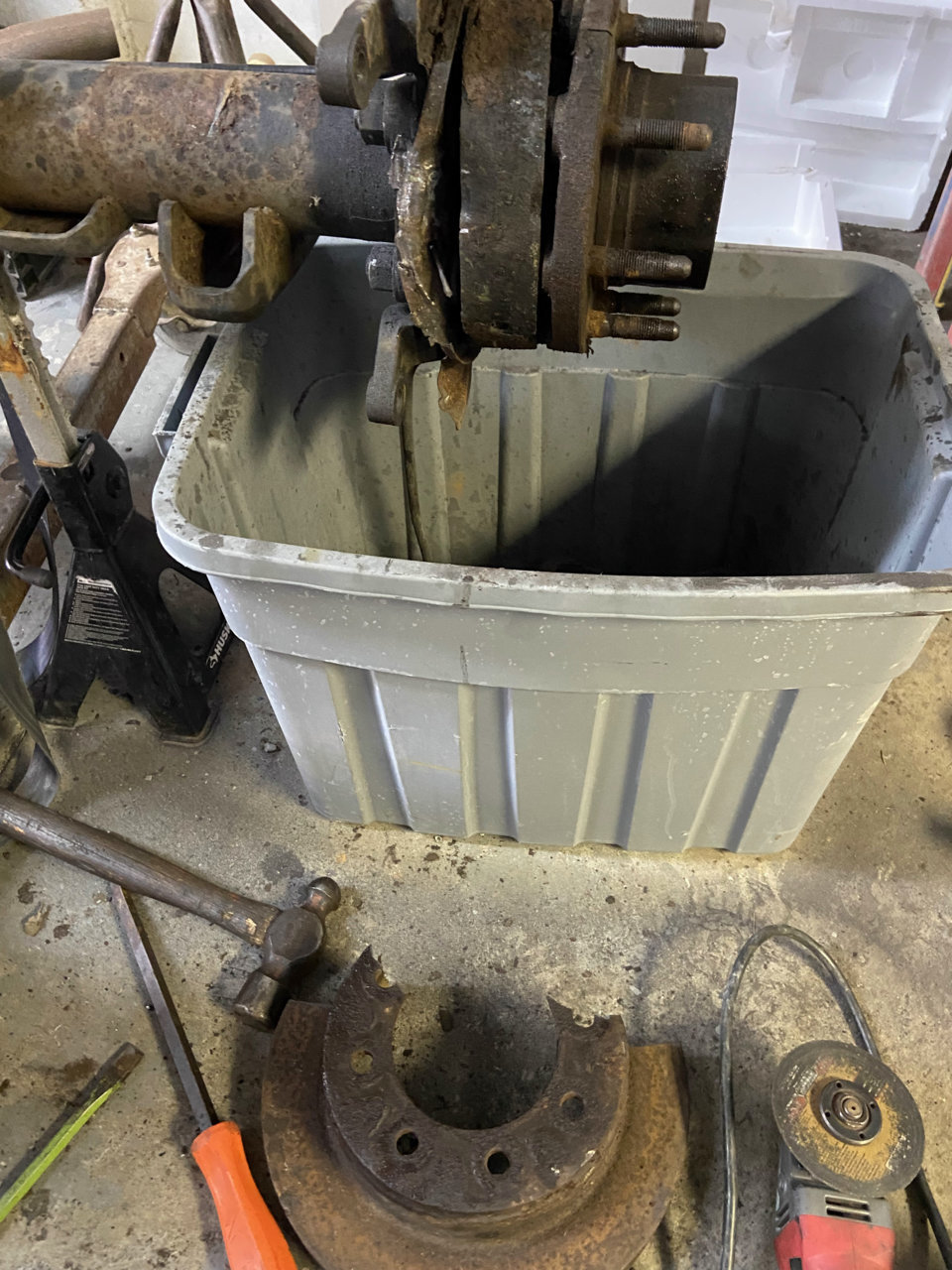

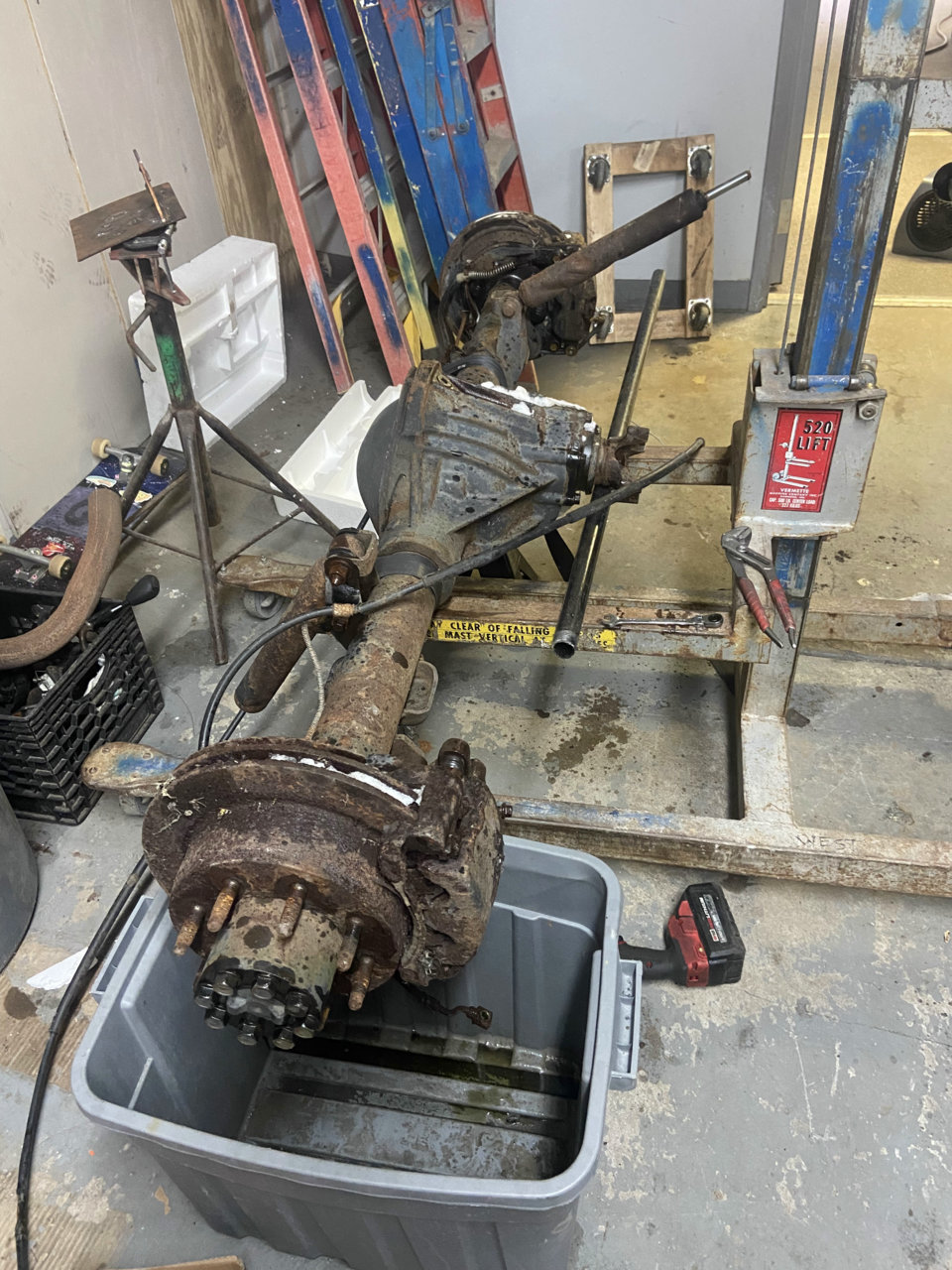

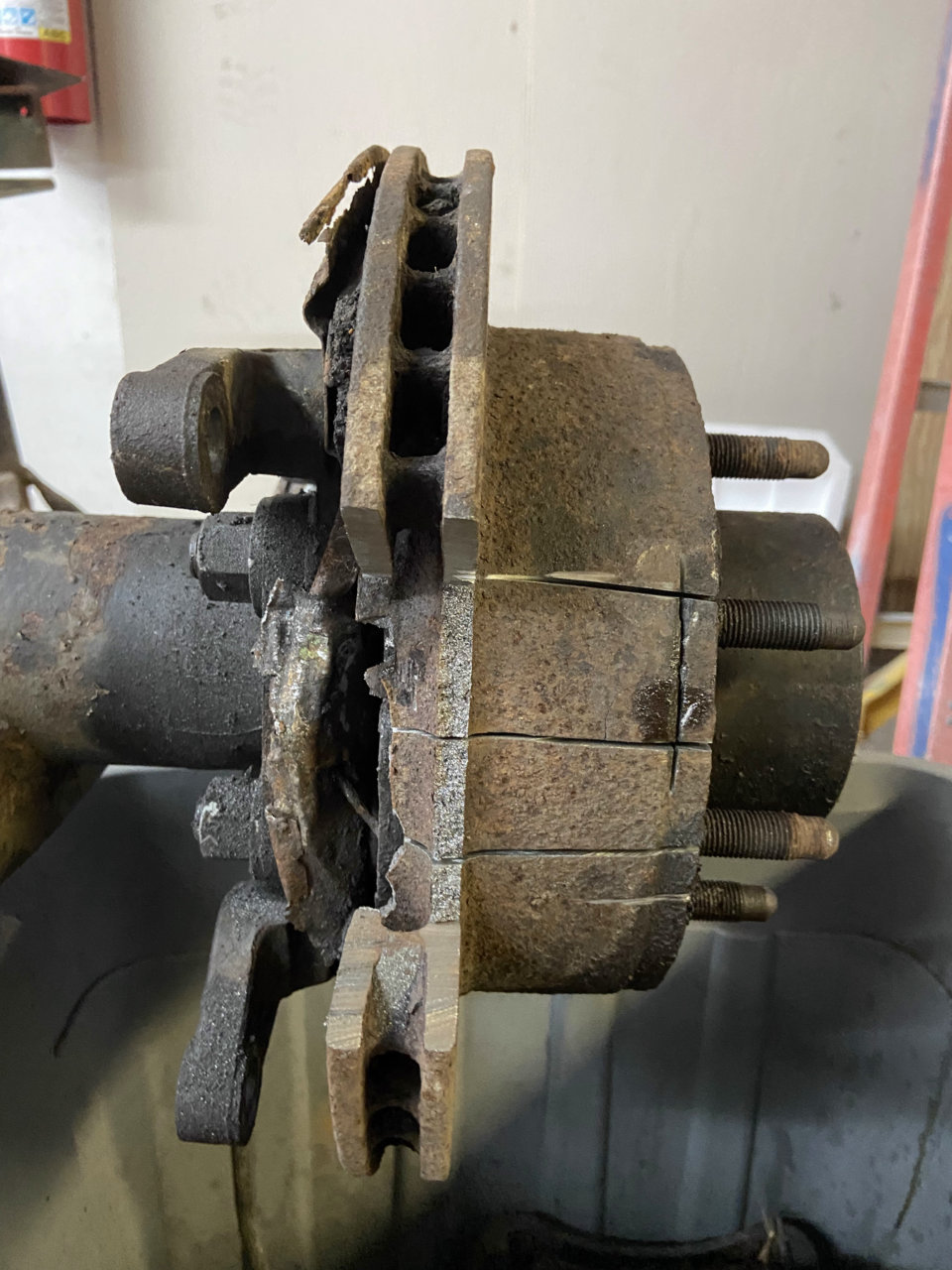

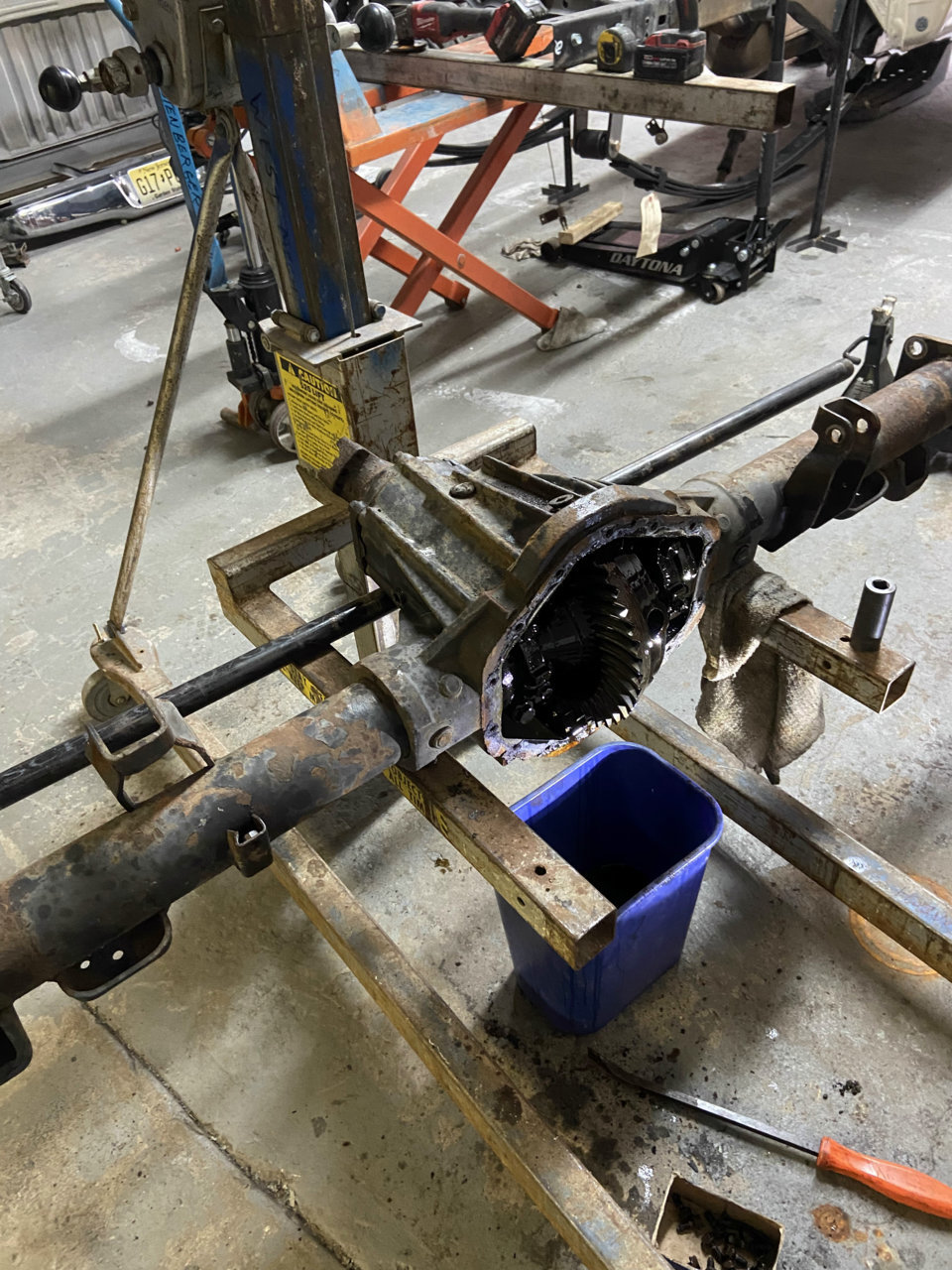

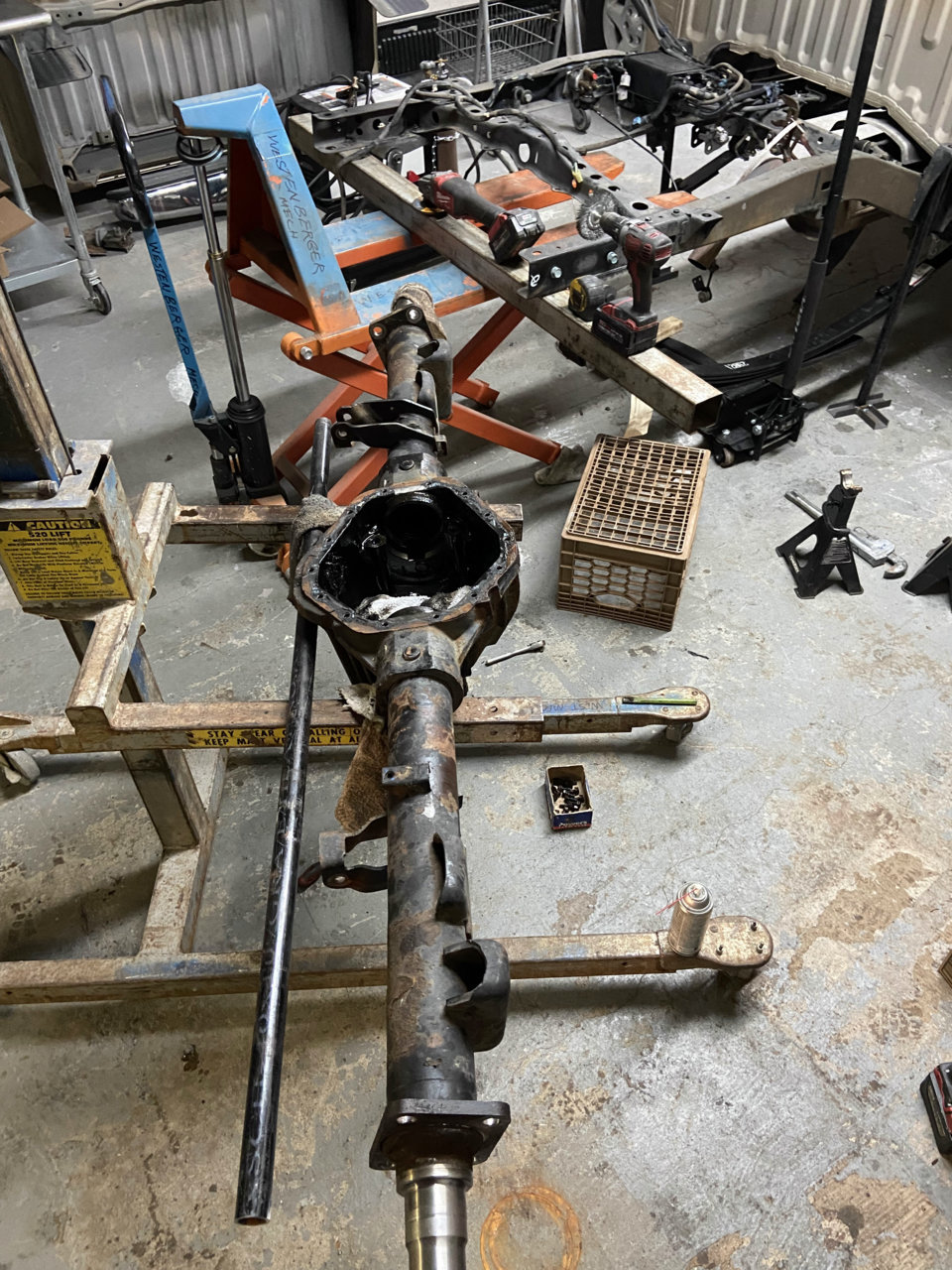

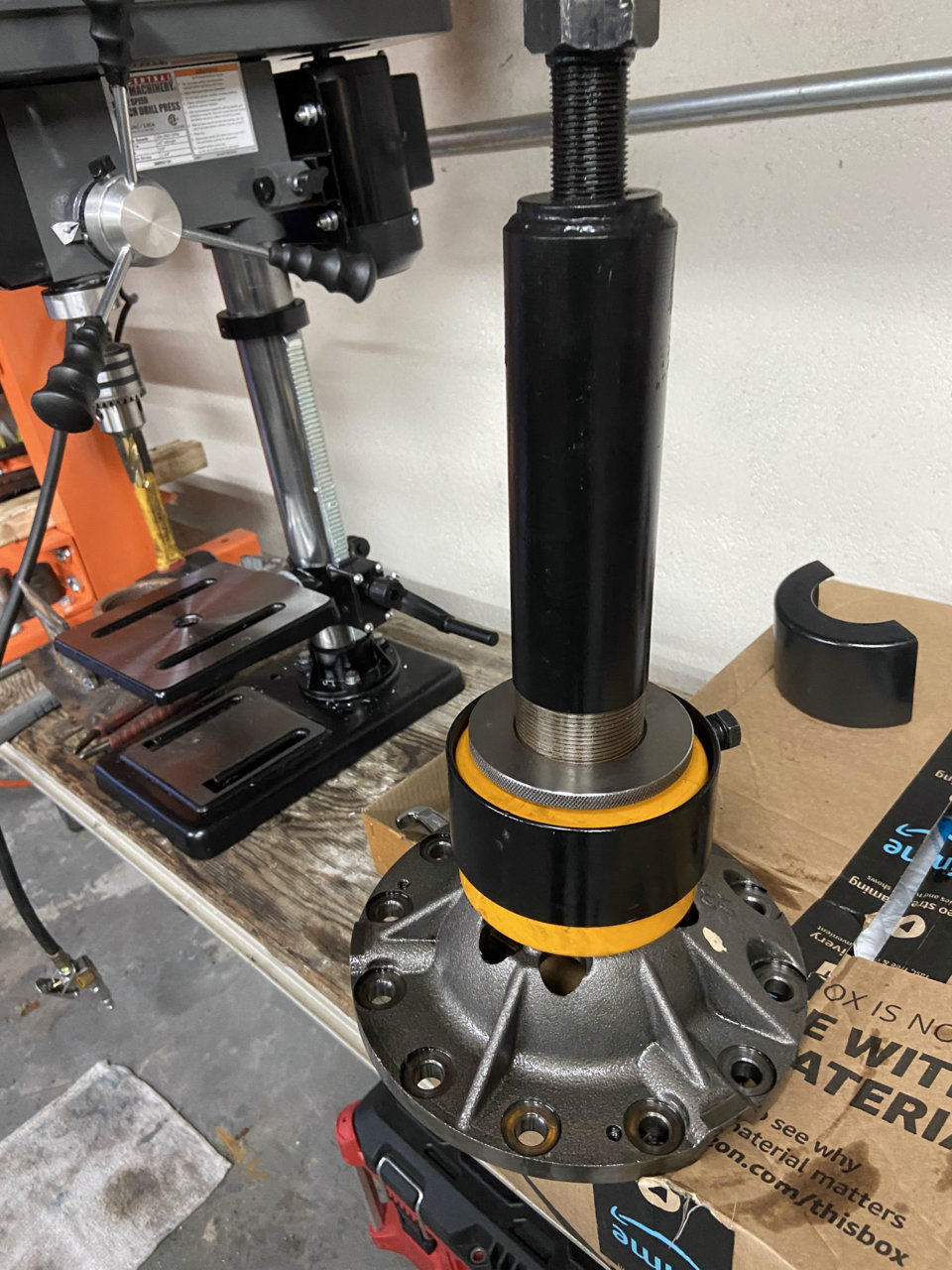

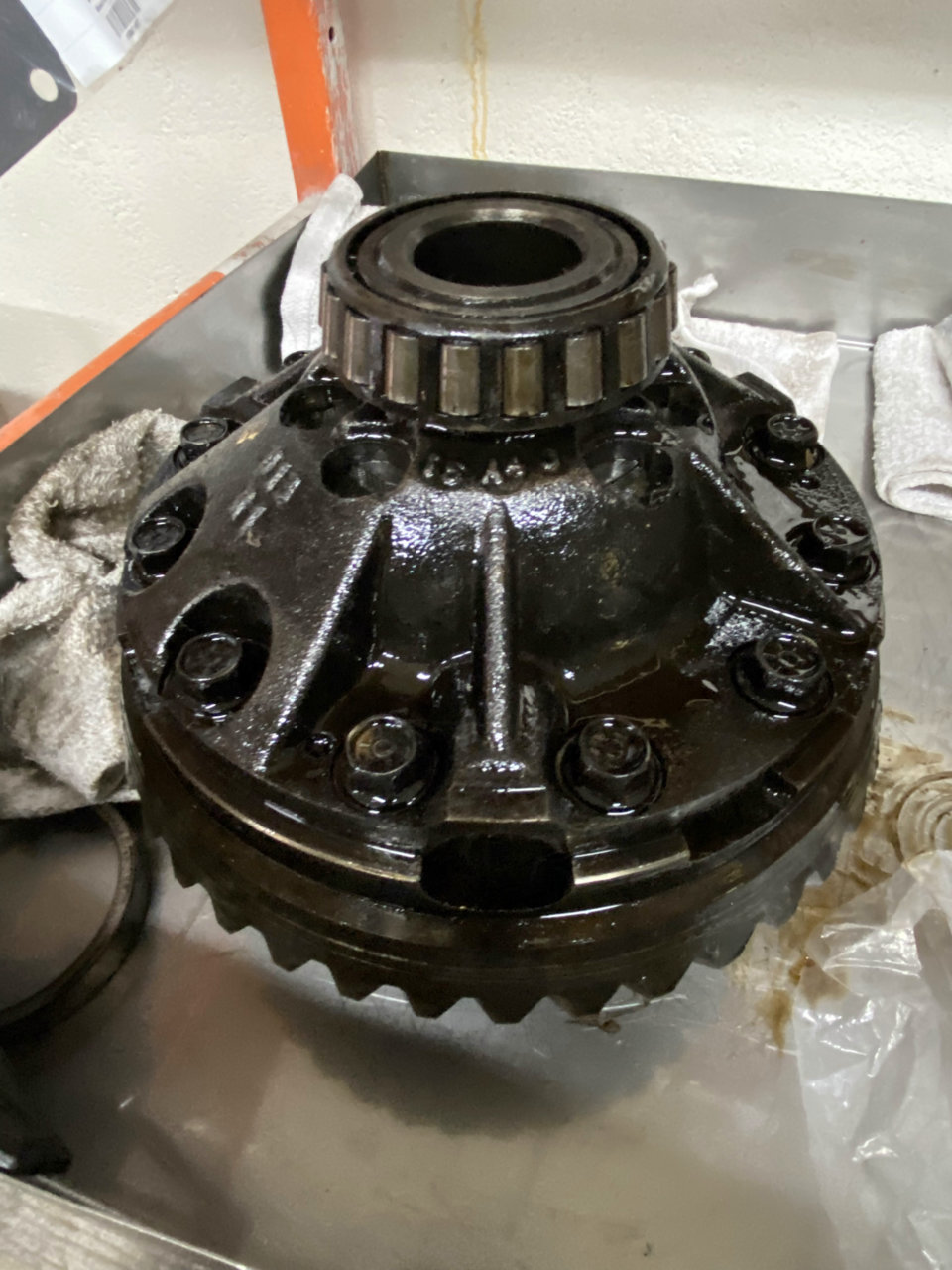

    Had some time to work tonight. Got my ass beat by completely seized e-brake pads. Used every tool I had on this POS junk yard axle.

    UPDATE- WASTE OF FUCKING TIME. GET A NICE AXLE!
    IMG_3082.HEIC.jpg IMG_3086.HEIC.jpg IMG_3087.HEIC.jpg IMG_3089.HEIC.jpg IMG_3090.HEIC.jpg IMG_3111.HEIC.jpg

    Last edited: Jun 20, 2022
  18. Feb 2, 2022 at 3:46 PM
    #18
    02hilux

    02hilux Paved roads not required

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    5,085
    Planet: EARTH
    Plasma cutter my friend, get yourself one. Save yourself a headache.

    Love my 375 and would not work on any rusty project without it.

    Anton338, Juisebocks and Yota X[OP] like this.
  19. Feb 2, 2022 at 3:46 PM
    #19
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree
  20. Feb 2, 2022 at 3:48 PM
    #20
    Yota X

    Yota X [OP] Some say dresser, I say dryer.

    Joined:
    Jul 11, 2019
    Member:
    #298961
    Messages:
    5,268
    Gender:
    Male
    NW New Jersey
    Vehicle:
    1st gen
    ls turbo, tons, 40's and a partidge in a pear tree
    Shit! I have an esab. I didn't even think about breaking it out.. I thought it would be easier and it just got harder.

    tacomakid96, Dalandser and skeletron like this.
