UltraGauge LED Swap

Discussion in 'Technical Chat' started by babyboi2284, Oct 26, 2011.

  1. Oct 26, 2011 at 1:43 PM
    #1
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
    Ive had quite a few ppl asking me about how i swapped my UG leds from white to red and what type did i use. First off I personally didn't do the led swap I had a friend who does electronic repair do it for me. I was going to do it until i saw how tiny the leds are. If you have swapped the leds in your gauge cluster then those leds are twice the size of the ones in the UG....they are TINY!!! My friend said be very careful taking it apart, the little board that has the leds on it has to be unsoldered from the main board and be patient when soldering. The led type is smt 0806 and I think there are 5 LEDs total. To open the UG case you just pry the case open. You may break some of the tabs but it's hard not to because they are very thin. I think two of mine broke and I just super glued the case back together. If you do use super glue make sure to barely squeeze it on the edge of the case...if you put alot it may run and get on something you don't want it to like the LCD screen.

  2. Oct 26, 2011 at 2:18 PM
    #2
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
    He is one of the members that asked me the info about the led swap lol

  3. Oct 26, 2011 at 2:30 PM
    #3
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,848
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Could you throw a pic up of the color change? I didn't know anyone had done this!!

  4. Oct 26, 2011 at 2:45 PM
    #4
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod

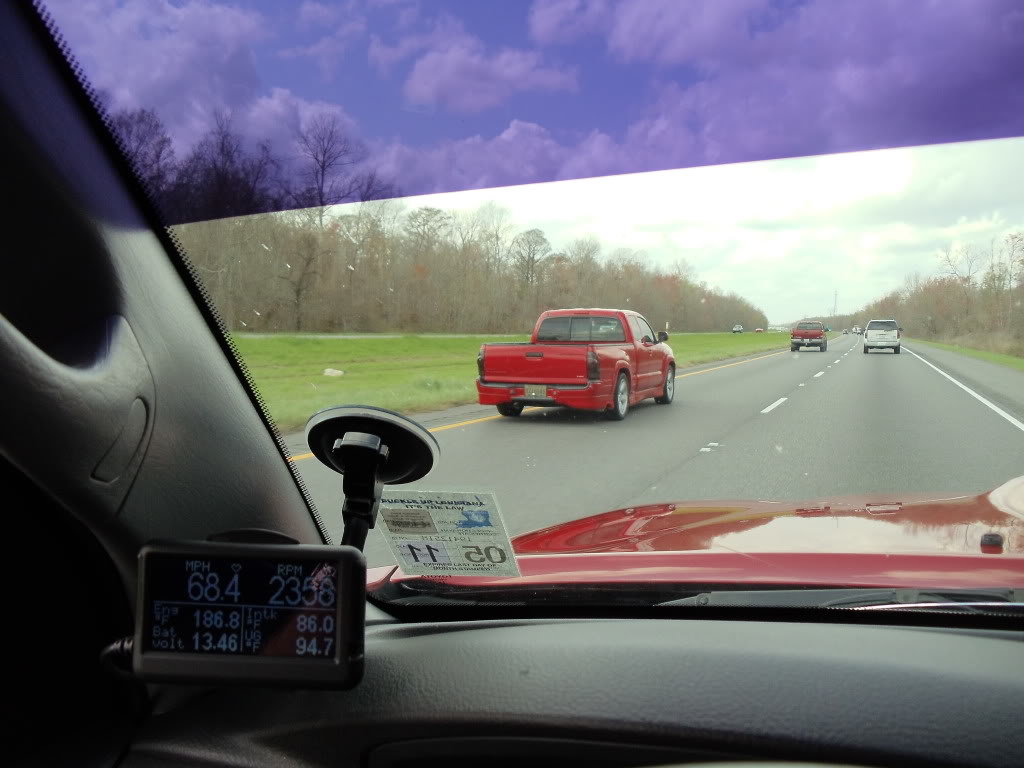

    Before
    [​IMG]

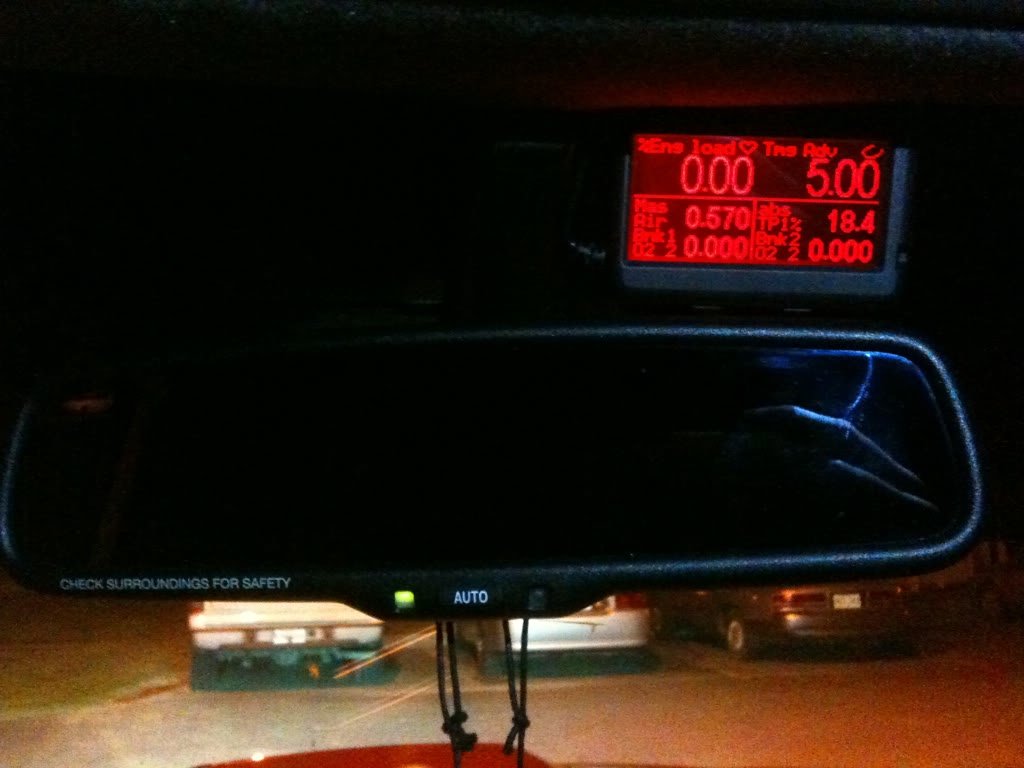

    After
    [​IMG]

    And this is how I have it mounted. The metal strap runs over the headliner and is self-tap screwed into the part that the overhead console mounts to.

  5. Oct 26, 2011 at 2:48 PM
    #5
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,848
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    That looks great! :thumbsup:

  6. Oct 26, 2011 at 3:00 PM
    #6
    Relik

    Relik Well-Known Member

    Joined:
    Nov 8, 2010
    Member:
    #45891
    Messages:
    602
    Gender:
    Male
    First Name:
    Eddy
    Thousand Oaks, CA
    Vehicle:
    '11 TRD Sport PreRunner-Auto-Magnetic Gray
    Bilstein 5100s (Front & ext. Rear), Eibach coils @ 0, MaxTrac 4" Spindles, Light Racing UCAs, 1/4" lean spacer, All-Pro 3" Standard leafs, u-bolt flip kit, SpiderTrax 1.25" wheel spacers, 33" (285/70/17) TreadWright Warden A/T tires, extended lines
    Looks good, whoever tackles this next should to a write-up :D I just got mine couple days ago, I must say its smaller than i thought hah. I got the new EM version. Still got to customize the display options and calibrate...

    Oh and whoever needs a new case if cracked/dropped its only $6 on their site.
    http://ultra-gauge.com/ZC/index.php?main_page=index&cPath=3&zenid=12povh9scbm2qebib5lppr6sh0
    [​IMG]

    I was thinking the same spot to mount mine! The drivers side looked better but the wire comes out on that side so it looks more clean as you have it. Any clearer pics of the strap/mounting you mention?

  7. Oct 26, 2011 at 4:43 PM
    #7
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod

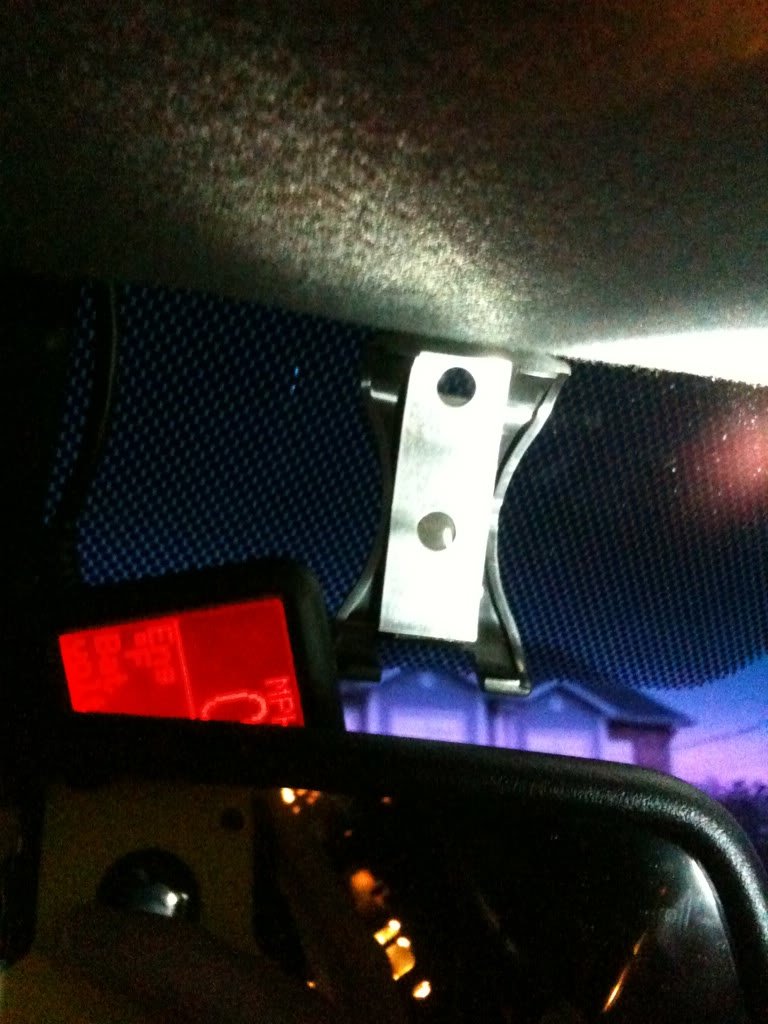

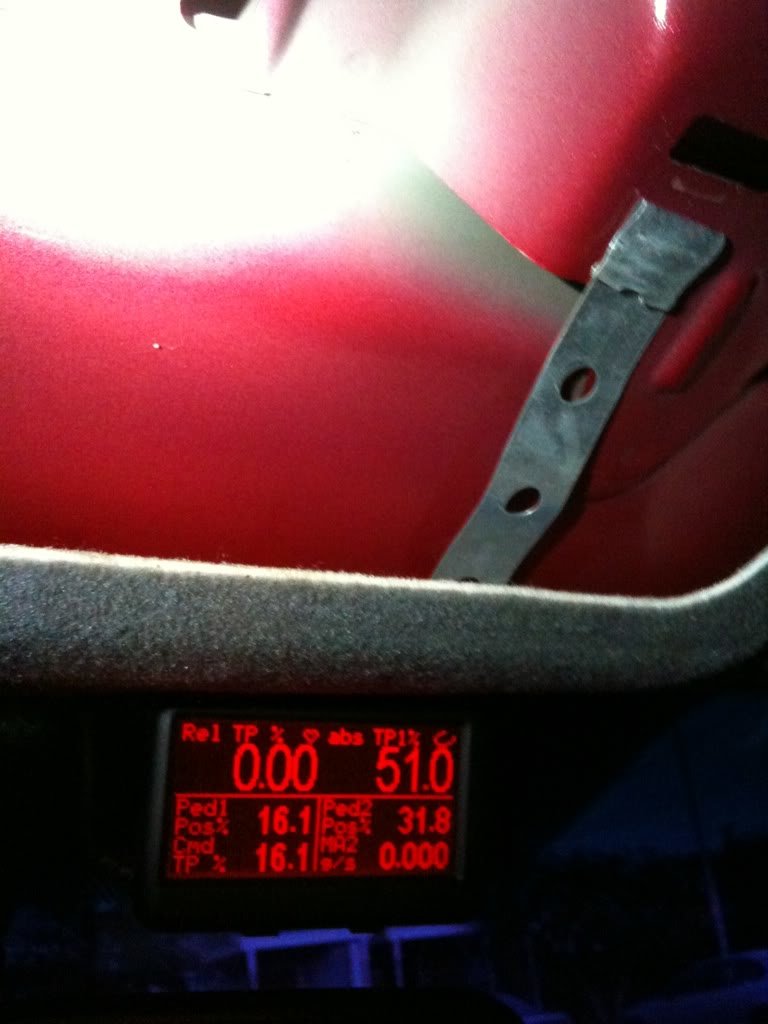

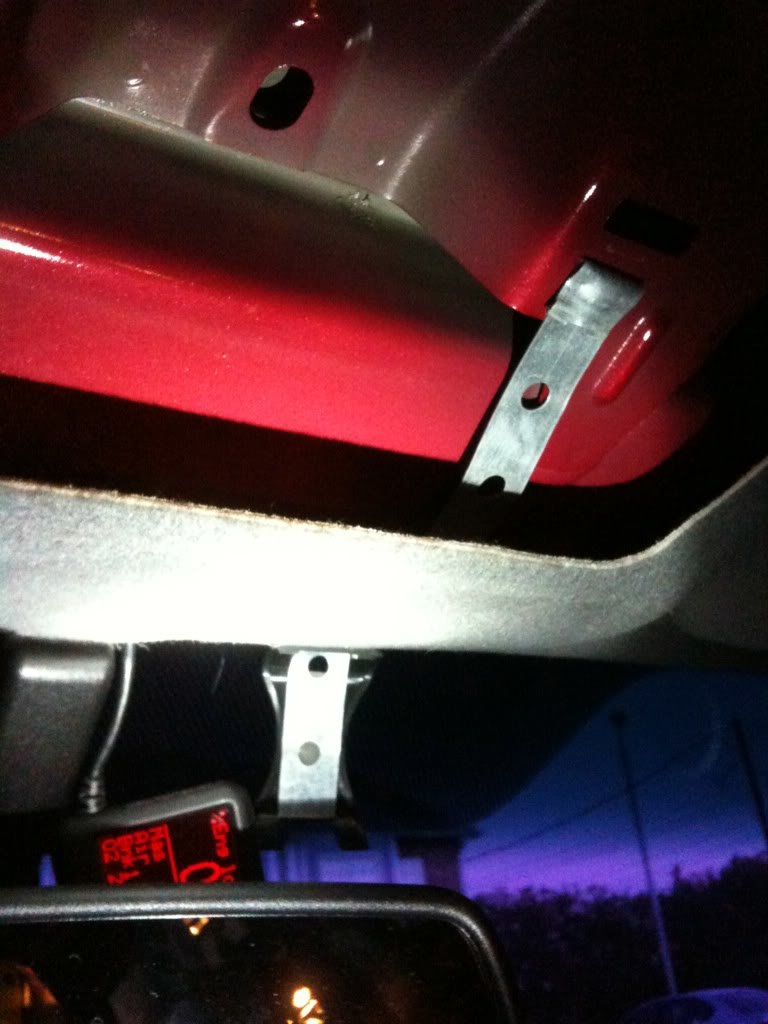

    The end of the strap above the overhead console is folded over the self rapping screw...i guess for a cleaner look even though you dont see it anyway lol. The second pic shows the piece that the UG clips to with 3m double sided tape connecting it to the metal strap.

    [​IMG]

    [​IMG]

    [​IMG]

  8. Oct 26, 2011 at 6:43 PM
    #8
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Sweet, hopefully I'll be doing this next, would any of these work?
    http://www.oznium.com/leds

    I'm having a hard time finding 0805s

  9. Oct 26, 2011 at 6:48 PM
    #9
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,848
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    FWIW, you can make it mount to that spot with the suction cup thing they provide with the Ultragauge. Put the suction cup behind the rear view mirror and then bend the stalk to make it sit above the rear view. That's actually how I have mine set up.

  10. Oct 26, 2011 at 7:10 PM
    #10
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
    I probably would have used the suction cup but I have a tint strip on my windshield and have had the tint get discolored from my radar detector being on it over time

  11. Nov 19, 2011 at 2:10 PM
    #11
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    .

  12. Jan 31, 2012 at 10:55 AM
    #12
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    I still can't find any smt 0806 LEDs. Has anyone else attempted this? Any other LEDs we can use?
