Ultragauge setup

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ToyComa92, Oct 18, 2011.

  1. Oct 18, 2011 at 12:34 AM
    #1
    ToyComa92

    ToyComa92 [OP] Write your love, Then your anger.

    Joined:
    Sep 9, 2011
    Member:
    #63168
    Messages:
    6,266
    Gender:
    Male
    First Name:
    Jon
    Conifer, Colorado
    Vehicle:
    2006 Tacoma TRD sport Debadged
    Heated katzskin leather, Black TRD sport wheels, Bilstein 5100s, Toytec 2" Springs, Deaver 2" AAL, Pioneer AVH4400BH, Ultragauge, Weathertechs front/rear,
    Hey guys just wondering which gauges are most beneficial to watch on my tacoma, Currently i have MPH,RPM,Instant MPG, avg MPG, Engine load, Coolant temp, Intake temp, and oil miles.

    What are your guys setups?

  2. Oct 18, 2011 at 5:05 AM
    #2
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,852
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Why MPH and RPM, do you not have a speedo and tach on your dash already?

    I just monitor fuel economy with mine.

  3. Oct 20, 2011 at 3:24 PM
    #3
    Tacoma Mike

    Tacoma Mike 42 Year Toyota Master/ASE Master Tech.

    Joined:
    Aug 6, 2011
    Member:
    #61230
    Messages:
    6,139
    Gender:
    Male
    First Name:
    Mike
    Southern Maine
    Vehicle:
    2011 Double Cab V6
    Large Storage Box, 02610 intermittent switch swap, "Hot Wire" Power Outlets, DRL Shut Off, Disable Fob Beep, Disable Seat Belt Buzzers, Parking Light Mod, Battery Tender, 4 Leaf Spring Pack, Rear Headrest Removal, Custom Ultragauge Mount, Factory Tow Package (7 Pin) Rear Diff Mod, Taco Lean Mod
    I went with what I DIDN'T have.

    Instant MPG
    Trip MPG average
    Volts
    timing advance
    Distance to empty
    Throttle opening
    Instant MPG will always stay as well as Volts.

    Getting a base line is always a good thing so swapping main screen will happen a lot.
    If you know what it always was then if something happens you have a reference.

    Speedo, Tach, Coolant ??????????? :goingcrazy:
    don't you already have those. ?????????

    Hey you can have it any way your want.
    What do you think is important ???
    Oil could be put on the second page with an alarm to sound i think.
    With something like 56 pages of information there's a lot of playing to do.

  4. Oct 20, 2011 at 7:14 PM
    #4
    iroh

    iroh Well-Known Member

    Joined:
    Oct 18, 2011
    Member:
    #65439
    Messages:
    1,398
    Gender:
    Male
    michigander
    Vehicle:
    07 AC SR5 2.7 5MT 4x4
    tonneau

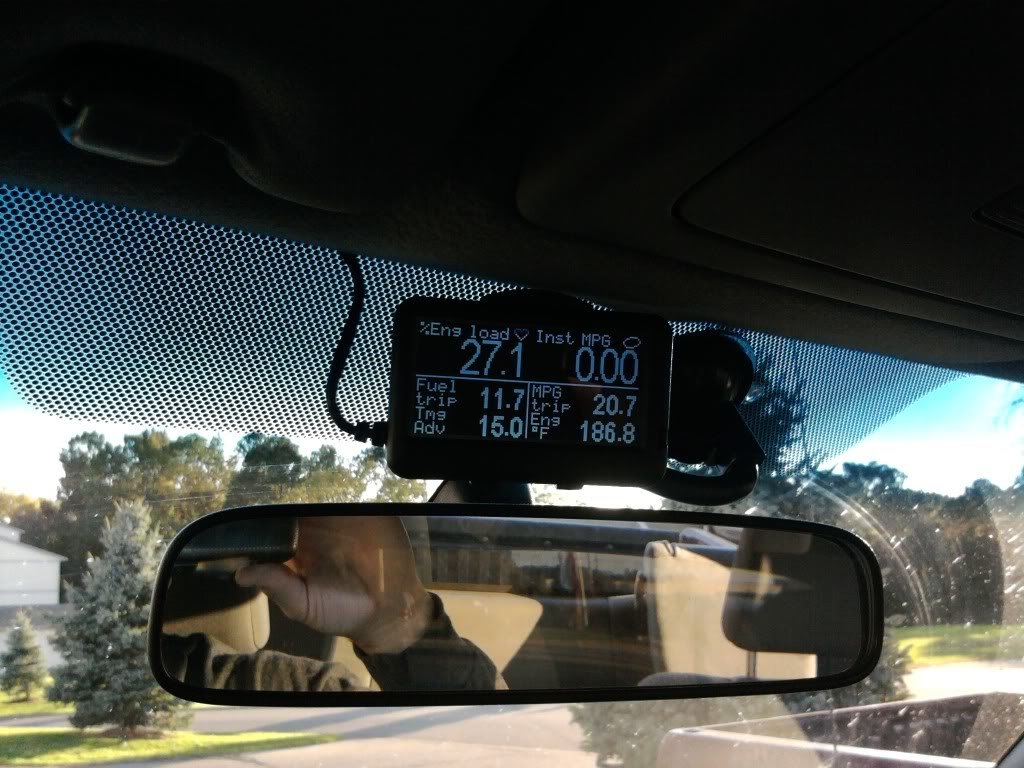

    [​IMG]


    Actually the coolant temp is fairly handy. The truck thinks it's warm at 160, but I know better. This gauge was the reason I bought the UG. My Honda didn't have a coolant gauge - it had C and H lights. Useless!

    Fuel trip is more useful than you'd think. My truck gets down next to E on the gauge when it still has 7 gallons in it. Totally serious. I always run the numbers when I fill up. The gas light comes on when about 6 gallons are left. Basically the gauge moves over a 10-gallon period, from 16 gallons to 6 gallons, which is why after the first hundred miles when it starts moving it looks like the truck is sucking the fuel.

    Ignition advance is nice at times. MPG trip is my indicator of if I'm doing better or worse than normal for mileage at the moment.

    Engine load is the most useful gauge to me ever, bar none. Accelerate at anywhere from 75 to 90% and it'll return FAR better mileage than otherwise. When it feels like you're driving conservative in this truck chances are you're doing about 65% load and wasting all sorts of fuel.

    RPM, tach, fuel trims, cat temps, IAT and other misc stuff are on my other 2 pages for when I'm curious. I used to have IAT where my ign adv is now but the IAT reading on this truck isn't so useful. It hardly changes.

  5. Oct 20, 2011 at 8:48 PM
    #5
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    609
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    I wondered if the suction cup would stick to that textured area behind the mirror... I must try that.

  6. Oct 20, 2011 at 8:53 PM
    #6
    iroh

    iroh Well-Known Member

    Joined:
    Oct 18, 2011
    Member:
    #65439
    Messages:
    1,398
    Gender:
    Male
    michigander
    Vehicle:
    07 AC SR5 2.7 5MT 4x4
    tonneau
    It won't stick up there. I picked up a garmin dash mount disc and stuck it up there.

    If you choose to do this, run the ultra-gauge cable from the OBD2 port FIRST because there is literally no extra. I put it a little too far to the right originally and had to remove that supposedly permanent mounting disc, which entailed pulling it with the UG mount and using a dull metal dogtag underneath to apply pressure for over 20 minutes before it would let loose.

    Trust me, once it's there, it'll NEVER want to come off again. On the bright side, not even summer heat will drop the UG.

  7. Oct 20, 2011 at 8:57 PM
    #7
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    609
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    Ah ok. I had my doubts. I'll find another spot. Need to soon, the cord is driving me nuts waiting for me to find it a home.

  8. Oct 24, 2011 at 1:17 AM
    #8
    ToyComa92

    ToyComa92 [OP] Write your love, Then your anger.

    Joined:
    Sep 9, 2011
    Member:
    #63168
    Messages:
    6,266
    Gender:
    Male
    First Name:
    Jon
    Conifer, Colorado
    Vehicle:
    2006 Tacoma TRD sport Debadged
    Heated katzskin leather, Black TRD sport wheels, Bilstein 5100s, Toytec 2" Springs, Deaver 2" AAL, Pioneer AVH4400BH, Ultragauge, Weathertechs front/rear,
    to be honest i just bought it and i thought it would be cool, The MPH i wanted to see how off my speedo was with my tires, Im off by about 2mph. Coolant is nice for the above stated reason and because i try to let it cool down before i shut off the engine.

    Just wondering, How do you calibrate the Avg. MPG? mine says something ridiculous like 1869.0 lol Anyway to possibly get that fixed? Do i have to reset something?

  9. Oct 24, 2011 at 4:08 AM
    #9
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    609
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    Hit the menu button, pick Gauge Menu. The zeroing functions are in there.
    They have a nice PDF of the user manual on their site.. I took a skim through and realized just how much this thing does - and how a good chunk of the data I don't even understand :eek:

  10. Oct 24, 2011 at 4:32 AM
    #10
    bikerz

    bikerz Member

    Joined:
    May 17, 2010
    Member:
    #37287
    Messages:
    11
    Gender:
    Male
    Vehicle:
    TRD Offroad
    Just installed one in my Tacoma. Fairly easy setup, however when I change pages I have to let it advance two pages to get to the next page. In other words I have to let it go past the next page or it reverts back to the original page. Anyone else have tis issue?:confused:

  11. Oct 24, 2011 at 5:24 AM
    #11
    WV150

    WV150 Well-Known Member

    Joined:
    Apr 26, 2011
    Member:
    #55600
    Messages:
    360
    Gender:
    Male
    South Carolina
    Trifecta Tonneau Cover
    There seems to be a lot of information on one page.Can it be set up where you can have only average mpg and instant mpg on one page like the Ki-Wi? Has anyone had any experence with the Ki-Wi?

  12. Oct 24, 2011 at 5:40 AM
    #12
    98tacoma27

    98tacoma27 is gooder 'en chicken Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    49,871
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+250k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED)
    5100's all on fours
    I looked for that manual for 2 days. My searching skills have failed me.

  13. Oct 24, 2011 at 9:30 AM
    #13
    DonL

    DonL Well-Known Member

    Joined:
    Nov 25, 2009
    Member:
    #26507
    Messages:
    203
    Gender:
    Male
    First Name:
    Don
    Prescott, AZ
    Vehicle:
    Tacoma TRD
    Monster Exhaust, Shell, 5100's all around, Airlift airbags, Hankook Atm, K&M air filter
    Here's the manual. ultragauge_user_manual.pdf

  14. Oct 24, 2011 at 1:56 PM
    #14
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    609
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
  15. Oct 24, 2011 at 2:10 PM
    #15
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    609
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    Depends if you have the original or EM model Ultragauge. Original looks like it does 6 per page, the EM does 4,6, or 8 (user selectable). You could try only picking two gauges out of six to display on your page, that should work.

  16. Oct 24, 2011 at 6:02 PM
    #16
    iroh

    iroh Well-Known Member

    Joined:
    Oct 18, 2011
    Member:
    #65439
    Messages:
    1,398
    Gender:
    Male
    michigander
    Vehicle:
    07 AC SR5 2.7 5MT 4x4
    tonneau
    Indeed you can go less than 6 per. It actually has a clearing function that if you use then no pages will have gauges until you set them.

    Still I gotta say I can't drive without %load. 85% accelerating may be even better for mileage than the 75% I was using before. Unfortunately every cavalier thinks I'm racing from a stoplight even though I'm shifting at 2200 :confused:

    Gotta calibrate it if you want it accurate though, and over lots of miles is better. Finally got mine dialed in for the most part. Last fill was off by 0.04gal. FWIW calibration factor at 1.11 is absolutely perfect on my 1GR.

  17. Oct 24, 2011 at 7:16 PM
    #17
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    609
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    Yeah I need to calibrate too.. haven't had it long enough quite yet to do the fill-up calibration.

    How did you guys run the wires? I have it tucked in behind the black rubber strip for the driver's door, and the excess tied up in above the OBD connector.

  18. Oct 24, 2011 at 7:30 PM
    #18
    Rufus

    Rufus Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35486
    Messages:
    444
    Gender:
    Male
    SoCal
    Vehicle:
    2010 TRD PreRunner Sport
    OEM Truck Bed Extender, Window Tint, Tailgate Security Mod, OEM Spare Tire Lock, Cam Locks (storage compartments), OEM Bed Mat, OEM Skid Plate, Stant 11504 Locking Gas Cap, TW Edrin55 OEM Running Boards, Pop & Lock w/Back-Up Cam, Black WeatherTechs, Red Line Quick Lift Plus Hood Struts, Wet Okole Front Seat Covers-black/charcoal with red & white TRD graphic & back seat pockets, DIY Satoshi Grillcraft & Old School Toyota Badge, TW ZonKs Black UWS Low Pro Truck Box, Rear Suspension TSB, 3M Scotch Guard Paint & Headlight Protection Film 8mm Urethane, Flyzeye V2 Wired Amber/White/Amber Interior LED Lights w/Silver Case, Sleek Looking Black LED Tail Lights from K2 Motors (Identical to OEM, but black).

    :notsure: Are you saying that a heavy foot, pedal-to-the-metal, lead foot, race to the stop light equals better mpg's? :p

  19. Oct 25, 2011 at 5:56 PM
    #19
    iroh

    iroh Well-Known Member

    Joined:
    Oct 18, 2011
    Member:
    #65439
    Messages:
    1,398
    Gender:
    Male
    michigander
    Vehicle:
    07 AC SR5 2.7 5MT 4x4
    tonneau
    Lowest BFSC tends to occur around 80% engine load for gas engines, although that depends on other factors as well.

    It's kind of like targeting the highest engine compression you can do without making the fuel mixture go rich. This lowers pumping losses (lower manifold vacuum, why vac gauge guys would accelerate at 2-4" Hg) and the higher dynamic compression makes proportionally more physical work of the energy released in the burn. When combined with lower engine speed, as drag within the engine increases at roughly the square of its speed, you use less fuel for an acceleration event. You can't go too low an rpm though as the higher manifold pressure coupled with low airspeed will cause fuel to condense out of the mixture before it is burned, causing incomplete combustion and excess carbon. Around 2000 rpm is usually good.

    Or so the theory goes. In my Honda 85% load meant 55 mph in a third of a mile. In a truck making around 270 lb-ft that happens somewhat more quickly.

    You will NOT hit that load without a gauge though, I can tell you that. It's a narrow window between 70% and 95%, not even a 1/4" on the go pedal I'd wager, although you can tell once you've become accustomed to it how much you're getting on it. Definitely NOT pedal to the metal - 85% throttle at 2000 rpm is somewhere between a half inch and an inch from the UP position.

    For what it's worth, it does work. My commute is so short I can't get through a single song on the radio. My lowest tank mileage for doing this commute is 19.1 mpg so far on the V6.

  20. Oct 26, 2011 at 12:19 AM
    #20
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    609
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    :eek:

    Wow. You sir, know stuff.

    :popcorn:
