UltraGauge Trans Temp Codes for 3rd Gen

UPDATE: I have included in the first post the code for the 2.7 4 cylinder engine.

I was given an Ultra Gauge MX 1.3 for Christmas and I was not able to find codes for the trans temps on the web for anything past 2015. I contacted Ultra Gauge and Steven was extremely helpful. On the second try, the codes worked and returned temperature values instead of errors. These codes are entered under the M gauge section.

UltraGauge has also updated their website to include these codes for 2016 and up.

The Scangauge codes listed in another thread for 3rd gens was translated by UltraGauge, but they didn't work, so UltraGauge developed the code for our 3rd gen.

3.5 V6 Engine

PAN Temperature:
TDATA: 07012216270000
TCTRL: 93
RCTRL: 31
RPOS: 2010
MTCH: 621627
X: 0001
/: 0100
+: FFD8

Out Format: 00 for C
Out Format: 10 for F

AVE: 00

Left/Right: 31 for three digits to the left of the decimal and one digit to the right of the decimal (ex. 192.6).
Left/Right: 30 for three digits to the left and no digits to the right of the decimal. (ex. 193). Thanks to @Toycoma2021 for providing this option


Trans Post converter Temp:
TDATA: 0701221628
TCTRL: 93
RCTRL: 31
RPOS 2010
MTCH: 621628
X: 0001
/: 0100
+: FFD8

Out Format: 00 for C
Out Format: 10 for F

AVE: 00

Left/Right: 31 for three digits to the left of the decimal and one digit to the right of the decimal (ex. 192.6).
Left/Right: 30 for three digits to the left and no digits to the right of the decimal. (ex. 193).

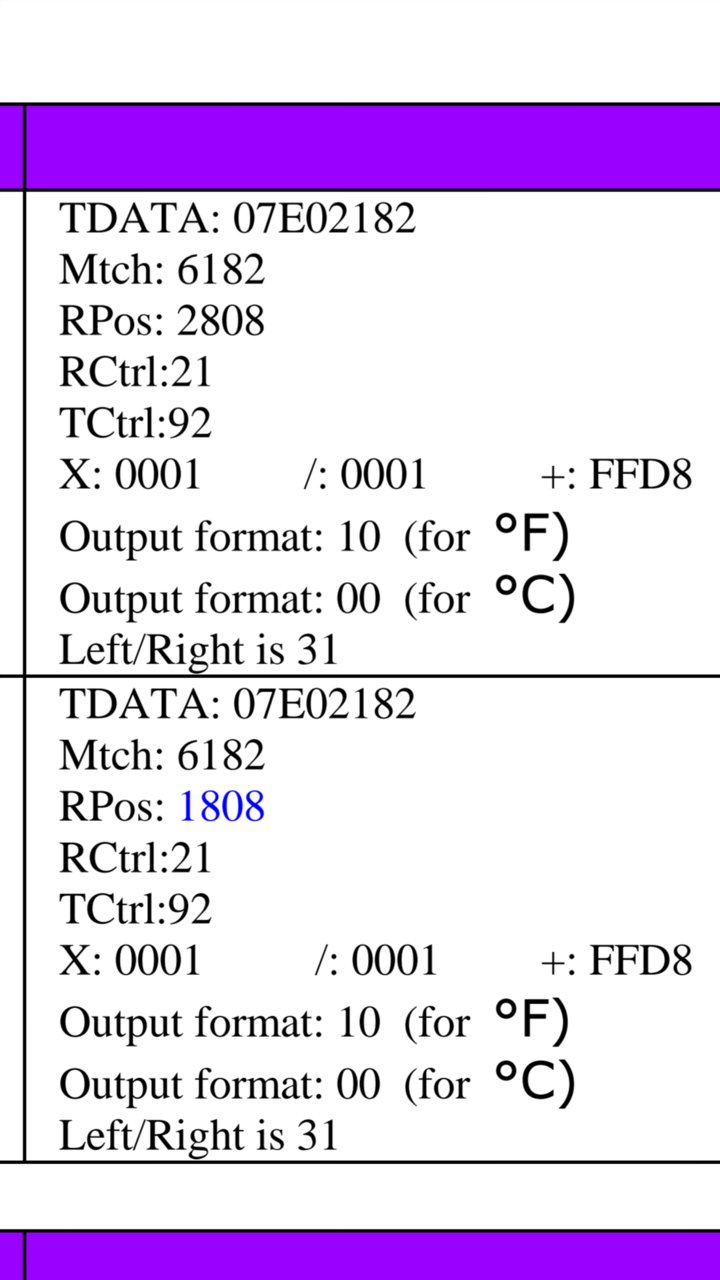

2.7 4 Cylinder Engine (courtesy of ancient11)



Any other feedback on this? I matched the data as posted, but still getting an error.

Cheers

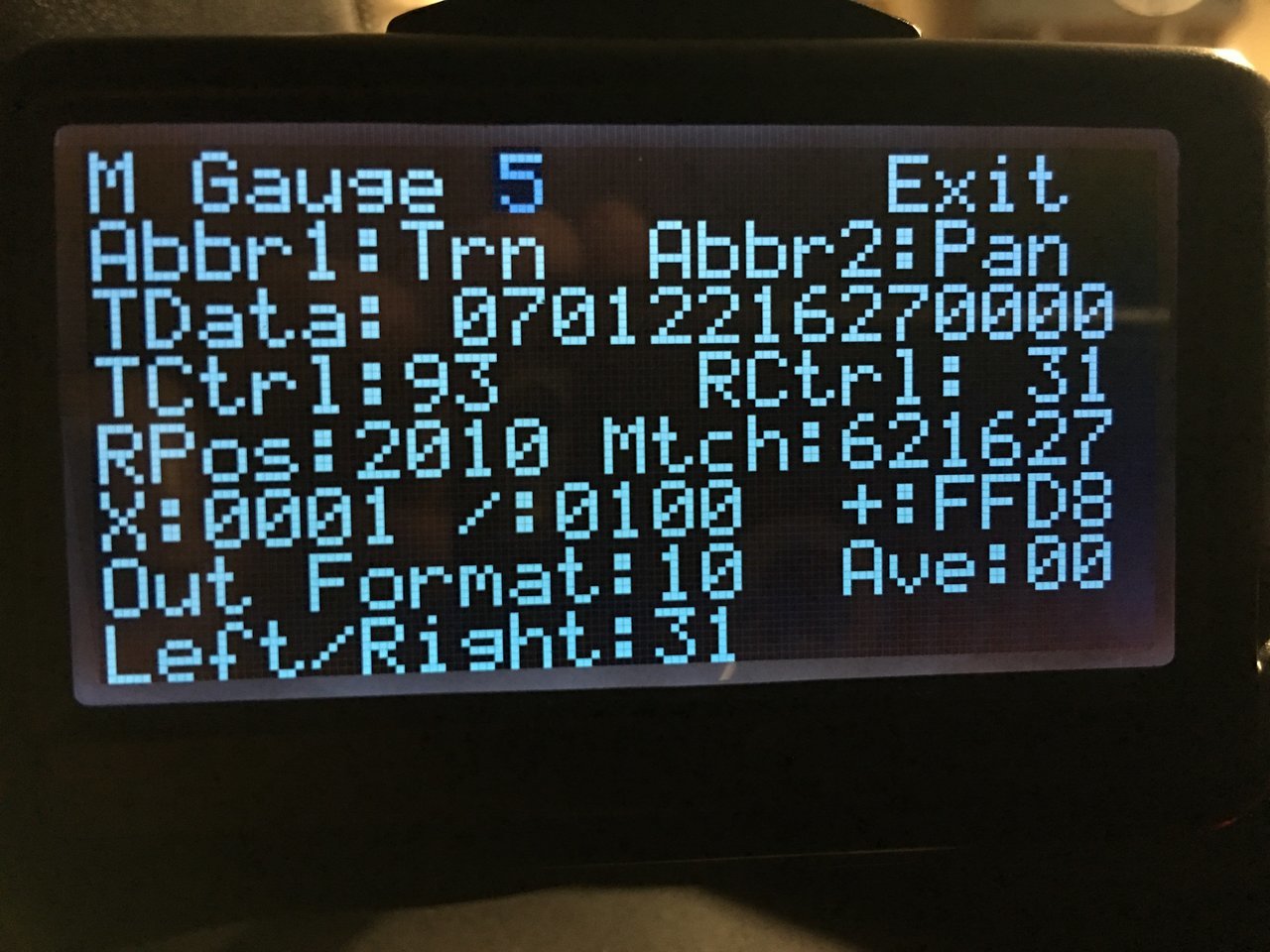

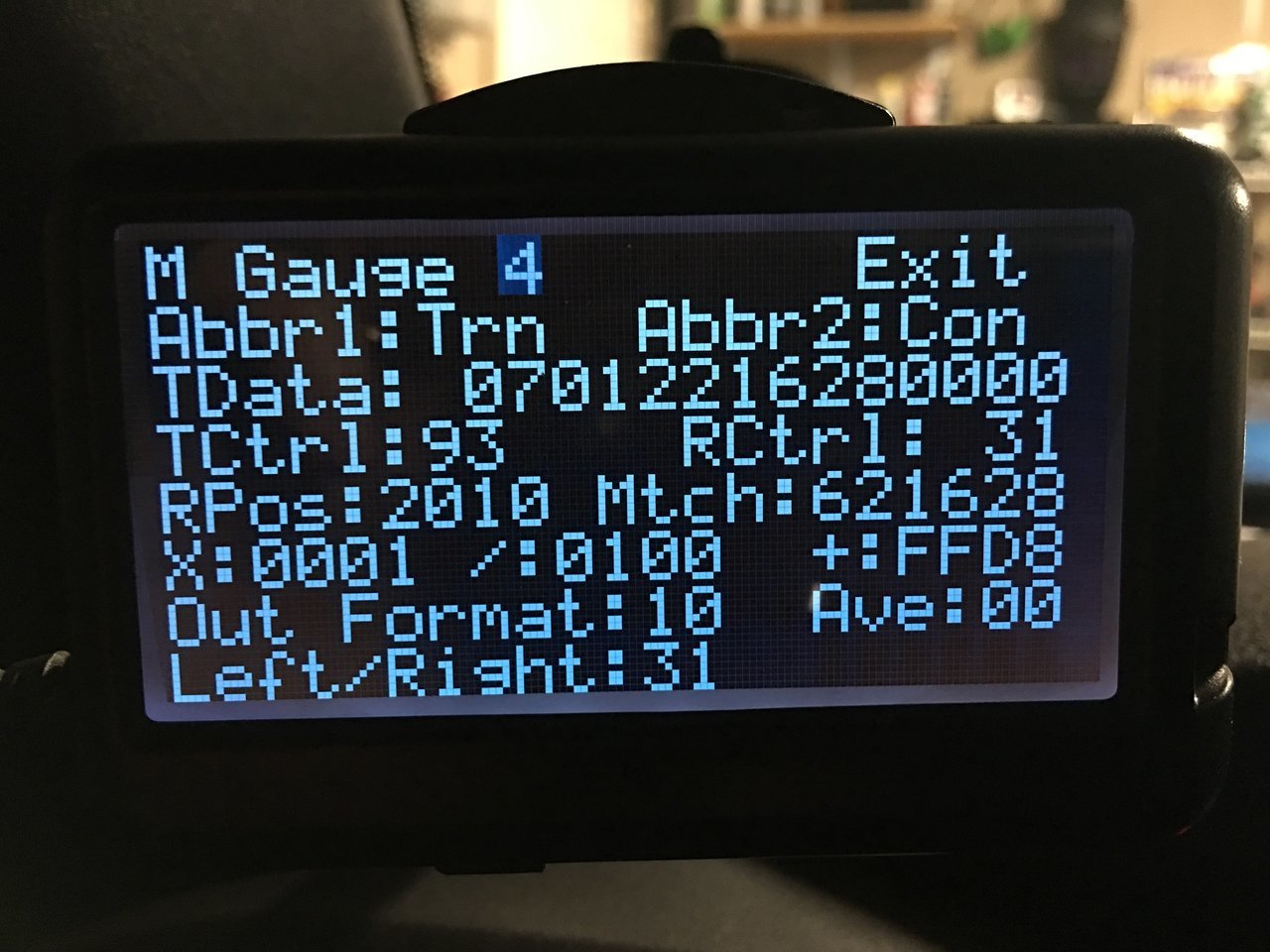

@JiminMaine Here are two pics of the codes that are in my Ultra Gauge. The first is the converter temp code (Trn Con) and then the pan temp code (Trn Pan). These are working fine for me and I hope this helps.



Thanks @tacoma04. I'm on it!



I hope it works Jim. If it doesn't, I don't know what to tell you.

You could start a tech ticket like I did with Ultra Gauge and see if they can work it out.



Thanks mate.

I appreciate you taking the time to post the photos. It worked out fantastic!

Cheers



Glad you got it working



Sub



sooo just to confirm, you guys are able to read transmission temperatures on a ultragauge on a 3rd gen?

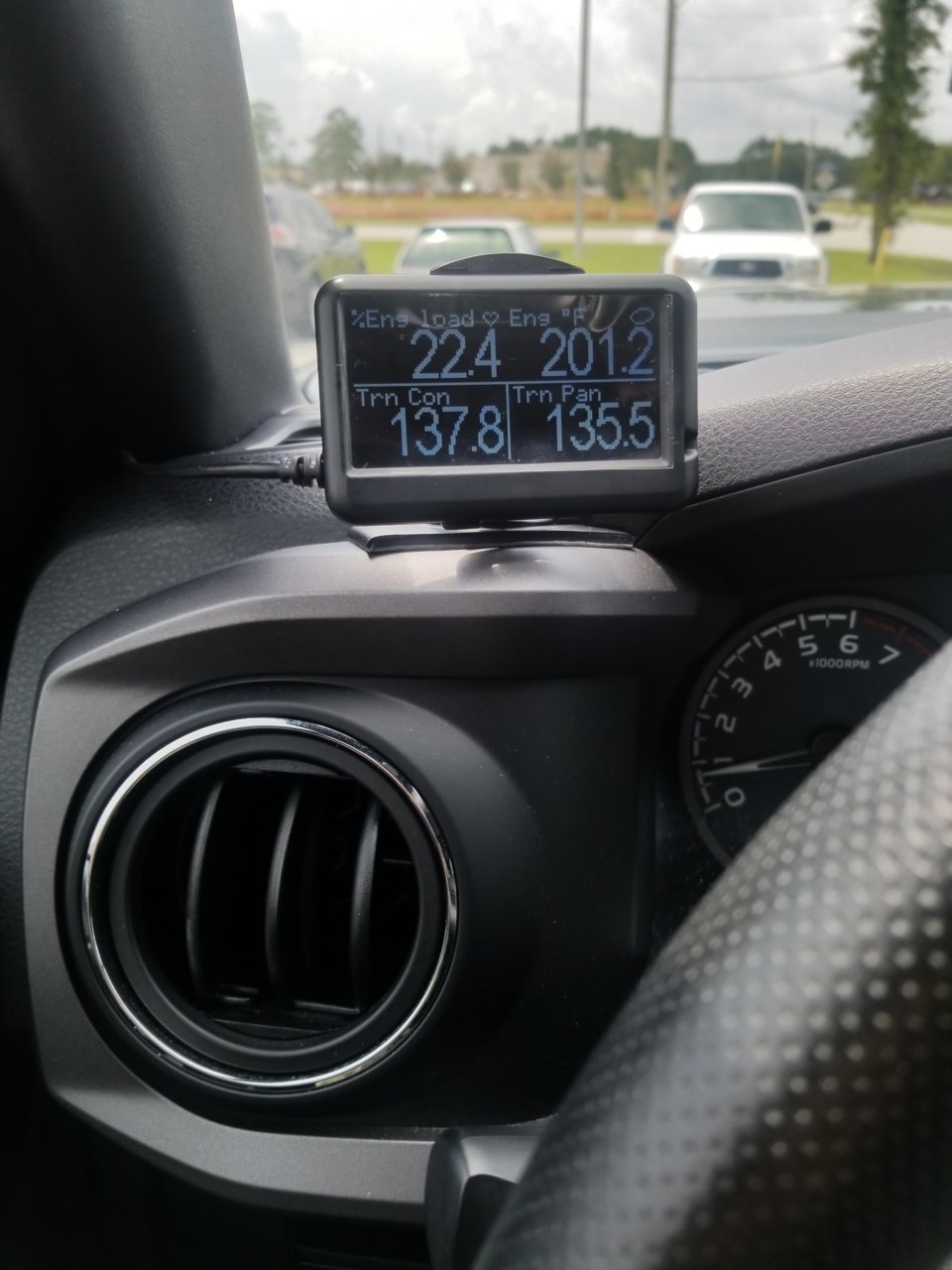

Yes, both the pan temp and torque converter temp



Where do you guys have your UG's mounted?

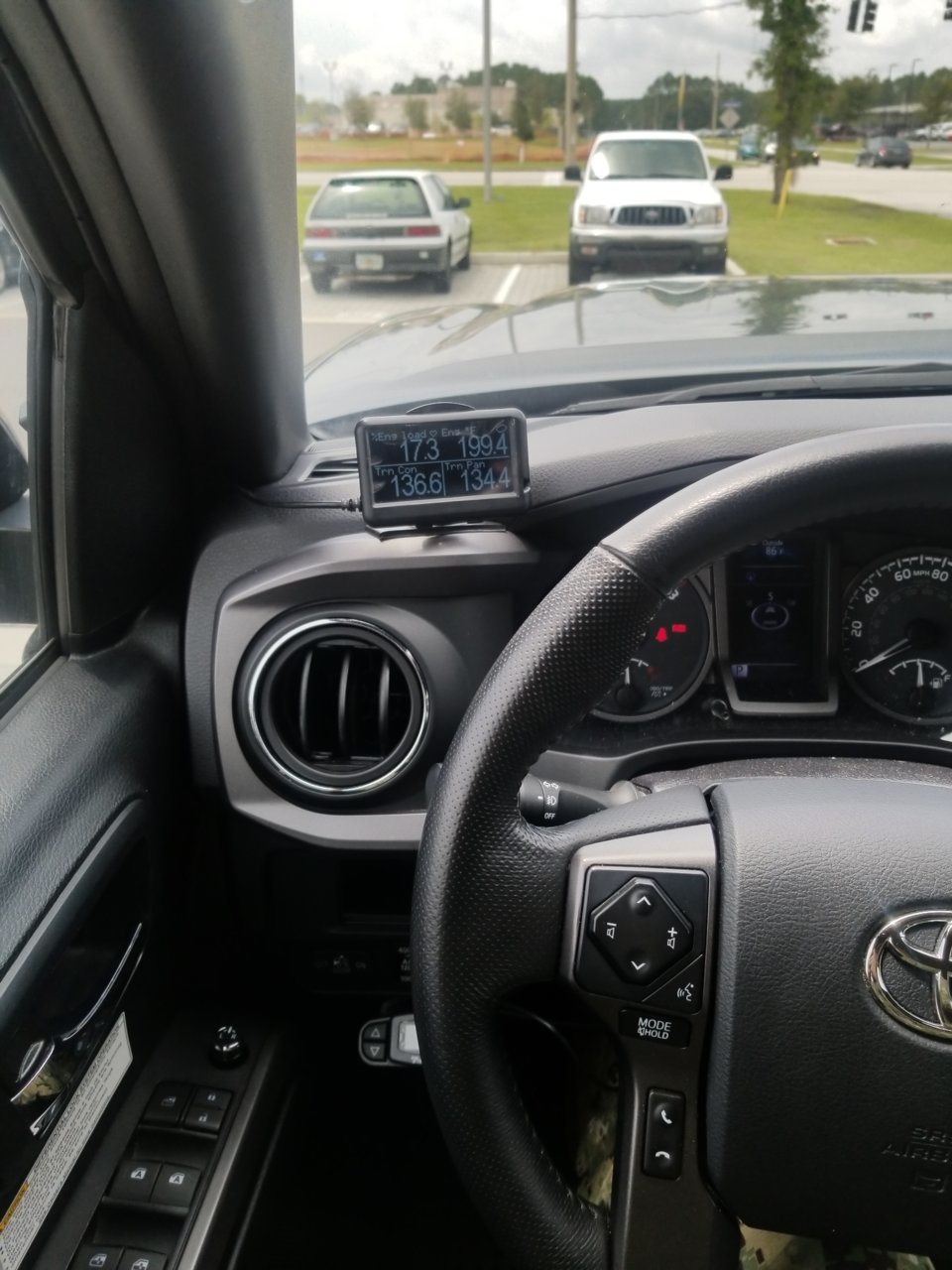

I mount mine on the lower left of the windshield using the suction cup mount from UG. It is easy to see and I run the cord to the left of the vent. I don't keep mine in the truck all the time, so I haven't thought about a more permanent mount.



Do you have a pic?



No, but I'll take one in just a bit.



I ordered one with the horizontal mount.



That's a good choice. I don't keep mine in the truck all the time so the suction cup works well for me. If I decide to keep it in all the time, using your mount and then run try to hide the cord using the door weather stripping would be a good option, as long as the cord doesn't get pinched.



I'm just gonna keep it in there. I'm going to mainly use it while I tow my camper to monitor Trans temps.. I keep my Brake controller in there hooked up to. I'm just to lazy to unhook it all the time. How hard was it to input the codes for the trans temp readings?



The codes are easy to input. They are entered under the M Gauge section of the menu. UG's website has instructions on how to do it.

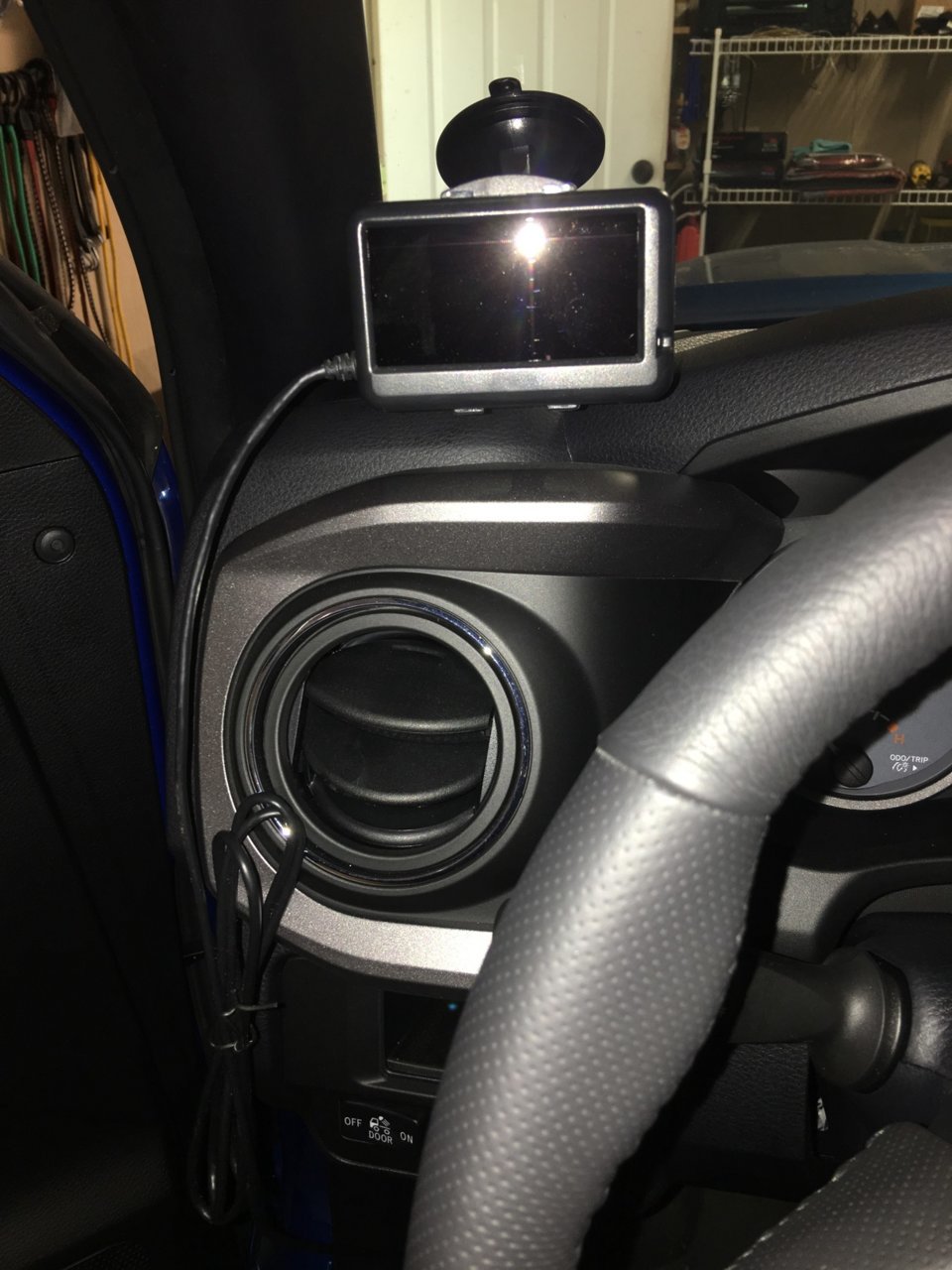

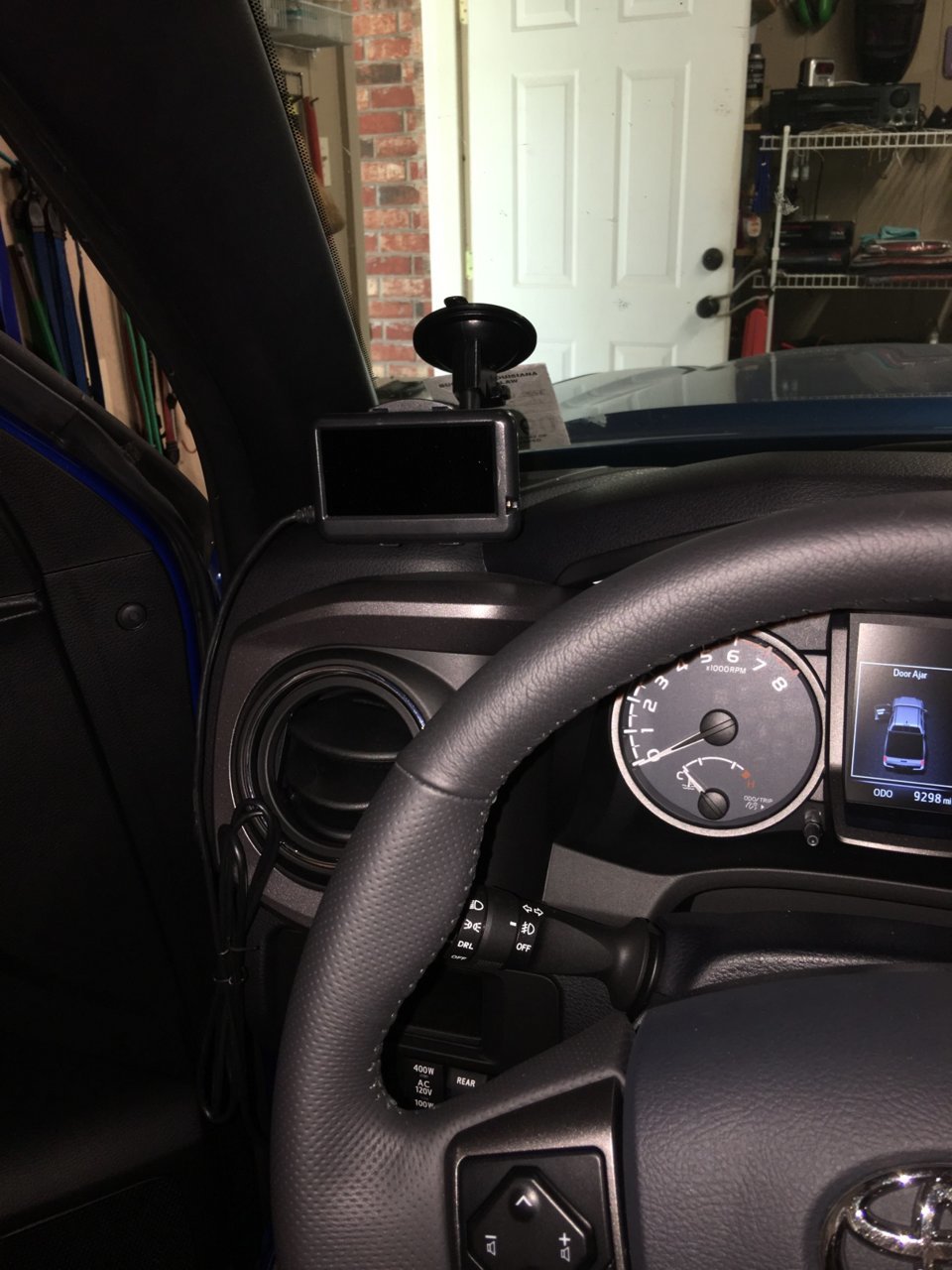

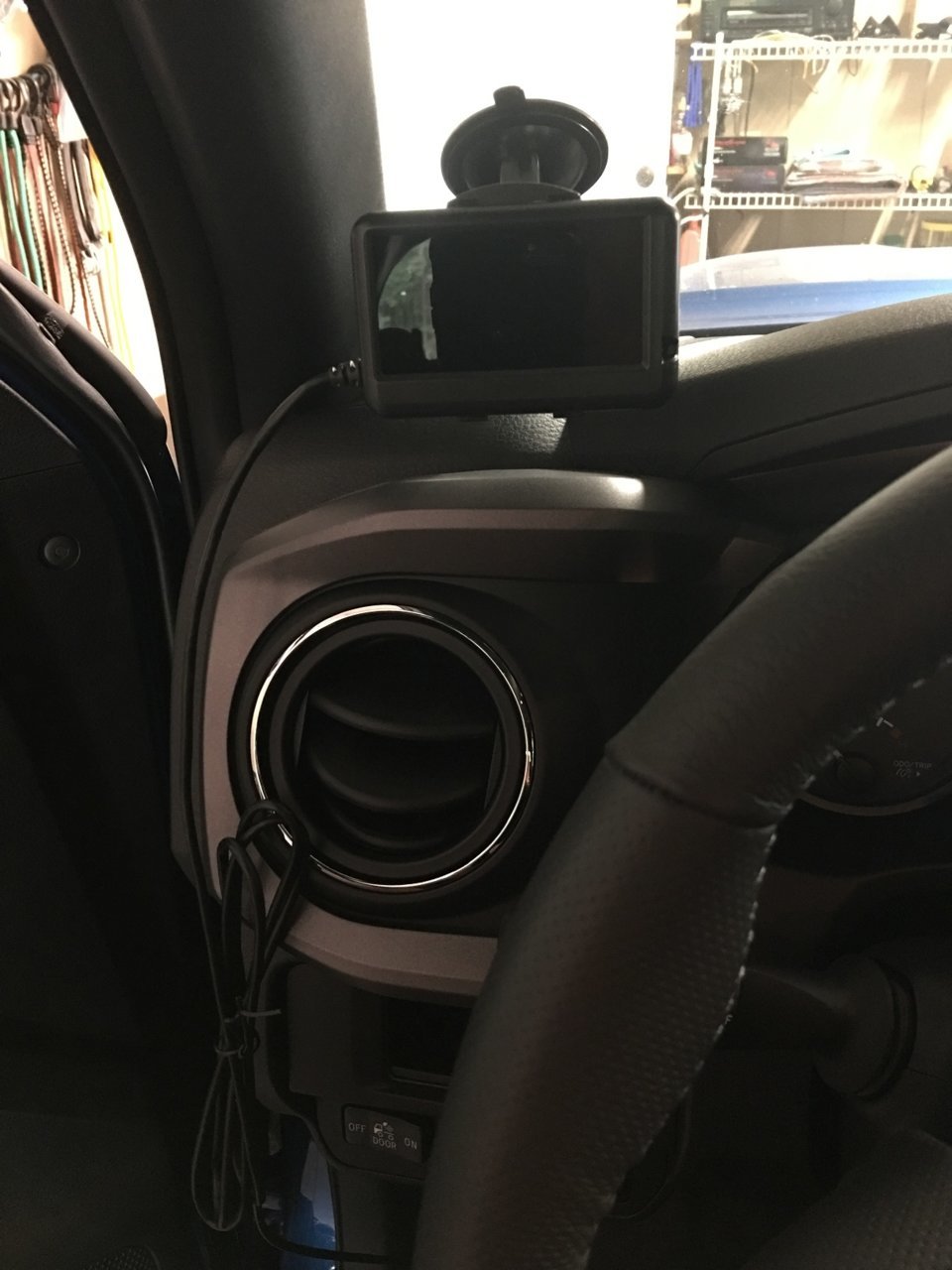

Set up was easy and pretty straightforward. I cut the mount to fit where I wanted. Really happy with the turn out and the UG.
