Ultragauge transmission temp

Discussion in '2nd Gen. Tacomas (2005-2015)' started by MyMistress, Mar 2, 2014.

  1. Sep 15, 2019 at 4:19 AM
    #661
    lynyrd3

    lynyrd3 Strength ,Determination ,Merciless,Forever

    Joined:
    Apr 9, 2008
    Member:
    #5848
    Messages:
    21,978
    Gender:
    Male
    First Name:
    Bill
    Southern Capital District,New York
    Vehicle:
    2008 SR5 AC SUPER WHITE V6 4x4 AT / 2020 RAV4 XLE
    Bilstein 6112s top setting ,Total Chaos UCAs ,1/4" top plate spacer driver side ,SS extended brake lines ,Old Man Emu Medium Duty Dakar leaf springs with AAL,OME carrier bearing shim , Bilstein 5125s for 2-3” of lift in rear ,Timbren SES bump stops , SS extended brake lines rear , Toytec dif drop , Hayden high performance transmission fluid cooler,aFe pro dry air filter , ,Powerstop drilled and slotted rotors.Baja amber driving combo ditch lights , Devil horns by Andres ,Weathertecs floor protector, American Racing wheels Baja 17x8,4.5 BS , 285/70 Falken Wildpeaks AT/3W .Body Armor rear bumper . Extra D rings in bed ,Blue sea fuse block and 100amp breaker ,G-Tek Fab door sill protectors ,HomerTaco grill , TRD radiator cap ,Birddawg Industries rear view mirror riser bracket ,Coverking NeoSupreme Mossy Oak seat covers , Paranoid Fabrications fuse /relay holder Painted pinch weld.Shorty antenna ,HVAC knob mod ,LED dome and map lights , Tri Fold bed cover ,UltraGauge ,Morimoto XB LED fog lights ,Energy Suspension poly body bushings and sway bar bushings ! Geartech Customs splash guards ,Salex center console organizer . Mobtown tailgate cap ,tailgate anti theft mod , Mobtown weld on sliders with kick out ,0* , black wrinkle powder coated ! ,NEW frame courtesy of Toyota !
    The Trn temp is the Torque converter . I think the other code will say PAN . Going off memory here ,it’s been a few years since I installed the UG

  2. Sep 15, 2019 at 4:21 AM
    #662
    lynyrd3

    lynyrd3 Strength ,Determination ,Merciless,Forever

    Joined:
    Apr 9, 2008
    Member:
    #5848
    Messages:
    21,978
    Gender:
    Male
    First Name:
    Bill
    Southern Capital District,New York
    Vehicle:
    2008 SR5 AC SUPER WHITE V6 4x4 AT / 2020 RAV4 XLE
    Bilstein 6112s top setting ,Total Chaos UCAs ,1/4" top plate spacer driver side ,SS extended brake lines ,Old Man Emu Medium Duty Dakar leaf springs with AAL,OME carrier bearing shim , Bilstein 5125s for 2-3” of lift in rear ,Timbren SES bump stops , SS extended brake lines rear , Toytec dif drop , Hayden high performance transmission fluid cooler,aFe pro dry air filter , ,Powerstop drilled and slotted rotors.Baja amber driving combo ditch lights , Devil horns by Andres ,Weathertecs floor protector, American Racing wheels Baja 17x8,4.5 BS , 285/70 Falken Wildpeaks AT/3W .Body Armor rear bumper . Extra D rings in bed ,Blue sea fuse block and 100amp breaker ,G-Tek Fab door sill protectors ,HomerTaco grill , TRD radiator cap ,Birddawg Industries rear view mirror riser bracket ,Coverking NeoSupreme Mossy Oak seat covers , Paranoid Fabrications fuse /relay holder Painted pinch weld.Shorty antenna ,HVAC knob mod ,LED dome and map lights , Tri Fold bed cover ,UltraGauge ,Morimoto XB LED fog lights ,Energy Suspension poly body bushings and sway bar bushings ! Geartech Customs splash guards ,Salex center console organizer . Mobtown tailgate cap ,tailgate anti theft mod , Mobtown weld on sliders with kick out ,0* , black wrinkle powder coated ! ,NEW frame courtesy of Toyota !
  3. Sep 15, 2019 at 5:59 AM
    #663
    ancient11

    ancient11 Well-Known Member

    Joined:
    Dec 23, 2013
    Member:
    #119094
    Messages:
    489
    Gender:
    Male
    First Name:
    robert
    tallahassee
    Vehicle:
    2019 4 cyl srsx ac
    These say 2012 to 2015 but may work for a 2007

    jkuniverse likes this.
  4. Sep 15, 2019 at 9:58 AM
    #664
    1rooster

    1rooster TACOMA31750

    Joined:
    Jun 14, 2010
    Member:
    #38925
    Messages:
    979
    Gender:
    Male
    Georgia
    Vehicle:
    2007 Tundra crewmax
    5100's ALL WAY AROUND, 885X COILS, DRIVER SIDE LEAN SPACER, ICON PROGRESSIVE AAL W/O OVERLOAD, 265/75/16 KENDA KLEVER M/T. 1 1/4 SPIDERTRAC WHEEL SPACERS, GEN 1 TRD COLD AIR INTAKE, STOCK MUFFLER WITH CHOPPED TURNDOWN, 5% TINT OVER FACTORY, DEBADGED, TOYOTA RUBBER BED MAT, WEATHERTECH MATS,UWS TOOLBOX, UNDERCOVER SE, LOCKER MOD, REAR BUMPER, PIONEER DOUBLE DIN WITH PARKING BREAK OVER RIDE, CUSTOM OIL CATCH CAN, FULL LED INTERIOR, ARB BUMPER REPLACEMENT. COVERKING SEAT COVERS. MORIMOTO H1 MINI COVERSION WITH MINI GATLIN GUN SHROUDS AND 5000K MORIMOTO BULBS. TRAILER PLUG RELOCTED TO BUMPER. 20 INCH LED LIGHTBAR MOUNTED BEHIND CUSTOM PAINTED GRILL. STUBBY ATNENNA
    6.5x12 trailer, Honda pioneer sxs, and gear. So roughly 3800 lbs

  5. Sep 15, 2019 at 10:24 AM
    #665
    lynyrd3

    lynyrd3 Strength ,Determination ,Merciless,Forever

    Joined:
    Apr 9, 2008
    Member:
    #5848
    Messages:
    21,978
    Gender:
    Male
    First Name:
    Bill
    Southern Capital District,New York
    Vehicle:
    2008 SR5 AC SUPER WHITE V6 4x4 AT / 2020 RAV4 XLE
    Bilstein 6112s top setting ,Total Chaos UCAs ,1/4" top plate spacer driver side ,SS extended brake lines ,Old Man Emu Medium Duty Dakar leaf springs with AAL,OME carrier bearing shim , Bilstein 5125s for 2-3” of lift in rear ,Timbren SES bump stops , SS extended brake lines rear , Toytec dif drop , Hayden high performance transmission fluid cooler,aFe pro dry air filter , ,Powerstop drilled and slotted rotors.Baja amber driving combo ditch lights , Devil horns by Andres ,Weathertecs floor protector, American Racing wheels Baja 17x8,4.5 BS , 285/70 Falken Wildpeaks AT/3W .Body Armor rear bumper . Extra D rings in bed ,Blue sea fuse block and 100amp breaker ,G-Tek Fab door sill protectors ,HomerTaco grill , TRD radiator cap ,Birddawg Industries rear view mirror riser bracket ,Coverking NeoSupreme Mossy Oak seat covers , Paranoid Fabrications fuse /relay holder Painted pinch weld.Shorty antenna ,HVAC knob mod ,LED dome and map lights , Tri Fold bed cover ,UltraGauge ,Morimoto XB LED fog lights ,Energy Suspension poly body bushings and sway bar bushings ! Geartech Customs splash guards ,Salex center console organizer . Mobtown tailgate cap ,tailgate anti theft mod , Mobtown weld on sliders with kick out ,0* , black wrinkle powder coated ! ,NEW frame courtesy of Toyota !
  6. Sep 16, 2019 at 12:37 AM
    #666
    Chuy

    Chuy Well-Known Member

    Joined:
    Aug 4, 2008
    Member:
    #8328
    Messages:
    1,956
    Gender:
    Male
    Lakeside, CA
    Vehicle:
    07 V6 DCLB 4X4 Sp
    2.5 inch lift; 5100's front; OME rear; Air Lift; dual batteries; Bestop bed cover; Nfab nerf steps; EBC rotors; Threadwright Claw MT tires; hood scoop LED light install.
    Available on the MX model, not the EM model.

    From post #531.

    [​IMG]

    303tacoma and 1rooster like this.
  7. Sep 26, 2019 at 4:43 AM
    #667
    CITY TACO

    CITY TACO Well-Known Member

    Joined:
    Apr 18, 2011
    Member:
    #55128
    Messages:
    109
    Gender:
    Male
    First Name:
    Chris
    Greater New Brunswick
    Vehicle:
    15 TRD Barcelona Red
    I just brought back my trailer (3200lb loaded about 3600) from it’s summer site, was towing hard but there was a wind blowing. Even poking through a county road that only ran the TC at 178 going there, ran 214 coming back and on some large hills on the highway she ran up to 225.

  8. Sep 30, 2019 at 3:49 PM
    #668
    07 sport 4x4

    07 sport 4x4 Well-Known Member

    Joined:
    Dec 24, 2010
    Member:
    #48165
    Messages:
    1,445
    Gender:
    Male
    First Name:
    Blake
    Southeast
    Vehicle:
    2017 Duramax

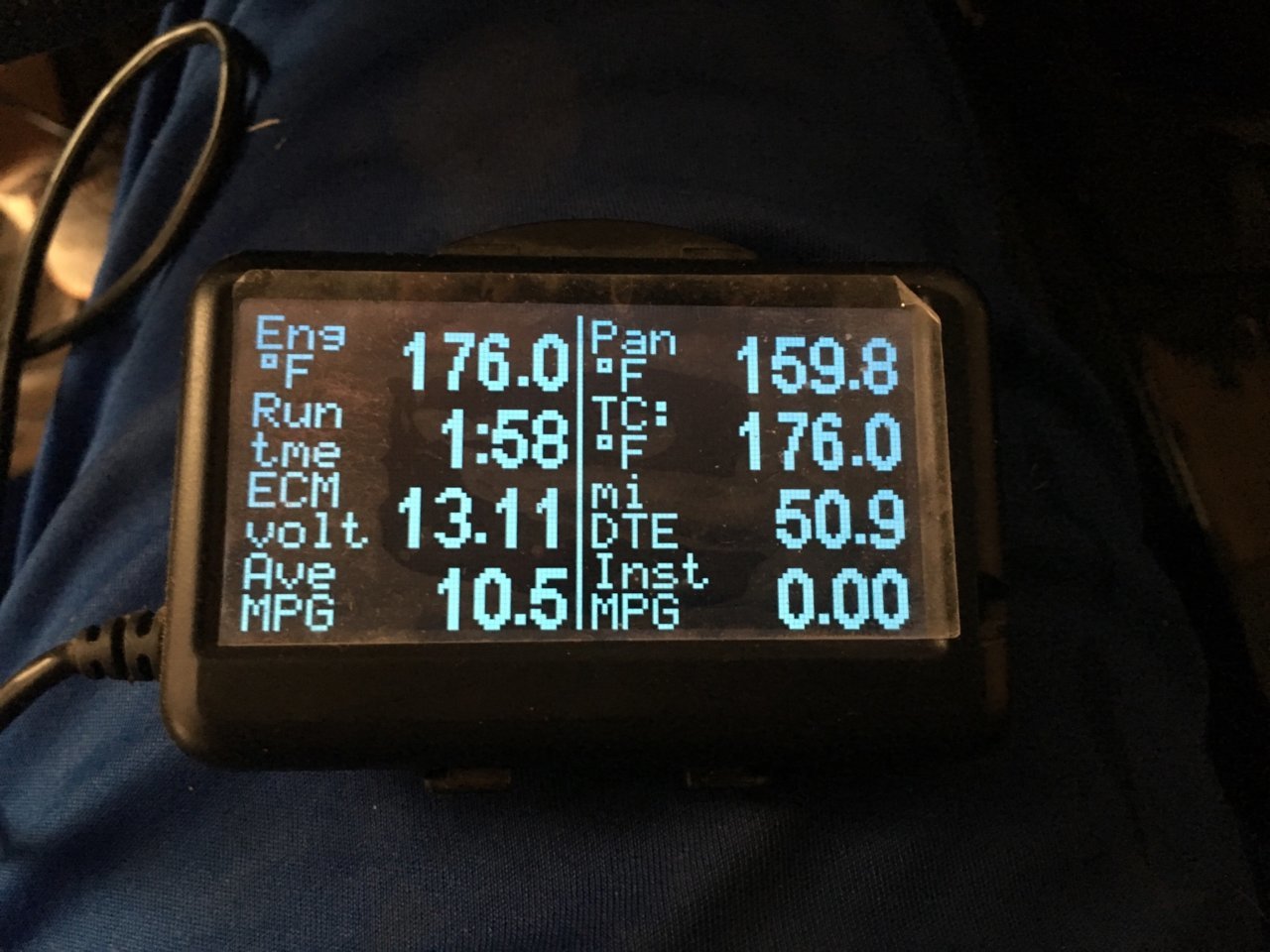

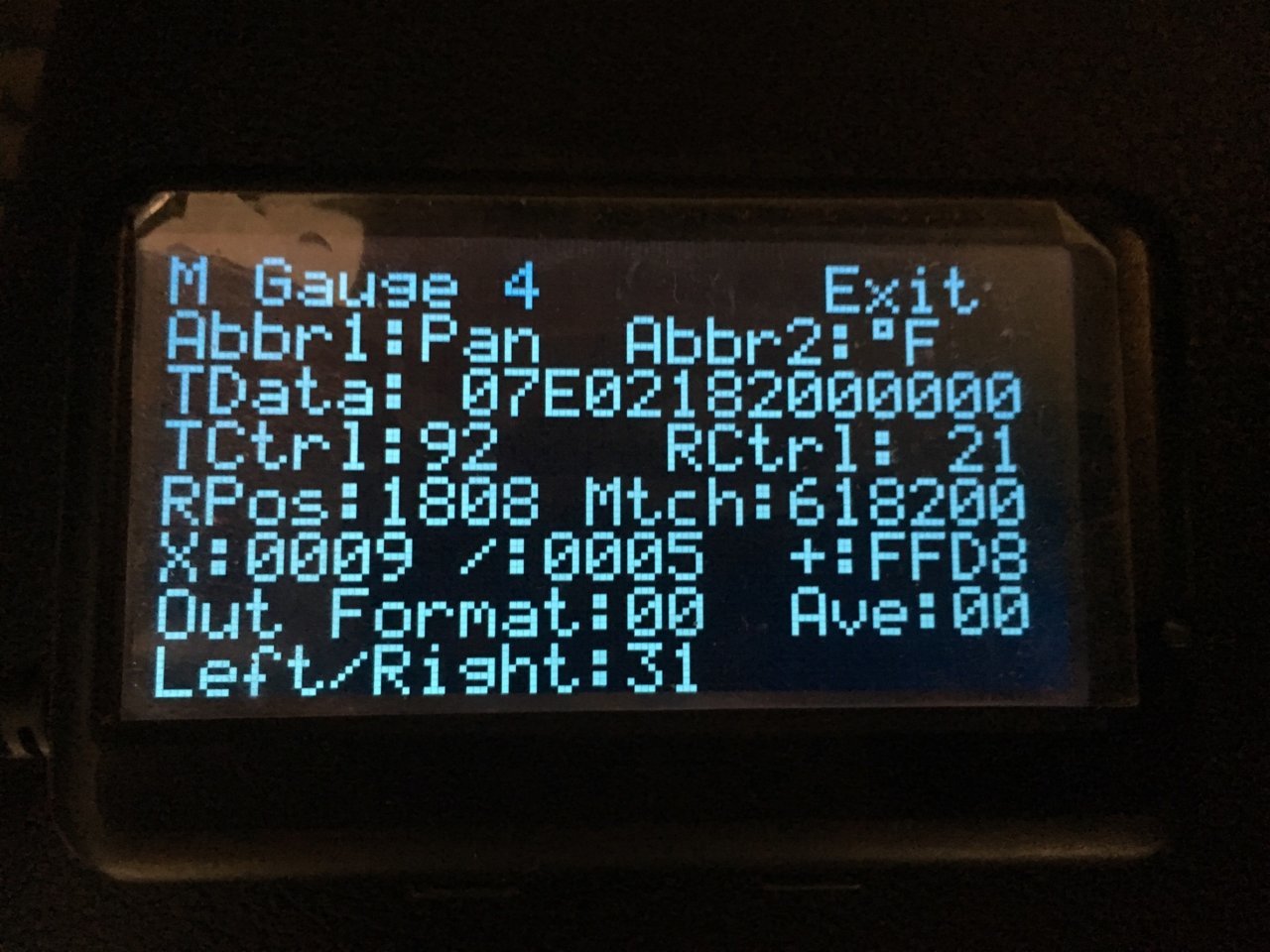

    I got a DM from @Soul Surfer asking if the Tacoma codes would work for a 5th gen 4Runner. The answer is yes. I have my UG set up for my brothers 2010 Tacoma and the same codes also read transmission temps from my moms 2016 T4R. The pics below are from my moms 4Runner. My IR temp gun reads a few degrees lower than the UG shows, The IR gun reading is with it aimed at the center of the trans pan. FF9093A9-90B3-48A1-BCD9-C487E0E0DA01.jpg745A4C20-0CA7-4255-A837-86A6E60D324B.jpg 2025198E-2CEA-47E5-B028-B0FE5AD59D0F.jpg1066F1FD-690B-4049-A540-DF194C14A2F2.jpg

    ancient11, 1rooster and Soul Surfer like this.
  9. Sep 30, 2019 at 3:56 PM
    #669
    Soul Surfer

    Soul Surfer Jimi Was Last Seen: At The Beach.

    Joined:
    Aug 10, 2015
    Member:
    #161457
    Messages:
    15,583
    Gender:
    Male
    First Name:
    Jimi
    West Central Florida Coast
    Vehicle:
    •2021 4X4 OR Prem/Tech/LED DCSB•
    Thanks again for taking the time and research this Bud! :cheers:

    07 sport 4x4 likes this.
  10. Sep 30, 2019 at 4:10 PM
    #670
    07 sport 4x4

    07 sport 4x4 Well-Known Member

    Joined:
    Dec 24, 2010
    Member:
    #48165
    Messages:
    1,445
    Gender:
    Male
    First Name:
    Blake
    Southeast
    Vehicle:
    2017 Duramax
    No problem, the next time I do a trans pan drain and refill on the T4R I’ll put it into temp check mode and see if the temp check range matches the UG numbers. The best I can remember, the “D” indicator goes solid at 104°F indicating that the trans fluid is at the proper check temp. I’m not sure what the high end of the range is, 115°F would be my guess, not sure though.

    For whatever it’s worth I’m using Valvoline Maxlife ATF in my moms 4Runner with absolutely no issues. I’ve only had it in there for about 3k miles (25k miles total on the T4R) but it’s shifting great and I plan to stay with Maxlife from here on out unless something changes. I plan to do a pan drain and fill once per year or every 10k miles, that’s overkill but it’s cheap and easy preventative maintenance.

    Soul Surfer likes this.
  11. Sep 30, 2019 at 5:06 PM
    #671
    Soul Surfer

    Soul Surfer Jimi Was Last Seen: At The Beach.

    Joined:
    Aug 10, 2015
    Member:
    #161457
    Messages:
    15,583
    Gender:
    Male
    First Name:
    Jimi
    West Central Florida Coast
    Vehicle:
    •2021 4X4 OR Prem/Tech/LED DCSB•
    Good info, I just re-coded the UG to your suggested settings and it looks like it’s a go.
    I won’t have it permanently installed until my new mount arrives from UG.
    Thanks.

    ancient11 and 07 sport 4x4 like this.
  12. Feb 5, 2020 at 2:47 PM
    #672
    titan1967

    titan1967 Member

    Joined:
    Feb 5, 2020
    Member:
    #318319
    Messages:
    7
    Gender:
    Male
    First Name:
    Rick
    Vehicle:
    2010 Fj Crosier
    Hello

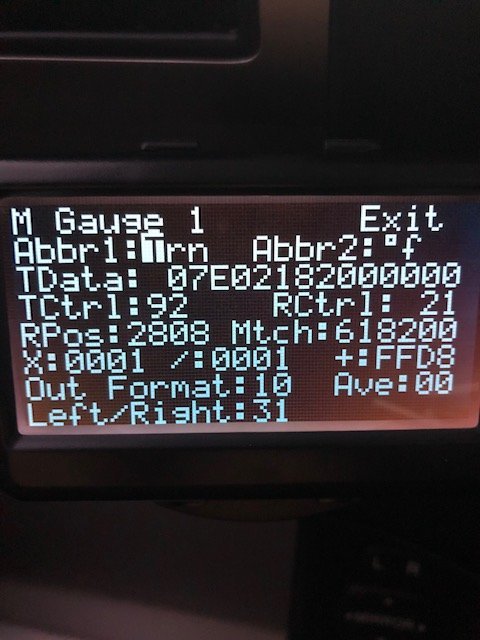

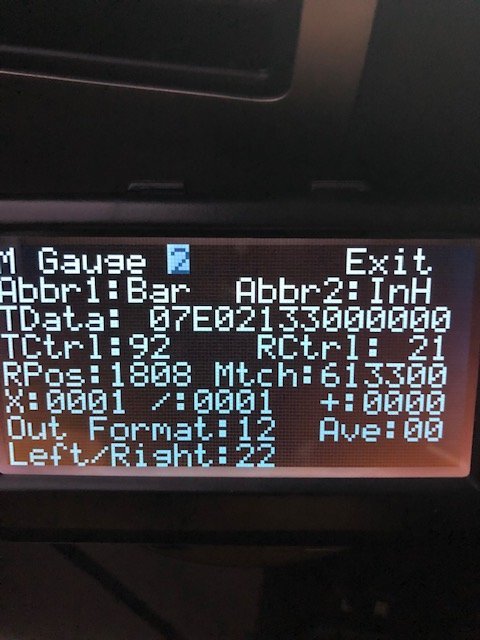

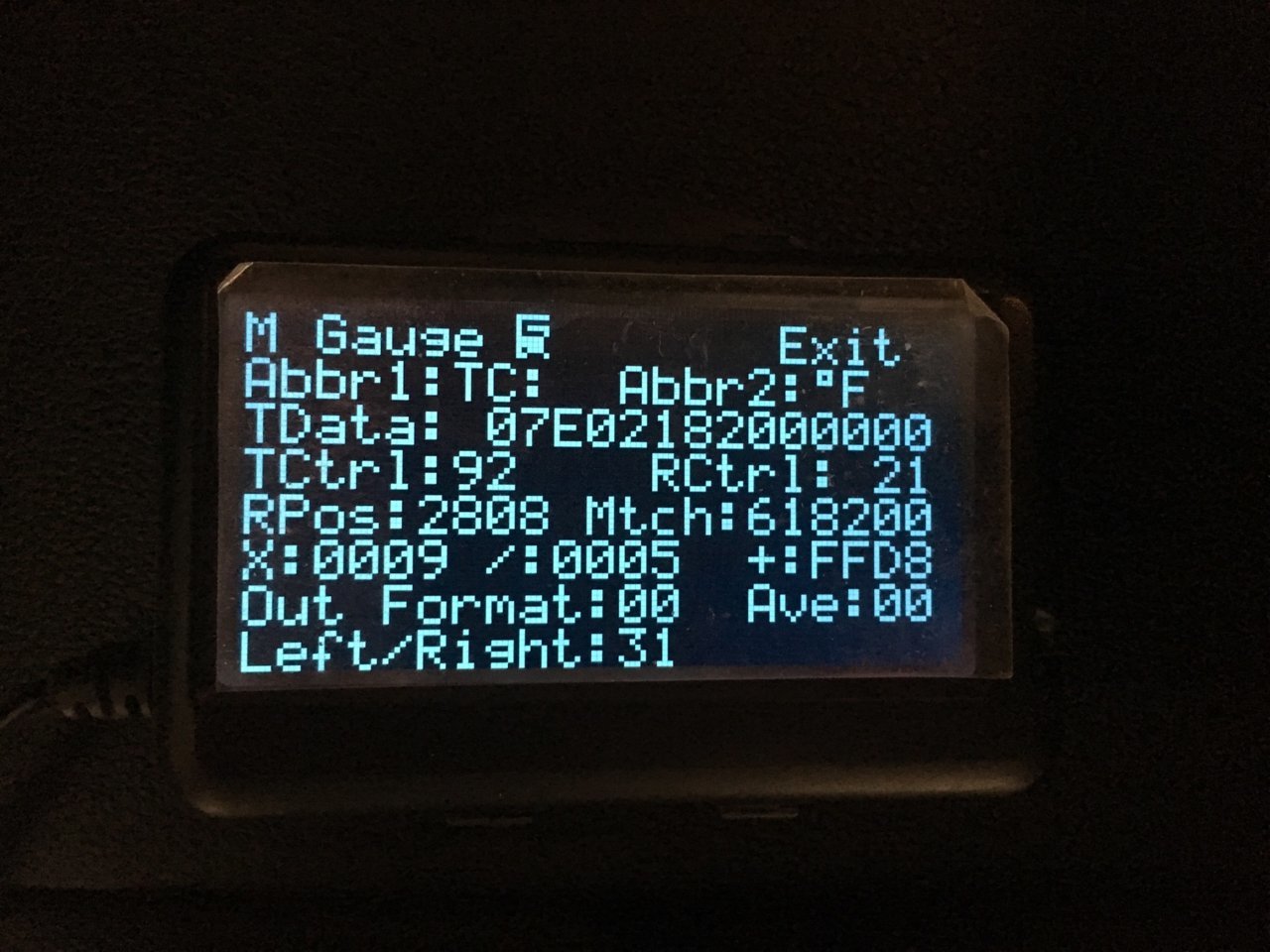

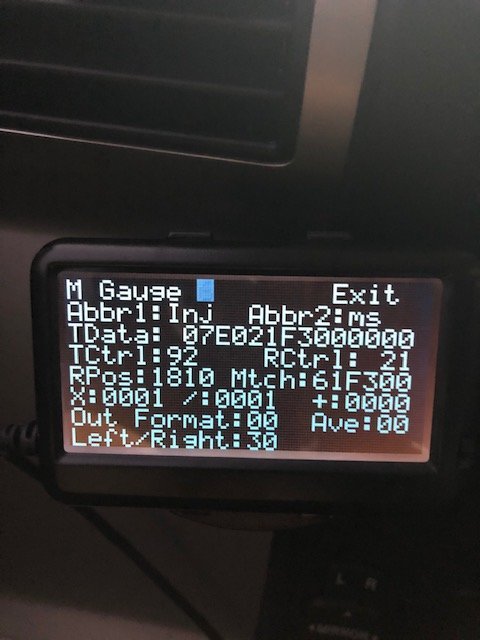

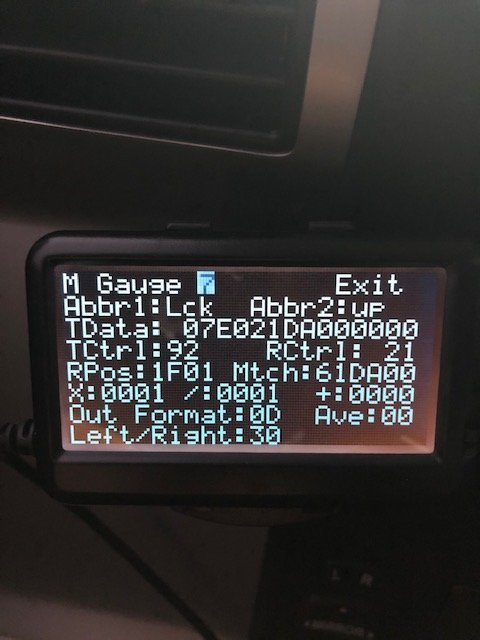

    Searching endlessly has led me here. I have a 2010 Toyota Fj Crusier and I have been trying to figure this ultragauge out
    The model is an ultragauge Mx v1.4 with the Toyota Tacoma Can

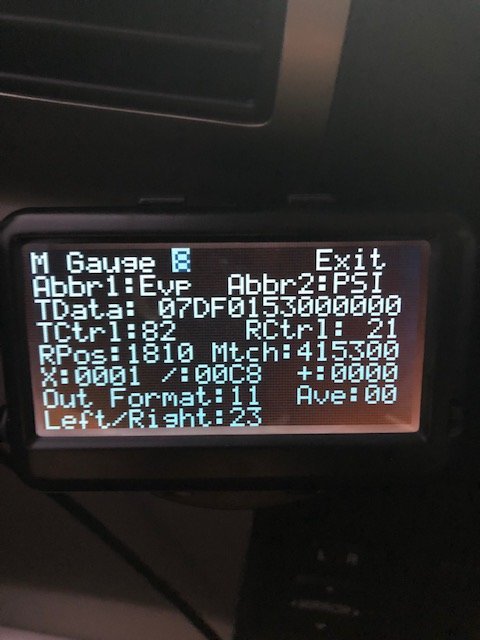

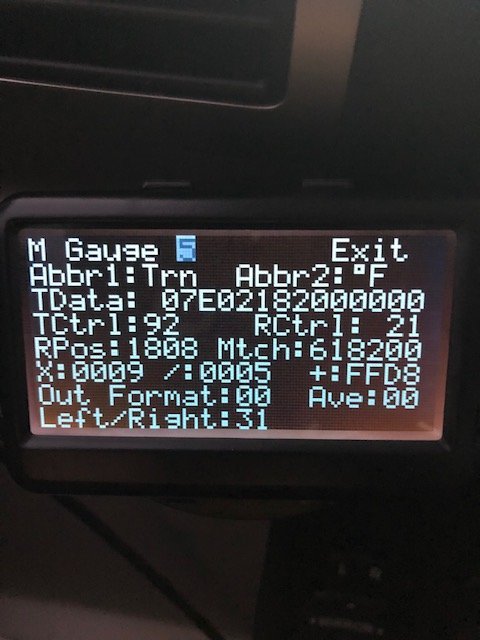

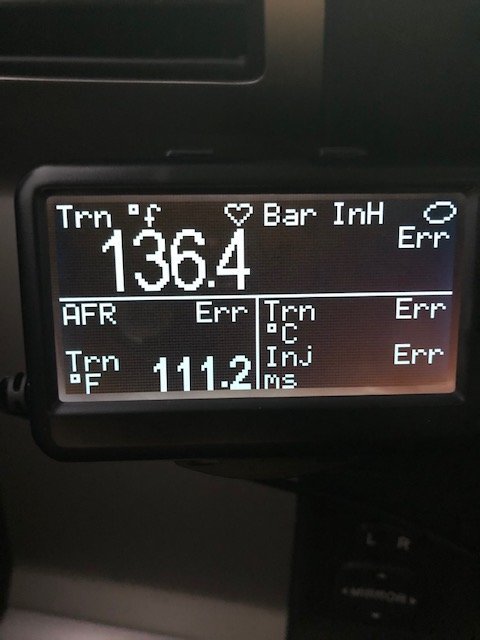

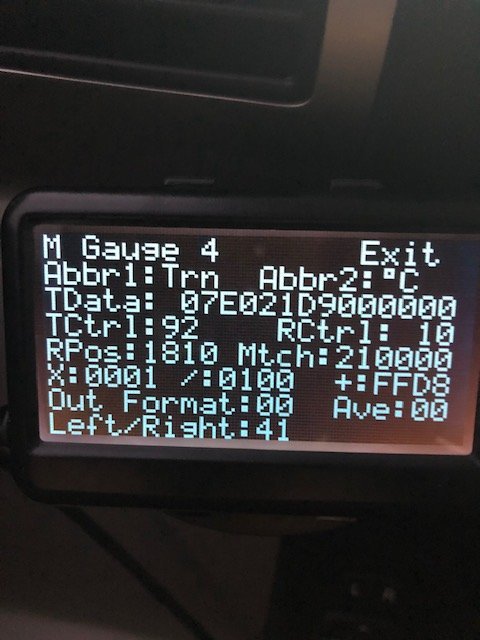

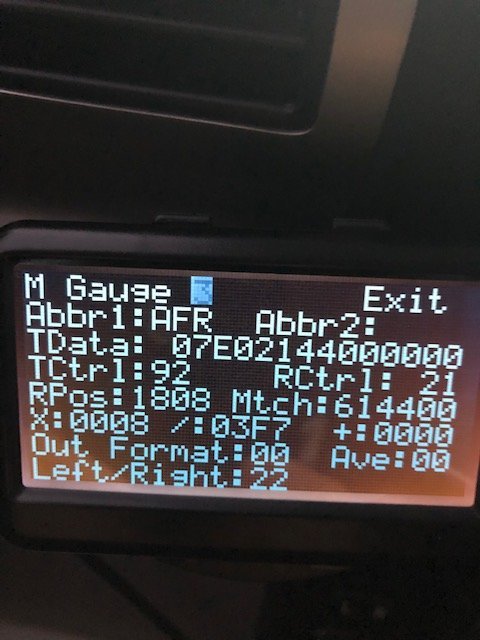

    I have been trying to get this thing setup for a number of days and this where I’m at. Everything seems to be working except the transmission of page
    I have taken several screen shots, hoping members over here can
    help
    As you can see a couple of the page settings are screwed up, let me know which ones to change

    M1 M4 and M5 are the ones I have served up I believe

    Thanks

    upload_2020-2-5_16-35-40.jpgupload_2020-2-5_16-36-19.jpgupload_2020-2-5_16-42-43.jpgupload_2020-2-5_16-43-12.jpgupload_2020-2-5_16-44-33.jpgupload_2020-2-5_16-45-34.jpgupload_2020-2-5_16-46-25.jpg upload_2020-2-5_16-46-57.jpgin

    Last edited: Feb 5, 2020
  13. Feb 5, 2020 at 2:59 PM
    #673
    lynyrd3

    lynyrd3 Strength ,Determination ,Merciless,Forever

    Joined:
    Apr 9, 2008
    Member:
    #5848
    Messages:
    21,978
    Gender:
    Male
    First Name:
    Bill
    Southern Capital District,New York
    Vehicle:
    2008 SR5 AC SUPER WHITE V6 4x4 AT / 2020 RAV4 XLE
    Bilstein 6112s top setting ,Total Chaos UCAs ,1/4" top plate spacer driver side ,SS extended brake lines ,Old Man Emu Medium Duty Dakar leaf springs with AAL,OME carrier bearing shim , Bilstein 5125s for 2-3” of lift in rear ,Timbren SES bump stops , SS extended brake lines rear , Toytec dif drop , Hayden high performance transmission fluid cooler,aFe pro dry air filter , ,Powerstop drilled and slotted rotors.Baja amber driving combo ditch lights , Devil horns by Andres ,Weathertecs floor protector, American Racing wheels Baja 17x8,4.5 BS , 285/70 Falken Wildpeaks AT/3W .Body Armor rear bumper . Extra D rings in bed ,Blue sea fuse block and 100amp breaker ,G-Tek Fab door sill protectors ,HomerTaco grill , TRD radiator cap ,Birddawg Industries rear view mirror riser bracket ,Coverking NeoSupreme Mossy Oak seat covers , Paranoid Fabrications fuse /relay holder Painted pinch weld.Shorty antenna ,HVAC knob mod ,LED dome and map lights , Tri Fold bed cover ,UltraGauge ,Morimoto XB LED fog lights ,Energy Suspension poly body bushings and sway bar bushings ! Geartech Customs splash guards ,Salex center console organizer . Mobtown tailgate cap ,tailgate anti theft mod , Mobtown weld on sliders with kick out ,0* , black wrinkle powder coated ! ,NEW frame courtesy of Toyota !

  14. Feb 5, 2020 at 3:00 PM
    #674
    lynyrd3

    lynyrd3 Strength ,Determination ,Merciless,Forever

    Joined:
    Apr 9, 2008
    Member:
    #5848
    Messages:
    21,978
    Gender:
    Male
    First Name:
    Bill
    Southern Capital District,New York
    Vehicle:
    2008 SR5 AC SUPER WHITE V6 4x4 AT / 2020 RAV4 XLE
    Bilstein 6112s top setting ,Total Chaos UCAs ,1/4" top plate spacer driver side ,SS extended brake lines ,Old Man Emu Medium Duty Dakar leaf springs with AAL,OME carrier bearing shim , Bilstein 5125s for 2-3” of lift in rear ,Timbren SES bump stops , SS extended brake lines rear , Toytec dif drop , Hayden high performance transmission fluid cooler,aFe pro dry air filter , ,Powerstop drilled and slotted rotors.Baja amber driving combo ditch lights , Devil horns by Andres ,Weathertecs floor protector, American Racing wheels Baja 17x8,4.5 BS , 285/70 Falken Wildpeaks AT/3W .Body Armor rear bumper . Extra D rings in bed ,Blue sea fuse block and 100amp breaker ,G-Tek Fab door sill protectors ,HomerTaco grill , TRD radiator cap ,Birddawg Industries rear view mirror riser bracket ,Coverking NeoSupreme Mossy Oak seat covers , Paranoid Fabrications fuse /relay holder Painted pinch weld.Shorty antenna ,HVAC knob mod ,LED dome and map lights , Tri Fold bed cover ,UltraGauge ,Morimoto XB LED fog lights ,Energy Suspension poly body bushings and sway bar bushings ! Geartech Customs splash guards ,Salex center console organizer . Mobtown tailgate cap ,tailgate anti theft mod , Mobtown weld on sliders with kick out ,0* , black wrinkle powder coated ! ,NEW frame courtesy of Toyota !
    Maybe these will work but they are for 2012 up

  15. Feb 5, 2020 at 3:03 PM
    #675
    lynyrd3

    lynyrd3 Strength ,Determination ,Merciless,Forever

    Joined:
    Apr 9, 2008
    Member:
    #5848
    Messages:
    21,978
    Gender:
    Male
    First Name:
    Bill
    Southern Capital District,New York
    Vehicle:
    2008 SR5 AC SUPER WHITE V6 4x4 AT / 2020 RAV4 XLE
    Bilstein 6112s top setting ,Total Chaos UCAs ,1/4" top plate spacer driver side ,SS extended brake lines ,Old Man Emu Medium Duty Dakar leaf springs with AAL,OME carrier bearing shim , Bilstein 5125s for 2-3” of lift in rear ,Timbren SES bump stops , SS extended brake lines rear , Toytec dif drop , Hayden high performance transmission fluid cooler,aFe pro dry air filter , ,Powerstop drilled and slotted rotors.Baja amber driving combo ditch lights , Devil horns by Andres ,Weathertecs floor protector, American Racing wheels Baja 17x8,4.5 BS , 285/70 Falken Wildpeaks AT/3W .Body Armor rear bumper . Extra D rings in bed ,Blue sea fuse block and 100amp breaker ,G-Tek Fab door sill protectors ,HomerTaco grill , TRD radiator cap ,Birddawg Industries rear view mirror riser bracket ,Coverking NeoSupreme Mossy Oak seat covers , Paranoid Fabrications fuse /relay holder Painted pinch weld.Shorty antenna ,HVAC knob mod ,LED dome and map lights , Tri Fold bed cover ,UltraGauge ,Morimoto XB LED fog lights ,Energy Suspension poly body bushings and sway bar bushings ! Geartech Customs splash guards ,Salex center console organizer . Mobtown tailgate cap ,tailgate anti theft mod , Mobtown weld on sliders with kick out ,0* , black wrinkle powder coated ! ,NEW frame courtesy of Toyota !
    Welcome to TW :hattip:

  16. Feb 5, 2020 at 3:14 PM
    #676
    titan1967

    titan1967 Member

    Joined:
    Feb 5, 2020
    Member:
    #318319
    Messages:
    7
    Gender:
    Male
    First Name:
    Rick
    Vehicle:
    2010 Fj Crosier
    so place code
    TC in M1
    PAN in M5

    Last edited: Feb 5, 2020
  17. Feb 5, 2020 at 3:20 PM
    #677
    titan1967

    titan1967 Member

    Joined:
    Feb 5, 2020
    Member:
    #318319
    Messages:
    7
    Gender:
    Male
    First Name:
    Rick
    Vehicle:
    2010 Fj Crosier
    upload_2020-2-5_17-20-0.jpgPicture

    1rooster and lynyrd3 like this.
  18. Feb 5, 2020 at 4:37 PM
    #678
    lynyrd3

    lynyrd3 Strength ,Determination ,Merciless,Forever

    Joined:
    Apr 9, 2008
    Member:
    #5848
    Messages:
    21,978
    Gender:
    Male
    First Name:
    Bill
    Southern Capital District,New York
    Vehicle:
    2008 SR5 AC SUPER WHITE V6 4x4 AT / 2020 RAV4 XLE
    Bilstein 6112s top setting ,Total Chaos UCAs ,1/4" top plate spacer driver side ,SS extended brake lines ,Old Man Emu Medium Duty Dakar leaf springs with AAL,OME carrier bearing shim , Bilstein 5125s for 2-3” of lift in rear ,Timbren SES bump stops , SS extended brake lines rear , Toytec dif drop , Hayden high performance transmission fluid cooler,aFe pro dry air filter , ,Powerstop drilled and slotted rotors.Baja amber driving combo ditch lights , Devil horns by Andres ,Weathertecs floor protector, American Racing wheels Baja 17x8,4.5 BS , 285/70 Falken Wildpeaks AT/3W .Body Armor rear bumper . Extra D rings in bed ,Blue sea fuse block and 100amp breaker ,G-Tek Fab door sill protectors ,HomerTaco grill , TRD radiator cap ,Birddawg Industries rear view mirror riser bracket ,Coverking NeoSupreme Mossy Oak seat covers , Paranoid Fabrications fuse /relay holder Painted pinch weld.Shorty antenna ,HVAC knob mod ,LED dome and map lights , Tri Fold bed cover ,UltraGauge ,Morimoto XB LED fog lights ,Energy Suspension poly body bushings and sway bar bushings ! Geartech Customs splash guards ,Salex center console organizer . Mobtown tailgate cap ,tailgate anti theft mod , Mobtown weld on sliders with kick out ,0* , black wrinkle powder coated ! ,NEW frame courtesy of Toyota !
    Hopefully some one else can chime in and help you out. Some one that is more familiar with it . I set mine up a couple years ago and haven’t changed any setting since .

  19. Feb 5, 2020 at 5:09 PM
    #679
    titan1967

    titan1967 Member

    Joined:
    Feb 5, 2020
    Member:
    #318319
    Messages:
    7
    Gender:
    Male
    First Name:
    Rick
    Vehicle:
    2010 Fj Crosier

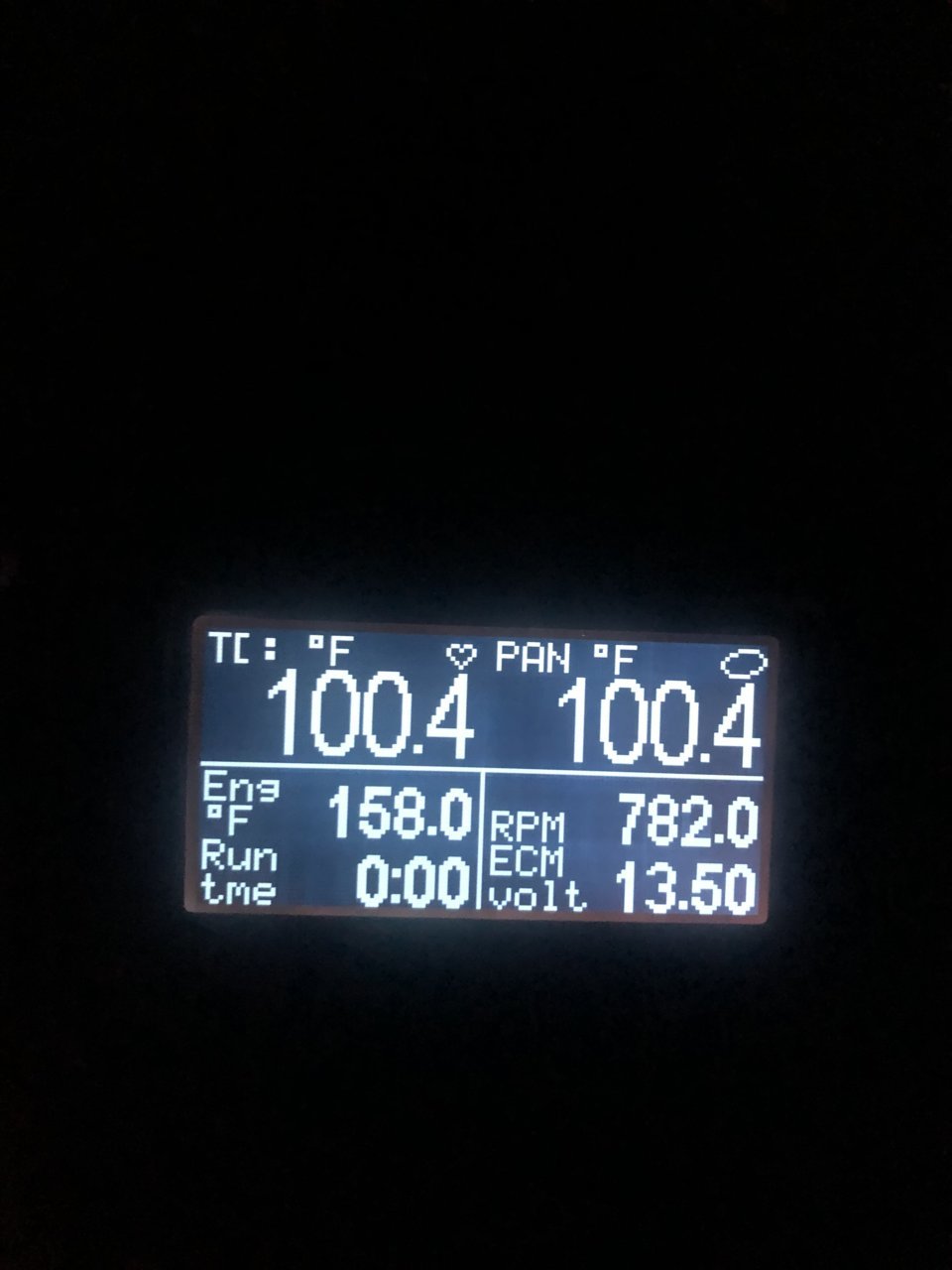

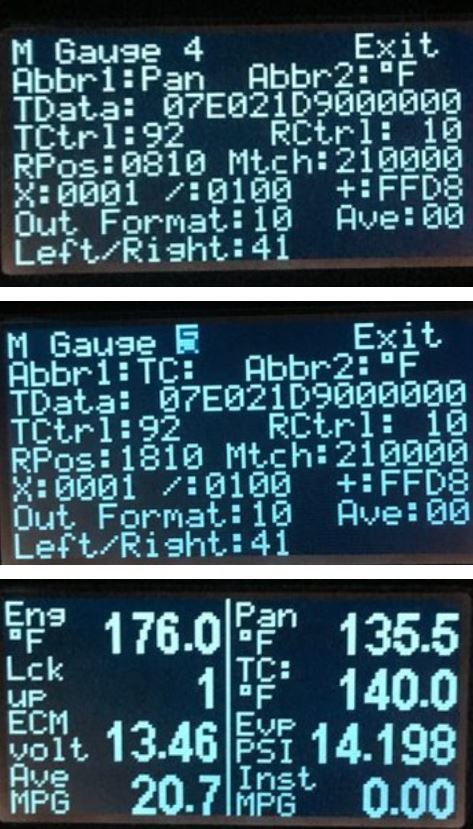

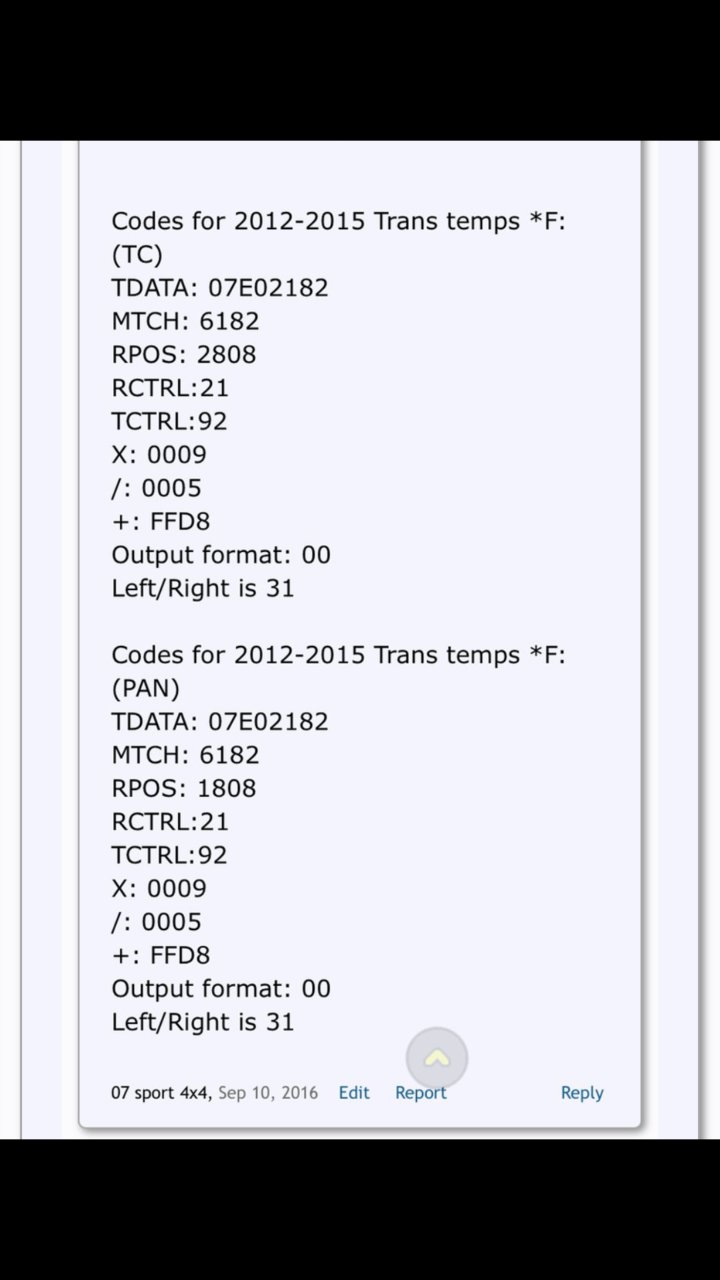

    Think I might have stumbled on the updated codes
    Toyota Tundra/Tacoma with CAN (2012-2015)

    Codes

    Transmission Torque Converter Temperature

    (The pre-programming provided is for 2005-2011. It will be necessary to replace the provided codes with these codes)

    TDATA: 07E02182 Mtch: 6182
    RPos: 2808 RCtrl:21

    TCtrl:92
    X: 0001 /: 0001 +: FFD8 Output format: 10 (for °F)

    Output format: 00 (for °C) Left/Right is 31

    Transmission Pan Temperature

    (The pre-programming provided is for 2005-2011. It will be necessary to replace the provided codes with these 2012- 2015 codes)

    TDATA: 07E02182 Mtch: 6182
    RPos: 1808 RCtrl:21

    TCtrl:92
    X: 0001 /: 0001 +: FFD8 Output format: 10 (for °F)

    Output format: 00 (for °C) Left/Right is 31

    I will check it compared with an infrared Temperature Gun tomorrow, will post back

    Last edited: Feb 5, 2020
    lynyrd3 likes this.
  20. Feb 5, 2020 at 5:31 PM
    #680
    dtaco10

    dtaco10 Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258356
    Messages:
    157
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2010 White Tacoma 4x4
    All I know is in order to get my Ultragauge to read the transmission temps on my 2010 I had to use the 2012-2015 coding.

    lynyrd3 likes this.
