Under-hood lighting project

Discussion in 'Lighting' started by wordtothis, Feb 4, 2012.

  1. Feb 4, 2012 at 7:37 PM
    #1
    wordtothis

    wordtothis [OP] Well-Known Member

    Joined:
    Aug 25, 2011
    Member:
    #62363
    Messages:
    166
    Gender:
    Male
    First Name:
    david
    atlanta
    Vehicle:
    '11 DC SB, V6 4X4, 6spd
    Husky floor liners, in-channel vent visors, billies, khaki softopper, Wet Okoles, OTHER STUFF - kinda STOCKISH!
    I think I've probably seen something like this somewhere on this site before, and have wanted to do it for a while.
    SO, a trip to Advance Auto Parts, and $35 later, I went from this...

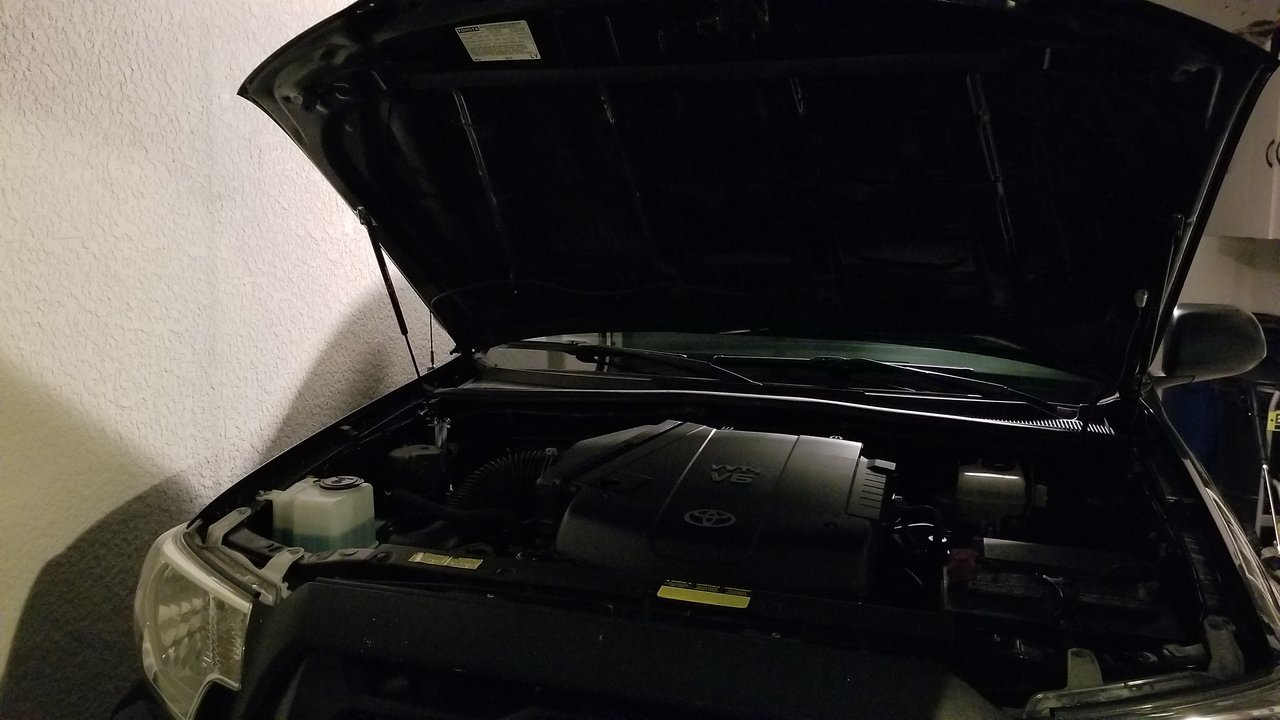

    [​IMG]
    (this is a picture of the hood open at night - no way to work on the truck without an external light source, right?)

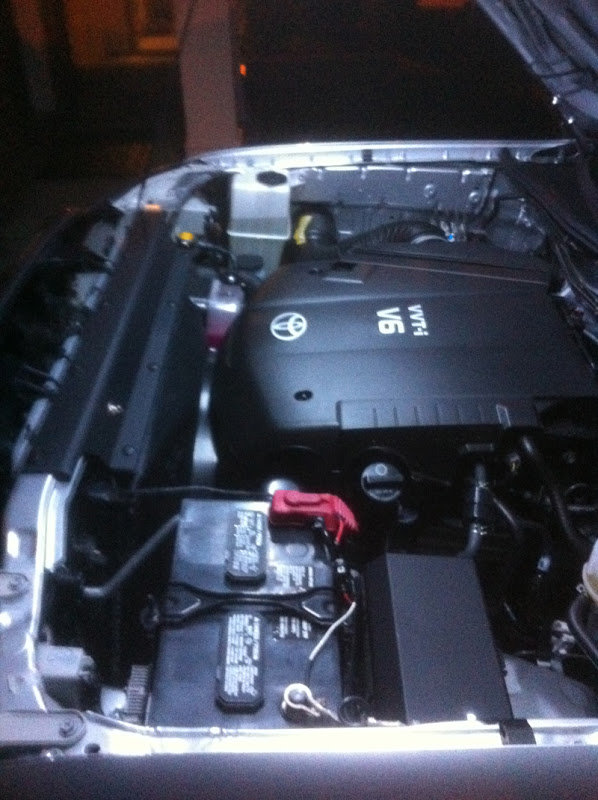

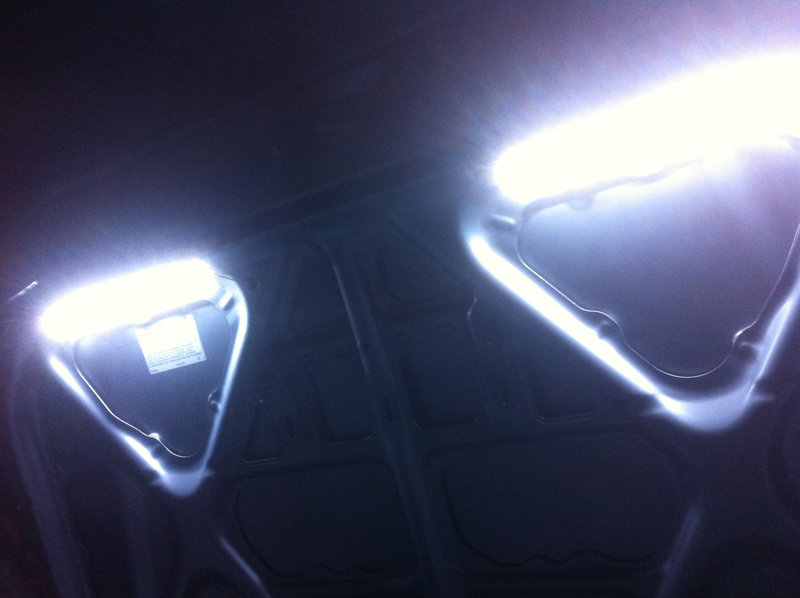

    to this...

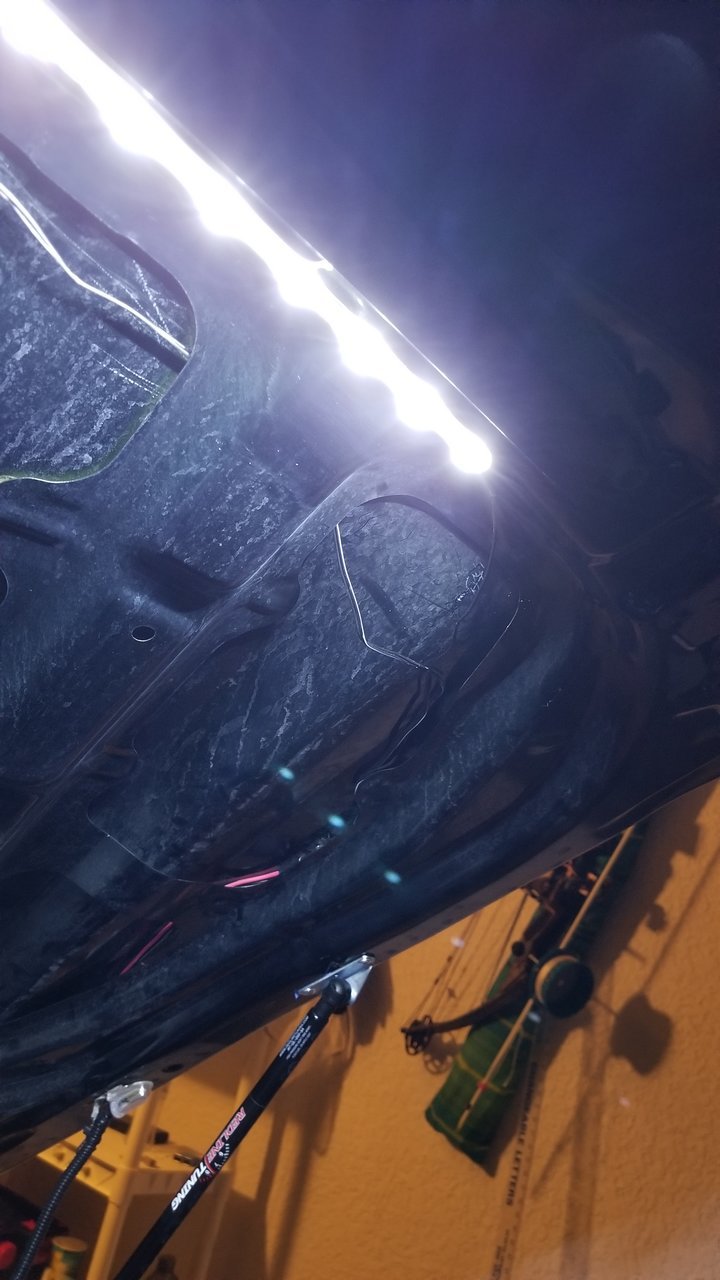

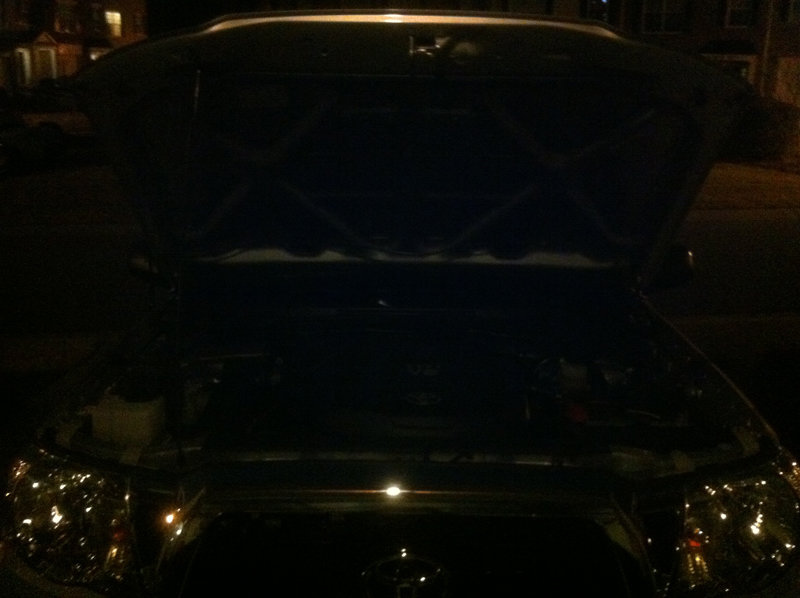

    [​IMG]
    [​IMG]

    the lights themselves...

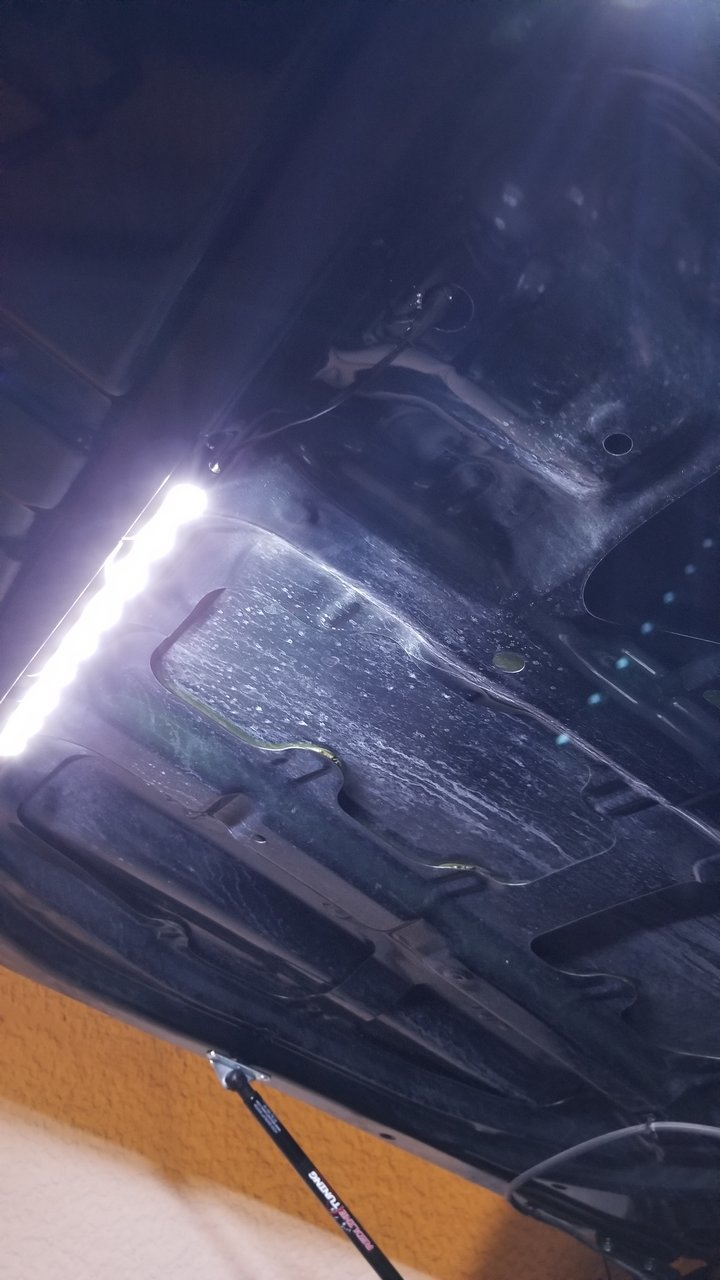

    [​IMG]

    This pic is a bit misleading because they are actually super-small flexible LED strips, not some crazy stupid light bar, but they're so bright, they look enormous. The whole install is really stealth... when it's not on, and when it's not dark of course.

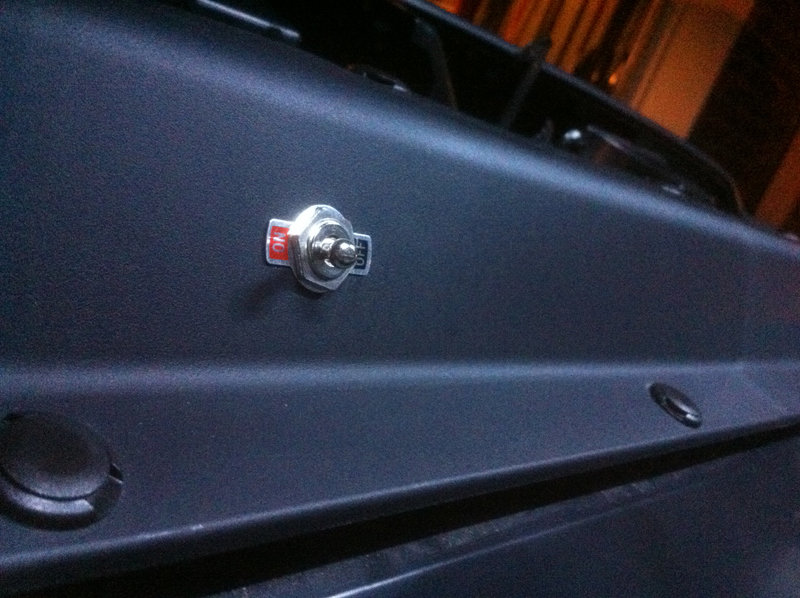

    the switch...

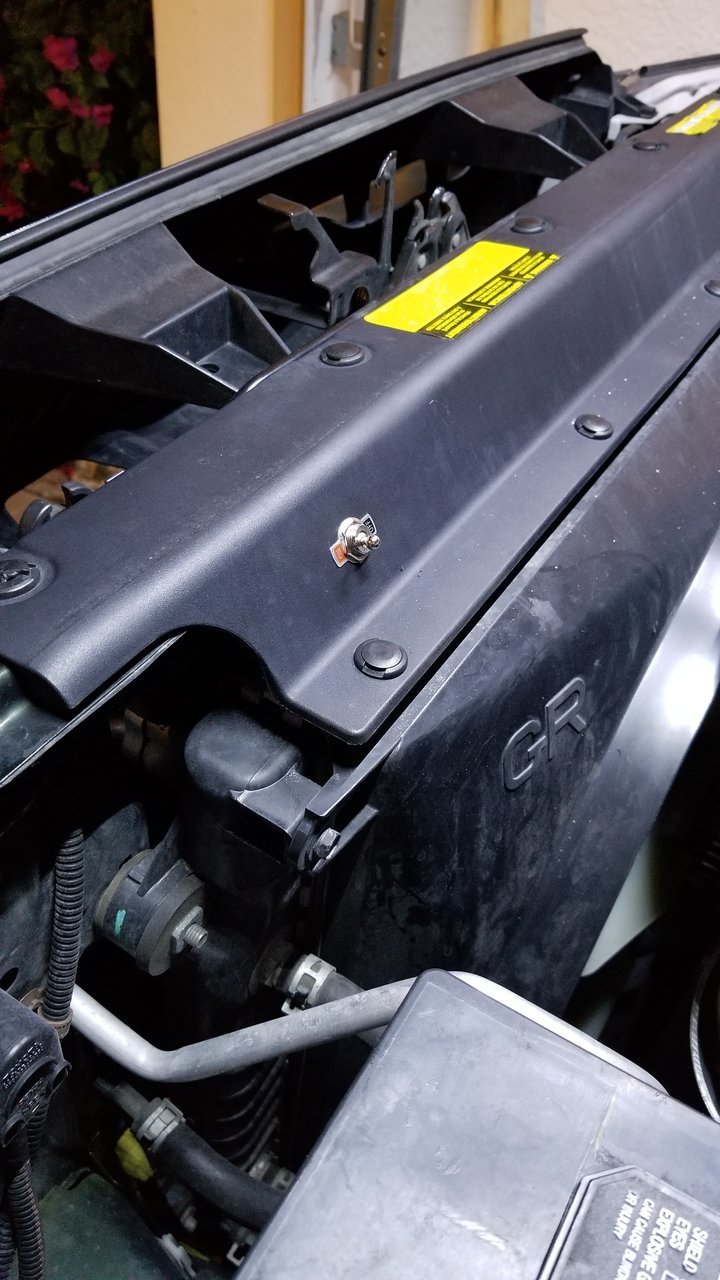

    [​IMG]

    Overall I am very happy with the result. The light is 100% usable and draws next to nothing, they could stay on for WEEKS and it would be just fine.
    For $35 between the "extra bright" LED strip lights, and the switch, and an hour or two snaking the wires around and shrink wrapping, the results are worth it.

    :D

  2. Feb 4, 2012 at 7:39 PM
    #2
    wordtothis

    wordtothis [OP] Well-Known Member

    Joined:
    Aug 25, 2011
    Member:
    #62363
    Messages:
    166
    Gender:
    Male
    First Name:
    david
    atlanta
    Vehicle:
    '11 DC SB, V6 4X4, 6spd
    Husky floor liners, in-channel vent visors, billies, khaki softopper, Wet Okoles, OTHER STUFF - kinda STOCKISH!
    pics in the daytime would be much better to show the actual setup, but the nighttime pics are the most impressive in my opinion.

    D

  3. Feb 4, 2012 at 7:44 PM
    #3
    Norton

    Norton Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    2,728
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    ARE Z-Series Topper, OME 885 Coils, Dakar Leafs, NitroCharger Sports; TRD Quickshifter; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; Goodridge SS Brake Lines; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; MetalMiller TRD Skid; jsi's Locker Anytime & ramonortiz55's Always on Power Outlet Relay Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); ND4's Fog Light Anytime Mod; Interior & Reverse LEDs; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Foam Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Toyota Bed Extender; Pop & Lock Power Tailgate Lock; SolarGard Tint; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Very nice! :thumbsup:

    Assuming it's not too much trouble I'd also like to see a little more of the wire routing and a parts list.

  4. Feb 4, 2012 at 8:00 PM
    #4
    wordtothis

    wordtothis [OP] Well-Known Member

    Joined:
    Aug 25, 2011
    Member:
    #62363
    Messages:
    166
    Gender:
    Male
    First Name:
    david
    atlanta
    Vehicle:
    '11 DC SB, V6 4X4, 6spd
    Husky floor liners, in-channel vent visors, billies, khaki softopper, Wet Okoles, OTHER STUFF - kinda STOCKISH!
    not a problem man...

    I used these lights...
    http://www.alpena.ca/Product.aspx?id=1073

    with this switch...
    http://shop.advanceautoparts.com/webapp/wcs/stores/servlet/product_Metal-Bat-Toggle-Switch-Pre-Wired-10-Amp-(120W)-On-Off-Dorman---Conduct-Tite_5470137-P_N3138_A|GRP2037_____

    and then some 12/16 gauge wire I had on hand. Shrink wrapped it directly from the battery to the lights and the switch... - the lights draw next to NO current, so you don't need an in-line fuse or relay, so it was really easy.

    as far as the routing, I will post some more pics tomorrow during the daytime.

  5. Feb 4, 2012 at 9:25 PM
    #5
    Fractured

    Fractured FPS-a-holic

    Joined:
    Dec 23, 2011
    Member:
    #69293
    Messages:
    824
    Gender:
    Male
    First Name:
    Corey
    NOR*Cal
    Vehicle:
    2012 MGM DCSB 4x4
    TRD wheels, TRD cat back exhaust, ScanGauge 2, Debadged, Avid sliders, UWS bed box w/automatic LED light, Led Interior/Reverse/Lic. Plate lights, Yellow Fogs, Flyzeye Light, Color matched grill, Rearview mirror relocate bracket, Power Sliding rear window, Plasti-dipped bumper/"T" emblem
    Great Install- I might have to give this a shot! Did you use an add-a-circuit?

  6. Feb 5, 2012 at 9:18 AM
    #6
    wordtothis

    wordtothis [OP] Well-Known Member

    Joined:
    Aug 25, 2011
    Member:
    #62363
    Messages:
    166
    Gender:
    Male
    First Name:
    david
    atlanta
    Vehicle:
    '11 DC SB, V6 4X4, 6spd
    Husky floor liners, in-channel vent visors, billies, khaki softopper, Wet Okoles, OTHER STUFF - kinda STOCKISH!
    Pics from daytime (see below):

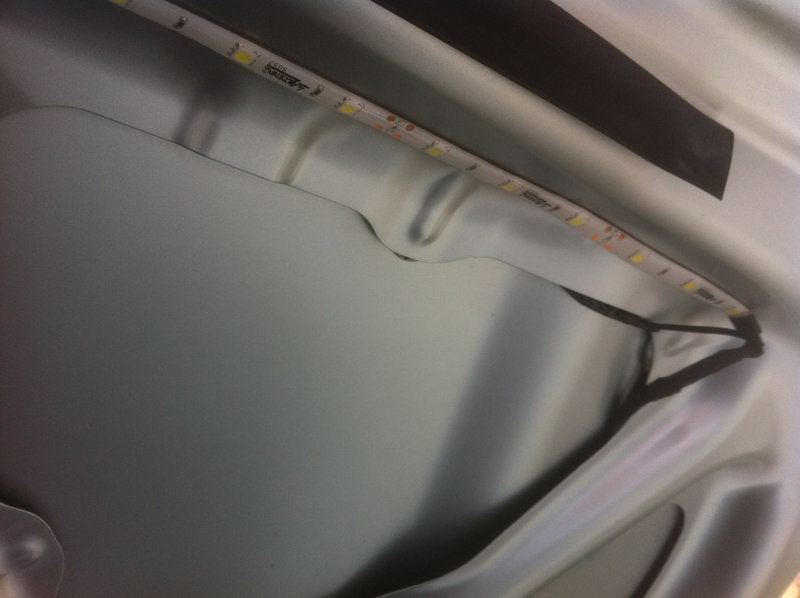

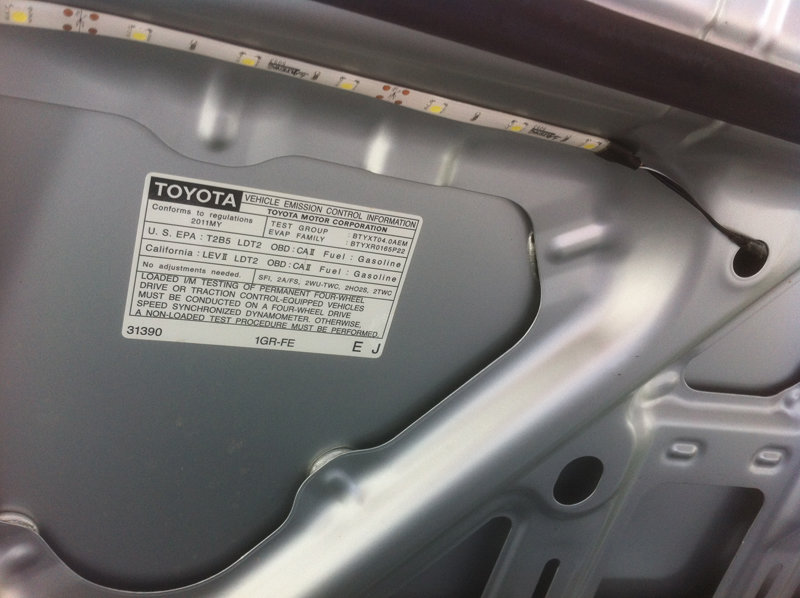

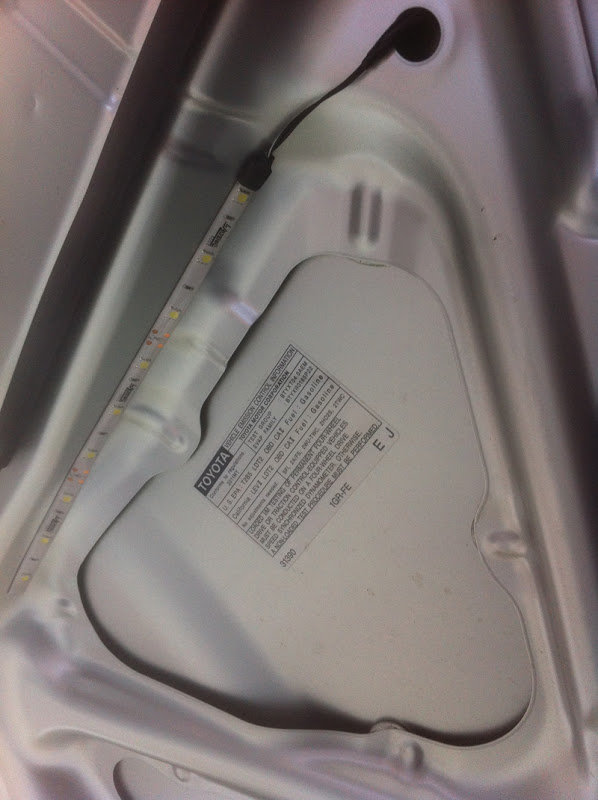

    Mounted light detail from passenger side of hood...
    [​IMG]

    Same light, different angle...
    [​IMG]

    Close-up of driver's side hood light...
    [​IMG]
    (Attention was paid to use existing seams and holes, no holes were added for this install - except for the switch mount on the plastic radiator shroud).

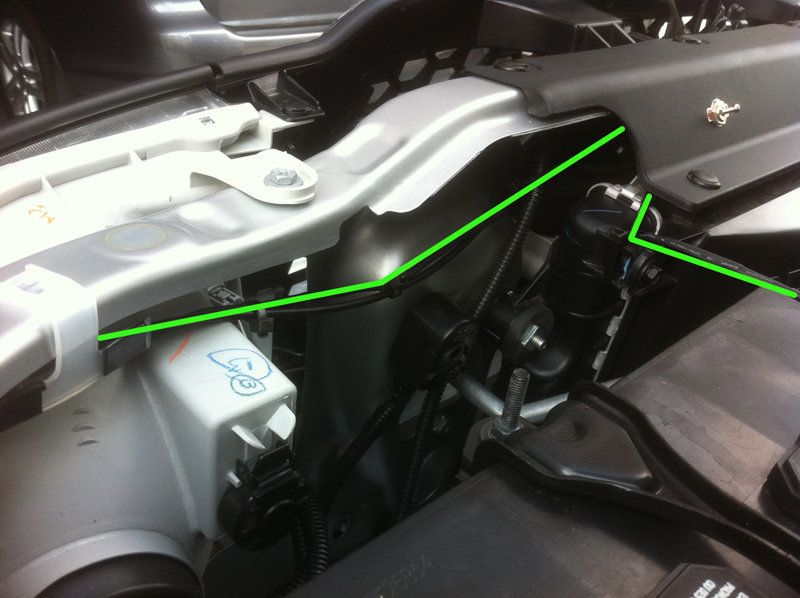

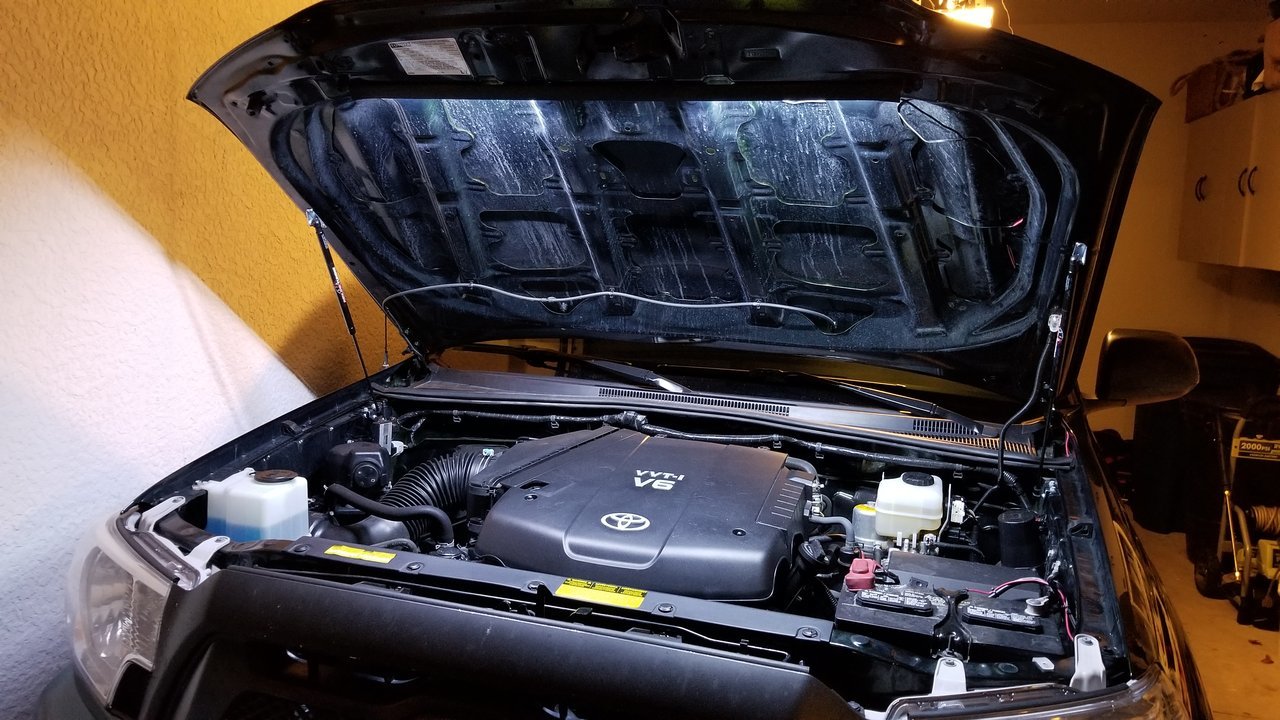

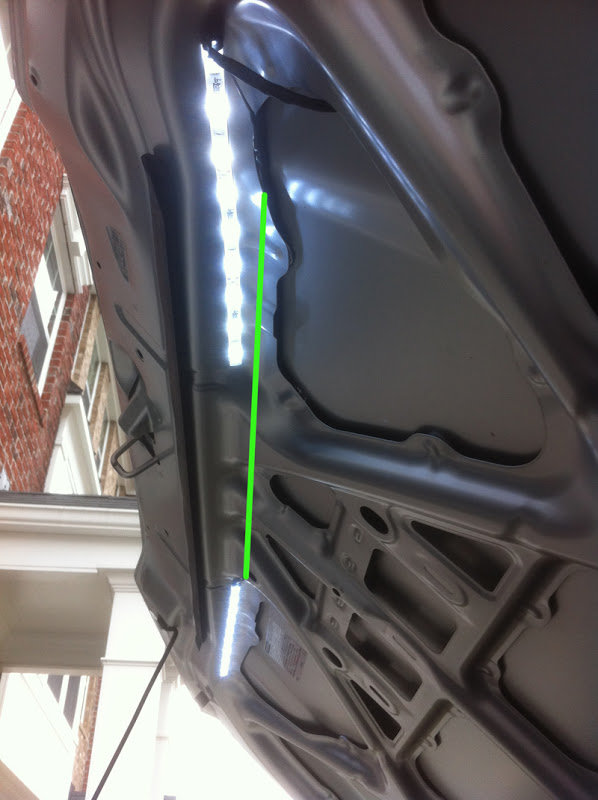

    Shot of light configuration during daytime to show positioning, (green line shows where wires were routed behind bodywork).
    [​IMG]

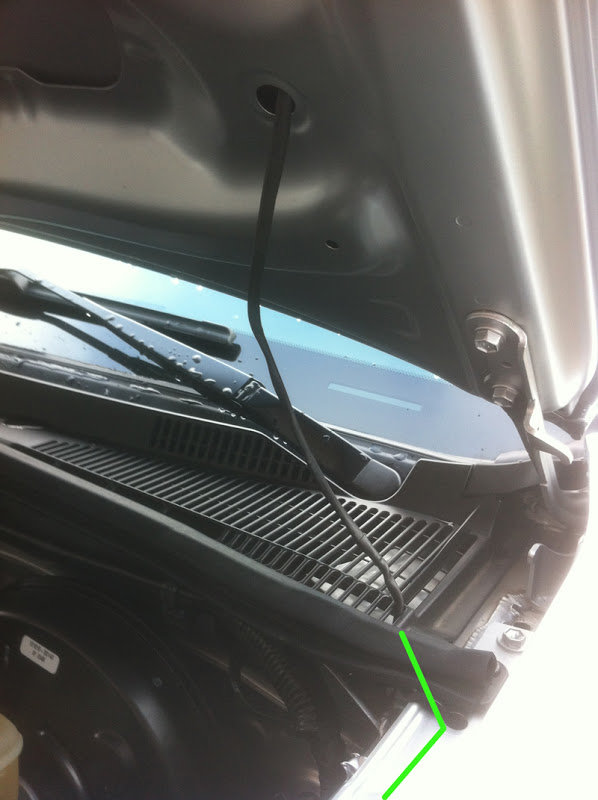

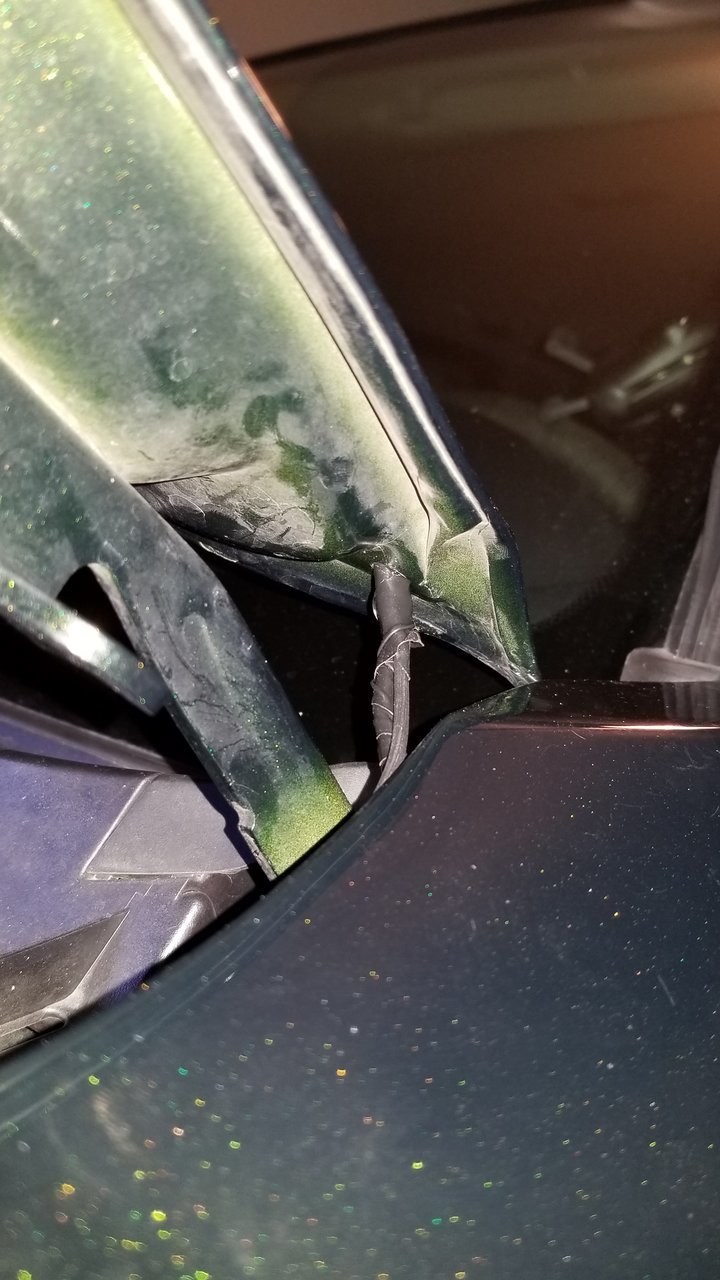

    Another green line-enhanced shot of the wire routing down the side of the hood...
    [​IMG]

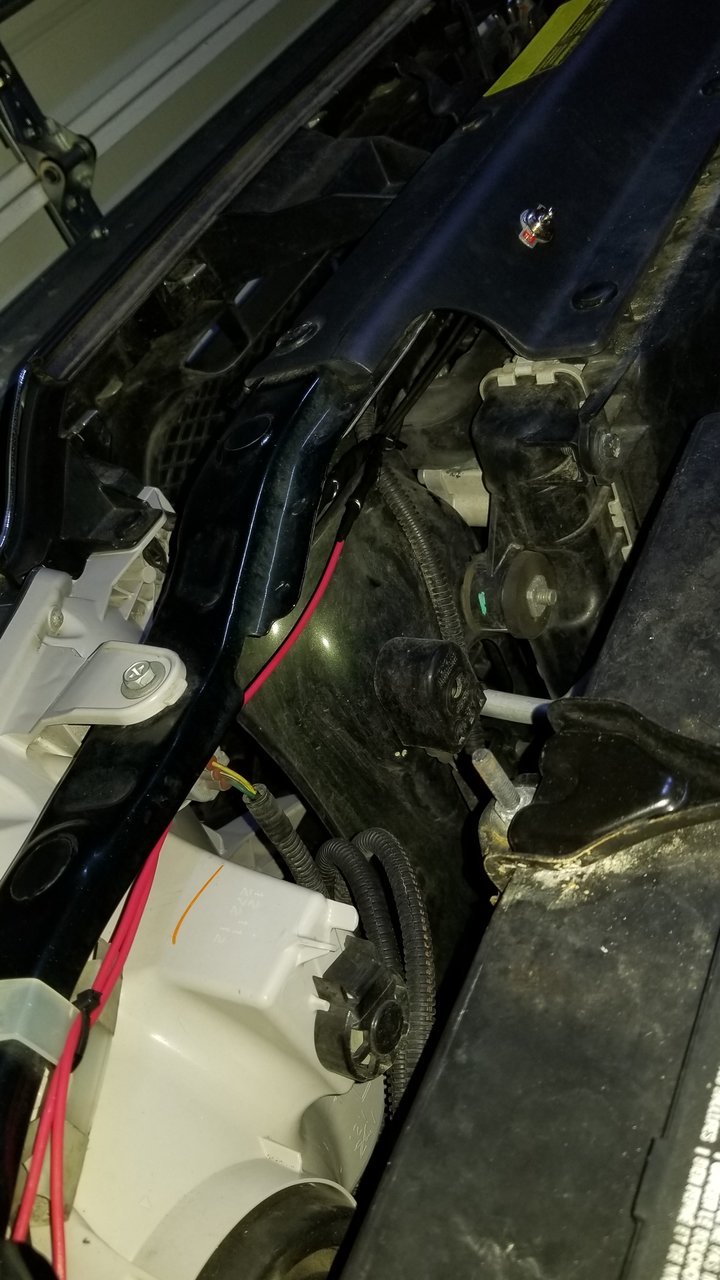

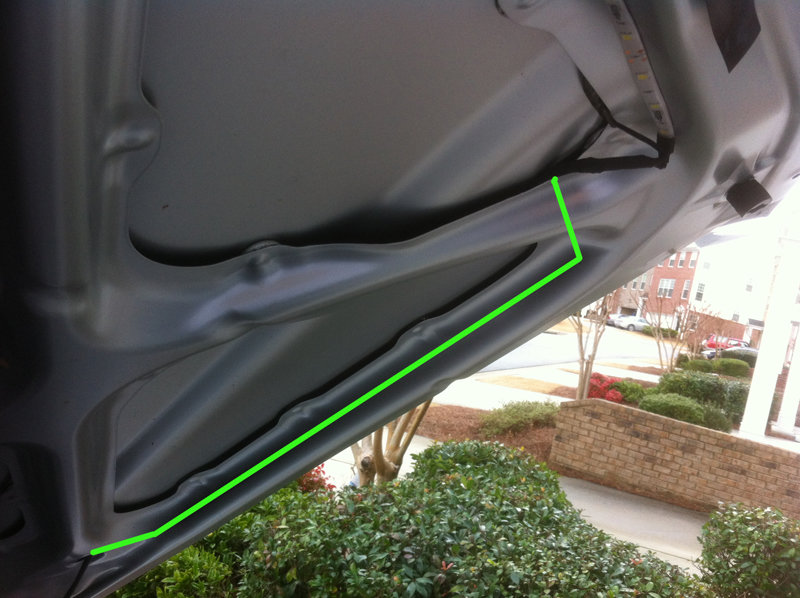

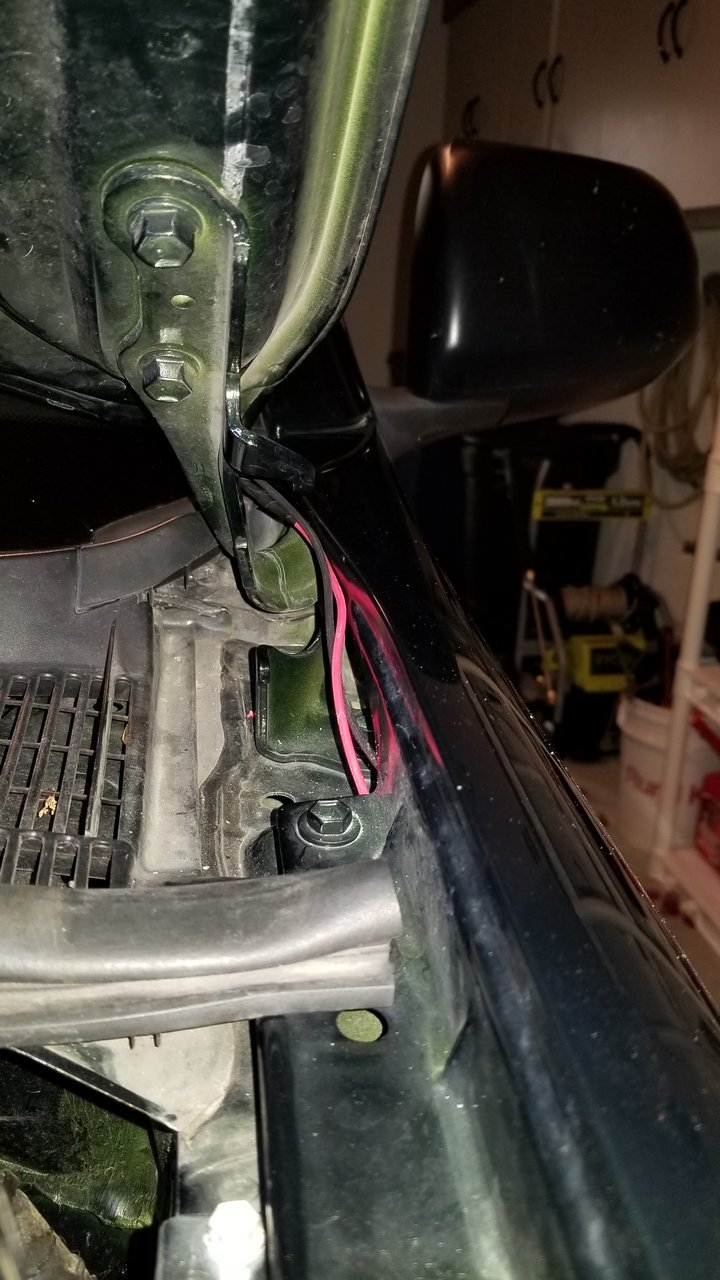

    A shot of wire routing at hinge (green line shows route to body seam)
    [​IMG]

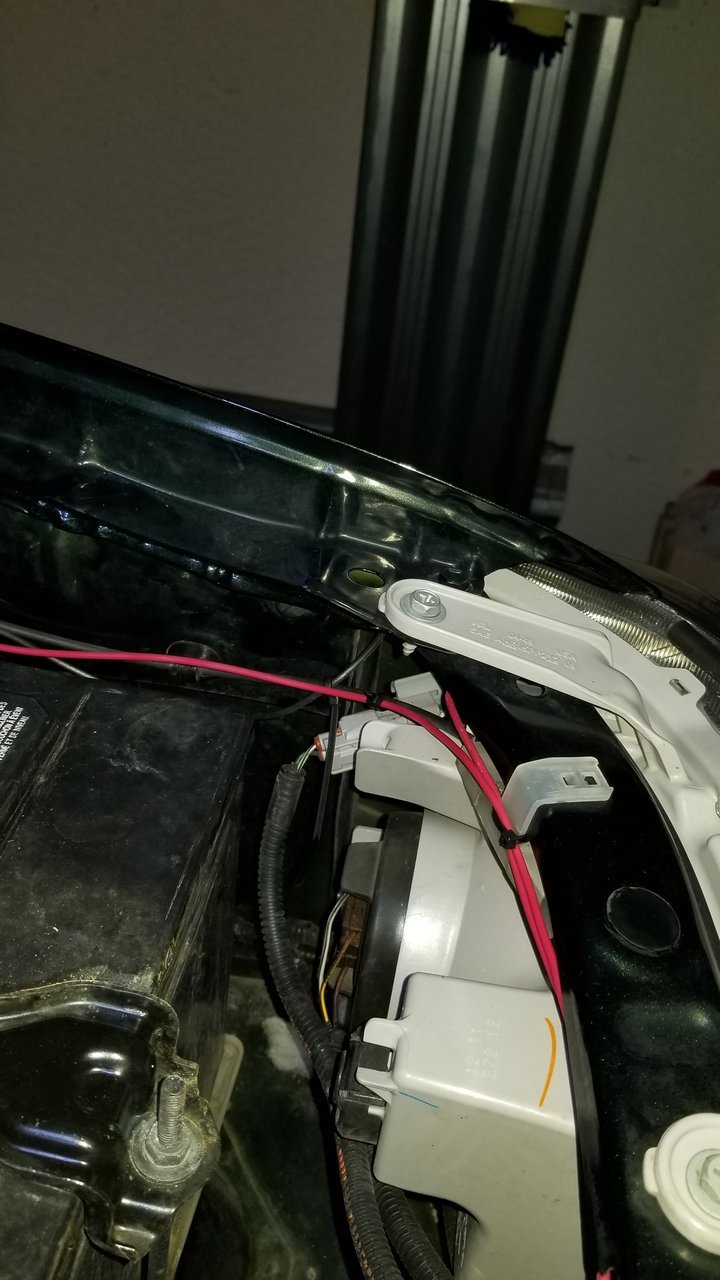

    Piggy back shot of wiring just zip-tied to existing wires for switch (improved visual with green line)
    [​IMG]
    No add-a-circuit here, just wired straight to battery, not enough amperage draw to necessitate any extra stuff.

    Notes to route behind body seams (especially where high-strength, one-time-use adhesive is used) - simply snake the wires behind the adhesive points, using some solid core wire as a snaking hook/hoop works really well. The routing of the wires took the most time, other than that, it was a pretty straight-forward and quick install.

  7. Feb 5, 2012 at 9:24 AM
    #7
    Norton

    Norton Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    2,728
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    ARE Z-Series Topper, OME 885 Coils, Dakar Leafs, NitroCharger Sports; TRD Quickshifter; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; Goodridge SS Brake Lines; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; MetalMiller TRD Skid; jsi's Locker Anytime & ramonortiz55's Always on Power Outlet Relay Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); ND4's Fog Light Anytime Mod; Interior & Reverse LEDs; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Foam Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Toyota Bed Extender; Pop & Lock Power Tailgate Lock; SolarGard Tint; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Green highlights make this very easy to follow/understand. Thank you!

  8. Feb 5, 2012 at 12:58 PM
    #8
    jep527

    jep527 Well-Known Member

    Joined:
    Apr 29, 2011
    Member:
    #55814
    Messages:
    113
    Gender:
    Male
    First Name:
    jerry
    Dickinson TX
    Vehicle:
    07 trd dc tacoma
    rear led blacked taillights, front headlights blacked out, grillcraft grill with lights behind, bed lights,black vinyl armrest,fog lights anytime mod,h1 minis 4300k,hood lights,

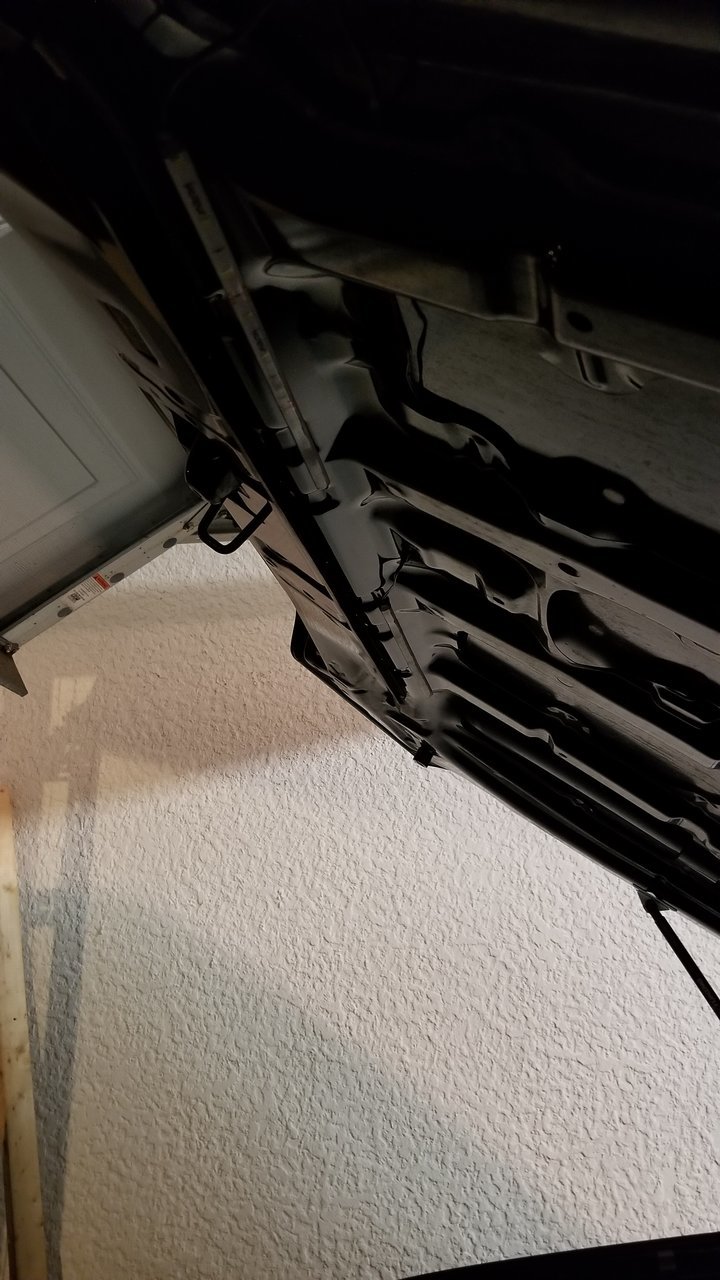

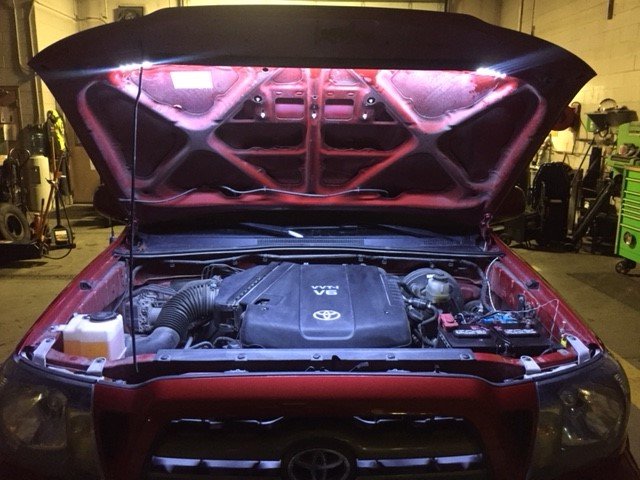

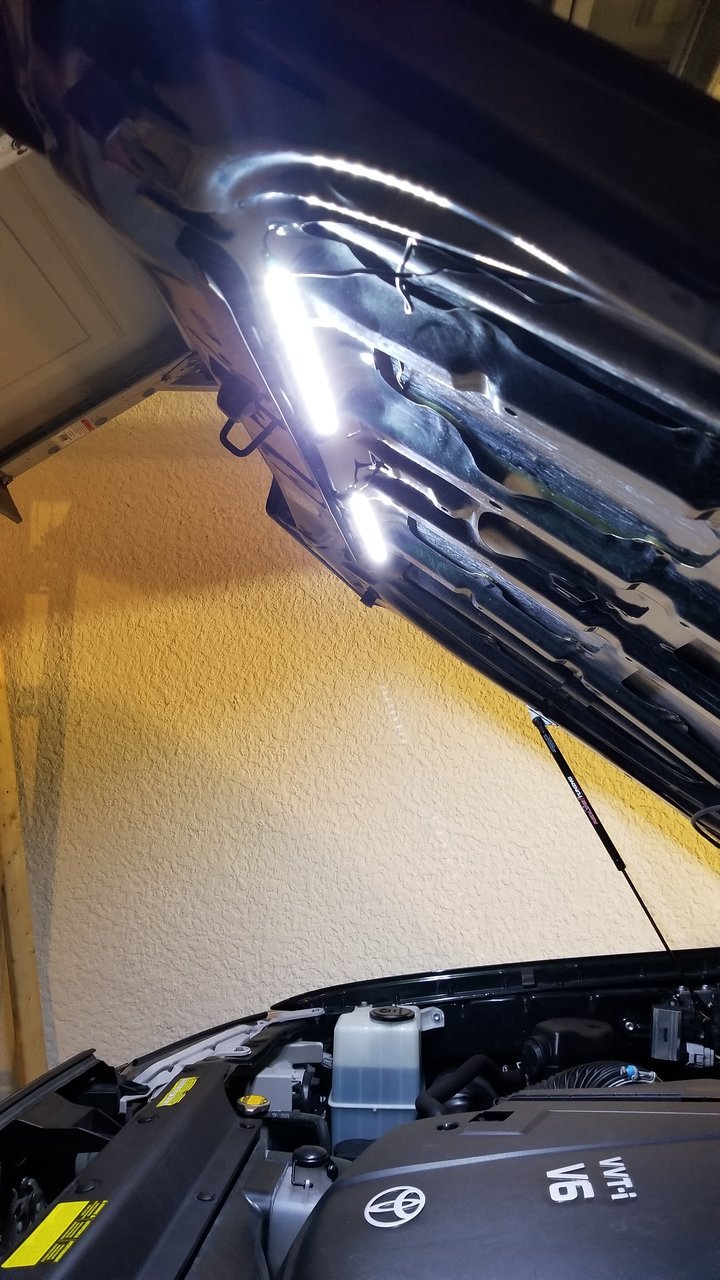

    looks good i put 2 small leds on my with a push switch to turn on when the hood opens.

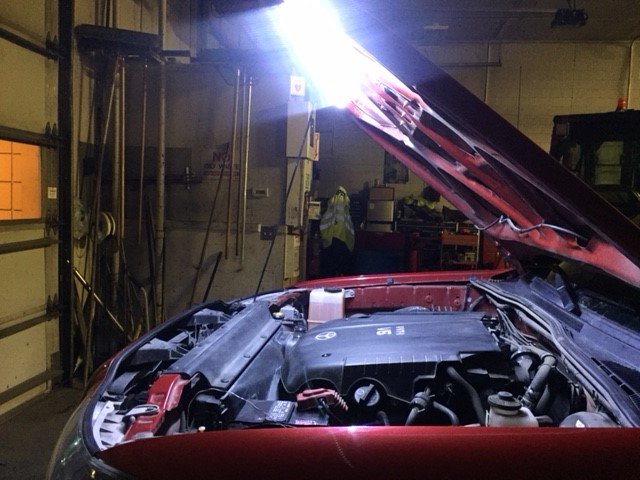

    hood lights.jpg
    led hood1.jpg

  9. Feb 5, 2012 at 2:25 PM
    #9
    wordtothis

    wordtothis [OP] Well-Known Member

    Joined:
    Aug 25, 2011
    Member:
    #62363
    Messages:
    166
    Gender:
    Male
    First Name:
    david
    atlanta
    Vehicle:
    '11 DC SB, V6 4X4, 6spd
    Husky floor liners, in-channel vent visors, billies, khaki softopper, Wet Okoles, OTHER STUFF - kinda STOCKISH!
    thought about the pressure switch route, but decided against it for simplicity's sake and it was not the easiest thing to find.

  10. Dec 19, 2014 at 4:42 AM
    #10
    bryanbyers28

    bryanbyers28 Well-Known Member

    Joined:
    Jun 18, 2014
    Member:
    #132224
    Messages:
    435
    Gender:
    Male
    First Name:
    Bryan
    Woodstock, GA
    Vehicle:
    2013 Black Tacoma 4x4 TRD Off-Road
    WeatherTech floor liners LED Map, dome, and license plate lighting Home made console organizer 30" LED Light Bar in lower grill Toyota Bed Mat
    So you have the positive and negative go to the toggle switch?

  11. Dec 19, 2014 at 5:04 AM
    #11
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,819
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    If anyone is looking to do this, Ford F150's have a hood pressure switch on their vehicles. The part is $20. If anyone is looking for a way to make their lights come on when the hood is opened, that switch wouldn't be a bad option.
    No, power into the switch from the battery, then power from the switch to the lights. The switch itself doesn't need to be grounded and the lights can be grounded where they are mounted.

  12. Dec 19, 2014 at 6:11 AM
    #12
