Under Hood Lights

Discussion in 'Lighting' started by claymore, Dec 29, 2012.

  1. Dec 29, 2012 at 8:46 PM
    #1
    claymore

    claymore [OP] Well-Known Member

    Joined:
    Aug 4, 2012
    Member:
    #84090
    Messages:
    352
    Gender:
    Male
    First Name:
    Clay
    ABQ New Mexico
    Vehicle:
    2012 Offroad
    TRD cat back exhaust, console vault(for my little friend),Pop and Lock, Bak Flip G2, Weather Tech window covers, LED inside and out, DTRL Anytime, Grillcraft Grill, BAMF Light Bar with Hella 500s and Blitzpro 15D, Eibach with 5100's all around set at .85 and top plate spacers, LR UCA's, toytec 2" add a leaf, Duratrack 285 75 16, ABS kill switch, Aux reverse lights, Blue Sea Aux fuse block, ImMrYo Bracket, LED Bedlights, Ultra Gauge,

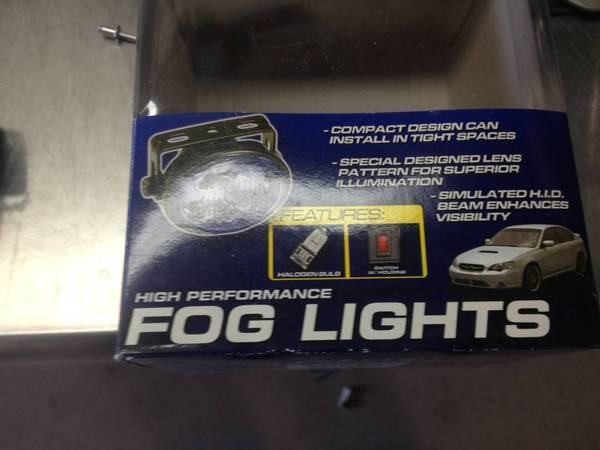

    I have been wanting some under hood lights for a while now. It is dark under there, even in the day light. I have looked at some LED's like these,http://www.tacomaworld.com/forum/lighting/95593-led-hood-lights.html#post1826234, but they just seem vulnerable. I liked the light they put out and the low amp draw, but I didnt like adhesive holding them on in a hot engine compartment. I also worried about them when pressure washing the engine bay. I bought some cheap fog lights from Pep Boys for $24. They just seem a little more sturdy.
    [​IMG]

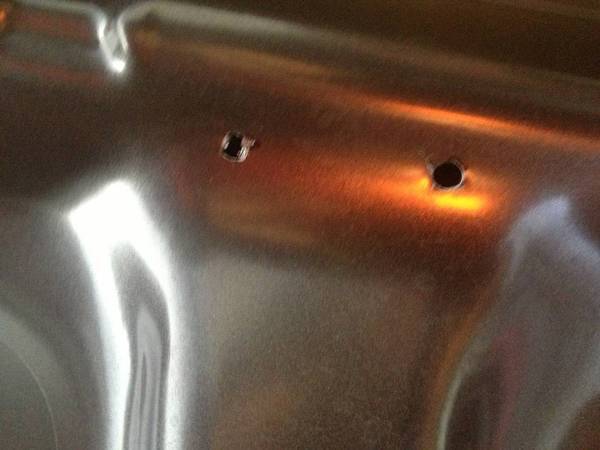

    I found a spot to drill into the underside of the hood. Very Carefully!
    [​IMG]

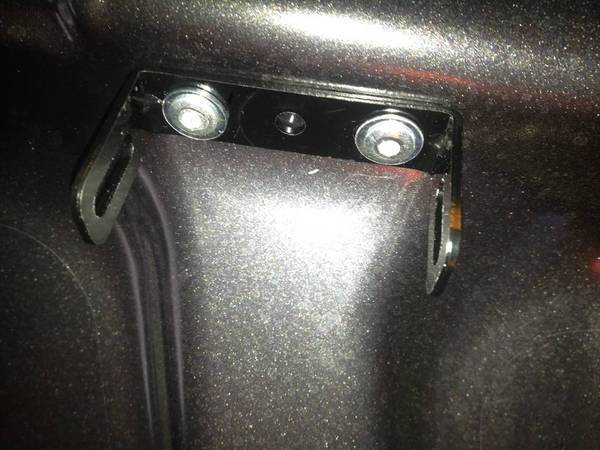

    I attached the mounting bracket with rivots and used a washer to be sure
    [​IMG]
    [​IMG]

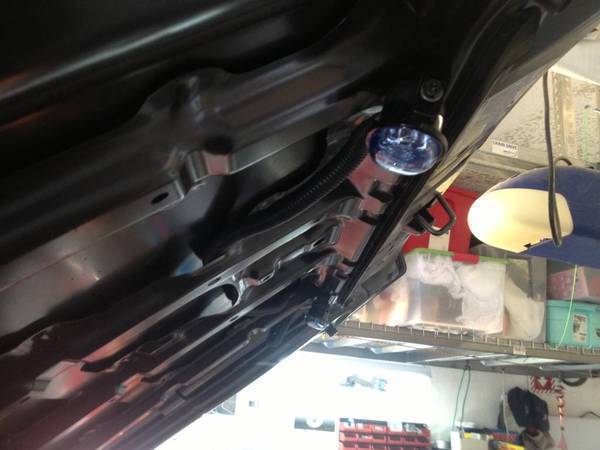

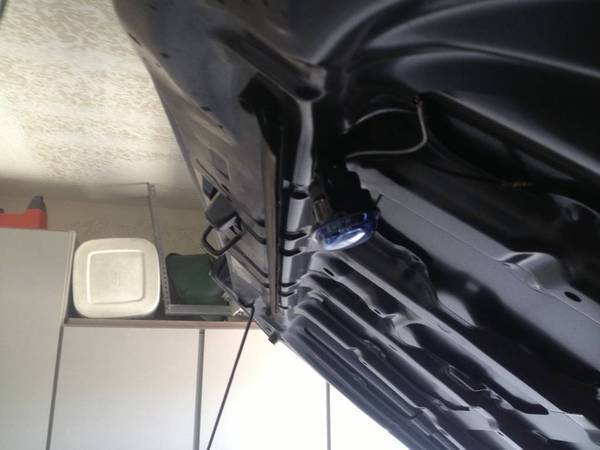

    Light mounted and carefully checked to make sure there is no contact when the hood is closed. I also got it away from the radiator to try to help with it getting too hot.
    [​IMG]
    [​IMG]
    [​IMG]
    The hardest part as mentioned by DWreck in his post is feeding the wires up through to hood. Patience and tie wire are the keys. I made a little hook out of the wire and it helped feed it in. I installed a switch and wired it up with a relay. It is like bright sunshine under there at night! :D
    [​IMG]

  2. Dec 29, 2012 at 9:07 PM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,772
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
  3. Dec 29, 2012 at 9:09 PM
    #3
    Bengland25

    Bengland25 Never Forget! 343

    Joined:
    Nov 17, 2011
    Member:
    #67192
    Messages:
    1,972
    Gender:
    Male
    First Name:
    Bradley
    Southern California
    Vehicle:
    09 Tacoma TRD
    MB Chaos 6 17" wheels, BF Goodrich All-Terrain TA/KO LT265-70R17, Anytime Fog Lights, Anytime Backup Camera, Bed Lights, Tailgate Lock, Light bar with 3 Hella 700FF's, Realtree Camo arm-rests, Anytime DTRL (With Switch), Blue Seas Fuse Block and Circuit Breaker, Custom Bed Light-Bar, Cobra 29 LTD Chrome, 4' Firestik, Masterlock Hitch Key Safe, Bed Storage Compartment Locks, Custom Shovel Bracket Mount, Flag Pole Mount (RED SOLO CUP FLAG!), DIY Washable Cabin Filter, URD MAF Cal., Homelink Garage Door Opener, Volant CAI w/ Ram Scoop, AeroTurbine 3030XL, URD Short Throw Shifter, Custom Satoshi, Blitzpro 21S, 2 Blitzpro 6LZ's, Blitzpro 6D, BAMF Sliders
    Well done! Idk if you stated it or not, simply because the tapatalk app doesn't show text sometimes, but how'd you wire in a switch??

  4. Dec 29, 2012 at 9:14 PM
    #4
    Kolunatic

    Kolunatic dont tread on me!

    Joined:
    Apr 29, 2012
    Member:
    #77862
    Messages:
    9,779
    Gender:
    Male
    Texas
    Vehicle:
    07,2wd,DC,SRD,TRD Sport,because
    Very nice indeed.

  5. Dec 29, 2012 at 9:17 PM
    #5
    claymore

    claymore [OP] Well-Known Member

    Joined:
    Aug 4, 2012
    Member:
    #84090
    Messages:
    352
    Gender:
    Male
    First Name:
    Clay
    ABQ New Mexico
    Vehicle:
    2012 Offroad
    TRD cat back exhaust, console vault(for my little friend),Pop and Lock, Bak Flip G2, Weather Tech window covers, LED inside and out, DTRL Anytime, Grillcraft Grill, BAMF Light Bar with Hella 500s and Blitzpro 15D, Eibach with 5100's all around set at .85 and top plate spacers, LR UCA's, toytec 2" add a leaf, Duratrack 285 75 16, ABS kill switch, Aux reverse lights, Blue Sea Aux fuse block, ImMrYo Bracket, LED Bedlights, Ultra Gauge,

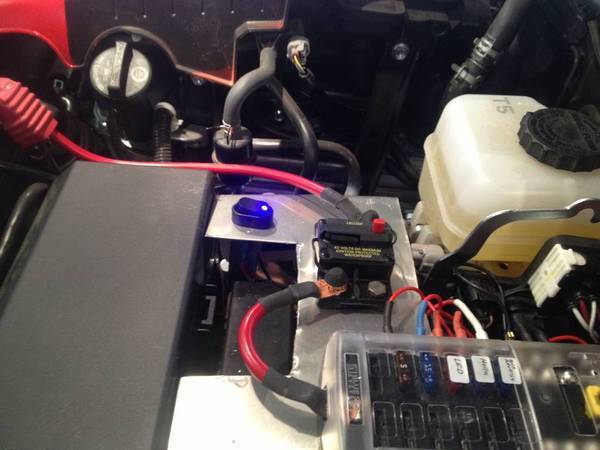

    I just used a cheap LED switch mounted by my aux fuse block. I figured I could just turn it on when I need it. I might put a normally closed switch on the ground for a safety just in case I forget to turn it off!
    [​IMG]

    Thanks Chris

  6. Dec 31, 2012 at 7:40 AM
    #6
    claymore

    claymore [OP] Well-Known Member

    Joined:
    Aug 4, 2012
    Member:
    #84090
    Messages:
    352
    Gender:
    Male
    First Name:
    Clay
    ABQ New Mexico
    Vehicle:
    2012 Offroad
    TRD cat back exhaust, console vault(for my little friend),Pop and Lock, Bak Flip G2, Weather Tech window covers, LED inside and out, DTRL Anytime, Grillcraft Grill, BAMF Light Bar with Hella 500s and Blitzpro 15D, Eibach with 5100's all around set at .85 and top plate spacers, LR UCA's, toytec 2" add a leaf, Duratrack 285 75 16, ABS kill switch, Aux reverse lights, Blue Sea Aux fuse block, ImMrYo Bracket, LED Bedlights, Ultra Gauge,
    Thanks

  7. Mar 2, 2013 at 8:29 PM
    #7
    ImpulseRed008

    ImpulseRed008 Gone But Not Forgotten

    Joined:
    Sep 9, 2008
    Member:
    #9104
    Messages:
    39,239
    Gender:
    Female
    First Name:
    Susan
    SC
    Vehicle:
    08 PreRunner SR5 V6 w/tow pkg
    OEM SS tube steps, Access LE tonneau cover, pop n'lock, AVS in-channel vent visors, stubby antenna, Wet Okole seat covers, bed mat, rear diff breather mod, 4 extra d rings in bed, K&N air filter.
  8. Mar 10, 2013 at 6:42 PM
    #8
    Aeon

    Aeon FOX HOUND

    Joined:
    Mar 9, 2013
    Member:
    #99323
    Messages:
    68
    Gender:
    Male
    Puerto Rico
    Vehicle:
    PreRunner SR5 4x2
    Coming Soon!
    nice job!

  9. Mar 10, 2013 at 6:46 PM
    #9
    claymore

    claymore [OP] Well-Known Member

    Joined:
    Aug 4, 2012
    Member:
    #84090
    Messages:
    352
    Gender:
    Male
    First Name:
    Clay
    ABQ New Mexico
    Vehicle:
    2012 Offroad
    TRD cat back exhaust, console vault(for my little friend),Pop and Lock, Bak Flip G2, Weather Tech window covers, LED inside and out, DTRL Anytime, Grillcraft Grill, BAMF Light Bar with Hella 500s and Blitzpro 15D, Eibach with 5100's all around set at .85 and top plate spacers, LR UCA's, toytec 2" add a leaf, Duratrack 285 75 16, ABS kill switch, Aux reverse lights, Blue Sea Aux fuse block, ImMrYo Bracket, LED Bedlights, Ultra Gauge,

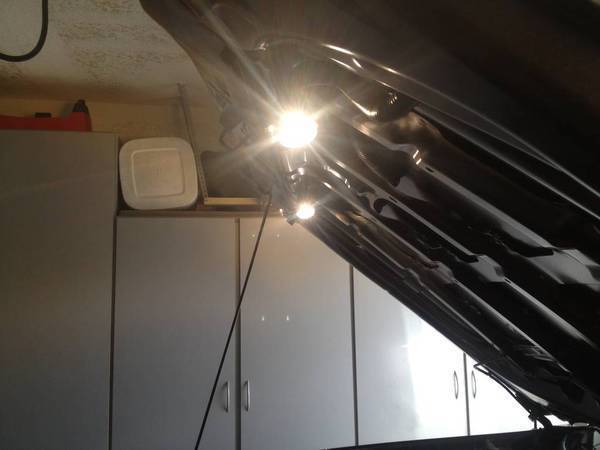

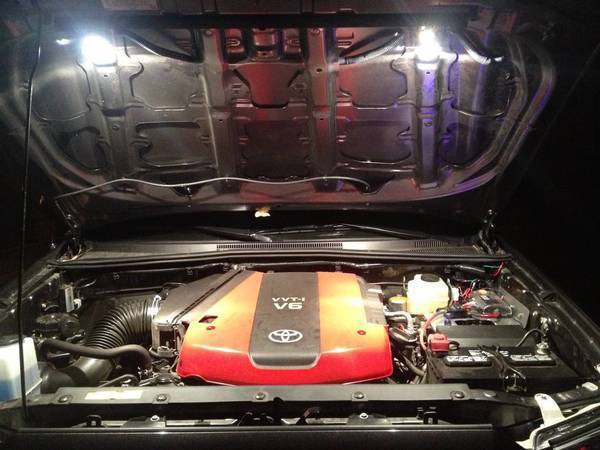

    Thanks all. They are sure handy, and bright!:eek:

  10. Mar 10, 2013 at 6:51 PM
    #10
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,496
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    You can always use a mercury switch, or magnetic reed relay.

    Problem with the magnetic switch is if the magnet gets dislodged, they come on.
    Mercury switch is how Detroit did it in Buick/Olds/Caddy/Lincoln/Chrysler for decades.

  11. Mar 10, 2013 at 6:53 PM
    #11
    AnTiFuBaR

    AnTiFuBaR Well-Known Member

    Joined:
    Feb 22, 2013
    Member:
    #98191
    Messages:
    105
    Gender:
    Male
    Grand Junction, CO
    Vehicle:
    '13 TRD OR 4x4 DCSB
    BHLM
    Looks good! Great idea.

  12. Mar 10, 2013 at 6:55 PM
    #12
    claymore

    claymore [OP] Well-Known Member

    Joined:
    Aug 4, 2012
    Member:
    #84090
    Messages:
    352
    Gender:
    Male
    First Name:
    Clay
    ABQ New Mexico
    Vehicle:
    2012 Offroad
    TRD cat back exhaust, console vault(for my little friend),Pop and Lock, Bak Flip G2, Weather Tech window covers, LED inside and out, DTRL Anytime, Grillcraft Grill, BAMF Light Bar with Hella 500s and Blitzpro 15D, Eibach with 5100's all around set at .85 and top plate spacers, LR UCA's, toytec 2" add a leaf, Duratrack 285 75 16, ABS kill switch, Aux reverse lights, Blue Sea Aux fuse block, ImMrYo Bracket, LED Bedlights, Ultra Gauge,

    How does this work? Interupt the ground? I have thought of adding this, so I dont forget to turn them off.

  13. Mar 10, 2013 at 7:10 PM
    #13
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,496
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Mercury switch is simply a bulb containing 2 contacts and a "ball" of mercury.
    Might be hard to find because of enviro regs, but they used to be in every thermostat in every house.
    The mercury rolls back and forth in a glass tube and joins the contacts when it reaches the end. It's just a switch. It can switch either the hot or the ground.
    Install it to the hood securely, slightly "nose down" and when the hood is opened the lights will come on.

    Detroit used them to switch 20w lamps, so the pair of LEDs won't be a problem.

  14. Mar 10, 2013 at 7:17 PM
    #14
    anarion55

    anarion55 Well-Known Member

    Joined:
    Mar 3, 2013
    Member:
    #98907
    Messages:
    281
    Gender:
    Male
    First Name:
    Tony
    S. Florida
    Vehicle:
    2013 PreRunner SR5
    ImMrYo's Mirror Mod, Stereo Upgrade - Power Pro 60x4 Amp/Kicker powered 8" sub/Pioneer component speakers, PassPort 8500 Radar Detector, Locking Bed Storage Cubbies, Onboard air system - Viair 450C compressor/3 gal. PVC tank/15 & 16" horns,
    Looks great, but I have to wonder what you're doing in the engine bay, in the dark....

  15. Mar 10, 2013 at 7:26 PM
    #15
    krob32

    krob32 Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73075
    Messages:
    1,343
    Gender:
    Male
    First Name:
    Kelly
    Ft. Belvoir, VA / Asheville, NC
    Vehicle:
    2012 MGM TRD Sport DCLB
    WeatherTec Digi Liners, AVS Bugflector II, TRD FJ SE Anthracite Rims, Goodyear DuraTrac 265/75/16, AVS In-Channel Wind Deflectors, Extang Solid Fold, Pop & Lock, Color Match Grill Emblem (Anthracite), Plasti Dip Emblems, Tacoma Bed Mat, Tacoma Door Sill Protectors, ToyTec Ultimate Lift Kit, ICON UCAs, Wet Okoles, Sockmonkey 3rd Brake Light Cover, LED Hood/Bed Lighting w/ OTRATTW Switches, Famous Fabrication Sliders, Sockmonkey TRD Bed Decal, Proven Design 4x4 Mudflaps, BenWA's Rear Power Sliding Window, Jasper Off Road 6" Reverse LED Pod, ImMrYo Rear View Mirror Bracket, GrillCraft w/ Black Mesh and color matched Land Cruiser Emblem, LED Tail Lights.
    Just saw this. Looks good.

  16. Mar 10, 2013 at 8:07 PM
    #16
    claymore

    claymore [OP] Well-Known Member

    Joined:
    Aug 4, 2012
    Member:
    #84090
    Messages:
    352
    Gender:
    Male
    First Name:
    Clay
    ABQ New Mexico
    Vehicle:
    2012 Offroad
    TRD cat back exhaust, console vault(for my little friend),Pop and Lock, Bak Flip G2, Weather Tech window covers, LED inside and out, DTRL Anytime, Grillcraft Grill, BAMF Light Bar with Hella 500s and Blitzpro 15D, Eibach with 5100's all around set at .85 and top plate spacers, LR UCA's, toytec 2" add a leaf, Duratrack 285 75 16, ABS kill switch, Aux reverse lights, Blue Sea Aux fuse block, ImMrYo Bracket, LED Bedlights, Ultra Gauge,
    It's a secret:spy:

  17. Mar 28, 2013 at 1:27 PM
    #17
    lslownslow

    lslownslow Member

    Joined:
    Jan 23, 2012
    Member:
    #71225
    Messages:
    17
    Gender:
    Male
    First Name:
    jacob
    raleigh nc
    Vehicle:
    02 sr5
    AP Front bumper Fabtech spindles 1.5" strut spacer Daystar 2" shackle lift 15x8" 0mm offset Pacer Soft 8's 30x9.50" BFG Kos 6" PIAAs reverse lights 6000K Kragens 7 inch fogs
    wow thats super bright

  18. Mar 28, 2013 at 1:32 PM
    #18
    bullaculla

    bullaculla IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    4,958
    Gender:
    Male
    Honolulu HI
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    Fox 2.5 IFP extended travel coilovers, Fox 2.0 extended travel FJC rear piggyback shock, Icon 3 leaf progressive mini AAL pack, Total Chaos UCAs, konig countersteer wheels and 265/75/16 duratrac tires.
    Nah, they are super cheap and all over ebay.
    sealed type:
    http://www.ebay.com/itm/WEATHERPROO...692?pt=LH_DefaultDomain_0&hash=item19d2d2e404
    Open:
    http://www.ebay.com/itm/10pcs-Mercu...926?pt=LH_DefaultDomain_0&hash=item3a637e64ee

    I'd just use a normal switch tho. I can imagine the hood lights flashing on and off while you are wheeling :D

    Last edited: Mar 28, 2013
  19. Mar 31, 2013 at 4:30 PM
    #19
    ckeene9

    ckeene9 Well-Known Member

    Joined:
    Sep 20, 2012
    Member:
    #87325
    Messages:
    8,139
    Gender:
    Male
    Chesterfield, VA
    Vehicle:
    '12 DCSB Supercharged 4x4 TRD Sport
    See Build Thread
    Checking oil, jump starting someone, adding windshield washer fluid, hooking up the winch control, etc.
