    Quick Links: Driver cubby switch plate, hi-lift mounts, oem parts, and misc (Socal) SOLD! :) : Stock TRD Offroad shift knob (AT) SoCal JBL Head Unit 2019 $300 Shipped (SoCal) FS: Hondo Garage mount, compressor mount, organizer, emblems Sold: Pop & Lock PL8535 Power Tailgate Lock for Toyota Tundra SOLD Vlair 88p portable compressor $30

Under Hood Vertical Compressor Mount

Discussion in '3rd Gen Tacoma Parts Marketplace (2016-2023)' started by MJ_PDX, Jan 30, 2019.

Page 1 of 4
  1. Jan 30, 2019 at 5:10 PM
    #1
    MJ_PDX

    #1
    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    99
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    UPDATE: Sorry folks...As of today 1/8/20 I have officially sold out of these brackets. I don't plan on making any more.

    For those that wish to mount an ARB twin compressor vertically under the hood of your truck and preserve the space at the rear of the engine compartment for a 2nd battery (as I have), or something else, this is the adapter bracket for you.

    Just to be clear (because some people have misunderstood), This is NOT the entire compressor or mount, it is just a custom bracket I made to replace the upper bracket in the Slee Offroad 2nd Gen. compressor mounting kit (http://www.sleeoffroad.com/products/products_air.htm #SOK0002) to adapt it to work on the 3rd Gen. Tacoma.

    PLEASE BE AWARE SLEE HAS CHANGED THEIR PART NUMBERING! - I THINK THESE ARE NOW THE CORRECT NUMBERS.

    DOUBLE-CHECK AND MAKE SURE YOU ARE ORDERING THE CORRECT MOUNT (2nd Gen Tacoma 2005-2015)

    You will need to have/get the Slee kit for this to work. Installation is per Slee instructions until you get to upper bracket and then just use mine instead of theirs.

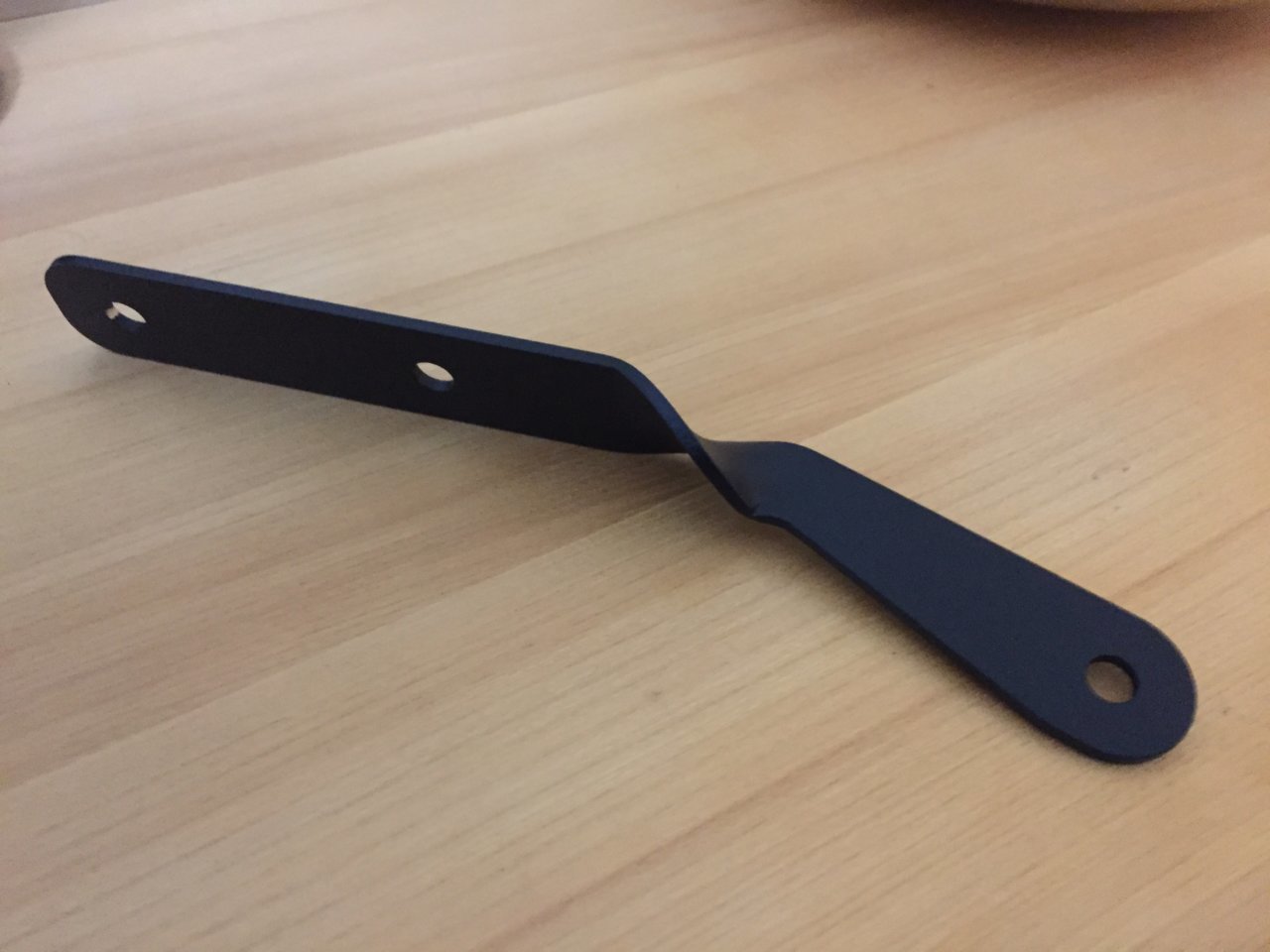

    2019-01-30 006.jpg

    [​IMG]

    IMG_0553 (1).jpg

    CAVEATS:
    1. Slee Offroad also makes a "3rd Gen." mount for Tacomas (#SOK0038) that mounts the compressor horizontally at the rear of the engine compartment (where the battery is in my photo). If that is the style you want, great, this bracket is not necessary for that mount.

    Otherwise, if you DO want the front vertical installation, make sure you get the correct part number (#SOK0002) for the 2nd Gen. (2005-2015) Tacoma. That's the mount this bracket is used with.

    2. If you wish to use the single ARB compressor, you can use the same 3rd Gen mount (#SOK0038) if you want it at the rear, or if you want it up front you can use Slee's (#SOK0001) mount. Again, this bracket is not necessary for those mounts

    I have had a small batch of brackets made up (laser cut, powder coated, Etc.) for any that are interested.

    As they are a bit of a niche item and the small batch size, Cost will be $28 (including shipping) to cover my expenses.

    You can Paypal me at http://paypal.me/MarkJ0711, leave your shipping information in the notes and I will get one sent out to you ASAP.

    PM me for more information.

    Last edited: Jan 9, 2020
    MJ_PDX, Jan 30, 2019
    #1
    super_white, MrBrooks, cemented and 1 other person like this.
  2. Jan 30, 2019 at 5:32 PM
    #2
    Tynan

    #2
    Tynan W3YIP

    Joined:
    Feb 9, 2017
    Member:
    #210127
    Messages:
    1,196
    Gender:
    Male
    First Name:
    Nick
    Austin Texas
    Vehicle:
    2017 Sky Metallic TRD Offroad
    Payment sent!

    Tynan, Jan 30, 2019
    #2
    Darkcbr1000rr likes this.
  3. Jan 30, 2019 at 6:55 PM
    #3
    PcBuilder14

    #3
    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    23,311
    Gender:
    Male
    First Name:
    Brent
    Nor Cal
    Vehicle:
    2018 Tacoma TRD Off Road 4x4
    Payment sent.

    PcBuilder14, Jan 30, 2019
    #3
  4. Jan 31, 2019 at 12:30 PM
    #4
    scary_larry

    #4
    scary_larry Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210688
    Messages:
    164
    Gender:
    Male
    First Name:
    Zac
    Huntington Beach
    Vehicle:
    2017 dclb Tacoma
    Sliders, skids and stuff
    payment sent :spending:

    scary_larry, Jan 31, 2019
    #4
  5. Jan 31, 2019 at 12:42 PM
    #5
    seattle_taco

    #5
    seattle_taco Well-Known Member

    Joined:
    Apr 18, 2018
    Member:
    #250927
    Messages:
    77
    Seattle
    Vehicle:
    2018 TRD OR DCLB
    payment sent!

    seattle_taco, Jan 31, 2019
    #5
  6. Jan 31, 2019 at 1:27 PM
    #6
    Tynan

    #6
    Tynan W3YIP

    Joined:
    Feb 9, 2017
    Member:
    #210127
    Messages:
    1,196
    Gender:
    Male
    First Name:
    Nick
    Austin Texas
    Vehicle:
    2017 Sky Metallic TRD Offroad
    OMG, you're still around! Have you leveled up to not get stuck anymore?

    Tynan, Jan 31, 2019
    #6
    scary_larry[QUOTED] likes this.
  7. Jan 31, 2019 at 1:36 PM
    #7
    scary_larry

    #7
    scary_larry Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210688
    Messages:
    164
    Gender:
    Male
    First Name:
    Zac
    Huntington Beach
    Vehicle:
    2017 dclb Tacoma
    Sliders, skids and stuff
    :anonymous: ha ha ha yeah I'm still around. I don't post much (haven't gotten stuck since), but I'm always lurkin and trying to learn more.
    Definitely leveled up a little. Glad I made an impression :cheers:

    scary_larry, Jan 31, 2019
    #7
  8. Jan 31, 2019 at 2:07 PM
    #8
    chaotic_taco

    #8
    chaotic_taco Well-Known Member

    Joined:
    Jul 3, 2017
    Member:
    #223018
    Messages:
    341
    Gender:
    Male
    First Name:
    Matt
    ATX
    Vehicle:
    2017 DCSB TRD OR MT
    Paid!

    chaotic_taco, Jan 31, 2019
    #8
  9. Feb 1, 2019 at 5:51 PM
    #9
    Blucuss

    #9
    Blucuss Well-Known Member

    Joined:
    Oct 4, 2014
    Member:
    #139637
    Messages:
    172
    Gender:
    Male
    Texas
    Vehicle:
    2018 Super White Tacoma TRD OR
    • RAVELCO ANTI THEFT DEVICE with Three Plugs • 285/75/16 BFG KO2s on Stock TRD PRO Wheels • King Front Coilovers, 700lb Front Springs, Extended Travel, Remote Res with Comp Adjusters • King Rear Shocks with Remote Res and Comp Adjusters plus DOBINSONS TACOMA HEAVY DUTY LEAF SPRINGS • Total Chaos UCAs & LCAs • 5.29’s & ARB Air Locker • ARB Twin Air Compressor on SLEE Mount • Switch Pro 9100 • North Star NSB-AMG27F Battery • OGE Machined Aluminum Battery Tiedown • Upgrade Sound System - KENWOOD DMX706S / XR9015 KENWOOD Reference Fit 5 Channel Power Amplifier/ Custom Box 10" Single Sub Ported / KFCXW1000F KENWOOD 10" Shallow Subwoofer, 1000W Max / RSE165 FOCAL 6.5” 2-Way Component Kit Door Speakers • Custom Front & Rear Viewing Cameras • Sound Dampening Mat 4 Doors, Floor, and Rear • Redline Toyota Tacoma Hood QuickLIFT ELITE - Carbon Fiber • LRA 34 Gal Fuel Tank • BAMF High Clearance Rear Bumper with Rub Rails & Dual Swing out with Tire Carrier plus dual Squadron Pro S1 Baja Designs lights • C4 Fabrication Overland Series Front Bumper with Full Center & Headlight Hoops plus Front Bumper Frame Supports / Squadron Pro, Pair, LED Driving/Combo Cubes (Amber) Fog Lights / Center LED Bar Baja Designs - S8, 30" Driving/Combo Amber,LED Light Bar • CASCADIA 4X4 FLIPSTER V3 WINCH LICENSE PLATE MOUNTING SYSTEM • WARN® ZEON 10-S Platinum Winch • GOAT - CUSTOM Go Off-road Armor Tech • Ditch Lights - Squadron Pro LED Driving/Combo Cubes • Cali Raised 25 Degree Rock Sliders • Cali Raised Bed Channel Supports • ShrockWorks High Clearance Full Belly Skid Plates All Steel Construction • High Clearance TRD Exhaust Modification • Custom Horn from American Auto Horns • upTOP Alpha XL Roof Rack with Baja Deigns 30" S8 & Squadron Pro, Pair, LED Driving/Combo Cubes Facing the Rear • Weathertech Front & Rear Floormats • G-Tec Fab Door Sill Protectors • TRD Pro Front and Rear Leather Seats • MOLLE Panel, Double Cab Subwoofer w/power window • TheTacoGarage Dashtop Multi-Mount • MESO Gas Hole • MESO Custom Fuse Cover • MESO Coin Holder • SDHQ Built Billet ABS Guards • Multimount Panel - Seat Jacker Mount • MAXTRAX MKII FJ Red Traction Boards
    Payment sent! Thank you!

    Blucuss, Feb 1, 2019
    #9
  10. Feb 4, 2019 at 4:14 PM
    #10
    PcBuilder14

    #10
    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    23,311
    Gender:
    Male
    First Name:
    Brent
    Nor Cal
    Vehicle:
    2018 Tacoma TRD Off Road 4x4
    Received the mount today. Now I need to actually buy the compressor and rest of the mounting kit... :spending:

    PcBuilder14, Feb 4, 2019
    #10
    chaotic_taco likes this.
  11. Feb 4, 2019 at 4:52 PM
    #11
    scary_larry

    #11
    scary_larry Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210688
    Messages:
    164
    Gender:
    Male
    First Name:
    Zac
    Huntington Beach
    Vehicle:
    2017 dclb Tacoma
    Sliders, skids and stuff
    Recieved your bracket! Thank you!

    scary_larry, Feb 4, 2019
    #11
  12. Feb 8, 2019 at 7:00 PM
    #12
    atlas99

    #12
    atlas99 Well-Known Member

    Joined:
    Jan 22, 2017
    Member:
    #208349
    Messages:
    138
    Gender:
    Male
    First Name:
    Cody
    Washington
    Vehicle:
    17' SR5 DCSB
    How many do you have left?

    atlas99, Feb 8, 2019
    #12
  13. Feb 8, 2019 at 7:59 PM
    #13
    MJ_PDX

    #13
    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    99
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    If you want one, I have plenty at the moment.

    MJ_PDX, Feb 8, 2019
    #13
  14. Feb 21, 2019 at 1:23 PM
    #14
    PrestigeAerials

    #14
    PrestigeAerials Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279874
    Messages:
    63
    Gender:
    Male
    Payment sent I hope there still available!

    PrestigeAerials, Feb 21, 2019
    #14
  15. Feb 21, 2019 at 1:38 PM
    #15
    MJ_PDX

    #15
    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    99
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    Yep, no worries, we'll get one sent right off to you!

    Thanks,
    - Mark

    MJ_PDX, Feb 21, 2019
    #15
  16. Mar 11, 2019 at 11:45 PM
    #16
    carter415

    #16
    carter415 Member

    Joined:
    Dec 15, 2017
    Member:
    #238606
    Messages:
    8
    Gender:
    Male
    First Name:
    carter
    Vehicle:
    2018 cement 4x4 DCLB OR
    carter415, Mar 11, 2019
    #16
  17. Mar 12, 2019 at 7:12 AM
    #17
    MJ_PDX

    #17
    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    99
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    If you are referring to the
    $350 ARB CKMA12 On-Board Air Compressor High Performance 12 Volt for Air Locker Differentials and Tire Inflation
    ARB CKMA12 single compressor then yes, as I said in my first post, Slee makes a 2nd Gen mount for that compressor that mounts up front. That mount does not require this bracket.
    Also, I have not personally installed, used or seen this combination so you will have to confirm, but I believe it is a direct bolt in item.
    There is also a 3rd Gen mount that goes in the rear passenger corner under the hood that will accept this compressor. Pick your poison.

    EDIT: I see the CKSA is the locker only version of the single compressor... I believe mounts are the same.

    MJ_PDX, Mar 12, 2019
    #17
    carter415[QUOTED] likes this.
  18. Mar 16, 2019 at 3:38 AM
    #18
    bikesinmud

    #18
    bikesinmud Well-Known Member

    Joined:
    Mar 2, 2016
    Member:
    #180050
    Messages:
    133
    Gender:
    Male
    Washington
    question,
    does this mounting position allow enough room for the ARB manifold to be mounted on the ARB twin?

    bikesinmud, Mar 16, 2019
    #18
  19. Mar 16, 2019 at 3:38 PM
    #19
    MJ_PDX

    #19
    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    99
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    Yes, there is physically space in this location for the manifold, but there are no mounting provisions for it with this bracket. As I don't have/use the manifold (I'm plumbed to a small tank) I don't really know, but I believe the manifold comes with its own bracket that attaches to the compressor body, but I couldn't swear to it. Sorry, but you'll have to come up with your own research/mounting solution for this one.

    MJ_PDX, Mar 16, 2019
    #19
  20. Mar 19, 2019 at 3:27 PM
    #20
    mrjoshyman

    #20
    mrjoshyman Well-Known Member

    Joined:
    Dec 26, 2016
    Member:
    #205750
    Messages:
    202
    Gender:
    Male
    First Name:
    Josh
    this is EXACTLY what I was looking for! just ordered!

    mrjoshyman, Mar 19, 2019
    #20
