Understanding O2 signals and Fuel trim

Discussion in 'Technical Chat' started by BamaToy1997, Jan 20, 2013.

  1. Jan 20, 2013 at 6:32 PM
    #1
    BamaToy1997

    BamaToy1997 [OP] ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,478
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    I started writing this as a response to a post, but thought that it would be a good thread on it's own. Anyone that tries to figure out their own problems in their O2 sensors or try to figure out fuel trim should read this.

    Reading and understanding fuel trim as well as the actual O2 sensor readings are almost an art. You should never expect bank 1 and bank 2 to coincide all the time, though they should be even on AVERAGE. Meaning that while the peaks and drops won't happen at the exact same time, they should have reasonably EVEN peaks and valleys. A static O2 sensor will read 450 millivolts. A lean signal will be low (around 200mv) and a rich signal will be high (around 800mv).

    Fuel trim is a calculation based on the O2 sensor readings from the sensors at position 1. (Bank 1 sensor 1, Bank 2 sensor 1) Long term and short term are pretty much like they say. Short term fuel trim (STFT)is quick changes to the injector pulse to correct fuel mixture, and long term fuel trim (LTFT)is for continuous steady changes. When diagnosing fuel mixture problems I look more at the long term numbers. As long as LTFT is near zero then all is usually good. Quick changes are to be expected (i.e. STFT) because there are constant changes in the environment of the engine. Quick throttle closes, like when you take your foot off the gas pedal, will cause a quick spike in richness that STFT will correct almost immediately by going negative. There is no need to make a LTFT adjustment, because you are not having a continuous change in fuel mixture.

    Now lets look at another situation. Let's say a small leak in a vacuum line. This small leak is picked up by the STFT and a small correction (+1 STFT) is made to add fuel. The O2 sensor shows that the correction did not last and more correction is needed. Again the STFT makes a change to add more fuel (+2 STFT)and a counter is started. When that counter reaches a predetermined point (this is done within a few seconds of course and is NORMALLY but not always a STFT value of +5) then the computer will increase the LTFT and will continue to monitor. This results in a +1 LTFT and a +5 STFT. This adjustment will continue up to a maximum of +25/+25 at which point the computer is unable to add more fuel. (Note that this also works backwards in the case of running rich. The difference being that the numbers would go negative, thus REDUCING fuel injector on-time)

    MOST cars and trucks today will set a code when LTFT increases above 12, or below -12.

    Don't try to diagnose ANY problems with O2 sensor readings or fuel trim numbers on a cold engine. Your engine will by design run slightly rich for a few minutes while warming up. Also the O2 sensor must be around 300 deg F before it will be accurate. Most of today's modern O2 sensors have a built in heater to speed this up. If your O2 sensor has more than 1 wire then it most likely is of the design with a heater. (This heater also is part of the OBDII diagnostic chain and will set it's own code if it has a failure)

  2. Jan 20, 2013 at 7:57 PM
    #2
    Vstrom30

    Vstrom30 Well-Known Member

    Joined:
    Dec 5, 2012
    Member:
    #92484
    Messages:
    211
    Gender:
    Male
    Midwest
    Vehicle:
    Tacoma Access Cab 4x4

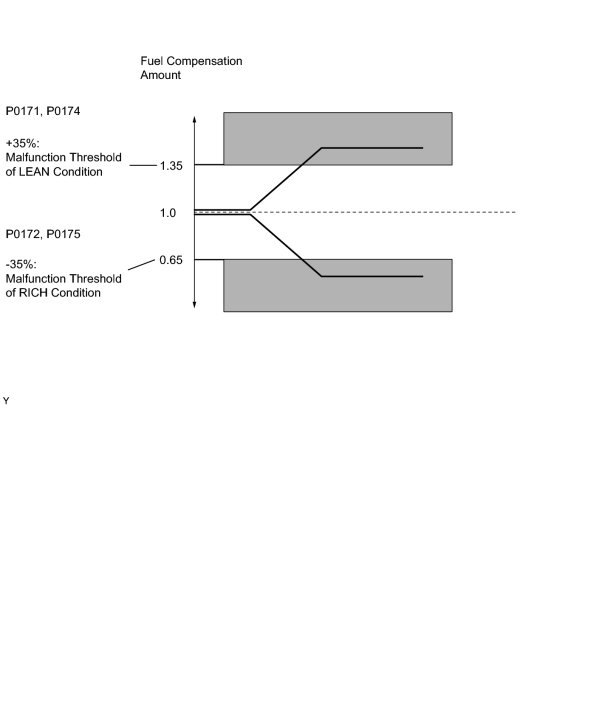

    That's a pretty good write-up. I would like to add that Toyota and Lexus can read higher and lower on the spectrum of fuel trim without necessarily setting a code. To me, they have a broader range than many other manufacturers. That is not to say that there may not be a rich or lean problem existing, but Toyota logic will not usually set a code unless the Trims are in the +/-30 percentile. Like said in the first post, normal readings are still +/-10. Check out this table from the TIS manual.

    [​IMG]

  3. Jan 20, 2013 at 8:08 PM
    #3
    NelsonTacoma

    NelsonTacoma This is my derpawayinator!!!!!

    Joined:
    Mar 25, 2010
    Member:
    #33969
    Messages:
    2,093
    Gender:
    Male
    Tucson, AZ
    Vehicle:
    06 PreRunner TRD Sport 03 4Runner Limited 4wd
    Bilstein 5100's , 6000k HID Hi/Low Kit, Magnaflow Muffler, 1.5 inch AP Wheel Spacers, Mudflap Delete
    I vote for sticky on this thread. Great info!!

  4. Jan 21, 2013 at 11:16 AM
    #4
    BamaToy1997

    BamaToy1997 [OP] ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,478
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Yes, Toyota does have a +30/-30 threshold for setting the code. I should have been more specific on the Tacoma standard, but this post was meant to be generic, and not every year Tacoma nor every model of Toyota have the same threshold. This was meant as a more general information thread on how the systems work for all vehicles. Thanks for the input though!

  5. Jan 24, 2013 at 7:56 AM
    #5
    BamaToy1997

    BamaToy1997 [OP] ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,478
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Looks like you are the only one. lmao!

  6. Jan 24, 2013 at 7:04 PM
    #6
    Vstrom30

    Vstrom30 Well-Known Member

    Joined:
    Dec 5, 2012
    Member:
    #92484
    Messages:
    211
    Gender:
    Male
    Midwest
    Vehicle:
    Tacoma Access Cab 4x4
    I would like a sticky too.

  7. Feb 15, 2013 at 5:43 AM
    #7
    TIPICOTACO

    TIPICOTACO Well-Known Member

    Joined:
    Nov 22, 2010
    Member:
    #46556
    Messages:
    2,073
    Gender:
    Male
    First Name:
    Tyler
    nw nj
    Vehicle:
    '01 DC 4X4 TRD "RAD BARON"
    Some lift, some armor, some scratches..
    this is excellent info, thanks OP!

  8. Feb 17, 2013 at 9:13 PM
    #8
    BamaToy1997

    BamaToy1997 [OP] ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,478
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Most welcome. I am working on a thread about the dreaded P0420 code that I will post soon.

  9. Feb 18, 2013 at 8:54 PM
    #9
    NelsonTacoma

    NelsonTacoma This is my derpawayinator!!!!!

    Joined:
    Mar 25, 2010
    Member:
    #33969
    Messages:
    2,093
    Gender:
    Male
    Tucson, AZ
    Vehicle:
    06 PreRunner TRD Sport 03 4Runner Limited 4wd
    Bilstein 5100's , 6000k HID Hi/Low Kit, Magnaflow Muffler, 1.5 inch AP Wheel Spacers, Mudflap Delete
    Good idea. I had that code come up a while ago. Cleared it, hasn't returned yet........

  10. Mar 23, 2013 at 10:58 PM
    #10
    pyroskier

    pyroskier A country boy can survive

    Joined:
    Mar 24, 2011
    Member:
    #53622
    Messages:
    1,002
    Gender:
    Male
    First Name:
    Jacob
    Laramie, WY
    Vehicle:
    2004 Ext Cab TRD 3.4
    -5100's up front w/Eibachs -AllPro Expo packs -Rear 5150's -Granite Alloy GA9's -33x12.5x15 Duratracs -AllPro extended brake line -B.A.M.F. BPV Bracket -18" Magnaflow
    So this may be a stupid/broad question, but if my P0171 is running lean... what is the common fix? Is it a problem with the actual o2 sensor telling the computer to use less fuel, or is it typically a problem with something else?

    Oh, and great thread, btw... +1 vote for sticky, so many members get these errors.

  11. Mar 24, 2013 at 1:21 PM
    #11
    Vstrom30

    Vstrom30 Well-Known Member

    Joined:
    Dec 5, 2012
    Member:
    #92484
    Messages:
    211
    Gender:
    Male
    Midwest
    Vehicle:
    Tacoma Access Cab 4x4
    The upstream wide-band O2 sensor is actually seeing too much oxygen, and in turn telling the ecm to increase fuel to attempt compensating. P0171 can be caused by several issues. The big 2 on a Toyota truck can be a vacuum leak or a Mass Air Flow meter that has dirt or fuzz on the hot wire filaments. Other causes can be an AF sensor(wide-band O2) that is out of range, or even a fuel pump that may be getting weak. In your case, you could try replacing the fuel filter before the pump. Check for disconnected vacuum lines and pull out the MAF meter and look down inside of it with a light.

    Last edited: Mar 24, 2013
  12. Mar 24, 2013 at 2:24 PM
    #12
    pyroskier

    pyroskier A country boy can survive

    Joined:
    Mar 24, 2011
    Member:
    #53622
    Messages:
    1,002
    Gender:
    Male
    First Name:
    Jacob
    Laramie, WY
    Vehicle:
    2004 Ext Cab TRD 3.4
    -5100's up front w/Eibachs -AllPro Expo packs -Rear 5150's -Granite Alloy GA9's -33x12.5x15 Duratracs -AllPro extended brake line -B.A.M.F. BPV Bracket -18" Magnaflow
    Changed my fuel filter last week. I've taken apart my intake system many times and there are no leaks (that I have seen).

  13. Mar 24, 2013 at 4:41 PM
    #13
    Vstrom30

    Vstrom30 Well-Known Member

    Joined:
    Dec 5, 2012
    Member:
    #92484
    Messages:
    211
    Gender:
    Male
    Midwest
    Vehicle:
    Tacoma Access Cab 4x4
    Are you re-using gaskets?

  14. Mar 24, 2013 at 6:29 PM
    #14
    bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    4,927
    Gender:
    Male
    Currituck NC
    Vehicle:
    00 4WD Prerunner
    Keep getting the code on my ultra gauge no light though and mpgs aren't effected any I'm just tired of it beeping ha

  15. Mar 25, 2013 at 11:21 AM
    #15
    BamaToy1997

    BamaToy1997 [OP] ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,478
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    As mentioned, several possible causes of the lean code. In actuality the computer would be INCREASING fuel if the system is lean. Things such as vacuum leaks, bad O2 sensor, issues with MAF sensor, MAP sensor, fuel pressure (Weak pump, dirty filter) and even bad/dirty injectors can cause a lean code.

    I can understand. The important thing you can look at on your Ultra is look at long term fuel trim and short term fuel trim. What are the numbers?

  16. Mar 25, 2013 at 1:26 PM
    #16
    bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    4,927
    Gender:
    Male
    Currituck NC
    Vehicle:
    00 4WD Prerunner
    Ill get them when I go to class and post em up

  17. Mar 25, 2013 at 2:10 PM
    #17
    pyroskier

    pyroskier A country boy can survive

    Joined:
    Mar 24, 2011
    Member:
    #53622
    Messages:
    1,002
    Gender:
    Male
    First Name:
    Jacob
    Laramie, WY
    Vehicle:
    2004 Ext Cab TRD 3.4
    -5100's up front w/Eibachs -AllPro Expo packs -Rear 5150's -Granite Alloy GA9's -33x12.5x15 Duratracs -AllPro extended brake line -B.A.M.F. BPV Bracket -18" Magnaflow
    Hmmm. Maybe this is why I'm getting such bad gas mileage? Too much fuel? I just changed my fuel filter and it was pretty clean. Nothing dirty came out. I didn't notice a huge difference once I changed it either. Maybe I'll run some stuff through to clean the injectors.

  18. Mar 25, 2013 at 3:58 PM
    #18
    bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    4,927
    Gender:
    Male
    Currituck NC
    Vehicle:
    00 4WD Prerunner
    Idle
    Srt -3 - 0
    Lng 14.84

    At 65
    Srt -1.6 - 3.13 sometimes was at 0 ?
    Lng 14.84

    Not sure what the numbers are supposed to be

  19. Mar 26, 2013 at 6:58 AM
    #19
    BamaToy1997

    BamaToy1997 [OP] ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,478
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    You will see STFT(Short term fuel trim) fluctuate a lot, as this is the computer fine tuning your fuel requirements. LTFT(long term fuel trim) is where the information is at. 15% LTFT is a typical indicator of a small vacuum leak, like a small hose, or a gasket. HOWEVER this can be misinterpreted if a MAF sensor is giving a faulty reading.

    The formula used to check accuracy of your MAF sensor is complicated, but for those interested:

    IMAP = RPM * MAP / IAT / 2 where RPM is engine speed in revolutions per minute, MAP (manifold absolute pressure) is measured in KPa, and IAT (intake air temperature) is measured in degrees Kelvin. This integated value can be converted into total air flow (grams) using the following formula: (grams of air) = (IMAP/60)*(Vol Eff/100)*(Eng Disp)*(MM Air)/(R) where R is 8.314 J/°K/mole and the average molecular mass of air is 28.97 g/mole. Note that in the above formula the volumetric efficiency of the engine is measured in percent and the displacement is in liters.
    (Copied from http://www.lightner.net/obd2guru/IMAP_AFcalc.html)

    You can use this formula to test if your MAF sensor is accurate. It can also be used to verify a vacuum leak, which can result in a lean condition, and P0171/P0172 codes. I have actually used this formula to diagnose an inaccurate MAF sensor in a Ford that would hesitate slightly, and show lean, but the customer had recently replaced all of their O2 sensors.

  20. Mar 26, 2013 at 7:38 AM
    #20
    bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    4,927
    Gender:
    Male
    Currituck NC
    Vehicle:
    00 4WD Prerunner
    what if im not getting any of those codes ?? Geuss ill give my MAF a good cleaning
