Unknown Connector under the Dash, above the Glove Box

Discussion in '2nd Gen. Tacomas (2005-2015)' started by HBMurphy, Sep 9, 2025 at 3:36 PM.

  1. Sep 9, 2025 at 3:36 PM
    #1
    HBMurphy

    HBMurphy [OP] Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,607
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None
    After replacing the evaporator and the heater core, I am buttoning everything up. I can't see to find where this connect goes.

    It is located above the glove box probably about 8" from the right end of the dash and to the right of where the cabin air filter is.

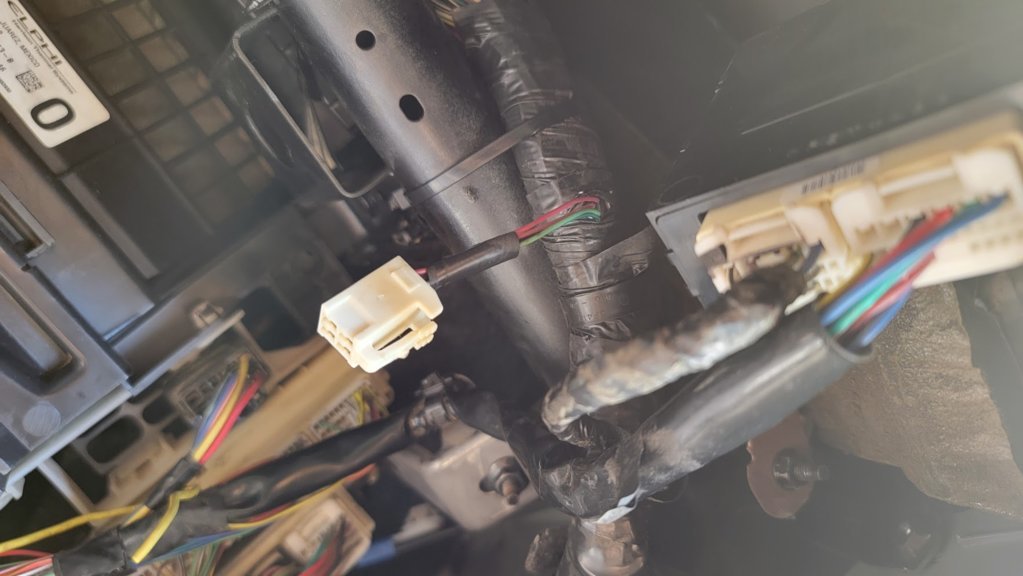

    unknown connector.jpg

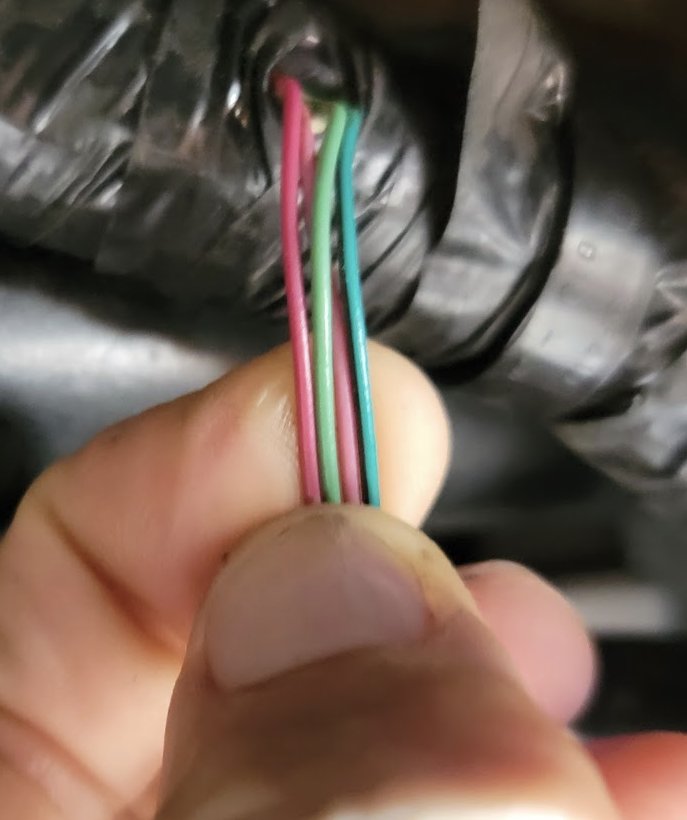

    The colors of the wires look to be red, pink, green and light green. Ay help would be greatly appreciated. ThanksScreenshot 2025-09-09 153320.png

  2. Sep 9, 2025 at 3:49 PM
    #2
    HBMurphy

    HBMurphy [OP] Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,607
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None
    I hope Mr Grok is right. It seems like a right answer....

    My question:

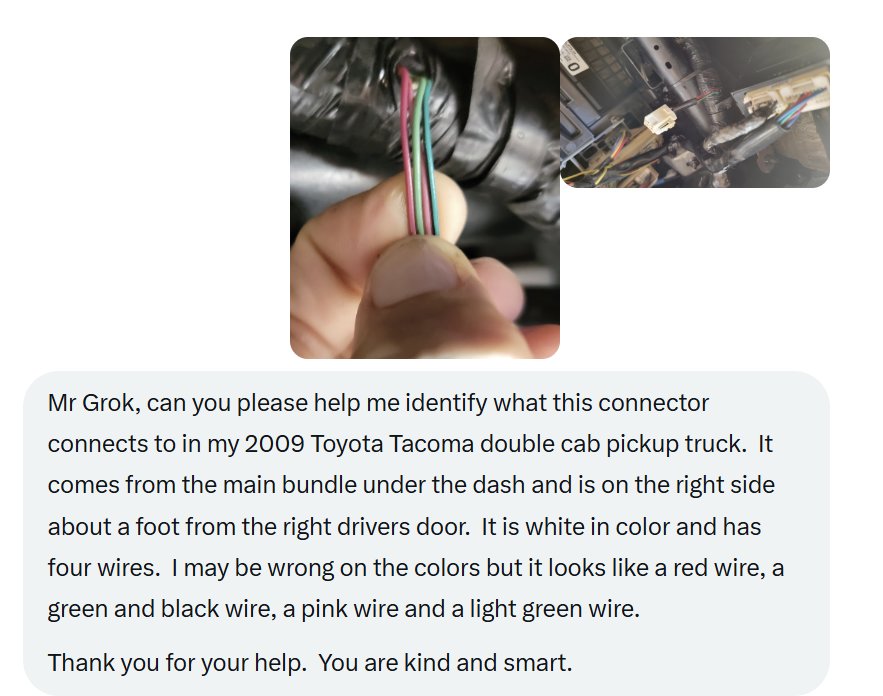

    Screenshot 2025-09-09 154534.png

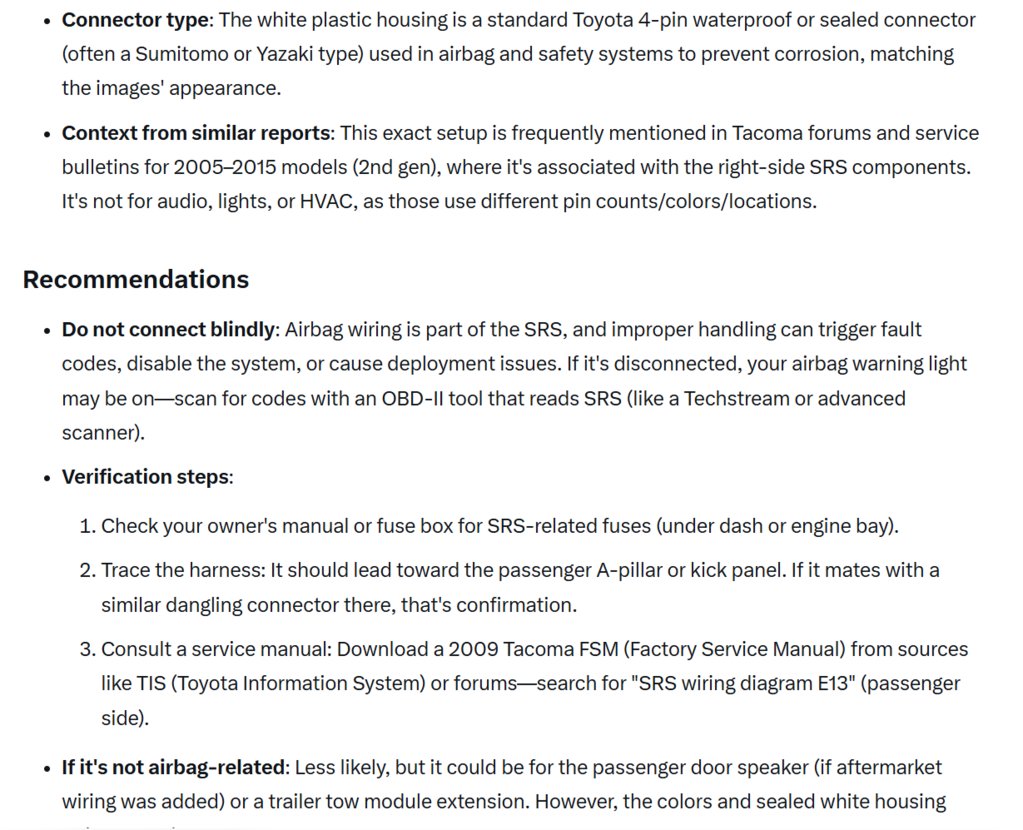

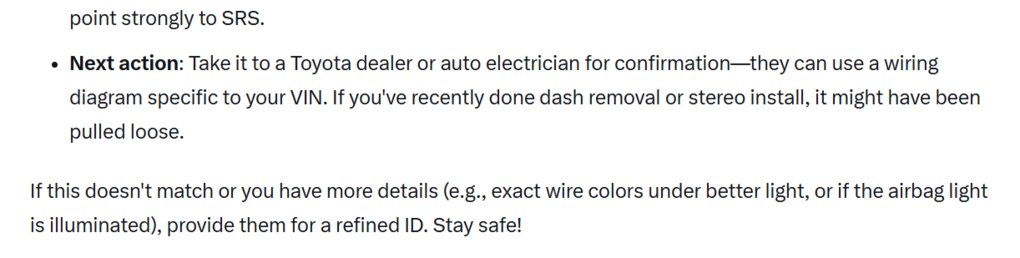

    Grok's answer:

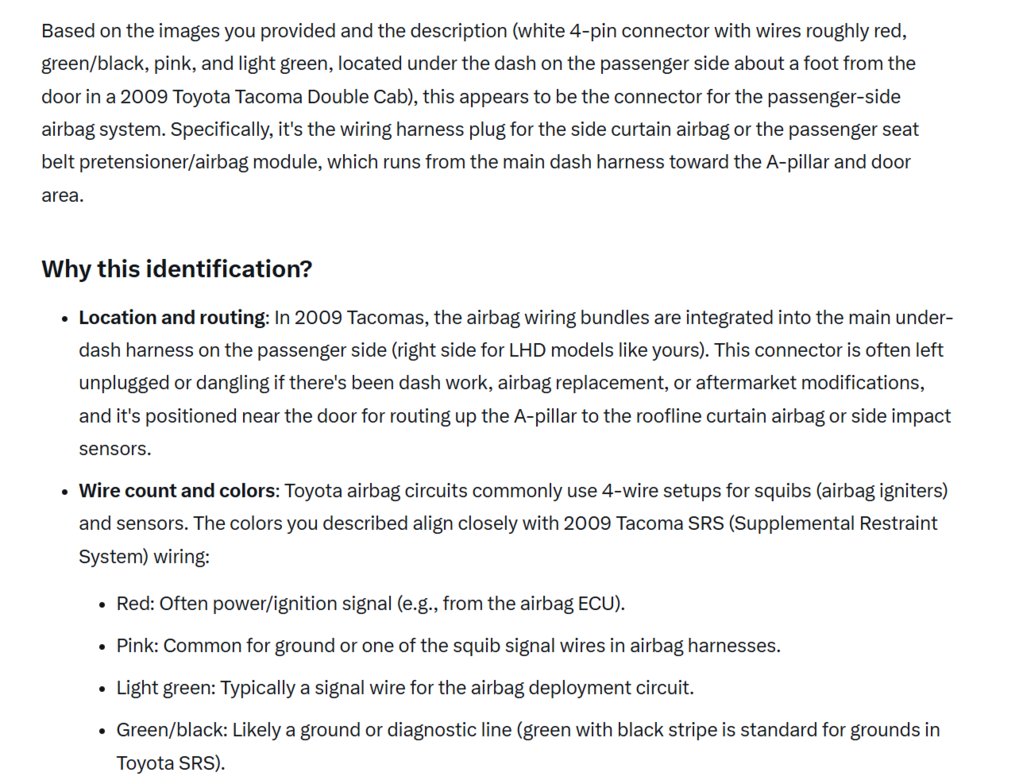

    Screenshot 2025-09-09 154737.png
    Screenshot 2025-09-09 154805.png
    Screenshot 2025-09-09 154817.png

  3. Sep 9, 2025 at 3:56 PM
    #3
    HBMurphy

    HBMurphy [OP] Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,607
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None
    Maybe not. Looks like the side curtain airbag is controlled by a wire harness that goes up the B pillar and no wires to the A Pillar.

    Anyone? Thanks

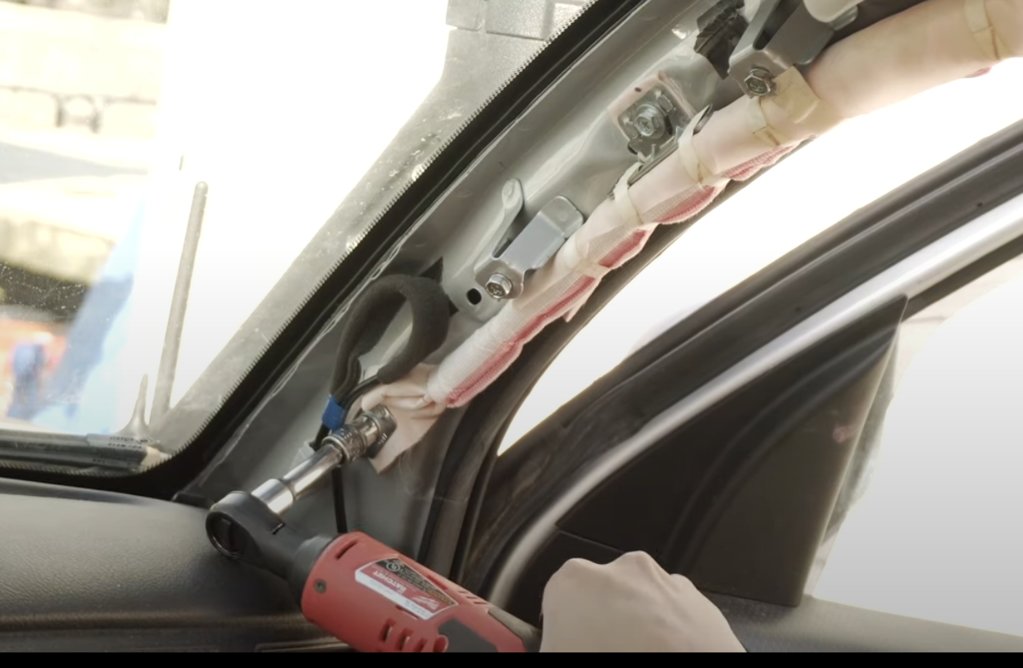

    Screenshot 2025-09-09 155525.png

  4. Sep 9, 2025 at 4:14 PM
    #4
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    14,041
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    It's Option Connector Z3, it's for the RS3200 accessory alarm system and is not used otherwise.

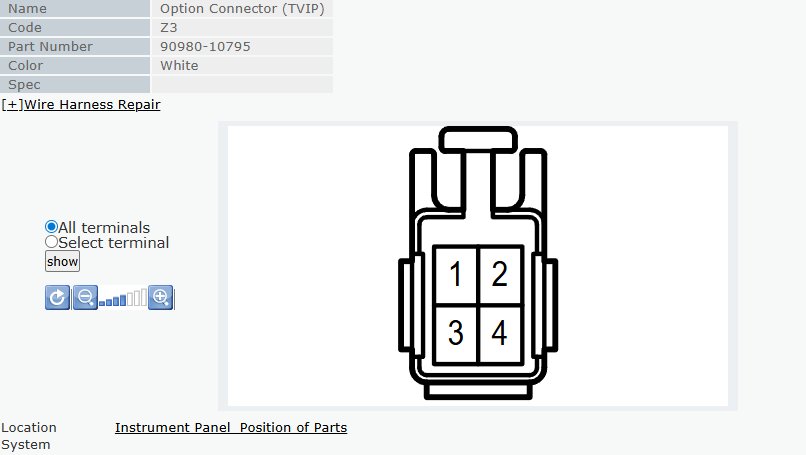

    Screenshot 2025-09-09 181404.png

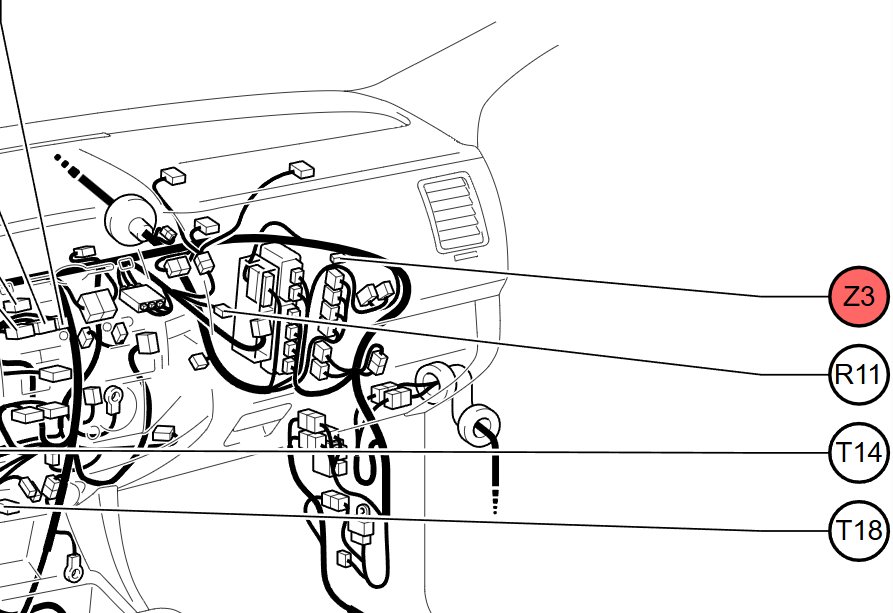

    Screenshot 2025-09-09 181321.png

  5. Sep 9, 2025 at 6:36 PM
    #5
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,316
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    All the Toyotas I have worked on have Yellow Connectors and Wire Sleeves to ID them as SRS and Airbag Circuits.

    HBMurphy[QUOTED][OP] likes this.
  6. Sep 9, 2025 at 6:37 PM
    #6
    HBMurphy

    HBMurphy [OP] Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,607
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None
    That helps A LOT!!! Thank you so very much!!!
