unknown wires in dash?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Patmac, Mar 31, 2012.

  1. Mar 31, 2012 at 8:52 AM
    #1
    Patmac

    Patmac [OP] Well-Known Member

    Joined:
    Dec 22, 2011
    Member:
    #69223
    Messages:
    548
    Gender:
    Male
    First Name:
    Pat
    Chesapeake, VA
    Vehicle:
    14 TRD Sport
    20% tint, weather techs, icon stage 3. n-fab, bhlm
    i was playing around with my 07 sport and i got to the blank switch spots on the left side of the dash (the second row below the factory location for fog and av button is) and when i popped them out, there was two harness's hanging there. what are these for? traction control?

    if so where are you guys purchasing you switches from?

  2. Mar 31, 2012 at 9:07 AM
    #2
    Patmac

    Patmac [OP] Well-Known Member

    Joined:
    Dec 22, 2011
    Member:
    #69223
    Messages:
    548
    Gender:
    Male
    First Name:
    Pat
    Chesapeake, VA
    Vehicle:
    14 TRD Sport
    20% tint, weather techs, icon stage 3. n-fab, bhlm
    here are some quick pictures

    [​IMG]

    [​IMG]

  3. Mar 31, 2012 at 9:14 AM
    #3
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,154
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    The one on the right is the RSCA switch, and the other is the DAC switch.

  4. Mar 31, 2012 at 9:16 AM
    #4
    65tacodude

    65tacodude Well-Known Member

    Joined:
    Jun 4, 2009
    Member:
    #18019
    Messages:
    692
    Gender:
    Male
    First Name:
    Wade
    Manteno, IL
    Vehicle:
    '16 4Runner Trail Barcelona Red
    OEM running boards and roof rack. Yellow fog bulbs and WeatherTech mats and window visors.
    They are more than likely for the RSCA and down hill assit I think for the OR version. Some manufactures make 1 harness that is mutli-plexed to the systems controller to save cost instead of making custom harnesses as the vehicle is being made. Chris had the right switches. I was just guessing. :cool:

  5. Mar 31, 2012 at 1:18 PM
    #5
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,683
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Isn't RCSA standard and hooked up on the Sports ? It is on mine .

  6. Mar 31, 2012 at 1:20 PM
    #6
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,154
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Beats me.

  7. Apr 1, 2012 at 8:59 AM
    #7
    Patmac

    Patmac [OP] Well-Known Member

    Joined:
    Dec 22, 2011
    Member:
    #69223
    Messages:
    548
    Gender:
    Male
    First Name:
    Pat
    Chesapeake, VA
    Vehicle:
    14 TRD Sport
    20% tint, weather techs, icon stage 3. n-fab, bhlm
    sounds good. thanks fellas

  8. Apr 1, 2012 at 10:06 AM
    #8
    joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,056
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    I think it's RSCA- Roll Sensing Curtain Airbags. OP has an access cab. No side airbags, or possibly just optional until 2009. My 2006 AC does not have the side airbags.

    My truck has the Clutch Start Cancel button in the center spot in the lower row of switches. The outer two on the lower row are blank.

    My 2009 company Tacoma has RSCA and traction control / auto LSD switch in those two outer spots.

  9. Apr 1, 2012 at 11:14 AM
    #9
    wado66

    wado66 Well-Known Member

    Joined:
    Mar 18, 2012
    Member:
    #75146
    Messages:
    51
    Gender:
    Male
    Could be one of a few things that can go in that area.
    1. Auto LSD. (Traction Control)
    2. RR dif Lock (Rear Differential Lock)
    3. DAC (Down Hill Assist)
    4. Clutch Start Cancel
    5. RSCA Off (disables Side Air Curtain)
    Below is my TRD Sport

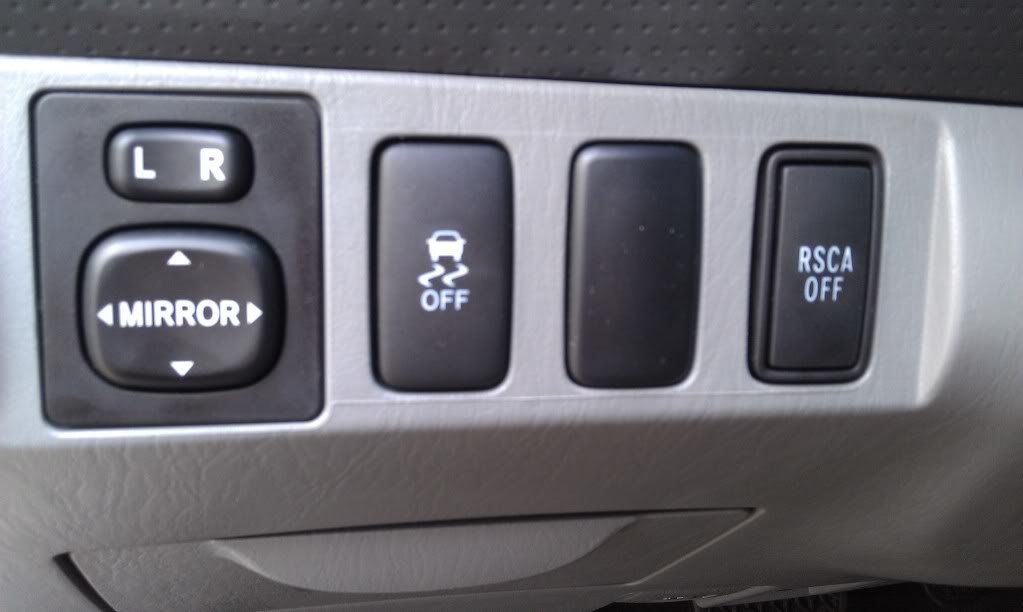

    [​IMG]

  10. Apr 1, 2012 at 11:38 AM
    #10
    yakker1982

    yakker1982 Active Member

    Joined:
    Feb 28, 2012
    Member:
    #73809
    Messages:
    38
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    12 DCLB 4WD V6 Sport
    As previously stated, most likely they are RSCA on the right and DAC in the center. However, just putting in the switches won't make you have those options. I wish it did. :)

  11. Apr 2, 2012 at 4:55 PM
    #11
    Patmac

    Patmac [OP] Well-Known Member

    Joined:
    Dec 22, 2011
    Member:
    #69223
    Messages:
    548
    Gender:
    Male
    First Name:
    Pat
    Chesapeake, VA
    Vehicle:
    14 TRD Sport
    20% tint, weather techs, icon stage 3. n-fab, bhlm
    i want the traction control button how do i get it

  12. Apr 2, 2012 at 4:57 PM
    #12
    Patmac

    Patmac [OP] Well-Known Member

    Joined:
    Dec 22, 2011
    Member:
    #69223
    Messages:
    548
    Gender:
    Male
    First Name:
    Pat
    Chesapeake, VA
    Vehicle:
    14 TRD Sport
    20% tint, weather techs, icon stage 3. n-fab, bhlm
    so you saying im not wired for it from the factory

  13. Apr 2, 2012 at 5:09 PM
    #13
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,154
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    I have a switch in my house like that..........and 3 that run the same light.....

  14. Apr 2, 2012 at 5:14 PM
    #14
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,683
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    That's a 4 way switch

  15. Apr 2, 2012 at 5:15 PM
    #15
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,154
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    I thought so too.....but each one only has 2 wires in it.

  16. Apr 2, 2012 at 5:25 PM
    #16
    L J

    L J Well-Known Member

    Joined:
    Mar 16, 2010
    Member:
    #33339
    Messages:
    467
    Gender:
    Male
    Illinois
    Vehicle:
    07 4X4 SR5 TRD Sport DCLB
    What you can do is use the plug to the left in your picture to connect to the dimmer circuit. I used the solid green wire and green/white wire to power the light in an FJ cruiser aux light switch so it dims with the dash lights.

  17. Apr 2, 2012 at 5:27 PM
    #17
    Night

    Night Well-Known Member

    Joined:
    Feb 21, 2011
    Member:
    #51613
    Messages:
    981
    Gender:
    Male
    First Name:
    Mike
    Canada
    Vehicle:
    '11 TRD OR AC MagGrey
    Banks Monster Exhaust, aFe ProGuard 7, 3M Film, UnderCoating, alpine 920 headunit, alpine 6.5 components, 20% tint all around, JL Stealthbox, PDX-V9 Amp, Avid Lightbar, Avid Sliders, Full Metal JackRabbit Tonneau, TRD S/C
    Conspiracy!

    OP maybe pre-wiring like how they already had the pre-wiring for fogs.

  18. Apr 2, 2012 at 5:34 PM
    #18
    Night

    Night Well-Known Member

    Joined:
    Feb 21, 2011
    Member:
    #51613
    Messages:
    981
    Gender:
    Male
    First Name:
    Mike
    Canada
    Vehicle:
    '11 TRD OR AC MagGrey
    Banks Monster Exhaust, aFe ProGuard 7, 3M Film, UnderCoating, alpine 920 headunit, alpine 6.5 components, 20% tint all around, JL Stealthbox, PDX-V9 Amp, Avid Lightbar, Avid Sliders, Full Metal JackRabbit Tonneau, TRD S/C
    I may be interested, whats the pro's and con's of said project? And cost.

  19. Apr 2, 2012 at 5:40 PM
    #19
    Saskquatch11

    Saskquatch11 TRUCK YEAH

    Joined:
    Apr 25, 2011
    Member:
    #55548
    Messages:
    13,298
    if you have a light switched in 3 locations you'd have two 3 way switches and one 4 way switch, the 4 way in between the 3 ways. there should be two 3 wire cables at the 4 way.

  20. Apr 2, 2012 at 5:41 PM
    #20
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,683
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    That's what I thought

    Stoopid Chris
