Unused connectors

Has anyone looked under the rear bumper and also found unused connectors? Either gray or black ones? Look like could be for accessory lighting.

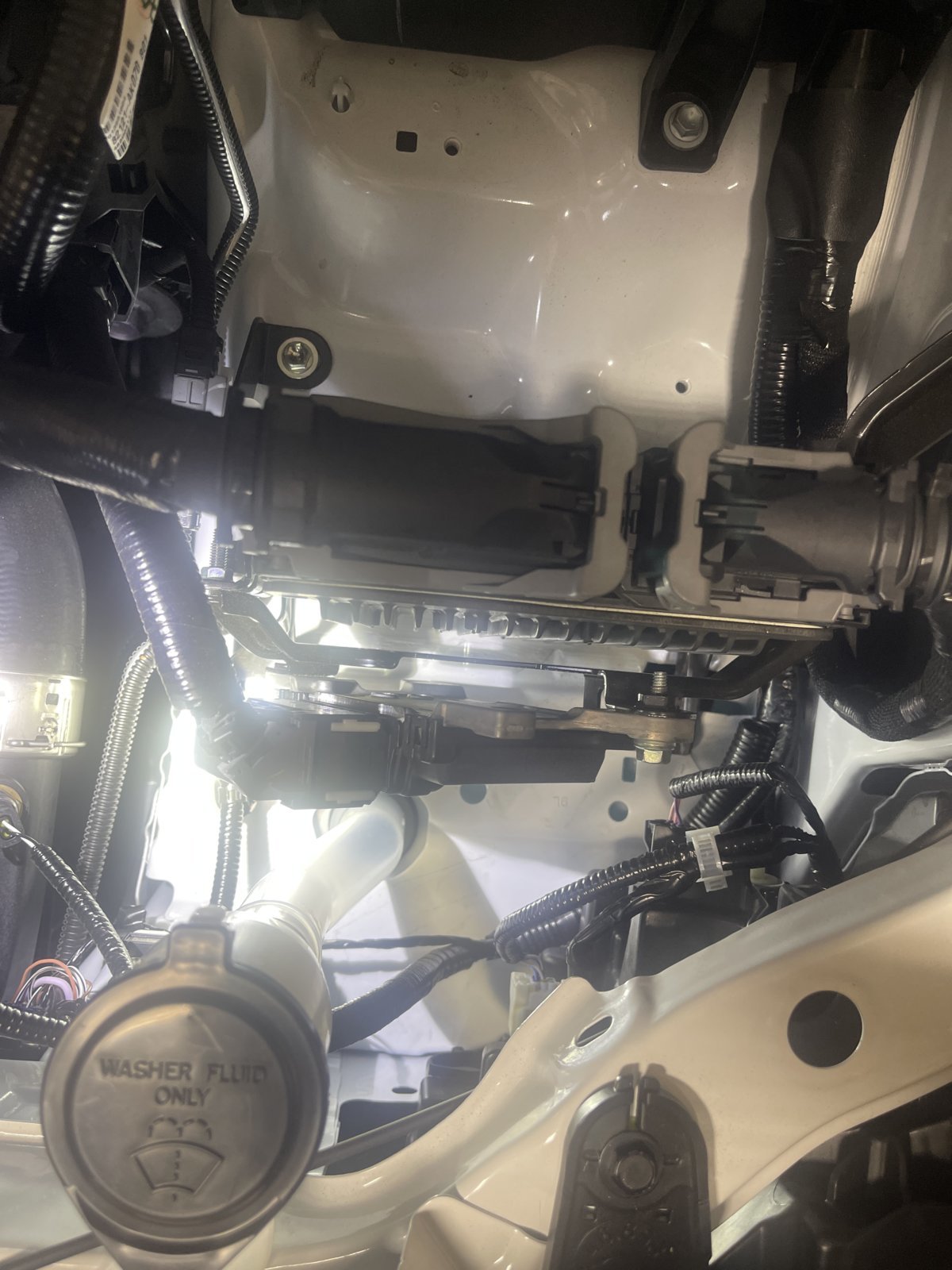

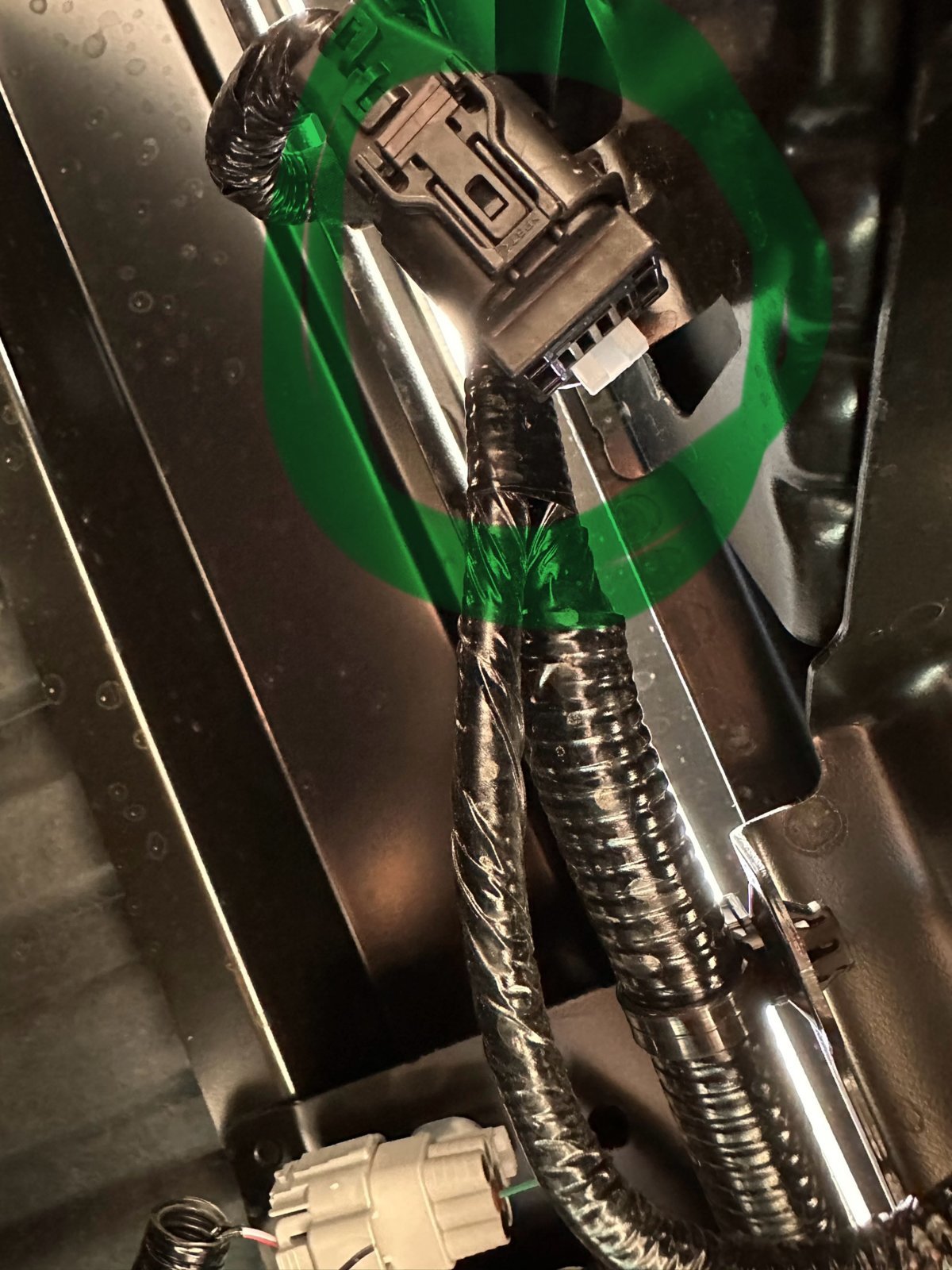

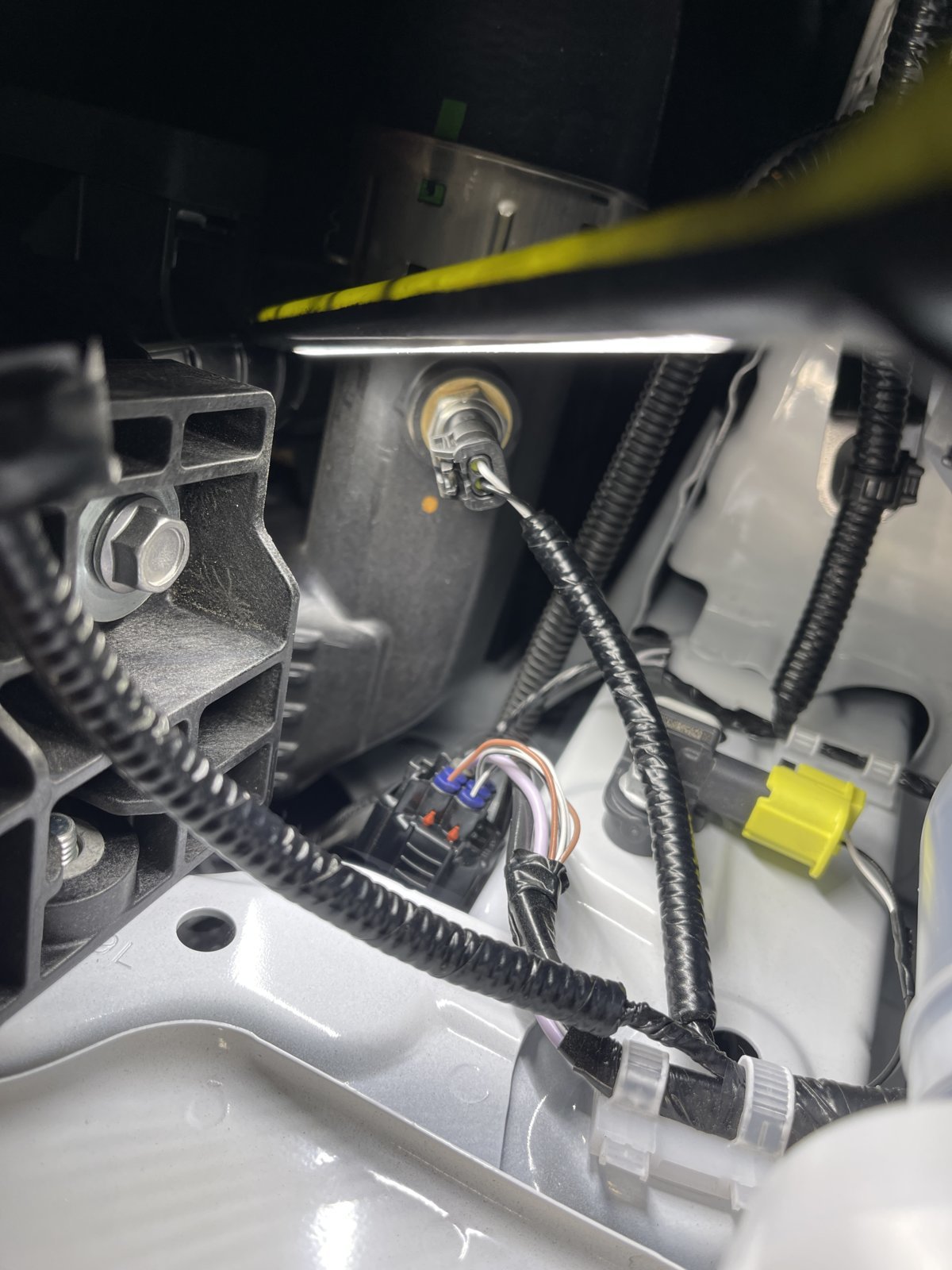

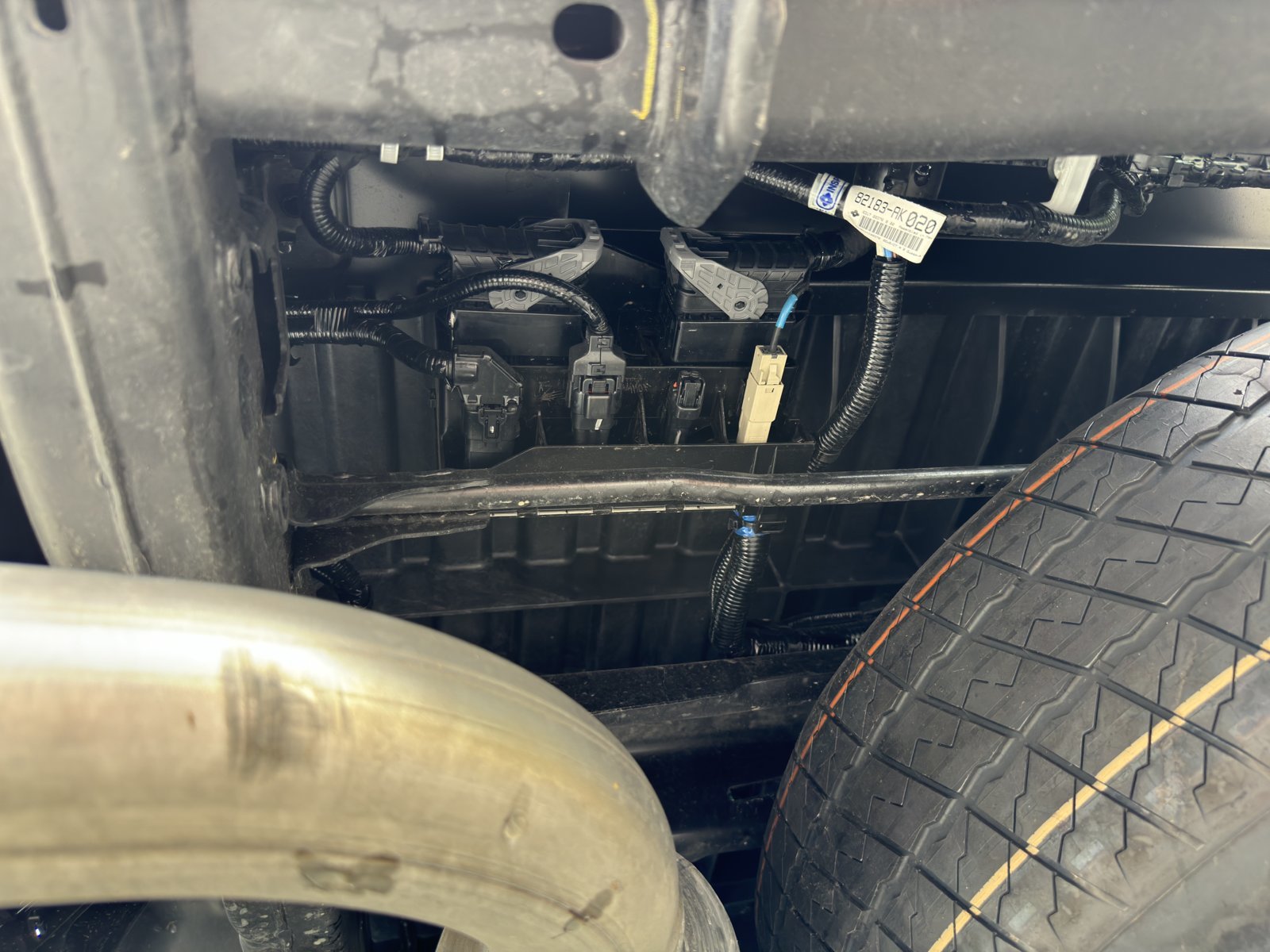

1st pic is from right side behind rear bumper. 2nd pic is right above exhaust. I have the sport model option only with 14” screen.



what trim do you have? I havent looked...



I have the trd sport



I’ll try to take pics today.



It's the wiring harness for the aux connectors that are wired into the dash panel on the left by the hood latch.



Would be cool / helpful for those who have these connector by the windshield washer bottle, rear bumper, if you can post some which pics...
I dont see them on my poor mans sr5....
I just looked...



AUX ENGINE

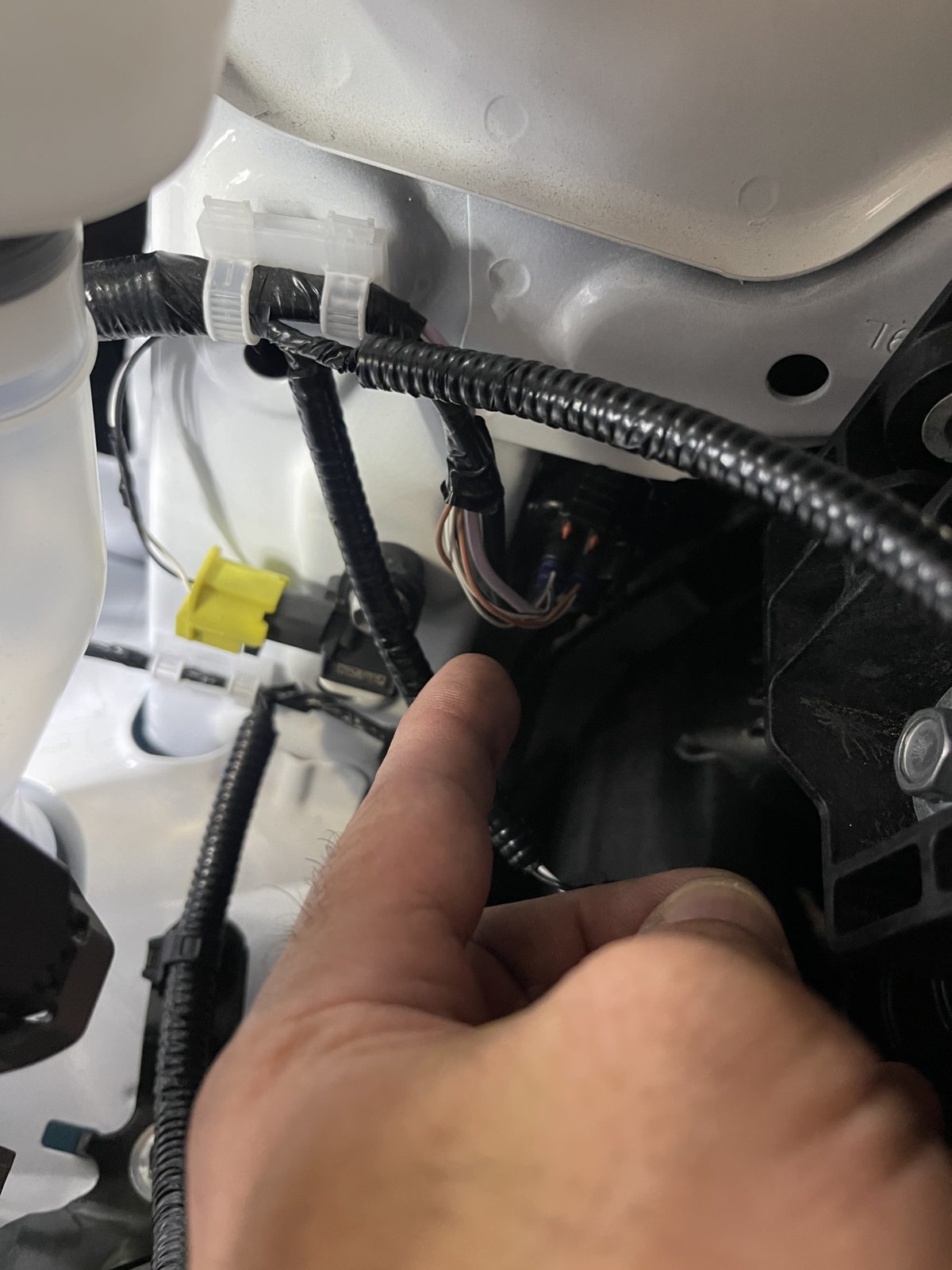

Next to washer fluid fill, 2 connectors

AUX CAB

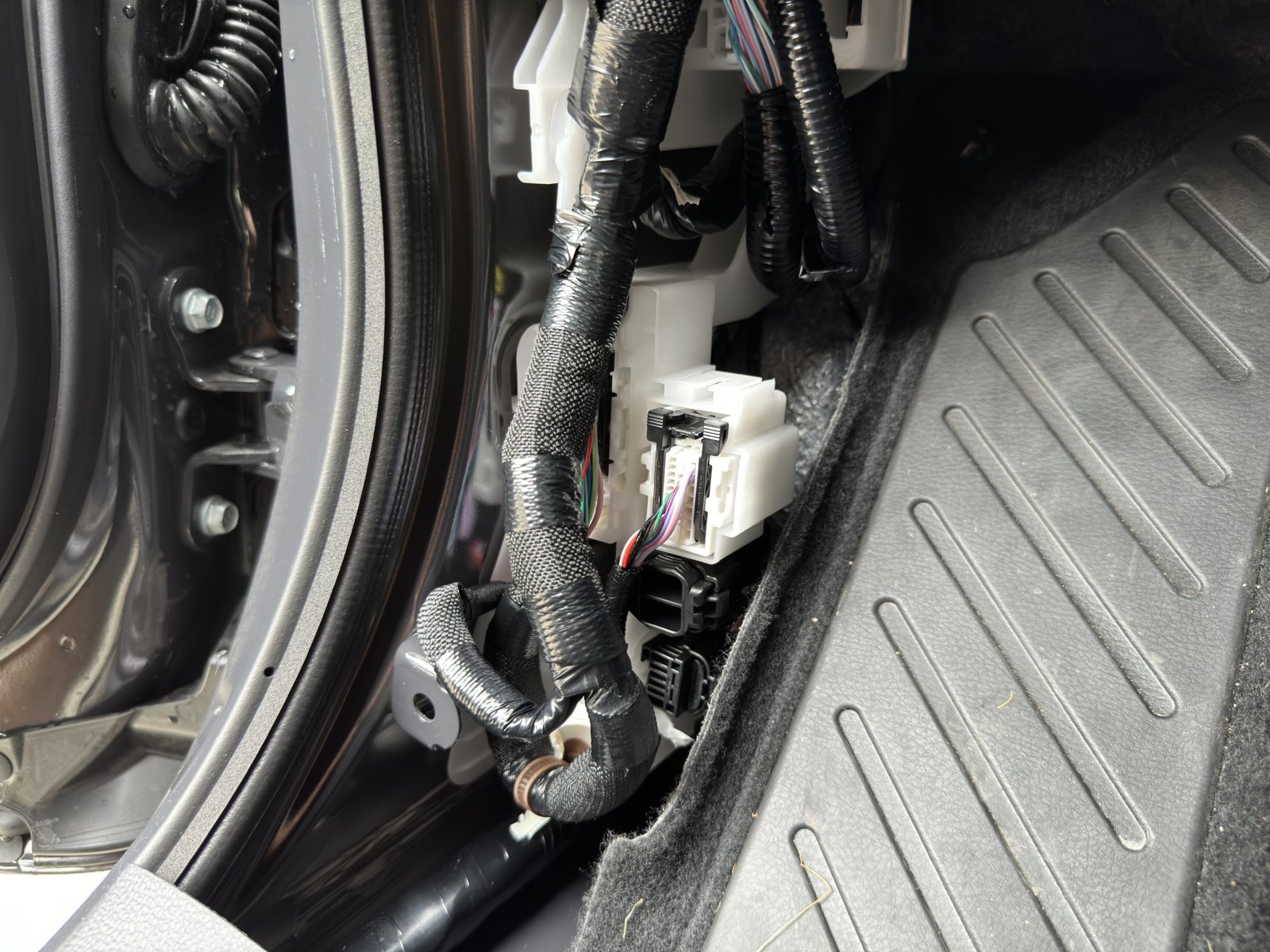

Behind panel near driver foot rest

AUX REAR
Between exhaust and spare tire



Still confused even with the diagram. So to tie into the aux switch you do so in the engine compartment not at the switch? Anyone pull apart the panel where the aux switches are? What does it look like behind those?



Been on the wait list for mine since the announcement. I have been awaiting the day when someone would do that. Maybe you can be the first to sort the mysteries out!



[updated post above to fulfill requests]



Would you get a focused pic on this part? Luv to read the part number.



I’ve got an sr5 so no idea if this applies to me, that’s what I’m try trying to figure out. I need to do some more digging, tried removing one of the switch hole covers to see if there’s open wires back there but didn’t want to damage anything. Gave a port a slight pry with just a pocket screw driver but no dice…
The connector by my washer bottle is capped off but questioning what it is as it has 4-5 wires going to it. Feels like it capped unless it’s some sort of collision monitor / airbag sensor. Definitely no wires coming out of the other end…

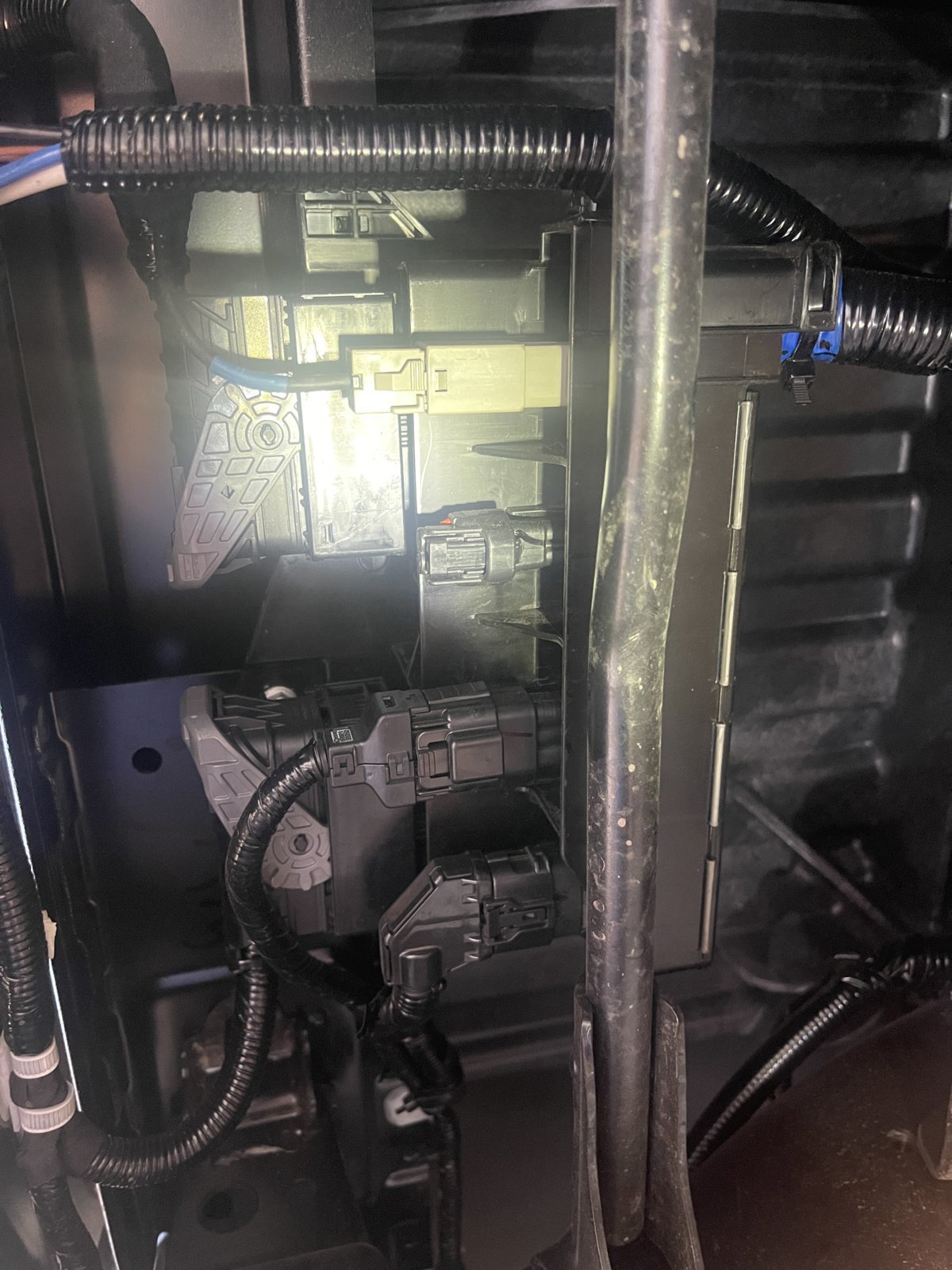

Rear bumper area I did find that one capped two wire connector to what was posted above, but almost looks like it’s coming out of that module, I find it hard to grasp that would be to wire lights…
No idea! Would be nice if it was spelled out for us though..
Second to the last picture shows where my connector is in correlation to the window washer bottle fill. Different location than the pair of vitamin sent me via p.m. of his TRD

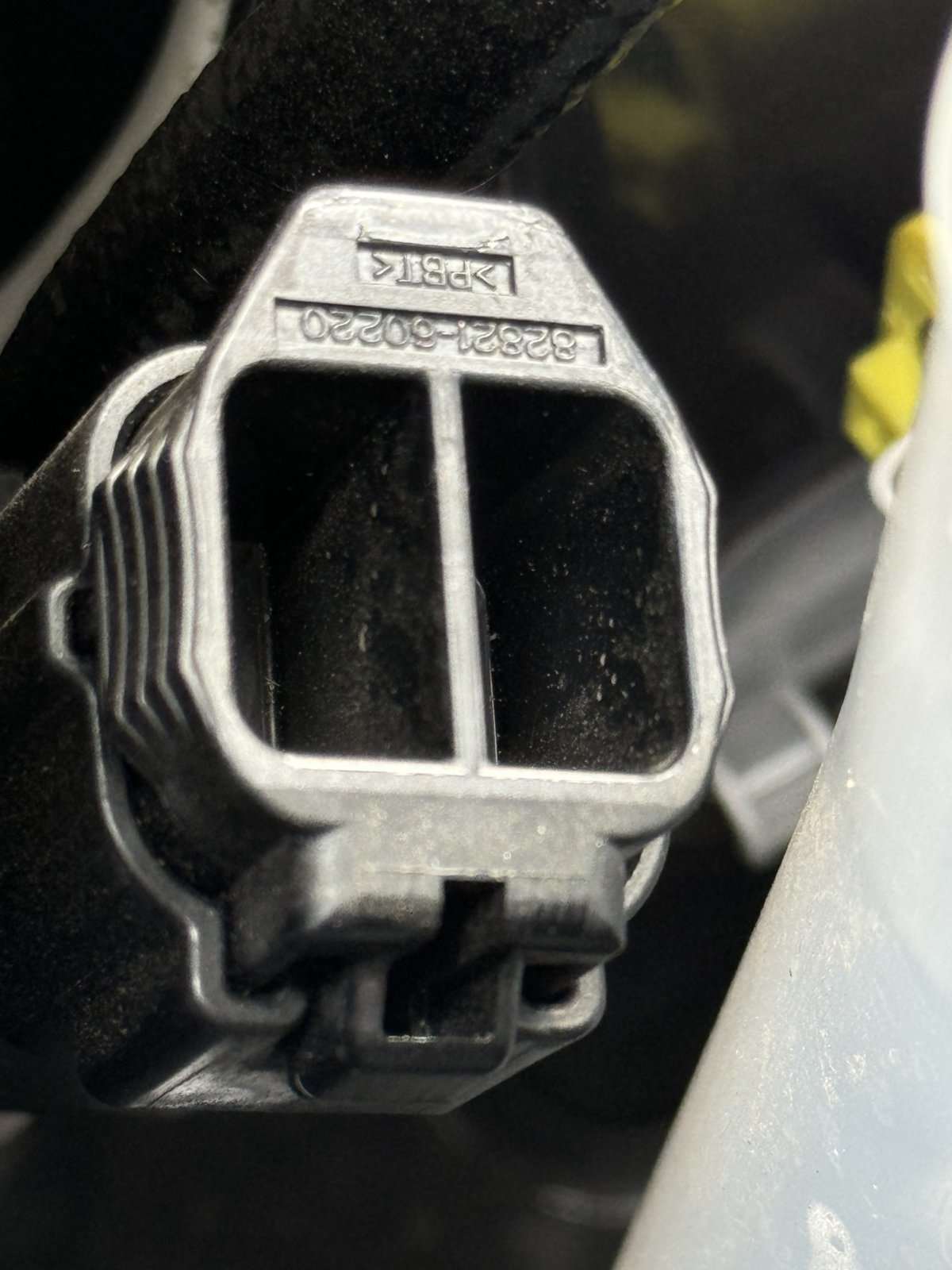

That PN may only be the cap, unsure : 82821-60220

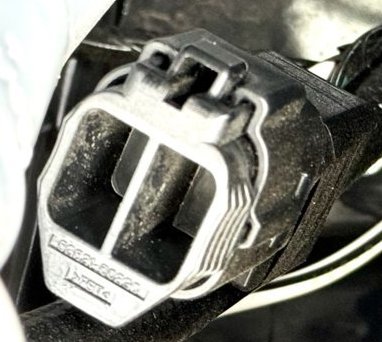

AUX ENGINE, cap installed

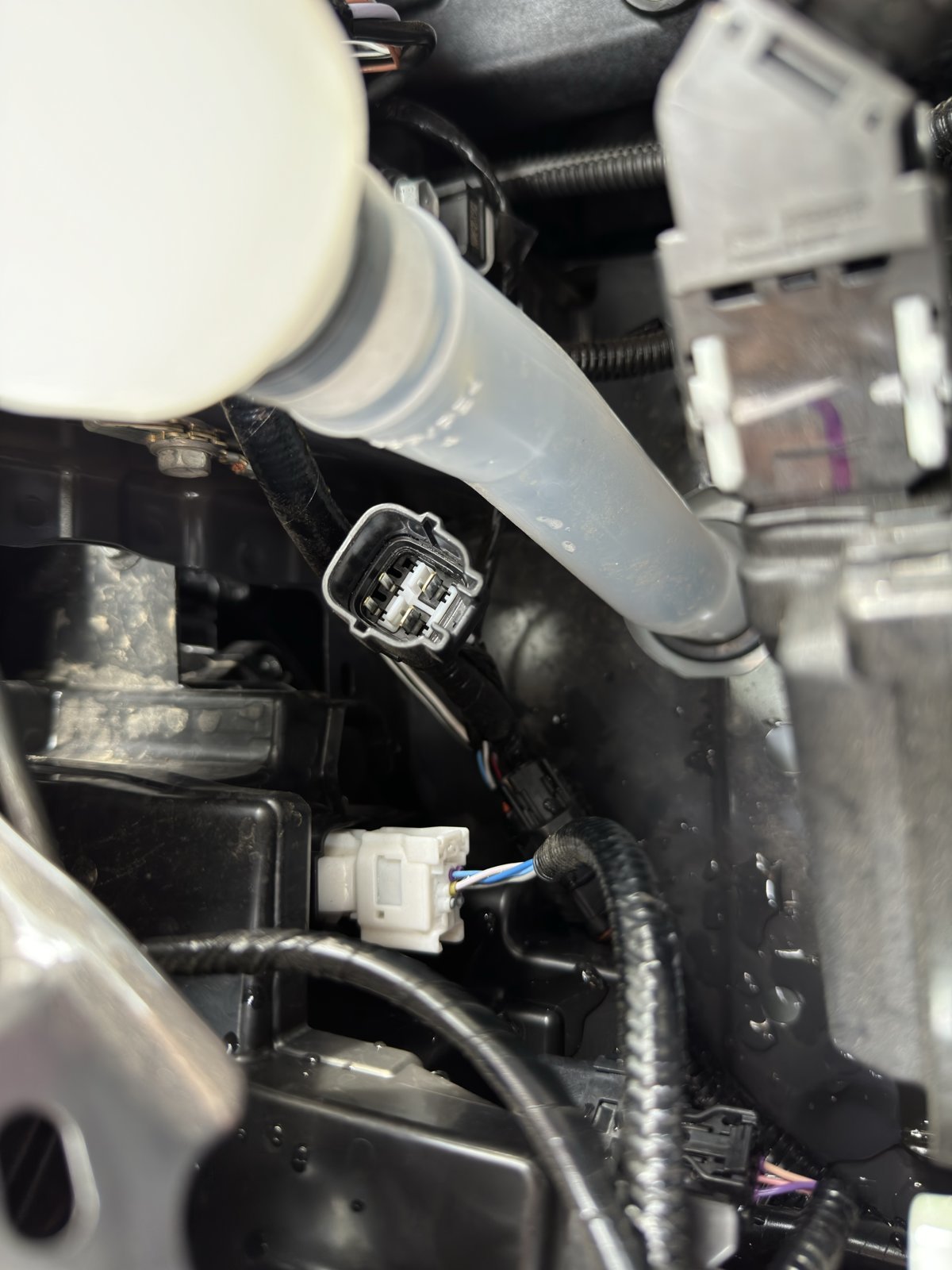

AUX ENGINE, cap removed, AUX CAB same

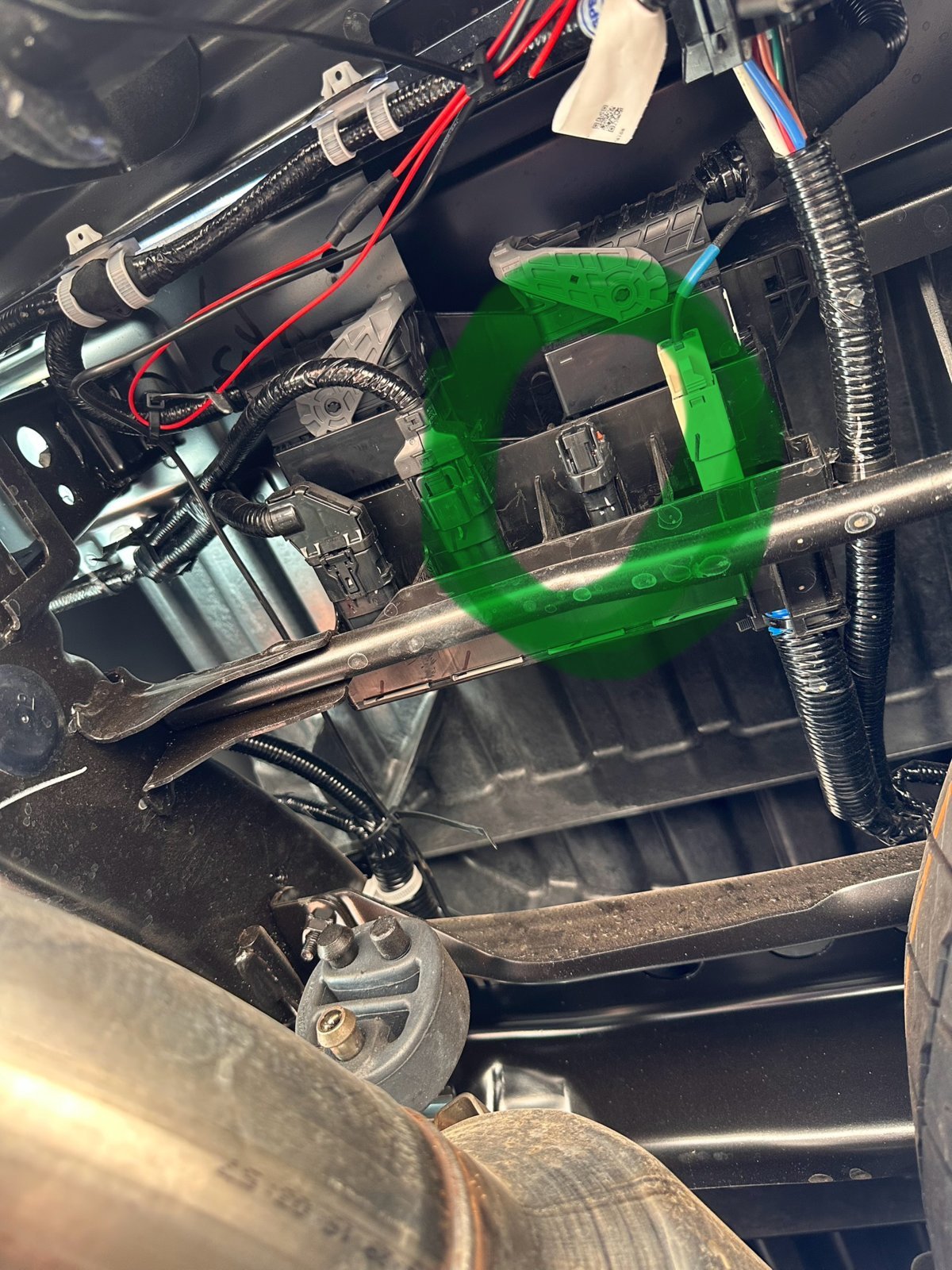

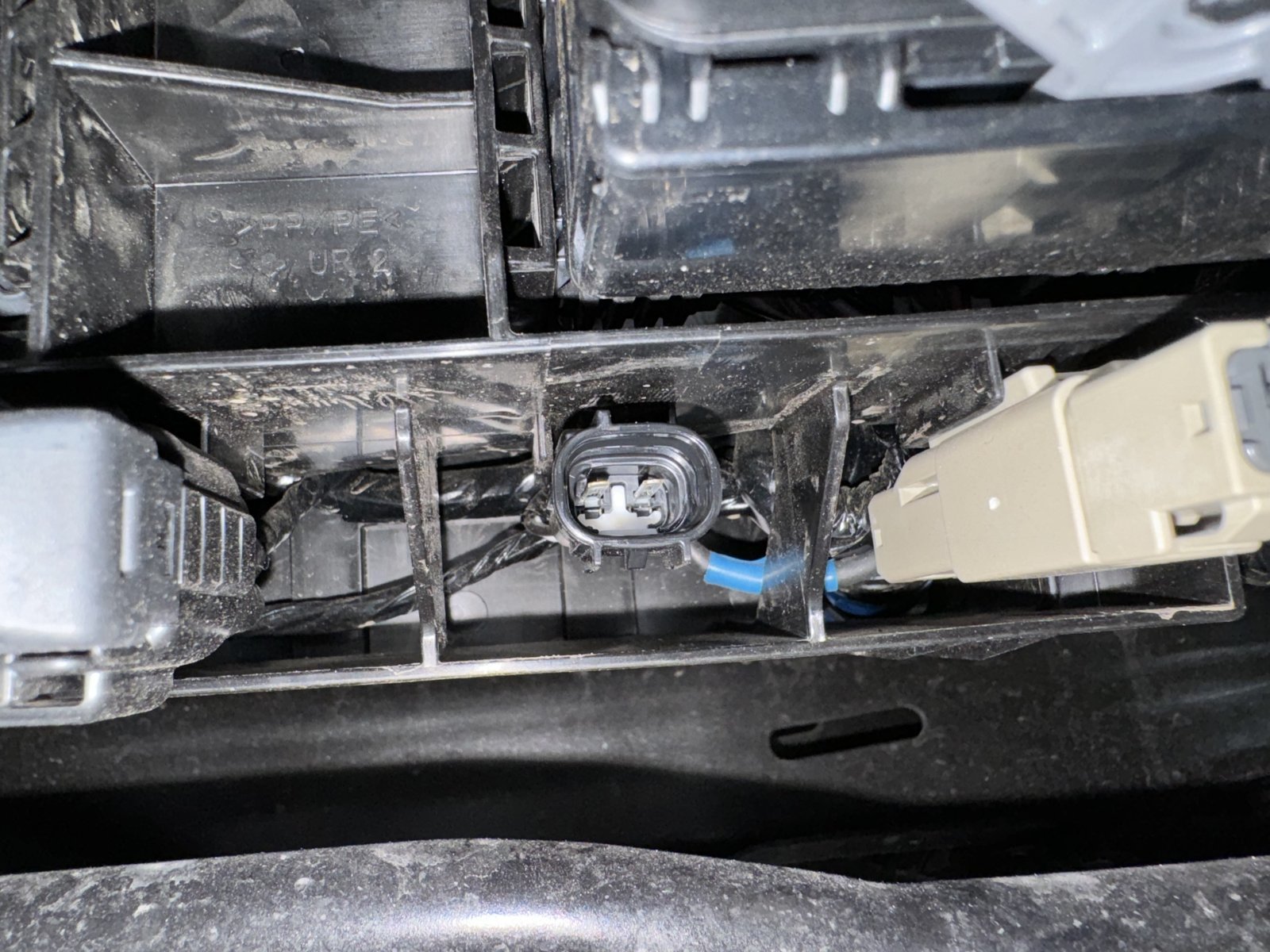

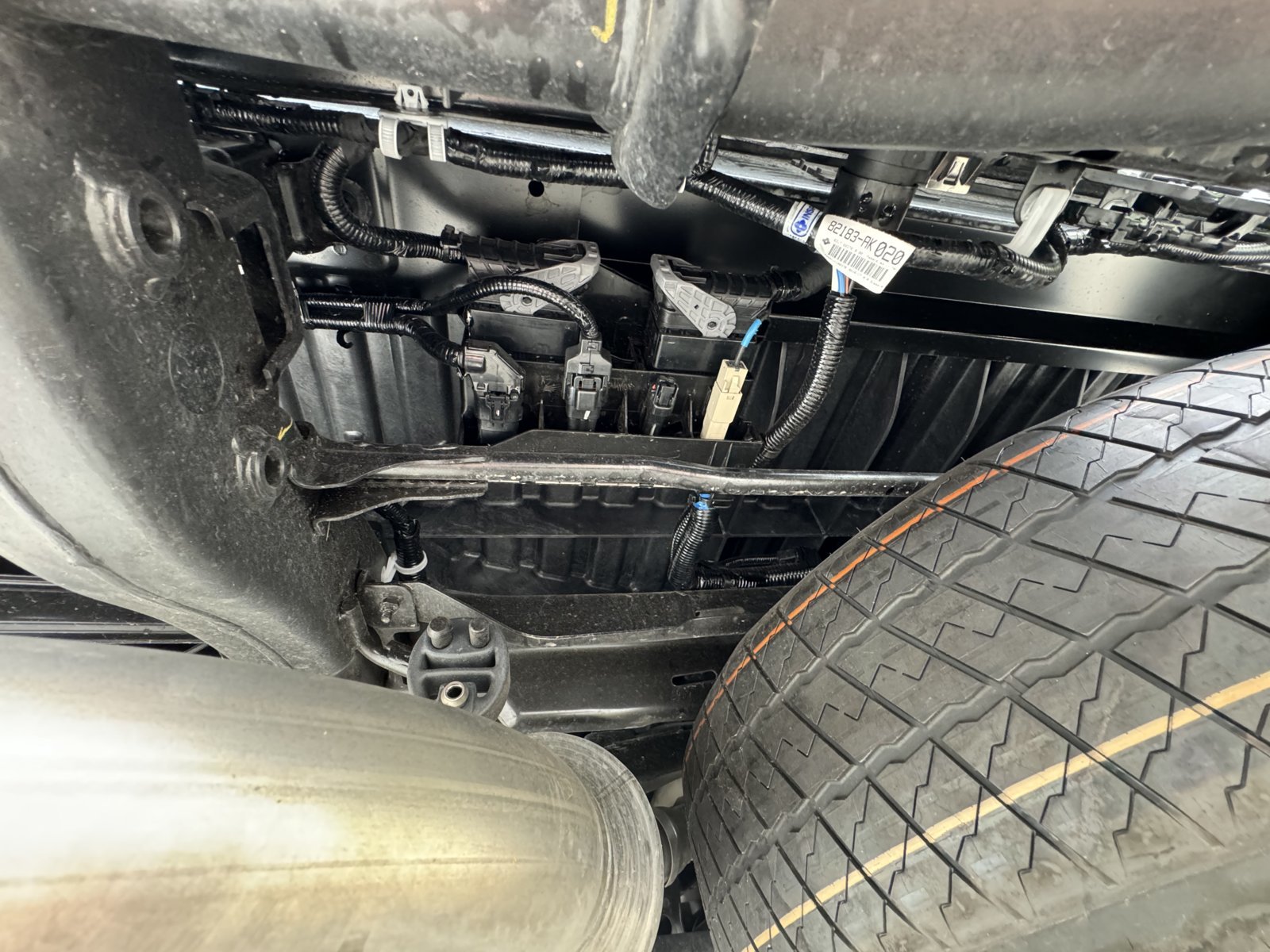

AUX REAR, cap removed



Any chance to see the part number on connector?

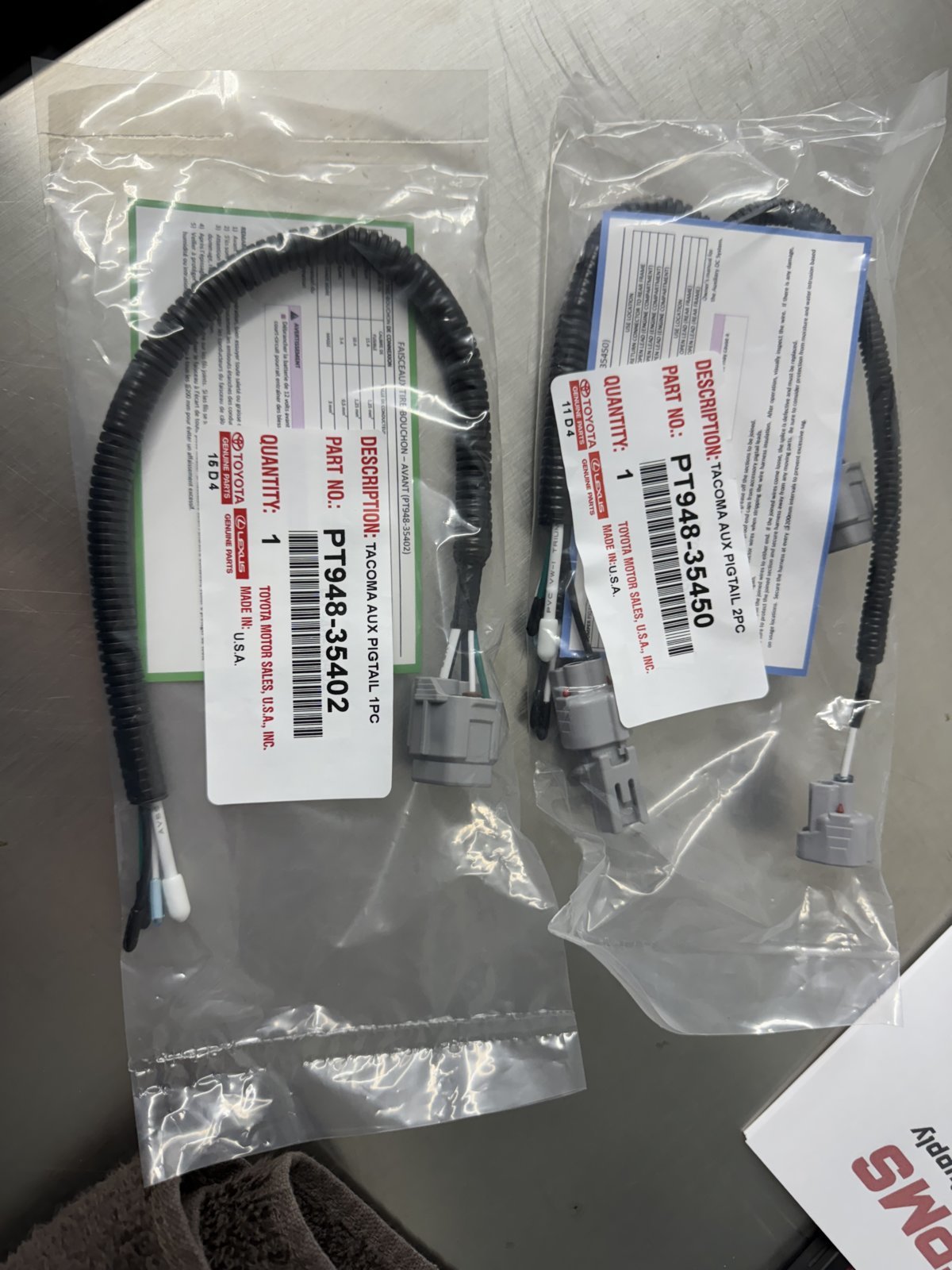

Anyone get the pigtails for these on their purchase?



Yes I think that is what I have in my original post. I think. Sport Premium and they were in my center console.



Cool
Pics of these pigtails?
