Unused connectors

@Wahhabm I have a 2024 Off-Road Hybrid also without the aux switches. How did you ended up wiring the switches? Looks really nice Thanks



What wires go where on the caliraised switches? I got mine installed but both blue lights come on and when I turn it off both lights go off.

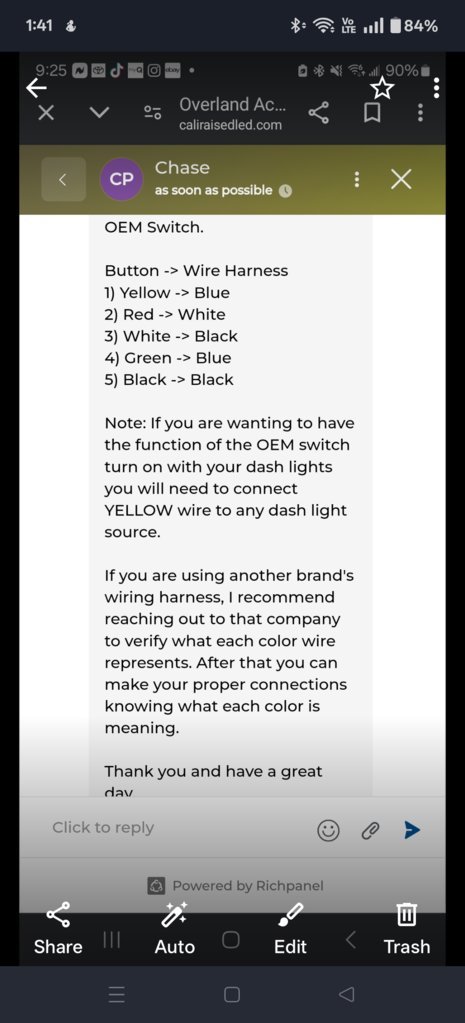

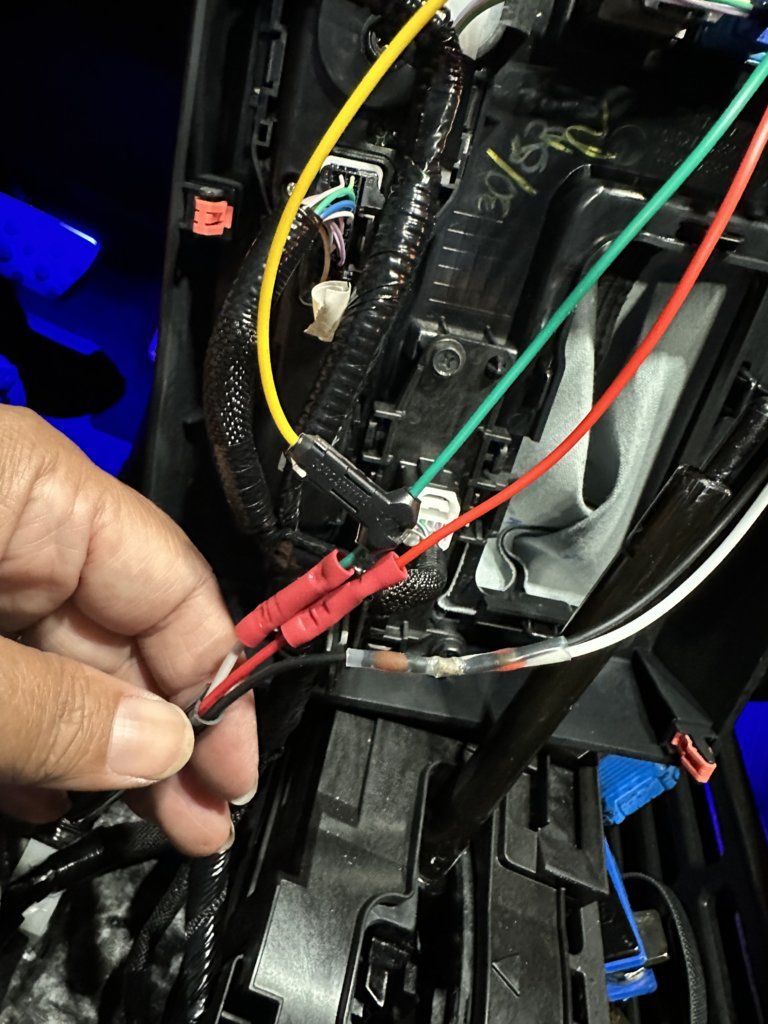

Here you go. Yellow from tap a fuse. Cali raised didn't separate them so they both come on. I thought that is silly and I wanted them wired correctly by lighting the background and then when you switch them on, to get the additional one.



In my case the wire harness from the accessory is red white and black. My red wire is your white and my white wire is your blue. I got the nilight harness. I’m sure if I put the yellow on an existing wire when dash lights come on it’ll work.



OP, you want black on the dash illumination negative so it dims with the rest of the dash switches.



Which wire do I connect the black (harness/switch) wire to? The location for my switch is on my center console near the shifter.

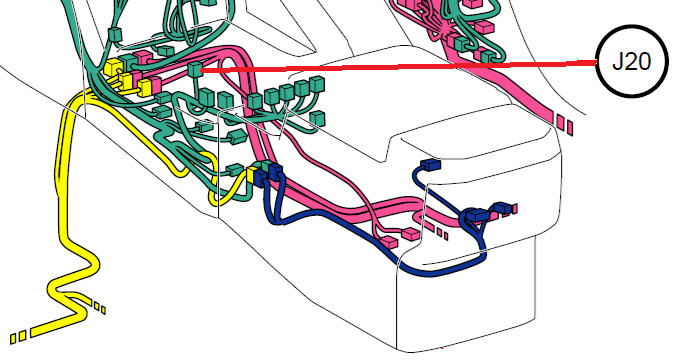

So I attach the black wire to the purple or green wire?

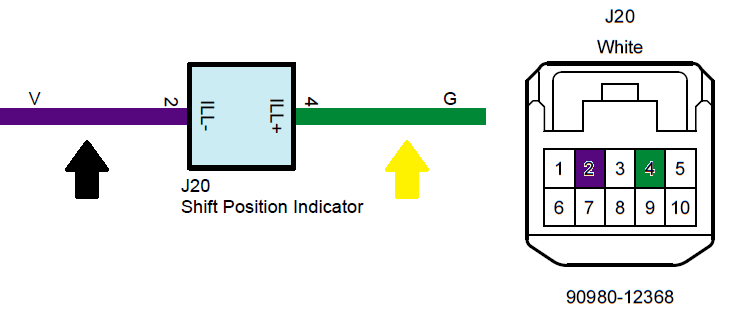

Violet to switch black.
Green to switch yellow.
Black from aftermarket harness not used.



Revisiting this old thread. I am in a similar scenario as @Wahhabm. 4G TRD OF Hybrid, no Aux switches.

But upon inspection of the AJ1 - I have the wires. But alas, no aux harness in the footwell sidewall. To clarify - I do have the prewired sockets for the relays and I have the prewired auxiliary sockets throughout the vehicle.

Added note - Is the J92 connector, the connection needed for the switches?

That all said - What am I looking for? A socket connection for the switches? Those wires from the AJ1 have to go somewhere, no?

Thanks.



Damn... it seems I'm really close on this. Is J92 the connection point for the Aux Switch wiring?



I gave up myself.
