Discussion in 'Performance and Tuning' started by nut, Jul 28, 2012.

?

URD Maf Cal "Plug-n-Play"

Poll closed Aug 27, 2012.
  1. I'm interested in a "Kit"

    16 vote(s)
    72.7%
  2. I'm interested in just the info for $5

    2 vote(s)
    9.1%
  3. Don't care about any of it.

    3 vote(s)
    13.6%
  4. Mitt Romney For Pres!

    3 vote(s)
    13.6%
  1. Jul 28, 2012 at 7:47 PM
    #1
    nut

    nut [OP] she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,615
    Gender:
    Male
    First Name:
    Patrick
    Currently Richmond, VA
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |
    KITS NOW FOR SALE


    I am currently working on a semi plug-n-play setup for the URD Maf Cal. It wont be like what URD or anyone else sells (ecu extensions). I am currently talking to a manufacturer in Japan about the required pieces. My setup will require the user to remove the wire terminals from the plastic plugs and insert a pigtail that can be used to splice instead of the factory wires. Soldering will still be required from the Maf Cal to the pigtail. Once I make sure they can supply the correct pieces and shipping costs are verified, I should be able to start selling. All of this is for a 2012 and I am still in the works of finding out if this will work for 09+ applications. Communication has been slow with the supplier so please be patient. I WILL update this thread as it happens. The poll is to see if this is a project worth doing (selling a kit), or if you would rather just have the information for like $5 and doing everything yourself (just giving you part #'s and where to buy).

    Possible kit contents:
    All male/female pig tails required to install PCU
    Pictures detailing each wire and where it goes
    How to remove wires from the connector with pictures
    where to buy removal tool (under $4)
    All required shrink tubing
    Soldering wick if requested when ordered

    Update 8/21/12: Installed kit on my 2012. So far so good! Sending a kit to csjumper for fitment on older trucks. I AM NOT taking orders now


    Edit: Working with csjumper on a few things, hope to have a prototype installed on his truck in the next week or 2 (8/20-8/27)
    Edit: Part numbers and locations won't be an option, too many people want to know where to buy and start acting as my competition ;)

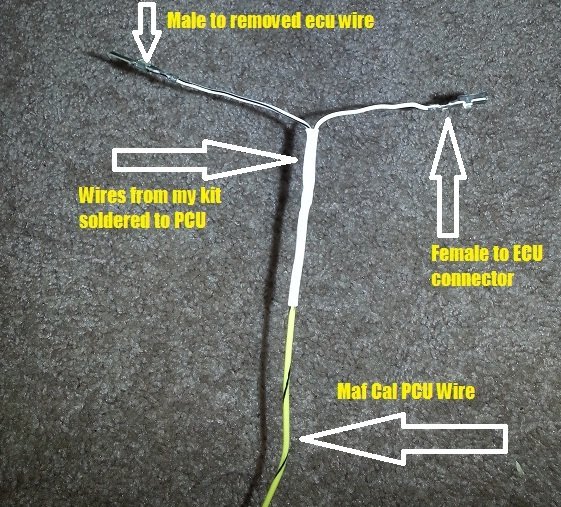

    edit: this is an example of how the kit will work. you connect the male to the ecu female and shrink tube the connection.
    [​IMG]
