Used Tacoma, sludged engine

I think he's on the right track scooping it out with his gloved fingers. Why not continue doing that while it's open to remove as much of the crap as he can by hand. Then follow with a Diesel fuel flush changing the filter each time. I mean, flush it-add oil/Diesel fuel/filter; drive it ten miles, repeat.... The quality of filter doesn't have to be the best until you're ready to call it "good". You could go with SuperTech full syn to save a few bucks per change. It might cost a hundred bucks or so to do four or five of these changes but when you're done I think you could relax for a bit. After all, you MIGHT not need to do any other engine work/replacement for a good long time.



i would change that out cracks like to grow fast on spinney things.



I'm gonna try and run the cracked balancer. I don't have a valid reason why. But I agree that doing as I intend to is dumb. Maybe I'll have a funny story for yuh shortly!

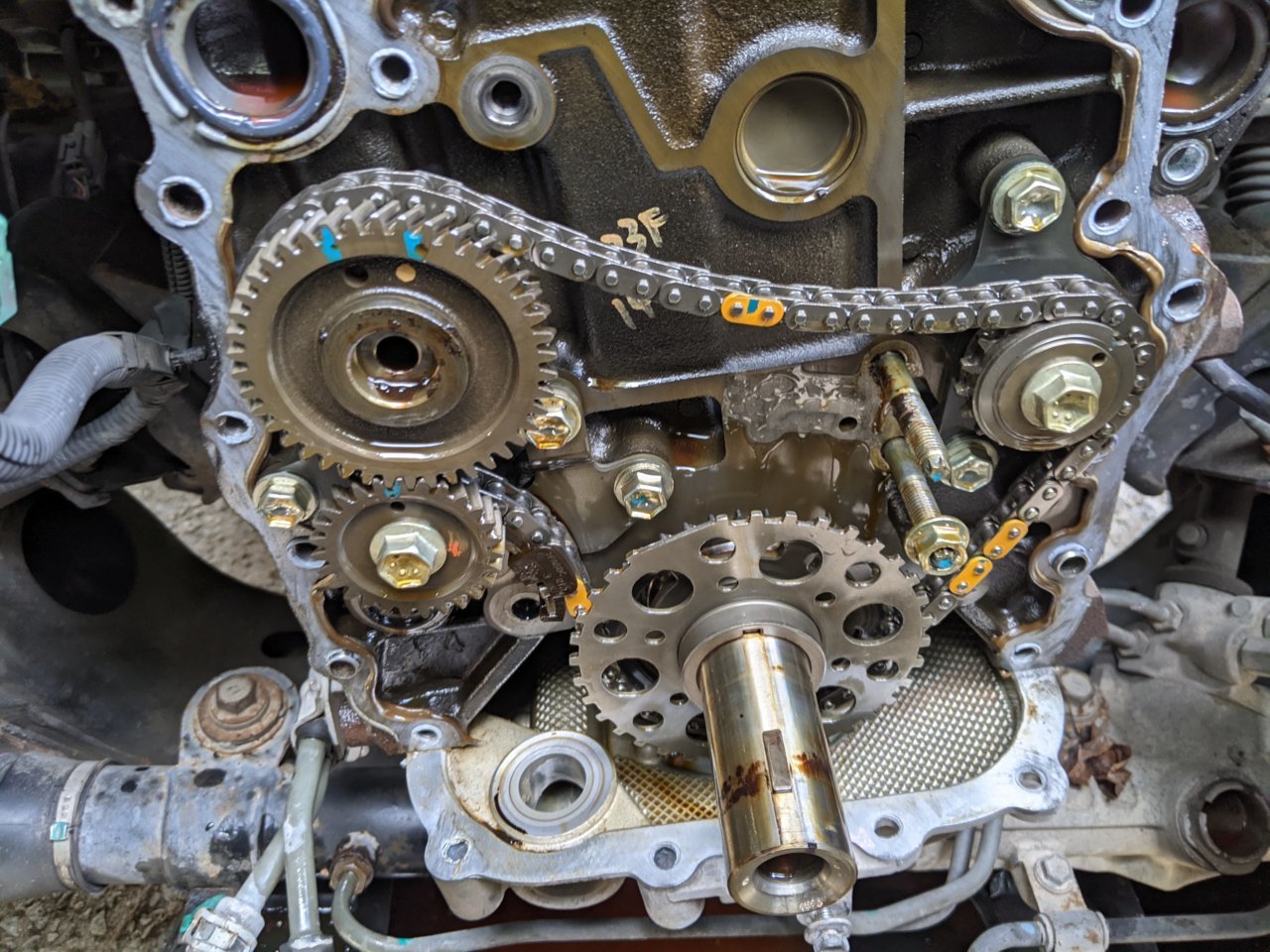

Just got the balance shaft chain back on and all lined up!!


Upper (engine) right gear/driving gear lined up with lower/driven gear (think I got those names right) and chain mark.


I believe the gears in the above image were misaligned before but I lack the ability to verify that with math.

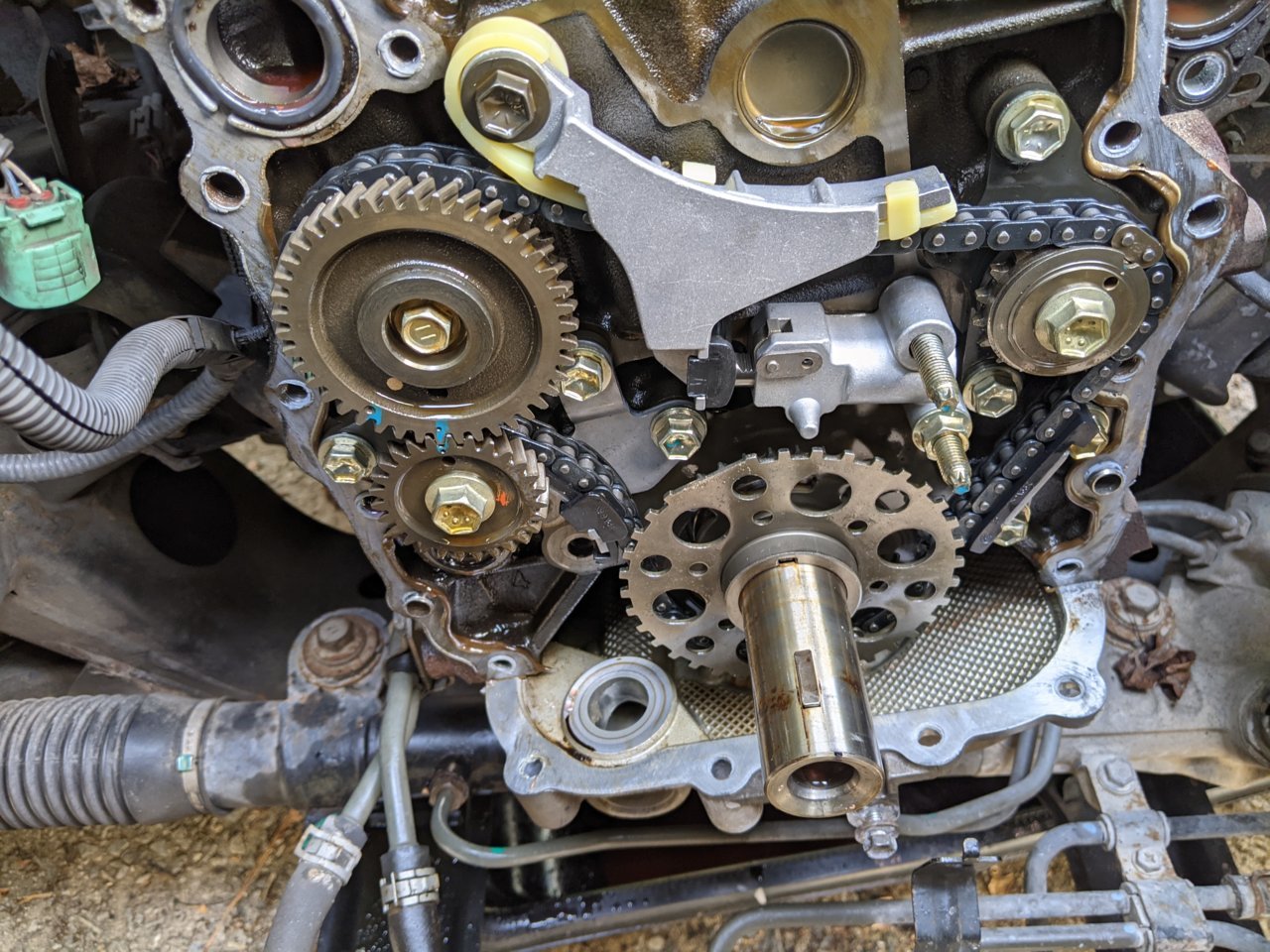

This one's how I found the crank balance chain n gears upon removing the timing cover with the engine set to TDC on the compression stroke:

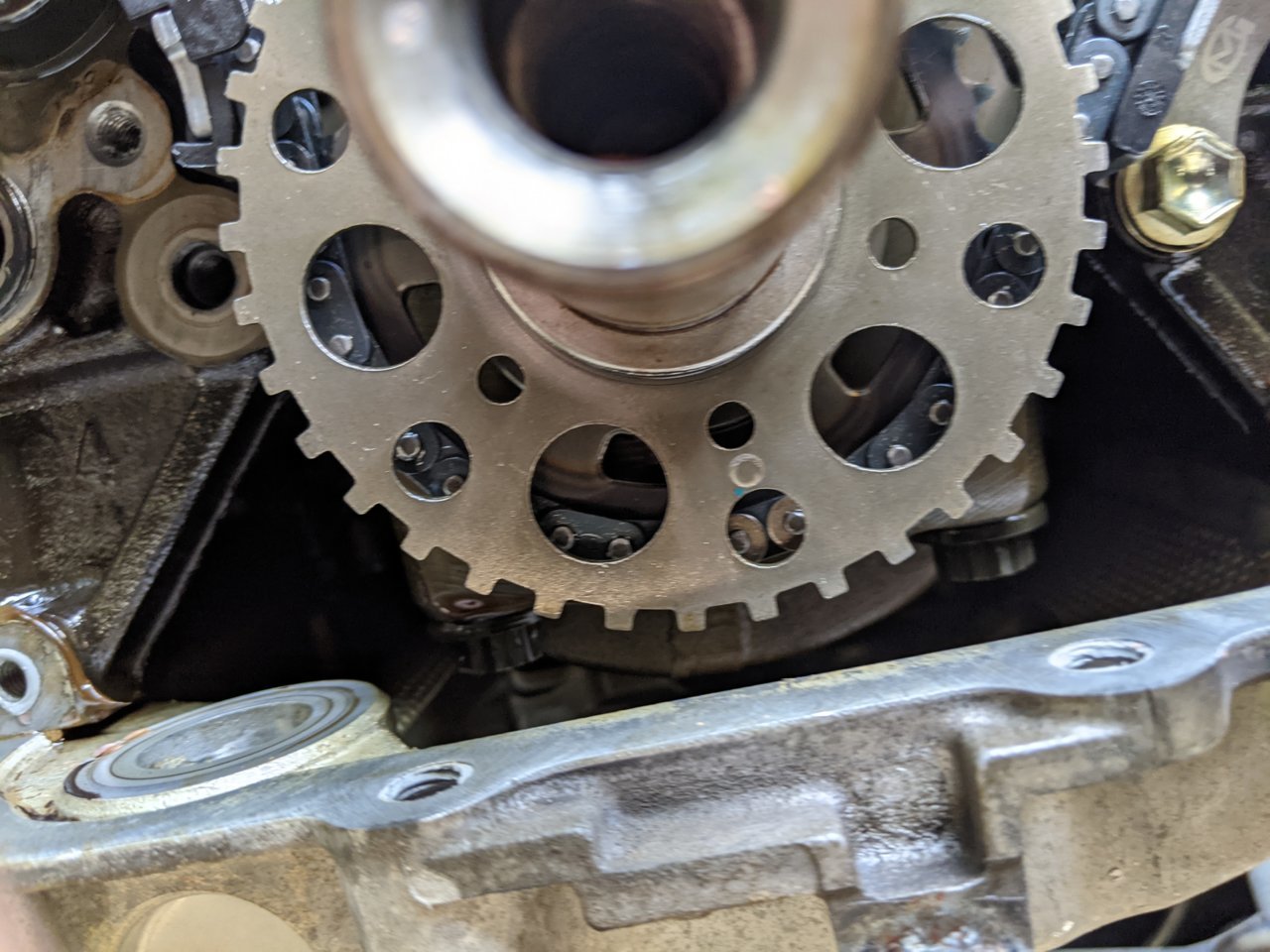

Crankshaft gear lined up with paired chain marks.

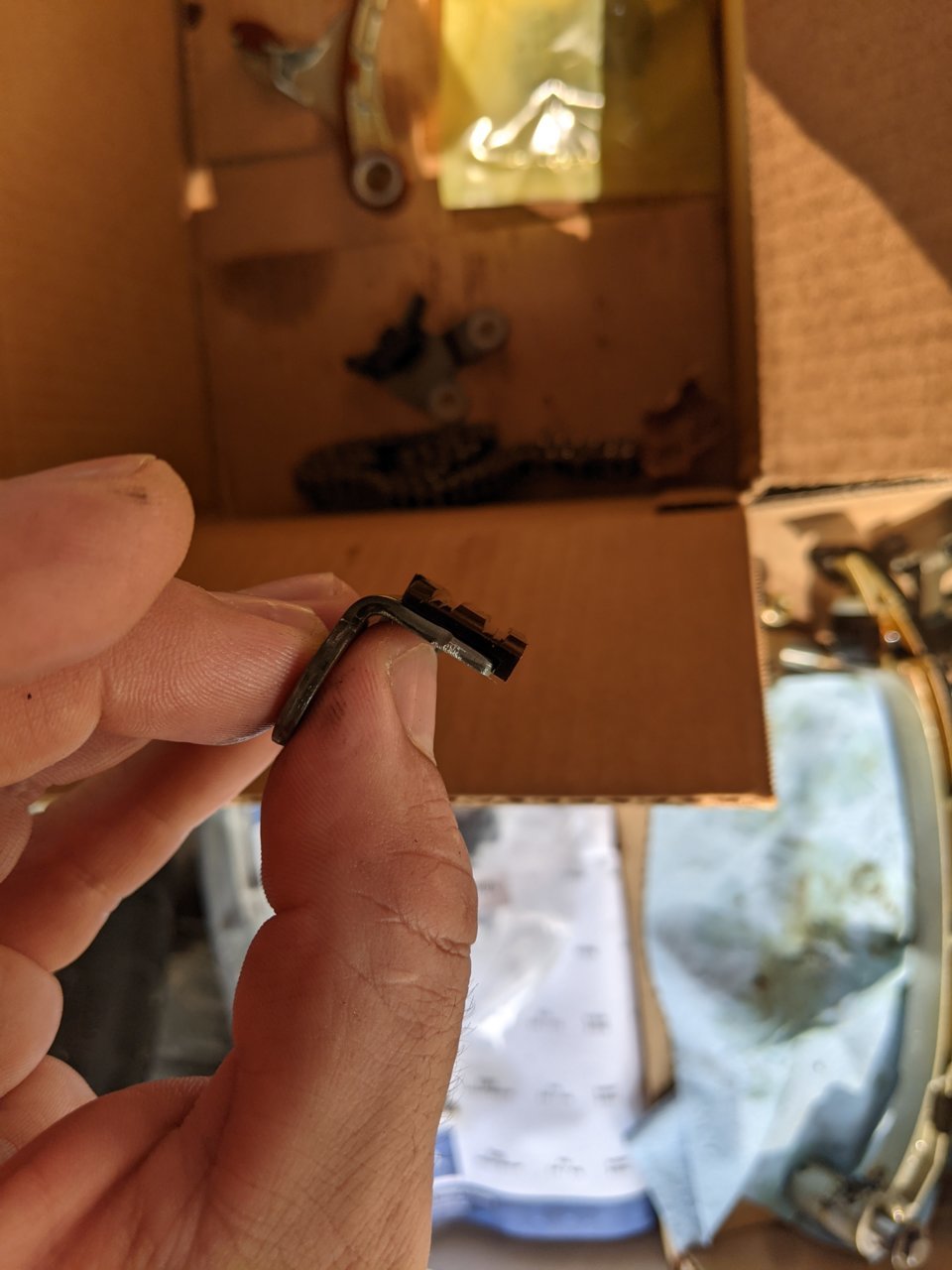

Old guides!:




I forgot to snap a pic of the third one's (which works with the tensioner) wear.



Something worth mentioning. To get all the gears and chain aligned I had to hold them, and there were 3.. crank, left, and right. So I put a zip-tie through the crank sprocket and around the chain to keep it aligned while I worked out alignment for the other two gears..

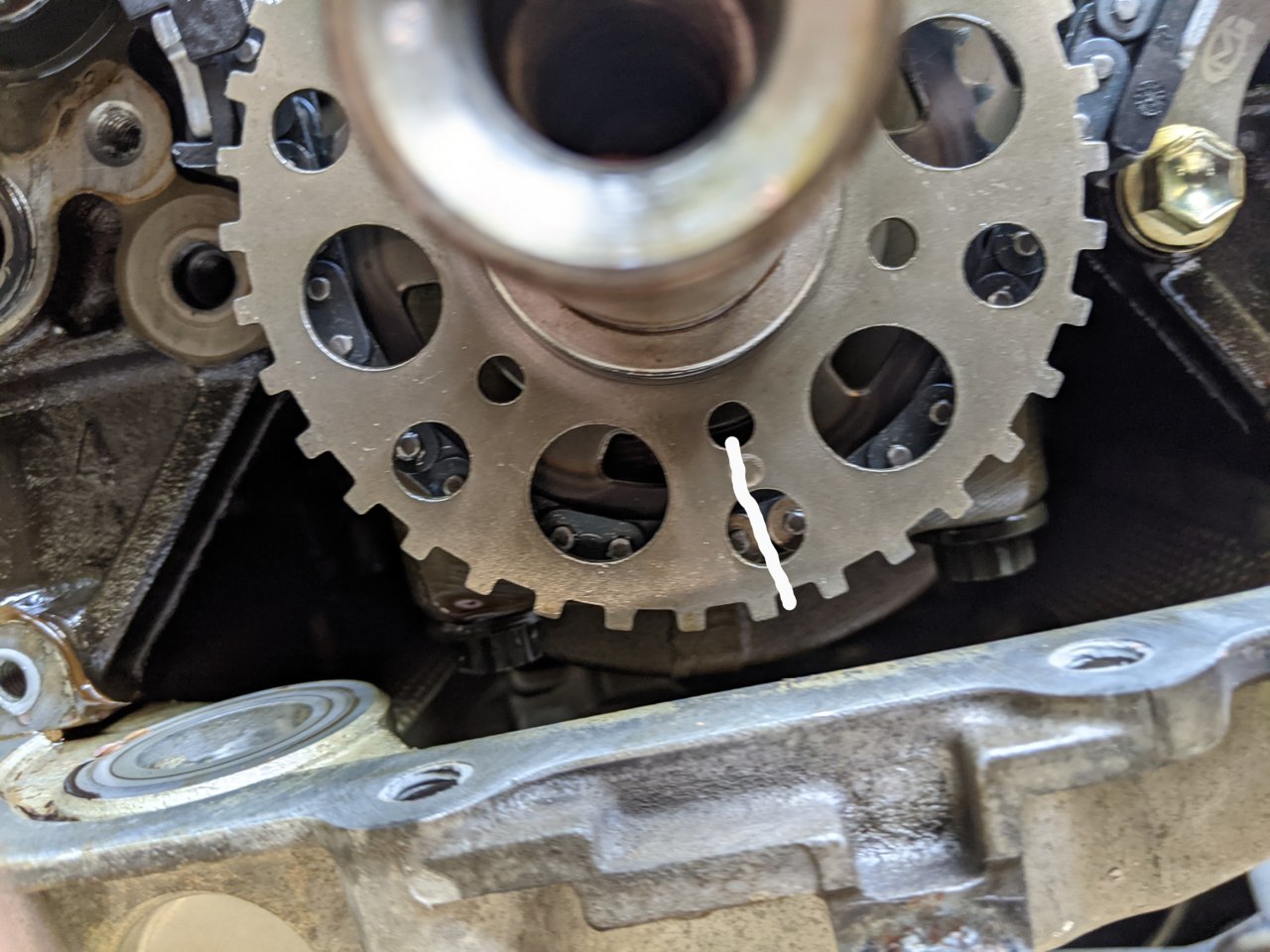

The white line is, yeah, where I put the zip tie to keep the chain properly placed. Worth doing, as you cant really get your face in there to check your work.



Wow. So glad that you decided to get in there. Those guides really needed to be replaced. You thoroughness has prevented larger future problems



Isn't it strange? The engine only has 80k miles on it, the guides appear to be half-way to metal, and the balance shaft chain and gears weren't placed properly in accordance with the haynes manual.. so that aught to mean they werent set up as intended to balance the crank as the engine cycles. But everything looked completely untouched to me.

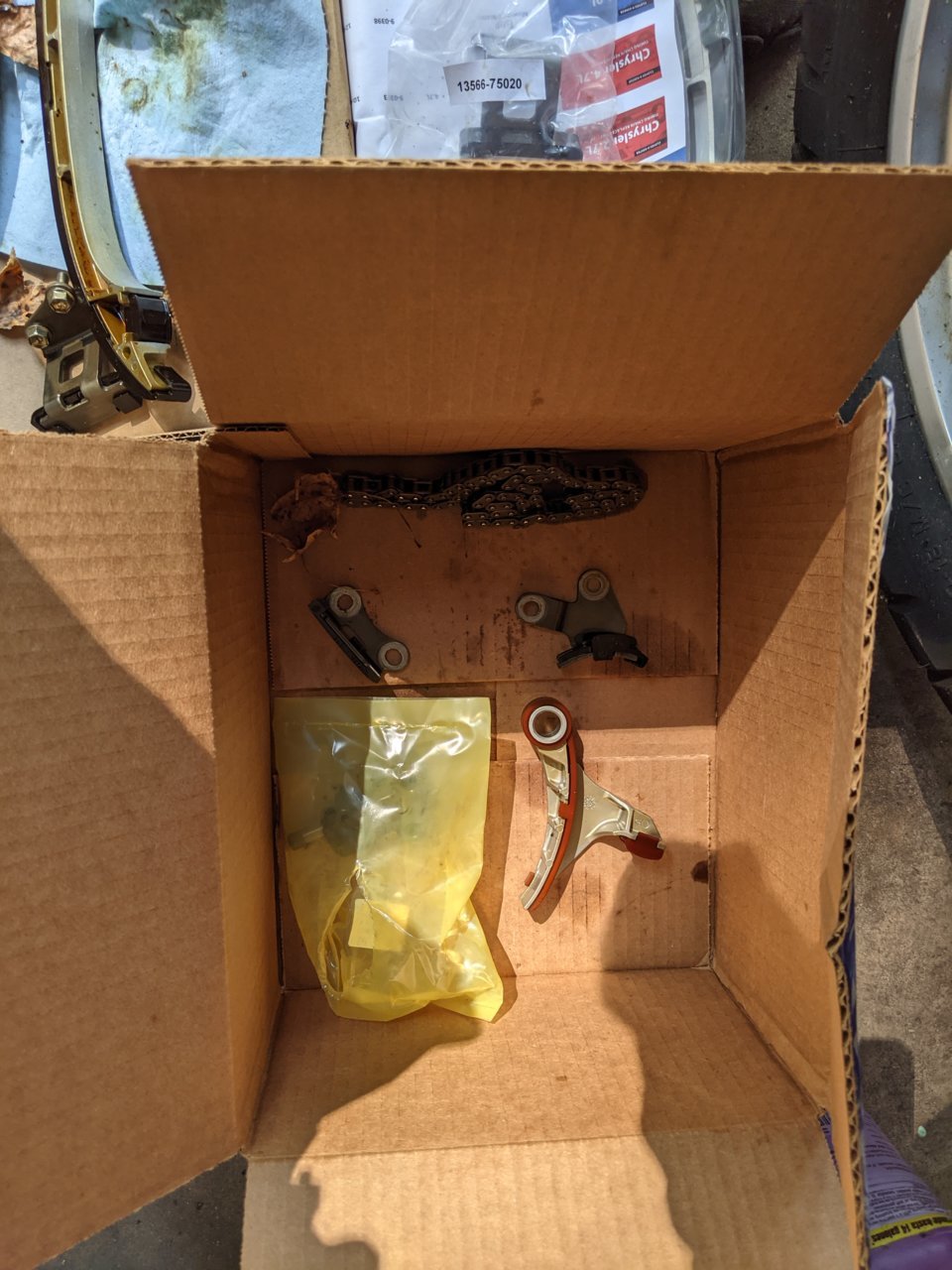

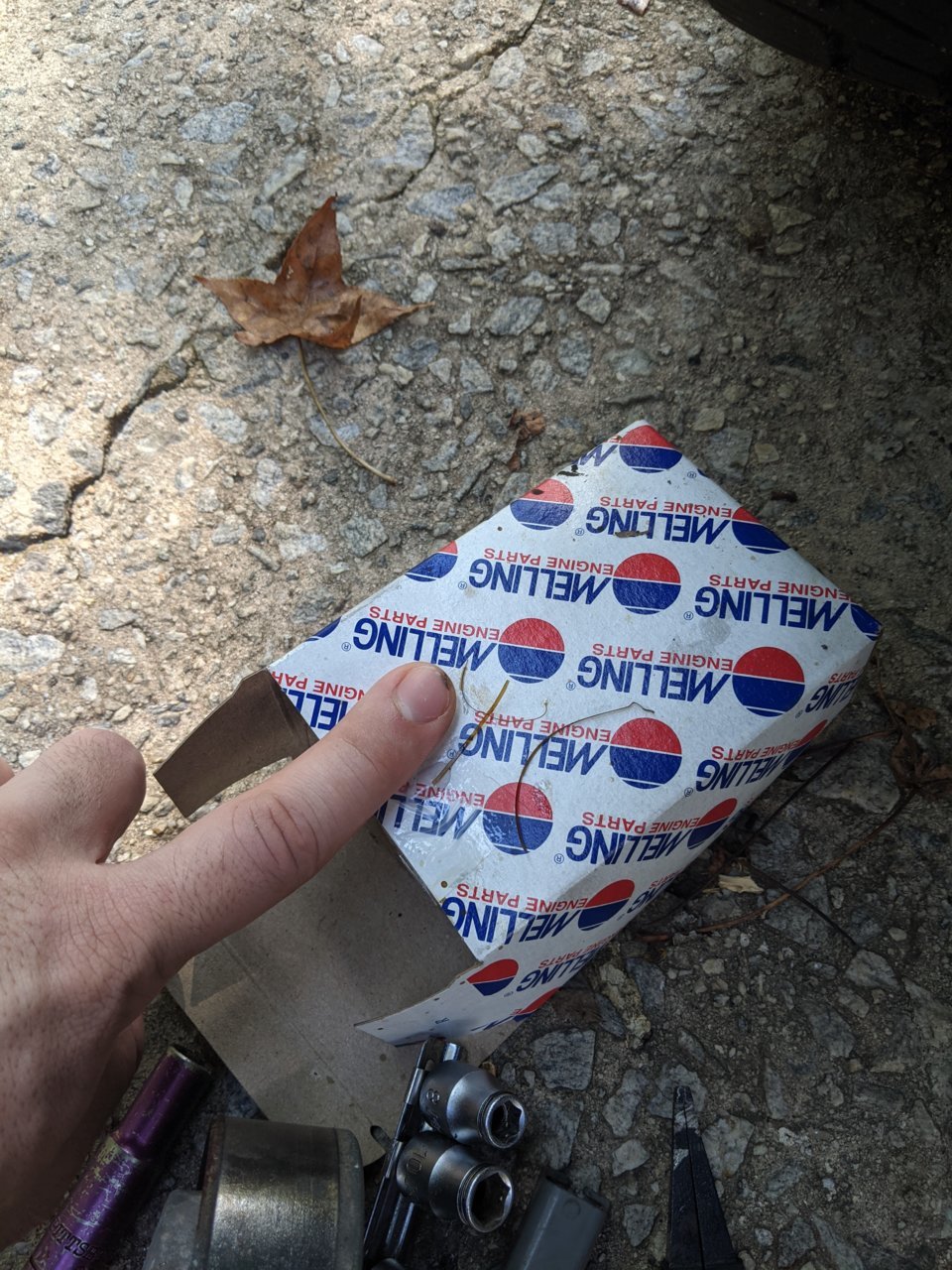

Oh! Another note!! The melling balance shaft kit over on rockauto comes with the chain, tensioner and TWO of THREE guides!

Thank you @Torspd , @Steves104x4 , and everybody for sharing your knowledge, experience, and for your ongoing support. I'll keep going and posting up 'til it's done and running, then I'll see about taking you guys on the maiden voyage via youtube.



Long OCI's and or thin oil, caused that wear.

I'll have some and wait for the vid.



Great to see you making progress.

Really, really caution you against running the damaged balancer, if they fail they can do a great deal of damage.

You have a lot of time and work on this project - you don't want to have it all come undone on you at 3000 rpm.



That balancer will be fine. Pulling some 8x1.25 threads out is nowhere near as bad as an actual crack running across it. If you ever need to pull it you've still got a couple threaded holes to use



The balancer is something I'd now feel comfortable changing quickly (doesn't require losing any costly fluids) but the intake cam gear.. that's another story.


The exhaust cam (left side of the image) gets a replacement included in the timing kit. The right, however, no such luck. In fact, no parts listing for it on rockauto. The right side isn't as chewed up as the left but I'm still deeply concerned. I think I'd have to go through the dealer to replace it.

I'm gonna suck it up and make the call, see if I can afford it both cash and timewise.

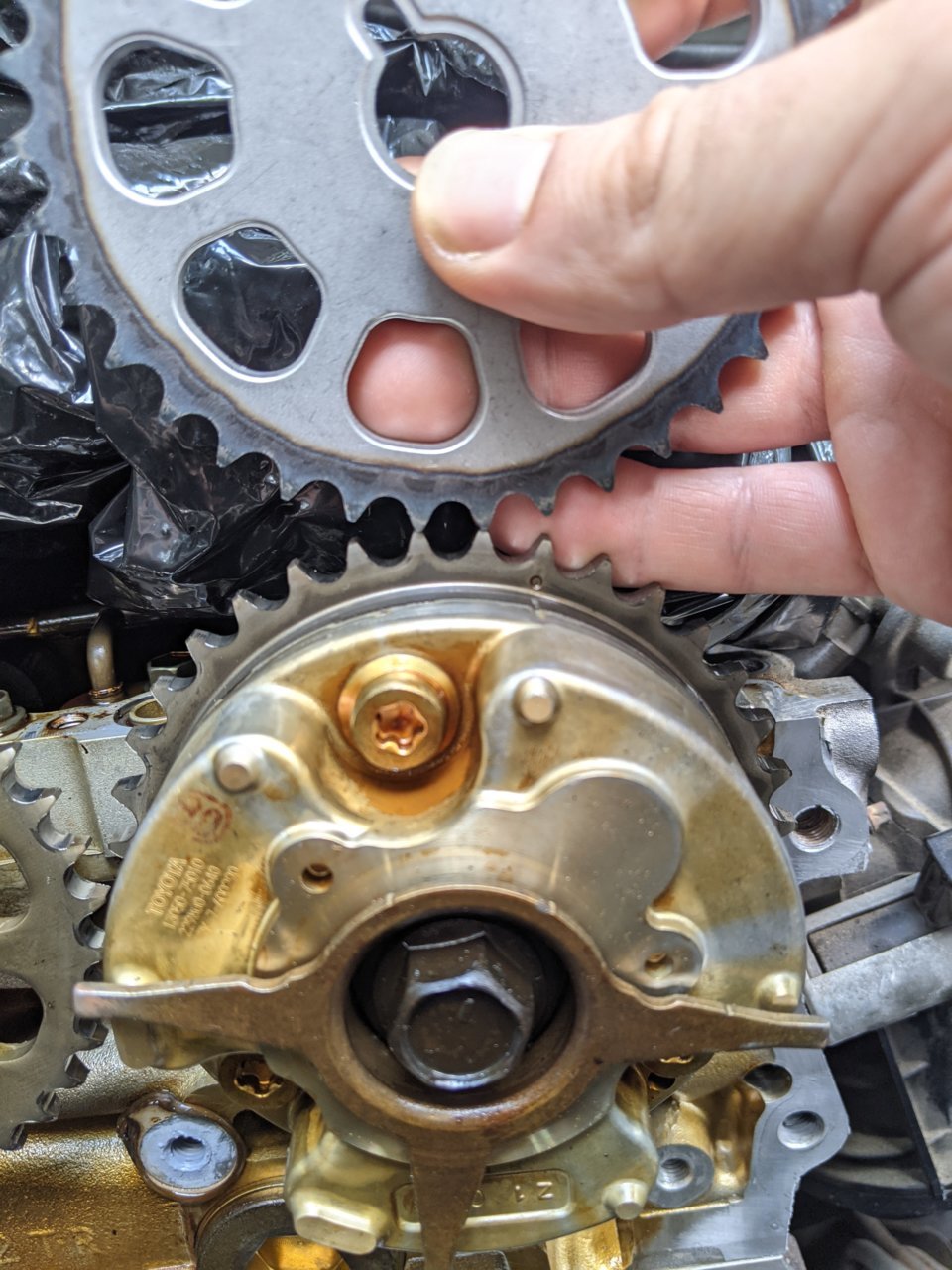

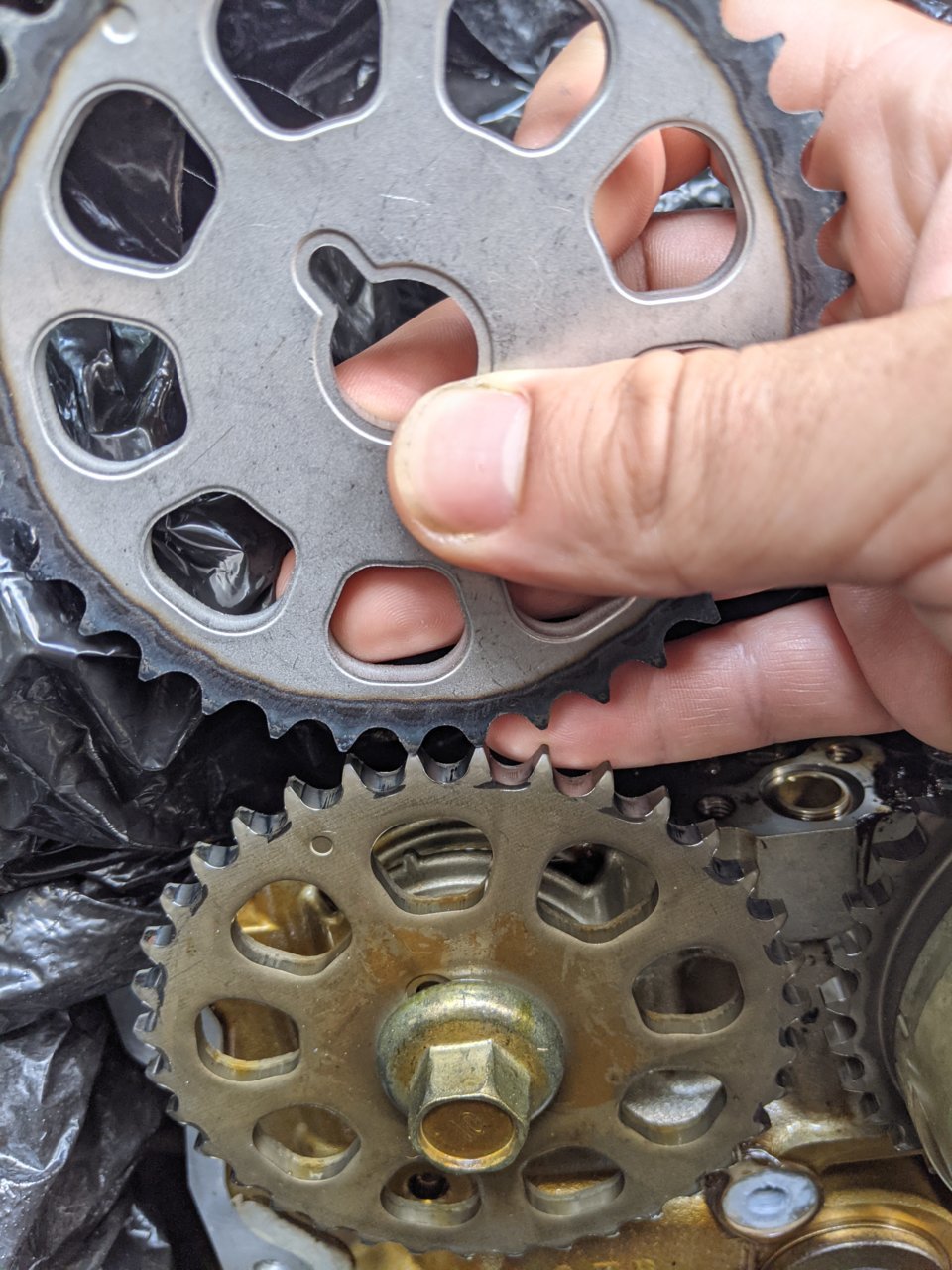

Here's the new exhaust cam gear for reference, first compared to the old exhaust cam gear (check out the cuts on the face of it!)


Then compared to the old intake gear



$450 from the dealership... I can get it on ebay for ~$180, but it would be shipping from Dubai. I'm going to try and see if there's an engine parts supplier near me, maybe one that the local machinist uses.

Oh, another fun fact: The cloyes timing kit from rockauto comes with all necessary parts for the crankshaft balance chain service. That means I now have a whole spare set and can't return either one

EDIT: Alright! Going to take the old gear over to the local machinist and maybe they'll talk to me. Historically, they've been less than cool.

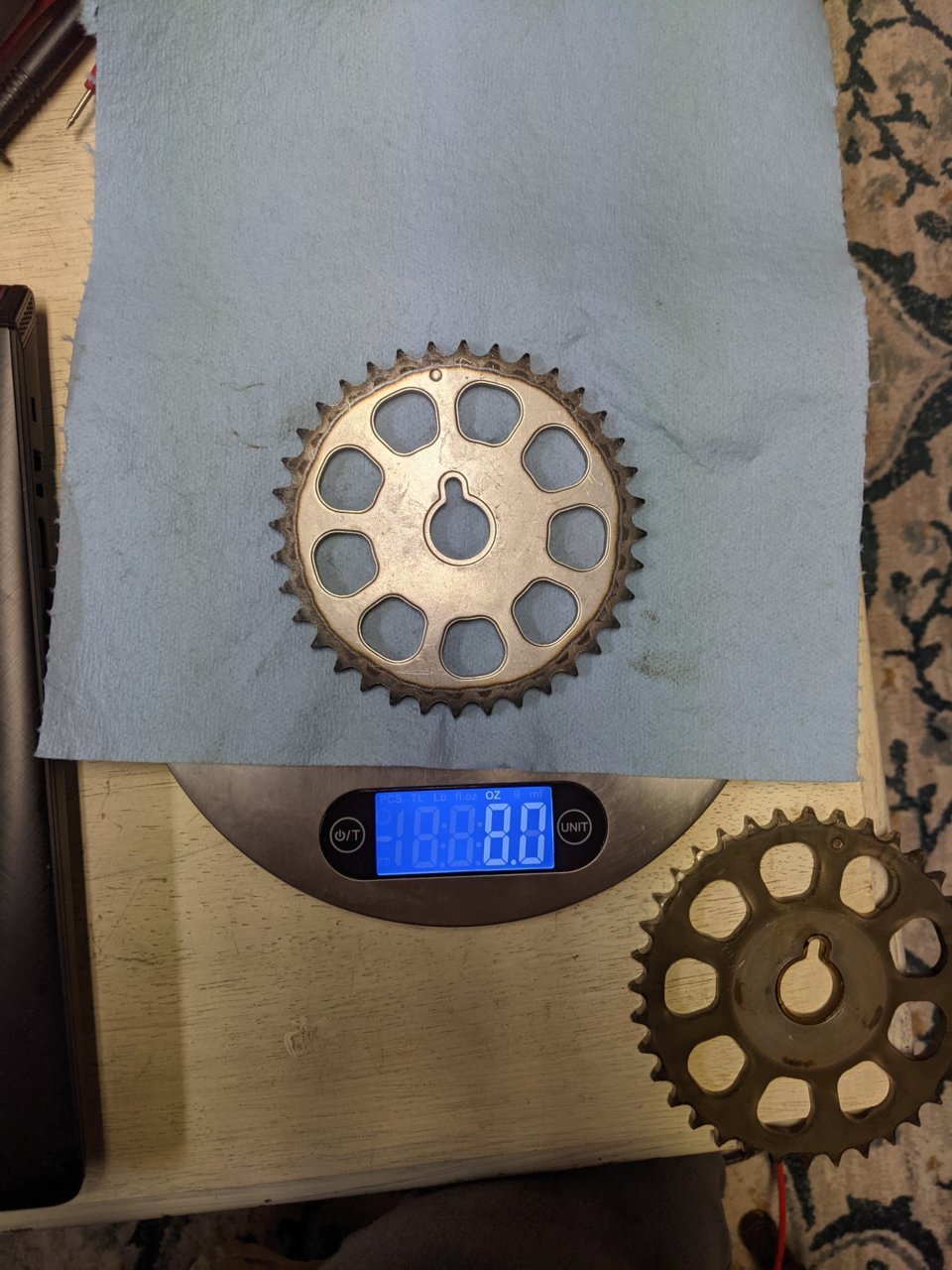

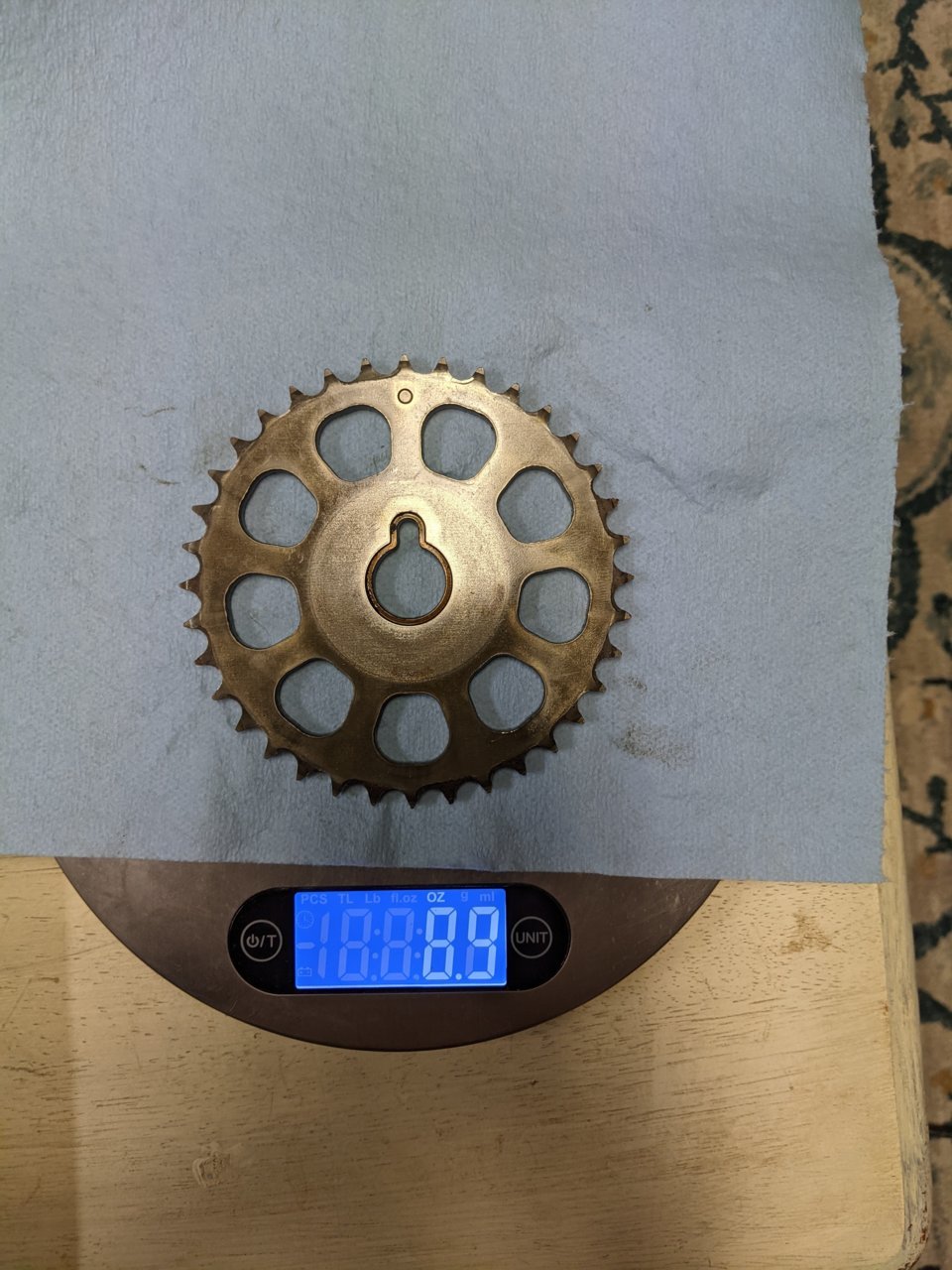

Oh, I also went ahead and weighed the OE exhaust cam gear against the Cloyes replacement
Here's the Cloyes


And here's the OE


I thought I felt a difference.

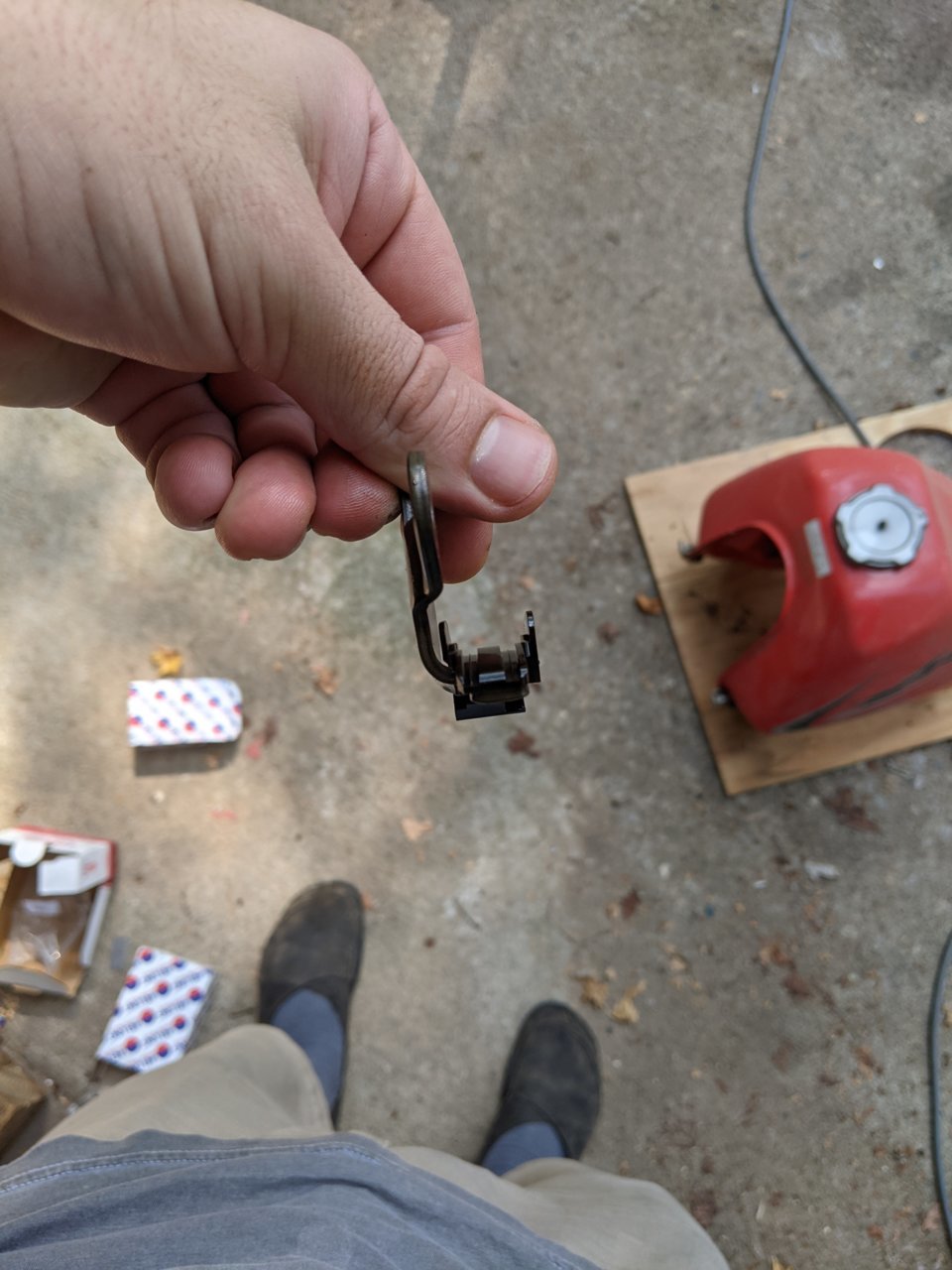

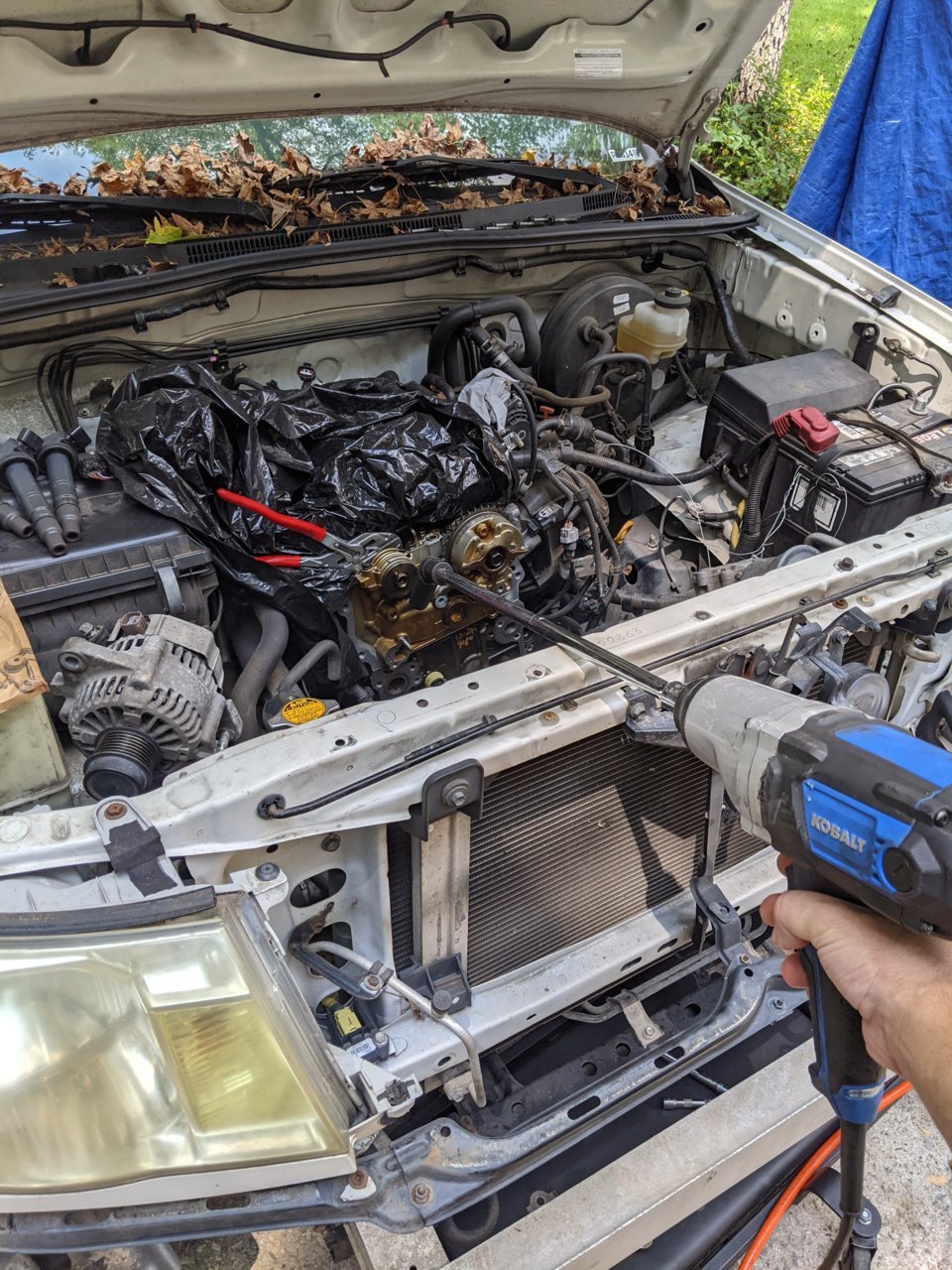

And for yucks, here's how I got the exhaust cam gear off



Make sure the oil jet for the timing chain (if there is one) is clear and not plugged.



Not sure if you got all the gunk out and put back together but it made me think of those little vacuum cleaner tips for detailing cars and sucking out what you can.
I've been that far into an engine before. Hate it much but sometimes it needs to be done.
There are places that will make just about any gear. We had to get a few for a press I work on. Normally $30k gear had it made for $17k!



I got a 95 subie with 265,000 miles on it that came sludged up. What worked for me was adding some sea foam to the oil, run it for 500 miles or so, then change it. That oil always comes out super dark and nasty so it must be working



I think the timing chain gets lubed at least through the intake cam sprocket.
That weird extra piece to it that looks like a compass, well that part stays stationary and as the gear rotates it exposes a weep hole. Gah, I wish I snapped a picture for you guys.

I'm going to be hitting the timing cover with the pressure washer I was wasting too many shop towels, and I need to run the pressure washer every now and then.

It was 97° out today. Being in it gave me a stinging sensation, so I skipped today.

I did do my work on the timing cover mating surfaces, as well as compare and install all the timing guides and chain.. Minus the top guide. No o-ring for it, I had to head to ace hardware.

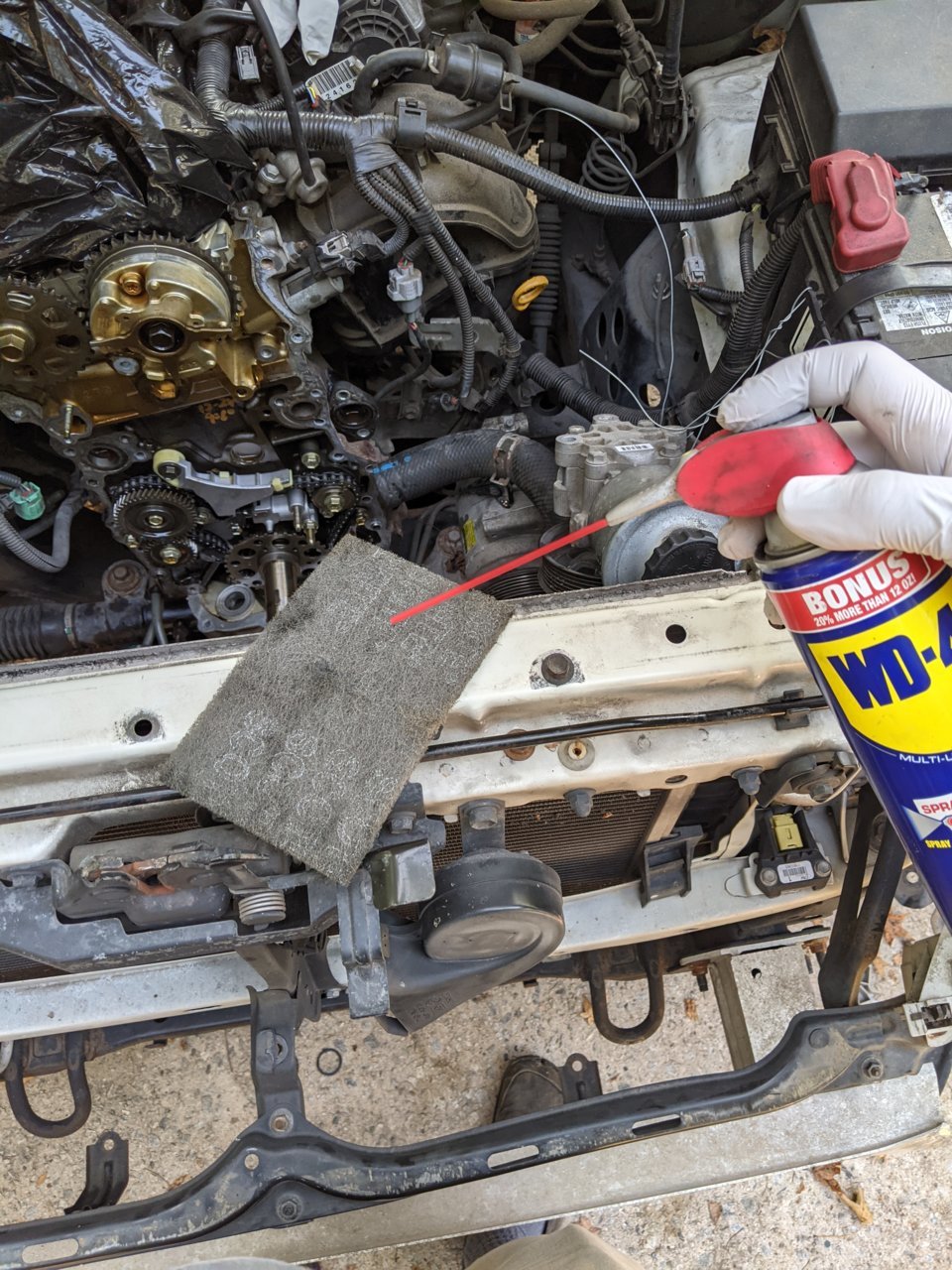

Removing silicone step 1 (there's no paper, metal, cork or rubber gasket for the timing cover, just silicone)

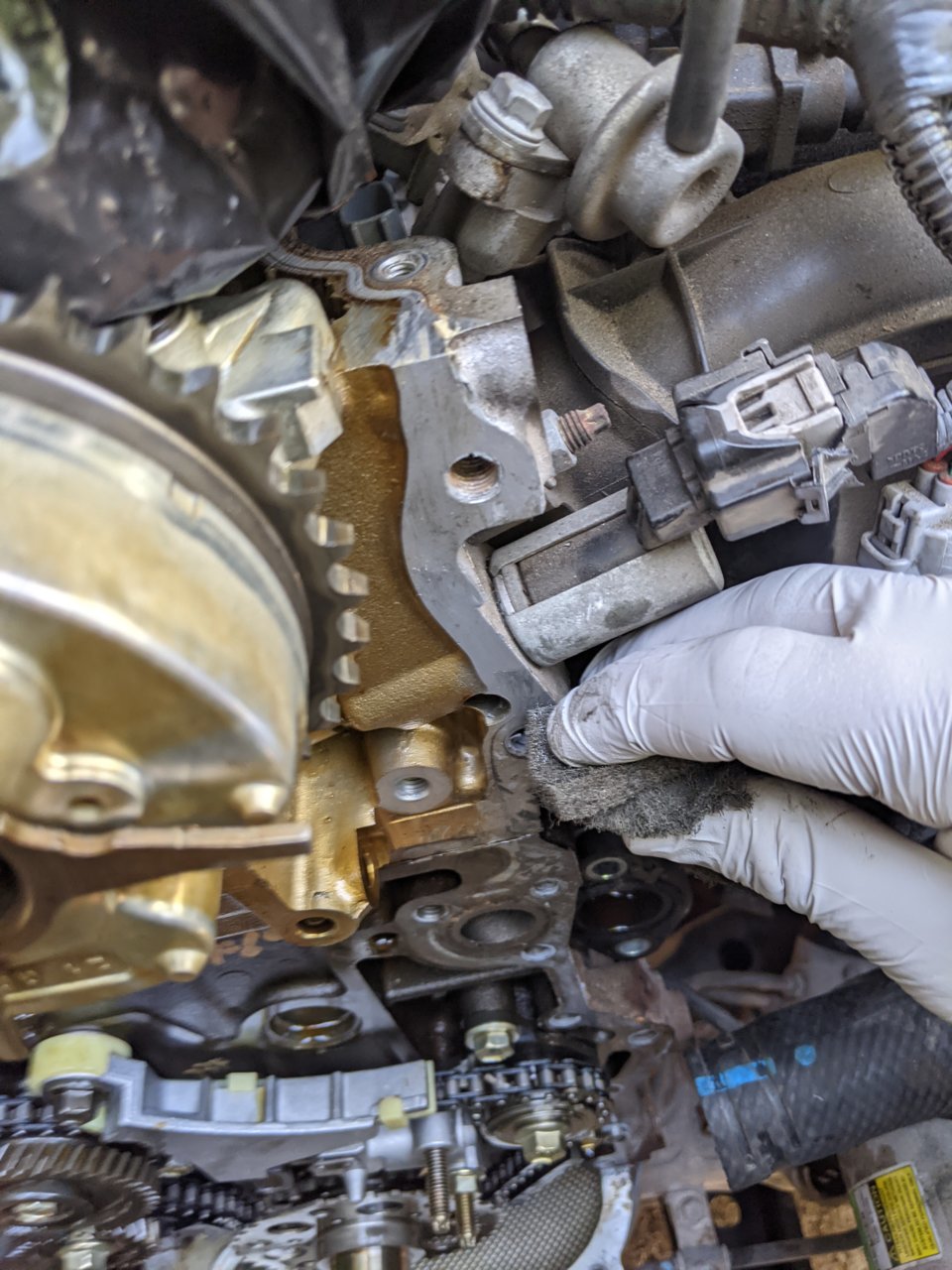

Step 2 3M scuff pad very fine



Step 3, wipe off


I imagine somebody might take issue with the razor blade. I'm real careful.
Step 4 is 91% alcohol followed by silicone. Not there yet.

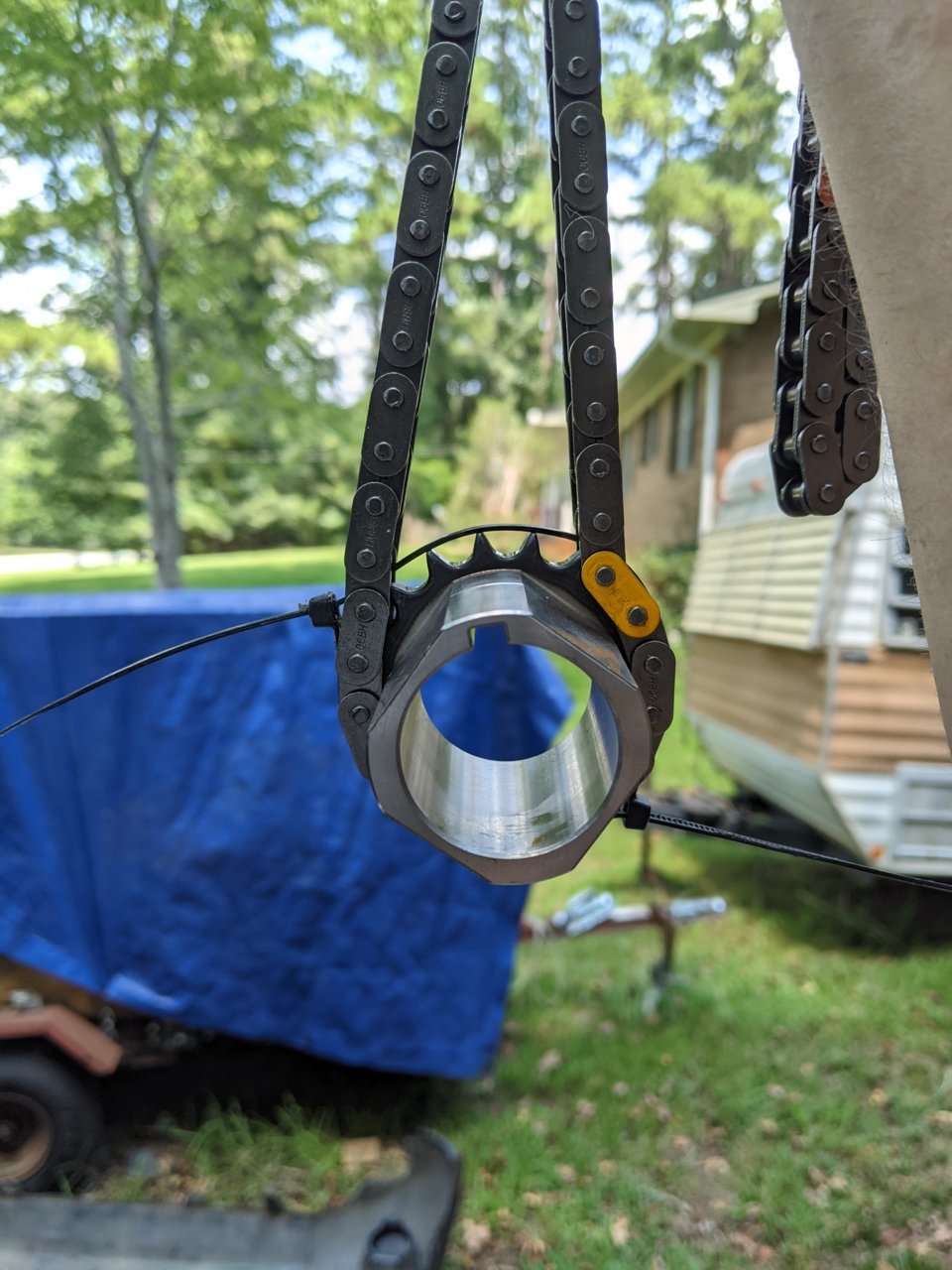

Securing the chain with zip-ties, properly aligned on the crank sprocket. This allowed me to focus on getting the cam gears right.


some guide comparisons





Not too bad!..

Will post up more tomorrow.



Sorry the above post was a mess.
I'll take a pic of the o-ring seal not included in the timing kit tomorrow. To the best of my knowledge, it's meant to be a #10, 11/16" OD x 1/2" ID. The one they had at ace is for plumbing and lists compatibility with Moen, like the faucets.. I don't wanna tie things up by ordering a Buna N O-ring from mcmastercarr. Ugh. I don't know. This'll be accessible just by removing the valve cover.. OKAY! I looked up the P/N, the plumbing o-ring was made by Danco. It IS a Buna N just like on mcmastercarr, and is good to 249°, and oil don't get that hot, so YES, plumbing o-rings purchased from ace hardware should work in engines. https://www.mcguckin.com/2763481/product/danco-35727b

That's really cool! Unfortunately it'd likely be well outside of my budget. The closest I've gotten to gear that fancy since leaving the service is... ~4 foot long, inch thick HSS chopping blades picked up free from a closed shop that did something with paper. They made a marketplace post one night and just left stuff in their loading bay. I showed up for a rolling rack, but I couldn't just leave those huge things there. what if I need to shave an elephant?

Anyways, I measured the old intake gear with the new chain and it came in at 4.61" or something (got it written down somewhere) and the service limit is 4.48" or so according to Haynes.. I know the first two digits of each are correct. The new exhaust came in at ~4.5805". May not have been dead on with caliper placement on that one since it was installed, but close enough to mean the intake is safe to run!

I considered dremeling the edges in grooves between teeth myself after the machinist turned me out, but then thought they may need their full width to keep the chain tracking wobble-free. Checked, and the new exhaust gear also had sharp edges.



Alright. I'm all ready to put the cover on... Once it dries. Also, I sprayed the cam sensor I skipped uninstalling. Gonna take the pan off now and spray it.

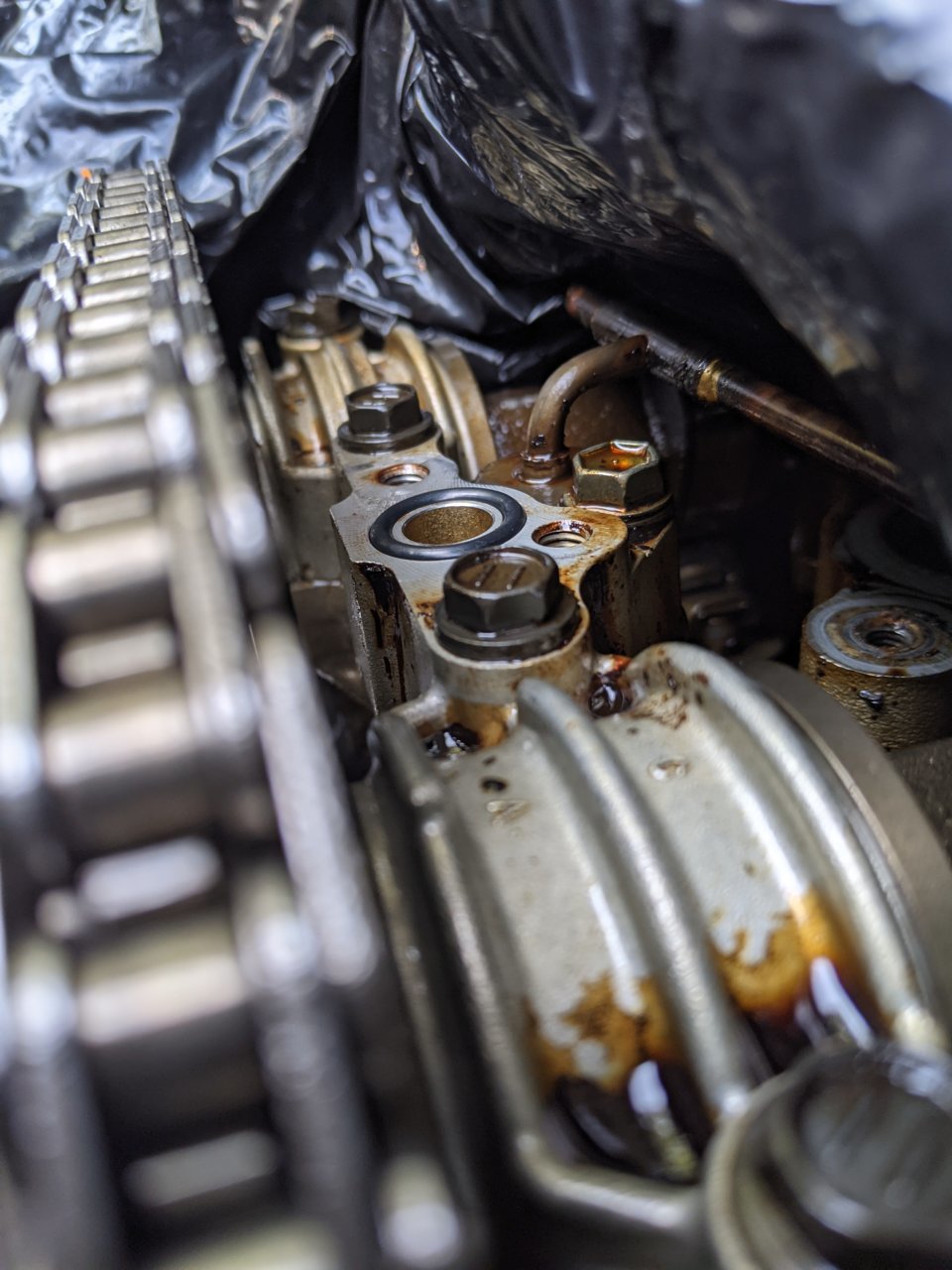

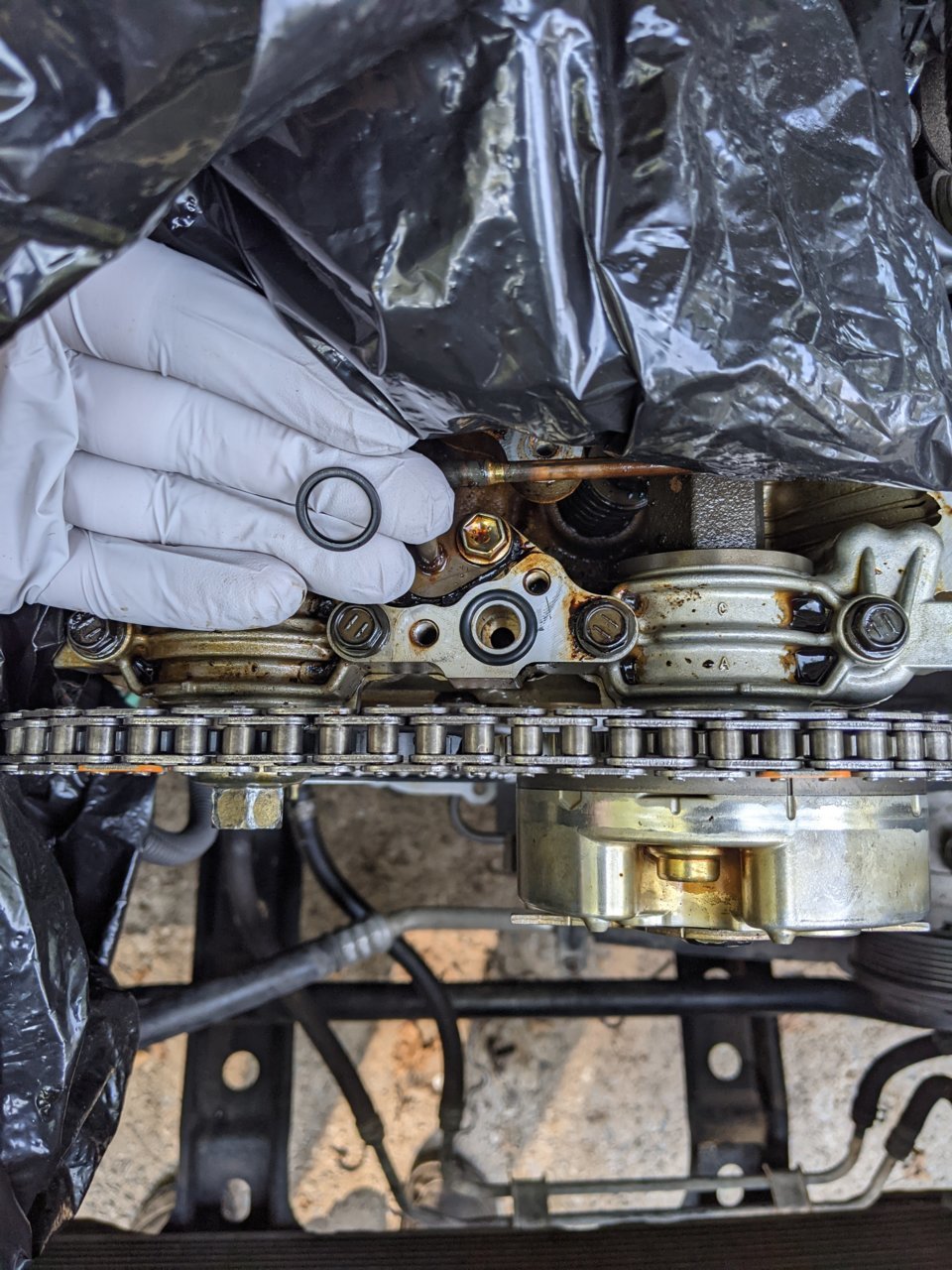

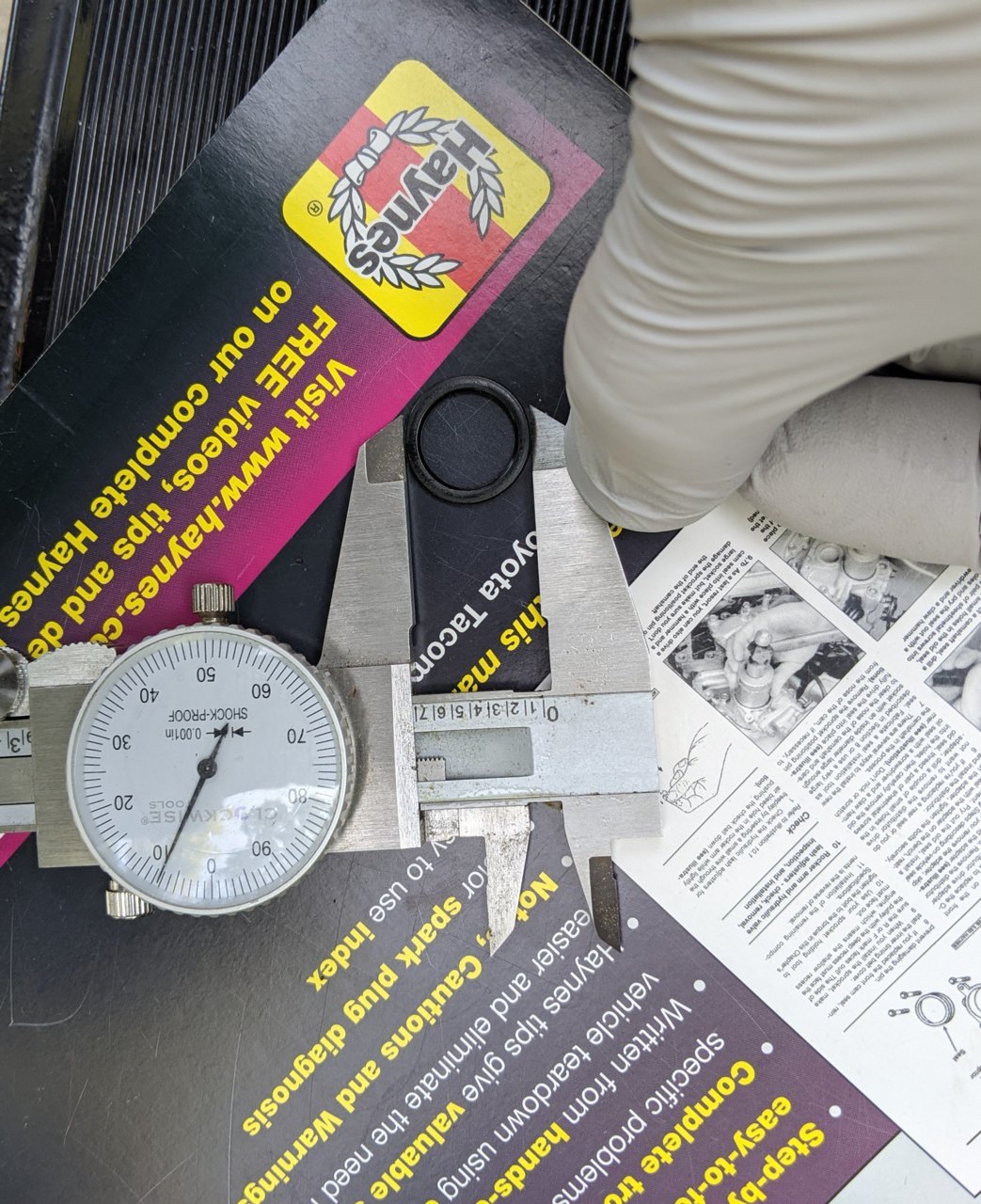

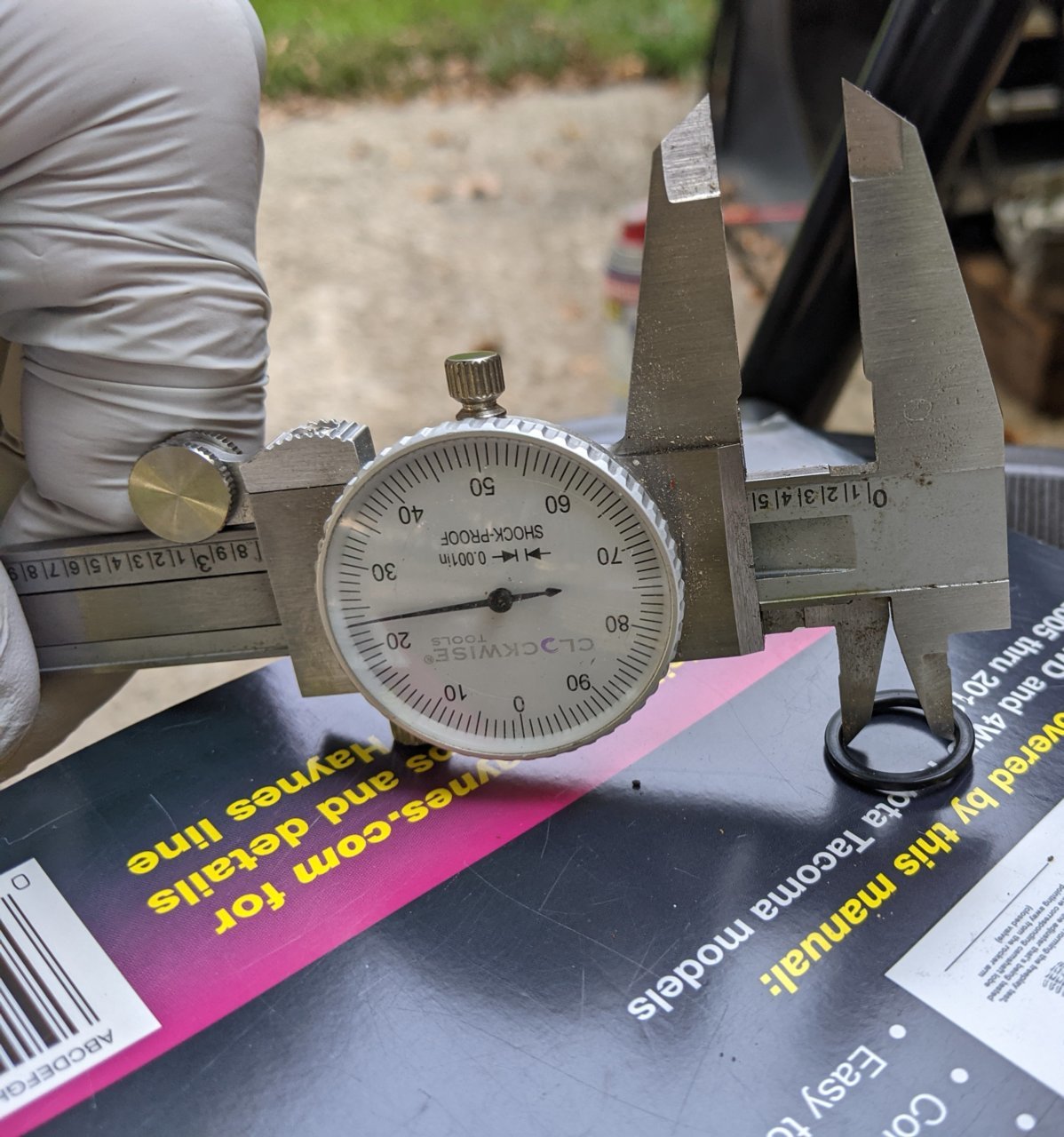

Here's the o ring, with measurements taken of the original and the new one installed.





Original's measurements

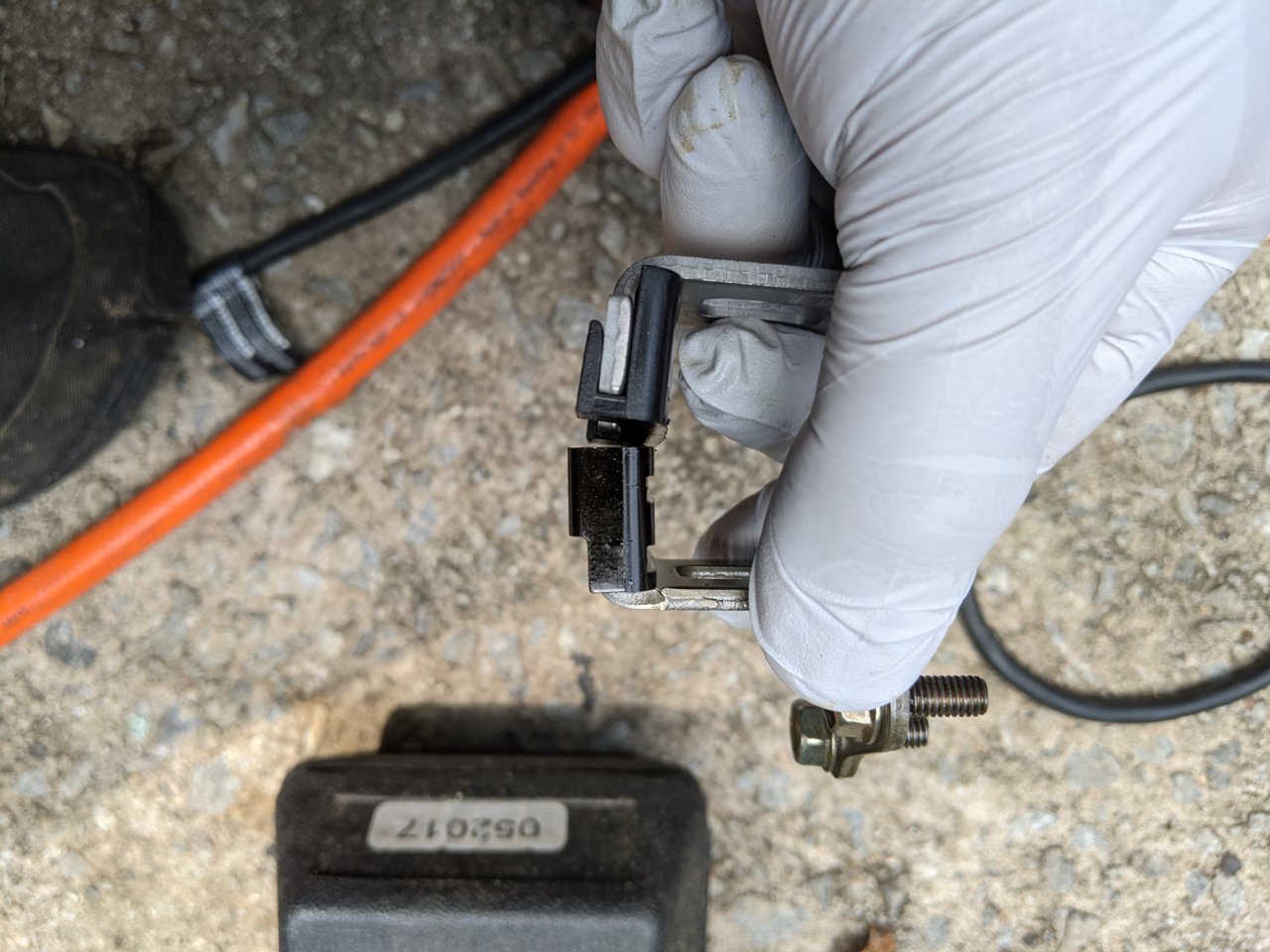

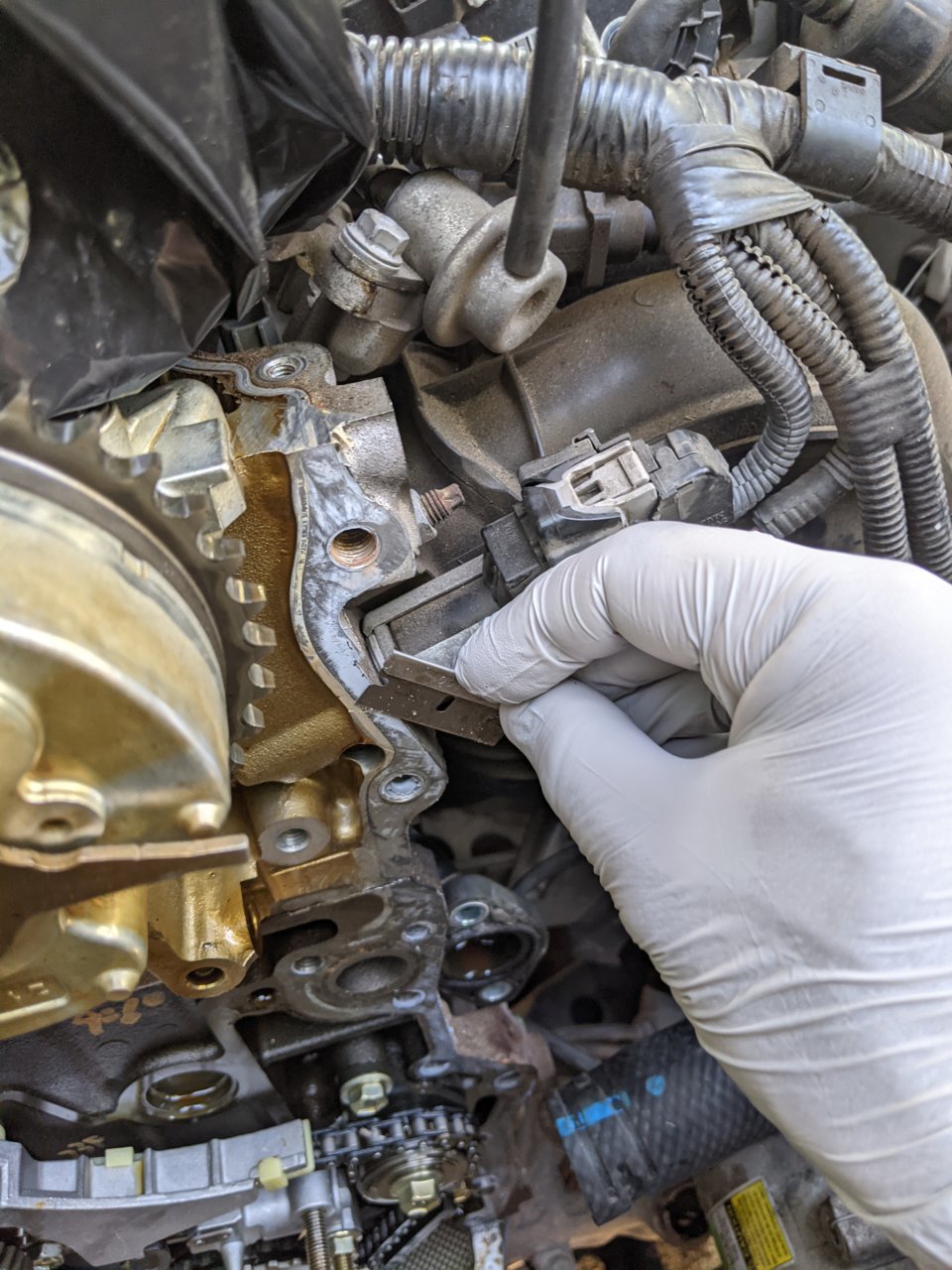

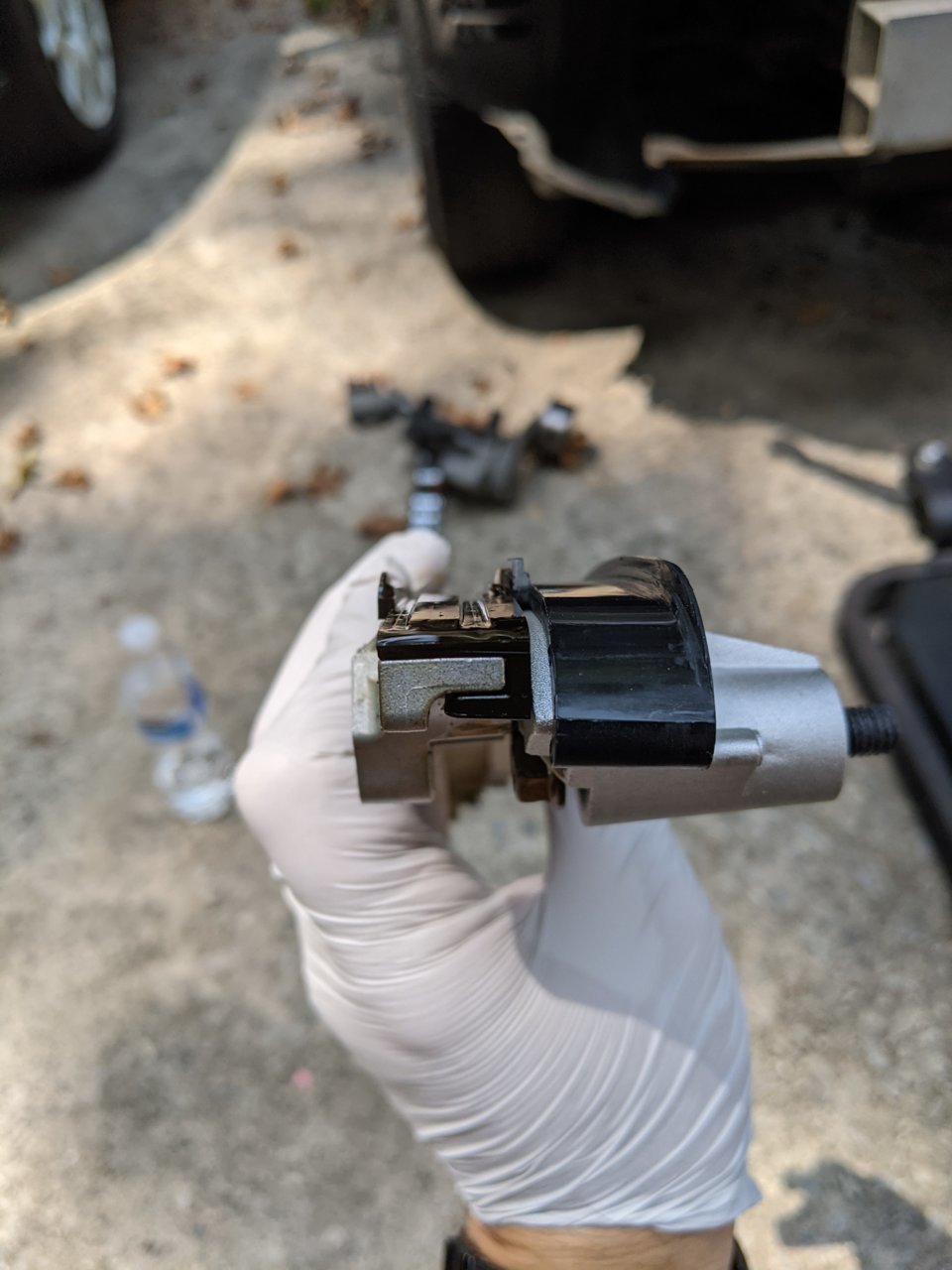

This guide sits on it

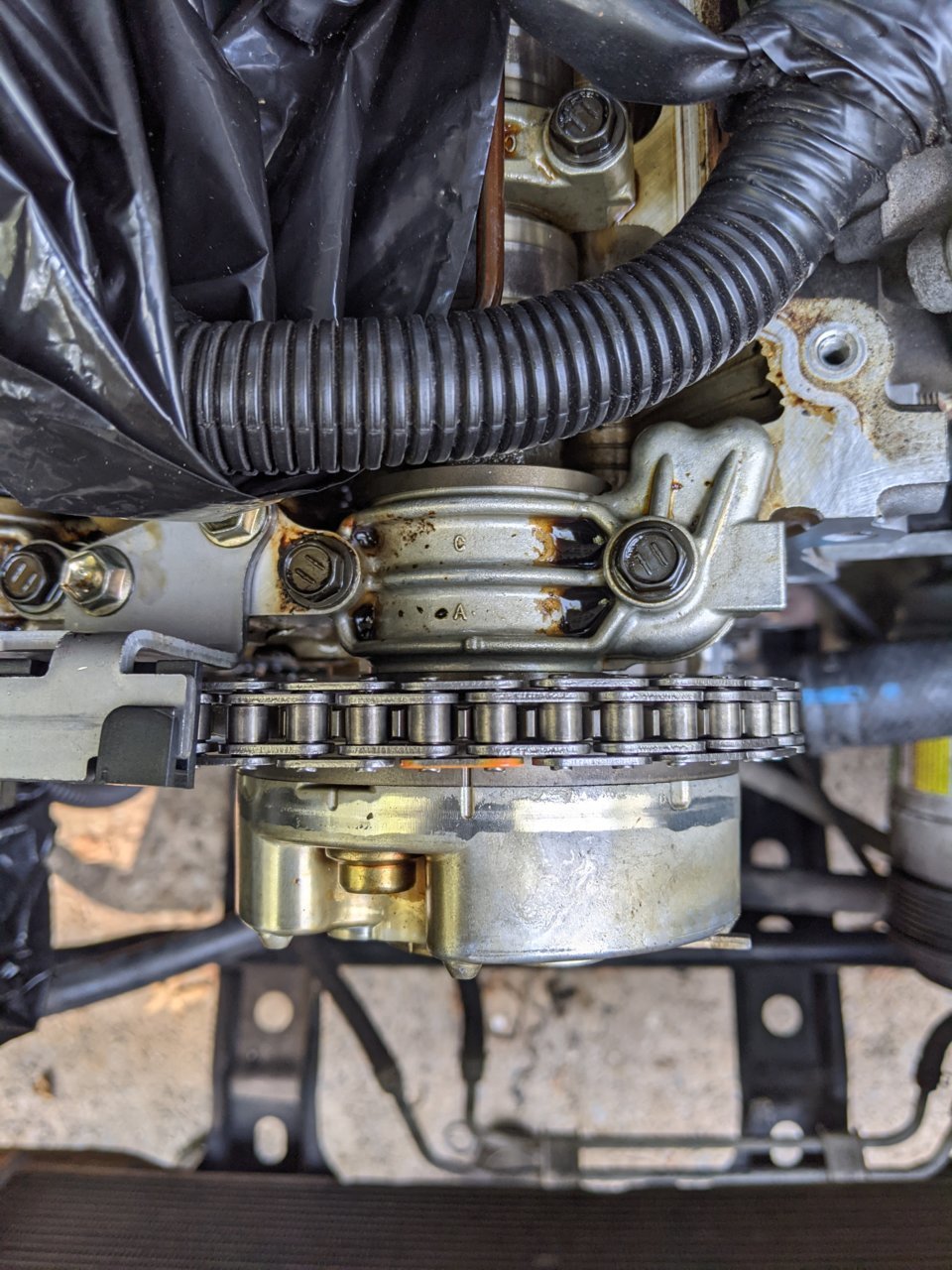

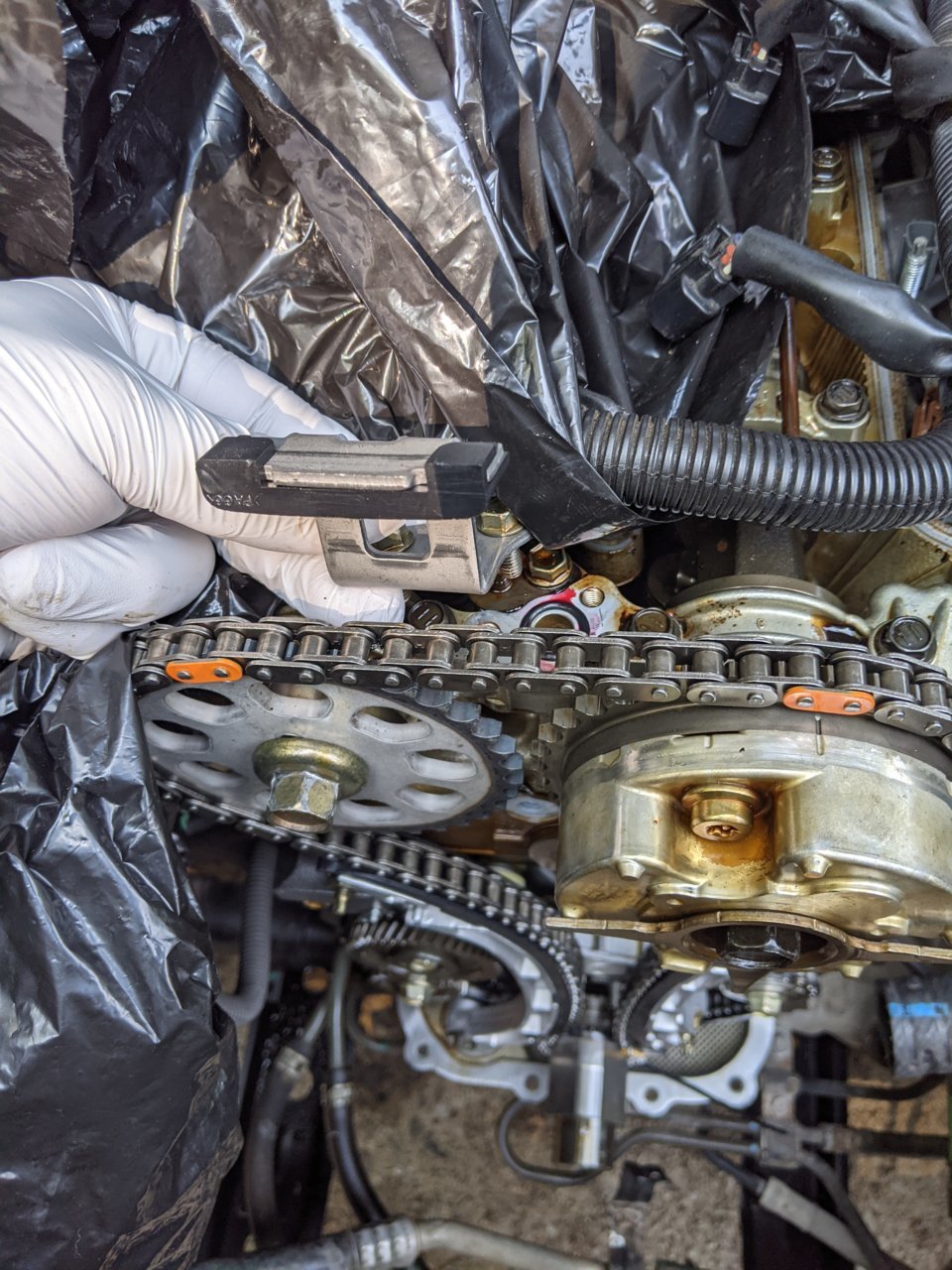

Now, I thought my timing was out before, but I no longer think that. The cam marks dont line up perfectly, the chain is too long between 'em to make that happen. The only thing that could correct that is tension created by the upper guide, but seeing how it only torques to 84 Inch lbs. and doesnt really press on the chain much at all, I figure this must be part of the design.
Identical mark alignment with both the old and new chain. I DO think the balance chain was misaligned, and possibly from the factory. I'll see about posting that in threads about idle vibration in drive

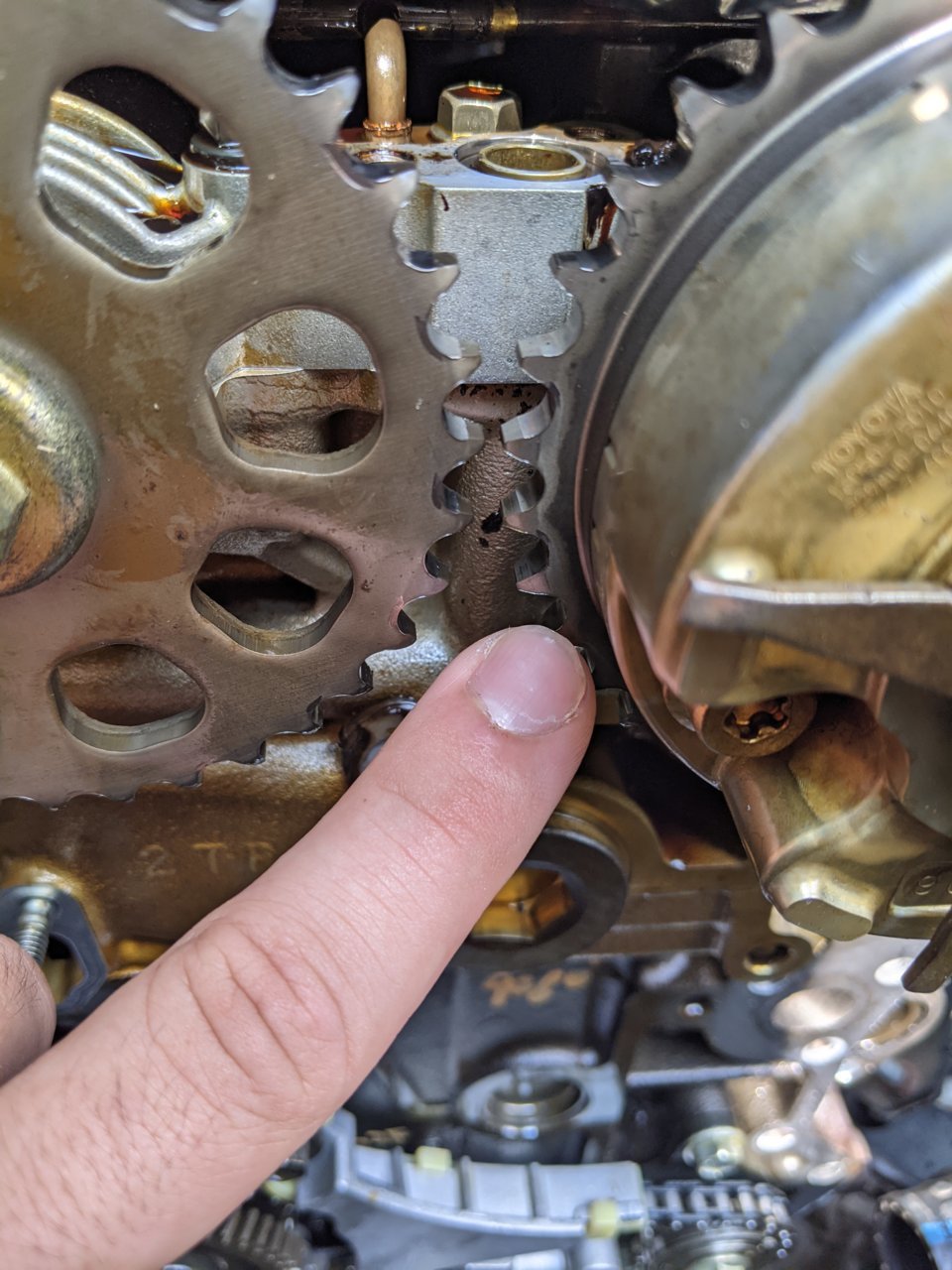

You can see what I mean:

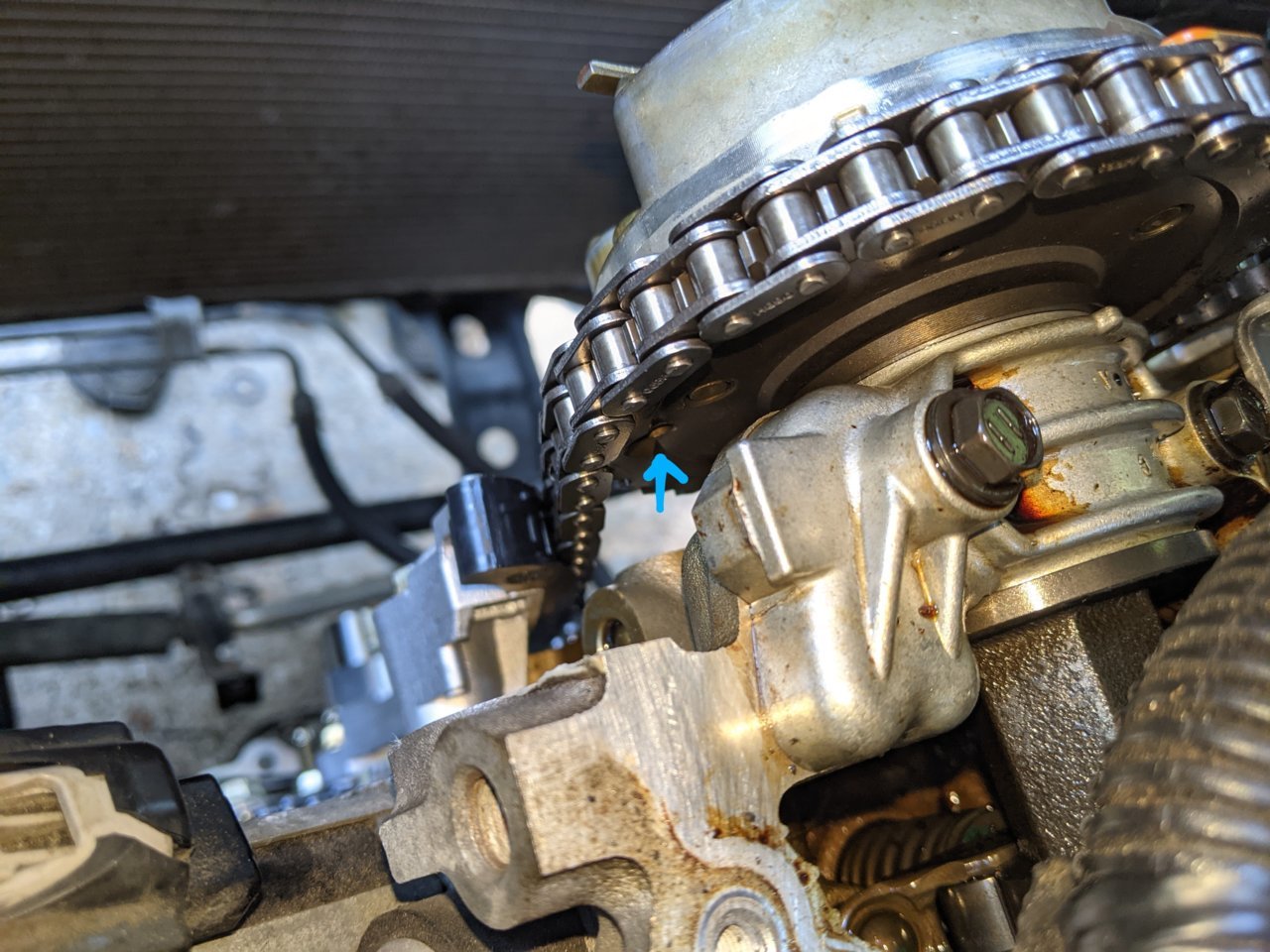

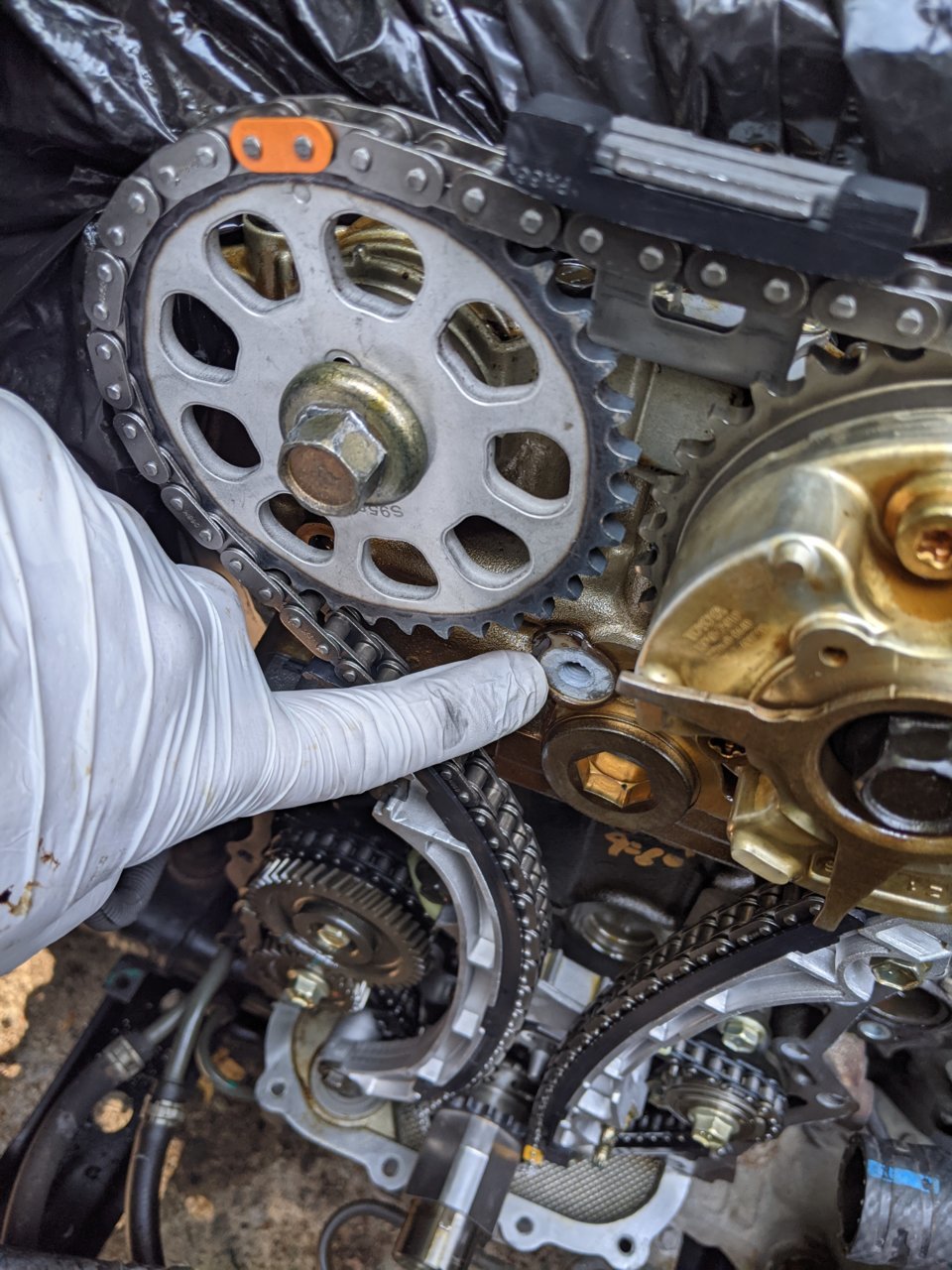

OH!!! Here's the intake cam gear weep hole I was telling you about. Per my observation, it's the soul source of oil for the chain besides getting a bath in the bottom (zoom in)


I discovered it cuz it spit on me while measuring, after I'd wiped everything off.

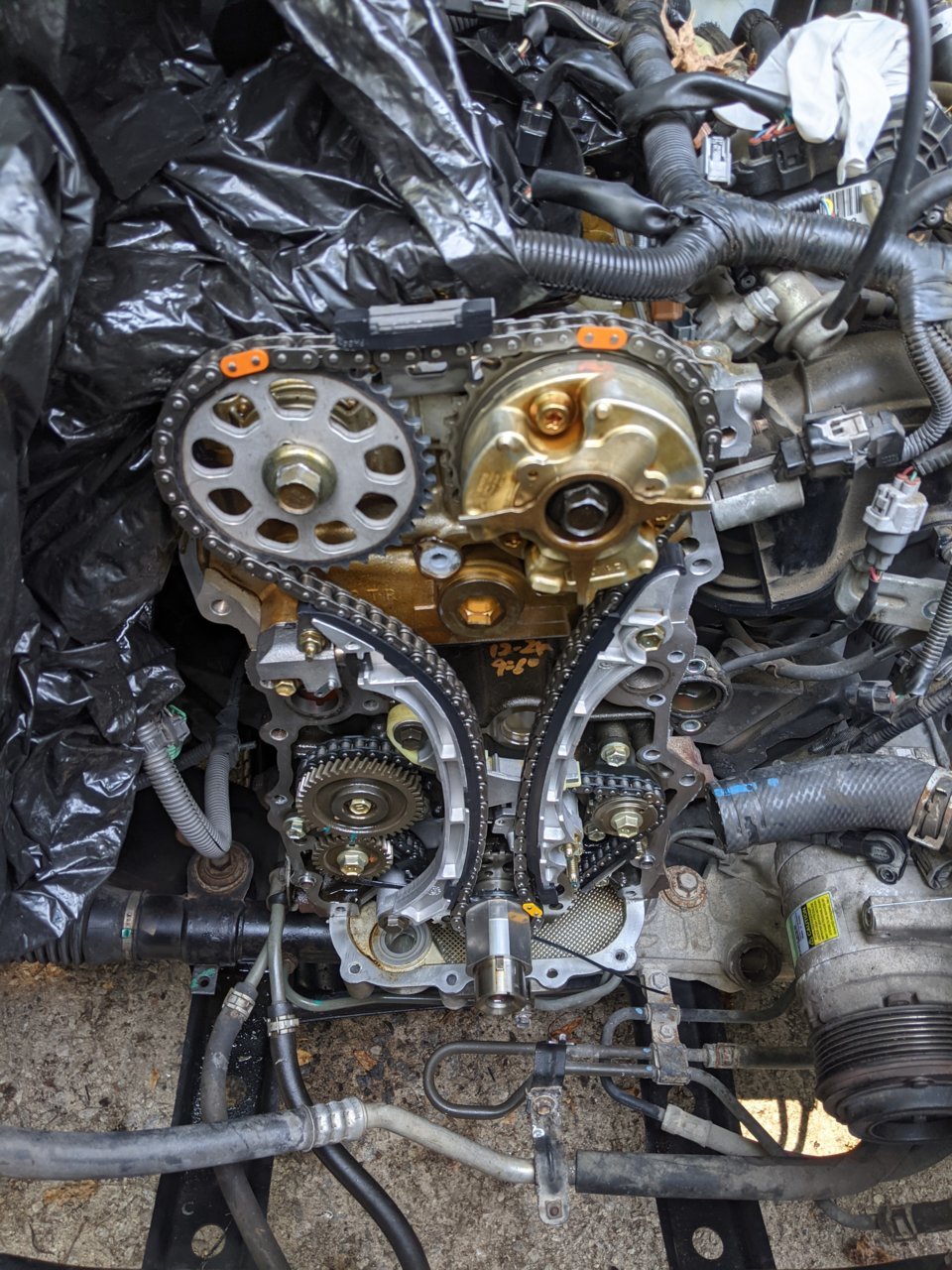

Here's all the shiny new stuff torqued. I kept the zip ties on the crank gear til I got everything set and pulled the tensioner guide inboard to take up slack.

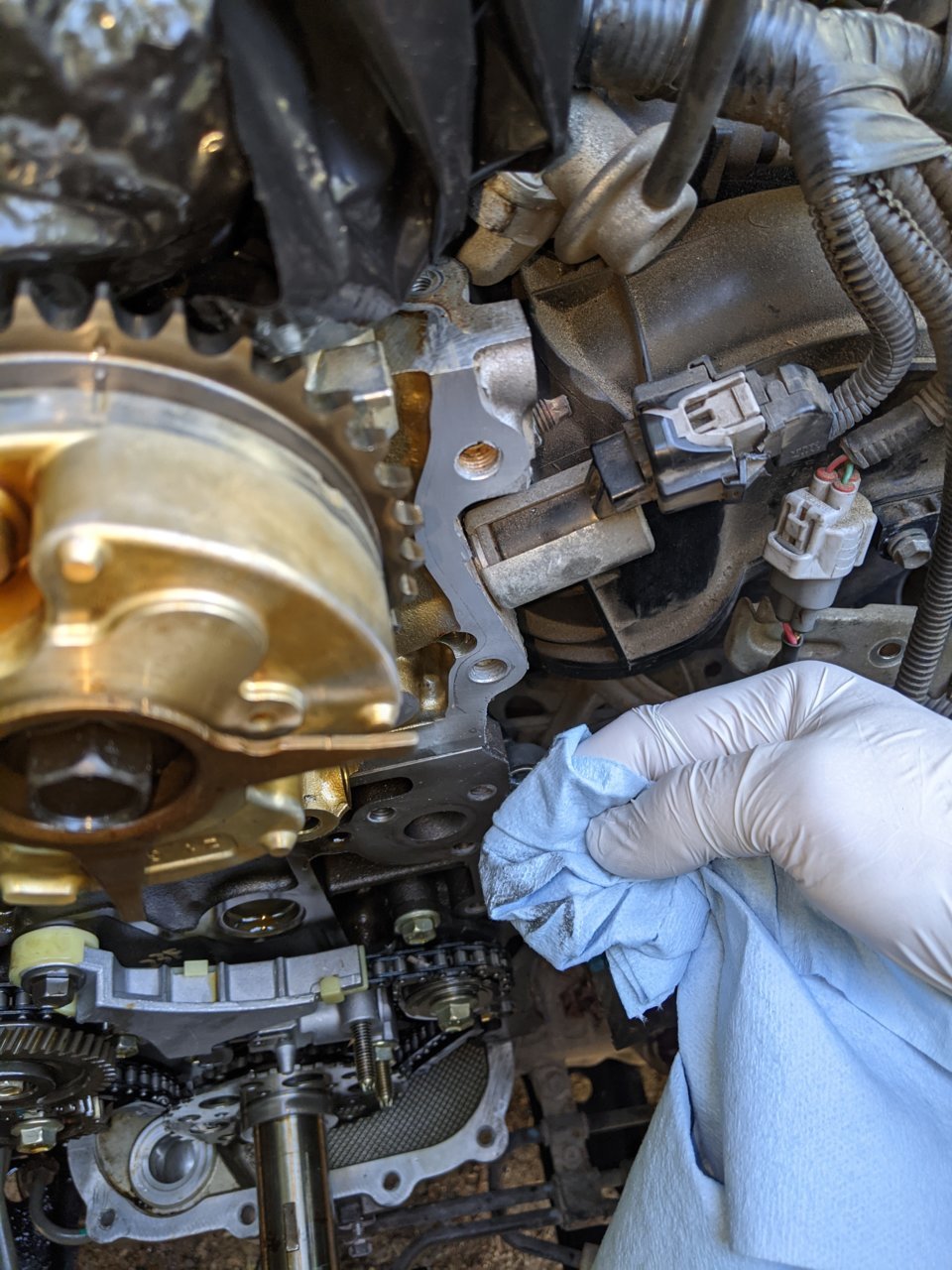

Then I noticed and cleaned this spot of silicone.


Alright, now you're all caught up.

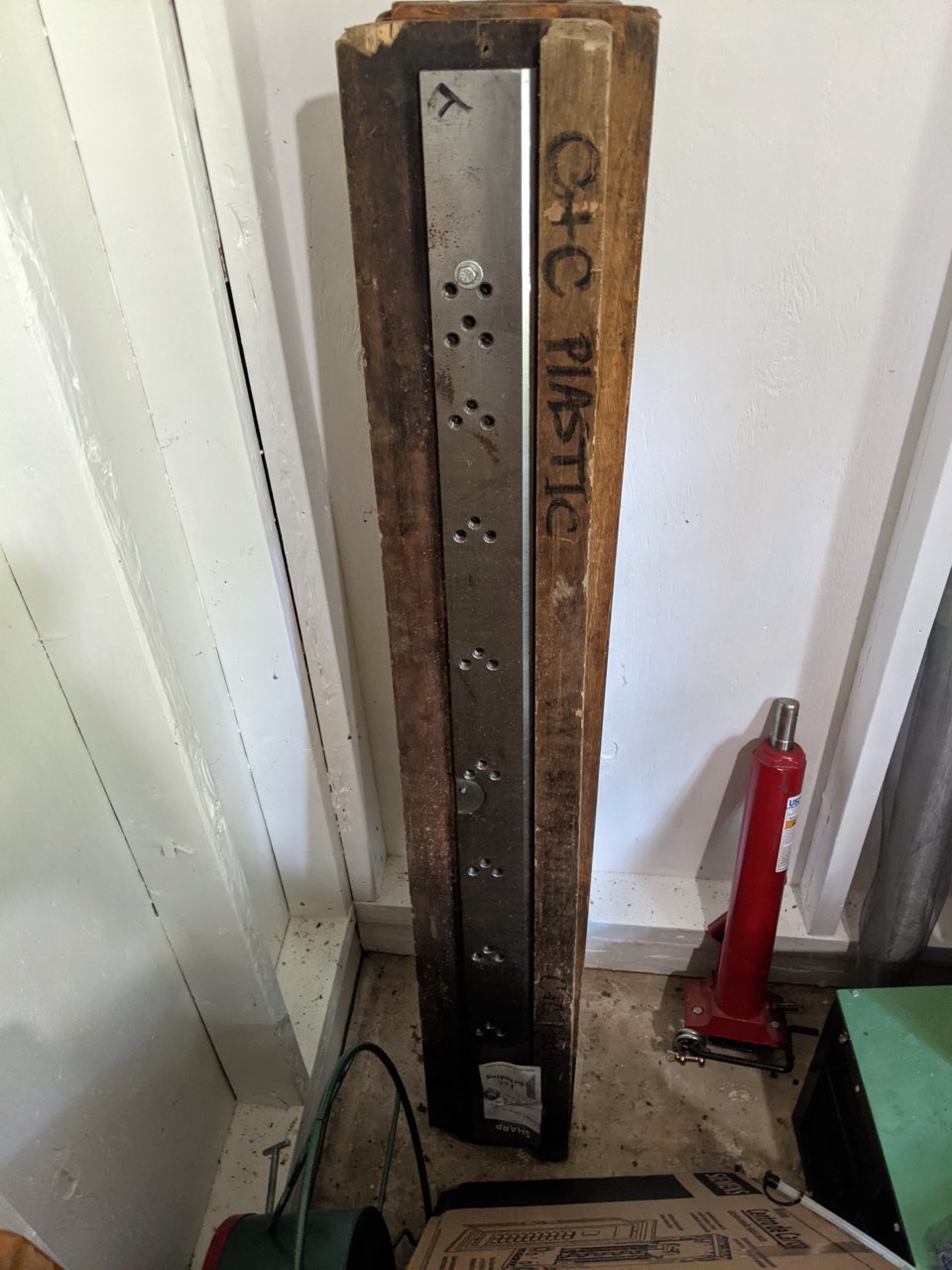

Oh, and here's one of those giant blades I mentioned standing next to my engine hoist ram. Not actually an inch thick. Maybe half.



Worked for mine!!!



Only did a couple things today.

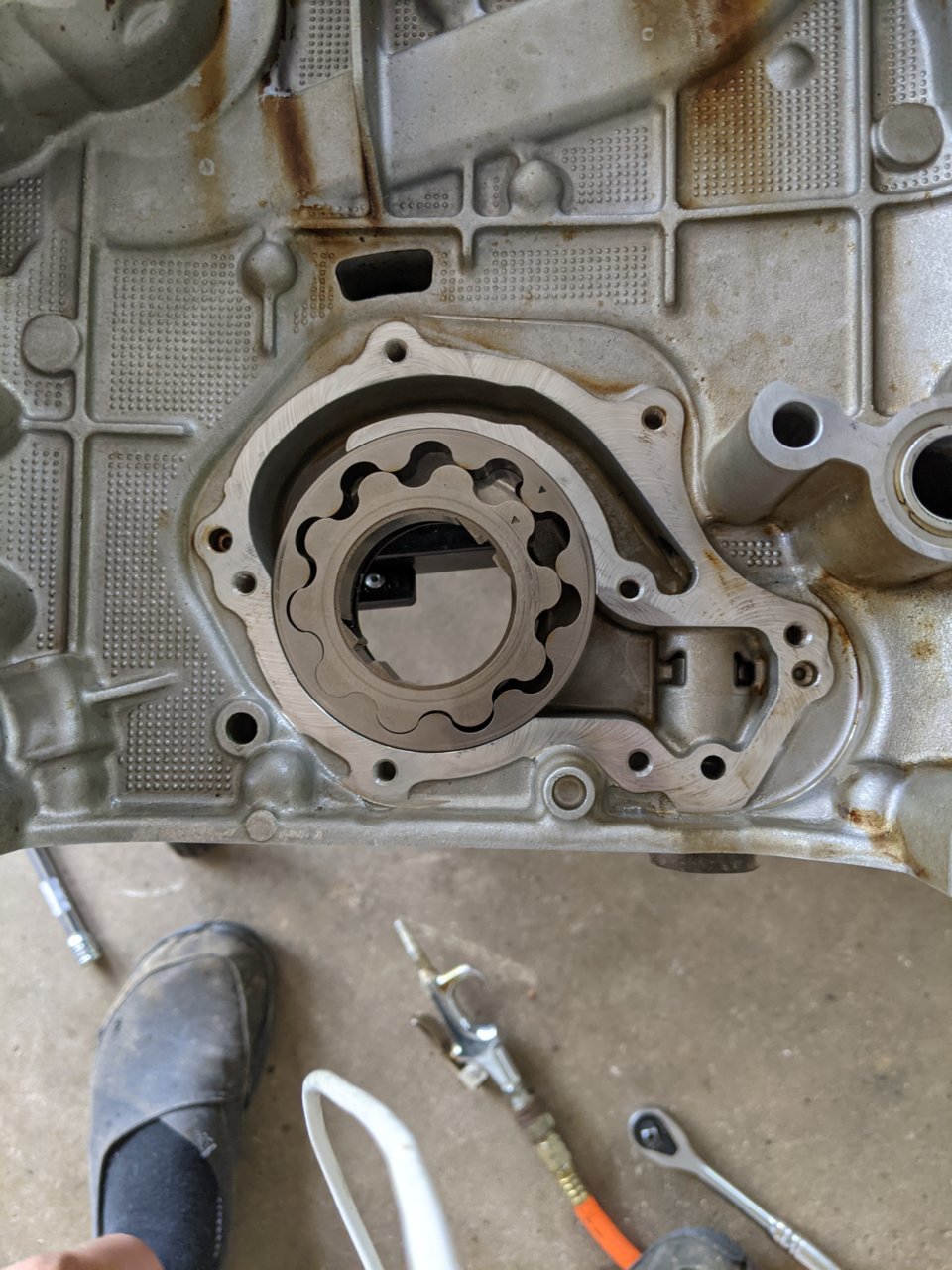

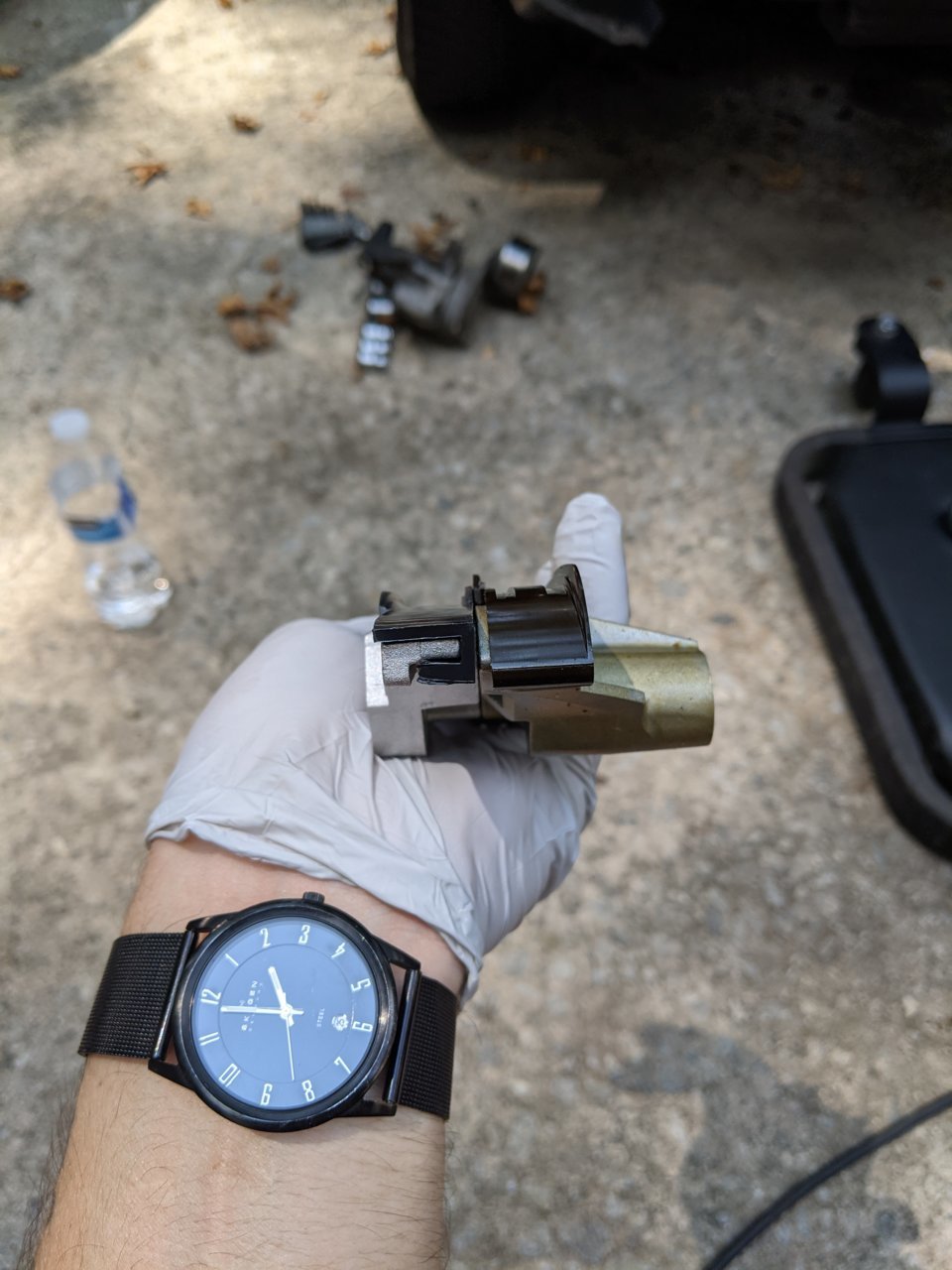

Accessed the oil pump to get any trapped water out. (still need to access the little piston in there)


Aaaand I fought the oil pan out. Not as straightforward as it seems, doesn't fit out. Considered lifting the engine, then someone said it could be done by unbolting the trans mount (4 12mm head bolts in cross brace) and jacking up the trans.

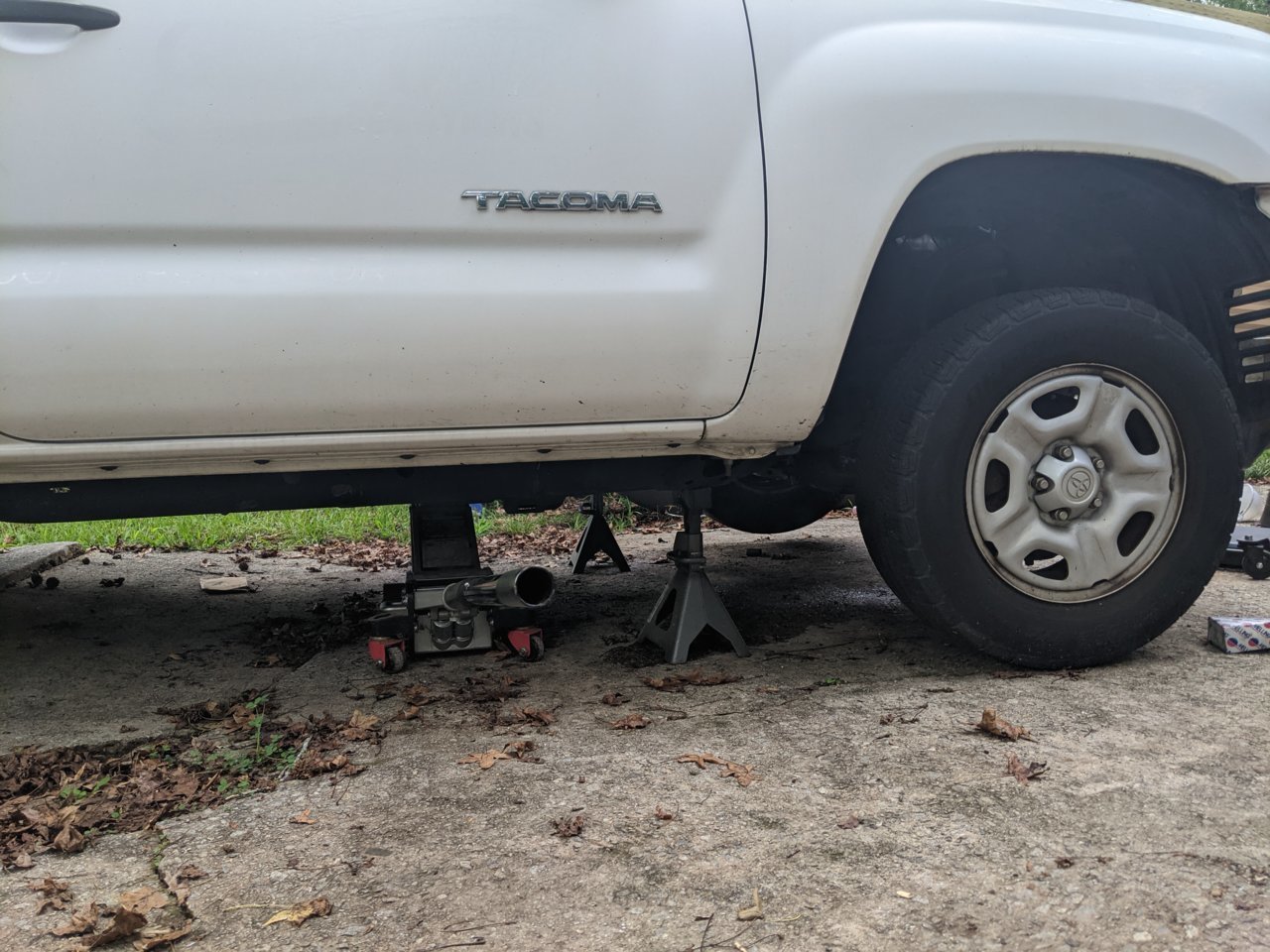

I tried it, and I found success on accident after giving up and trying to move it aside just to see the pump screen. Jacking the trans

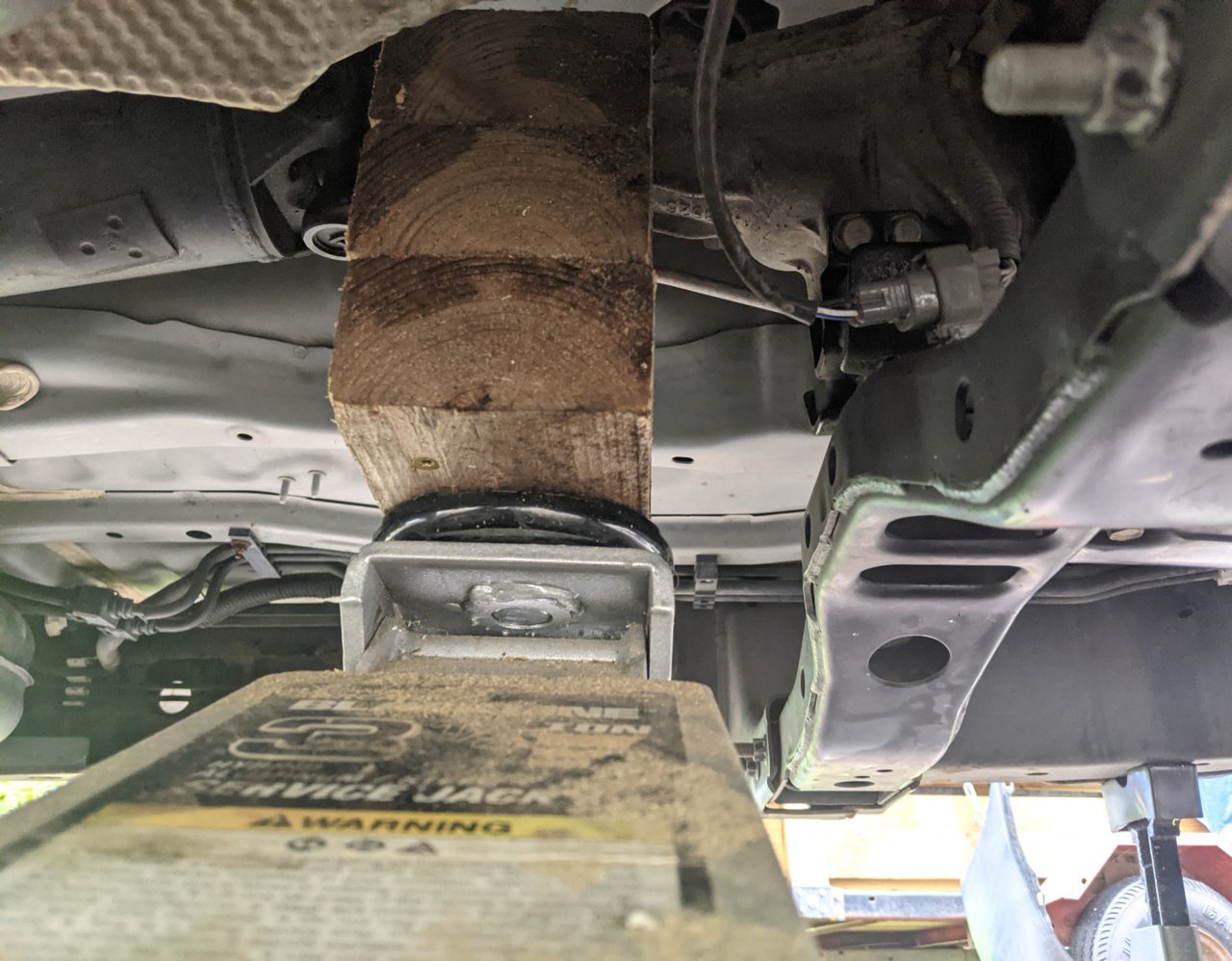

Jack placement. Used a screwed together block stack I made from when I needed to drop an engine out of an escape. Oh! I also unbolted the trans dipstick from the intake so that it could move freely. only moved like 1/4", but still.

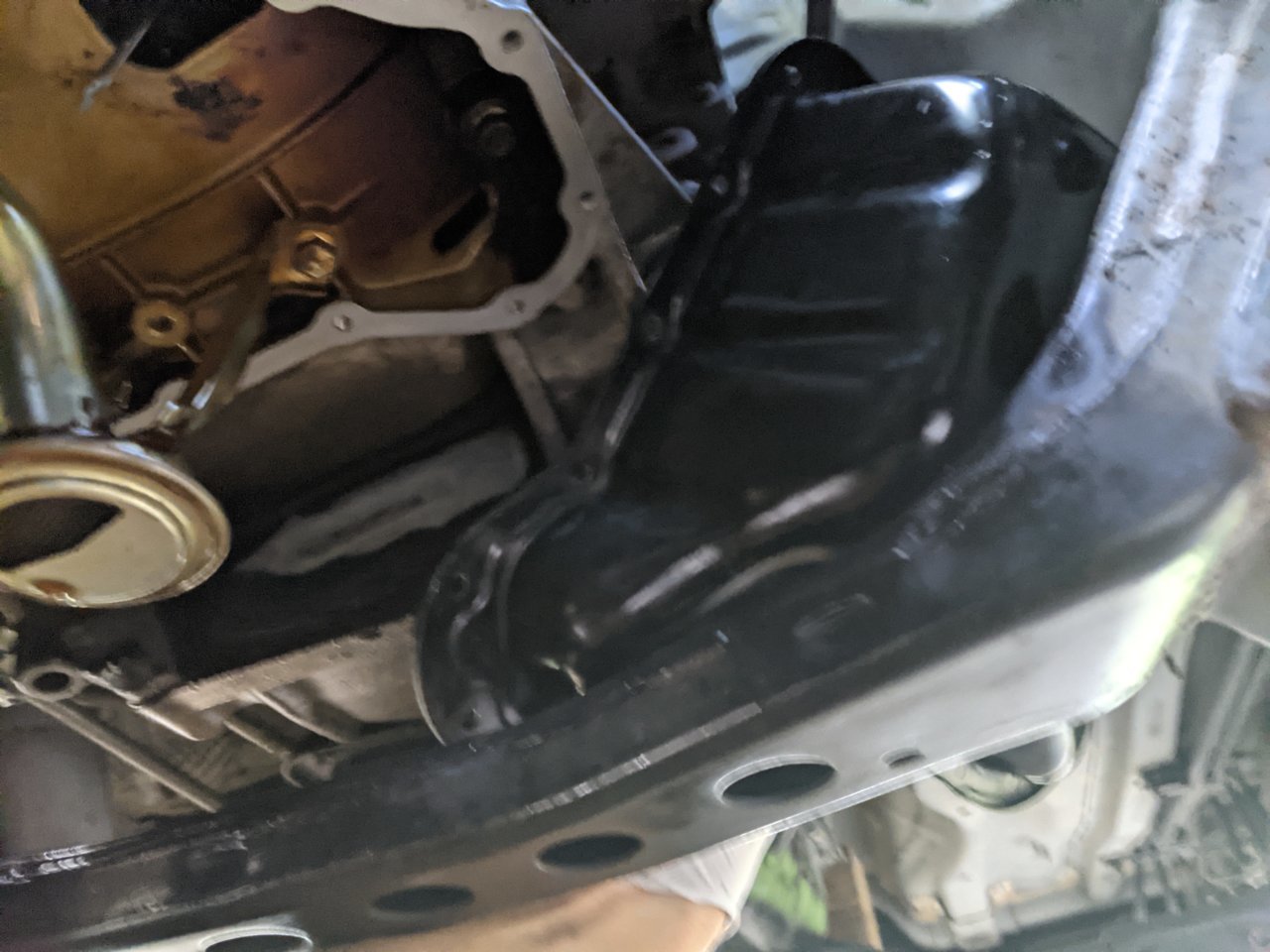

The oil pan fits out this way


When you bring the pan in, bring in the shallow side first (towards the front of the vehicle) so that you can line it up with no fuss. I did a dry run first (hence pics) to make sure I could get it back in there without dragging the silicone all over the place.

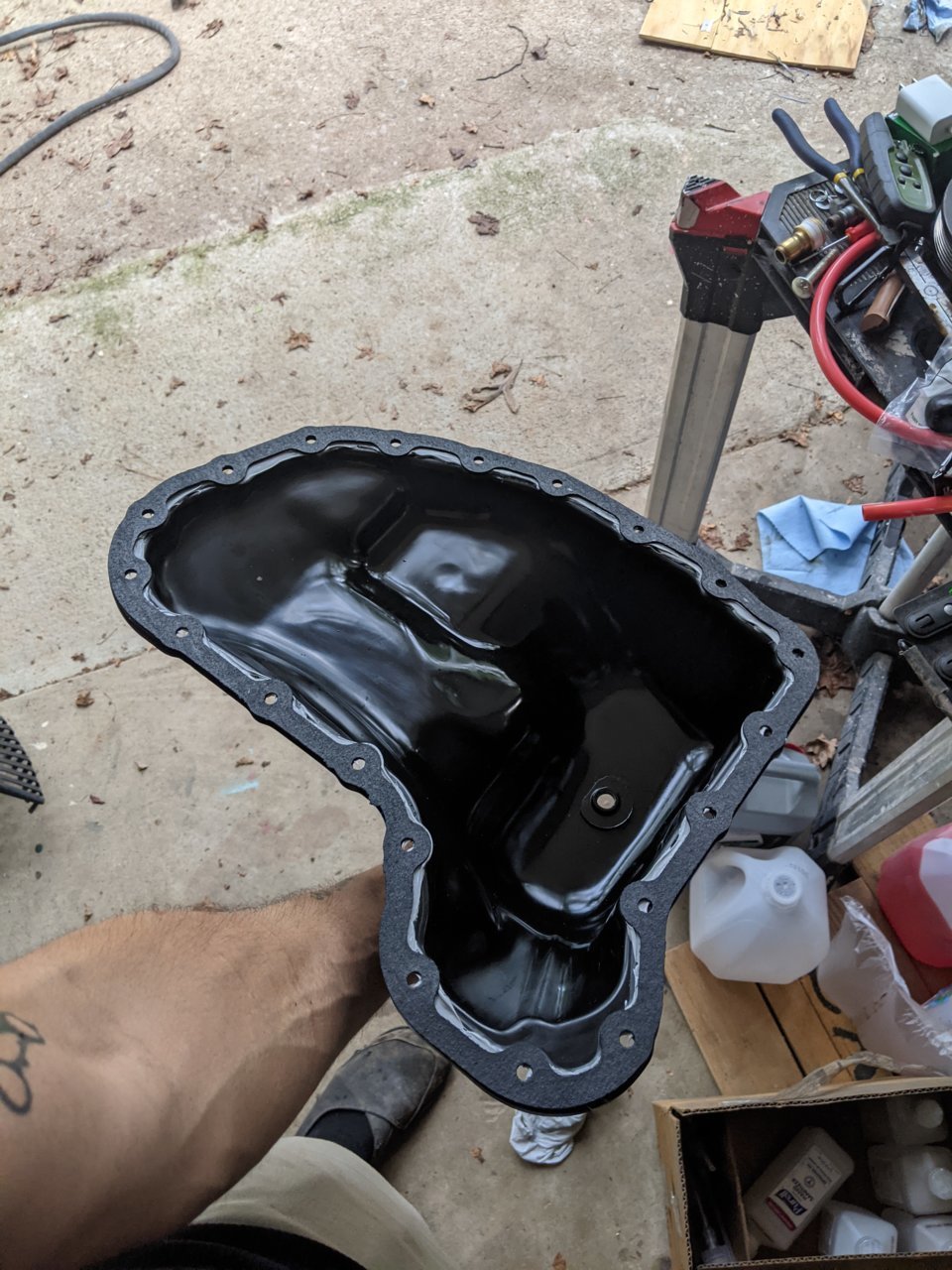

I also purchased a gasket, being unsure if it had one. But kept with OE recommendations besides that, applying silicone to both sides.


Oh, I think I'm forgetting some things.

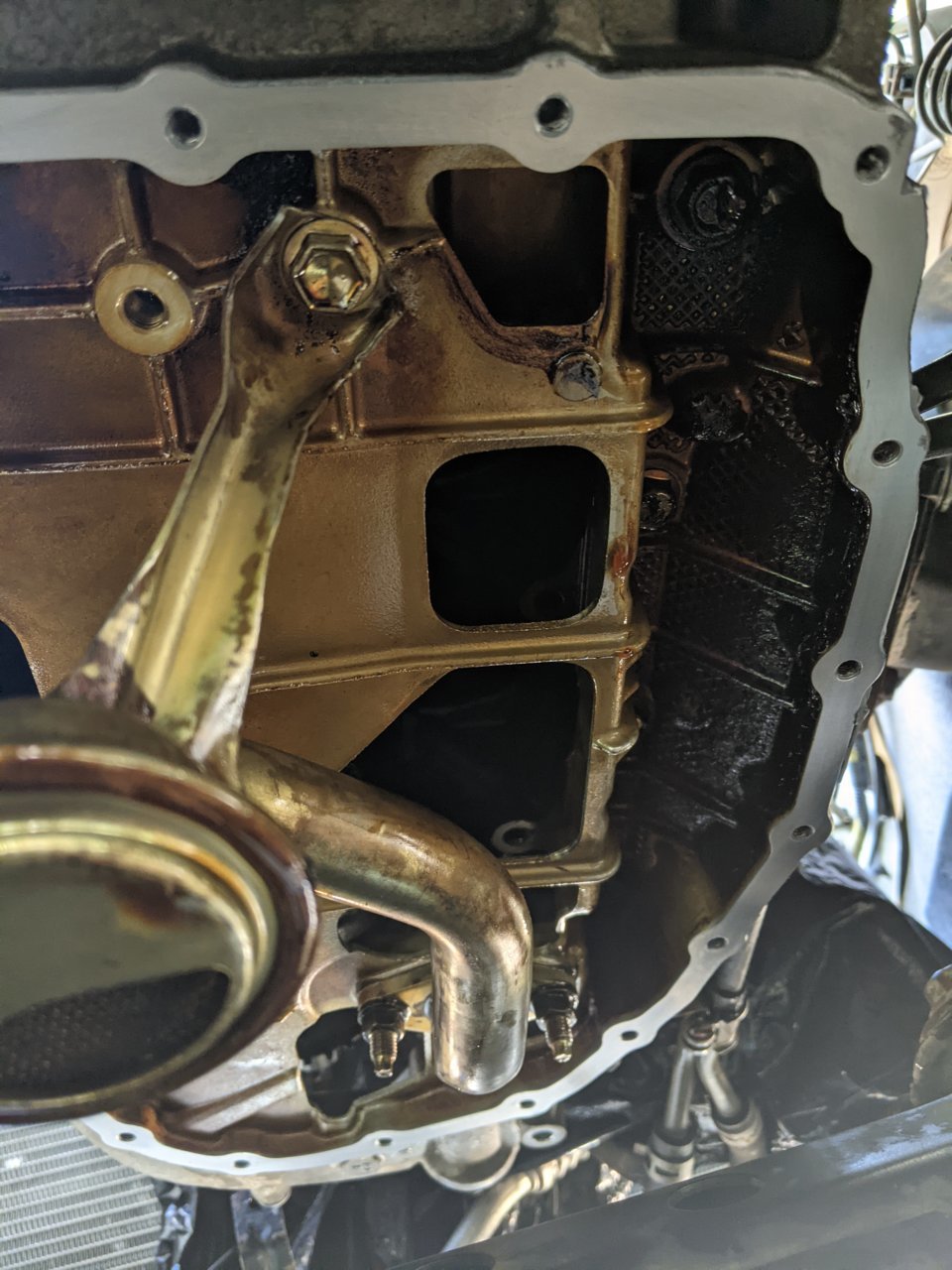

I got the surfaces all clean with a razor, scuff pad, and alcohol. I'll add those next but I bet you guys are wondering what state the pan was actually in. Just a sec!

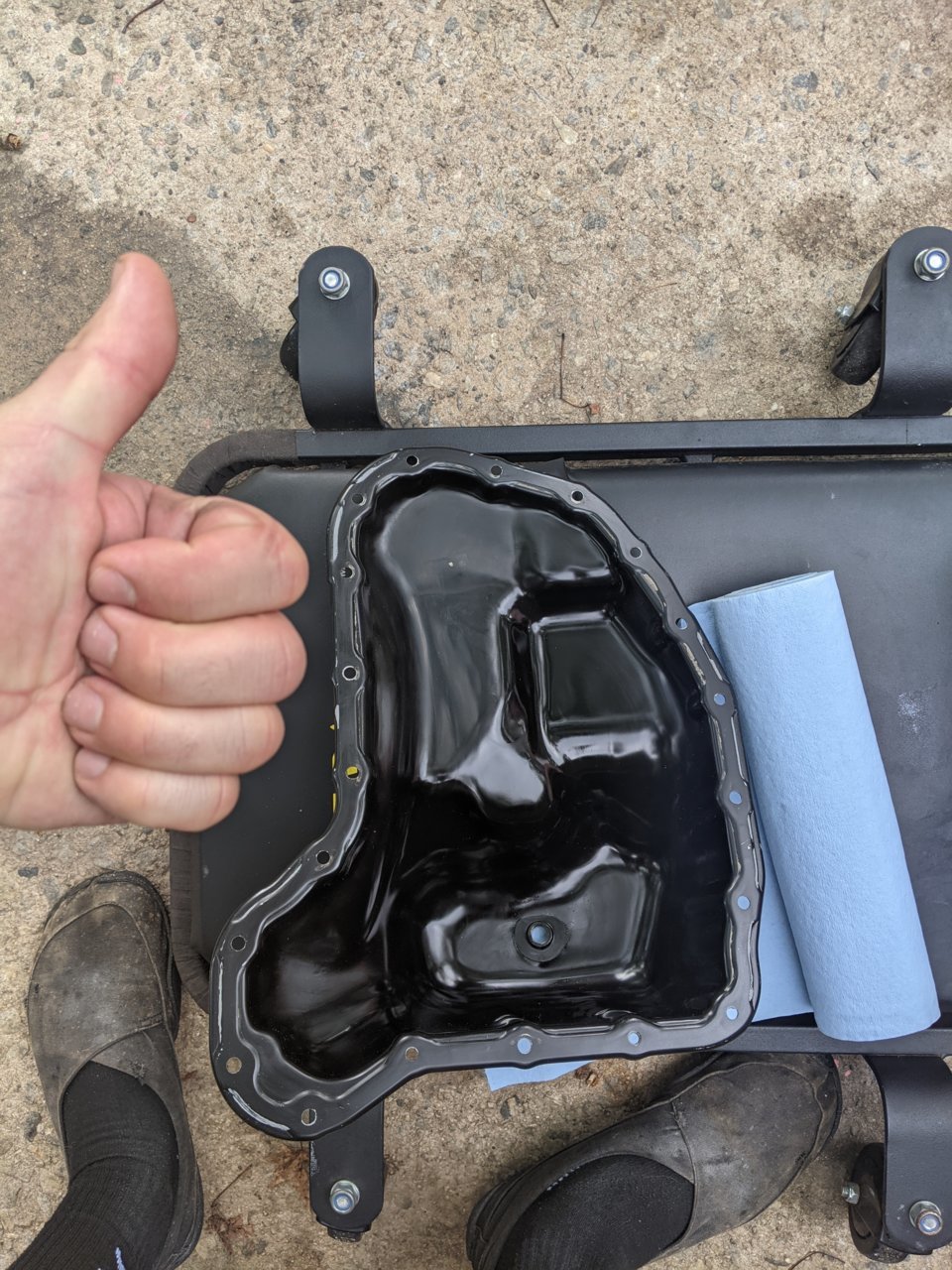

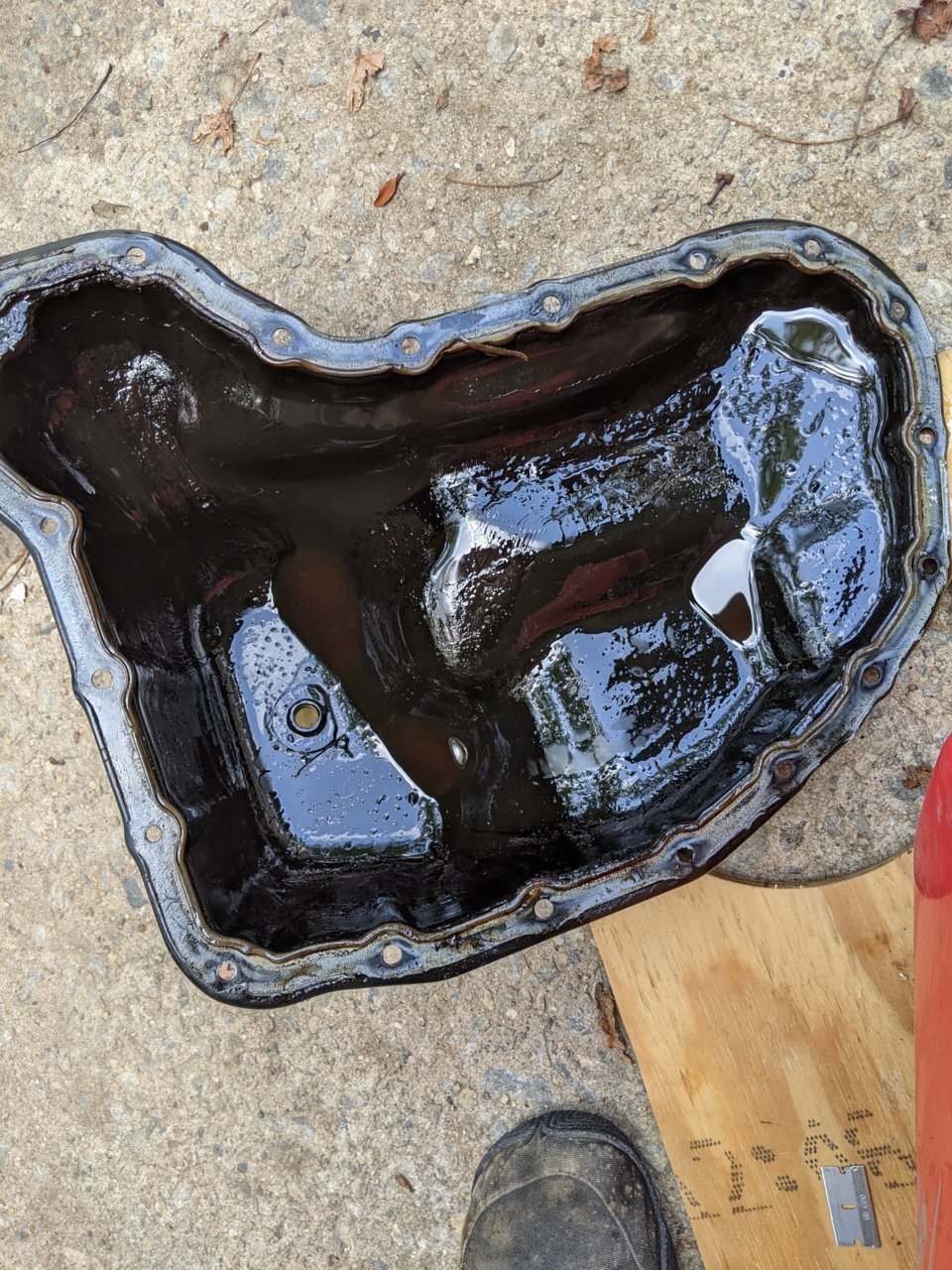

You already saw the pan cleaned, so here's it dirty. Honestly it was all super soft sludge and it didn't clog the screen much if at all.


All I found in the pump screen besides one or two dots of sludge was this.


It looks like strips of a gasket that may have surrounded the mesh in the pump screen. I used a can of dust off and needle nose pliers to negotiate them out. In all there were 4 such strips I could locate, and I think if I made them into a circle they might have matched the screen's circumference.

Oh, and if you're curious those are koken nut grabber sockets purchased from online Japanese tool importer frankstools. They have a ball detent on 'em to hold your nuts and bolts. Made pretty well, the amount of force needed to remove the socket from an extension is greater than that needed to release the fastener. I used them when possible on this job.

And finally. right after I siliconed the pan, lightning storm


I asked my partner to hold an umbrella over my legs so I could torque the bolts. I never imagined she'd agree, but she did, so then I had to actually do it. The silicone had a bit too much time to skin, maybe 30 mins before torque with only 4 bolts holding it snug til then. I didn't do a good job cross-torquing either, but I think with two layers of silicone and a gasket I could afford an error like that.

Oil pan is back on and the timing cover will follow tomorrow, weather permitting. I think we're getting some of Florida's hurricane though.



Sure could have used that rain down here. Then you could have torqued those bolts without an umbrella.



Good advice, I just went through this. I replaced the pulley wheel instead of the whole assembly (the tensioner spring felt fine). Took 10 minutes. You can also press a new bearing into the pulley after removing it if you want to save some $. I think the bearing was a 6302 2RS or 6203 2RS ($7.50 for an NSK bearing.)
Sorry for the thread derailment!
