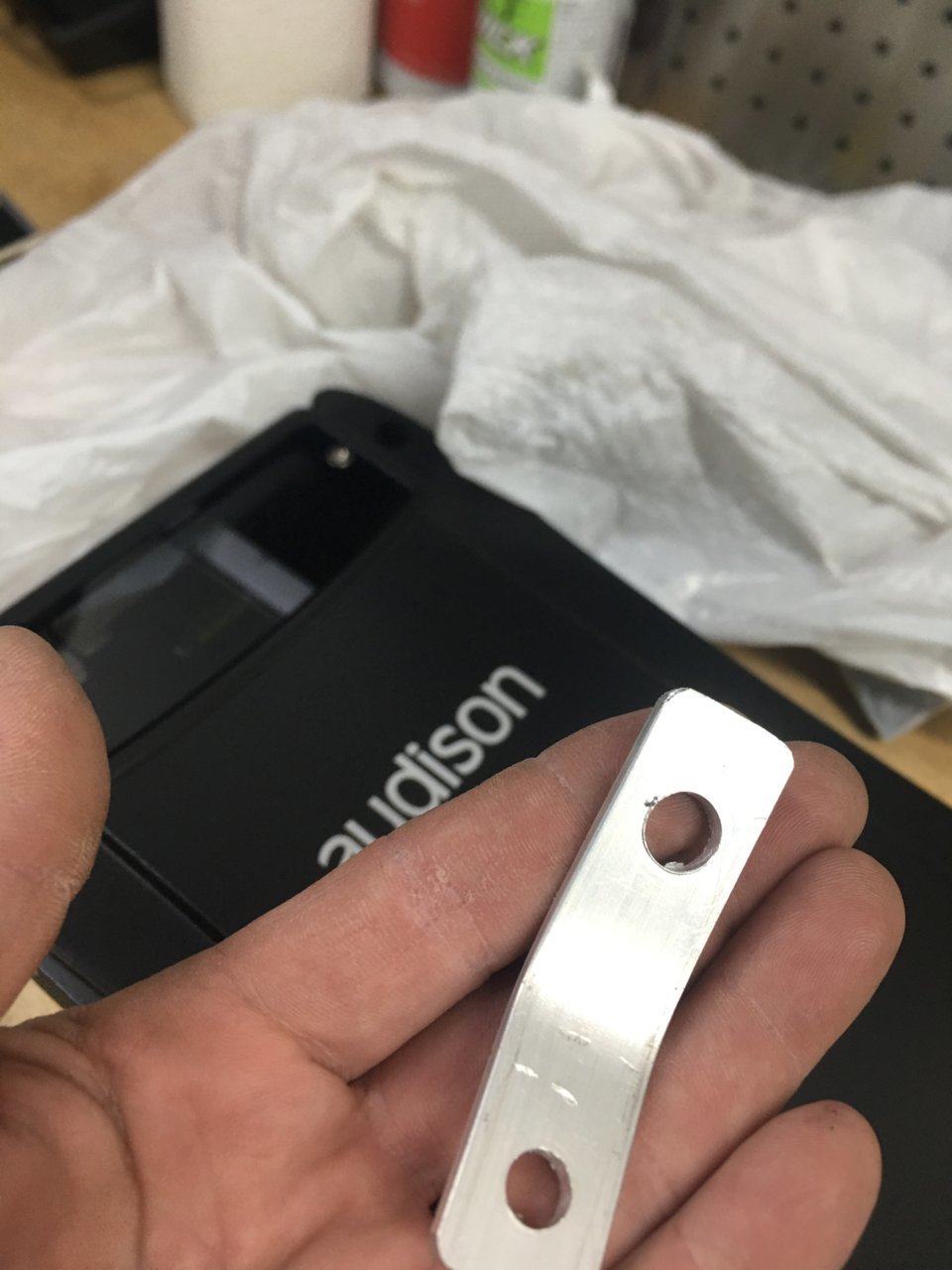

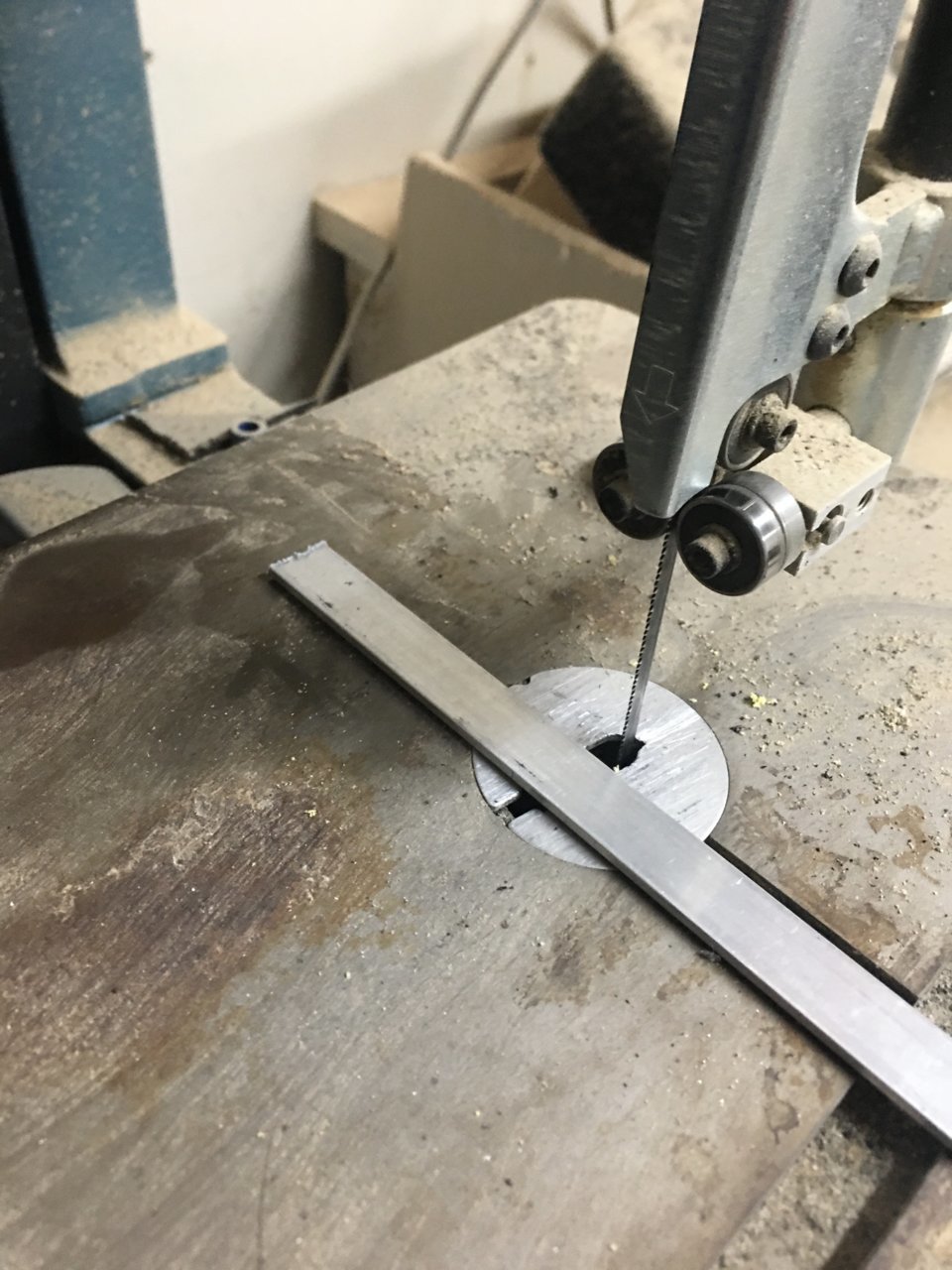

    Cut some aluminum stock and bent it into shape.

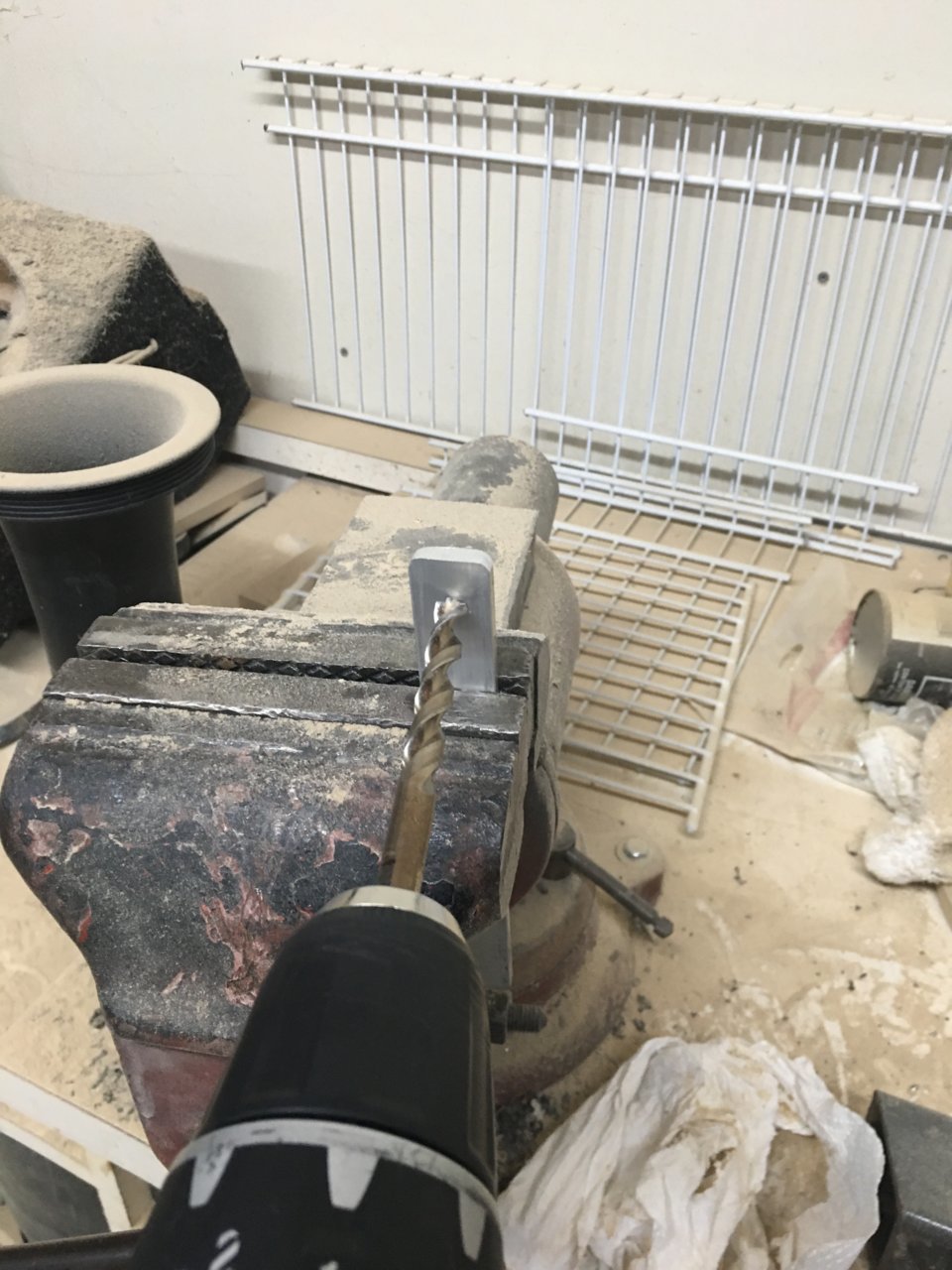

    Then drilled holes for LED and bolt

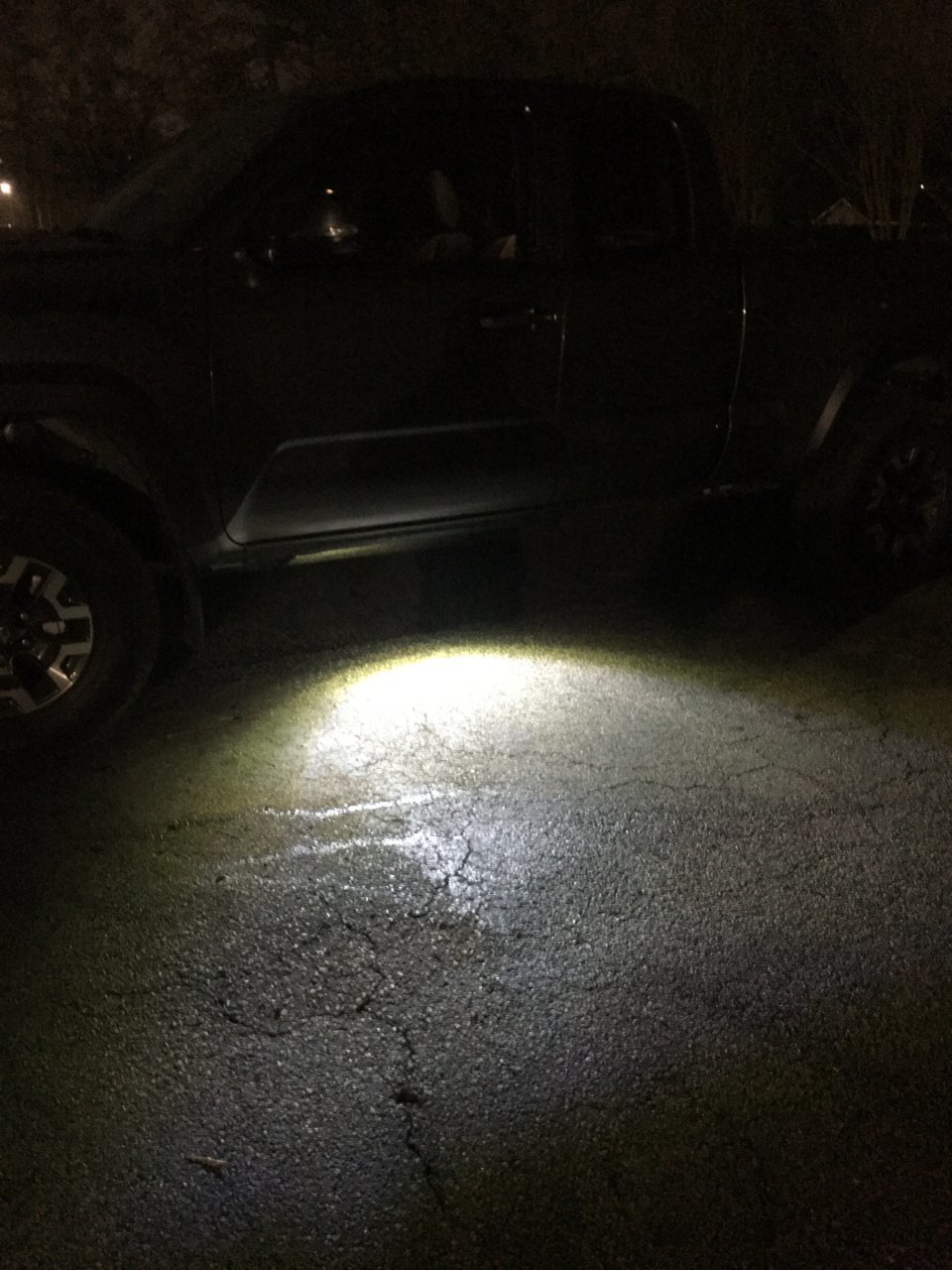

    Turned out like this

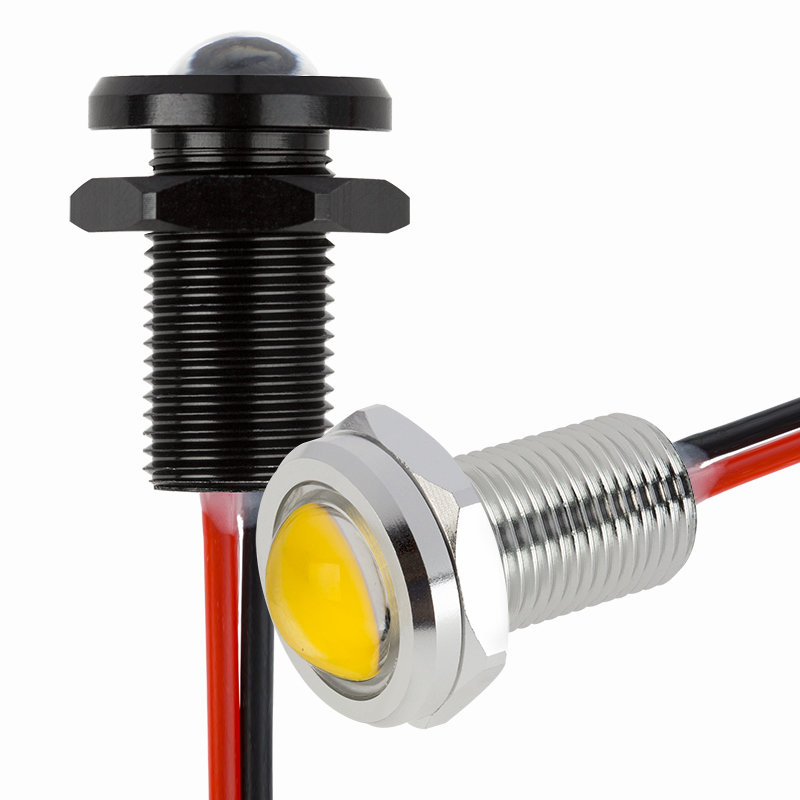

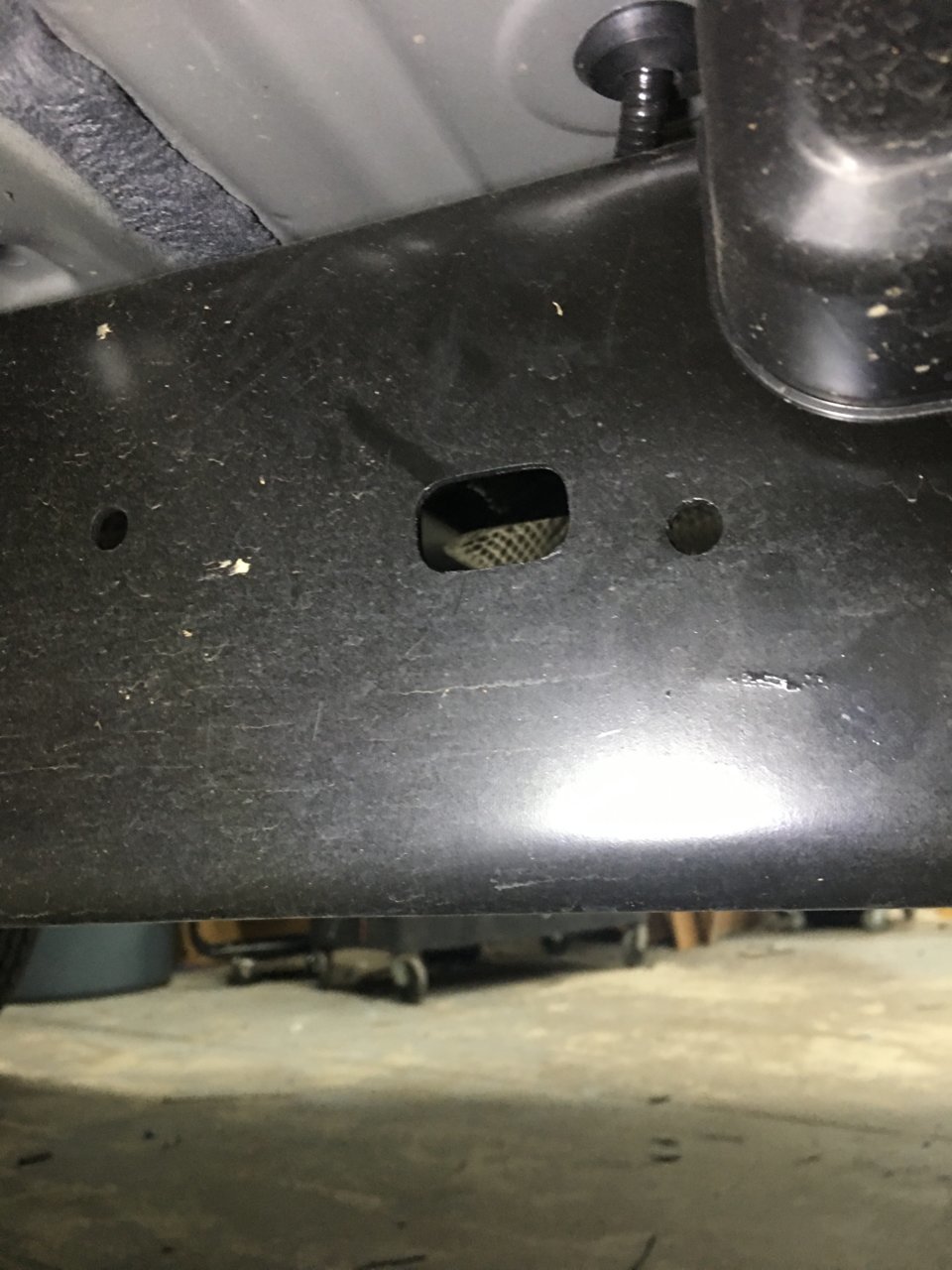

    I used some cheap threaded LEDs

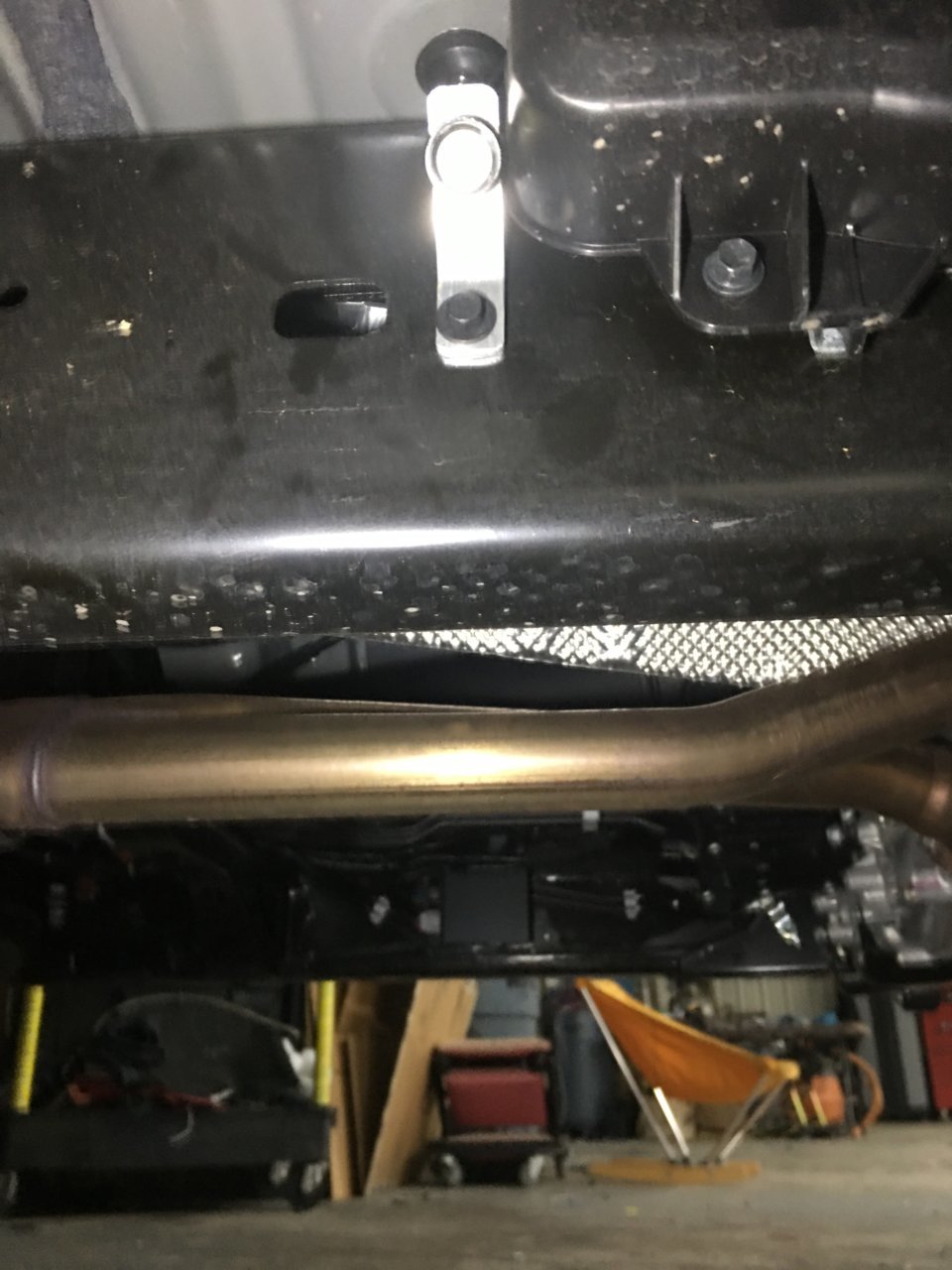

    Here’s a good spot to mount these bad boys.
    All ready to be wired up.

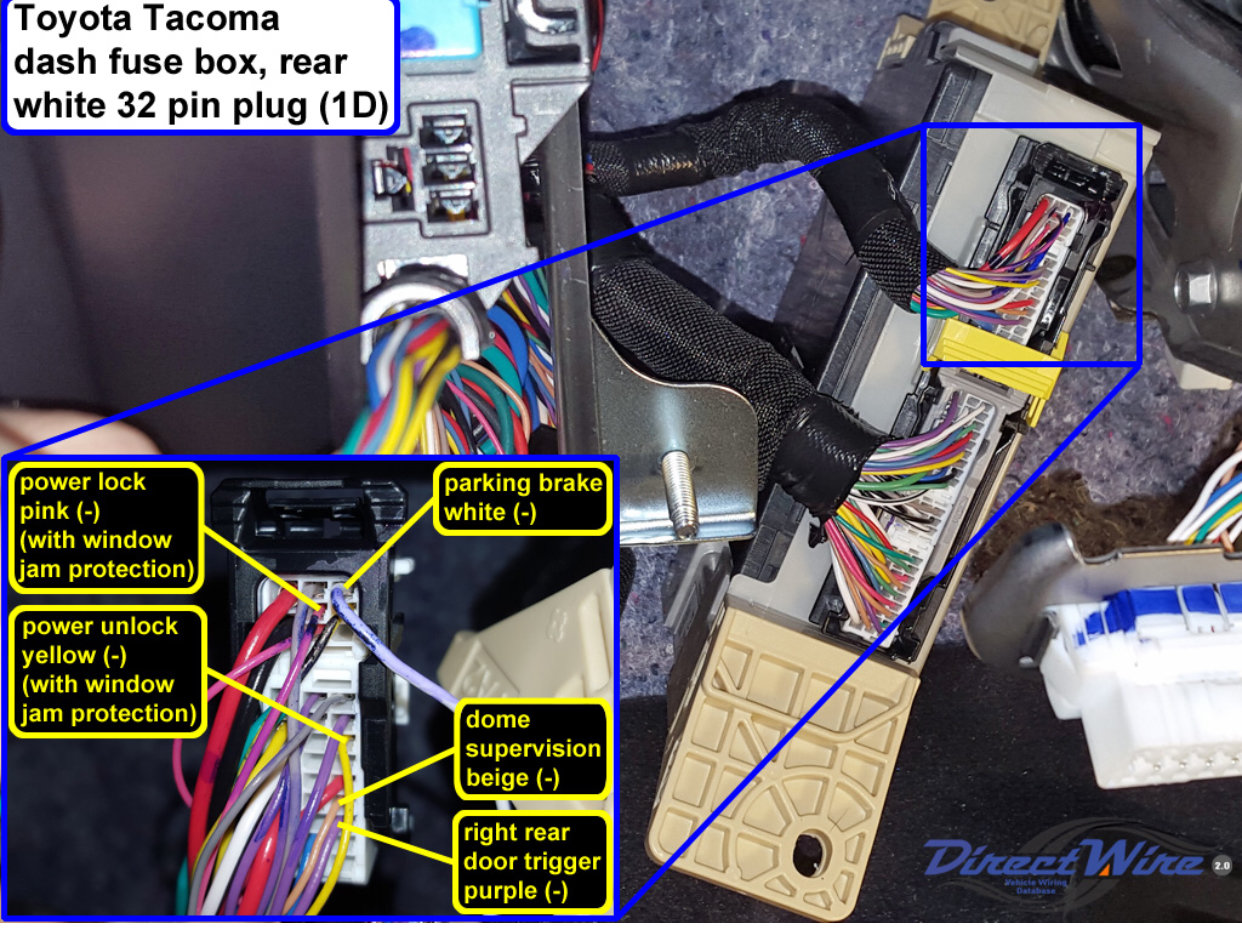

    I ran the power and ground from each to the drivers kick. Hooked the 12v to a 12v that I had previously ran to the battery for my bed lights. Hooked the negative to the trucks dome light trigger. It’s tan on the back of the fuse box.
    Hope this helps someone.

    Fishing4laughs, Jan 17, 2021
    #1
    Late Camaro, Phenom3030, Siblue and 22 others like this.
  2. Jan 17, 2021 at 6:55 AM
    #2
    TRDTaco420

    #2
    TRDTaco420 Chum is Fum

    Joined:
    Jul 5, 2019
    Member:
    #298342
    Messages:
    530
    Gender:
    Male
    First Name:
    The Bear
    Tacoville - Canada Eh!
    Vehicle:
    2019 Mid. Blk. Met. ACLB TRD Off-Road
    Kewl shizz
    I'll be right over, you can do mine next. lol
    Good job.

    TRDTaco420, Jan 17, 2021
    #2
    helix66 and Gunshot-6A like this.
  3. Jan 22, 2021 at 5:04 PM
    #3
    Fishing4laughs

    #3
    Fishing4laughs [OP] Master Baiter

    Joined:
    Apr 25, 2019
    Member:
    #291315
    Messages:
    39
    Gender:
    Male
    NC
    Vehicle:
    2021 Magnetic Grey TRD Off-Road access cab

    Fishing4laughs, Jan 22, 2021
    #3
    Gunshot-6A and ClassyTacos like this.
  4. Feb 16, 2021 at 6:57 PM
    #4
    efreyno

    #4
    efreyno efreyno

    Joined:
    Jun 6, 2012
    Member:
    #80234
    Messages:
    7
    Gender:
    Male
    Greenville, SC
    Vehicle:
    '12 DC 4x4 SR5
    Very nice! Any idea if that's the same dome light wire for the 2nd gen (2012)?

    efreyno, Feb 16, 2021
    #4
  5. Feb 16, 2021 at 7:31 PM
    #5
    Fishing4laughs

    #5
    Fishing4laughs [OP] Master Baiter

    Joined:
    Apr 25, 2019
    Member:
    #291315
    Messages:
    39
    Gender:
    Male
    NC
    Vehicle:
    2021 Magnetic Grey TRD Off-Road access cab

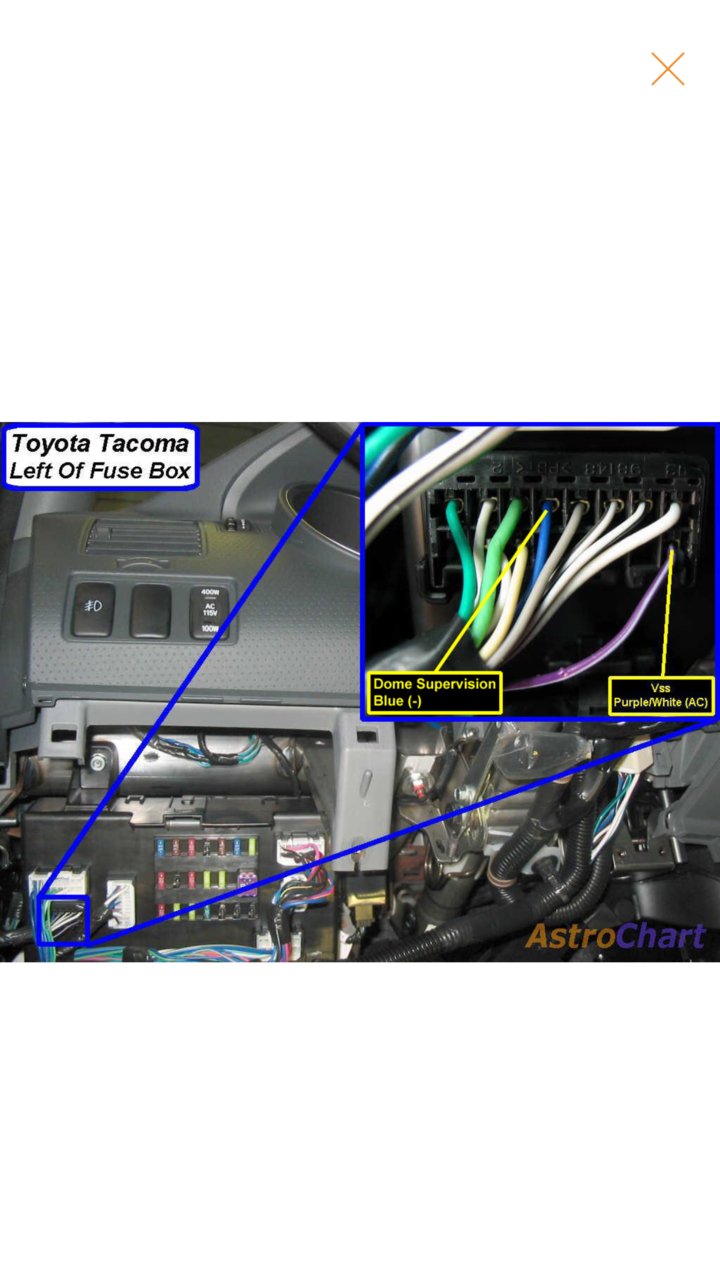

    2nd gen is different but here you go.

    Fishing4laughs, Feb 16, 2021
    #5
  6. Feb 16, 2021 at 7:32 PM
    #6
    Dubdaddy86

    #6
    Dubdaddy86 Well-Known Member

    Joined:
    Dec 13, 2015
    Member:
    #172188
    Messages:
    170
    Gender:
    Male
    Any intentions on selling a few or sharing the dimensions of the aluminum? Length and maybe a round about of the degree of the angle?

    Killer idea and nice fit/finish!

    Dubdaddy86, Feb 16, 2021
    #6
    tylerdietzenbach likes this.
  7. Feb 16, 2021 at 8:08 PM
    #7
    Fishing4laughs

    #7
    Fishing4laughs [OP] Master Baiter

    Joined:
    Apr 25, 2019
    Member:
    #291315
    Messages:
    39
    Gender:
    Male
    NC
    Vehicle:
    2021 Magnetic Grey TRD Off-Road access cab
    Thanks. I’ll measure them tomorrow.

    Fishing4laughs, Feb 16, 2021
    #7
    Dubdaddy86[QUOTED] likes this.
  8. Feb 17, 2021 at 1:33 AM
    #8
    ClassyTacos

    #8
    ClassyTacos National Treasure 3, Times a ticking Nickolas

    Joined:
    Sep 26, 2019
    Member:
    #306325
    Messages:
    1,911
    Gender:
    Male
    First Name:
    Papalote
    Florida
    Vehicle:
    2017 TRD Sport 4x4
    Stockish
    Great job!

    ClassyTacos, Feb 17, 2021
    #8
    Fishing4laughs[OP] likes this.
  9. Feb 17, 2021 at 4:18 AM
    #9
    Fishing4laughs

    #9
    Fishing4laughs [OP] Master Baiter

    Joined:
    Apr 25, 2019
    Member:
    #291315
    Messages:
    39
    Gender:
    Male
    NC
    Vehicle:
    2021 Magnetic Grey TRD Off-Road access cab

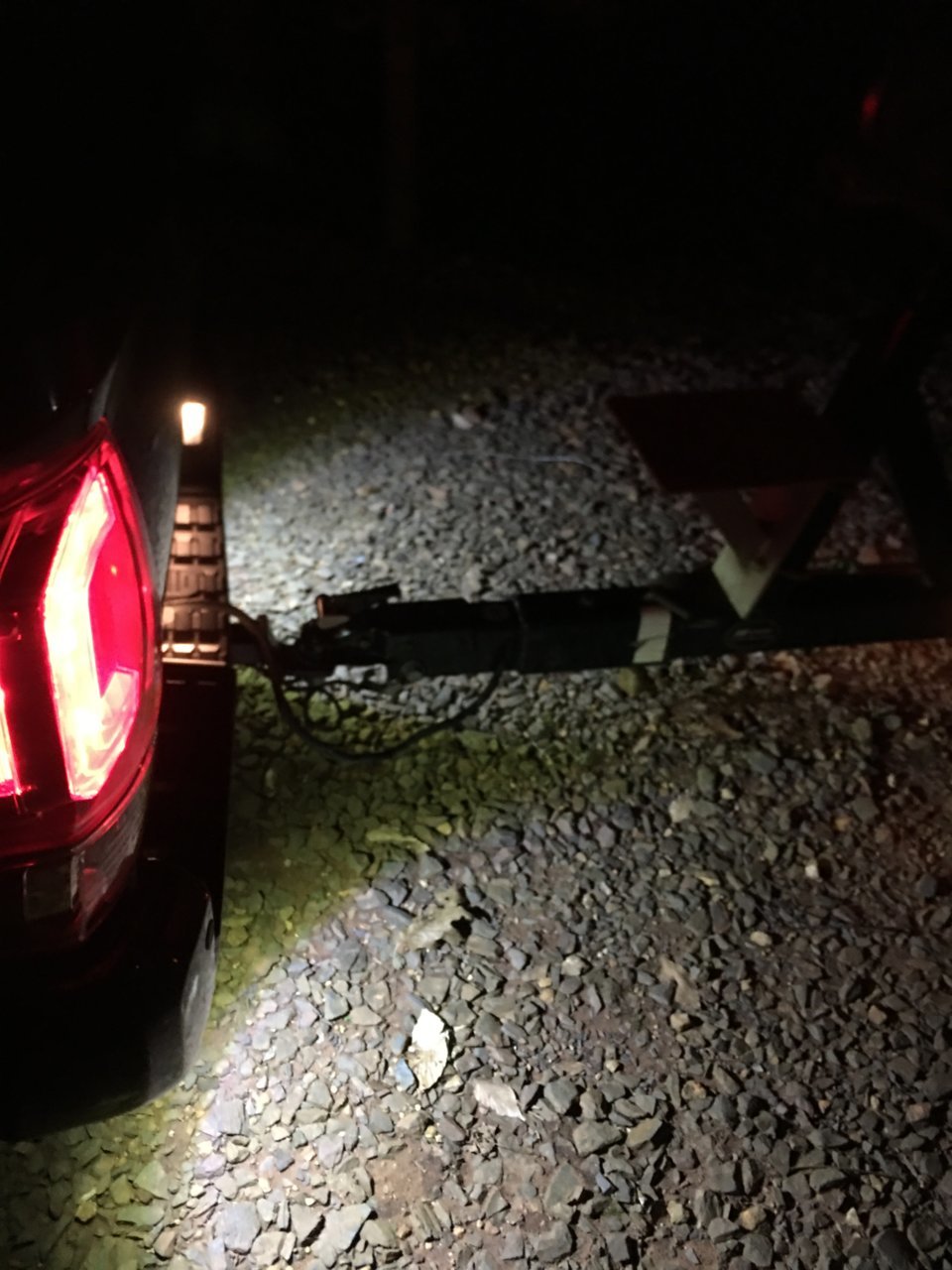

    We have a 2nd driveway I keep my boat on. Has no lighting. Makes hooking up a lot easier. I might not step on a snake now.

    Fishing4laughs, Feb 17, 2021
    #9
  10. Feb 17, 2021 at 5:52 AM
    #10
    The hammer

    #10
    The hammer Who’s the Wrench?

    Joined:
    Mar 7, 2016
    Member:
    #180475
    Messages:
    3,880
    Gender:
    Male
    Vehicle:
    '16 Tacoma SR5 4X4 DCLB TSS Pkg 17X8" BSW-Cooper DIscoverer AT3 4s P265/65/17
    Underworld Flex trifold, tinted, TRDPRO grill, TRDPRO shift knob, etc,etc
    Nice post, great write up, good job. Now all we need is a puddle to test it out

    [​IMG]

    The hammer, Feb 17, 2021
    #10
    Grossomotto likes this.
  11. Feb 17, 2021 at 8:14 AM
    #11
    tomgru

    #11
    tomgru Well-Known Member

    Joined:
    Oct 3, 2017
    Member:
    #231939
    Messages:
    742
    Gender:
    Male
    First Name:
    Thomas
    PNW
    Vehicle:
    2021 TRD Pro
    Nice

    tomgru, Feb 17, 2021
    #11
  12. Feb 17, 2021 at 11:40 AM
    #12
    Fishing4laughs

    #12
    Fishing4laughs [OP] Master Baiter

    Joined:
    Apr 25, 2019
    Member:
    #291315
    Messages:
    39
    Gender:
    Male
    NC
    Vehicle:
    2021 Magnetic Grey TRD Off-Road access cab

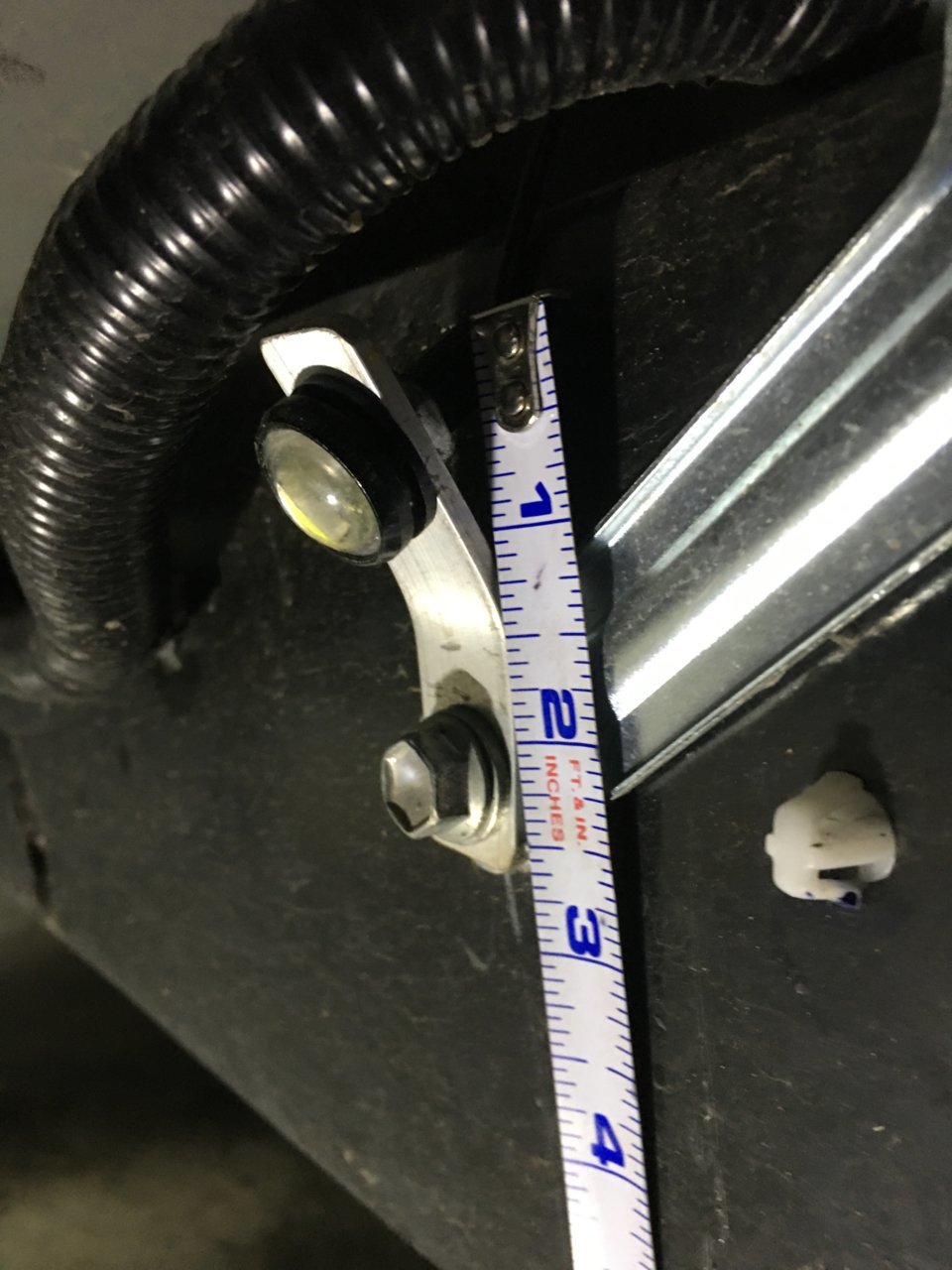

    3 inches 45 degrees
