V6 piston direction

Discussion in '2nd Gen. Tacomas (2005-2015)' started by foampile, Aug 18, 2022.

  1. Aug 18, 2022 at 4:43 PM
    #1
    foampile

    foampile [OP] Well-Known Member

    Joined:
    Dec 15, 2011
    Member:
    #68807
    Messages:
    1,081
    Gender:
    Male
    Mid-Atlantic
    Vehicle:
    2007 V6 4WD 6 speed Extended Cab
    I am just trying to confirm that I am understanding what it says in Haynes correctly. They say (I think) that the markers on the piston rods (studs on the rod side, holes on the cap) ought to face towards the front of the engine (in the direction of the time chain). That matches the side of the piston where it says "Toyota", not the side where it says "Aisin". Is that correct?

    I forgot to take a note which side was forward when I was taking them off.

  2. Aug 18, 2022 at 4:56 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,472
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK

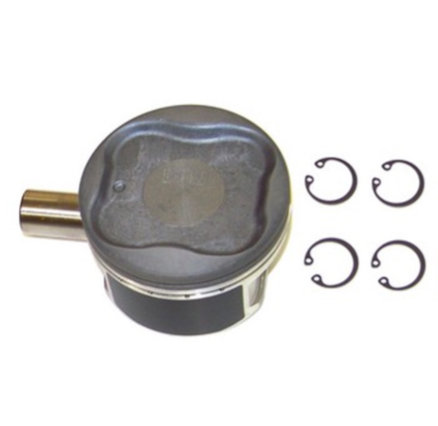

    My manual shows what looks like a “Dot” facing forward. Which it calls the “Front Mark”.
    You can see in in the picture below.

    foampile[OP] likes this.
  3. Aug 18, 2022 at 5:05 PM
    #3
    foampile

    foampile [OP] Well-Known Member

    Joined:
    Dec 15, 2011
    Member:
    #68807
    Messages:
    1,081
    Gender:
    Male
    Mid-Atlantic
    Vehicle:
    2007 V6 4WD 6 speed Extended Cab
    @TnShooter that is probably a better guideline than Haynes, which is referring to the markers on the connecting rod but their wording is kinda clumsy and convoluted

  4. Aug 18, 2022 at 5:15 PM
    #4
    foampile

    foampile [OP] Well-Known Member

    Joined:
    Dec 15, 2011
    Member:
    #68807
    Messages:
    1,081
    Gender:
    Male
    Mid-Atlantic
    Vehicle:
    2007 V6 4WD 6 speed Extended Cab
    Yes, I just went to the shed to confirm. That dot on top of the piston matches the side of the piston where it says "Toyota" and where the markers are on the rod in the bottom
