    Have been trying to figure this out on my own but have found nothing to help me out. Just put the rebuilt engine in and could very well be missing something.

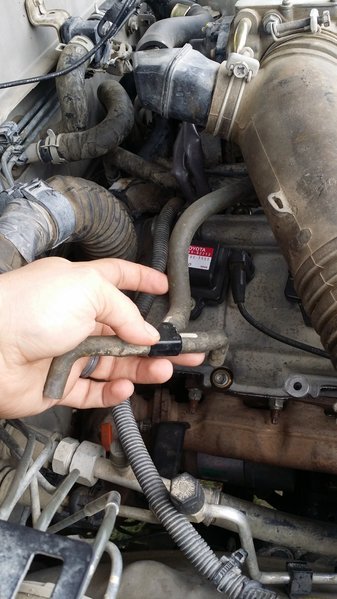

    I would like help finding where these go. It comes off the throttle body then t's out into 2 lines. Any help would be appreciated!


    04tacomarob, Jun 19, 2016
    #1
  2. Jun 20, 2016 at 5:52 AM
    #2
    Dirty Pool

    #2
    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,325
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears

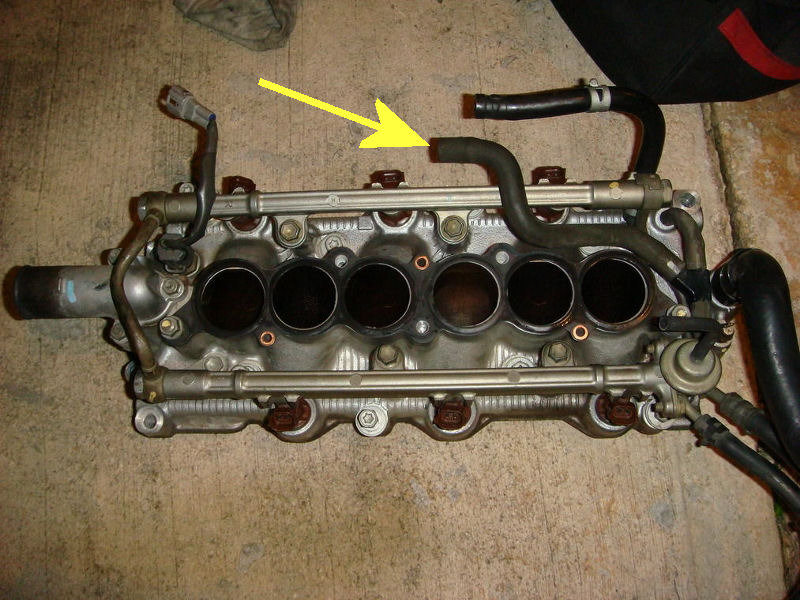

    That would be the hoses feeding air to the "air assist" system. It is a sub manifold of sorts delivering jets of intake air (under vacuum) at the fuel injector tips. It helps atomize fuel in the low airflow condition found at idle.
