Water Inlet Housing - Bolt Locations

Discussion in '2nd Gen. Tacomas (2005-2015)' started by KevinG, Aug 30, 2024.

  1. Aug 30, 2024 at 10:06 AM
    #1
    KevinG

    #1
    KevinG [OP] Active Member

    Joined:
    Dec 7, 2011
    Member:
    #68315
    Messages:
    26
    Gender:
    Male
    First Name:
    Kevin
    Chandler, AZ
    Vehicle:
    2010 TRD Offroad Double Cab
    Guys,

    I'm replacing my Water Inlet Housing. I found a diagram that states there are five bolts attaching it. I've removed four of the bolts, but can't find the fifth. Does anyone have a diagram showing the location of the five bolts?

    I'm sure I could figure it out by looking at the new housing, but it won't arrive until Tuesday. I was hoping to have it all pulled apart and cleaned up when it arrives.

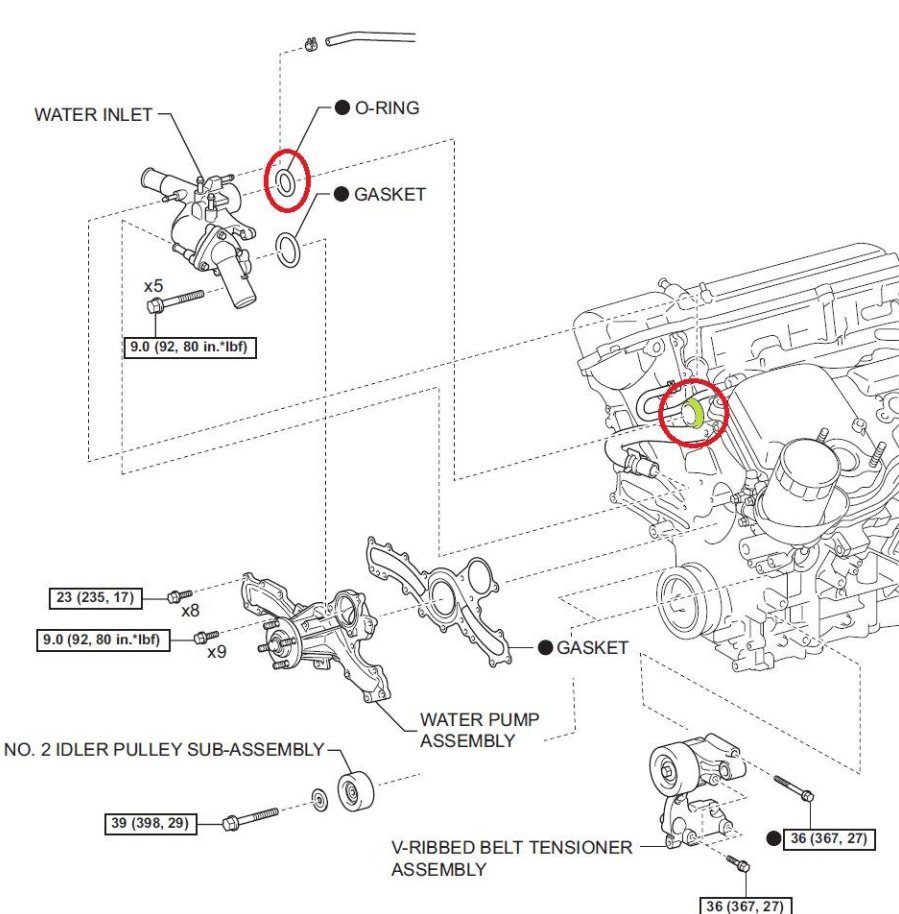

    Here's the diagram I found:


    KevinG, Aug 30, 2024
    #1
