Water Thru Cabin Air Intake - My Solution

Discussion in '2nd Gen. Tacomas' started by 05Moose, Apr 22, 2010.

  1. Apr 22, 2010 at 4:34 PM
    #1
    05Moose

    05Moose [OP] Middle-Aged Member

    Joined:
    Jan 18, 2010
    Member:
    #29613
    Messages:
    2,419
    Gender:
    Male
    First Name:
    Jim
    In the snow (NorCal)
    Vehicle:
    '05 4x4 DC LB SR5 #8 (LSD, Tow Pkg)
    '05 4x4 DC LB SR5 (LSD & Tow Pkg), Timbrens, AAL, 5100s (.85), Owned: 12/3/04 Mods: Fog, Map/Dome Light, Illuminated 4wd Switch, Washable Cabin Air Filter
    It happened again Tuesday, so I decided to finally attack this problem.

    Four or Five years ago on a heavily raining day, my wife got in my truck at the park-n-ride to borrow it for awhile. She turned on the fan and water came shooting out the defrost vents. Then she found a very large puddle on the passenger floor mat (costco mats which hold the water). Dealer tested it for the TSB related to water on the passenger floor area and hosed it down real good with no luck of reproducing it.

    Years go by and it never happened again...until this Tuesday. So I was wondering if something was done incorrectly when I got the new windshield a couple of months ago (although I doubted it since it happened once before). Still, there were people claiming that the wipers and cowl should be removed when the windshield is replaced. That's a wrong assumption and I'll show you why in the pictures. It's actually better if they don't remove the cowl.

    So here's a shot of the cabin air intake box with the cowl removed (you can just seem my DIY washable cabin air filter in the pic):
    [​IMG]

    The Cowl has a channel in it that the glass slides into just above the cabin air intake box. Thus the need to leave the cowl in place when replacing the windshield. This is a perfect guide to ensure they put the glass in the correct position (height-wise) so you don't have trouble re-installing the cowl or leaving too much of a gap for water intrusion purposes.
    [​IMG]

    Below is a closeup of that channel on the cowl that slips under the glass. Notice it has tabs that slide under the glass. This way the glass sits against the top of the cowl leaving a channel below it for water evacuation away from the cabin air intake. The water then drains off the ends. However, this is where there are a couple of faults in the design. I'll get into that after the picture.
    [​IMG]

    Okay, so there's two problems with this design. One is that at the end of the channel, water could run down and back underneath onto another lip below the channel back toward the cabin air intake box. There's a vertical fin that's part of the cowl mold that would stop the water from continuing on, but that fin still sits about 2 inches too far toward the intake box. That could cause water to drip into the box.

    The other problem is what I believe some of us have suffered from. Depending on the slope you're parked on, this channel may not be big enough and it doesn't have a back lip (windshield side) to stop the water from pouring over the edge anywhere along it during a heavy downpour (or if you get debris in the channel, you're screwed). Notice how open the channel is in the pictures. I think this is the problem I've suffered from twice now. Both days there were major downpours from thunderstorms. My guess is that it just can't handle it.

    My solution? Install a piece of flashing directly over the cabin air intake that will always direct the water away from it. I shouldn't have any more leaks now.
    [​IMG]

    Crom likes this.
  2. Apr 22, 2010 at 6:19 PM
    #2
    Sforza

    Sforza The Forcer

    Joined:
    Mar 19, 2010
    Member:
    #33526
    Messages:
    84
    Gender:
    Male
    First Name:
    Rich
    Houston, Texas
    Vehicle:
    08 PreRunner SRD V6
    ARE Camper
    I have never had any water get into my cabin from rain, but if I ever do I will come back and look at your pictures and see if I can figure out what you are saying.

  3. Apr 22, 2010 at 6:54 PM
    #3
    ASE_MasterTech

    ASE_MasterTech Well-Known Member

    Joined:
    Mar 4, 2010
    Member:
    #32544
    Messages:
    53
    Gender:
    Male
    Monmouth County, NJ
    Vehicle:
    2010 TRD Sport DBL\Cab
    Wet Okole seat covers, Westin Platinum Oval tube steps, Rear spring TSB plus Super Springs, D-Rings in all bed bolts, Tailgate reinforcement mod (for loading Harley)
    What I have encountered in certain vehicles is that the 'drain' for the cowl area where the cabin filter intake is located gets clogged up (sometimes even slightly) with debris (leaves, tree seed spinners, pine needles, etc..) & cannot evacuate water fast enough in a heavy rain, or in melting snow conditions.

    Ford Taurus's are notorious for this problem.. & although Ford has issued a cowl reseal update to address this problem, if you don't clear the drain, the re-seal is completely ineffective..

  4. Apr 23, 2010 at 7:29 AM
    #4
    05Moose

    05Moose [OP] Middle-Aged Member

    Joined:
    Jan 18, 2010
    Member:
    #29613
    Messages:
    2,419
    Gender:
    Male
    First Name:
    Jim
    In the snow (NorCal)
    Vehicle:
    '05 4x4 DC LB SR5 #8 (LSD, Tow Pkg)
    '05 4x4 DC LB SR5 (LSD & Tow Pkg), Timbrens, AAL, 5100s (.85), Owned: 12/3/04 Mods: Fog, Map/Dome Light, Illuminated 4wd Switch, Washable Cabin Air Filter
    I can see that could be the case. But the intake box was dry except in the areas where it would have dripped off the cowl. There were distinct "spots" where it dripped in, rather than run over the sides. So I know I'm on the right track.

  5. Apr 24, 2010 at 6:24 AM
    #5
    TRDKenE

    TRDKenE DAMN GOOD DEAL!!

    Joined:
    Jul 6, 2009
    Member:
    #19348
    Messages:
    706
    Gender:
    Male
    First Name:
    Kenny
    Richmond, Virginia
    Vehicle:
    '10 D-CAB OFF-ROAD 4X4
    TRD CAI, GrillCraft.
    Seems like most everyone that has had this issue has had a windshield replaced.

  6. Apr 25, 2010 at 11:39 AM
    #6
    05Moose

    05Moose [OP] Middle-Aged Member

    Joined:
    Jan 18, 2010
    Member:
    #29613
    Messages:
    2,419
    Gender:
    Male
    First Name:
    Jim
    In the snow (NorCal)
    Vehicle:
    '05 4x4 DC LB SR5 #8 (LSD, Tow Pkg)
    '05 4x4 DC LB SR5 (LSD & Tow Pkg), Timbrens, AAL, 5100s (.85), Owned: 12/3/04 Mods: Fog, Map/Dome Light, Illuminated 4wd Switch, Washable Cabin Air Filter
    Not me. Happened within the first year of ownership and the first glass replacement was just a couple months ago (and I know it was the factory glass in that first instance because I had the windshield buzz (never fixed by the TSB) from the factory that I just got fixed with my windshield replacement recently.

    I've parked out there with the downpour many times over the years and it only did it twice...both times I was parked on a specific slope at the park-n-ride that I think may have attributed to the angle of the channel allowing water to run in instead of draining away properly. Either way, it's fixed now.

  7. Apr 25, 2010 at 4:18 PM
    #7
    TRDKenE

    TRDKenE DAMN GOOD DEAL!!

    Joined:
    Jul 6, 2009
    Member:
    #19348
    Messages:
    706
    Gender:
    Male
    First Name:
    Kenny
    Richmond, Virginia
    Vehicle:
    '10 D-CAB OFF-ROAD 4X4
    TRD CAI, GrillCraft.
    Yea I was just sayin quite a few people who have had this problem have had replacement windshields

  8. Jan 18, 2011 at 6:03 PM
    #8
    Boilerman

    Boilerman Well-Known Member

    Joined:
    Apr 18, 2010
    Member:
    #35501
    Messages:
    445
    Gender:
    Male
    First Name:
    Brian
    Texas, northwest of the Big Pond
    Vehicle:
    2010 Prerunner SR5 Magnetic Gray 2.7L
    Any more problems since installing the flashing? I think I have the same problem on my '10:mad:

  9. Jan 19, 2011 at 6:54 AM
    #9
    05Moose

    05Moose [OP] Middle-Aged Member

    Joined:
    Jan 18, 2010
    Member:
    #29613
    Messages:
    2,419
    Gender:
    Male
    First Name:
    Jim
    In the snow (NorCal)
    Vehicle:
    '05 4x4 DC LB SR5 #8 (LSD, Tow Pkg)
    '05 4x4 DC LB SR5 (LSD & Tow Pkg), Timbrens, AAL, 5100s (.85), Owned: 12/3/04 Mods: Fog, Map/Dome Light, Illuminated 4wd Switch, Washable Cabin Air Filter
    None since. With the flashing, there's no way I'll have the same problem ever again. But before assuming that is your problem, make sure the drains in the cowl are clear (use a hose and see if it drains at each fender properly). If the drains are clear, then this probably was your problem.

  10. Jan 19, 2011 at 1:36 PM
    #10
    Boilerman

    Boilerman Well-Known Member

    Joined:
    Apr 18, 2010
    Member:
    #35501
    Messages:
    445
    Gender:
    Male
    First Name:
    Brian
    Texas, northwest of the Big Pond
    Vehicle:
    2010 Prerunner SR5 Magnetic Gray 2.7L
    Went out and checked mine this morning. Drains are clear, but I did have water on both the driver's side and passenger side under the floor mats. I went on ahead and installed the flashing as you did, but before I removed the cowl I did notice the weatherstripping on the cowl was not sealed up against the windshield. Here's the pic, the flashing will have to do for right now until I can get it into the dealer. Can't figure out how I am getting water on the driver's side as well.

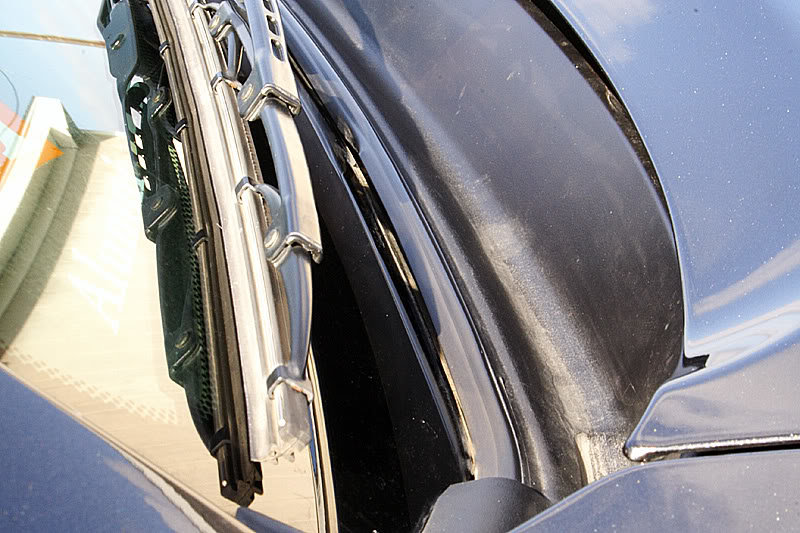

    [​IMG]

  11. Jan 19, 2011 at 4:07 PM
    #11
    05Moose

    05Moose [OP] Middle-Aged Member

    Joined:
    Jan 18, 2010
    Member:
    #29613
    Messages:
    2,419
    Gender:
    Male
    First Name:
    Jim
    In the snow (NorCal)
    Vehicle:
    '05 4x4 DC LB SR5 #8 (LSD, Tow Pkg)
    '05 4x4 DC LB SR5 (LSD & Tow Pkg), Timbrens, AAL, 5100s (.85), Owned: 12/3/04 Mods: Fog, Map/Dome Light, Illuminated 4wd Switch, Washable Cabin Air Filter
    Are you sure the water came in through the cabin air intake? Was your cabin filter wet? A dry cabin filter or having water on the driver's side is usually an indication of a different leak. Although from your pic of the cowl seal against the windshield, that's almost a guarantee of water into the cabin air intake hole.

  12. Jan 19, 2011 at 4:48 PM
    #12
    Boilerman

    Boilerman Well-Known Member

    Joined:
    Apr 18, 2010
    Member:
    #35501
    Messages:
    445
    Gender:
    Male
    First Name:
    Brian
    Texas, northwest of the Big Pond
    Vehicle:
    2010 Prerunner SR5 Magnetic Gray 2.7L
    Filter was dry, but it has been a while since it has rained. Maybe the filter has dryed out since then.:confused:

  13. Feb 26, 2011 at 9:10 AM
    #13
    MrGrimm

    MrGrimm Mall Crawler

    Joined:
    Oct 19, 2009
    Member:
    #24568
    Messages:
    2,555
    Gender:
    Male
    First Name:
    Dean
    Slaying bodies abroad
    Vehicle:
    2006 Toyota Tacoma 4WD w/TRD Sport Package
    See build page
    Had water on my floormat this morning after a heavy rain. Now when you say flashing, is that just a piece of sheet metal bent over the part under the cowl?

  14. Feb 26, 2011 at 9:38 AM
    #14
    MrGrimm

    MrGrimm Mall Crawler

    Joined:
    Oct 19, 2009
    Member:
    #24568
    Messages:
    2,555
    Gender:
    Male
    First Name:
    Dean
    Slaying bodies abroad
    Vehicle:
    2006 Toyota Tacoma 4WD w/TRD Sport Package
    See build page
    Thanks!

  15. Feb 26, 2011 at 7:52 PM
    #15
    05Moose

    05Moose [OP] Middle-Aged Member

    Joined:
    Jan 18, 2010
    Member:
    #29613
    Messages:
    2,419
    Gender:
    Male
    First Name:
    Jim
    In the snow (NorCal)
    Vehicle:
    '05 4x4 DC LB SR5 #8 (LSD, Tow Pkg)
    '05 4x4 DC LB SR5 (LSD & Tow Pkg), Timbrens, AAL, 5100s (.85), Owned: 12/3/04 Mods: Fog, Map/Dome Light, Illuminated 4wd Switch, Washable Cabin Air Filter
    Yep, hardware store has flashing in rolls in various widths. I just had them cut me a foot's worth of the wide stuff then trimmed it to my specifications.

  16. Nov 11, 2013 at 8:35 PM
    #16
    tribum

    tribum Member

    Joined:
    Sep 30, 2013
    Member:
    #113587
    Messages:
    18
    Gender:
    Male
    First Name:
    Craig
    SoCal
    Vehicle:
    05 4x4 LB Tacoma
    ARB Bumper, winch, Camburg UCAs, DR coilovers, 18x9 KMC Black Rockstars, Nitto Grapplers, Rigid LED lights (small driving lights, and 10" bar), Pioneer Nav System, Kicker Speakers, WeatherTech floormats, Leer shell, BedRug, Gibson Catback exhaust, Volant Cold Air Intake, Rear add-a-leafs
  17. Mar 26, 2014 at 5:14 PM
    #17
    ducks

    ducks Active Member

    Joined:
    Mar 9, 2014
    Member:
    #124993
    Messages:
    25
    Gender:
    Male
    Salem, OR
    Vehicle:
    2005 TRD access cab 4x4
    K&N airfilter, synthetic oil, seafoam fuel treatment.
    Hi,
    Great post. What did you use so that it does not flap/move or rattle around in there?? :confused:

    I cleaned my cowl and can see the gap. May need new cowl-seal?:mad:

  18. Mar 27, 2014 at 9:10 AM
    #18
    05Moose

    05Moose [OP] Middle-Aged Member

    Joined:
    Jan 18, 2010
    Member:
    #29613
    Messages:
    2,419
    Gender:
    Male
    First Name:
    Jim
    In the snow (NorCal)
    Vehicle:
    '05 4x4 DC LB SR5 #8 (LSD, Tow Pkg)
    '05 4x4 DC LB SR5 (LSD & Tow Pkg), Timbrens, AAL, 5100s (.85), Owned: 12/3/04 Mods: Fog, Map/Dome Light, Illuminated 4wd Switch, Washable Cabin Air Filter
    I just used construction adhesive on both edges (sides facing windshield and engine). I wasn't sure it would last, but it's been 4 years and has held. And not a drop of water in the intake since.

  19. Mar 27, 2014 at 9:18 AM
    #19
    jro1

    jro1 Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122219
    Messages:
    208
    Gender:
    Male
    First Name:
    jesse
    Red Deer AB, Canada
    Vehicle:
    2011 Tacoma TRD sport
    Driver
    and some guys are redirecting the air intake into the cowel, over getting a snorkel!

  20. Jul 22, 2014 at 2:46 PM
    #20
    ziggynagy

    ziggynagy All Glory To The Hypnotoad

    Joined:
    Nov 6, 2011
    Member:
    #66601
    Messages:
    1,323
    Gender:
    Male
    Stoughton, MA
    Vehicle:
    '11 Sport AC 4x4 V6 Auto Tow
    Westin step bars, led dome & map lights, tailgate hoseclamp, BluLogic, MetalMiller emblem, 35 tinted front windows, extra OEM d-rings, WeatherTech front/rear
    [​IMG]

    Silly question but I'm getting pine needles to my cabin air filter, can someone explain where the cabin intake is? Been looking under the hood but can't find anything that looks like ^this
