I'm admittedly not nearly as experienced as skygear, but my outlook has always been... if you're running a switch inside the cab for an external accessory you need a relay.

I'm interested to hear skygear's answer though, it may provide some insight I don't have



It depends on the amperage draw of the accessory.



What bolts? The bracket to the truck is m8x1.25

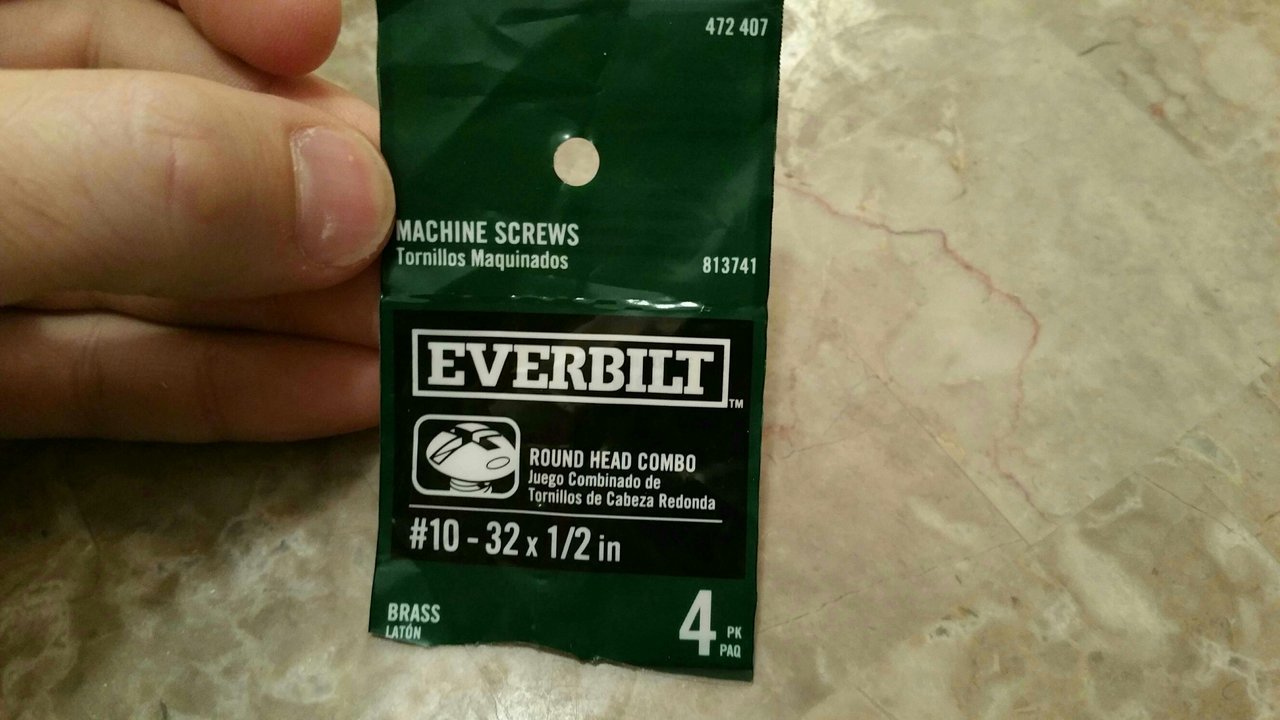

Brass bolts from the box to the mounting plate are #10-32 1/2"



Everyone is right when it comes to relays. Depending on amp draw of accessory, ALSO depending on amp tolerances of the switch, and last but not least, the amp rating of the wire you are using.

Sometimes people have just a few feet of larger gauge wire and will use that to reach the relays and then the smaller wire to run the rest of the way to the switching source.


I will edit the OP next week, or sooner depending how these builds go. I post loos of useful info in this thread. Things just get list when not linked to the op



On relays too. Sometimes there is a continuous draw of 10 amps and a burst of 25 amps to turn an accessory on. So there are lots of factors to consider.



Brtt, you get your box yet?



Yes sir, looks better than I had even imagined! Can't wait to get it in.

Unfortunately, I really need to paint my mounting plate and, being in an apartment, I don't have a great place to do it but hopefully I'll be able to get it done soon. TacoDanes hood and bed kit are going to be the first things hooked up. I'll probably just use the fused connections for them.



this thanks…I have no idea where I put that thing I have had it zip tied in for so long



Fyi. I ordered in 6 spare small boxes for same week shipping.

Also in transit is 100' of 9conductor speed wire for the switches.



Exactly. Fuse is all you need for them.



haha I know your pain. But if I can get anything from sliders to full skids painted I am sure you can get that little bracket painted

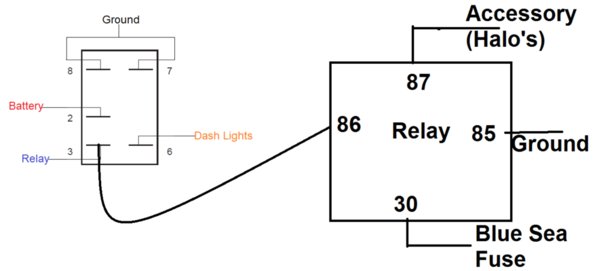

If anyone needs general info on wiring a relay this may help.



I really need a breather to get some of this thread organized! Plus the PDF finished up. You people are taxing my time :joke:

In transit to me is some 9 Conductor speed wire, Red Braided Loom, and now offering 0 & 4 gauge upgrade options for the fuse blocks. Solid Copper Lugs, Compression terminated and Heat Shrunk. Also protected with braided loom.



According to a tech at Rigid Industries, 12 LED's or more - Relay.
Compressor(s) Relay
Fridge - Relay or not - personal preference


I'm blanc, need to grab a small bite to eat and crash so I can focus later today on these.

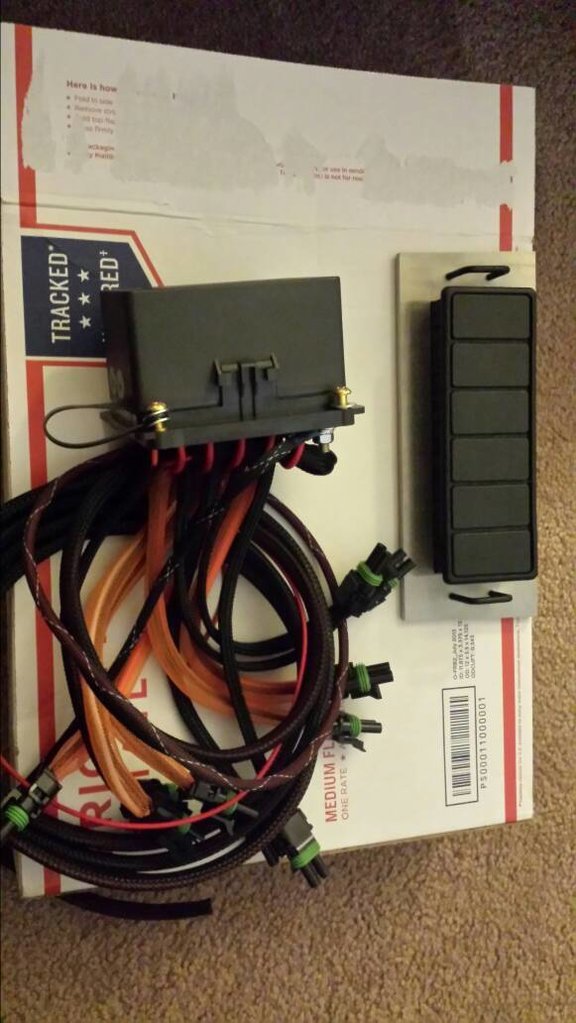

Working on LONG secondary harnesses to accessories / easy color coded wire to the relays / sheathed in braided loom - with weatherpacks

-rear tailgater lights
-dual hood ditch lights
-dual bumper fog lights
-light bar on roof



Who was it that was asking me for the braided loom in RED instead of the Orange? It'll be here tomorrow or friday.



If you don't have this setup, you NEED it!



I'll post more pics when i get it installed!



I missed out on the switch panel.. Looks sweet



That was the other thread. But yeah, looks interesting.



There has to be a more convenient way of wiring switches. As it sits now if I want to disconnect something I have to unplug it from the switches and I already had a tab bend on me. Thoughts?



Female/male quick disconnects on the engine bay could be an easier route
