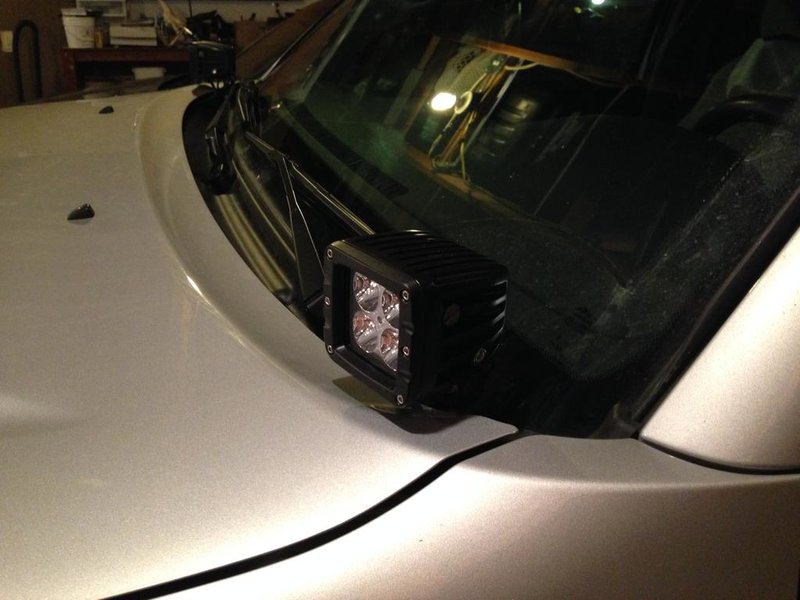

Finally got around to mounting my ditch lights. The box makes it soooo easy to wire stuff up. It took me less than an hour from start to finish.



Wow, lot's of things going on! Please don't forget my order! Any chance for sometime next week?

P



hopefully you will have it this friday peter. thanks for the patience. The replacement order I thought was coming in was just spare parts. Finally getting it delivered today from the shipper. What a mess this has created for me. Really, my sincerest apologies.



Everyone will be happy once they see the quality craftsmanship in your product. It takes time for things to be done RIGHT. (not to mention the curve balls life throws at you) "No Stress"



Back to work. FINALLY>!!!!



Looks good



Am I relaying the message properly?



http://www.the12volt.com/relays/page1.asp

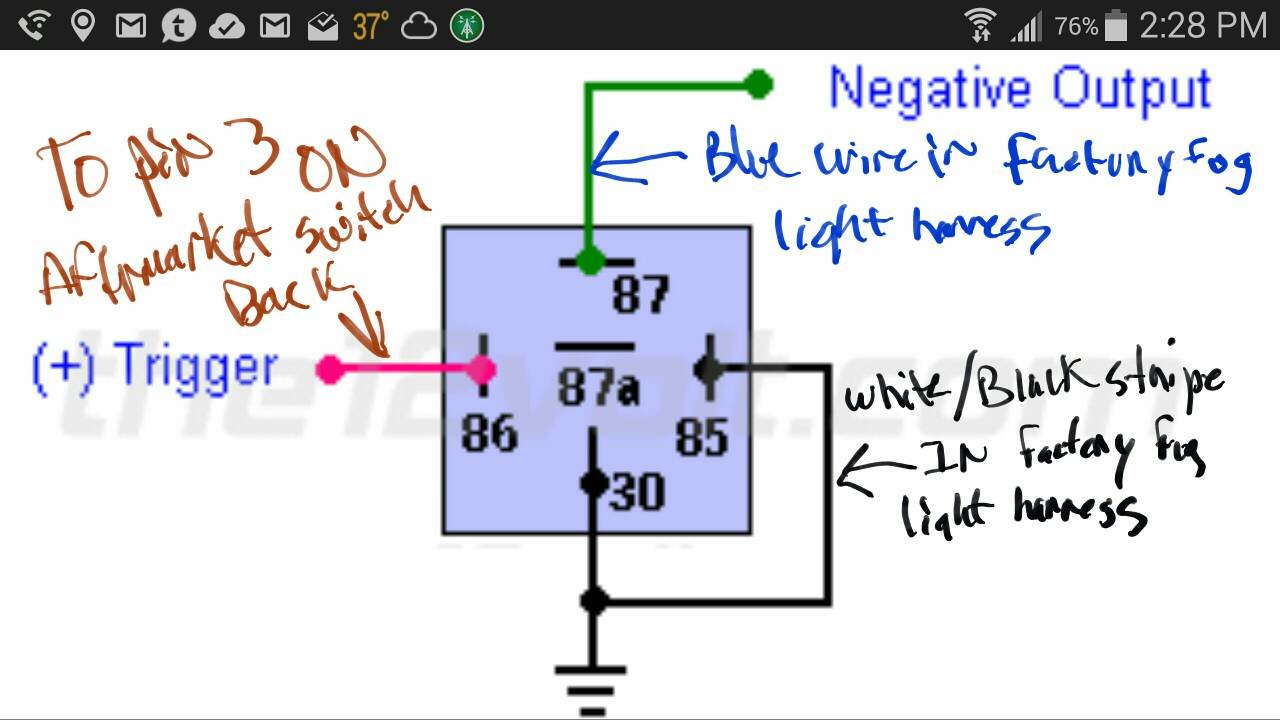

SO this diagram above is for someone who wants to replace their factory Fog light switch with an aftermarket one maintaining the lighting on the actual switches. The factory fogs are negatively switched.

On the back of the harness to reverse the polarity of a relay. You need to use the BLUE wire. That is the negative trigger to the factory relay.

In the diagram above. Hook the BLUE wire to the pin 87.

You could use the Off White/ Black strip wire as your ground. Jumper 85 & 30 and hook the Off White/ Black stripe wire to it.

Pin 86 goes to the pin 3 on your Carlin style switch.



I love you all. but can some peoples post some pics of the boxes.? I keep forgetting to take pics when I make and ship.



I'll get some more pics this weekend. Here's is the only one I took during the install.

Also the ground wire was moved to the suggested location



So, I just got back from having skygear install my waterproof relay/fuse box. It is one thing to read about this stuff on the site, and a completely different thing when you see it in real life.
What skygear does for this community is incredibly generous and selfless. Not only does he share his talent, knowledge, and time, he also makes you feel welcomed in his home as if you were long-time friends.
The product he produces is undoubtedly of the highest quality you will ever find...anywhere.
Thanks just isn't enough.

I dont have any pics as it is late but Ill get some up tomorrow. So impressed and so worth every penny!

Thanks a million skygear!



No problem. Pleasure meeting you today. Get some pics up whenever. I'll do the same with the couple I snapped. Thanks for the opportunity to work on your rig.

When you get the accessories, swing by. We will get them squared away.



So even though I'm making an 85k bid on a house, I was able to convince my wife that Skygear's box was kind of a necessity, so she let me get one. Now I just need to figure out what configuration want



Wake Up TW ! Morning.

http://www.youtube.com/watch?v=TFXlWfzW9Uo



Charging the laptop. Then will respond to PM's

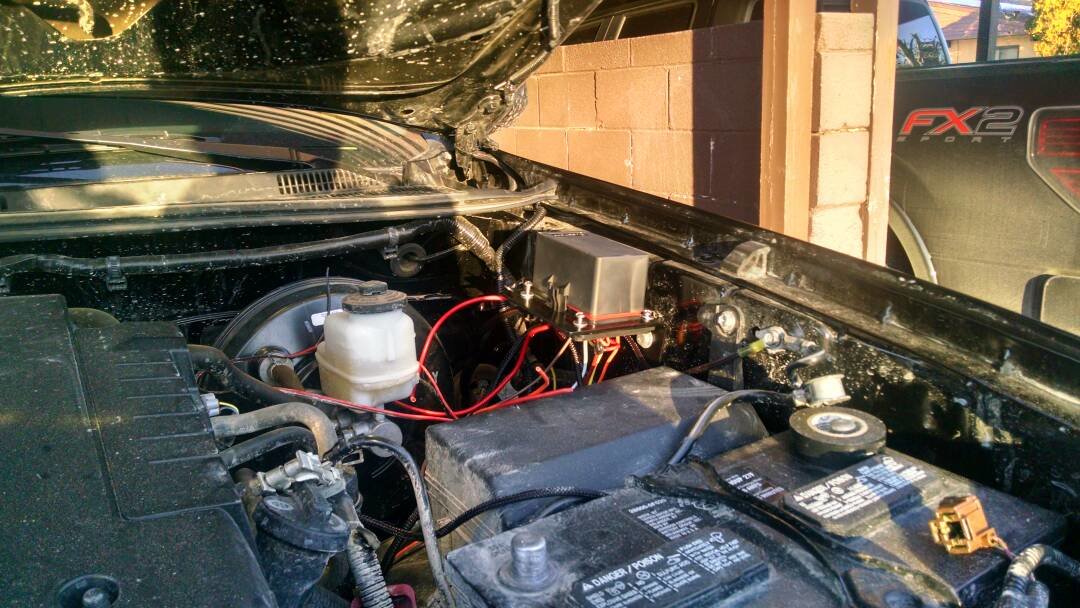

As promised, here are some pics from the install:
