Discussion in 'Buy / Sell / Trade' started by skygear, Jul 15, 2014.

Thread Status:
Not open for further replies.
Page 66 of 109
  1. Feb 8, 2015 at 8:42 AM
    #1301
    tacodane

    #1301
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Looks good to me peter

    tacodane, Feb 8, 2015
    #1301
  2. Feb 8, 2015 at 10:35 AM
    #1302
    PeterBel

    #1302
    PeterBel Member

    Joined:
    Jan 8, 2015
    Member:
    #145903
    Messages:
    7
    Gender:
    Male
    First Name:
    Peter
    San Jose
    Another question lol.. The Harness for the Relay have 13 wires.

    • [10][Multi-Color] For the ON Switches providing 12V to Relay
    • [1][RED] from Positive Bus providing 12V for the switches (7.5A Fuse)
    • [1][RED] not Terminated for i suppose 12V from Ignition switches or High Beam relay? (Create a Conditional ON)
    • [1][BLACK] that i can't trace - No continuity to ground or anything i could find on the box, what is that wire for? and where does it connect to on the box?

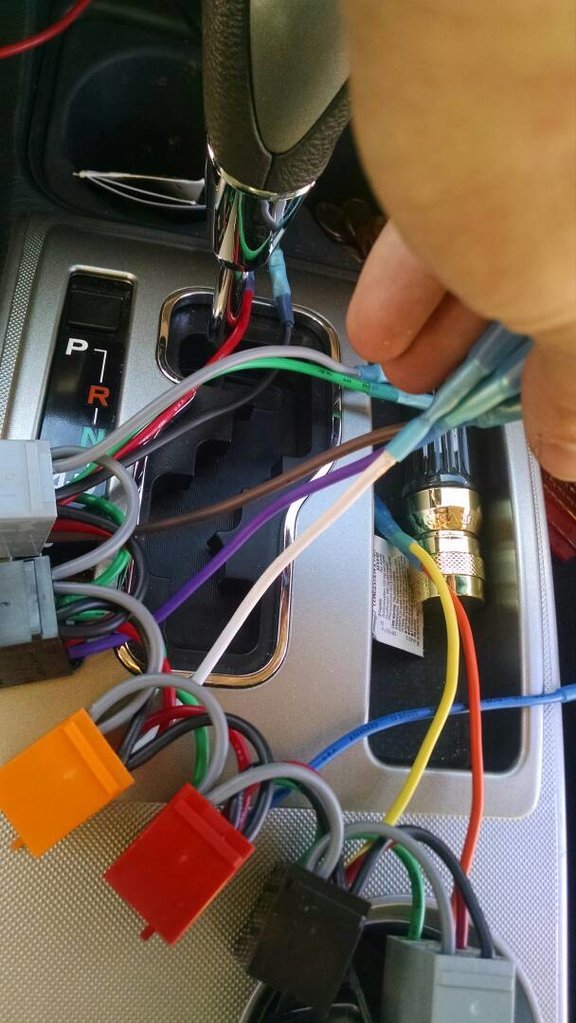

    See picture below:
    [​IMG]

    Thank you for the Help,

    Peter

    PeterBel, Feb 8, 2015
    #1302
  3. Feb 8, 2015 at 10:53 AM
    #1303
    tacodane

    #1303
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Ok the skinny red wire that comes out of the loom is for powering the switches when the truck is turned on (by using an add-a-fuse). The thicker red in the bundle is for constant power. Ex. say for a cb or something. And the red that's in the bundle is for powering the switch. The black is for the ground on your switches. Say like if you had the switch backs skygear sells. You can see in my pic the red and black being connected
    If I confused you a bit, my bad. Lol

    Last edited: Feb 8, 2015
    tacodane, Feb 8, 2015
    #1303
  4. Feb 8, 2015 at 11:12 AM
    #1304
    PeterBel

    #1304
    PeterBel Member

    Joined:
    Jan 8, 2015
    Member:
    #145903
    Messages:
    7
    Gender:
    Male
    First Name:
    Peter
    San Jose
    Tacodane! Great, thank you so much for the replies!

    Ok so for the Red wires it is now clear :)

    The thick black wire is still a little obscure to me, you used it for your switch ground, but when i test the continuity of it with the ground wire on the box, i have nothing. Do i have a bad connection there?

    I also tested the continuity with the weather pack connectors and got nothing. I am trying to figure out where it is connected too on the box, it should be ground doesn't it?

    Peter

    PeterBel, Feb 8, 2015
    #1304
  5. Feb 8, 2015 at 11:37 AM
    #1305
    tacodane

    #1305
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    The black wire in the loom , I used as a ground. I have three switches connected and I don't have any issues with lighting or operation. So yes it's a ground

    tacodane, Feb 8, 2015
    #1305
  6. Feb 8, 2015 at 11:38 AM
    #1306
    bry838

    #1306
    bry838 Well-Known Member

    Joined:
    Sep 3, 2014
    Member:
    #137527
    Messages:
    2,403
    Gender:
    Male
    oregon
    Vehicle:
    '00 tacoma 2.7 4x4 reg cab 5speed x's 2. '01 T4R 3.4 5 speed
    Lucky I know how to use them then ;). Truth is, I do not want to skimp on the PROPER tool to do the deutsch connectors. Having used one of these when I was at NASA, you never want to go back to the lesser quality product. :eek:[/QUOTE]

    Sorry to get off topic and bring up a sore subject but....you used to work at NASA? I now see why DEPT of Homeland Security was so interested in you here a while back..lol

    bry838, Feb 8, 2015
    #1306
  7. Feb 8, 2015 at 11:39 AM
    #1307
    tacodane

    #1307
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Haha that's funny you brought that back up.lol

    tacodane, Feb 8, 2015
    #1307
  8. Feb 8, 2015 at 11:47 AM
    #1308
    PeterBel

    #1308
    PeterBel Member

    Joined:
    Jan 8, 2015
    Member:
    #145903
    Messages:
    7
    Gender:
    Male
    First Name:
    Peter
    San Jose
    Found It, it is actually the ground of the F2 Breaker/relay! So i have 9 relay on the common bus ground and 1 relay (F2) on an independent ground. I guess it is to add the possibility to use the ground as a switch instead of the 12V. Just through me off a little lol...

    Pete

    Last edited: Feb 8, 2015
    PeterBel, Feb 8, 2015
    #1308
  9. Feb 8, 2015 at 5:29 PM
    #1309
    tacodane

    #1309
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Glad you got it figured out.

    tacodane, Feb 8, 2015
    #1309
  10. Feb 8, 2015 at 8:39 PM
    #1310
    barcode

    #1310
    barcode           

    Joined:
    Feb 8, 2015
    Member:
    #148222
    Messages:
    13
    Gender:
    Male
    Thanks Dane for answering questions. Was helping out another member all day with an Icon install.

    yes, peter. all that is correct. The long red wire is for the ignition on if you choose to use it for that. If not, you can just coil it and not use it. Thick black is the ground.

    Anyone know if a staff is on? Admin or mod?

    barcode, Feb 8, 2015
    #1310
  11. Feb 8, 2015 at 8:44 PM
    #1311
    tacodane

    #1311
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Skygear?

    tacodane, Feb 8, 2015
    #1311
  12. Feb 8, 2015 at 8:46 PM
    #1312
    barcode

    #1312
    barcode           

    Joined:
    Feb 8, 2015
    Member:
    #148222
    Messages:
    13
    Gender:
    Male
    yep.

    barcode, Feb 8, 2015
    #1312
  13. Feb 8, 2015 at 8:52 PM
    #1313
    tacodane

    #1313
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Why you did you make a new account? Lol

    tacodane, Feb 8, 2015
    #1313
  14. Feb 8, 2015 at 8:55 PM
    #1314
    barcode

    #1314
    barcode           

    Joined:
    Feb 8, 2015
    Member:
    #148222
    Messages:
    13
    Gender:
    Male
    Someone wanted it more than I did obviously. My password/ account is temporary compromised.

    barcode, Feb 8, 2015
    #1314
  15. Feb 8, 2015 at 9:02 PM
    #1315
    tacodane

    #1315
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Wth? Lol probably cuz you worked at NASA.lmao

    tacodane, Feb 8, 2015
    #1315
  16. Feb 8, 2015 at 9:03 PM
    #1316
    barcode

    #1316
    barcode           

    Joined:
    Feb 8, 2015
    Member:
    #148222
    Messages:
    13
    Gender:
    Male
    LOL /

    barcode, Feb 8, 2015
    #1316
  17. Feb 8, 2015 at 9:09 PM
    #1317
    tacodane

    #1317
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Either way it sucks. But you gave me all the helpful info when I needed it so why not help you out when your busy.lol

    tacodane, Feb 8, 2015
    #1317
  18. Feb 8, 2015 at 9:12 PM
    #1318
    barcode

    #1318
    barcode           

    Joined:
    Feb 8, 2015
    Member:
    #148222
    Messages:
    13
    Gender:
    Male
    barcode, Feb 8, 2015
    #1318
  19. Feb 8, 2015 at 9:26 PM
    #1319
    tacodane

    #1319
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    tacodane, Feb 8, 2015
    #1319
  20. Feb 8, 2015 at 9:28 PM
    #1320
    barcode

    #1320
    barcode           

    Joined:
    Feb 8, 2015
    Member:
    #148222
    Messages:
    13
    Gender:
    Male
    I appreciate it ;)

    barcode, Feb 8, 2015
    #1320
