Weak motor mounts

Discussion in 'Long Travel Suspension' started by lilgerber, Sep 11, 2013.

Post Reply

Sep 11, 2013 at 11:14 PM

#1

#1
lilgerber [OP] Well-Known Member

Joined:

Nov 23, 2008

Member:

#10974

Messages:

512

Gender:

Male

First Name:

Aaron

Fresno, CA

Vehicle:

06 4x4 off road Speedway blue

Front: Total Chaos 3.5 4x4 LT kit, Engage off-road one piece hood, Caged front end, TC gussets. Rear: Fiberworks fenders, King 14" 3.0 triple bypasses, boxed/braced frame, extended brake lines, 63" chevy leaf springs, U bolt flip kit, TC lower shock mounts. Preformance: URD intake, Doug Thorley headers, Flowmaster 40, 2.5 tubing. Interior: Weather techs, LED's, Double DIn, kicker 10" subs, Kicker componet speakers, Exterior: Method wheels with OMF beadlocks, Custom made bumpers, Retro headlights.

Well due to some serious off roading and Tacoma's that were built in 2005/2006 with weak motor mounts my driver side decided to collapse into the frame. The crack was 95% around the whole frame.

I Had no choice but to pull the engine out and pull the motor mount out of the frame, weld it into place and make a gusset for it.

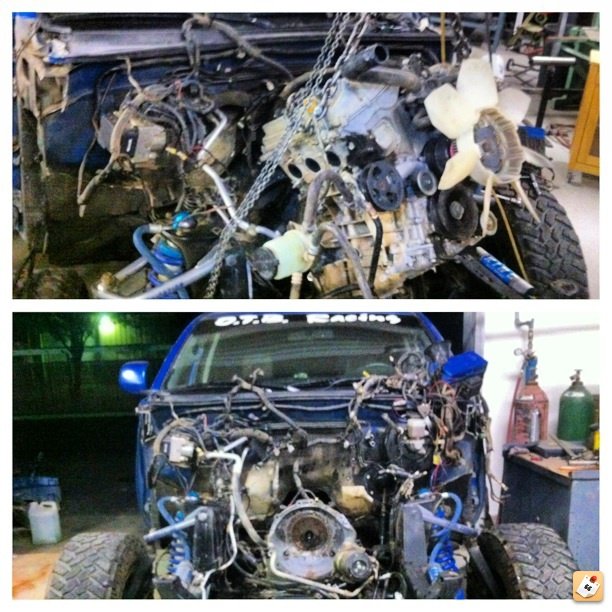

Pulling engine out

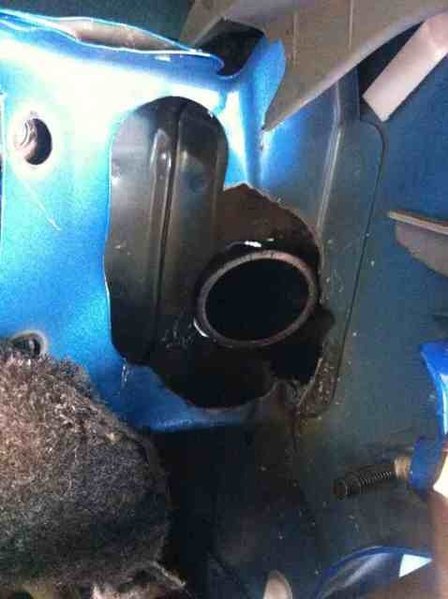

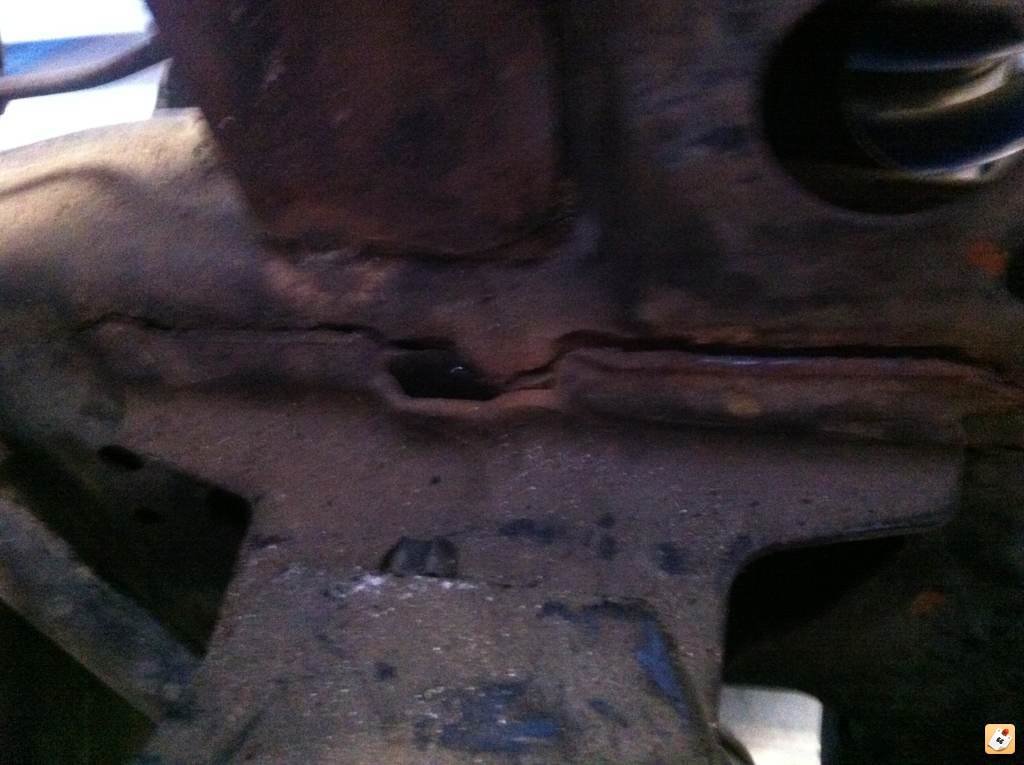

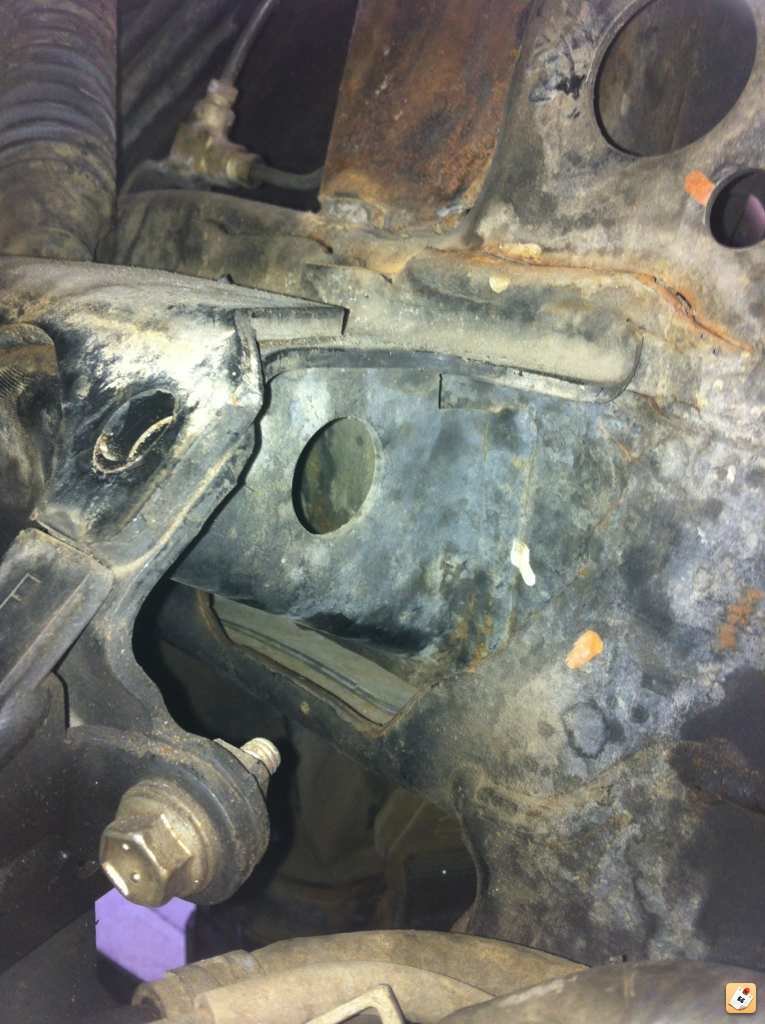

Driver side motor mount collapse into frame.

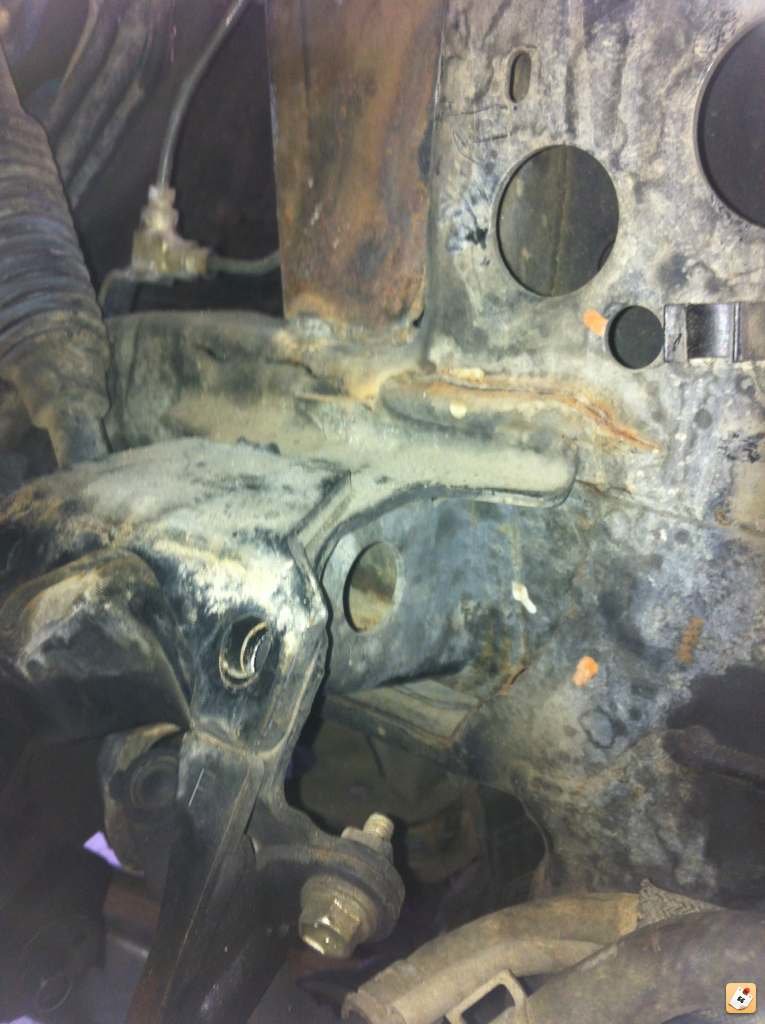

Top of the frame

lilgerber, Sep 11, 2013

#1

Sep 11, 2013 at 11:20 PM

#2

#2
lilgerber [OP] Well-Known Member

Joined:

Nov 23, 2008

Member:

#10974

Messages:

512

Gender:

Male

First Name:

Aaron

Fresno, CA

Vehicle:

06 4x4 off road Speedway blue

Front: Total Chaos 3.5 4x4 LT kit, Engage off-road one piece hood, Caged front end, TC gussets. Rear: Fiberworks fenders, King 14" 3.0 triple bypasses, boxed/braced frame, extended brake lines, 63" chevy leaf springs, U bolt flip kit, TC lower shock mounts. Preformance: URD intake, Doug Thorley headers, Flowmaster 40, 2.5 tubing. Interior: Weather techs, LED's, Double DIn, kicker 10" subs, Kicker componet speakers, Exterior: Method wheels with OMF beadlocks, Custom made bumpers, Retro headlights.

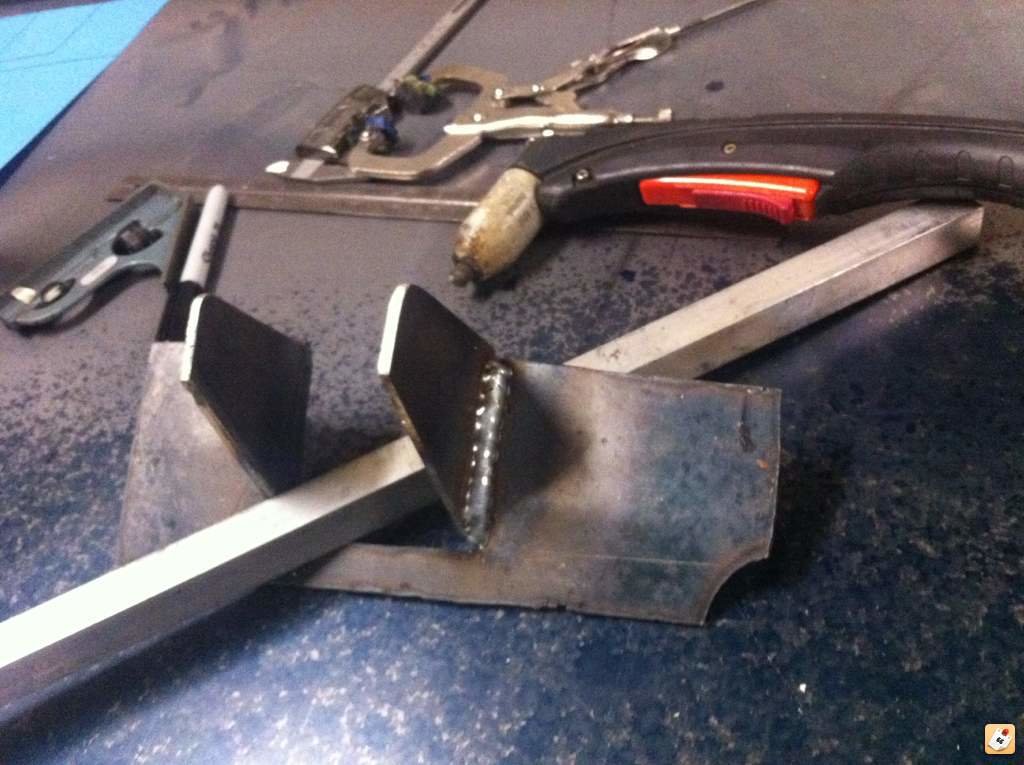

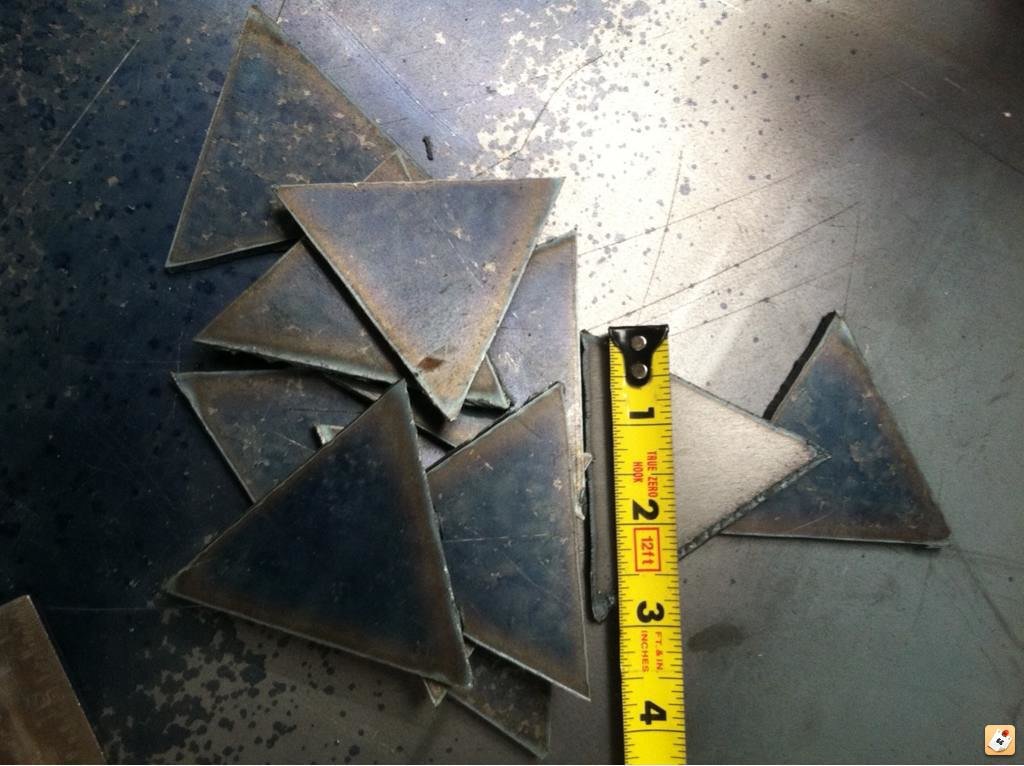

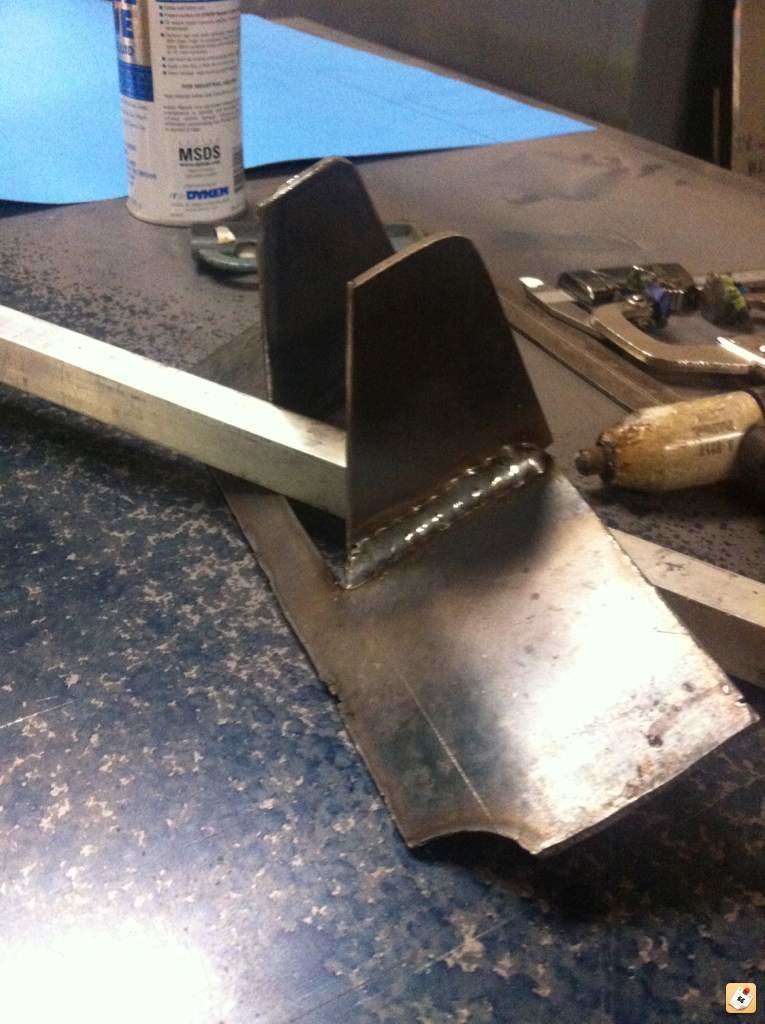

My buddy and I made these gussets to weld under and to the side of the frame and motor mount for support.

lilgerber, Sep 11, 2013

#2

Sep 12, 2013 at 11:42 AM

#3

#3
DTFtacoma Dezert Toy Fabrication Vendor

Joined:

Mar 5, 2009

Member:

#14364

Messages:

6,951

Gender:

Male

First Name:

Anthony

Santa Maria, CA

Vehicle:

06 PreRunner D-cab

DTF LT front & rear

Going to a one piece?

DTFtacoma, Sep 12, 2013

#3

Sep 12, 2013 at 5:55 PM

#4

#4
Mxpatriot Well-Known Member

Joined:

Nov 18, 2009

Member:

#26163

Messages:

3,620

Gender:

Male

Vehicle:

'06 4x4 AP LT and Locked

I had the same issue. Luckily didn't have to pull the motor to weld it.

Mxpatriot, Sep 12, 2013

#4

Sep 12, 2013 at 7:44 PM

#5

#5
lilgerber [OP] Well-Known Member

Joined:

Nov 23, 2008

Member:

#10974

Messages:

512

Gender:

Male

First Name:

Aaron

Fresno, CA

Vehicle:

06 4x4 off road Speedway blue

Front: Total Chaos 3.5 4x4 LT kit, Engage off-road one piece hood, Caged front end, TC gussets. Rear: Fiberworks fenders, King 14" 3.0 triple bypasses, boxed/braced frame, extended brake lines, 63" chevy leaf springs, U bolt flip kit, TC lower shock mounts. Preformance: URD intake, Doug Thorley headers, Flowmaster 40, 2.5 tubing. Interior: Weather techs, LED's, Double DIn, kicker 10" subs, Kicker componet speakers, Exterior: Method wheels with OMF beadlocks, Custom made bumpers, Retro headlights.

I'll take some photos tomorrow of it on the frame, and the engine cage I'm gonna start making.

Last edited: Sep 23, 2013

lilgerber, Sep 12, 2013

#5

Sep 14, 2013 at 2:00 PM

#6

#6
lilgerber [OP] Well-Known Member

Joined:

Nov 23, 2008

Member:

#10974

Messages:

512

Gender:

Male

First Name:

Aaron

Fresno, CA

Vehicle:

06 4x4 off road Speedway blue

Front: Total Chaos 3.5 4x4 LT kit, Engage off-road one piece hood, Caged front end, TC gussets. Rear: Fiberworks fenders, King 14" 3.0 triple bypasses, boxed/braced frame, extended brake lines, 63" chevy leaf springs, U bolt flip kit, TC lower shock mounts. Preformance: URD intake, Doug Thorley headers, Flowmaster 40, 2.5 tubing. Interior: Weather techs, LED's, Double DIn, kicker 10" subs, Kicker componet speakers, Exterior: Method wheels with OMF beadlocks, Custom made bumpers, Retro headlights.

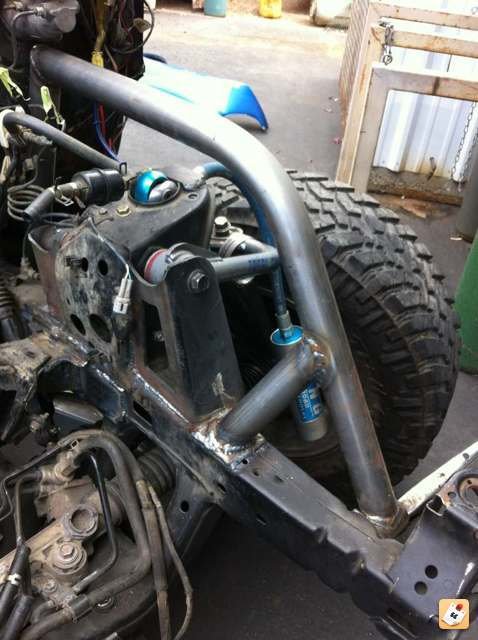

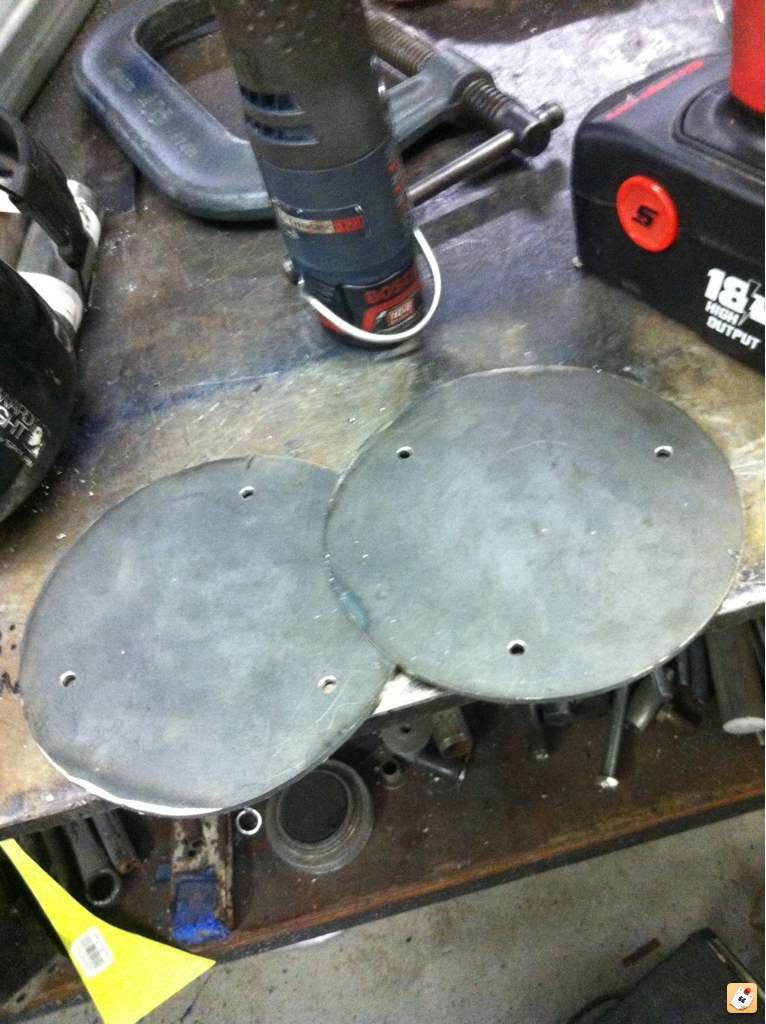

In the process of making some secondary shock hoops.

lilgerber, Sep 14, 2013

#6

Sep 21, 2013 at 3:43 PM

#7

#7
lilgerber [OP] Well-Known Member

Joined:

Nov 23, 2008

Member:

#10974

Messages:

512

Gender:

Male

First Name:

Aaron

Fresno, CA

Vehicle:

06 4x4 off road Speedway blue

Front: Total Chaos 3.5 4x4 LT kit, Engage off-road one piece hood, Caged front end, TC gussets. Rear: Fiberworks fenders, King 14" 3.0 triple bypasses, boxed/braced frame, extended brake lines, 63" chevy leaf springs, U bolt flip kit, TC lower shock mounts. Preformance: URD intake, Doug Thorley headers, Flowmaster 40, 2.5 tubing. Interior: Weather techs, LED's, Double DIn, kicker 10" subs, Kicker componet speakers, Exterior: Method wheels with OMF beadlocks, Custom made bumpers, Retro headlights.

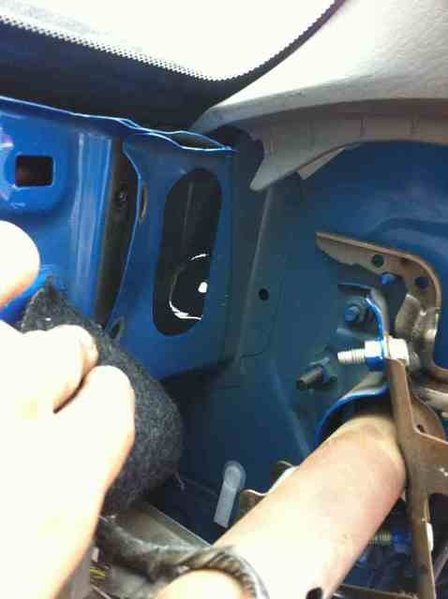

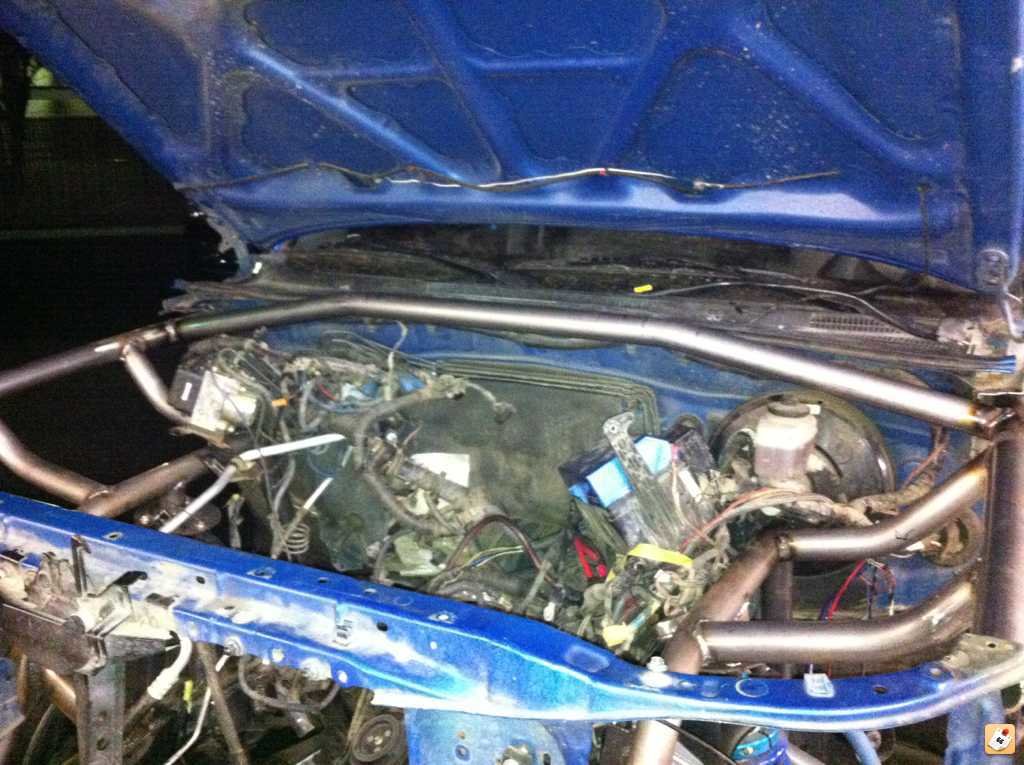

Today's work :

lilgerber, Sep 21, 2013

#7

Sep 23, 2013 at 11:23 AM

#8

#8
DTFtacoma Dezert Toy Fabrication Vendor

Joined:

Mar 5, 2009

Member:

#14364

Messages:

6,951

Gender:

Male

First Name:

Anthony

Santa Maria, CA

Vehicle:

06 PreRunner D-cab

DTF LT front & rear

looking good!

DTFtacoma, Sep 23, 2013

#8

Sep 25, 2013 at 10:55 PM

#9

#9
lilgerber [OP] Well-Known Member

Joined:

Nov 23, 2008

Member:

#10974

Messages:

512

Gender:

Male

First Name:

Aaron

Fresno, CA

Vehicle:

06 4x4 off road Speedway blue

Front: Total Chaos 3.5 4x4 LT kit, Engage off-road one piece hood, Caged front end, TC gussets. Rear: Fiberworks fenders, King 14" 3.0 triple bypasses, boxed/braced frame, extended brake lines, 63" chevy leaf springs, U bolt flip kit, TC lower shock mounts. Preformance: URD intake, Doug Thorley headers, Flowmaster 40, 2.5 tubing. Interior: Weather techs, LED's, Double DIn, kicker 10" subs, Kicker componet speakers, Exterior: Method wheels with OMF beadlocks, Custom made bumpers, Retro headlights.

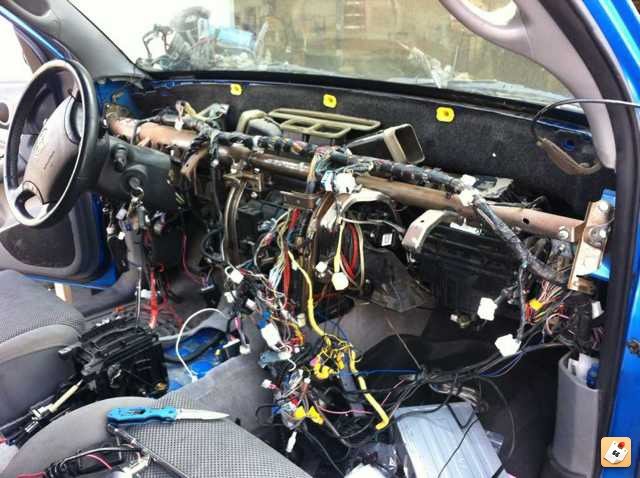

lilgerber, Sep 25, 2013

#9

Sep 27, 2013 at 9:23 AM

#10

#10
DTFtacoma Dezert Toy Fabrication Vendor

Joined:

Mar 5, 2009

Member:

#14364

Messages:

6,951

Gender:

Male

First Name:

Anthony

Santa Maria, CA

Vehicle:

06 PreRunner D-cab

DTF LT front & rear

So your going full cage?

If not you should keep out of the cab.

DTFtacoma, Sep 27, 2013

#10

Nov 18, 2013 at 9:58 PM

#11

#11
lilgerber [OP] Well-Known Member

Joined:

Nov 23, 2008

Member:

#10974

Messages:

512

Gender:

Male

First Name:

Aaron

Fresno, CA

Vehicle:

06 4x4 off road Speedway blue

Front: Total Chaos 3.5 4x4 LT kit, Engage off-road one piece hood, Caged front end, TC gussets. Rear: Fiberworks fenders, King 14" 3.0 triple bypasses, boxed/braced frame, extended brake lines, 63" chevy leaf springs, U bolt flip kit, TC lower shock mounts. Preformance: URD intake, Doug Thorley headers, Flowmaster 40, 2.5 tubing. Interior: Weather techs, LED's, Double DIn, kicker 10" subs, Kicker componet speakers, Exterior: Method wheels with OMF beadlocks, Custom made bumpers, Retro headlights.

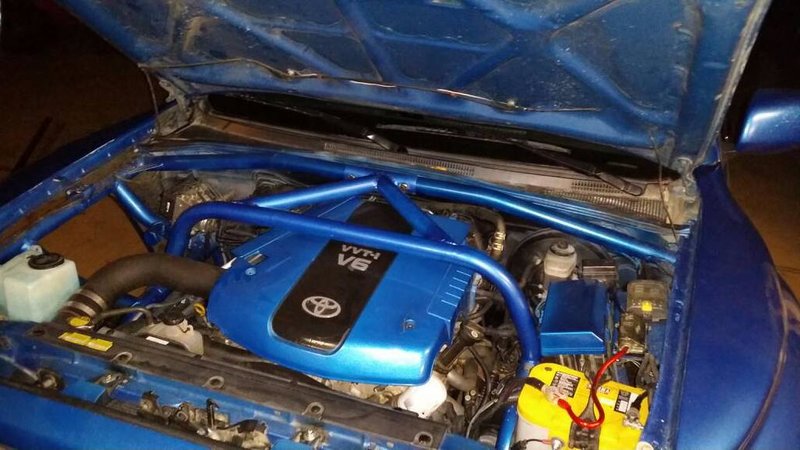

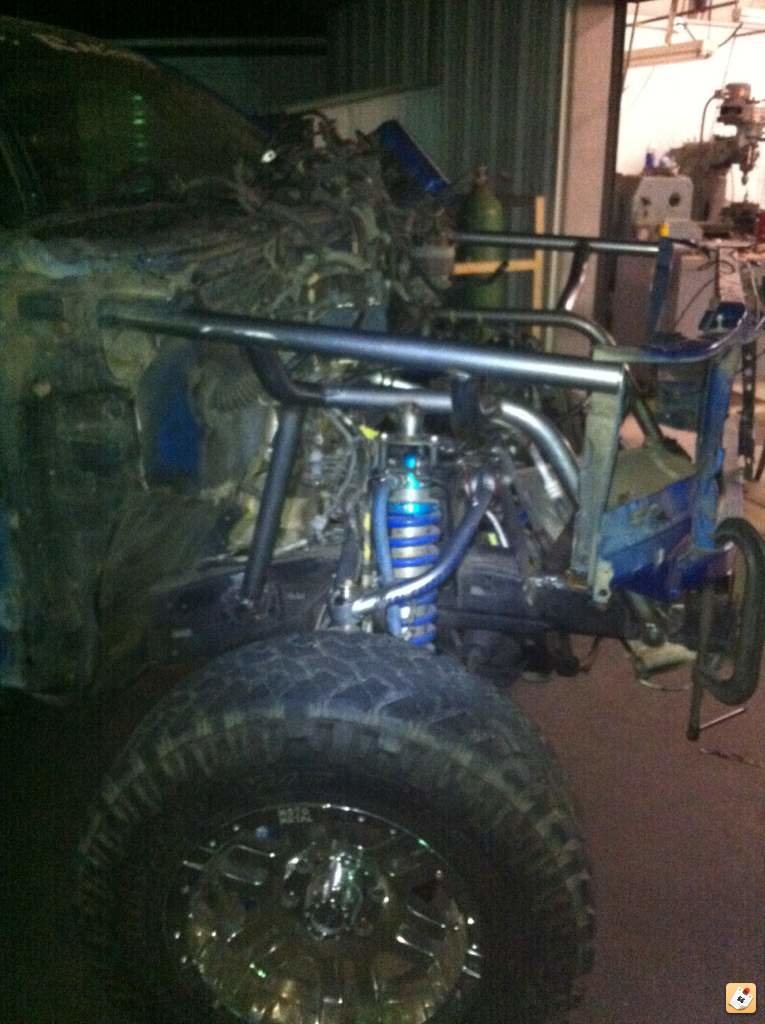

Summer I'm gonna tie into cab hopefully. It's Done I Just NEED To Snap Some Pictures And Post them.

lilgerber, Nov 18, 2013

#11

Nov 28, 2013 at 12:10 AM

#12

#12
lilgerber [OP] Well-Known Member

Joined:

Nov 23, 2008

Member:

#10974

Messages:

512

Gender:

Male

First Name:

Aaron

Fresno, CA

Vehicle:

06 4x4 off road Speedway blue

Front: Total Chaos 3.5 4x4 LT kit, Engage off-road one piece hood, Caged front end, TC gussets. Rear: Fiberworks fenders, King 14" 3.0 triple bypasses, boxed/braced frame, extended brake lines, 63" chevy leaf springs, U bolt flip kit, TC lower shock mounts. Preformance: URD intake, Doug Thorley headers, Flowmaster 40, 2.5 tubing. Interior: Weather techs, LED's, Double DIn, kicker 10" subs, Kicker componet speakers, Exterior: Method wheels with OMF beadlocks, Custom made bumpers, Retro headlights.

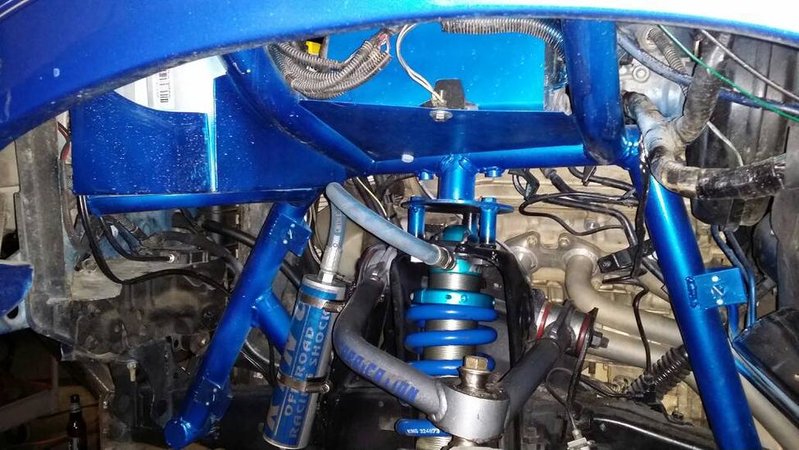

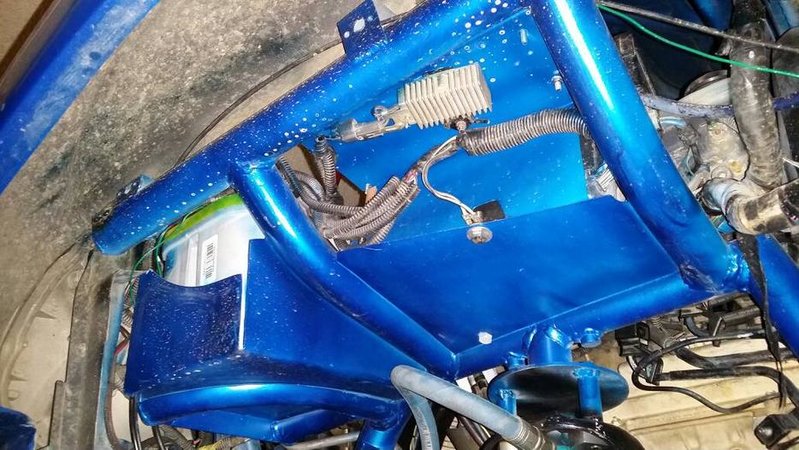

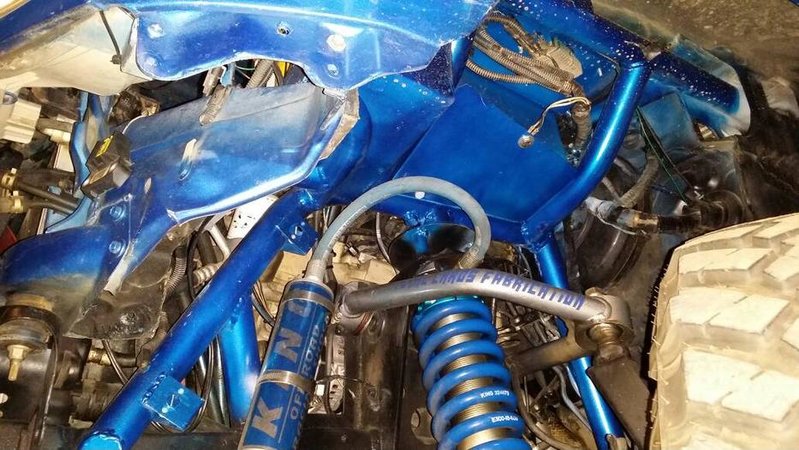

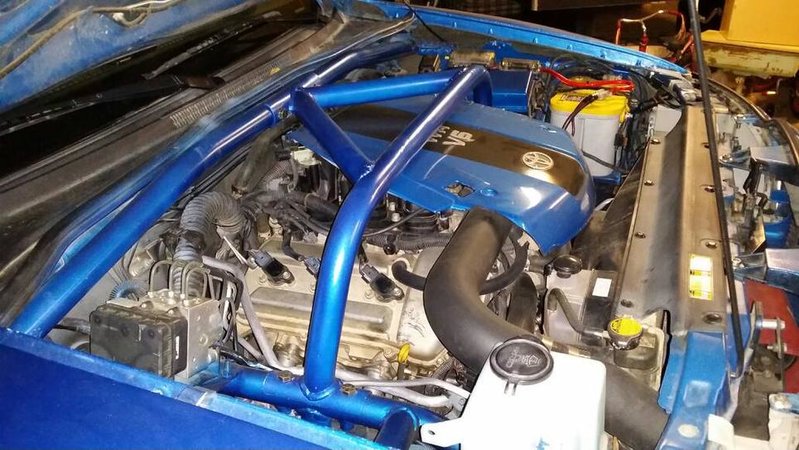

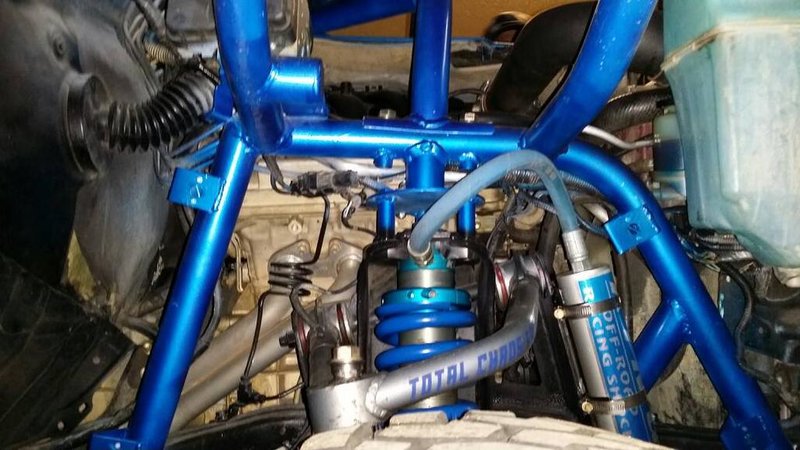

Finally

lilgerber, Nov 28, 2013

#12
